MCE Optibay Alternative CHEAP

Discussion in 'MacBook Pro' started by MacModMachine, Apr 3, 2009.

  1. MacModMachine macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #1
    *** work in progress ***

    This is the future home of the optibay thorough guide.

    First of, your here to add a second SSD/HDD to your notebook computer.

    This article will cover your many issues / install problems / choices to me made.

    1.1 - What laptop have
    1.2 - What options do i have
    1.3 - Installation and Setup
    1.4 - RAID Arrays & Possible Issues
    1.5 - Bootcamp !






    ***********************************************************************
    ** 1.1 - What type of optical bay connector do i have ? **
    ***********************************************************************

    There are 2 types of optical bay connectors you can have in the macbook/macbook pro.

    NON Unibody Macbook pro's have OBHD connectors
    Unibody MacBooks , Macbook Pro's ALL have mini SATA or optical SATA connectors.
    Non unibody MacBooks , Most have OBHD connectors , but 2009 models all seem to have Mini SATA / Optical SATA

    These are your 2 connectors.

    OBHD



    Mini SATA or Optical SATA

    [​IMG]

    The Unibody users can purchase there adapter from this company
    http://www.ayagroup.com/product.php?productid=17773&cat=0&page=1 (Ayagroup) <----- Requires modification
    "http://newmodeus.com/shop/index.php?...roducts_id=220" (Newmodeus) (Thanks BugOut!!) <---- Highly recommended
    The old Optical Drive can be fitted into this (without using a bezel)
    http://www.ayagroup.com/product.php?productid=17499&cat=0&page=1 (Ayagroup) (Thanks BugOut!!) <------- These no longer work.
    Non-Unibody Users can purchase this adapter
    ""

    ***********************************************************************
    ** 1.1 - What options do i have ? **
    ***********************************************************************

    The optibay in the macbook and macbook Pro opens doors for lots of customization such as

    SSD + SSD
    HDD + HDD
    SSD + HDD

    RAID 0 (Stripe for speed)
    RAID 1 (Mirror for redundancy)

    Can my notebook support 12.5MM Drives?

    NON Unibody Macbook : 9.5MM Only
    NON Unibody Macbook pro 15" : 9.5MM Only
    NON Unibody Macbook pro 17" : 9.5MM + 12.5MM
    Unibody Macbook : NO DATA (Believe only 9.5MM)
    Unibody Macbook pro 13" : 9.5MM + 12.MM
    Unibody Macbook pro 15" : 9.5MM + 12.MM
    Unibody Macbook pro 17" : 9.5MM + 12.MM


    hey, here is some pictures on a optibay alternative,

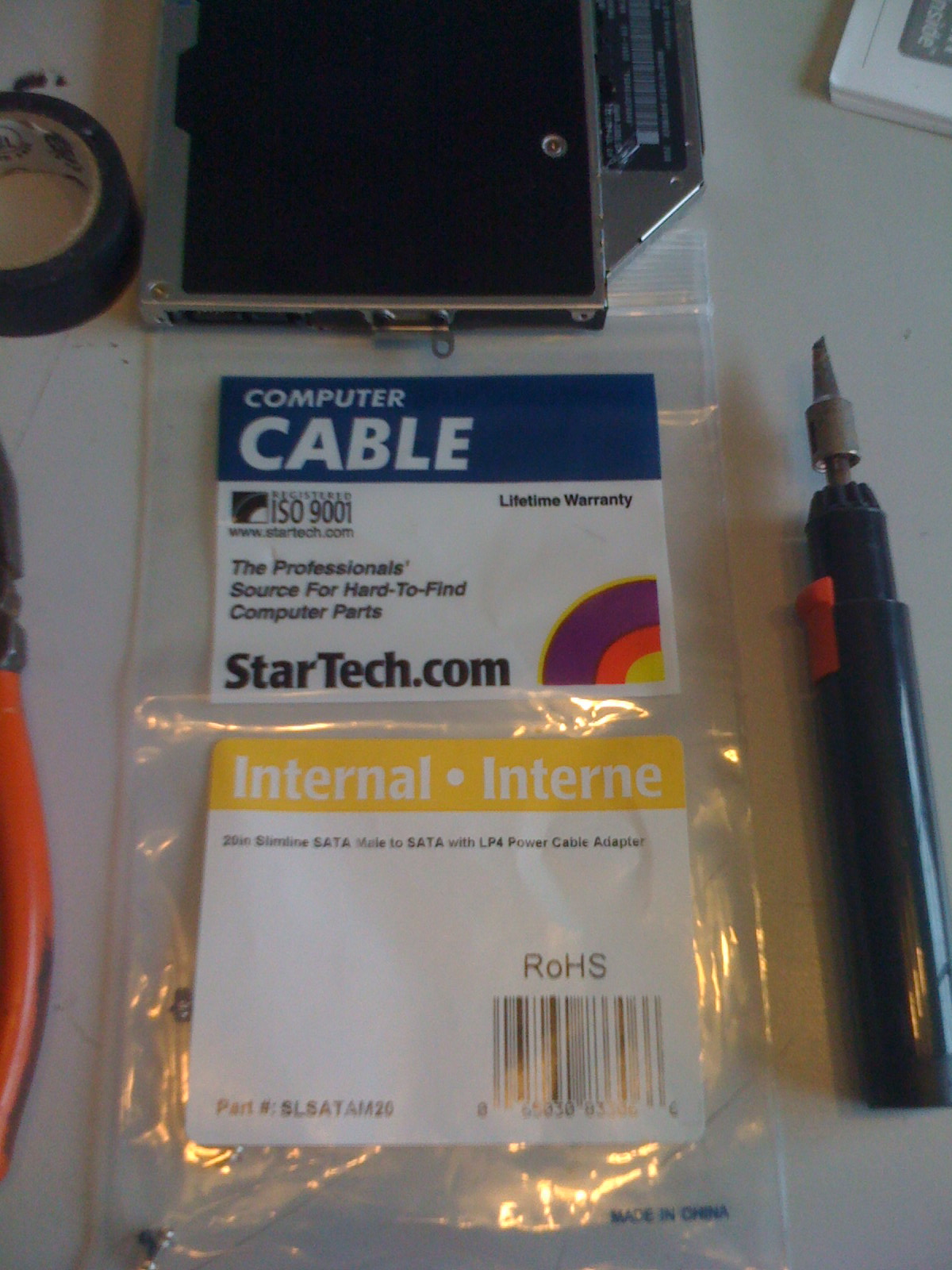

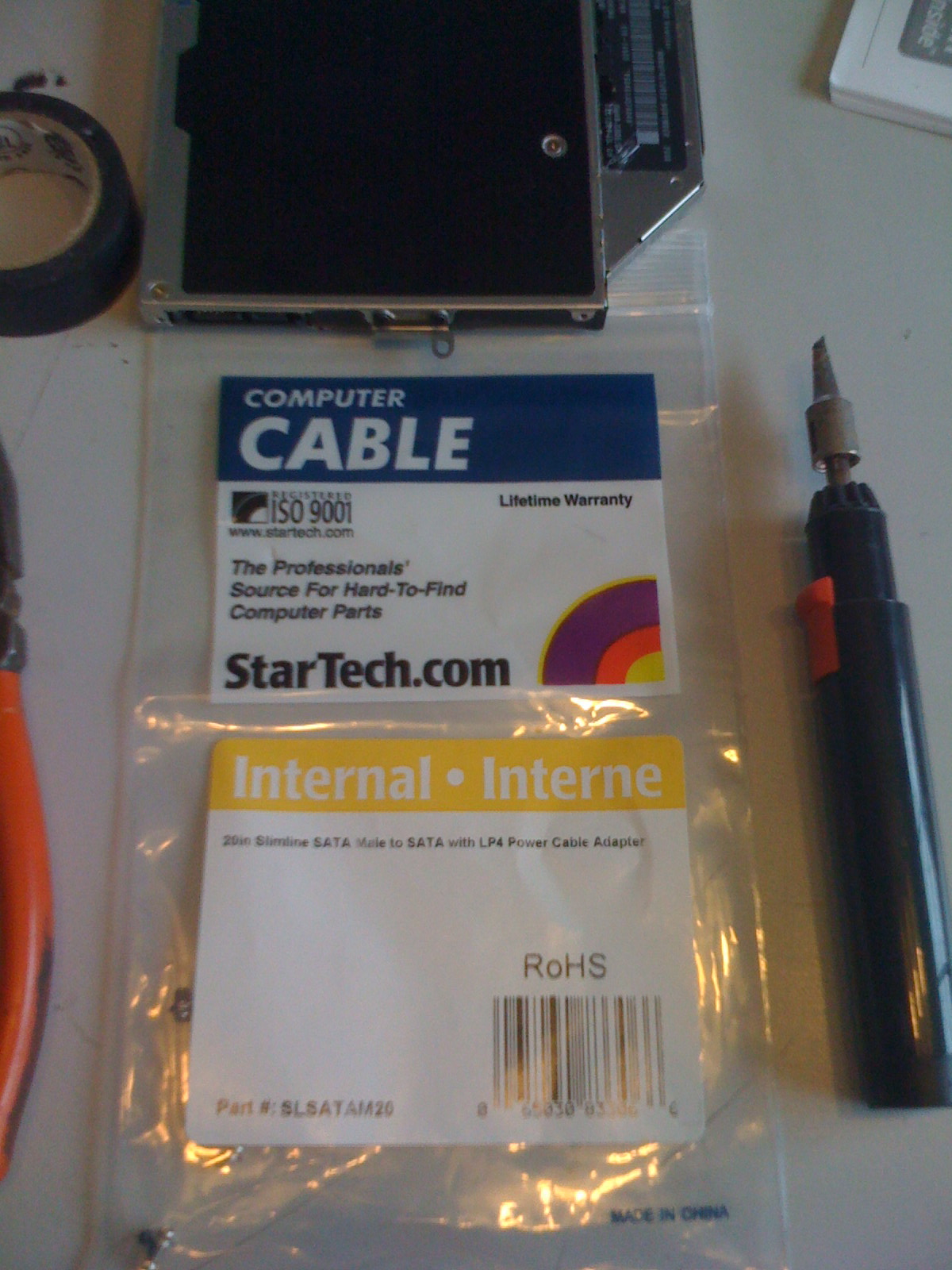

    PART # : SLSATAM20 From Startech.com $9.99 CAD

    pictures pretty much describe the process.


    Attached Files:

  2. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #2
    rest of pics

    more of the pictures


    Attached Files:

  3. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #3
    even more :D

    last pic post promise :D

    so here it goes...

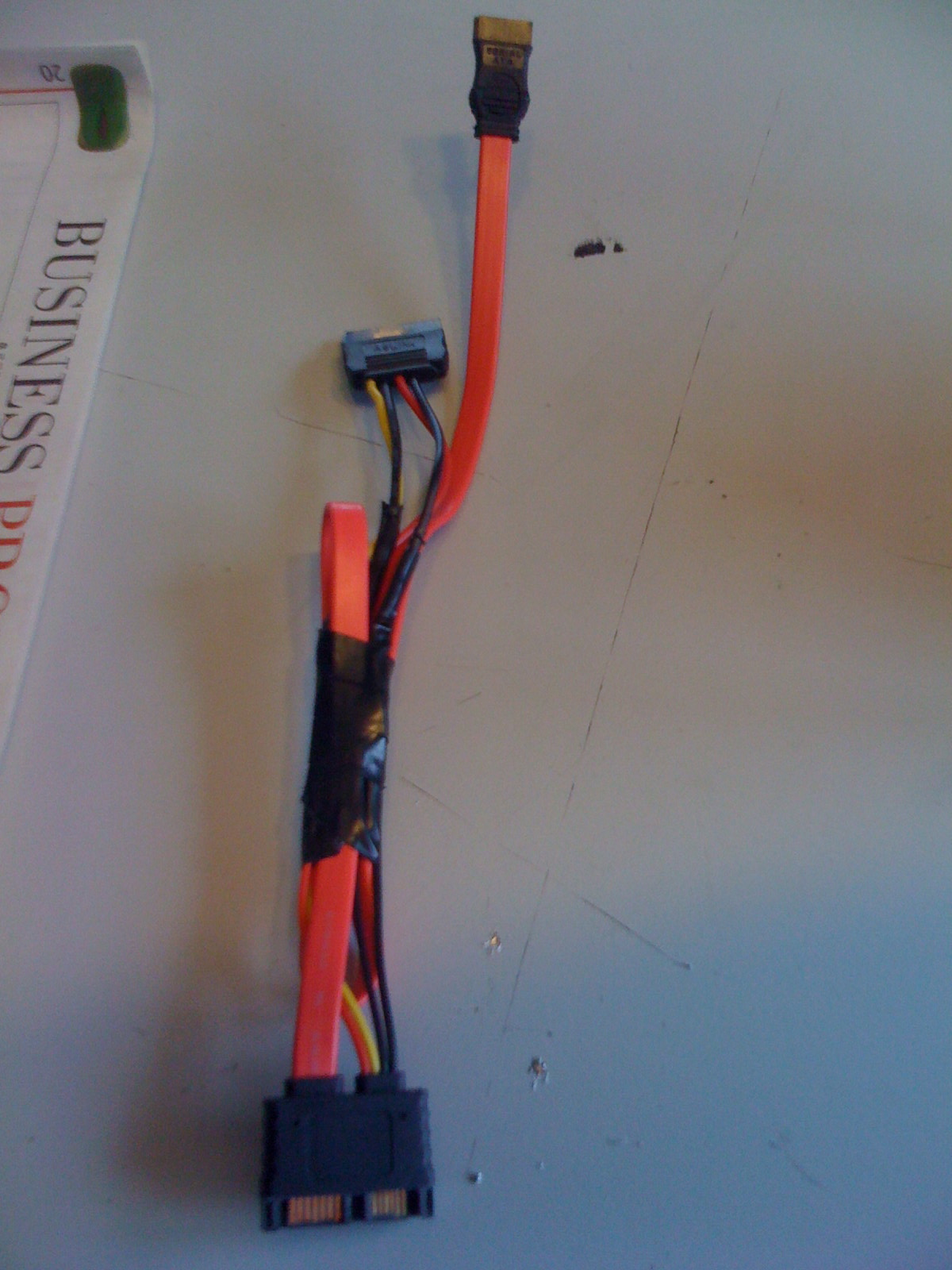

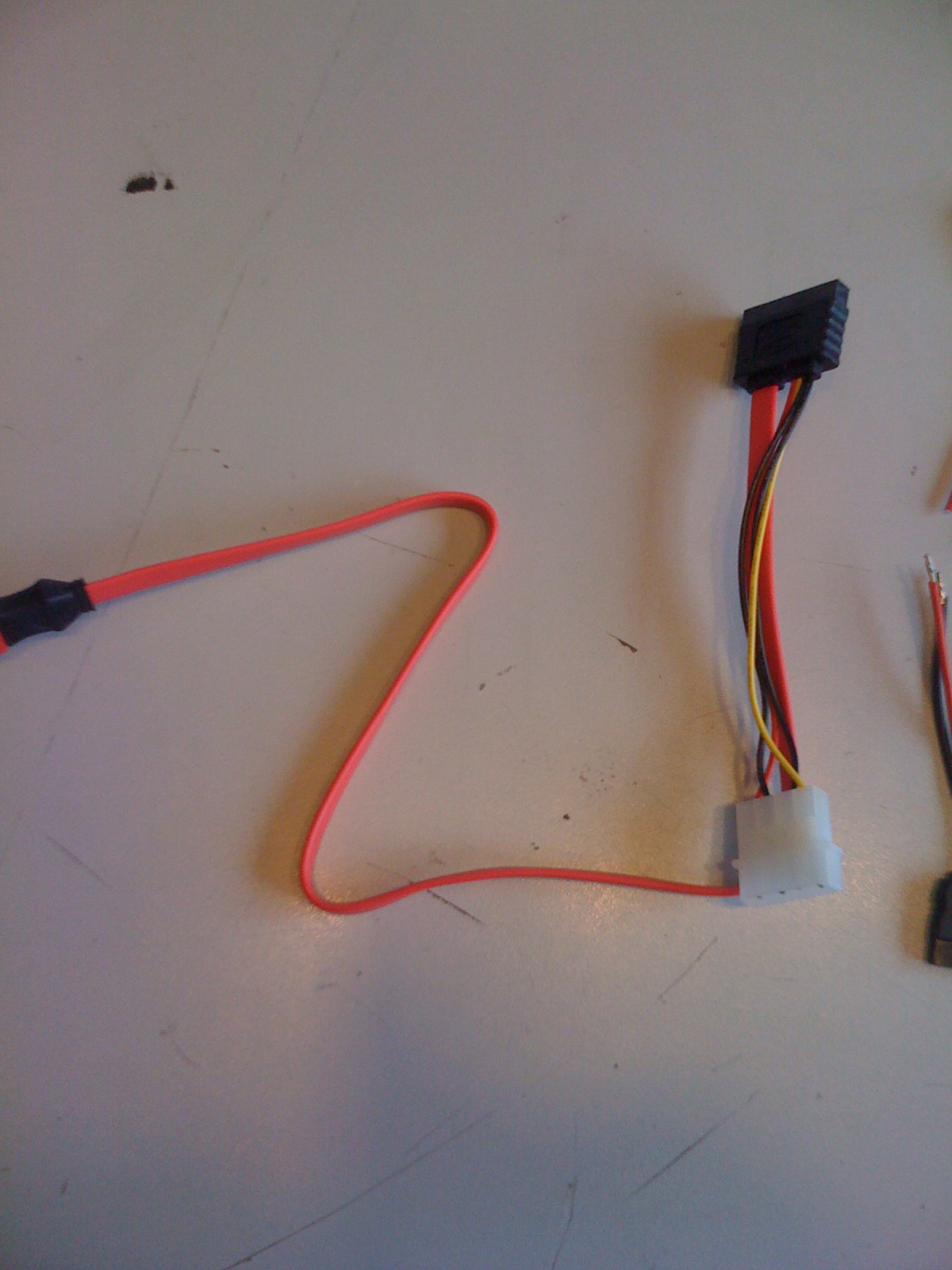

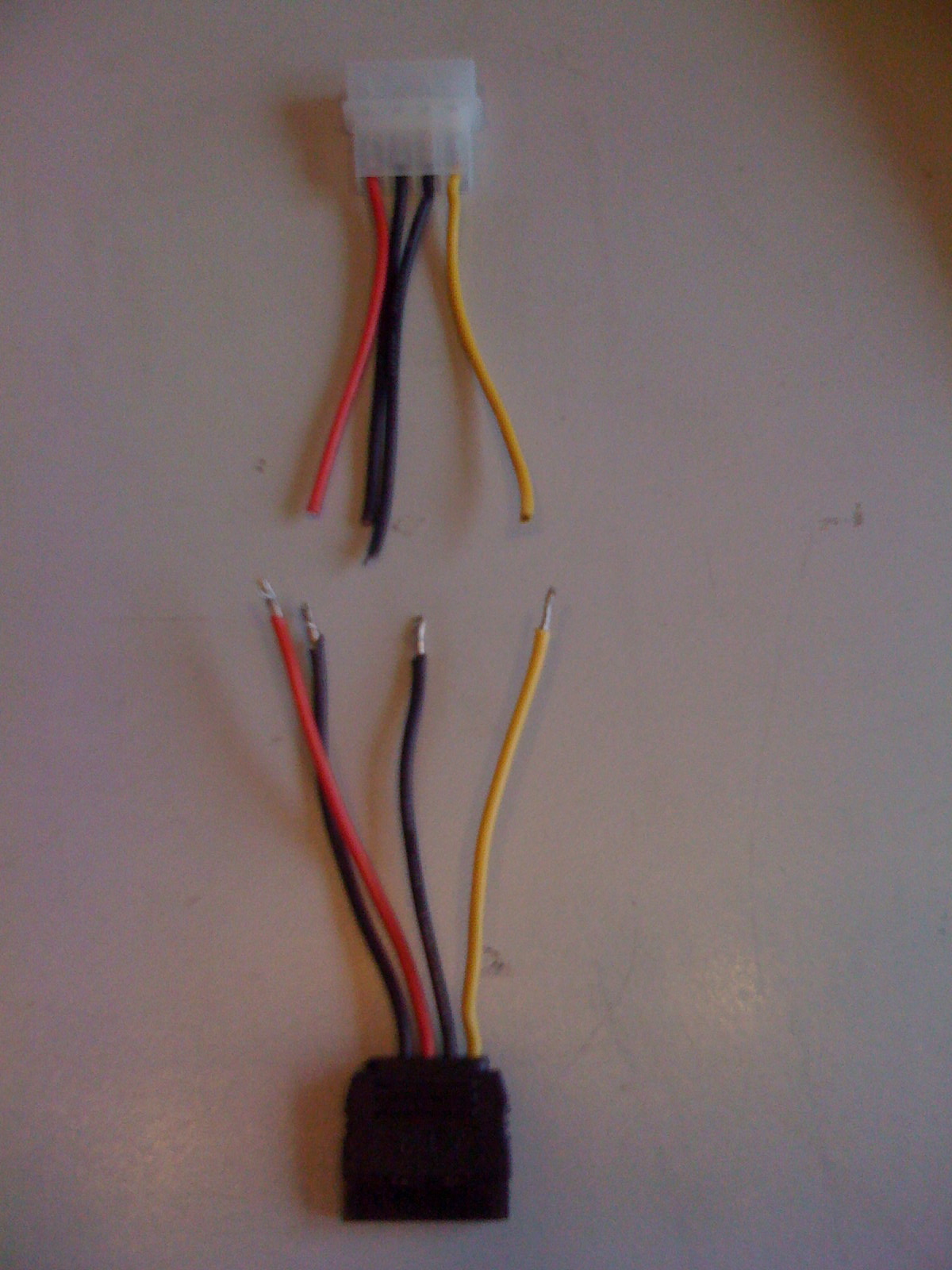

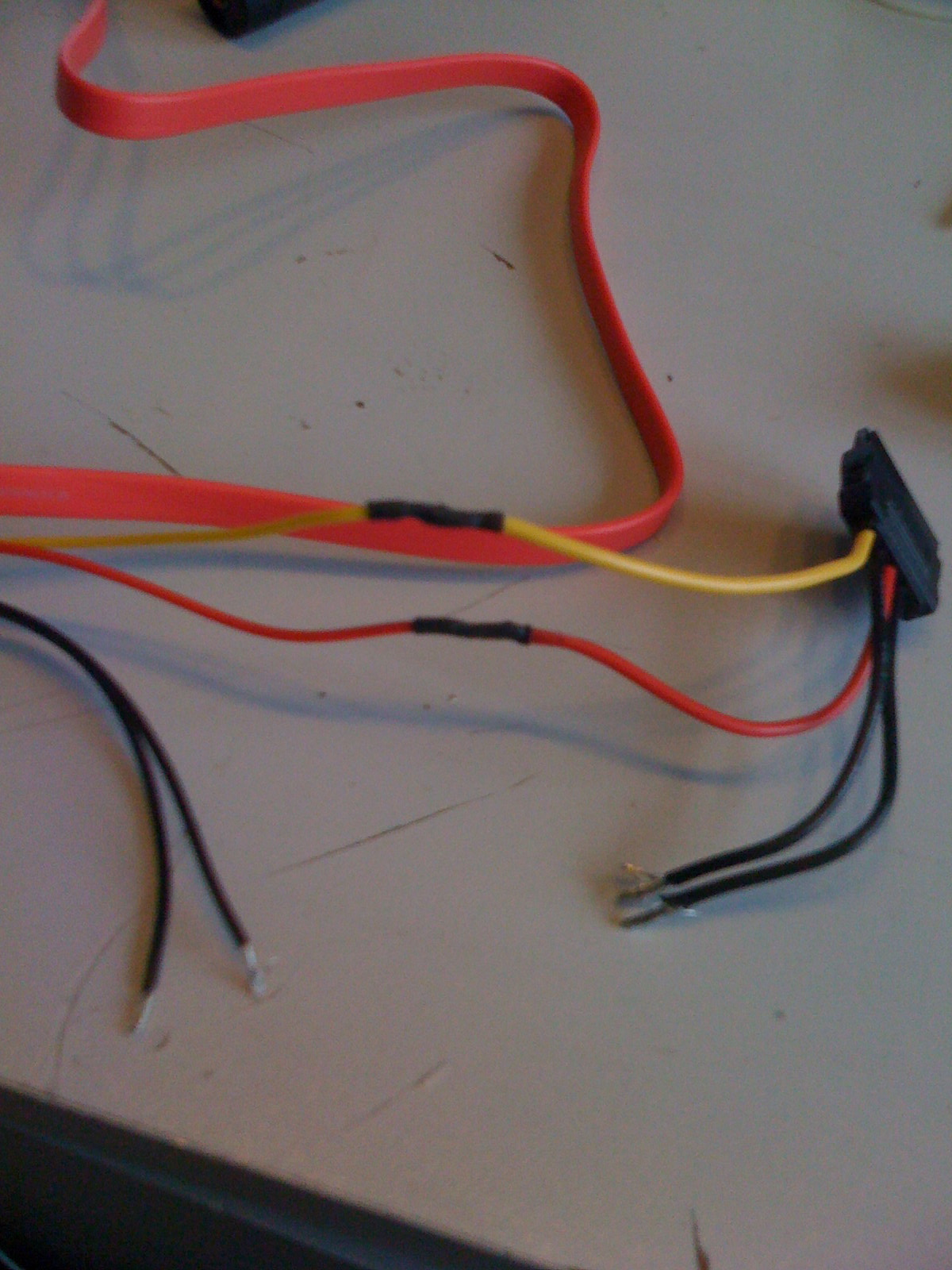

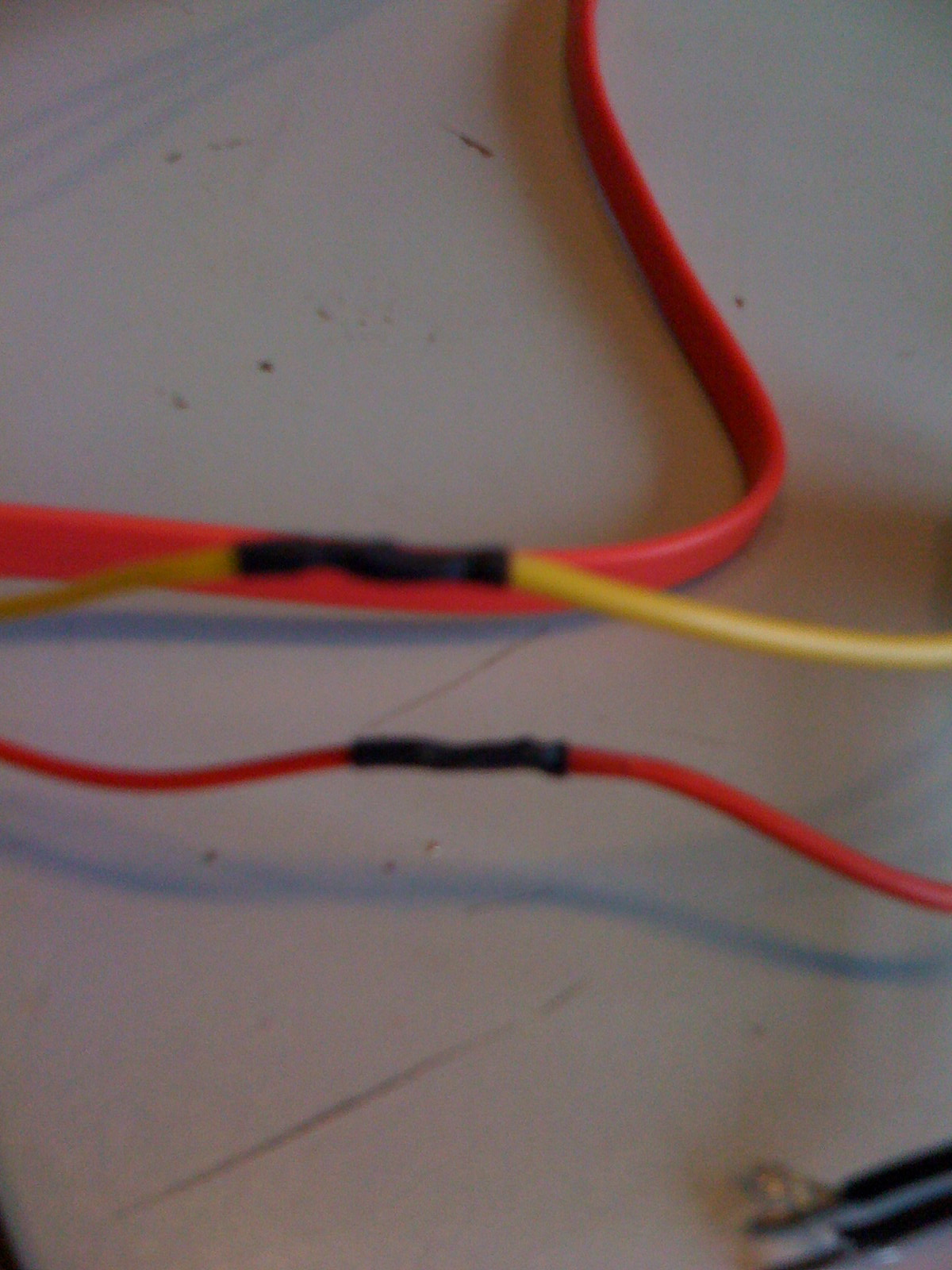

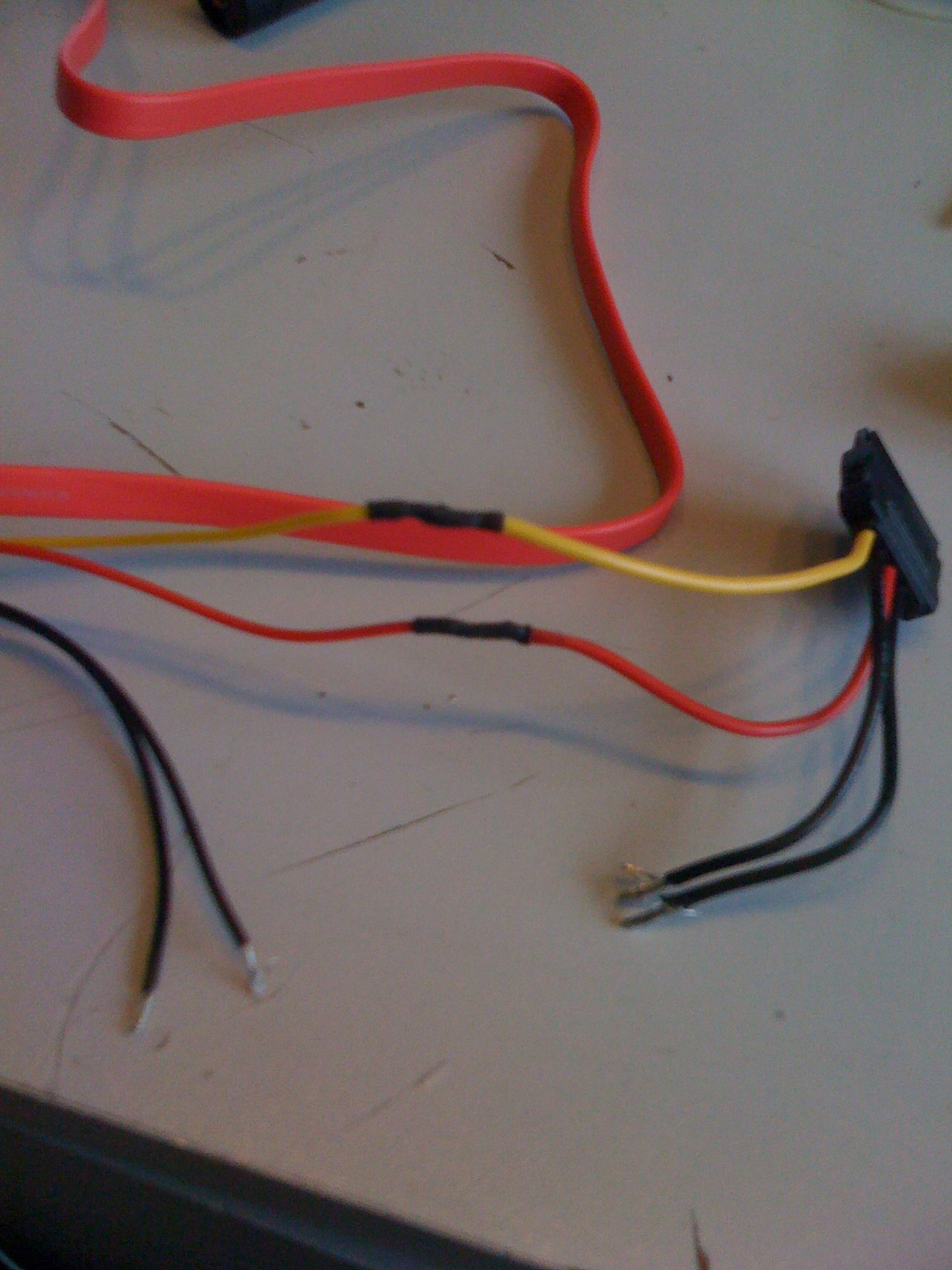

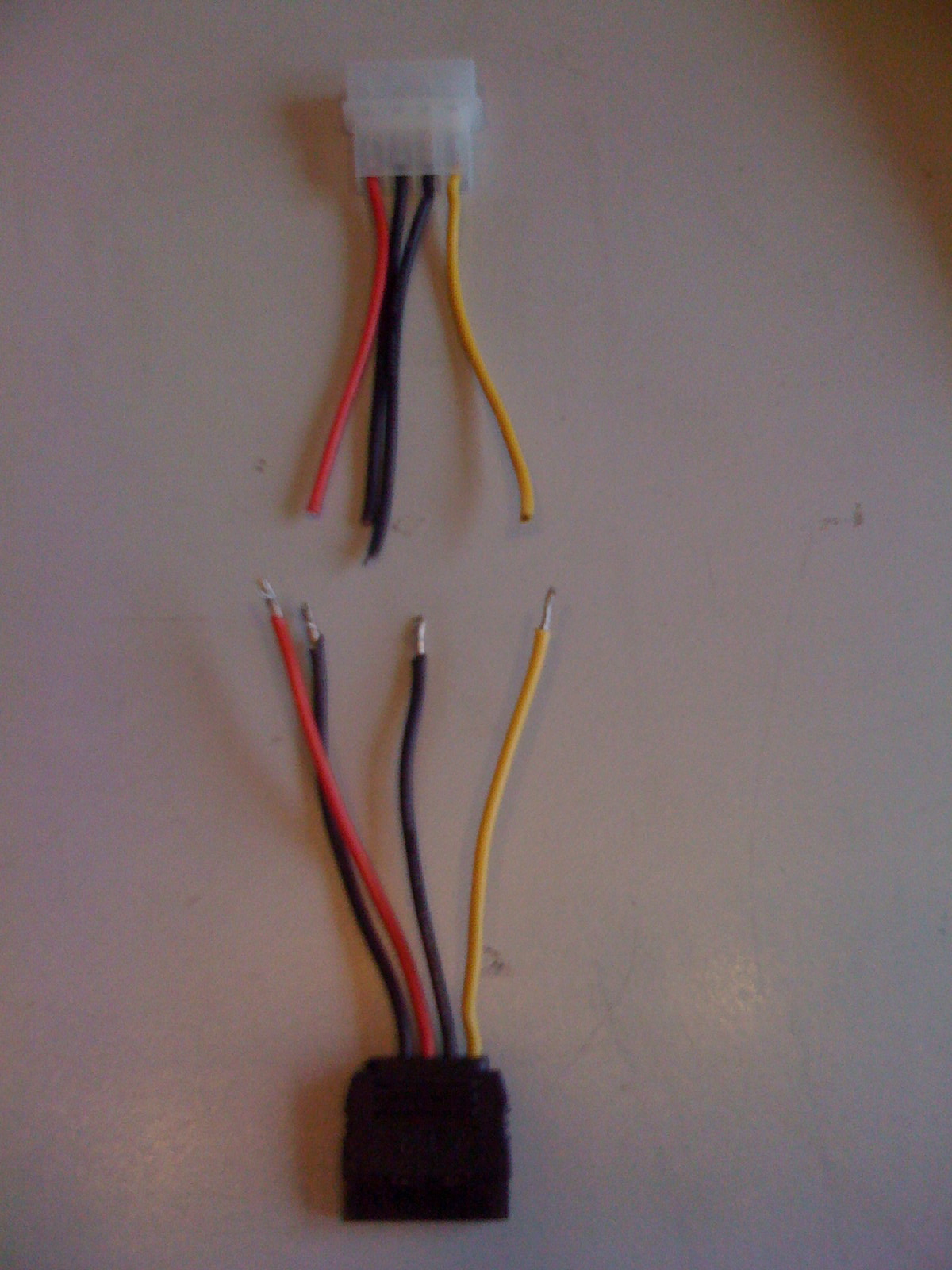

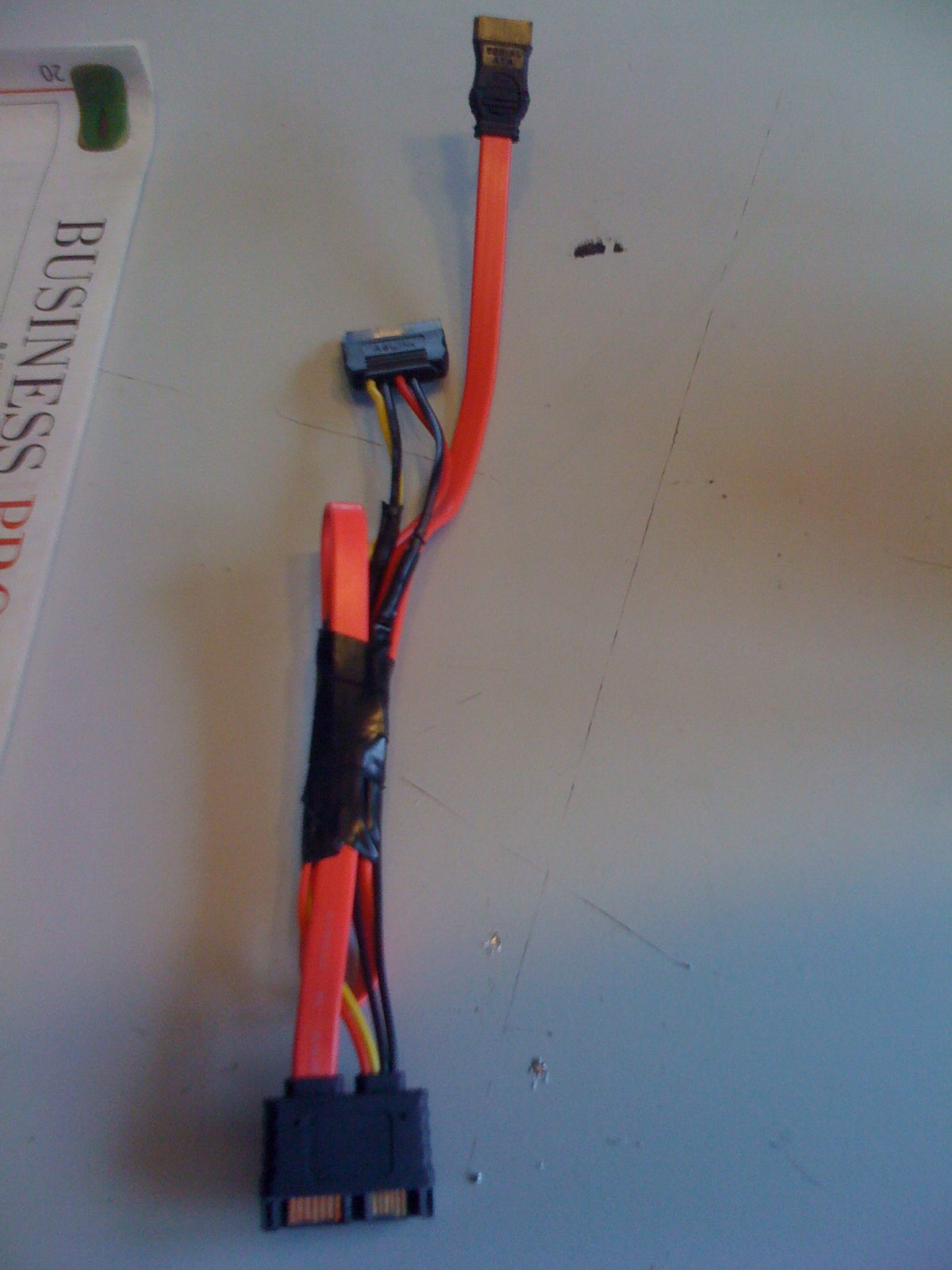

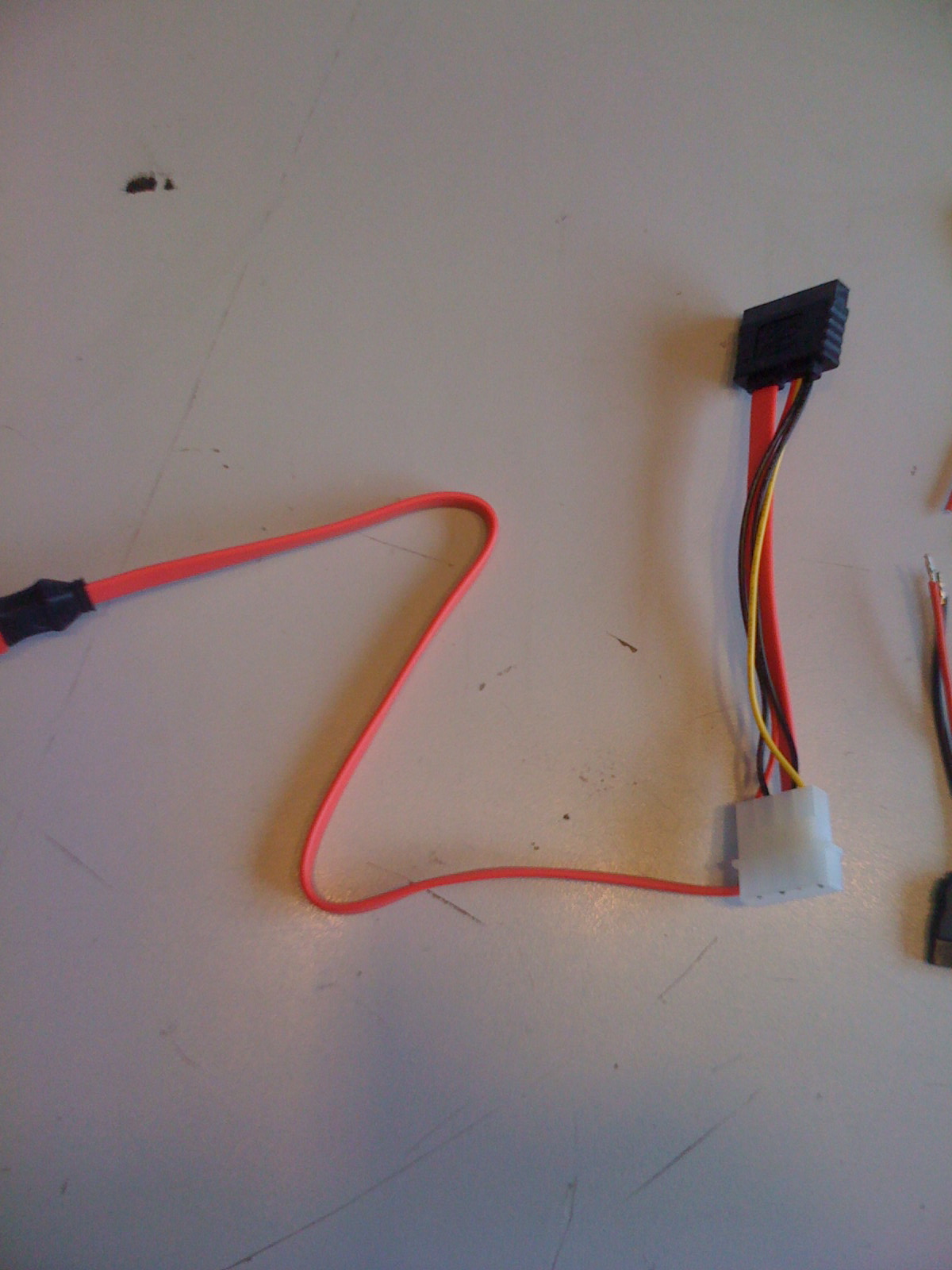

    take a sata to molex connector, cut it off, using startech part slsatam20 cut the molex off it, match colors , black doesent matter. match black to black.

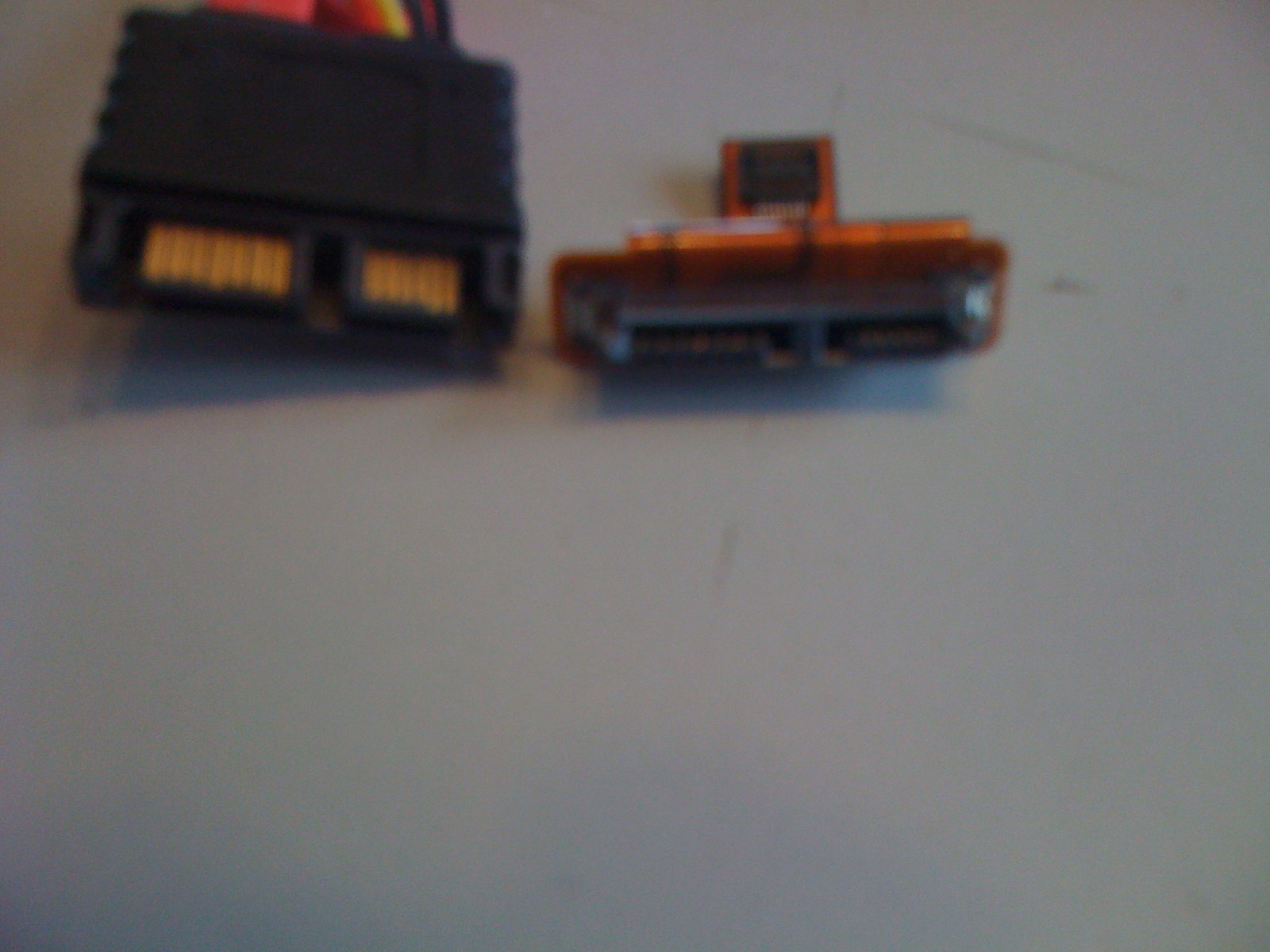

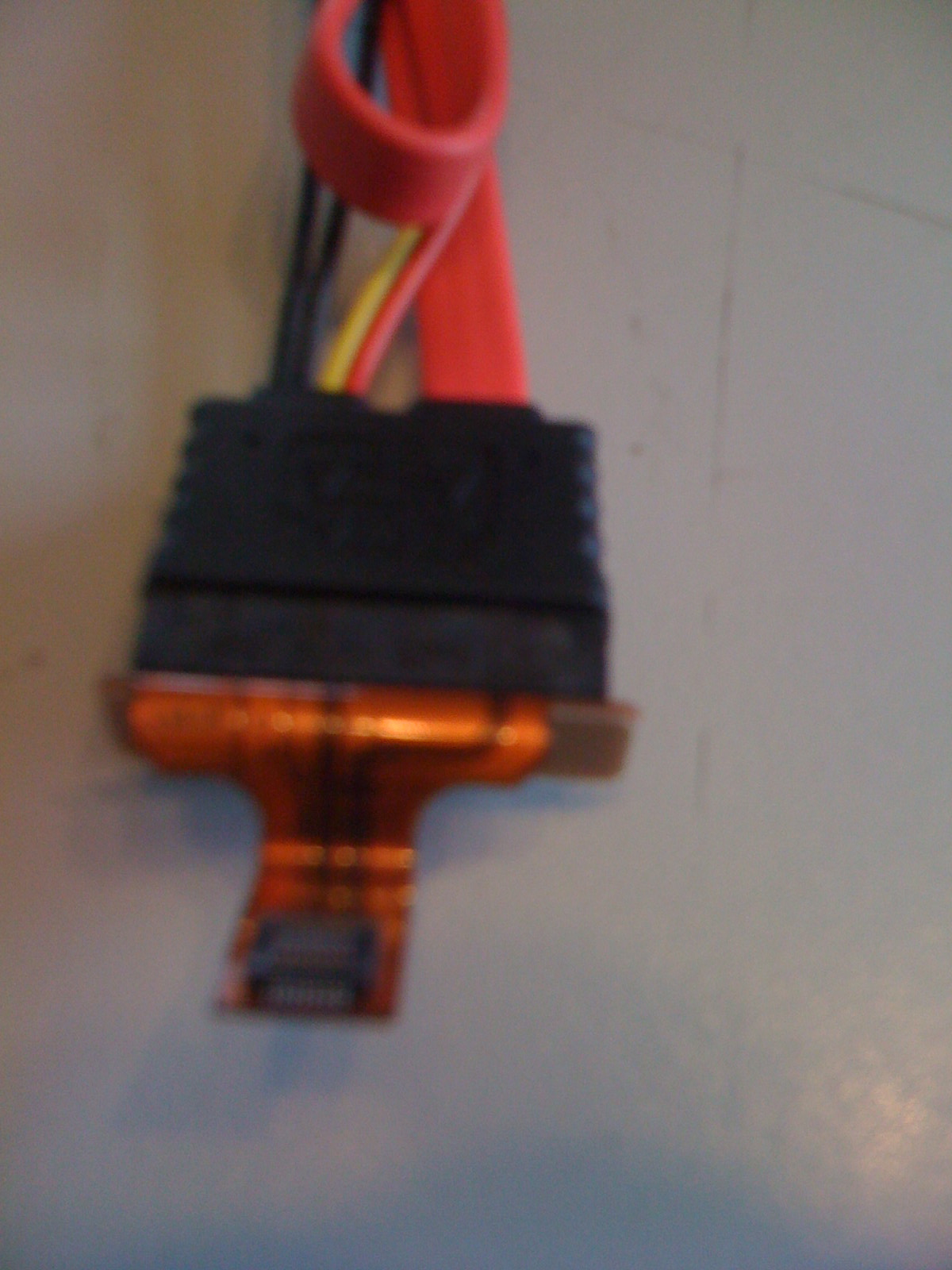

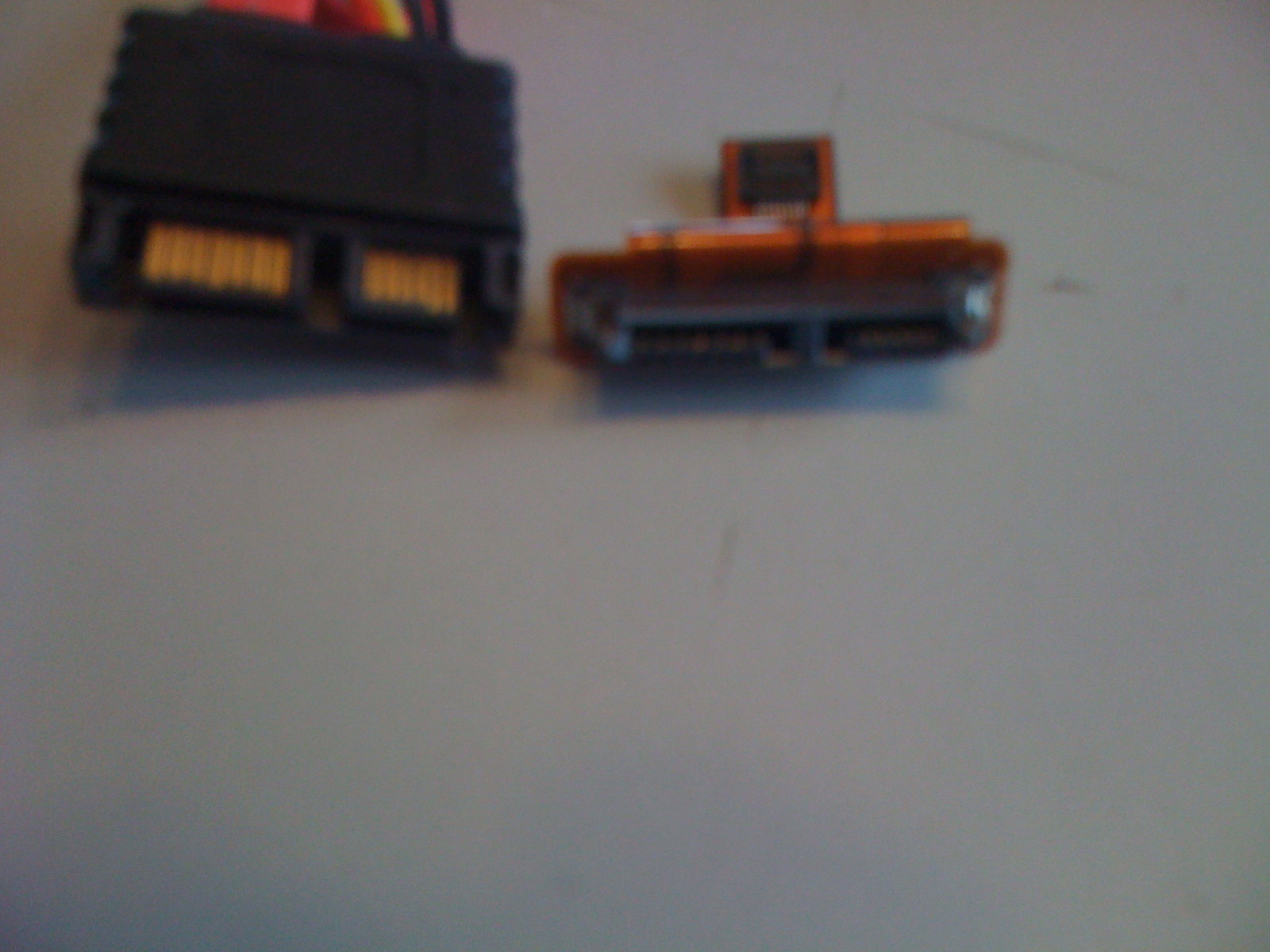

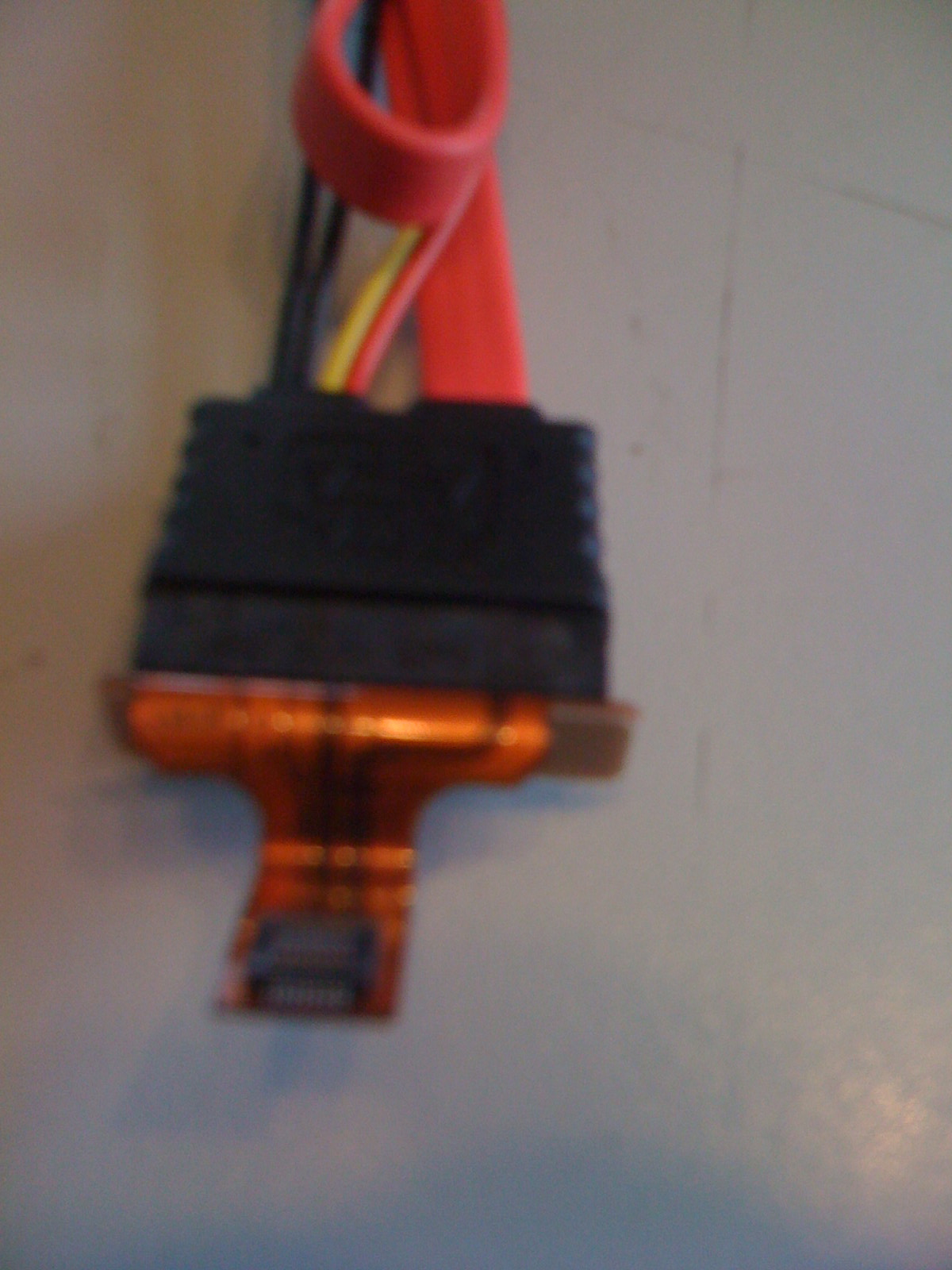

    simply plug it into the hdd or ssd you want to add into the optical bay.

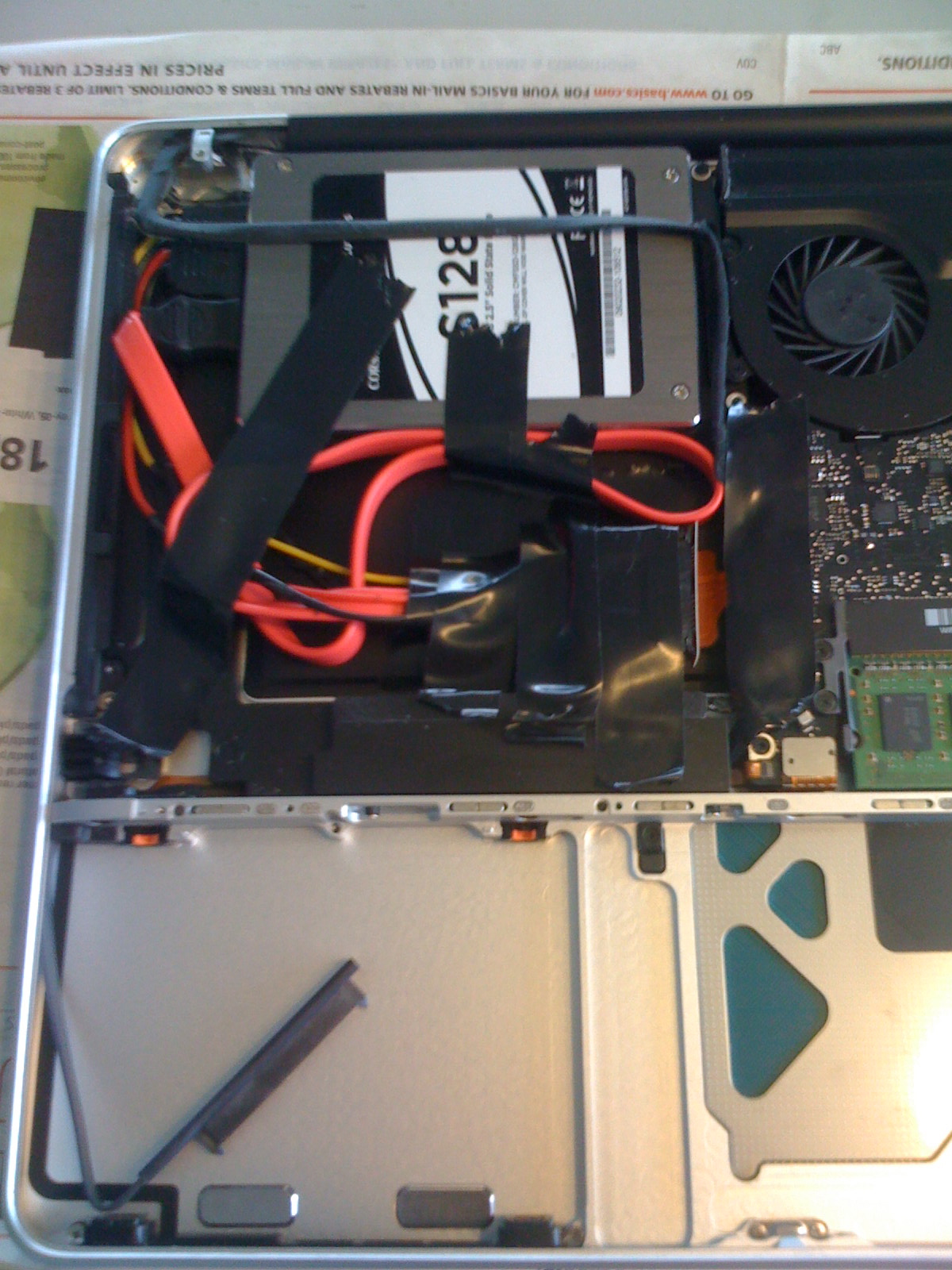

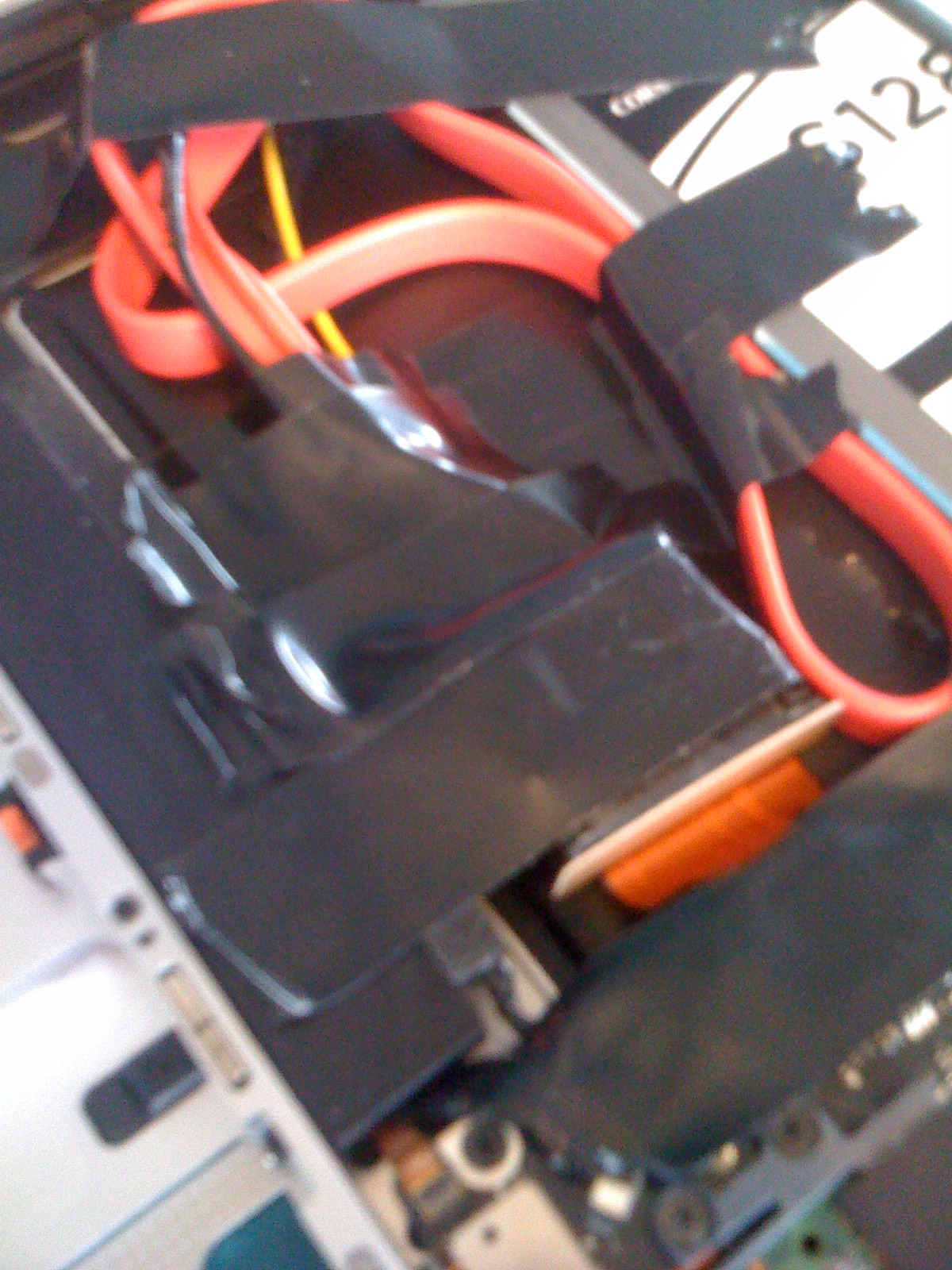

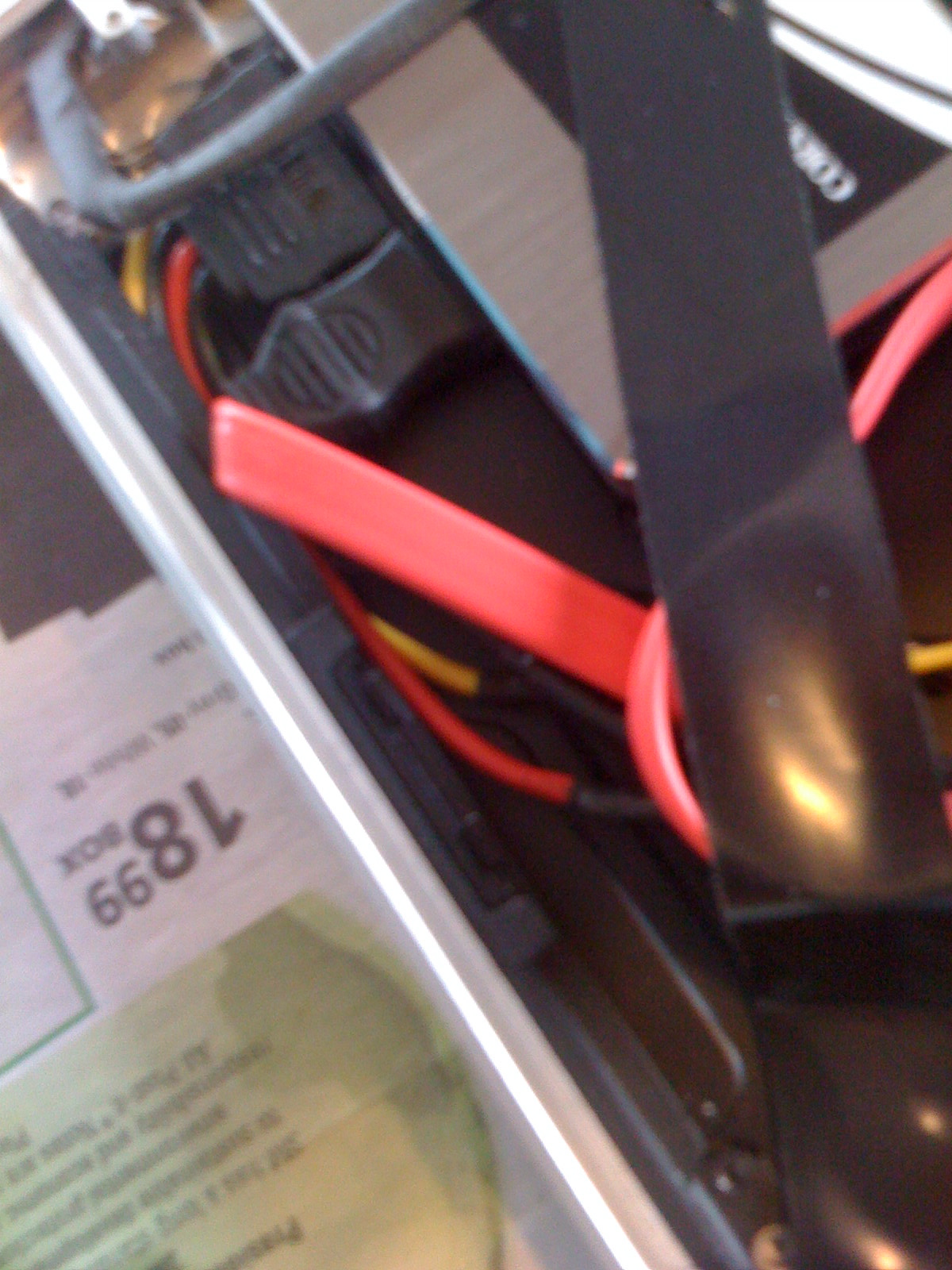

    wedge in the wires :D

    and voila...optibay...less than 15$


    Attached Files:

  4. Eddyisgreat macrumors 601

    Joined:
    Oct 24, 2007
  5. RKpro macrumors 6502

    Joined:
    Oct 27, 2008
    #5
    Interesting, and that mess of excess cables fills in the empty space, so the drive doesn't bounce around inside.

  6. JtheLemur macrumors 6502

    Joined:
    May 13, 2002
    #6
    Unless you have the skills & time to maintain a homebrew install like that…

    You'll be sorry.

  7. Eddyisgreat macrumors 601

    Joined:
    Oct 24, 2007
    #7
    How do you figure? The hardest part would be splicing in the SATA power and maintaining the connection with the original pcb.

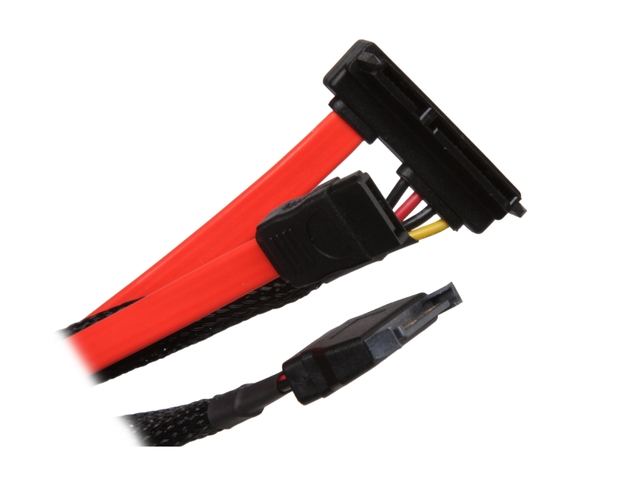

    Something like this could be used if the cable bent well enough without screwing with the shielding, but I don't know if there is enough clearance available in the unibody MBPs and the classic mbps have the extremely thin cables.

    [​IMG]

  8. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #8
    it actually takes little work to do...no work to keep it going.

    its all sandwiched in there.

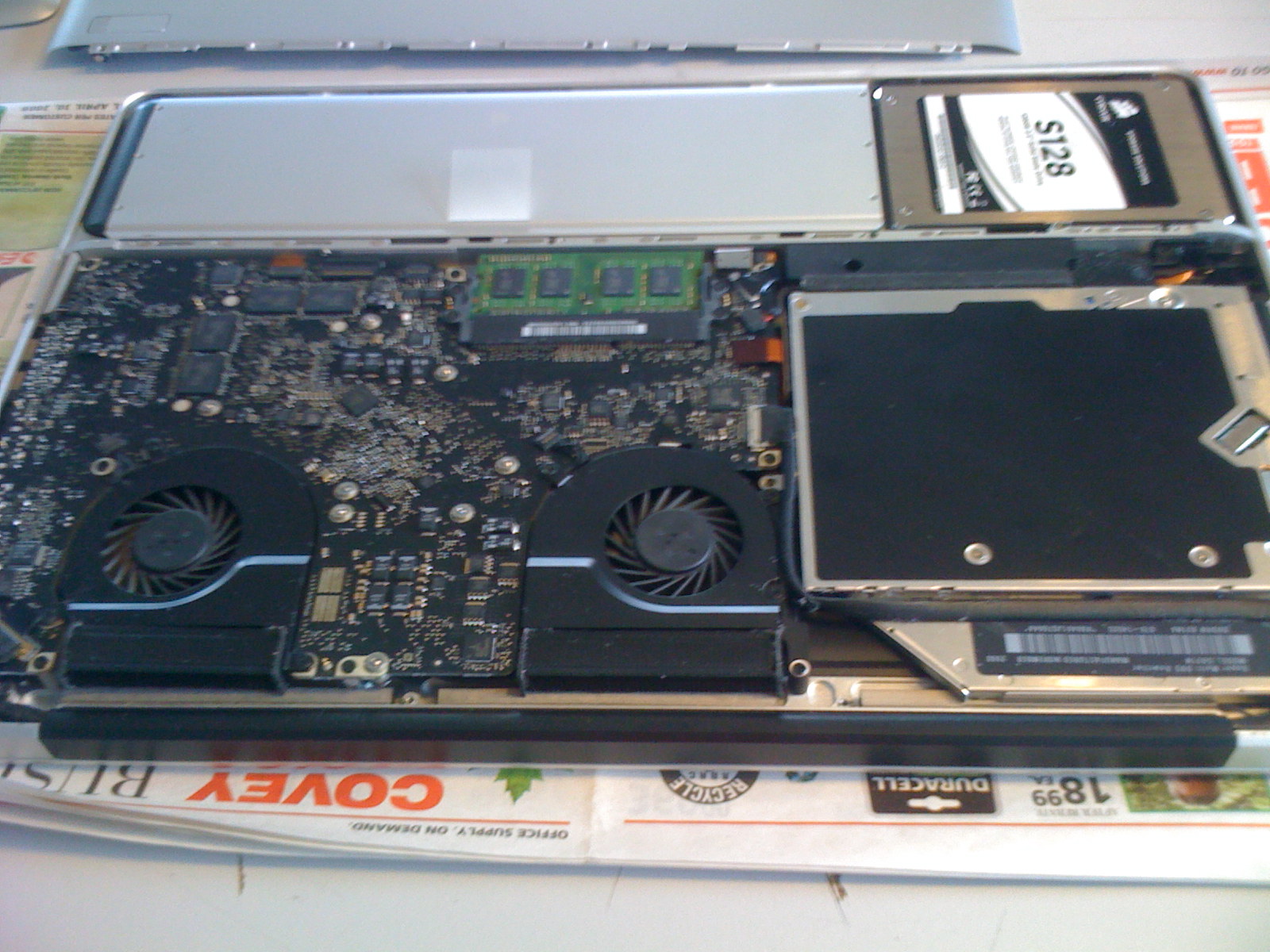

    heat is also not an issue. i have a 500gb and a 120gb ssd, ssd moved to original hd spot and 500gb now in optical bay

    works amazing.

  9. acurafan macrumors 6502a

    Joined:
    Sep 16, 2008
  10. RKpro macrumors 6502

    Joined:
    Oct 27, 2008
    #10
    Just a suggestion... With your configuration, wouldn't it be better it to have 500GB worth of spinning platters in the hard drive bay? and the SSD in the optical drive bay? Because HDs are very sensitive to vibration, the the hard drive bay would protect it much better than being taped into the optical bay.

  11. Abstract macrumors Penryn

    Abstract

    Joined:
    Dec 27, 2002
    Location:
    Location Location Location
    #11
    This solution sounds even better than the Optibay because the drive seems more secure due to the excess cabling, which helps keep the drive in place.


    Some people will always be against home-made solutions if the retail solution is prettier. It doesn't need to be better, as long as it's more organised.

  12. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #12
    hey,

    the 500gb you would normally want in the hdd bay...but it is not my boot drive thus must be in the optibay,

    the mac wont boot from the optibay "automatically"...unless there is somthing i am doing wrong.

    maybe someone can help me with this solution

  13. koobcamuk macrumors 68040

    koobcamuk

    Joined:
    Oct 23, 2006
    #13
    I don't suppose you would make me one of those cables for a fee?

    Thanks

  14. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #14
    $25 cad, just to cover costs, and whatever shipping is wherever you are.

  15. ftored macrumors regular

    ftored

    Joined:
    Dec 29, 2005
    #15
    Nice setup you got there mate.

    Weird though that you can't use the ssd in the dvd position. One would though it would be bootable as normal, beause the dvd drive is..

    +1 for the innovation doing this:D

  16. mrrippey macrumors regular

    Joined:
    Apr 7, 2009
    #16
    very slick +1, you still taking offers to build for people :D

  17. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #17
    there very very simple to build, but i can build you one.

    they rock, so much better than the optibay in my opinion, i can modify they to be small with less cable or with longer cable, you can have better placement in the notebook for ventilation control.

    i am now working on using the old optical bay slot for removing hot air :D with the second drive still installed....you know...like a controllable blower for it :D for those hot days :D

  18. bugout macrumors 6502a

    Joined:
    May 11, 2008
    Location:
    is everything!
    #18
  19. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #19
    extra weight and money for nothing

  20. mrrippey macrumors regular

    Joined:
    Apr 7, 2009
    #20
    the items to reuse the superdrive is pretty cool (last two items) and better than the optibay (if you are alittle handy with things)

  21. bugout macrumors 6502a

    Joined:
    May 11, 2008
    Location:
    is everything!
    #21
    For nothing? I'm not so sure about that..

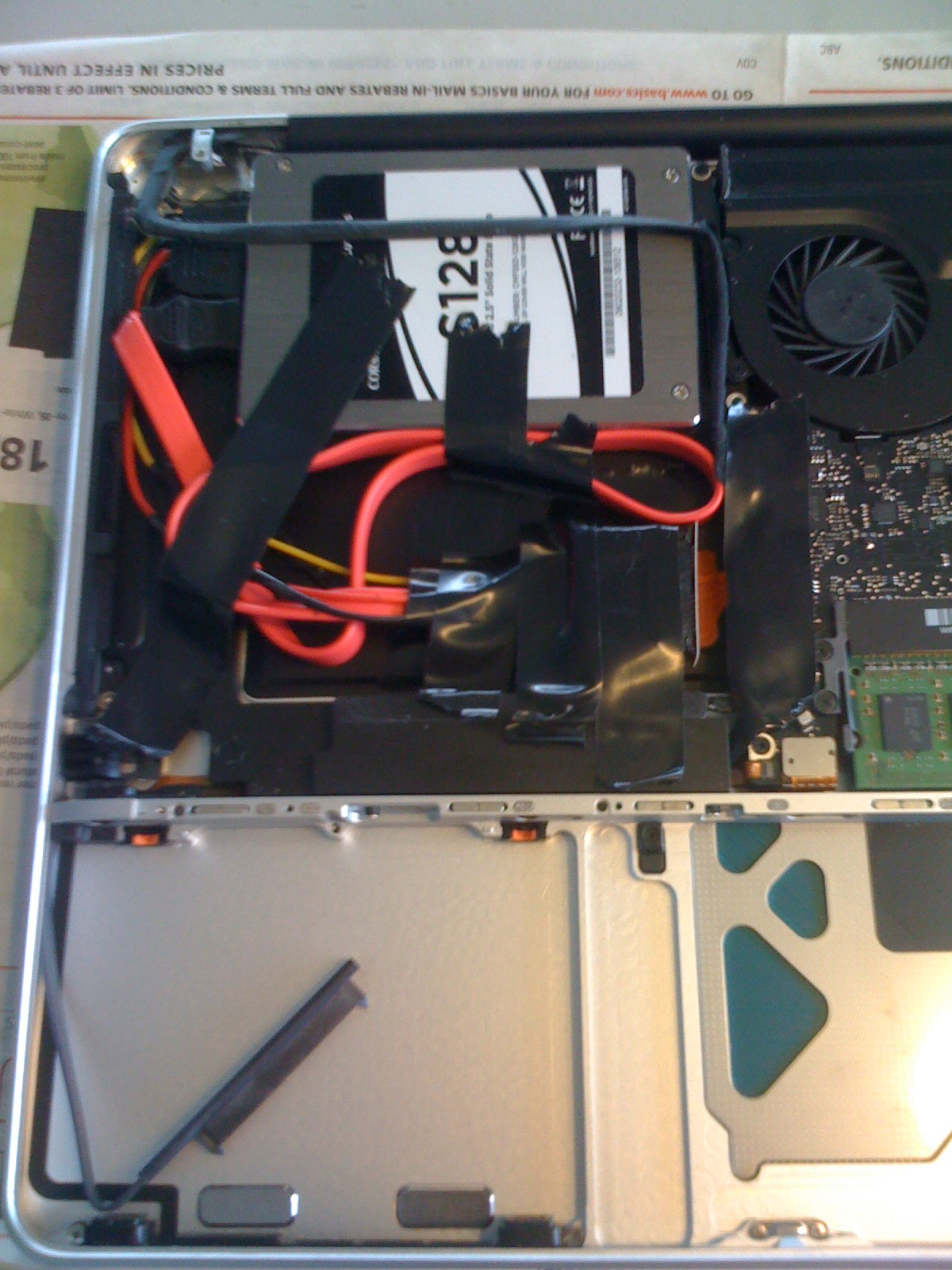

    For $10 you can have your hard drive held in with loose wires and electrical tape like this:
    [​IMG]


    or for $30 more and no extra weight it can be held in like this:
    [​IMG]

    Call me crazy, but on my nearly $4k laptop I'll take option 2.

  22. Eddyisgreat macrumors 601

    Joined:
    Oct 24, 2007
    #22
    Oh come on MacModMachine. Both solutions are functional but its hard to say that the price of the components and the overall look in bugout's solution is anything but muy sexy :D

  23. MacModMachine thread starter macrumors 68020

    MacModMachine

    Joined:
    Apr 3, 2009
    Location:
    Canada
    #23
    well i have lots of money....so i dont really care, i care about out of the box solutions and doing stuff myself.

  24. Warranty Voider macrumors 6502

    Joined:
    Aug 27, 2008
    Location:
    Maine, US
    #24
    I've been thinking about doing this for a while now. I'm probably going DIY it, but if I find a good deal on an Optibay I'll do that instead. And I do agree with bugout. I would rather have a nice clean look, than have a pile of wires laying around held in with electrical tape.

  25. bushman1 macrumors regular

    Joined:
    Jul 28, 2007
    #25
    I believe by can change the start up drive in osx but I am not sure. You would rely want the hdd where it is soposed to be. Can you post liknks for the cable you bought?
