New Tinker Toy: PowerMac G5

Discussion in 'PowerPC Macs' started by SandboxGeneral, Jan 22, 2014.

  1. SandboxGeneral Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #1

    Attached Files:

  2. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #2
    That is one nice looking PowerMac. Sadly, an SSD not going to do you all that much better than a 7200 RPM hard drive due to the SATA I controller. However, if you have one lying around, then give it a go.

  3. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #3
    Is that all this has is SATA I? Bummer.

  4. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #4
    The controller is SATA I. Stay away from SATA III drives and SSDs if possible. Most SATA III SSDs won't run at all, and SATA III hard drives must be jumpered. That being said, SATA II drives are fine. I believe the iMac G5 also is SATA I, so expect similar performance.

  5. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #5
    Thanks. I knew about avoiding SATA III drives on these older Macs and that SSD's would have very limited performance benefits.

    But it's still going to be fun to play with nonetheless.

    I am wondering if the G5 has Bluetooth on it or not. The description doesn't say. If it doesn't have it, can it be added via an add-on card?

  6. MultiFinder17 macrumors 68000

    MultiFinder17

    Joined:
    Jan 8, 2008
    Location:
    Tampa, Florida
    #6
    Do you have a power supply for that Cinema Display? They don't work without one, and the description states that it does not come with one.

  7. trewyn15 macrumors 6502

    Joined:
    May 13, 2013
    #7
    Very nice!! Hopefully you have better luck with shipping than I :D

  8. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #8
    That was one thing I wasn't sure about. I have power cords, but does it also need an external power pack?

  9. g4manimac macrumors 6502

    Joined:
    Jan 22, 2013
    Location:
    Arkansas
    #9
    Ive GOT to get me one of these I have always wanted one and it seems like everyone is getting them for pretty cheap,I forgot to look at my phone and let a darn good one go yesterday it was $75 and free shipping when the bidding ended.I also love the look of those displays what did you end up paying?

  10. jbarley macrumors 68030

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #10
    I've used USB BT dongles such as this one with great success, just make sure the one you order states it is Apple compatible.

  11. grockk macrumors 6502

    grockk

    Joined:
    Mar 16, 2006
    #11

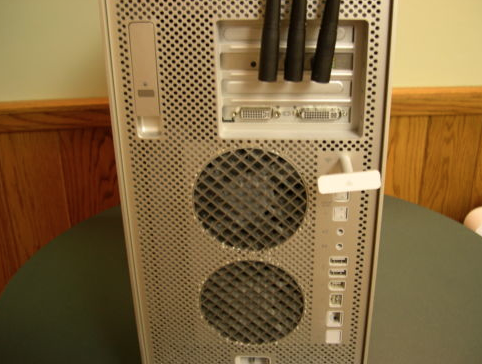

    that looks like a wireless N card there too. Notice the 3 antenna.

  12. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #12
    Thanks! I'll keep this in mind when I get it and if it doesn't have it.

    Yes, I believe it is and the seller is including the box and disc I think too.

  13. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #13
    You can easily add Bluetooth to that with a Bluetooth card. The problem will be finding the Bluetooth antenna. For a card, you can use one from an eMac, non-late 2005 PowerMac G5, iMac G4, 2006-2007 Mac Pro, or 2007 iMac. If you get the Intell board (it's blue coloured instead of green), you'll get Bluetooth 2.X. The green PowerPC Mac cards are a bit more expensive and are only Bluetooth 1.X.

  14. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #14
    Cool, thanks! I'll look around for the blue 2.x ones I think.

  15. MultiFinder17 macrumors 68000

    MultiFinder17

    Joined:
    Jan 8, 2008
    Location:
    Tampa, Florida
    #15
    Yes, it uses it's own proprietary power brick. For the 20" Cinema Display, you'd need the 65W adapter; they're available on ebay for something like $40 last I checked.

  16. gavinstubbs09 macrumors 65816

    gavinstubbs09

    Joined:
    Feb 17, 2013
    Location:
    NorCal boonies ~~~by Reno sorta
    #16
    Darn you! I was eyeballing that ACD earlier lol. I wanted a new ACD but at the end of the day I ended up with 2x Xeon 5355 quads for my Mac Pro. Owell!

  17. sevoneone macrumors 6502

    Joined:
    May 16, 2010
    #17
    Wow, this takes me back. This was the first Pro 'trimmed' Mac I ever bought myself brand new. I remember when the G5 launched, the 1.8 model was only a single processor and the performance wasn't any better than the previous gen dual G4s. I was young, just landed a job in video post production, was a huge Mac nerd, FCP buff and had a good chunk of cash to blow, but not enough to buy the DP 2.0

    6 months later, when Apple released the DP 1.8 for the same price I was a giddy as anyone could ever be about a consumer product. At the time there was a little known student developer program. It allowed students to join Apple's developer program for only $99/year (this is back when the cheapest dev connection membership was much higher). Part of the benefit was that, once you signed up, you got a once in a lifetime 25% discount on any Apple system. Needless to say, I was signed up and ordered before I could have a second thought.

    There was a two week back order at the time I ordered, so when it arrived a week early, and at 4:00pm on Christmas Eve 2003, my excitement level was through the roof. The poor FedEx guy hand carried the 50lb box up our driveway and didn't share my enthusiasm.

    For the time, it was amazingly fast. FCP cut DVCAM footage like butter, and I remember downloading 720p footage samples and nearly loosing it when I could apply effects in real time.

    TLDR:

    I don't think there has been any other system since that I've gotten more work and use out of than that PowerMac G5. And, certainly nowhere near as much joy. 10 years later, all the advances in technology and it is still my favorite piece of technology that I've ever owned.

  18. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #18
    hehe, well there are others available on eBay still. ;)

    That's good to hear that you've had great times with it. I look forward to having fun with mine.

    ------

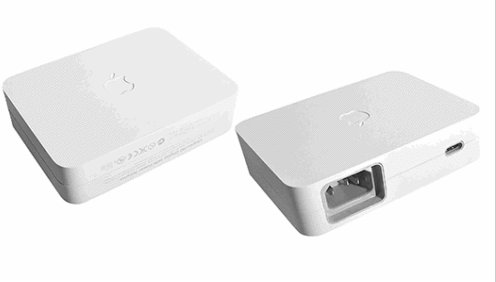

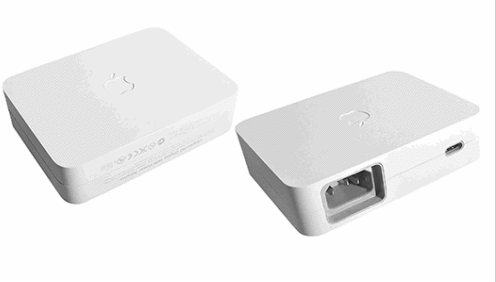

    I ordered a Genuine Apple Power Adapter 90W for Apple 23" Cinema Display (A1097) (661-4379) which, according to Apple, will be compatible with the 20" display I bought yesterday.


    Attached Files:

  19. SandboxGeneral, Jan 24, 2014
    Last edited: Jan 24, 2014

    SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #19
    The cinema display just arrived! The shipper was actually within my state and not too far away so it arrived quickly.

    However it was the most poorly packed parcel I've ever come across! But it did the job and it arrived undamaged so that's what counts!

    Now I have to await the arrival of the computer and the display's power adapter.

  20. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #20
    Got to love idiots who ship something in nothing but a cardboard box with no packing material.

  21. Cox Orange macrumors 68000

    Joined:
    Jan 1, 2010
    #21
    While talking about different Airport+BT cards, I found a nice overview lately. It is unfortunately an ebay auction (not mine), but may help some people in distinguishing these cards,also names the compatible models:
    http://www.ebay.de/itm/Apple-AirPor...ng_Interne_Netzwerkkarten&hash=item257e09fecc

    Though I still think a USB BT dongle will be cheaper.

    ---------------------------------------------------------------------------
    On SATA-II and -III speeds:

    There is a link, that compares several PCI-cards with benchmarks for G5s (actual not your type, it is the late2005 models with PCIe).

    While booting is not possible, you will be able to get a little better than SATA-I speeds with SATA-II / -III PCI cards.
    Somewhere down here http://forums.macrumors.com/showthread.php?t=1650568 is a list.

    --------------
    ON SATA-III HDDs and SSDs in PowerPCs:

    there is someone on apple discussions forum, who calls one an idiot and says that ALL SATA-III SSDs and HDDs are compatible and he tested it, when asking which models he refuses to list at least one of those, repeatedly :)
    Interesting that we get more valuable info here, than over there.

  22. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #22
    The G5 just arrived via FedEx. It was very well packed with form-fitting foam and bubble wrap and in a strong and sturdy box.

    Though it's made of aluminum, I'm surprised at how heavy it is.

  23. RedCroissant Suspended

    Joined:
    Aug 13, 2011
    #23
    The surprise really kicks in when you accidentally tip it onto your foot or not paying attention when sliding it toward you and your toes are in the way. :(

  24. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #24
    Duly noted! I don't usually wear footwear while at home. ;)

    ----

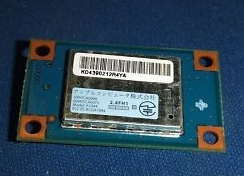

    I also ordered a Bluetooth card for it after confirming that it doesn't have one already.


    Attached Files:

  25. SandboxGeneral thread starter Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #25
    I'm posting this message from the G5. Everything seems to be working just fine; the G5, the cinema display and its' power brick.

    I must say though, this is probably the heaviest computer I've ever lifted! What did Apple do, put lead in the bottom of this thing? I had to schlep it up the ladder-well to the third deck of my apartment building where I live. It was about as bad as when I moved in and moved all the furniture!

    Anyway, I'm going to break out the Leopard disc and do a clean install on it now.
