Apple's Pro Display XDR, priced at $4,999 without a stand, is designed for professionals who need a reference monitor. It may seem expensive, but comparative to other reference monitors, it's an affordable choice.

PCMag this week published its full review of the Pro Display XDR, doing a deep dive into its color accuracy and HDR capabilities.


The Pro Display XDR is meant to be used by creative professionals such as photographers and videographers, which means factors like color accuracy, gamut coverage, and sustained brightness are important.

In Adobe RGB color gamut testing, relevant for content creation tasks, the Pro Display XDR had what PCMag says is an "excellent" result of 96.7 percent coverage. Comparatively, the Pro Display XDR beat out the Acer Predator X35, the ASUS Rog Strix XG438Q, the Dell U3219Q 4K, and the Razer Raptor 27, which are other displays PCMag has tested, but that's not a surprising result as these comparison displays are more affordable gaming-focused monitors.


The Pro Display XDR didn't fare quite as well in sRGB gamut testing, where monitors normally get close to 100 percent coverage, but it still hit a respectable 94.3 coverage. sRGB is not a focus of the pro community, which makes this result fairly inconsequential.

In a DCI-P3 color gamut test, which highlights how well a monitor is able to display movie and tv content in editing apps, the Pro Display XDR saw 98.7 percent coverage, beating out all other monitors including the Alienware 55, which scored the second-highest in PCMag's testing at 96.5 percent.

When it comes to brightness testing, with a DisplayHDR 1600 test, the XDR was able to display content at a peak burst of 1,561 nits, just under Apple's 1,600-nit rating. SDR brightness reached 499 nits, and the black levels were super low, at 0.04. PCMag says that's the lowest it has seen outside of OLED displays.


In color accuracy tests, the Pro Display XDR also excelled. Color accuracy is measured using delta E (dE) and a lower number is better, representing an accurate representation of the color it's aiming to produce. Monitors under 1.0 are "top tier" monitors, but the Pro Display XDR scored below that.
More records broken. In the industry of content creation, any monitor that scores below a 1.0 dE is considered top-tier, but the Pro Display XDR isn't content with just winning here, it has to command the lead. In these tests, which I ran through all three color-space presets we tested above (sRGB, Adobe RGB, and DCI-P3), the lowest score achieved was just 0.68 dE--and that, achieved with no calibration required.
There were some downsides to the Pro Display XDR. There's no option for changing color capabilities on the monitor itself, and using it requires macOS, so there's no way to use it without a Mac. There's also no way to calibrate the colors, but Apple says that calibration options are coming sometime in the future.

The site was impressed with the add-on $999 stand for the Mac Pro given its nice, shiny look and its smooth counter-balanced arm, but ultimately felt that it was a bit over-engineered and overpriced, saying that it "didn't need to be" so far ahead of a typical (and much less expensive) monitor stand.

In a nutshell, PCMag believes that the Pro Display XDR successfully does what it was meant to do, offer up "reference-quality production capabilities" to those who work on Macs. "The Pro Display XDR is a beautifully made, well-designed, hyper-accurate content creation monitor that--say it with me now--'just works,'" reads the review.

For those considering a purchase of the Pro Display XDR, PCMag's full review is well worth checking out.

Article Link: PCMag Tests Apple's Pro Display XDR Color Accuracy and Brightness, Says It 'Does Exactly What It Sets Out To'

  • Like
Reactions: drumcat

e1me5

macrumors 6502
Jun 11, 2013
333
621
Cyprus
I find the 576 full array local dimming zones too low for any mastering work for films and television. Ive seen some examples with black scenes with bright objects and the ghosting is too much for any colorist to work with. I don't see it to get a Netflix certification for mastering.


Euro_Guy

macrumors newbie
Oct 16, 2016
29
43
Honestly surprised it did not fare better regarding Adobe RGB.

Other pro-grade monitors like Eizo have minimum 99% Adobe RGB coverage.

(as mentioned the reference monitors in the test are not what you would call professional monitors for graphic or colour-sensitive work)


ksec

macrumors 65816
Dec 23, 2015
1,283
1,286
Not too sure how PC Mag explain that as "Does Exactly What It Sets Out To"

Not Really the "Reference" Monitor most people or video professionals refers to. Honestly I dont think anyone even expect it to be, but many expect it to be close, and it is not. But still a damn good Monitor.

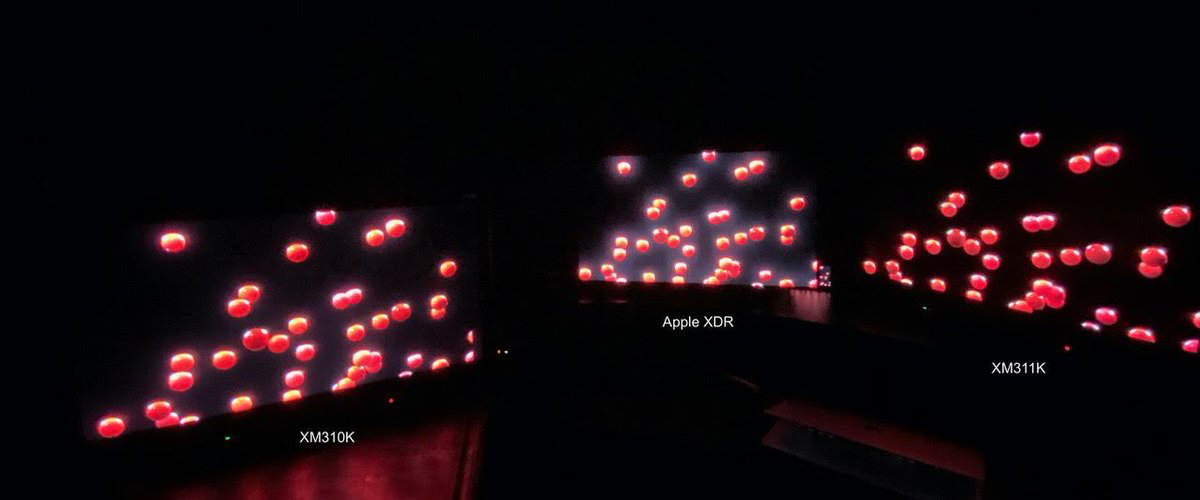

Edit: ( Images not mine )


Last edited:

PickUrPoison

macrumors 604
Sep 12, 2017
6,871
8,424
Sunnyvale, CA
I find the 576 full array local dimming zones too low for any mastering work for films and television. Ive seen some examples with black scenes with bright objects and the ghosting is too much for any colorist to work with. I don't see it to get a Netflix certification for mastering.
It seems it’s a step below what’s required for mastering. I’m not in the industry, but I know mastering monitors are very expensive. How much would you have to pay for a 30+ inch mastering monitor?

And a related question, are there uses for a very accurate monitor that’s not mastering quality, and sells for $5 to 7K? That will determine the success of this monitor. I know there are uses outside the film/video industry, but I’d be interested in hearing your take as someone in that industry. If it misses the mark and isn’t something pros want/need, that’s not good.

  • Like
Reactions: mazz0

cardfan

macrumors 68020
Mar 23, 2012
2,441
3,240
Weird review. It compares the xdr to cheap monitors. They even mention the kind of monitors this is aimed at to replace but of course we won’t see those compared.

Still there’s no way I’m paying anywhere near 4-6k for a monitor. For that price it better blow away these much cheaper monitors. And yet it doesn’t. Pc mag also doesn’t make any kind of case that it would just work for someone looking to replace a 43k Sony reference monitor.


retta283

macrumors 68000
Jun 8, 2018
1,773
1,574
Kingman, AZ
Haven't seen any reports of display defects yet, which is great. Apple has had a history of display defects (probably not their fault entirely, mostly the factories of the manufacturer) such as yellowing, pink hue, uneven backlight, left/right fade and so on.

If there were such issue on this product it would probably be known by now considering its target market. Hopefully this level of QC is carried over to their lesser displays.

  • Like
Reactions: PickUrPoison

ksec

macrumors 65816
Dec 23, 2015
1,283
1,286
I find the 576 full array local dimming zones too low for any mastering work for films and television. Ive seen some examples with black scenes with bright objects and the ghosting is too much for any colorist to work with. I don't see it to get a Netflix certification for mastering.
Exactly. I was at least expecting it to be used as Apple TV+ or Netflix Mastering quality.

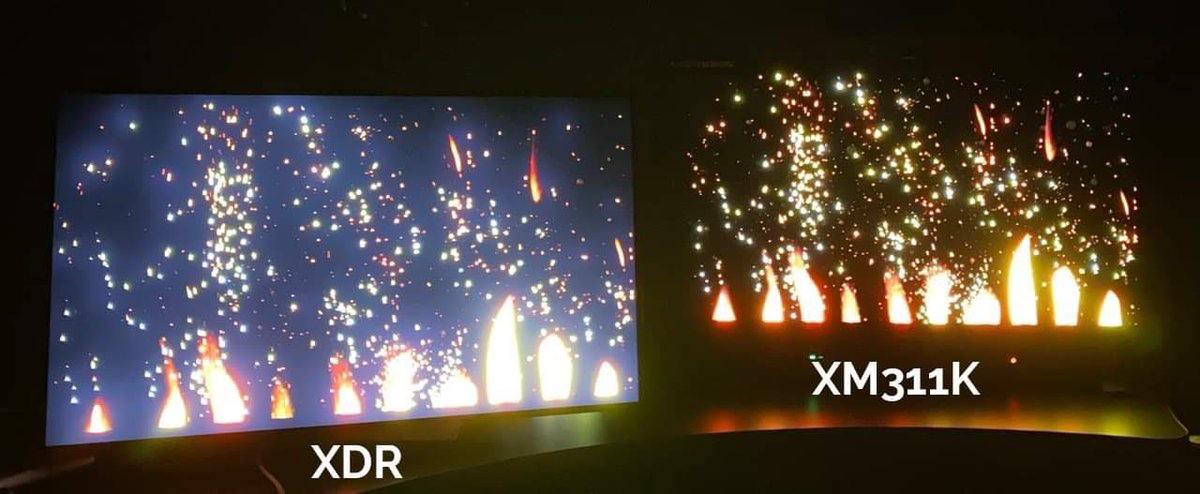

Here is another one. ( Images not mine )


Last edited:

ksec

macrumors 65816
Dec 23, 2015
1,283
1,286
Haven't seen any reports of display defects yet, which is great. Apple has had a history of display defects (probably not their fault entirely, mostly the factories of the manufacturer) such as yellowing, pink hue, uneven backlight, left/right fade and so on.

If there were such issue on this product it would probably be known by now considering its target market. Hopefully this level of QC is carried over to their lesser displays.

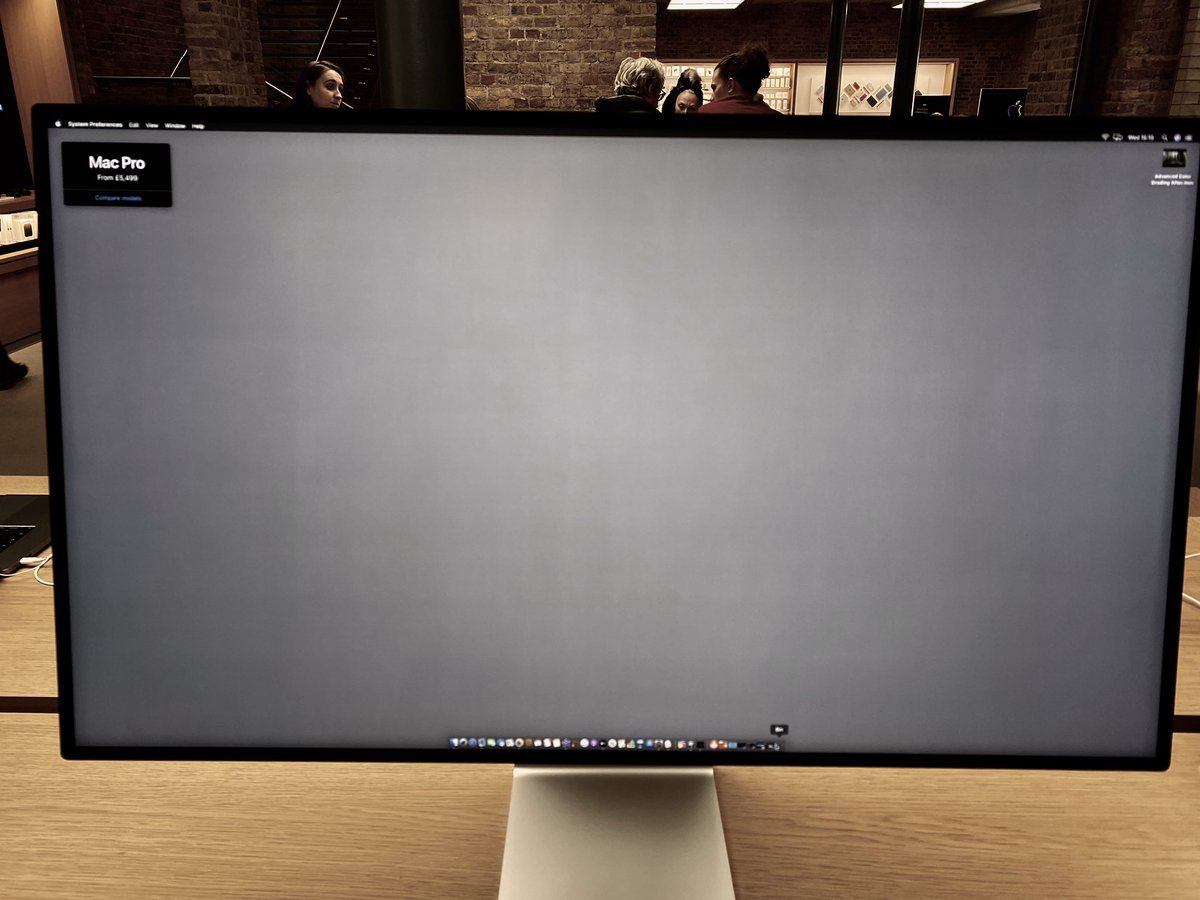

For its price, the non-uniform of backlight to me is a defect. That is suppose to be a grey background.


Last edited:

PickUrPoison

macrumors 604
Sep 12, 2017
6,871
8,424
Sunnyvale, CA
Haven't seen any reports of display defects yet, which is great. Apple has had a history of display defects (probably not their fault entirely, mostly the factories of the manufacturer) such as yellowing, pink hue, uneven backlight, left/right fade and so on.

If there were such issue on this product it would probably be known by now considering its target market. Hopefully this level of QC is carried over to their lesser displays.
Hopefully there will be lesser (separate) displays. I’d like to see a 27”, it wouldn’t be difficult. LG wouldn’t be happy; I don’t know if Apple would has some sort of agreement with them.

  • Like
Reactions: retta283

69Mustang

macrumors 604
Jan 7, 2014
7,331
13,688
In between a rock and a hard place
It seems it’s a step below what’s required for mastering. I’m not in the industry, but I know mastering monitors are very expensive. How much would you have to pay for a 30+ inch mastering monitor?

And a related question, are there uses for a very accurate monitor that’s not mastering quality, and sells for $5 to 7K? That will determine the success of this monitor. I know there are uses outside the film/video industry, but I’d be interested in hearing your take as someone in that industry. If it misses the mark and isn’t something pros want/need, that’s not good.
Seems the XDR would be perfect for those who aren't mastering the video, but reviewing mastered content. There are people who need to view the content but don't need to view it on a $30K monitor. If 10 people need to see the product as it's making it's way down the assembly line, but don't have a hand in the mastering process, 10 XDR's make a lot more sense than 10 $30K monitors. Those 10 people still get the benefit of a high quality color accurate monitor that can double as a standard monitor for their everyday uses.

Last edited:

Alan Wynn

macrumors 6502a
Sep 13, 2017
723
702
Seems the XDR would be perfect for those who aren't mastering the video, but reviewing mastered content.
Certainly seems to be the case as a start.

There are people who need to view the content but don't need to view it on a $30K monitor. If 10 people need to see the product as it's making it's way down the assembly line, but don't have a hand in the mastering process. 10 XDR's make a lot more sense than 10 $30K monitors. Those 10 people still get the benefit of a high quality color accurate monitor that can double as a standard monitor for their everyday uses.
As a review monitor, it will be great. I have been hearing different things from different people on its value for grading. Hope to hear what Dolby thinks of it in a few days.


bluespark

macrumors 68000
Jul 11, 2009
1,962
2,168
Chicago
I don’t have any thoughts on this monitor, as I’m not in the target market. I will say, though, that people wouldn’t be so bent out of shape about the price if Apple also offered various display options for professionals who happen not to be video or photo professionals. Why not an Apple-branded competitor to Dell’s 34” display offerings, for example?

If Apple can’t bring itself to make displays for “the rest of us,” how about at least coming up with an Apple-recommended list of third-party displays that work well with Macs.
