Part leaks claimed to be for the next-generation iPhone continue to surface as the all-but-confirmed September 12 media event introduction approaches, with the latest batch of photos showing what appears to be the most completely assembled front panel seen yet. The new photos, which were highlighted by Apple.pro [Google translation], were posted to a Photobucket account that previously posted photos of measurements showing that the third-generation iPad would be thicker than the iPad 2, as well as the first leaked photo of the next-generation iPhone front panel in white.

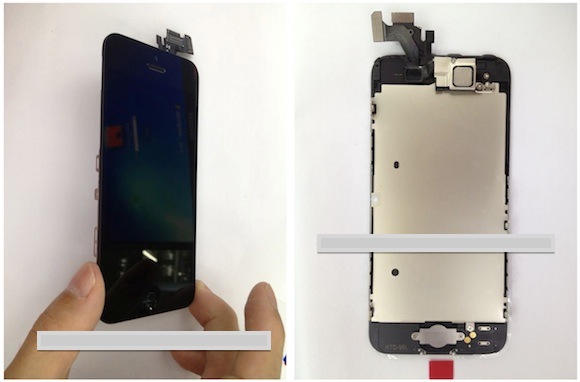

Assembled front panel complete with LCD frame, front camera, and home button
The latest set of photos posted to the account shows a nearly fully assembled front panel with even more parts than seen in last week's leak of the front panel with the LCD attached. The new photos show not only the LCD attached to the front panel but also the home button installed and secured by a metal bracket, the shielding frame for the display that was first seen as a standalone part earlier this month, and the front-facing camera installed behind additional shielding.

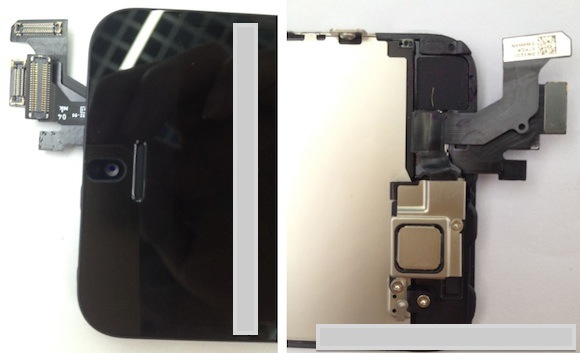

Closeups of top portion showing flex cables for display and front camera
Increasing numbers of parts are leaking in ever more complete states of assembly, offering good looks at the overall appearance and layout of the next-generation iPhone.

While the front of the device will appear very similar to the iPhone 4S/4 with the exception of a taller screen and slight tweaks in the locations of the camera and sensors, it is the rear of the device that seems to be generating the most discussion. The forthcoming iPhone appears to incorporate a unibody design that will incorporate a two-toned rear/side shell featuring a large metal section in the center paired with two strips of glass or plastic at the top and bottom that will allow for transmission of the numerous types of signals necessary for the device's operation.

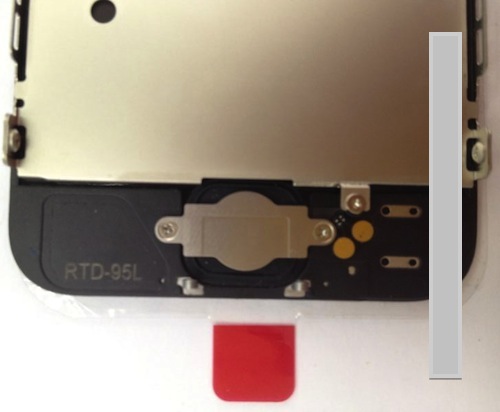

Closeup of home button installed behind metal bracket
Note: Watermarks have been obscured due to political statements contained within them.

Update: Mac Otakara points out that the unknown square-shaped feature visible at the top may be a near field communications (NFC) chip.

Article Link: Photos of Assembled 'iPhone 5' Front Panel with Home Button, Front Camera and Shielding Installed [Update: NFC?]


copete

macrumors newbie
Jun 17, 2010
12
0
Canada
I'm still a little reserved about this whole taller screen, but I'm excited to see what Apple has in store :).


ECUpirate44

macrumors 603
Mar 22, 2010
5,750
8
NC
In before the "Take my money!!!!" and "Steve would have never allow this" posts. It's going to be awesome and we will all buy it.


rickdollar

macrumors 6502
Mar 12, 2007
466
17
Will it use USB 3 connectivity with backwards compatibility with USB 2?
Probably just USB 2, eh?


WildCowboy

Administrator/Editor
Staff member
Jan 20, 2005
17,234
1,125
Camera hole looks weird. Is that a flash above the lens? Or sensor?
It looks weird because what you're seeing over top of the single camera hole is the reflection of the camera portion of the phone the guy was taking the photo with.


orangebluedevil

macrumors 6502
Jun 28, 2010
323
17
The reflection of his iPhone case really threw me off at first. I thought the camera hole was a vertical slot or something.
