SATA Express meets the '09 Mac Pro - Bootable NGFF PCIE SSD

Discussion in 'Mac Pro' started by handheldgames, Dec 18, 2013.

  1. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2051
    If you don't mind, you may try turn off TRIM for testing purpose and see if the boot time will be back to normal.

    For some reason, using APFS and TRIM together in HS seems cause slow boot (and few more issues).

  2. Ryatzu macrumors newbie

    Joined:
    Sep 13, 2016
    #2052
    I will try it when im back at home, will post the results.

  3. Ryatzu macrumors newbie

    Joined:
    Sep 13, 2016
    #2053
    Ive tested it but it seems like i don't see any change in the booting time.
    It seems like they are working on a solution though:
    https://cindori.org/apple-file-system-slow-boot-high-sierra/

  4. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2054
    Thanks for the report. In my case, switch OFF TRIM keep me away from few little trouble, including boot time (the boot time is about 3x longer when TRIM is enabled).

  5. n3vts macrumors newbie

    n3vts

    Joined:
    May 13, 2017
    #2055
    that is a SATA drive =/= AHCI. it will work (with a sata/pcie compatible interface) but will be no better than a traditional 2.5" SATA III drive.

    there is a relatively small variety of compatible PCIe SSD drives that are currently compatible with A1186 and A1289. these are all AHCI drives:

    SHPM2280P2/[...]G "HyperX Predator" [240/480/960]
    MZ-HPU[...]HCGL "XP941" [128/256/512]
    MZ-JPU[...]T "SSUAX" [128/256/512]
    MZ-KPV1T0T "SSUAX"
    CX1-GB[...]-D11 "Dell oem Lite-On" [128/256/512]
    MZ-HPV[...]HDG(L/M) "SM951" [128/256/512]
    SD6PQ4M-[..] "SSUBX" [128/256]
    MZ-JP(V/U)[...](0/R/S) "SSUBX" [128/256/512]
    MZ-KPV1T0(0/R/S) "SSUBX"
    and finally there have been some developments with NVMe drives, although in its current state nothing very user friendly: https://forums.macrumors.com/threads/boot-osx-on-a-nvme-card.1967790/

  6. lozion macrumors regular

    lozion

    Joined:
    Jan 12, 2006
    Location:
    Montreal, Canada
    #2056
    Soo whats new or coming in 2018 in the great world of pci-e ssd’s?

  7. c-3po macrumors newbie

    Joined:
    Jan 10, 2018
    Location:
    Europe
    #2057
    May I correct some entries in your list:


    MZ-KPV1T0T "SSUBX"
    MZ-JPV... "SSUBX"
    MZ-JPU... "SSUAX"
    --- Post Merged, Jan 28, 2018 ---
    I forgot to say that I thank everyone who contributed to this thread by sharing knowledge and experience wholeheartedly!
    I learned so much from this thread, its priceless! :)

  8. crazyhorse90210 macrumors newbie

    Joined:
    Mar 1, 2018
    #2058
    Hi, today I installed a Sintech PCIe adapter: https://smile.amazon.com/gp/product/B01NAQRNU7
    and installed an ssd from a 2013 MacBook Air (SD6PQ4M-128G). It works but I am having some issues.
    Mac Pro 4,1 flashed to 5,1, 10.13.3 HS installed. No special drivers installed.
    While the drive is mounted, I am getting a runaway kernel_task. If I unmount the drive that task goes away. If I take the card out the task does not show up. It seems to be a driver issue. Anyone else have an issue like this with the Sintech card and 10.13.3?
    Also it only links at x2 in any slot. Should be x4...?
    Thanks!

  9. fhturner macrumors 6502

    fhturner

    Joined:
    Nov 7, 2007
    Location:
    Birmingham, AL & Atlanta, GA
    #2059
    Don’t suppose you have either an extra PCIe adapter or access to an extra Mac Pro Tower you could test for comparison? Or a different SSD, for that matter? I think the Mac Pro and the SSD should just work, so I’d suspect the adapter first...ALTHOUGH the adapters don’t really do a whole lot that might malfunction. They mainly are just an electrical connection between the SSD and slot.

    The x2 connection is right for that SSD. Until around the 2015 models (SSUBX blades), anything less than the 1TB SSD was connecting at x2. Someone correct me if I don’t have those specifics exact please...

    Fred

  10. crazyhorse90210 macrumors newbie

    Joined:
    Mar 1, 2018
    #2060
    No, I don't have another way to test with hardware but with a clean install of 10.13.3 onto that actual SSD and booting up with it there is no kernel_task. Somehow starting with my other ssd is causing it. I re-installed 10.13.3 on my other startup drive but it didn't help. I'll try another drive. Thanks for the reply.

  11. lozion macrumors regular

    lozion

    Joined:
    Jan 12, 2006
    Location:
    Montreal, Canada
    #2061

    Anyone?

  12. Squuiid macrumors 65816

    Squuiid

    Joined:
    Oct 31, 2006
    #2062
    Not sure if it has been mentioned yet but the Angelbird MX2 is probably the only option these days if buying new.
    Thanks to @h9826790 for making me aware of it!

  13. jkh911208 macrumors newbie

    Joined:
    Dec 6, 2017
    #2063
    I just bought the SSUBX (MZ-JPV) with the Sintech adaptor. I cannot install the MacOS on the disk.
    can anyone give me some suggestion?

  14. MIKX macrumors 6502a

    MIKX

    Joined:
    Dec 16, 2004
    Location:
    Japan
    #2064
  15. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #2065
  16. MIKX macrumors 6502a

    MIKX

    Joined:
    Dec 16, 2004
    Location:
    Japan
    #2066
    Great news !

    Let's hope he posts the technique soon and if this works on any NVMe M.2 SSD now THAT will be a game changer indeed.

    I want to banish all internal spinner HDDs from my 4,1>5,1 cMP ( except for backups of course. )

    In Gilles's Twitter post pics notice that ALL of the SATA II bays are empty.

    He appears to have booted into Sierra, I wonder if a High Sierra install would affect anything

  17. handheldgames thread starter macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #2067

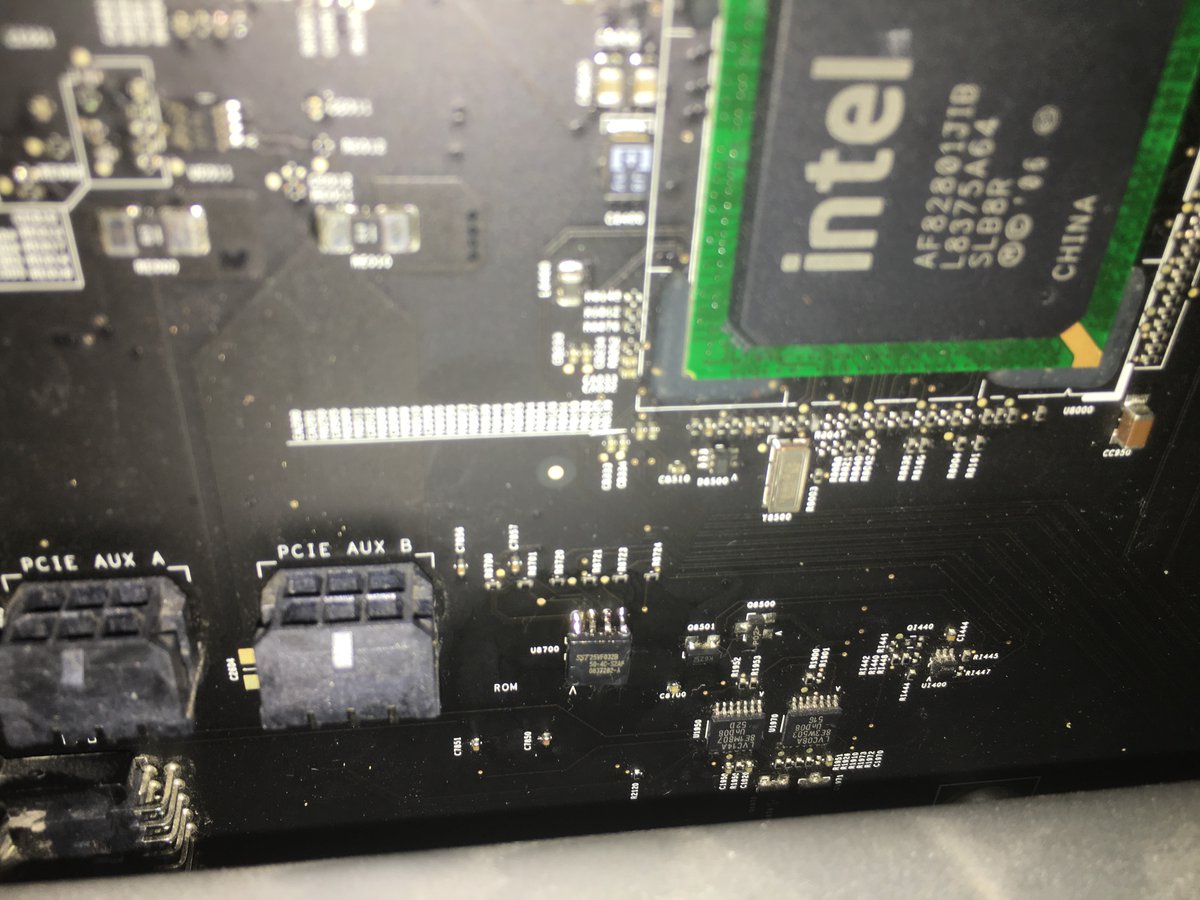

    Very interesting to say the least... The EFI rom clearly has a fresh solder job. IMO, if the ROM boots in 10.12.x, it should work without issue in 10.13.x

    [​IMG]

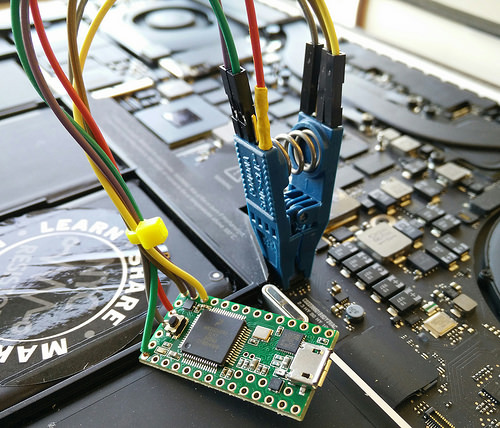

    There are such easier methods for updating the EFI without having to physically remove the chip. :apple:

    [​IMG]

  18. rippiedoos macrumors member

    Joined:
    Nov 9, 2013
    #2068
    Any chance of adding more drivers this way? For instance a GOP-driver for bootscreens??

  19. atonaldenim macrumors newbie

    Joined:
    Jun 11, 2018
    #2069
    So glad I finally found this post! I just got a "new" Mac Pro 5,1 and have been researching the fastest boot drive options. Since the crowd favorite SM951, Kingston HyperX Predator, and similar AHCI M.2 SSDs are so hard to find these days, I reached the conclusion that Apple-connector 12+16 SSD blades are probably the fastest readily available AHCI SSDs for a Mac Pro tower boot drive in 2018. Finding this thread confirms it!

    Other than buying an SSUBX pulled from an Apple machine, I'm curious if anyone has experience booting a Mac Pro 5,1 from other brands of 12+16 SSDs that can be bought off the shelf, like:

    Transcend Jetdrive 820
    MCE Tech PCIe x4 SSD
    Trans Intl Super Blade
    OWC Aura

    My temporary solution of a Samsung 850 EVO in an onboard SATA II port definitely needs an upgrade soon...

  20. crjackson2134 macrumors 68040

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #2070
    I’ve never purchased MCE branded SSDs, but I’ve purchased other products and never been disappointed. I’d give them a go...

  21. flowrider macrumors 603

    flowrider

    Joined:
    Nov 23, 2012
    #2071
    I have a Transcend drive in my MBA. Has been working fine for about 5 years now.

    I would stay away from anything OWC.

    Lou

  22. crjackson2134 macrumors 68040

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #2072
    Yup.. A given...

  23. handheldgames thread starter macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #2073
    Congrats on your 5,1, it's a great platform. None of the drives you mentioned can hold up to the Samsung 970pro, which is probably cheaper as well. Have you considered skipping AHCI and jumping to NVMe?

    Although NVMe boot support is not 'out-of-the-box' Adding the necessary files to the Mac Pro's EFI firmware is not that difficult, if you can follow a step-by-step guide. :cool:

  24. atonaldenim macrumors newbie

    Joined:
    Jun 11, 2018
    #2074
    Thanks! Good point, I am considering just going with a faster/cheaper NVMe SSD and figuring out a clever way to boot from it, this thread suggests making a tiny bootloader partition on any AHCI drive that the EFI can handle, and then from there loading the OS off the NVMe drive, or creating a Fusion Drive with an NVMe drive and an AHCI/SATA drive.

    But I had not seen this idea of patching the EFI with NVMe drivers! Yikes, that seems a bit scary, but your guide looks easy to follow. Are you able to enable SIP after flashing the custom firmware? How would you recover from a failure? If a new firmware was to be released (say for Mojave) would you have to revert to the stock firmware?

  25. handheldgames thread starter macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #2075
    Are you able to enable SIP after flashing the custom firmware?
    Yes, sip can be re-enabled after the flash.

    How would you recover from a failure?
    First off, I believe those who have failed followed a different set of instructions. I've attempted to write an easy to follow doc. If it's complex, let me know where and I'll be happy to expand the doc.

    Regarding failure recovery, I'd recommend copying the backup of your original un-modified EFI ROM to a USB flash drive. If you stray from the directions and bork your mac pro, the easiest way to recover is to check your local craigslist for someone who can unlock macbook EFI. They should have the tools & expertise to re-flash your orignal EFI-ROM for well under $100. They can also flash your original ROM to a plug-in board that overrides the onboard EFI when attached.

    If a new firmware was to be released (say for Mojave) would you have to revert to the stock firmware?
    This is an unknown. I would avoid the flashing of any new firmware from Apple until you double check the macrumors MacPro forum. Personally, I'm running on firmware 0085 and will stay there until it's necessary to upgrade.

    On more thing... Considering you are booting from a SATAII SSD, I would encourage you to keep a SATAII bootable copy of macOS in the machine containing your EFI roms and tools.
