SSD in Mac Pro

Discussion in 'Mac Pro' started by MattDSLR, Jan 24, 2011.

  1. MattDSLR macrumors 6502

    Joined:
    Jan 23, 2011
    Location:
    Canada
    #1
  2. chrismacguy macrumors 68000

    Joined:
    Feb 13, 2009
    Location:
    United Kingdom
    #2
  3. MattDSLR thread starter macrumors 6502

    Joined:
    Jan 23, 2011
    Location:
    Canada
    #3
    I want to get it in the optical drive so mounting is not important for me.
    Just want to make sure it will work
    If thats a wrong drive what would be the best?

  4. chrismacguy macrumors 68000

    Joined:
    Feb 13, 2009
    Location:
    United Kingdom
    #4
    You need to find a mounting kit for a 3.5" Drive/some way of sticking it in there, then again, any 3.5" SATA SSD.

  5. Mebsat macrumors regular

    Joined:
    May 19, 2003
    Location:
    Florida
    #5
    Other options

    If you want a SSD (2.5) in a MacPro, these sleds are made for it (pricey but nice):
    http://www.maxupgrades.com/istore/i...y&product_id=180&CFID=856285&CFTOKEN=42704799

    There are also 3.5 inch cases that are backplane compatible.
    (They look like a 3.5 inch drive, but you put a 2.5 inside and it aligns with the MacPro's backplane). They seem kind of cheap looking, but they're not $48 either.

    Other World Computing has them, and of course has 2.5 SSD drives.
    (www.macsales.com)

  6. Mikey7c8 macrumors regular

    Joined:
    Sep 15, 2009
    Location:
    Montreal, Canada
    #6
    FWIW, I don't believe they even *make* 3.5" SSD's.

    Many brands come with 2.5-3.5 brackets, though.

  7. johnnymg macrumors 65816

    johnnymg

    Joined:
    Nov 16, 2008
    #7
    I have the 120GB version of that C300 SSD in my MBP and it works great.

    That said, I'm partial to the OCZ Vertex 2 for MP use. I installed the 3.5" 120GB version in my MP and it works GREAT. It just bolts right into the MP drive cage assembly! Here's a link to the 240GB version:
    http://www.newegg.com/Product/Product.aspx?Item=N82E16820227591&cm_re=vertex_2_240gb-_-20-227-591-_-Product

    cheers
    JohnG

  8. Glen Quagmire macrumors 6502a

    Joined:
    Jan 6, 2006
    Location:
    UK
    #8
  9. philipma1957, Jan 25, 2011
    Last edited: Jan 25, 2011

    philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #9
    TO ANSWER YOUR QUESTION it is not fine it will not work. you need an adapter the 1.8 inch does not connect. an adapter link is below

    http://cgi.ebay.com/Micro-SATA-1-8-...aultDomain_0&hash=item3cb3cc6ca3#ht_500wt_922



    you need only attach the ssd with a piece of velcro if you want it in the optical drive. here is a better deal on one. that is a 2.5 inch no adapter needed

    http://www.newegg.com/Product/Product.aspx?Item=N82E16820148349

  10. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #10
    As usual I recommend 2.5" drives.

    I just don't see the reason for 3.5" drives. Most drives come with an adapter to 3.5", or if not, they don't cost a fortune (2.5" drives are generally cheaper anyway, so price can't be an issue here).

    2.5" drives just give you more options. Multiple drives in the optical bays or putting them in other hardware (notebooks etc.) once you decide to update the drive in the Pro.
    With 3.5" drives you are limited to desktop grade computers and you don't have many options to mount them internally in the Pro.

  11. izibo macrumors 6502

    Joined:
    Oct 6, 2004
    #11
    I highly recommend the Intel drives, while its no longer head and shoulders above the rest in terms of speed (with the arrival of the Sandforce controller on competitor drives things have leveled out), I hear the least complaints / sleep issues / etc about Intel drives. I have 3 in Mac Mini's, 1 in my Mac Pro, and 1 in my MacBook Pro.

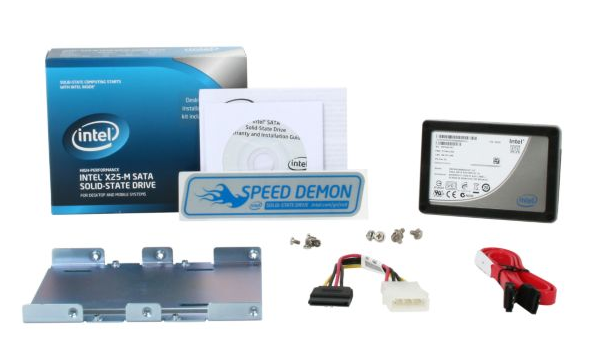

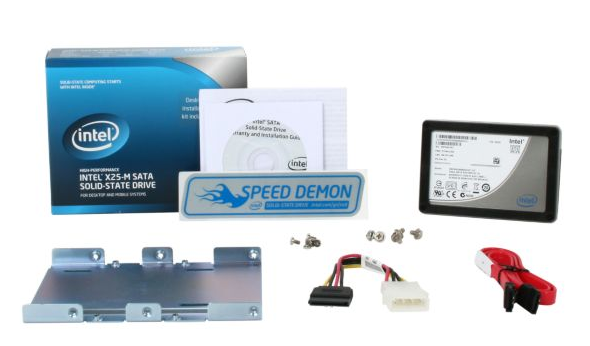

    They also come with the 2.5" to 3.5" adapter in the retail packaging. See screenshot from newegg.


    Attached Files:

  12. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
  13. izibo macrumors 6502

    Joined:
    Oct 6, 2004
    #13
  14. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #14
    Absolutely. I've got a G2 in my Pro for one and a half year now (since day 1) and I haven't had a single problem with that drive. Same applies for my Mini with is equipped with a X25-V. Can't say that for the Indilinx based OCZ drive in my MBP. :D

    However, I haven't heard of any complaints with the OWC drive, yet. Given that they are not only faster, but also considerably cheaper than the Intel drives (at least here in Europe), I'd probably go with them if I were in the market for a new drive today.

    I'm eagerly waiting for OWC's Sandforce 2000 based line and the new Intel G3 drives. Those will probably be a worthy upgrade from the G2.

  15. MattDSLR thread starter macrumors 6502

    Joined:
    Jan 23, 2011
    Location:
    Canada
  16. TPadden, Jan 25, 2011
    Last edited: Jan 25, 2011

    TPadden macrumors 6502a

    Joined:
    Oct 28, 2010
    #17
    Not any more :eek:; it still bolts into the cage fine but OCZ changed the 3.5" Vertex 2 casing to 1/3 height so the casing no longer hits the back switch.......

    I just put it in the optical bay.

    Tom

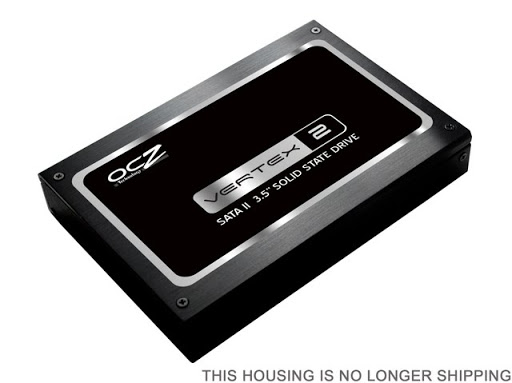

    Old:
    [​IMG]

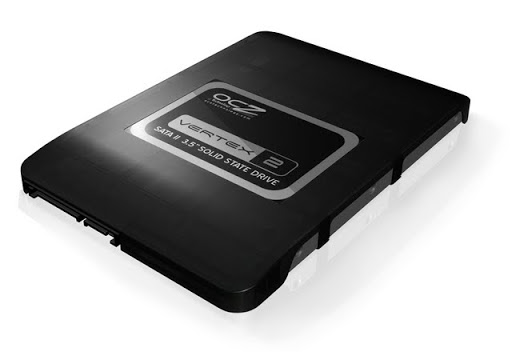

    New:
    [​IMG]

  17. DeeEss macrumors 6502a

    Joined:
    Jan 17, 2011
    #18
    I would completely recommend the OWC Mercury Pro SSD. I have two of the RE versions in a Raid 0 Array for my boot/apps and a partition for scratch. It's ridiculously fast and so far seems to fare best in durability.

    I've installed both in the lower optical bay. I left the DVD Burner in there just unplugged in case.

    Here are my XBench results for the RAID 0 Mercury Pro SSD RE

    Sequential
    Uncached Write 355.29 MB/sec [4K blocks]
    Uncached Write 256.83 MB/sec [256K blocks]
    Uncached Read 30.84 MB/sec [4K blocks]
    Uncached Read 348.62 MB/sec [256K blocks]

    Random
    Uncached Write 223.59 MB/sec [4K blocks]
    Uncached Write 304.95 MB/sec [256K blocks]
    Uncached Read 23.21 MB/sec [4K blocks]
    Uncached Read 321.05 MB/sec [256K blocks]

    Have a read of this:
    http://macperformanceguide.com/Reviews-SSD-OWC-Mercury_Extreme.html

  18. MattDSLR thread starter macrumors 6502

    Joined:
    Jan 23, 2011
    Location:
    Canada
    #19
    do you know a link to it?
    G3 would be cool
    THX

  19. MattDSLR thread starter macrumors 6502

    Joined:
    Jan 23, 2011
    Location:
    Canada
    #20
    OK here it is
    I'm looking at following options:
    160GB Intel X-25M G2 Series 160GB 2.5IN SATA2 NCQ Solid State Disk Flash Drive SSD 2.5 SATA Internal SSD 2 Yr Warranty SA2MH160G2C1
    or
    240GB OWC 240GB Mercury Extreme Pro SSD w/3yr Warranty (256GB total MLC Flash) with 7% Over Provisioned Redundancy SSD SATA2 2.5" Solid State Drive 2.5 SATA Internal SSD 2 Yr Warranty OWCSSDMX240
    or
    256GB Patriot TORQX SSD 2.5 SATA I/II 260/180 2.5 SATA Internal SSD 2 Yr Warranty PFZ256GS25SDR
    or
    250GB OCZ Colossus series Solid State Disk Multilayer 2.5 SATA Internal SSD 2 Yr Warranty OCZSSD2-1CLS250G
    or
    240GB OCZ Vertex 2 Extended Solid State Disk Multilayer 2.5 SATA Internal SSD 2 Yr Warranty OCZSSD2-2VTXE240G
    or
    256GB Corsair Extreme Series Indilinx Barefoot controller and Samsung MLC Corsair’s Extreme Series drives are among the fastest available today. The combination of the Indilinx Barefoot controller, Samsung flash memory, and a generous onboard cache, results in extreme performance with up to 220MB/s sequential read and 175MB/s sequential write speeds. 2.5 SATA Internal SSD 2 Yr Warranty CMFSSD-256D1

  20. Mikey7c8 macrumors regular

    Joined:
    Sep 15, 2009
    Location:
    Montreal, Canada
    #21
  21. 1458279 Suspended

    1458279

    Joined:
    May 1, 2010
    Location:
    California
    #22
    Just notice something...

    I was looking at the pic of the SSD and noticed the 'SATA II' ... was wondering if the new Sata 3 (twice as fast) would change things because the data path on the Sata II SSD would be limited and not capitalize on the new Sata 3 interface.

    In other words: the SSD's are designed for Sata 2, the new setup is Sata 3. Wouldn't it be better to wait for the next gen (Sata 3) SSD?

    Not looking to start the old Wait/Don't Wait thread, looking to know if the SSD's are like regular HD's with respect to Sata 2 / Sata 3 specs...

  22. johnnymg macrumors 65816

    johnnymg

    Joined:
    Nov 16, 2008
    #23
    Just to be clear: the "old" 3.5" version does install into the drive bays of the MP without interference.

  23. tomllama macrumors regular

    Joined:
    Jan 7, 2007
    Location:
    CA
    #24
    The OCZ Colossus would not work in a MP1,1 when I tried it.

    I have an OCZ Agility 2 (240 GB) in my MP4,1 in the lower optical space (no adapter just sitting in there) and it works great. I use it as a boot drive (OSX or Win7) and have 4 HDDs in the 4 standard bays (3 Mac and 1 NTFS).

  24. TPadden, Jan 26, 2011
    Last edited: Jan 26, 2011

    TPadden macrumors 6502a

    Joined:
    Oct 28, 2010
    #25
    Just to be clear: the "new 3.5" version does also install into the drive bays of the MP without interference - they just won't work unless you find some other way to close the back switch :).
