Supposed iPhone 12 Display Unit Leaks

MacRumors

macrumors bot
Original poster
Apr 12, 2001
49,571
10,882


An image supposedly of an iPhone 12 display unit has been shared online by leaker "Mr. White".



Compared to images of an iPhone 11 Pro display piece, this new unit has a reoriented display connector, reaching up from the bottom of the display, rather than from the left-hand side on iPhone 11 Pro. This may be due to the logic board moving to the other side of the device. A change of logic board position was rumored earlier this year, in order to accommodate the 5G antenna module expected in all four iPhone 12 models. The SIM tray is also expected to move to the left side of the device under the volume button as a result of this change. In May, a logic board also seemingly from iPhone 12 leaked.

Apple is expected to release four OLED iPhones this fall, including one 5.4-inch model, two 6.1-inch models, and one 6.7-inch model. Rumors suggest the 6.7-inch ‌iPhone‌ and one 6.1-inch model will be "Pro" devices with triple-lens cameras, while the 5.4 and 6.1-inch models will be lower-end iPhones with dual-lens cameras and a more affordable price tag.

It is not immediately clear which size of iPhone 12 this display unit may be from. Given the size of the notch components, it seems likely that this unit is from the anticipated 5.4-inch iPhone 12. Last month, display panels allegedly from iPhone 12 leaked.



The leaker suggests that the notch on this unit is the same size as previous models. Numerous minor disparities between this display unit and that of iPhone 11 Pro suggest that the internal redesign of iPhone 12 could be substantial.

Leaker Mr. White has been known to share accurate information on Apple's future plans and pictures of components from upcoming devices. They have previously released images purportedly of the A14 processor and a 20-watt power adapter, both set to arrive with iPhone 12.

Article Link: Supposed iPhone 12 Display Unit Leaks

Last edited:

frosty18

macrumors regular
Sep 10, 2018
162
138
Pennsylvania, United States
Keep in mind this is the 5.4 inch model. The notch, if full size, wouldn’t even fit it’s not possible. So yes this notch IS smaller just that the “ears” will appear to be the same as the 5.8” because of how narrow the screen is! Don’t freak out people!


frosty18

macrumors regular
Sep 10, 2018
162
138
Pennsylvania, United States
The evidence is leaning towards only the Pro models getting the smaller notch.
A full size notch wouldn’t fit on a 5.4 inch screen. You’d never fit any status bar info at the top with that narrow of a screen and that big of a notch. it’s just perceived to look the same because of how small the display is
- - Post merged: - -

Hard to tell without knowing which size screen this is.


fokmik

macrumors 601
Oct 28, 2016
4,770
4,485
USA
Keep in mind this is the 5.4 inch model. The notch, if full size, wouldn’t even fit it’s not possible. So yes this notch IS smaller just that the “ears” will appear to be the same as the 5.8” because of how narrow the screen is! Don’t freak out people!
the today notch can fit easily the 5.4" , the current 5.8" has 144 x 71.4 so an 5.4" by diagonal device will get around 140x 69mm stop dreaming about smaller notch...maybe, just maybe only the pro models will get smaller notch and slimmer bezels...but ..

  • Like
Reactions: Vanilla35 and JPack

xalea

macrumors 6502
Jan 12, 2017
283
805
Why do the "pro" models have to be so enormous? I will not ever buy a phone that big again (made that mistake once). I don't have huge hands and don't like feeling as if I will drop the device. I have an iPad for large screen reading/interacting. But, I don't want to carry that thing around to get pro cameras either. Just make the price difference smaller and cram in the better cameras on the smaller device, people *will* pay for it.


Mikkis

macrumors member
Jan 30, 2010
50
38
Analysts are always talking about iPhone supercycles. Is iPhone 12 supposed to be a supercycle update? And does it mean that it will take a next full supercycle to get rid of the notch?


Gamewave

macrumors newbie
Aug 6, 2013
13
6
It should also be noted that it looks like there is only 1 connector. On all other models there are two, one for the display and one for the digitizer. It looks like they integrated all the pins into one long connector. The Apple logo on the silver box is also new. Since the iPhone X, there have not been any Apple logos on the glass or connectors.


Eggtastic

macrumors 6502a
Jun 9, 2009
775
452
NJ
I would hope the notch would be smaller on the pro models. Look at Samsung. I even preferred the hole punch on the side vs. the center. Im still holding onto my X and hope apple surprises us this fall.


Kylo83

macrumors 6502
Apr 2, 2020
458
1,169
What happened to the S year models this would be first year in long time going from 11 to 12 without 11S


Eorlas

macrumors 6502a
Feb 10, 2010
723
1,190
Now this is a proper MacRumors leak not some automated post telling us about beta announcements, etc.
...i dont understand the purpose of this comment. beta announcements and new product releases are not tossed around as leak posts. this is a proper leak, unlike those other posts, because this is a leak, and those are not.

they're irrelevant to one another.


JM

macrumors 65816
Nov 23, 2014
1,181
1,375

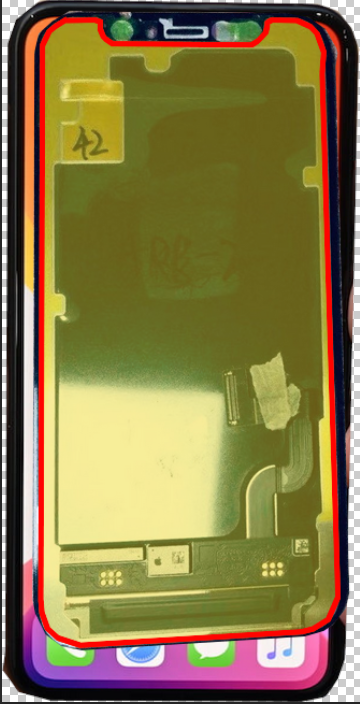

Lining up the notches makes it look plausible for the 5.4" device, so I REALLY hope it's not this gimpy squished status bar experience on the 5.4". 😣

*(redline is the screen of the leaked screen part from this article)
* (I got the image of the iphone underneath from a 11pro review, so it's hopefully either the regular 11pro or the max and not the 11 regular, but maybe it will work for notch comparisons.)


  • Like
Reactions: Anson_431 and JPack

itsmilo

macrumors 68040
Sep 15, 2016
3,596
7,793
Berlin, Germany
Two different iPhones with the same dimensions sounds like a mess to me. People I talk to already don’t understand why the iPhone 11 Pro is smaller than the iPhone 11 yet more expensive and now we will have two of the same size.

it’s like the iPad and iPad Air existing next to the Pro. Mess to explain to people.

maybe one of them will actually not have 5G or what will the difference be if everything goes OLED besides the camera? Which makes the whole thing even more pointless besides being able to charge more to get the „best“ instead of just naturally improving the camera.

i wouldn’t be surprised if the 6.1 (Device 2.0) takes over the price point of the Max to justify another price hike on the 6.7 device.

  • Like
Reactions: gleepskip

JPack

macrumors 603
Mar 27, 2017
6,045
9,608
It should also be noted that it looks like there is only 1 connector. On all other models there are two, one for the display and one for the digitizer. It looks like they integrated all the pins into one long connector. The Apple logo on the silver box is also new. Since the iPhone X, there have not been any Apple logos on the glass or connectors.
This looks like a scrapped or incomplete display assembly. It's clearly missing the earpiece speaker and front sensor assembly at the top. The earlier leaked iPhone 5G logic board shows the same number of connectors as iPhone 11.

  • Wow
Reactions: JM
