A lot of things are written inside the NVRAM, I just talked about one.
Another example, Microsoft shouldn't sign Mac Pro BootROM at all, since it's EFI 1.10 and SecureBoot requires that the firmware follow UEFI 2.3.1C spec.
Yes I assumed that, if I try to Imagine what prozesses must run, before post its clear.
In a PC Bios it is a bit more visible whats happening before post.
If I remember it right, that is 10 years Ago =)
Hahaha, maybe MS is doing that on purpose, to screw up the old Cheesegrater.
Revenge of some sort, most likely they just dont care.
Most likely not, the card gets power from PCI also.
If there would be a easy way, it most likely would have been found by now.
The fact it is working at all, seems more like a coincidence / accident, or just enough old EFI bits.
So far, it worked great for me, no glitches no problems.
With the: "choose windows as boot volume" Apple-script its is halfway automated.
I did find a way to automate it in windows.
So far no one I asked seems to know how to, and how to omit the script at start up in case of a problem. Optimal would be a keystroke to omit the script at start up.
Since I really dont know how to make it work safe, I didnt dare to do that in Windows. Maybe safe mode would omit it, but I dont know. I dont have two installations to experiment, and I really need it working.
Probably its not a big deal if one knows.
With the two scripts and a safe "opt out" for Windows it would be totally automated.
The complete booting process would be about 40 to 50 seconds.
Basically pressing the power button once, walk away pour a coffe, while the machine boots Windows and restarts to OSX by it self, walk back sit down and OSX is there with a working THB.
We could change the apple script to "change start volume -> shut down" With a alias in the Dock or a alias in the sidebar of the finder window and on the desktop and where ever one wants it, and use that version of the script, instead of choosing shut down.
What I didnt manage is using the script as a startup item, if that would work it would be like normal, just shut down normal and the next time it will start into windows.
When I tried that, it complained something about invalid ..... or permission ....
I dont remember.
So far thats the best option I found in order to use a THB Audio interface on the Cheesegrater.
If there would be a easy way, it most likely would have been found by now.
The fact it is working at all, seems more like a coincidence / accident, or just enough old EFI bits.
So far, it worked great for me, no glitches no problems.
With the: "choose windows as boot volume" Apple-script its is halfway automated.
I did find a way to automate it in windows.
So far no one I asked seems to know how to, and how to omit the script at start up in case of a problem. Optimal would be a keystroke to omit the script at start up.
Since I really dont know how to make it work safe, I didnt dare to do that in Windows. Maybe safe mode would omit it, but I dont know. I dont have two installations to experiment, and I really need it working.
Probably its not a big deal if one knows.
With the two scripts and a safe "opt out" for Windows it would be totally automated.
The complete booting process would be about 40 to 50 seconds.
Basically pressing the power button once, walk away pour a coffe, while the machine boots Windows and restarts to OSX by it self, walk back sit down and OSX is there with a working THB.
We could change the apple script to "change start volume -> shut down" With a alias in the Dock or a alias in the sidebar of the finder window and on the desktop and where ever one wants it, and use that version of the script, instead of choosing shut down.
What I didnt manage is using the script as a startup item, if that would work it would be like normal, just shut down normal and the next time it will start into windows.
When I tried that, it complained something about invalid ..... or permission ....
I dont remember.
So far thats the best option I found in order to use a THB Audio interface on the Cheesegrater.
@NoLemon:
I tried the last hours to find a way how to auto start in windows, and after logging in, program an automation with "ghost mouse" to restart into Mac OS.
1) after restarting from windows via bootcamp system manager into Mac OS, the boot order automatically changes back to Mac OS as startup volume = the system will start into Mac OS the next time I turn on the Mac Pro. I couldn't find a way to avoid that.
2) using ghost mouse or other similar programs: I expierienced the problem that the last click on "Restart" in boot camp needs to be executed and after that one would need to hit save in "ghost mouse" - which will obviously not work because the Mac shuts down immediately.
maybe the way I try to automate this startup process is totally wrong (seems so to me)... I would appreciate it if you could point me in the right direction.
another thing which is a little bit annoying is that I will loose the thunderbolt connection to my UAD apollo16 as soon as the Mac Pro is in standby mode. Do you have the same problem with your audio interface?
best,
George
I tried the last hours to find a way how to auto start in windows, and after logging in, program an automation with "ghost mouse" to restart into Mac OS.
1) after restarting from windows via bootcamp system manager into Mac OS, the boot order automatically changes back to Mac OS as startup volume = the system will start into Mac OS the next time I turn on the Mac Pro. I couldn't find a way to avoid that.
2) using ghost mouse or other similar programs: I expierienced the problem that the last click on "Restart" in boot camp needs to be executed and after that one would need to hit save in "ghost mouse" - which will obviously not work because the Mac shuts down immediately.
maybe the way I try to automate this startup process is totally wrong (seems so to me)... I would appreciate it if you could point me in the right direction.
another thing which is a little bit annoying is that I will loose the thunderbolt connection to my UAD apollo16 as soon as the Mac Pro is in standby mode. Do you have the same problem with your audio interface?
best,
George
I dont know that, I dont use stand by because I use a PCI SSD, and that SSD does not like standby.
I used this: https://www.tinytask.net
Ok, lets see if I get it right what you are writing:
If ghost mouse in Windows is choosing osx as boot volume you will boot in to osx so far its good.
Then you say it will reboot again in to osx ?
If you dont have in osx a script running to change the boot volume back to windows, it will of course restart In to osx. so I dont get if you have something in osx to choose windows again.
Simple explained:
(if it works at all)
You need one script in each operating system, choosing the other operating system.
in OSX you trigger the system after login manually or alter the script to first change the boot volume and then shut down. I dont know, maybe shut down has to be time delayed, because the script I have is pretty slow.
It is opening system prefs, filling the password, pressing ok, changing the volume, quits system prefs.
Basically its also task recording.
tinytask is also a task recorder, its also pretty slow. I had it work but I never tried to use it automatically, so For now Im still doing the clicking in windows =)
I used this: https://www.tinytask.net
Ok, lets see if I get it right what you are writing:
If ghost mouse in Windows is choosing osx as boot volume you will boot in to osx so far its good.
Then you say it will reboot again in to osx ?
If you dont have in osx a script running to change the boot volume back to windows, it will of course restart In to osx. so I dont get if you have something in osx to choose windows again.
Simple explained:
(if it works at all)
You need one script in each operating system, choosing the other operating system.
in OSX you trigger the system after login manually or alter the script to first change the boot volume and then shut down. I dont know, maybe shut down has to be time delayed, because the script I have is pretty slow.
It is opening system prefs, filling the password, pressing ok, changing the volume, quits system prefs.
Basically its also task recording.
tinytask is also a task recorder, its also pretty slow. I had it work but I never tried to use it automatically, so For now Im still doing the clicking in windows =)
thanks for you reply and the explanation.
i understand now that it is not possible without implementing scripts into the two operating systems which will auto change the boot volume.
in the moment my focus changed a little bit as I have massive bandwidth problems with the titan ridge card:
in idle state, without even having my DAW running the DSP load on my apollo card is 21%. this is way too much.
if I open a new Ableton live session and add 7 new tracks and insert a UAD preamp plugin into each, the DSP load will be 100% AND the CPU load will be +50%. on my mbp this would be no problem at all.

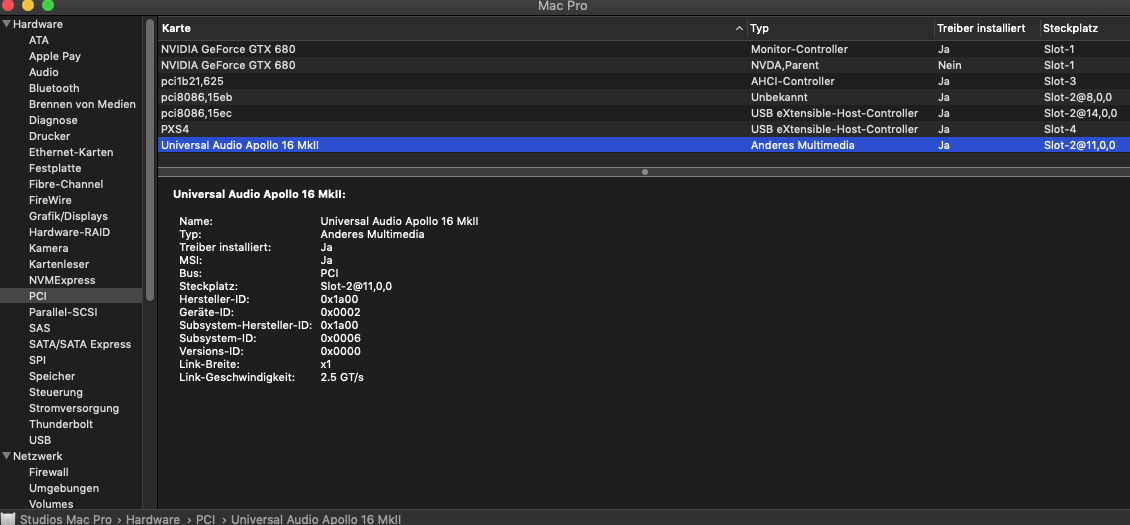

the apollo16mk2 is connected via an apple tb3 -> tb2 adaptor. latest firmware of course. using usbC port 1 or 2 on the titan ridge also makes no difference.
i have no other explanation that the reason is the link width of the titan ridge card. I tried slot 3 and slot 2 but the link width will always be x1 @ 2,5gt.
drivers load fine in win and OS.
I would appreciate it if someone could post his opinion... if there is no way increase bandwidth I will have to use my mbp 2016 again - but I really would like to avoid that.
Attachments
with IDC off and a cue bus count of 2, I manage to have a load of 8% idle @ 44.1 kHz on the apollo dsp's
that would be acceptable. but my CPU load in Live is somewhat high compared to the low track counts I test with. 10 tracks with some Ableton live synths + audio fx and maybe a UAD plugin here and there shouldn't give me 20-30% CPU load.
I have to admit that this is not my idea of how to use high-end interfaces.
I never had to reduce cue buses or sampling frequency when working on the Mac book. I usually use 96kHz.
maybe I overestimated the capabilities of the mp5.1.
that would be acceptable. but my CPU load in Live is somewhat high compared to the low track counts I test with. 10 tracks with some Ableton live synths + audio fx and maybe a UAD plugin here and there shouldn't give me 20-30% CPU load.
I have to admit that this is not my idea of how to use high-end interfaces.
I never had to reduce cue buses or sampling frequency when working on the Mac book. I usually use 96kHz.
maybe I overestimated the capabilities of the mp5.1.

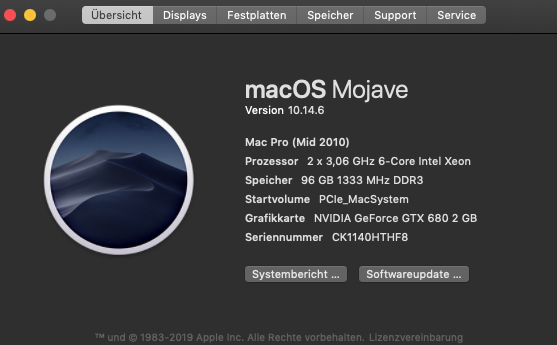

2x X5675 should not be slow, my brother has a 5.1 2x X5690.
Of course 2x X5690 is a bit faster bit not that much.
Yeah the new macbook pro is faster, but ...
if pushed it gets hot and throttles, which makes it really slow, much slower than a 5.1
A 12core 5.1 is still a pretty bad long therm number chruncher monster, what we cant say from a pro book.
You have only 3+3 ram slots populated, so it cant be that either.
If I remember right, the link speed is reported wrong with the TITAN RIDGE.
I cant check though my 5.1 died last week.
30 % CPU on all cores ?
Ableton does multi core right ?
Of course 2x X5690 is a bit faster bit not that much.
Yeah the new macbook pro is faster, but ...
if pushed it gets hot and throttles, which makes it really slow, much slower than a 5.1
A 12core 5.1 is still a pretty bad long therm number chruncher monster, what we cant say from a pro book.
You have only 3+3 ram slots populated, so it cant be that either.
If I remember right, the link speed is reported wrong with the TITAN RIDGE.
I cant check though my 5.1 died last week.
30 % CPU on all cores ?
Ableton does multi core right ?
First time poster here, forgive me if this is amateurish; I have a Mac Pro 2012 with Bootcamp Windows 10 installed, the Titan Ridge USB C PCIe card installed with drivers.
I did alot of research and as far as I know, I should be good to go. But I'm still not getting a response from my Apollo Twin MK2 in either windows or mac.
Here's my setup:
2012 Mac Pro 5.1
6 Core 2.66gHz
32 gb RAM
Radeon HD 5870 GPU
Running Mac OSX High Sierra
Titan Ridge PCIe USBC in Slot 2
Thunderbolt 3 to Thunderbolt 2 Certified Apple adapter.
I've seen people with similar or identical setup/circumstances run their thunderbolt 2 devices without a problem with the handshake boot from windows to mac. But I can't seem to get it working one bit.
It happened ONCE where I booted into Windows and checked the "Thunderbolt Control Center" from the Gigabytes driver and it recognized the Apollo, saw exactly what the device was, etc. But It still didn't sync with the UAD software. Since then it hasent really worked at all.
Is there a step by step process that YOU followed to get your rig going Thunderbolt?
Thanks!
I used a MacBook Pro from 2016, i7, 16gb RAM ... nothing special.
until yesterday I had all ram slots populated, removed 2 sticks this morning to test if this would change something - but regarding speed and processing power it changed almost nothing. slightly faster boot into osx maybe.
they removed the cpu tab in the properties of Ableton live in version 10. I guess this is because nobody uses single core anymore and u need a multicore machine to use live (properly).
i was referring to the Ableton CPU monitor. system profiler stats will show 95% cpu usage at the same time.
[automerge]1578179475[/automerge]
did you read my former post #476 in this thread? for me using the drivers from the CD delivered with the cartridge did the trick AFTER removing all thunderbolt related stuff from the system I installed before. check the link I posted.
The Apollo is a PCIe 1.0 x1 device so it won't get any faster. Audio does not require more than the 250 MB/s allowed by the PCIe 1.0 x1 bandwidth.

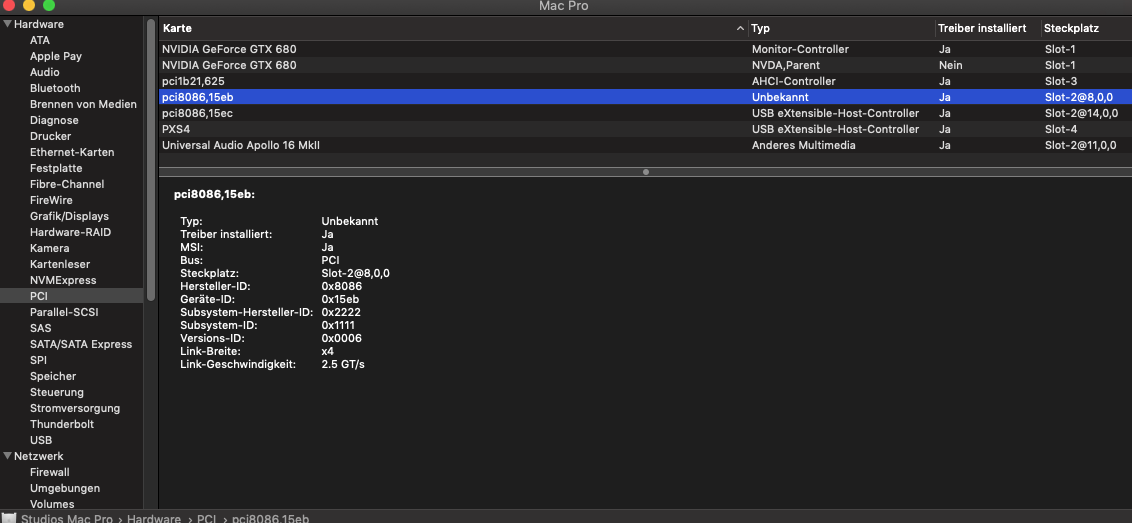

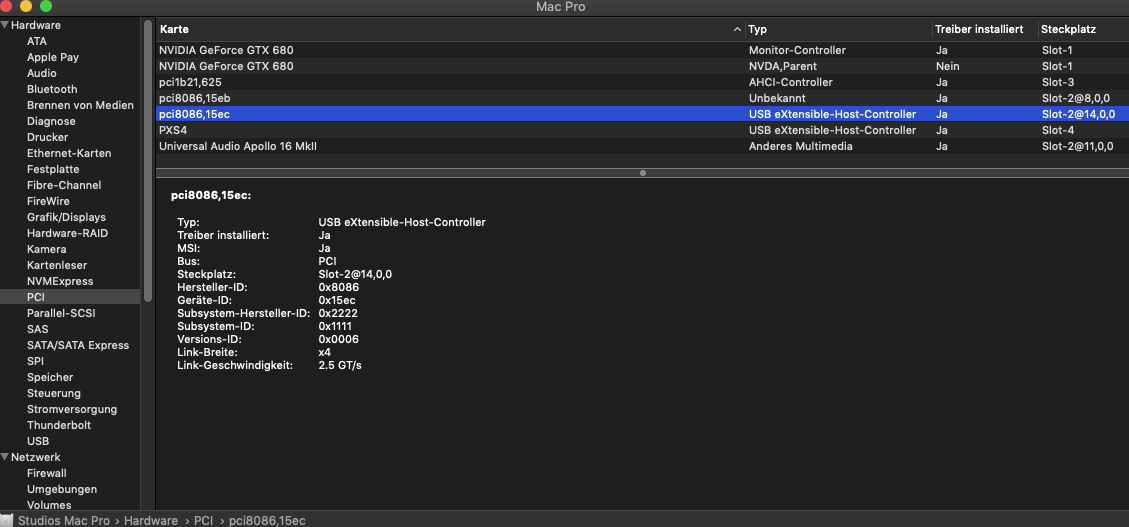

The Thunderbolt devices USB (15ec) and NHI (15eb) are behind the Thunderbolt upstream bridge and do not report link speed. You are not using those devices anyway.
Your problem is not bandwidth. It might be latency. Thunderbolt has more latency than a direct PCI connection.
[automerge]1578184954[/automerge]
Did you connect the jumper on the Thunderbolt header cable? The device needs to appear in the Windows Thunderbolt software before you can use it in macOS.
wy on a Hackintosh the Titan Ridge work with hot plug?
this is interesting
osy.gitbook.io
ThunderBolt Drivers
Interested in other thoughts about the difference between ThunderBolt Drivers. I have a Designare EX w/ the TB3 USBC DSL6540 Controller. In Ubuntu16.04 and Win10, hotswap works and all device detected. Yet in OSX, even with DSDT I can get all devices detected, yet they do not load appropriate `Th...
www.insanelymac.com
this is interesting
Thunderbolt 3 Fix (Part 3) | HaC Mini Hackintosh
osy.gitbook.io
I read this 3 part blog posting the other day, however, they were using Alpine Ridge.wy on a Hackintosh the Titan Ridge work with hot plug?
ThunderBolt Drivers
Interested in other thoughts about the difference between ThunderBolt Drivers. I have a Designare EX w/ the TB3 USBC DSL6540 Controller. In Ubuntu16.04 and Win10, hotswap works and all device detected. Yet in OSX, even with DSDT I can get all devices detected, yet they do not load appropriate `Th...www.insanelymac.com
this is interesting
Thunderbolt 3 Fix (Part 3) | HaC Mini Hackintosh
Still a good read, and some useful info, tho I'm not sure how much of it pertains to Titan Ridge.
Here is a snip of lspci on a 2016 MBP, seems Apple used some bastardized versions of Alpine/Titan Ridge:
Code:
04:00.0 PCI bridge [0604]: Intel Corporation DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015] [8086:1578] (rev 06) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 26
Bus: primary=04, secondary=05, subordinate=79, sec-latency=0
I/O behind bridge: 00005000-00006fff [size=8K]
Memory behind bridge: 81700000-8f8fffff [size=226M]
Prefetchable memory behind bridge: 00000000c1700000-00000000cf6fffff [size=224M]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00278 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015] [8086:0000]
Capabilities: [c0] Express (v2) Upstream Port, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ SlotPowerLimit 75.000W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x4, ASPM L1, Exit Latency L1 <2us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 8GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+, EqualizationPhase1+
EqualizationPhase2+, EqualizationPhase3+, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [800 v1] Latency Tolerance Reporting
Max snoop latency: 0ns
Max no snoop latency: 0ns
Capabilities: [a00 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=0us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=10us
Capabilities: [b00 v1] Precision Time Measurement
PTMCap: Requester:- Responder:- Root:-
PTMClockGranularity: Unimplemented
PTMControl: Enabled:- RootSelected:-
PTMEffectiveGranularity: Unknown
Kernel driver in use: pcieport
Kernel modules: shpchp
05:00.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 27
Bus: primary=05, secondary=06, subordinate=06, sec-latency=0
I/O behind bridge: None
Memory behind bridge: 81800000-818fffff [size=1M]
Prefetchable memory behind bridge: None
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00298 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep- BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #0, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet+ LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=1 RefClk=100ns PATEntryBits=1
Arb: Fixed+ WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
VC1: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable- ID=1 ArbSelect=Fixed TC/VC=00
Status: NegoPending+ InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
05:01.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Physical Slot: 1
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 28
Bus: primary=05, secondary=08, subordinate=40, sec-latency=0
I/O behind bridge: 00005000-00005fff [size=4K]
Memory behind bridge: 81900000-888fffff [size=112M]
Prefetchable memory behind bridge: 00000000c1700000-00000000c86fffff [size=112M]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee002b8 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #1, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #1, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet+ CmdCplt- HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending+ InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
05:02.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 29
Bus: primary=05, secondary=07, subordinate=07, sec-latency=0
I/O behind bridge: None
Memory behind bridge: 81700000-817fffff [size=1M]
Prefetchable memory behind bridge: None
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee002d8 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #2, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep- BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #0, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet+ LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
05:04.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Physical Slot: 2
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 30
Bus: primary=05, secondary=41, subordinate=79, sec-latency=0
I/O behind bridge: 00006000-00006fff [size=4K]
Memory behind bridge: 88900000-8f8fffff [size=112M]
Prefetchable memory behind bridge: 00000000c8700000-00000000cf6fffff [size=112M]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee002f8 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #4, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #4, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet+ CmdCplt- HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending+ InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
06:00.0 System peripheral [0880]: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] [8086:15eb] (rev 06)
Subsystem: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] [8086:0000]
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 17
Region 0: Memory at 81800000 (32-bit, non-prefetchable) [size=256K]
Region 1: Memory at 81840000 (32-bit, non-prefetchable) [size=4K]
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [c0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- SlotPowerLimit 0.000W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range B, TimeoutDis+, LTR+, OBFF Not Supported
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [a0] MSI-X: Enable- Count=16 Masked-
Vector table: BAR=1 offset=00000000
PBA: BAR=1 offset=00000fa0
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Latency Tolerance Reporting
Max snoop latency: 0ns
Max no snoop latency: 0ns
Kernel modules: thunderbolt
07:00.0 USB controller [0c03]: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] [8086:15ec] (rev 06) (prog-if 30 [XHCI])
Subsystem: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] [8086:0000]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 256 bytes
Interrupt: pin A routed to IRQ 53
Region 0: Memory at 81700000 (32-bit, non-prefetchable) [size=64K]
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/8 Maskable- 64bit+
Address: 00000000fee005f8 Data: 0000
Capabilities: [c0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- SlotPowerLimit 0.000W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range B, TimeoutDis+, LTR+, OBFF Not Supported
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [100 v1] Device Serial Number ee-20-7c-49-ac-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [800 v1] Latency Tolerance Reporting
Max snoop latency: 0ns
Max no snoop latency: 0ns
Kernel driver in use: xhci_hcd
Kernel modules: xhci_pci
7a:00.0 PCI bridge [0604]: Intel Corporation DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015] [8086:1578] (rev 06) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 31
Bus: primary=7a, secondary=7b, subordinate=ef, sec-latency=0
I/O behind bridge: 00009000-0000afff [size=8K]
Memory behind bridge: 8f900000-9dafffff [size=226M]
Prefetchable memory behind bridge: 00000000cf700000-00000000dd6fffff [size=224M]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00318 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015] [8086:0000]
Capabilities: [c0] Express (v2) Upstream Port, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ SlotPowerLimit 75.000W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x4, ASPM L1, Exit Latency L1 <2us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 8GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+, EqualizationPhase1+
EqualizationPhase2+, EqualizationPhase3+, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [800 v1] Latency Tolerance Reporting
Max snoop latency: 0ns
Max no snoop latency: 0ns
Capabilities: [a00 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=0us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=10us
Capabilities: [b00 v1] Precision Time Measurement
PTMCap: Requester:- Responder:- Root:-
PTMClockGranularity: Unimplemented
PTMControl: Enabled:- RootSelected:-
PTMEffectiveGranularity: Unknown
Kernel driver in use: pcieport
Kernel modules: shpchp
7b:00.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 32
Bus: primary=7b, secondary=7c, subordinate=7c, sec-latency=0
I/O behind bridge: None
Memory behind bridge: 8fa00000-8fafffff [size=1M]
Prefetchable memory behind bridge: None
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00338 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep- BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #0, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet+ LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=1 RefClk=100ns PATEntryBits=1
Arb: Fixed+ WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
VC1: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable- ID=1 ArbSelect=Fixed TC/VC=00
Status: NegoPending+ InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
7b:01.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Physical Slot: 1-1
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 33
Bus: primary=7b, secondary=7e, subordinate=b6, sec-latency=0
I/O behind bridge: 00009000-00009fff [size=4K]
Memory behind bridge: 8fb00000-96afffff [size=112M]
Prefetchable memory behind bridge: 00000000cf700000-00000000d66fffff [size=112M]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00358 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #1, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #1, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet+ CmdCplt- HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending+ InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
7b:02.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 34
Bus: primary=7b, secondary=7d, subordinate=7d, sec-latency=0
I/O behind bridge: None
Memory behind bridge: 8f900000-8f9fffff [size=1M]
Prefetchable memory behind bridge: None
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00378 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #2, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep- BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #0, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet+ LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
7b:04.0 PCI bridge [0604]: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:15ea] (rev 06) (prog-if 00 [Normal decode])
Physical Slot: 2-1
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 35
Bus: primary=7b, secondary=b7, subordinate=ef, sec-latency=0
I/O behind bridge: 0000a000-0000afff [size=4K]
Memory behind bridge: 96b00000-9dafffff [size=112M]
Prefetchable memory behind bridge: 00000000d6700000-00000000dd6fffff [size=112M]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00398 Data: 0000
Capabilities: [ac] Subsystem: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] [8086:0000]
Capabilities: [c0] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #4, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #4, PowerLimit 0.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet+ CmdCplt- HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR+, OBFF Not Supported ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [50] Capability ID 0x15 [0000]
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending+ InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [900 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir- CmpltRedir- UpstreamFwd+ EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
Kernel modules: shpchp
7c:00.0 System peripheral [0880]: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] [8086:15eb] (rev 06)
Subsystem: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] [8086:0000]
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 18
Region 0: Memory at 8fa00000 (32-bit, non-prefetchable) [size=256K]
Region 1: Memory at 8fa40000 (32-bit, non-prefetchable) [size=4K]
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [c0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- SlotPowerLimit 0.000W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range B, TimeoutDis+, LTR+, OBFF Not Supported
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [a0] MSI-X: Enable- Count=16 Masked-
Vector table: BAR=1 offset=00000000
PBA: BAR=1 offset=00000fa0
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Latency Tolerance Reporting
Max snoop latency: 0ns
Max no snoop latency: 0ns
Kernel modules: thunderbolt
7d:00.0 USB controller [0c03]: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] [8086:15ec] (rev 06) (prog-if 30 [XHCI])
Subsystem: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] [8086:0000]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 256 bytes
Interrupt: pin A routed to IRQ 54
Region 0: Memory at 8f900000 (32-bit, non-prefetchable) [size=64K]
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] MSI: Enable+ Count=1/8 Maskable- 64bit+
Address: 00000000fee00618 Data: 0000
Capabilities: [c0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- SlotPowerLimit 0.000W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s (ok), Width x4 (ok)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range B, TimeoutDis+, LTR+, OBFF Not Supported
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR+, OBFF Disabled
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
Capabilities: [100 v1] Device Serial Number ee-20-7c-39-8c-c9-a0-00
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending- InProgress-
Capabilities: [400 v1] Power Budgeting <?>
Capabilities: [500 v1] Vendor Specific Information: ID=1234 Rev=1 Len=100 <?>
Capabilities: [600 v1] Vendor Specific Information: ID=8086 Rev=2 Len=04c <?>
Capabilities: [700 v1] Secondary PCI Express <?>
Capabilities: [800 v1] Latency Tolerance Reporting
Max snoop latency: 0ns
Max no snoop latency: 0ns
Kernel driver in use: xhci_hcd
Kernel modules: xhci_pciBe nice to see lspci or the ioreg from other Macs that have TB3.
Last edited:
