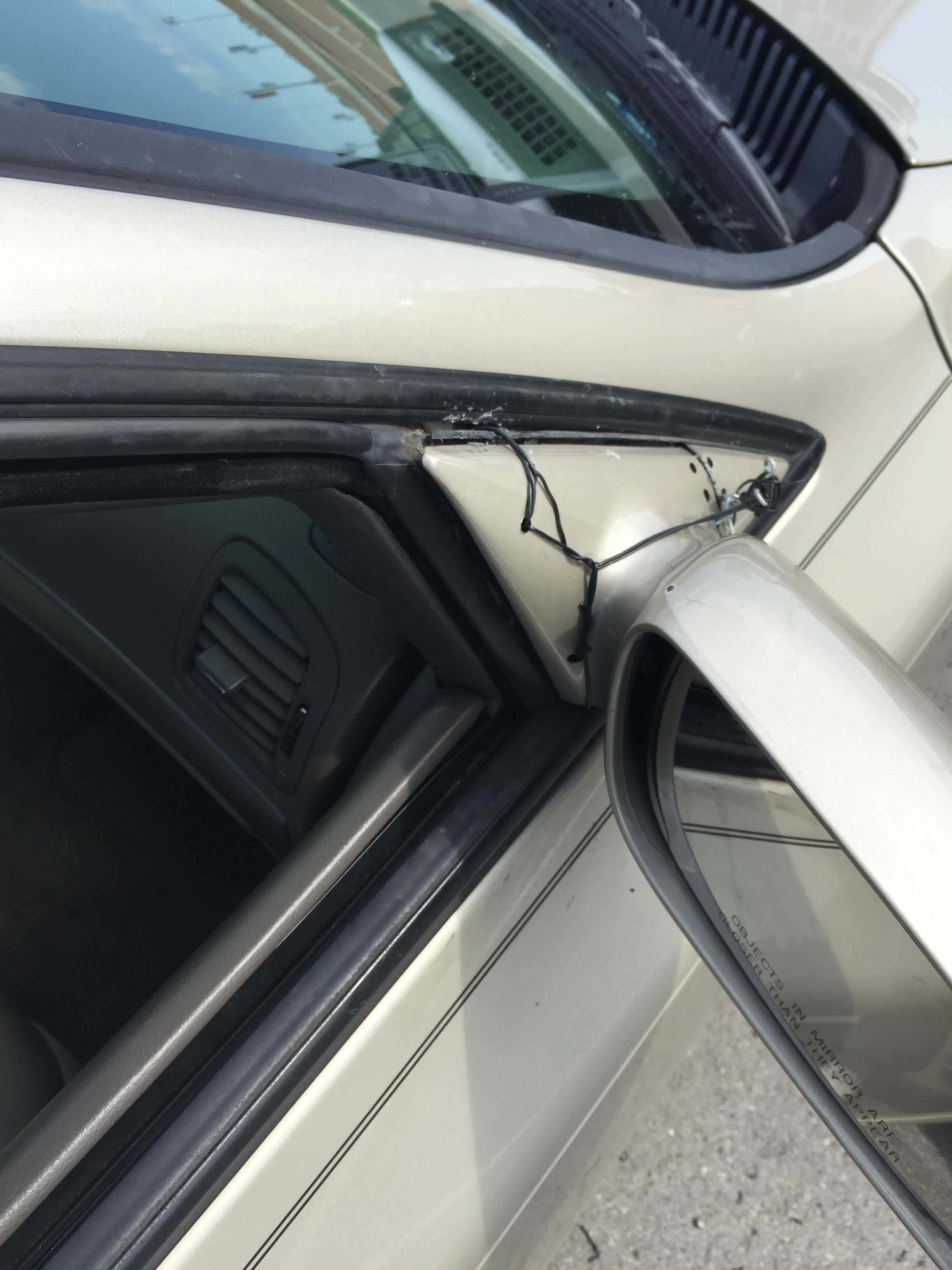

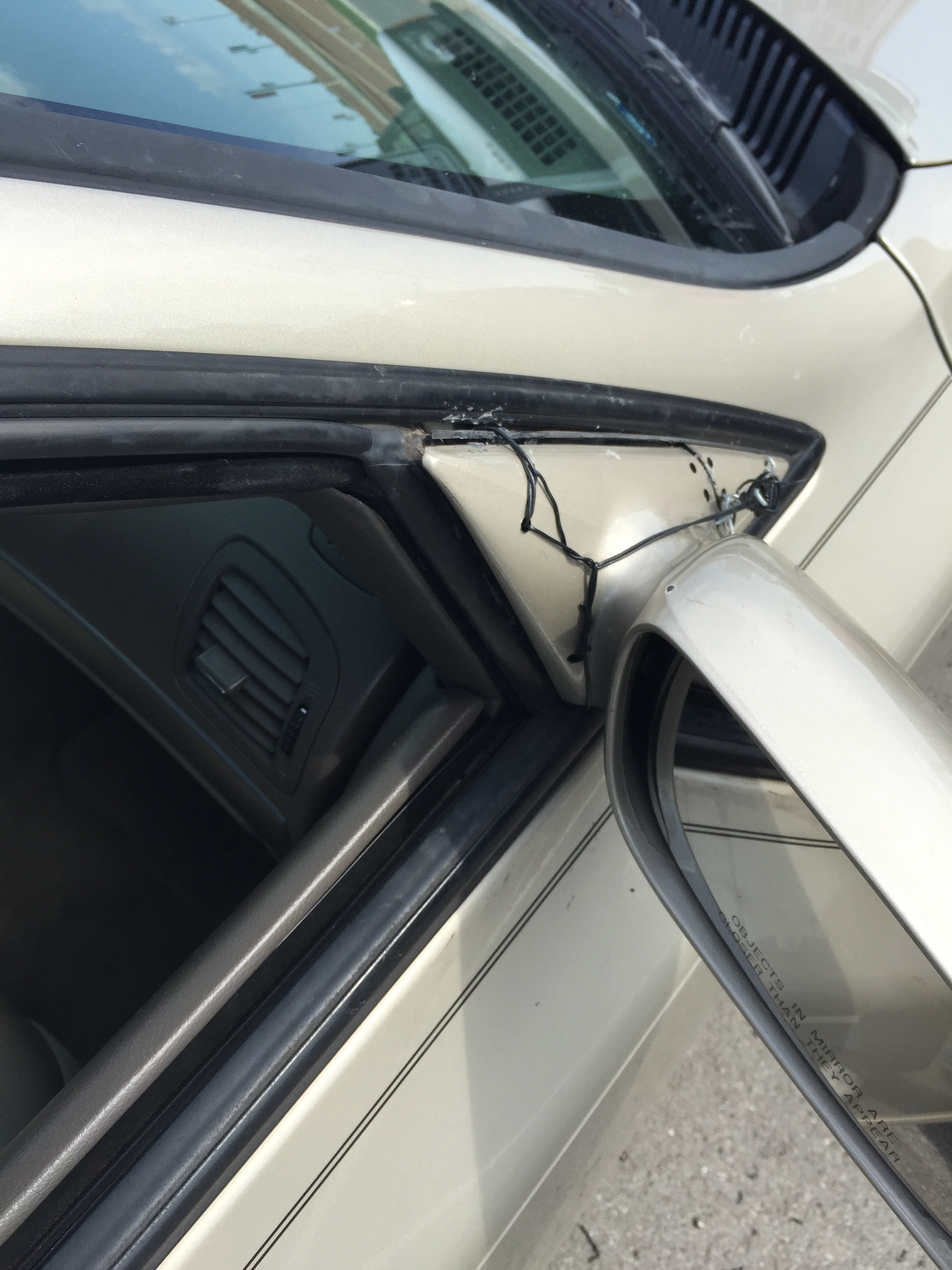

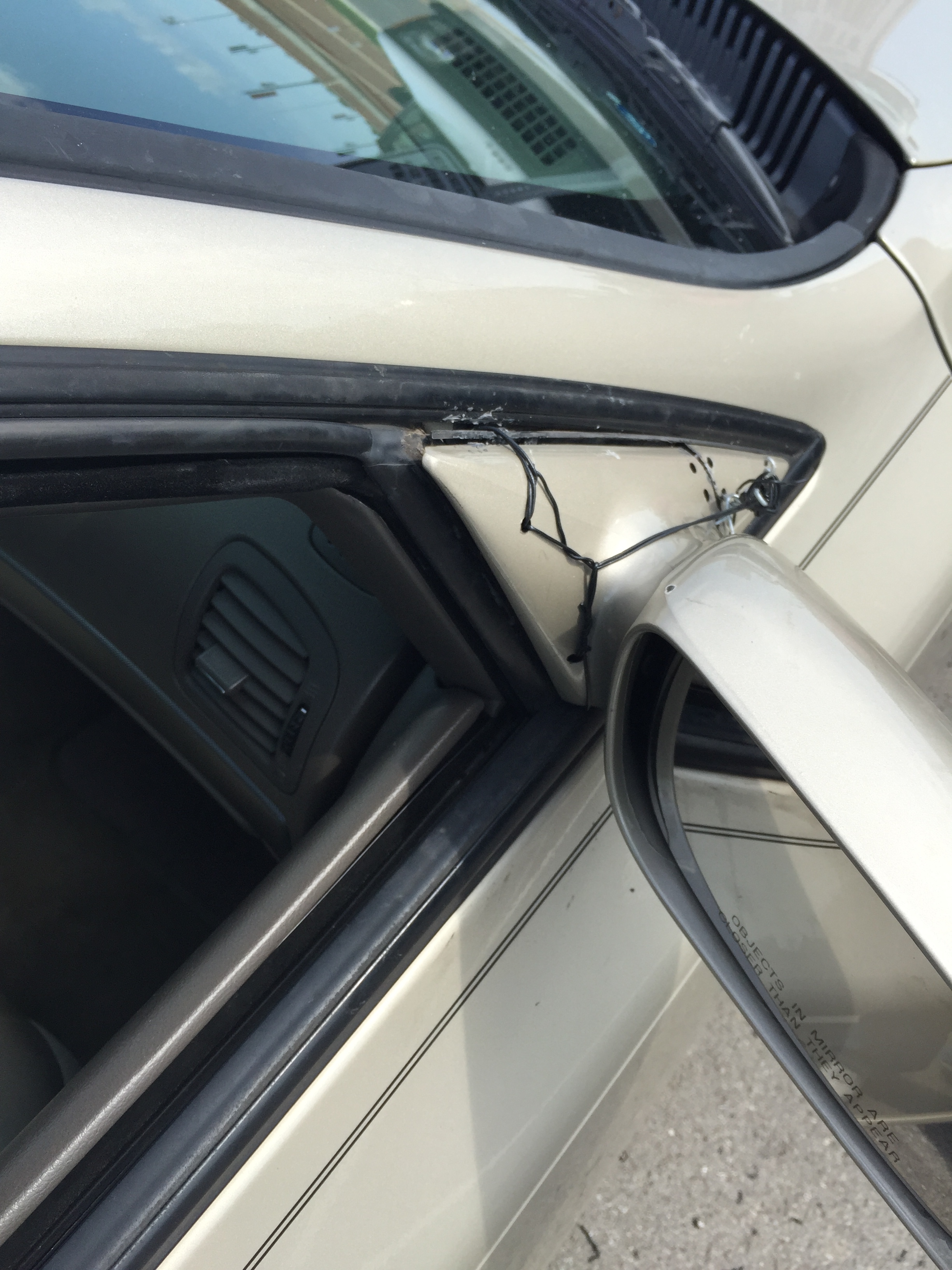

As I mentioned a few pages back, I had an unfortunate "incident" with the frame of the garage door and a side view mirror. I was able to(with the help of someone else at work) get it wired on in such a way that it was at least tightly attached, albeit very ugly.
View attachment 566383
I was able to buy one in the correct color off a salvage car on Ebay. The mirror arrived on Wednesday, and I decided to tackle it this afternoon.

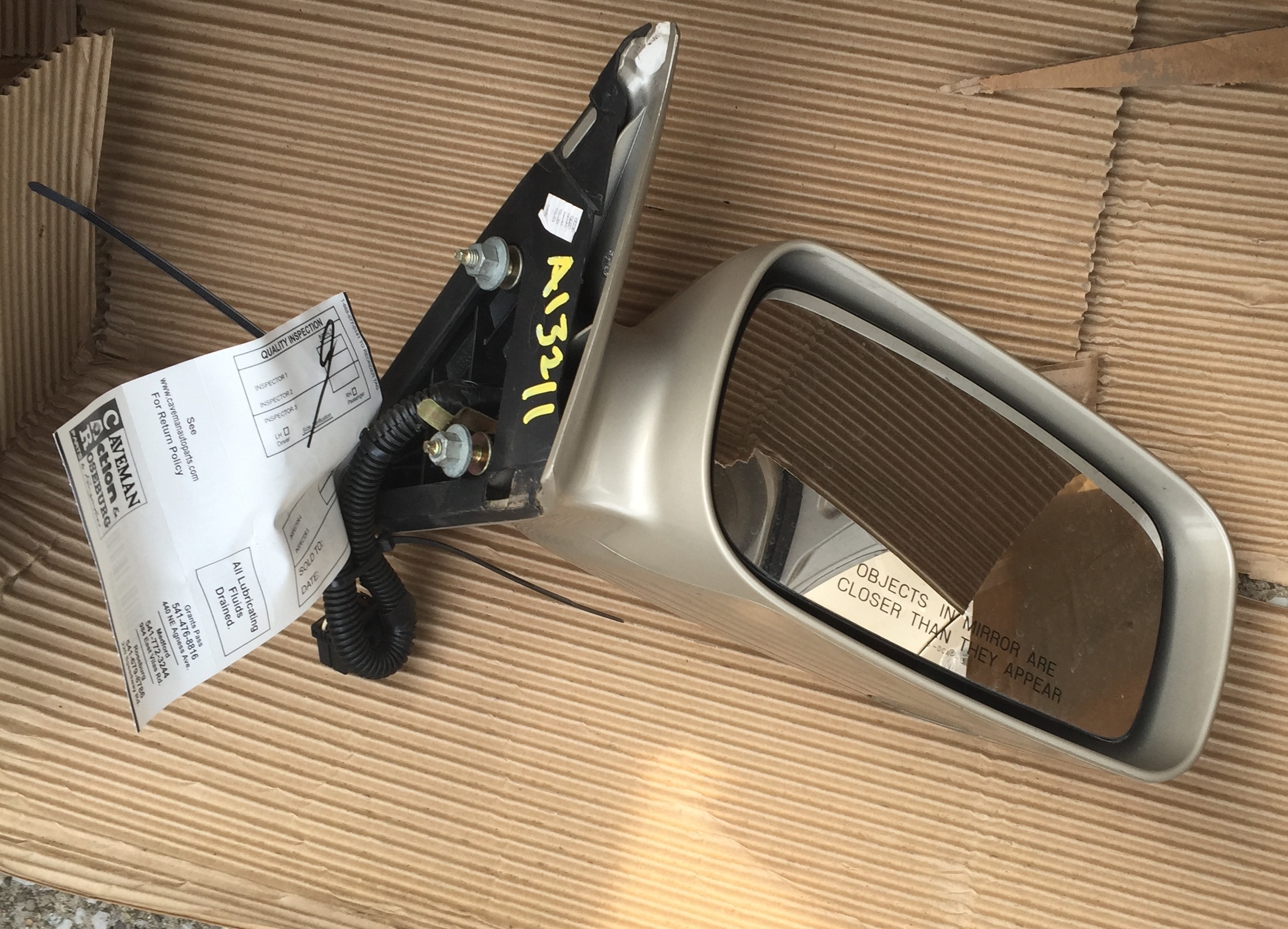

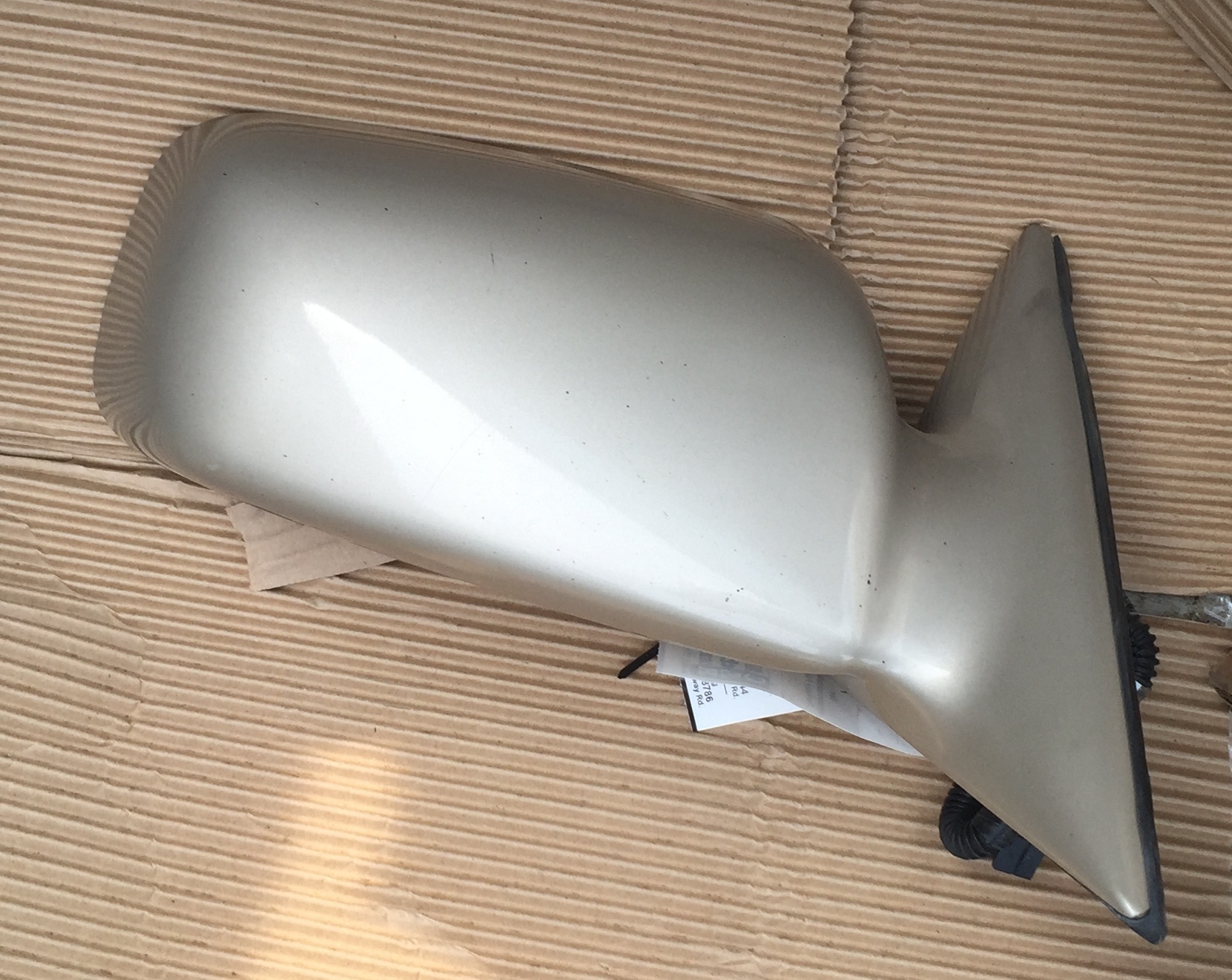

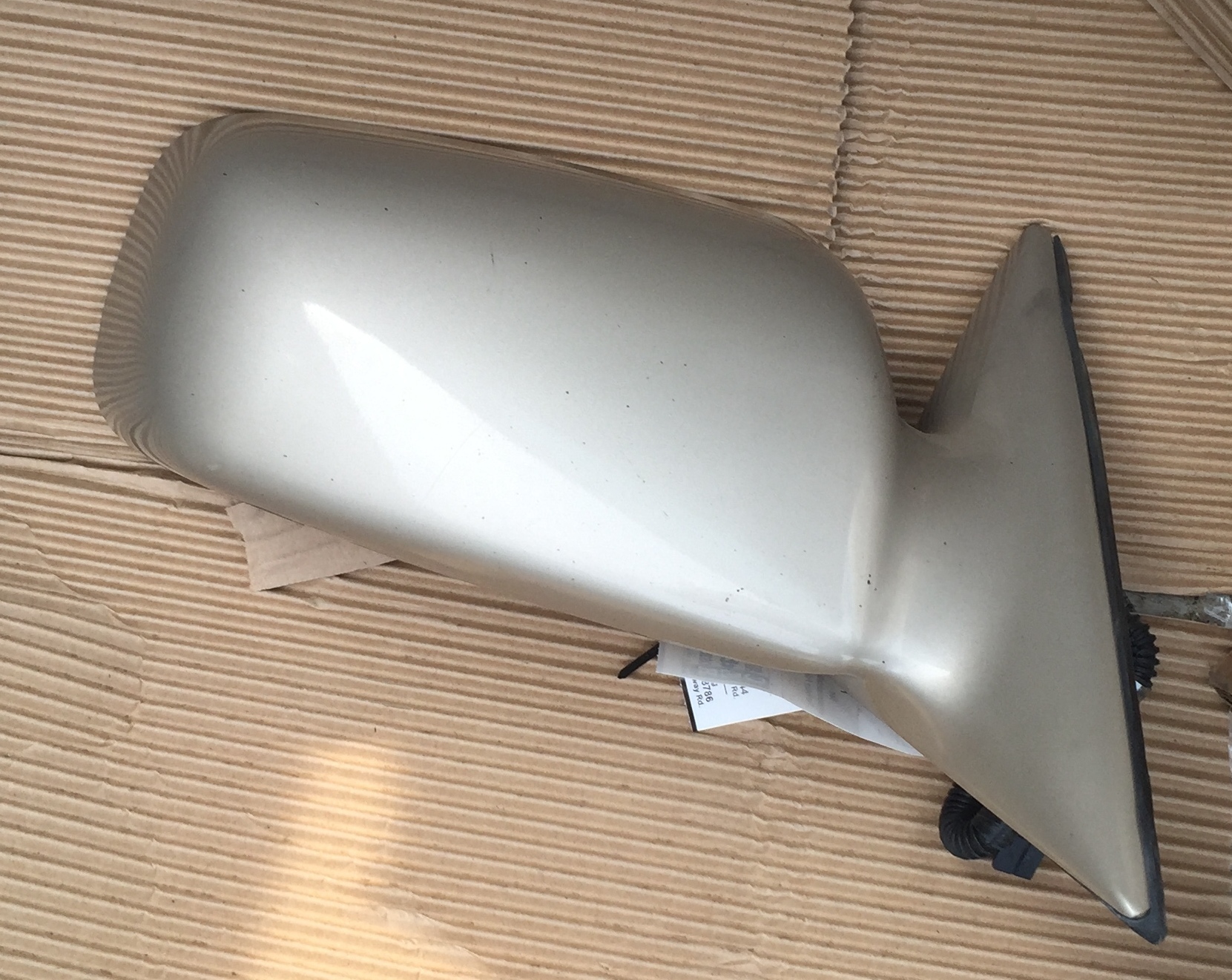

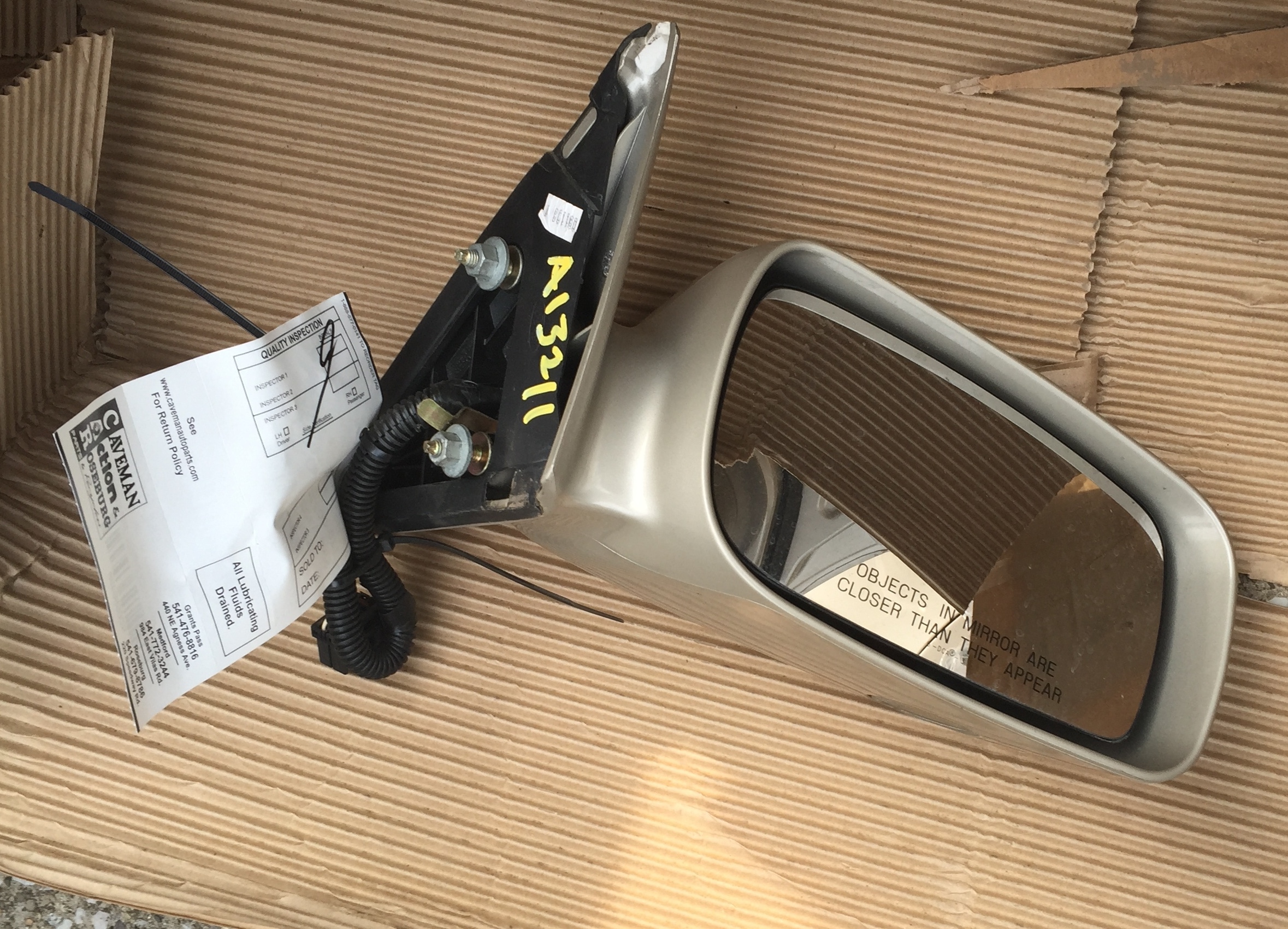

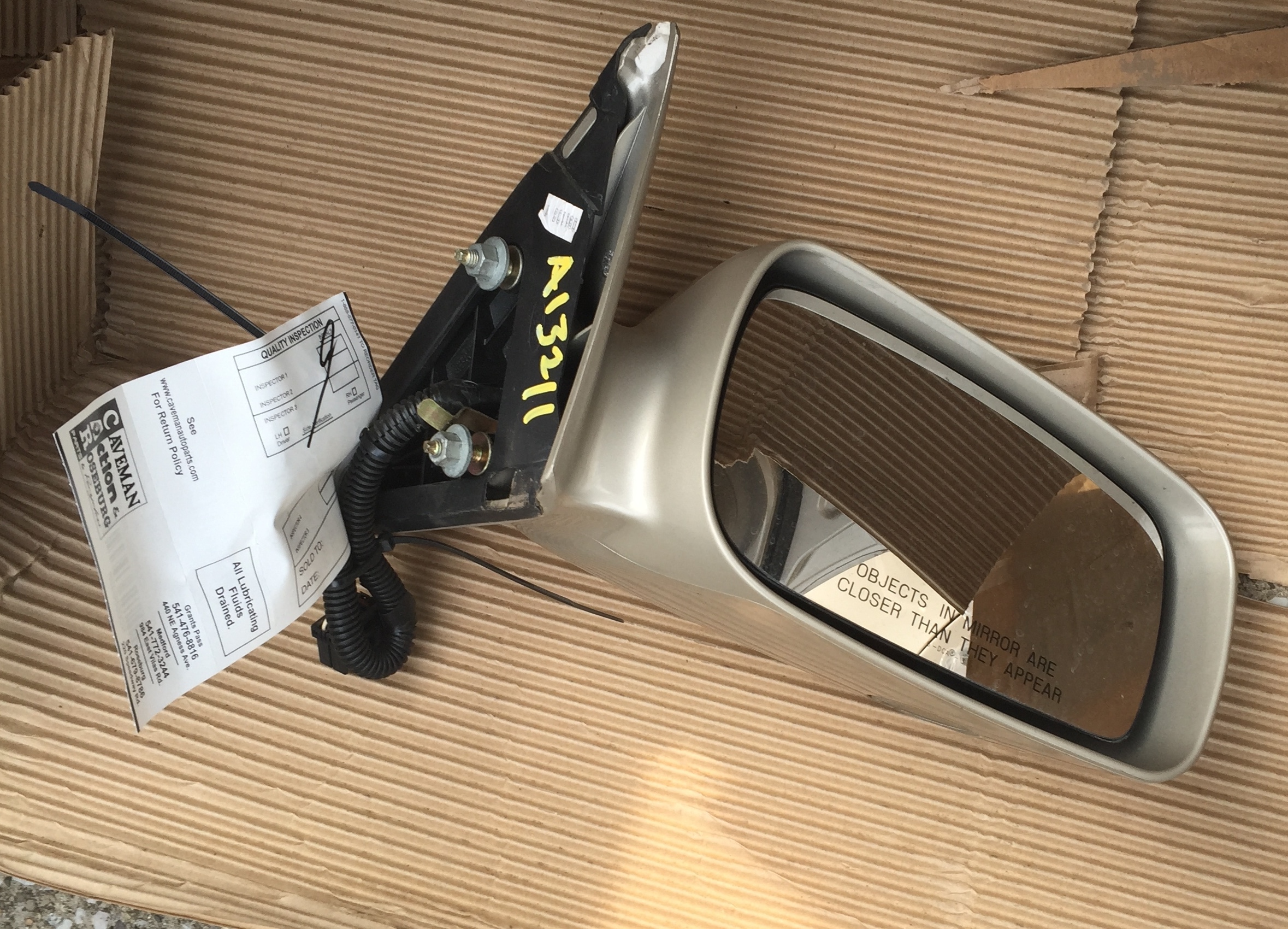

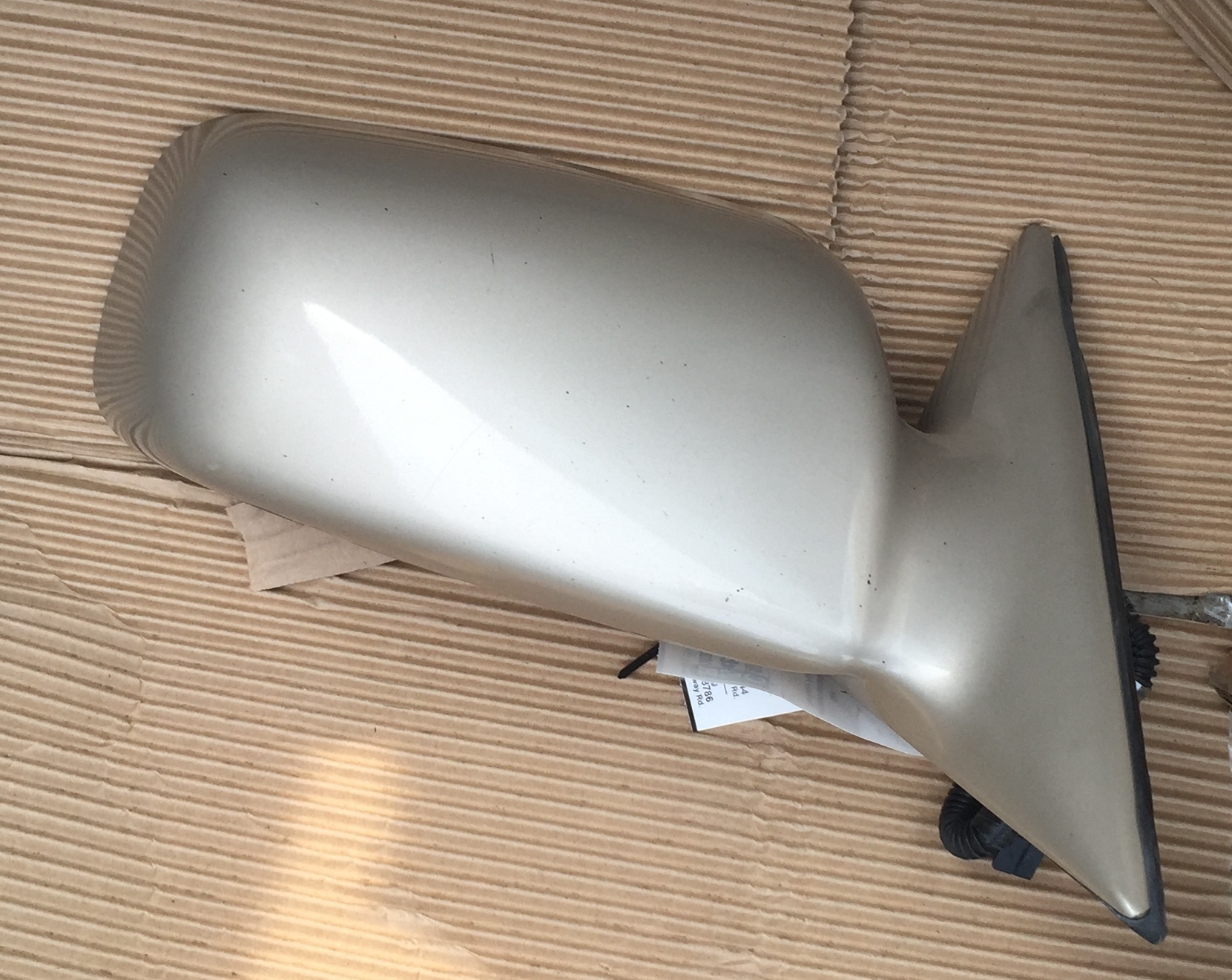

Here's the new one awaiting installation
View attachment 566385
View attachment 566386
Of course, the first step is removing the door panel. I've done it once before, so fortunately wasn't completely lost. It has 5 screws, and the handle has to be pulled out for clearance. Other than that, it's pretty straight foward-I just worked a screwdriver around the edge to help popping the clips.

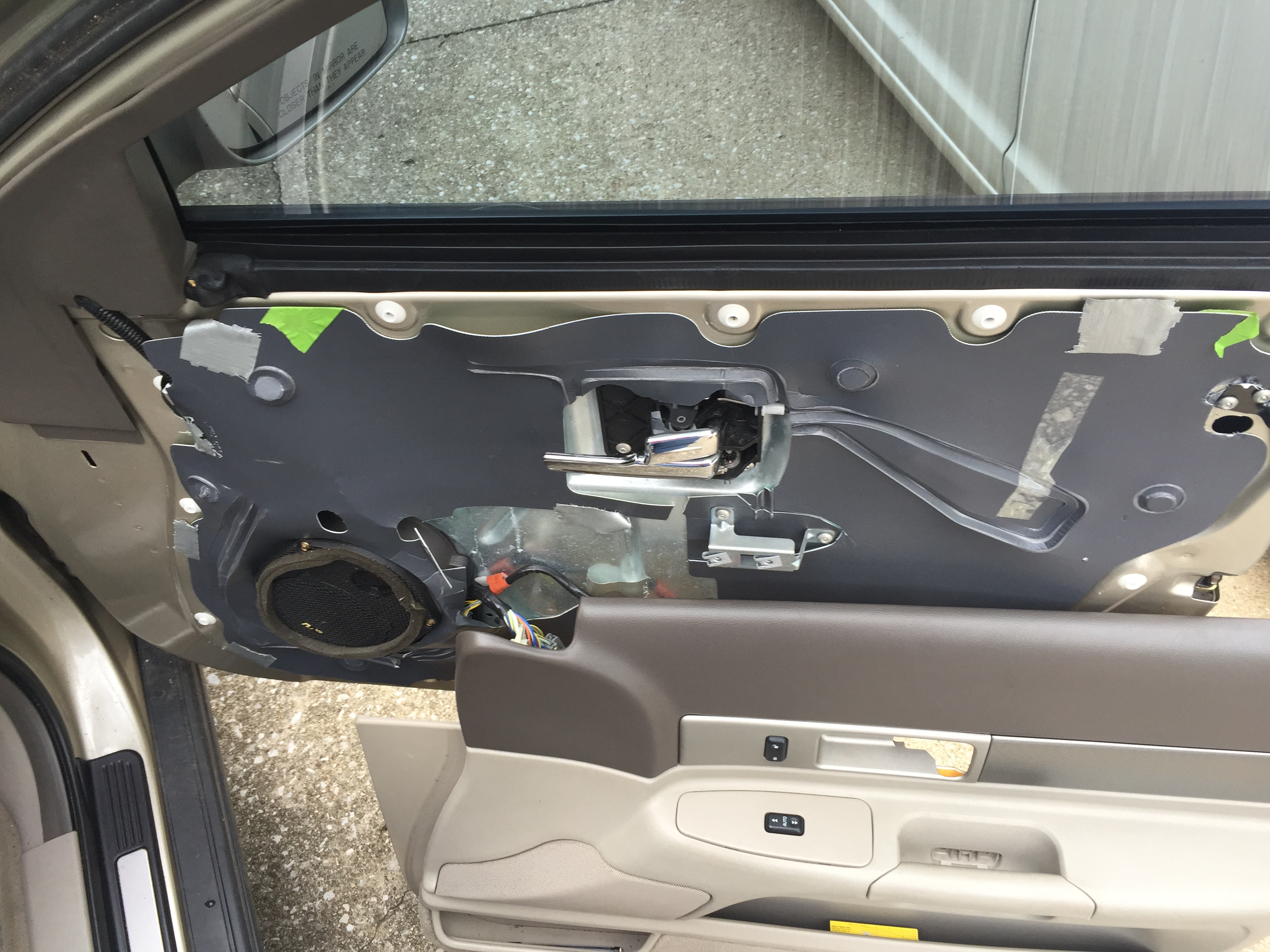

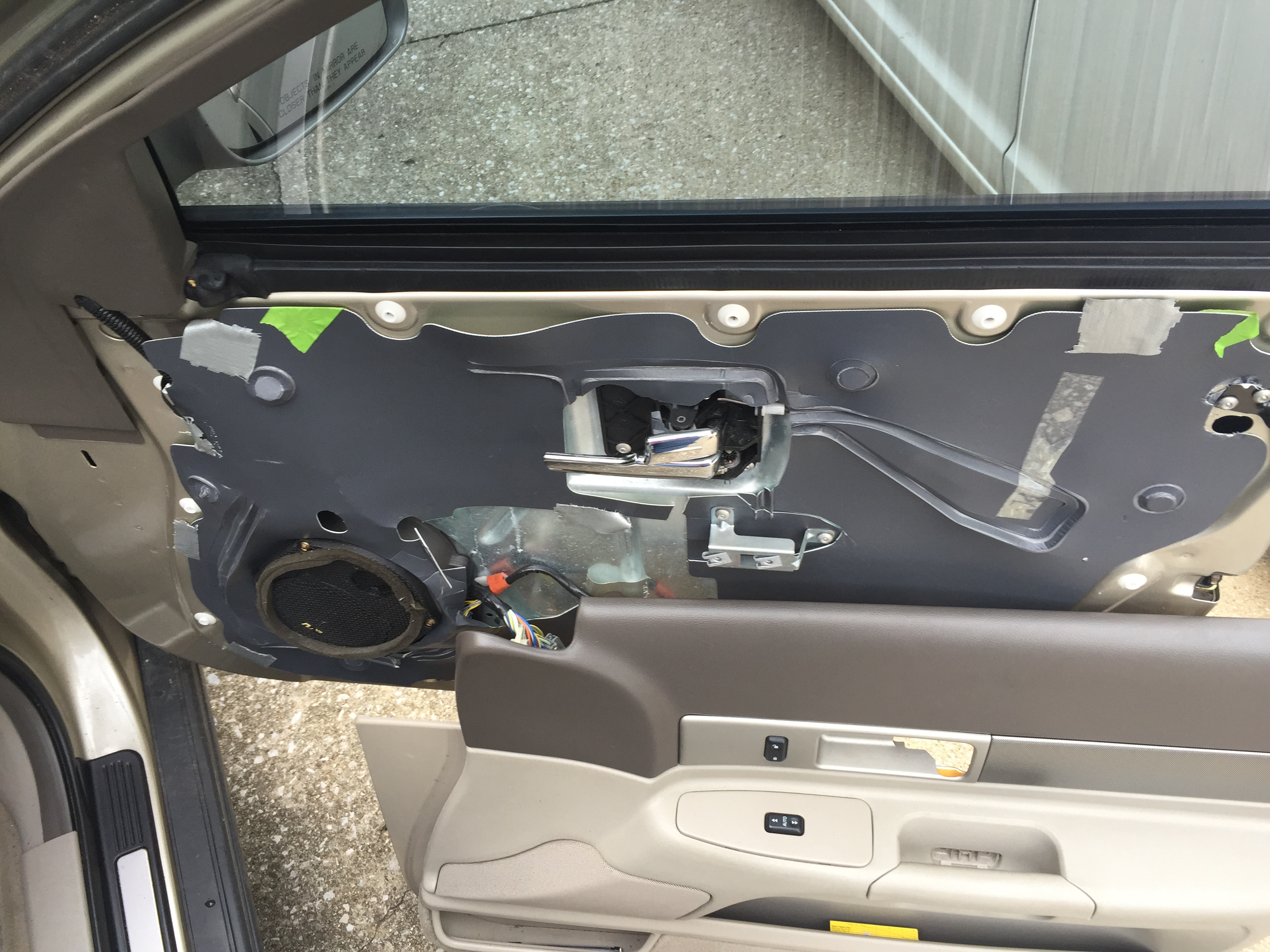

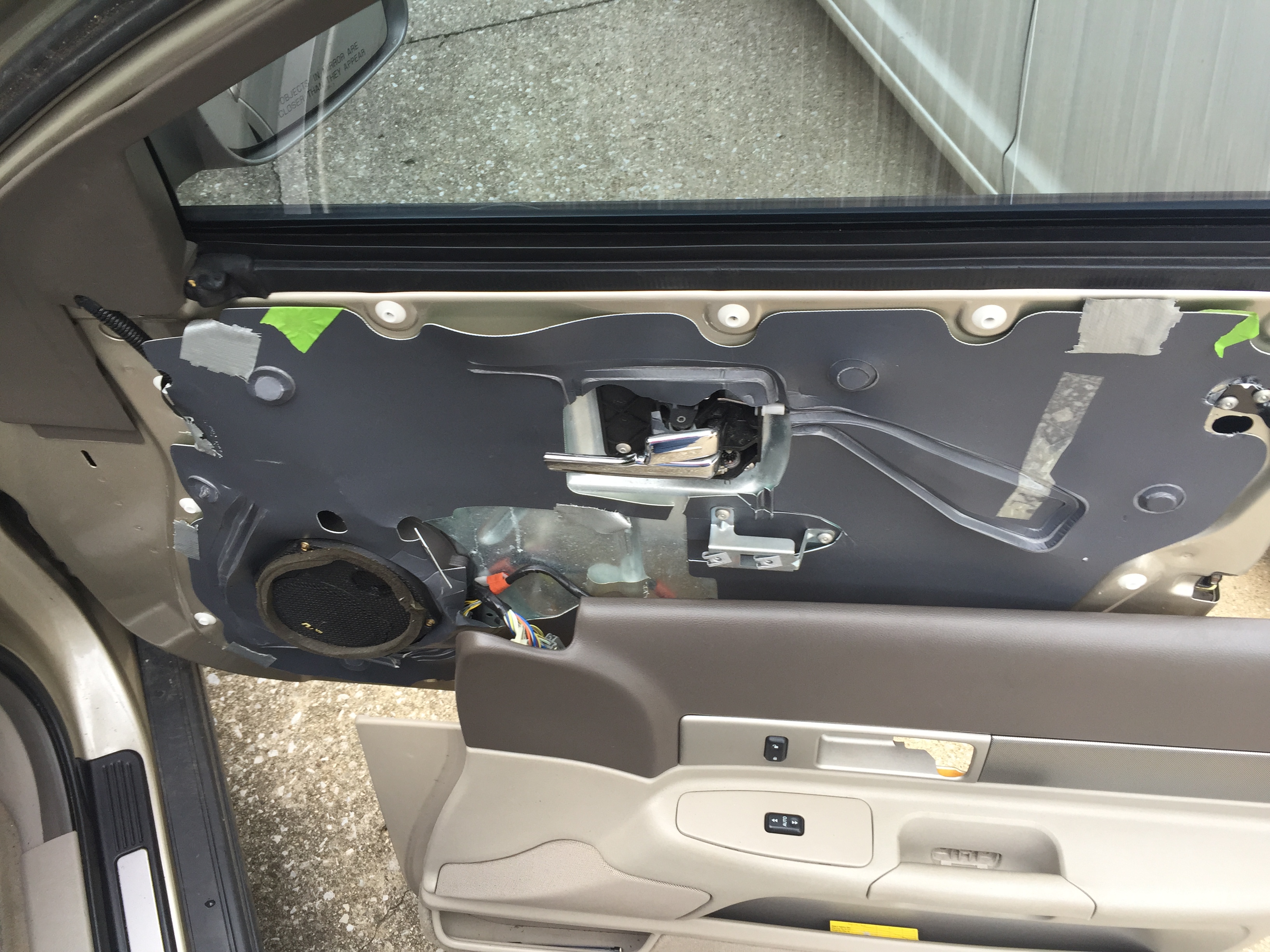

Evidence of my last incursion is, unfortunately, there. The window regulator on this side broke a few years ago. I ended up letting a mechanic finish the repair-the duct tape is theirs.
View attachment 566389

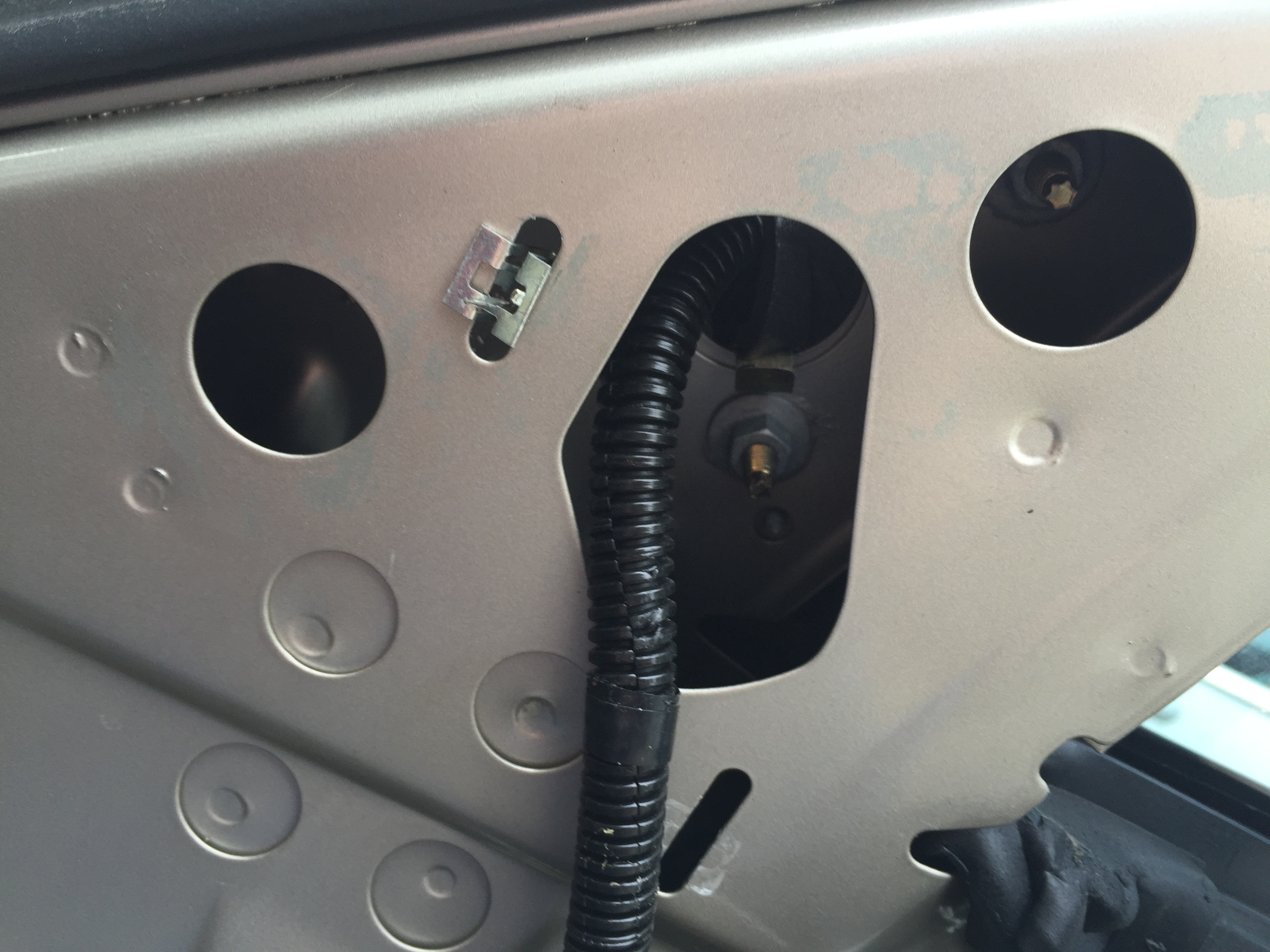

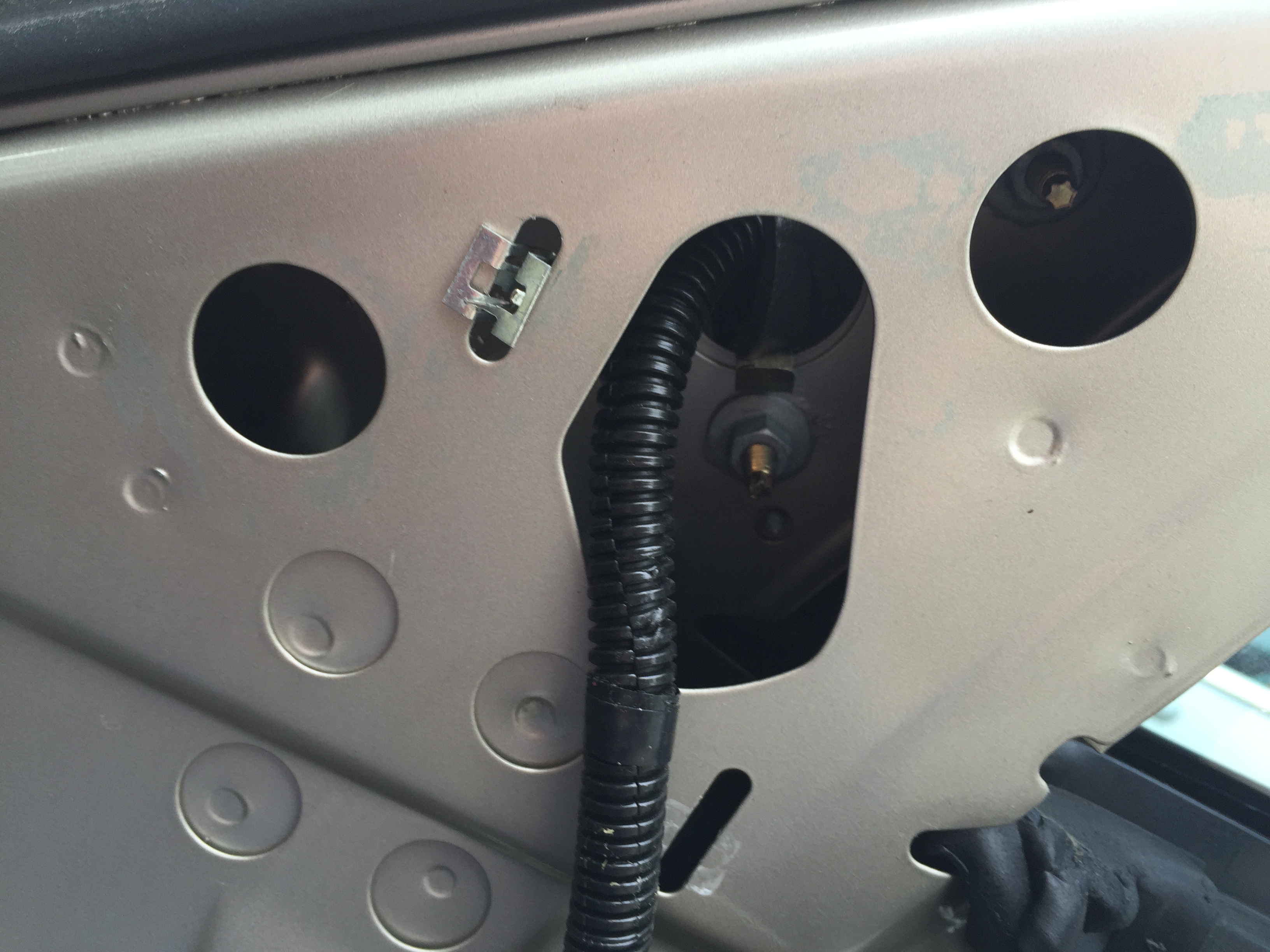

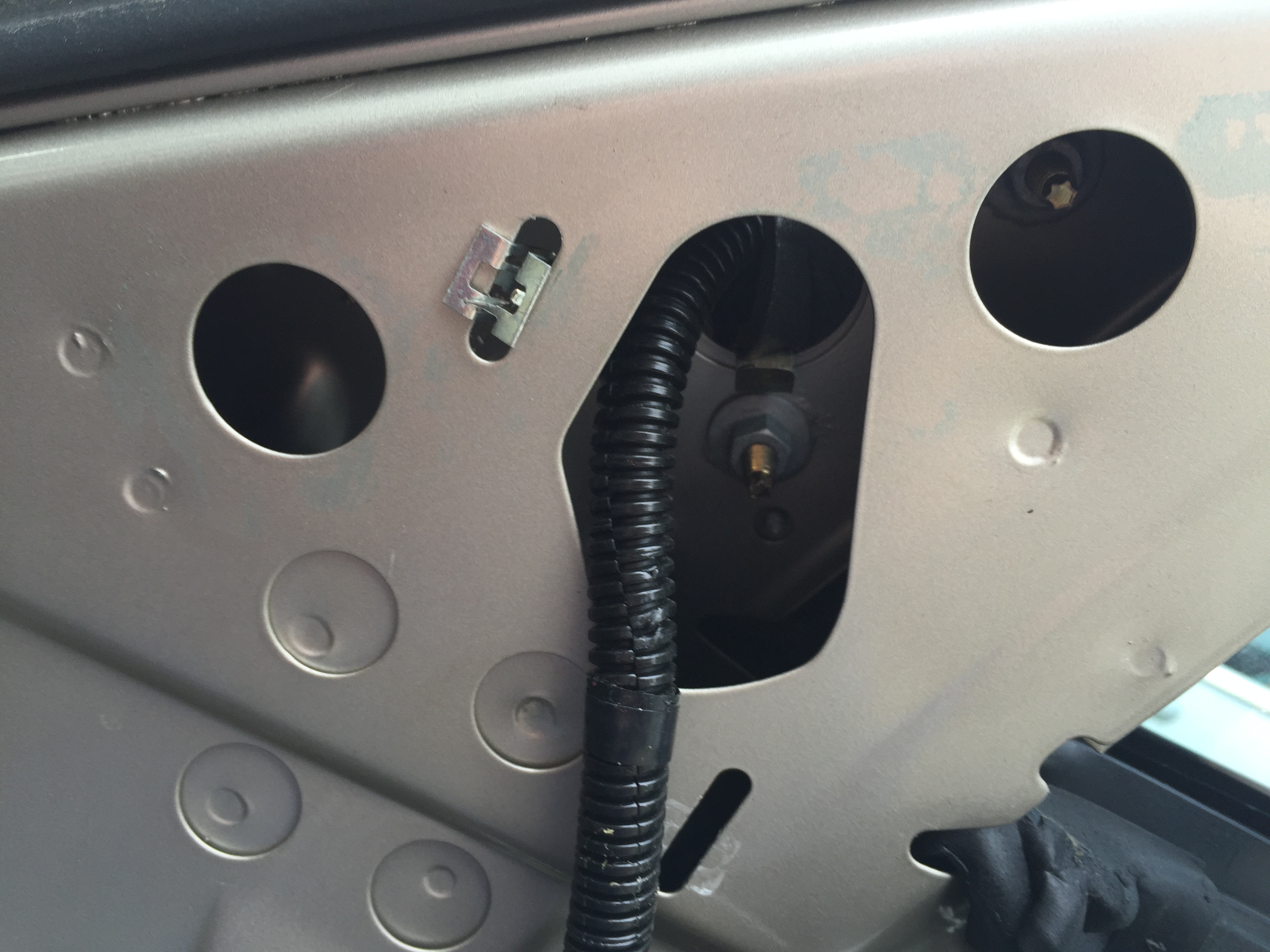

The top trim piece, along with more self-adhesive foam had to come off to give access to the mirror bolts.
View attachment 566390
From there, it was just a matter of removing the bolts and getting the old mirror off. Because of the way it was attached, I made heavy use of the diagonal cutters.
I didn't pause to take pictures of the intermediate steps, but once the three bolts are removed the mirror is lifted off and the cable threaded through the insulating foam. The cable on the new one threaded back through the hole and the mirror is set in place-I held it with my left hand while I tightened one of the bolts finger-tight using a socket and extension to keep the new one from falling off. I then installed the other bolts and snugged all of them down good.

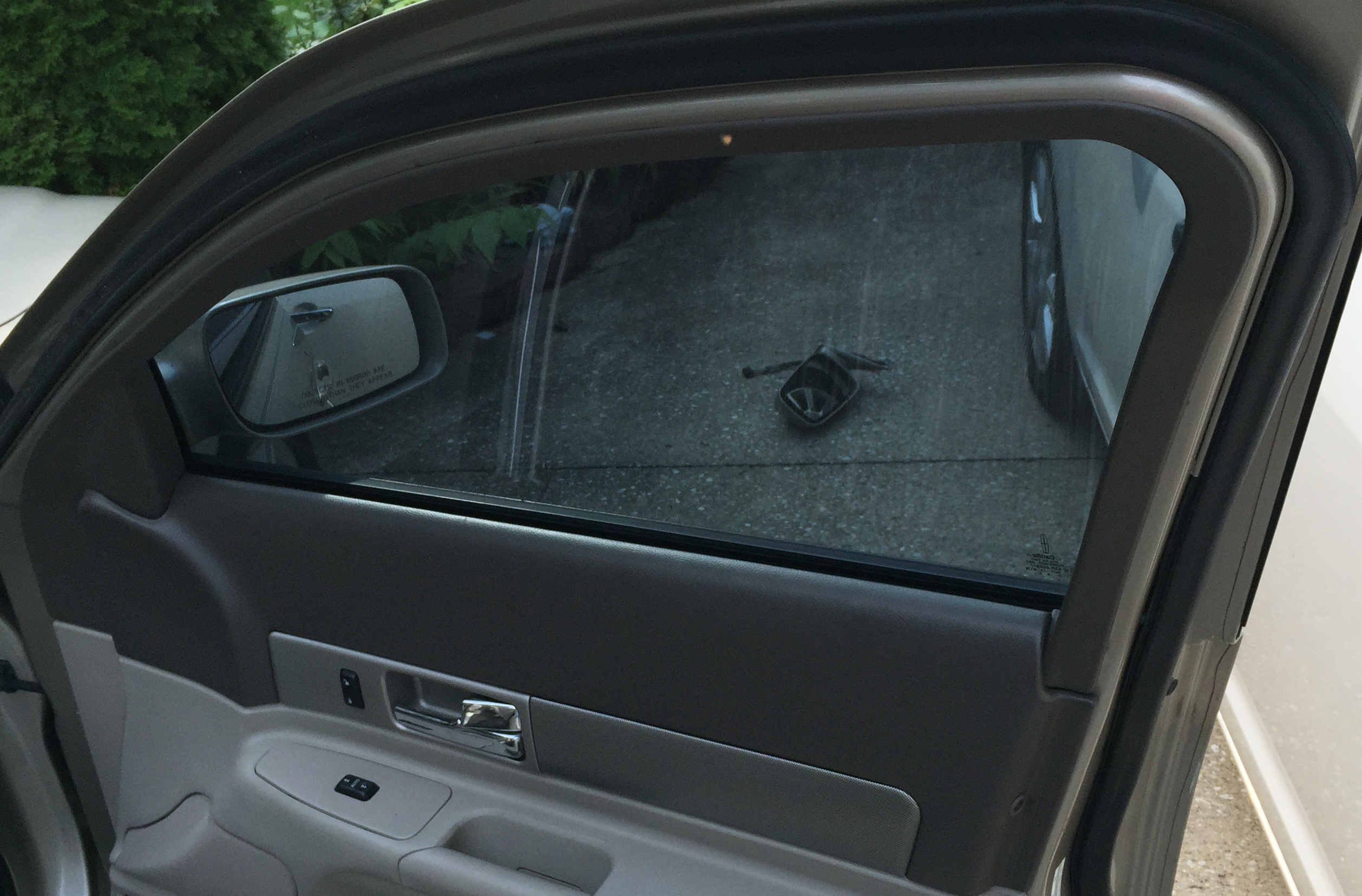

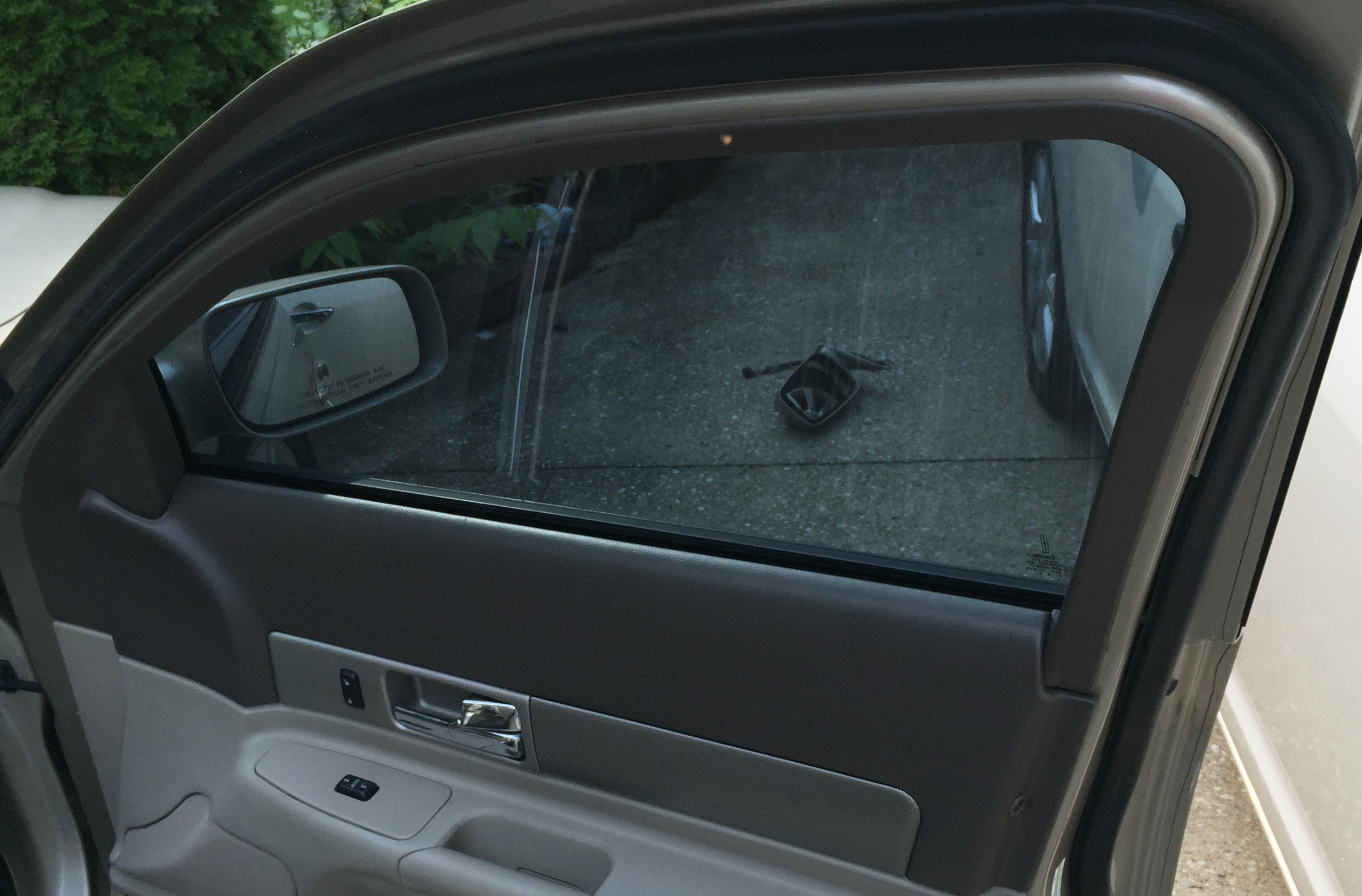

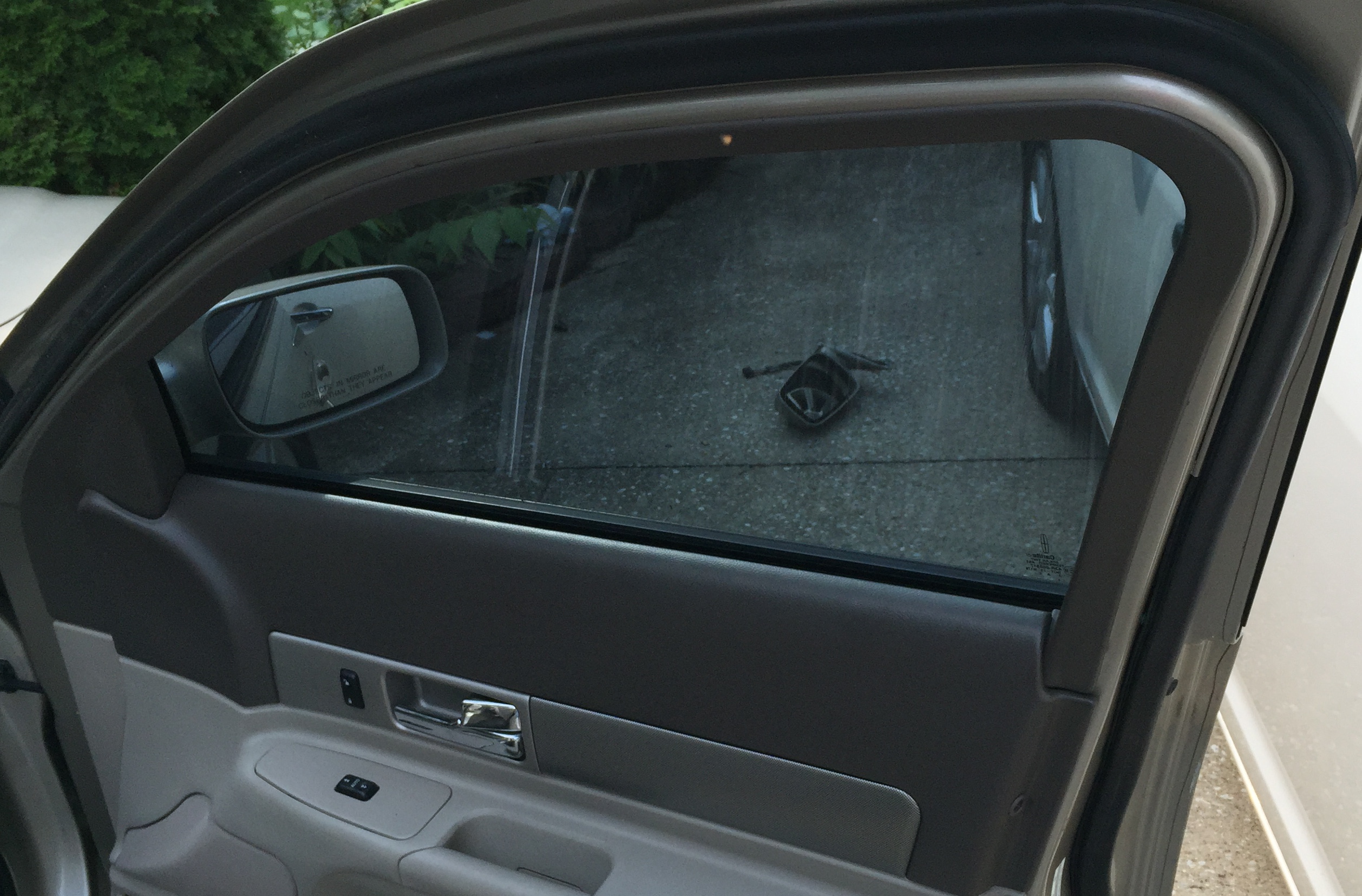

I checked to make sure the power mirror worked, then "buttoned it back up." Installing the door panel is relatively easy-the clips are lined up, and the panel given a few good "whacks" to seat everything. The screws can then be installed.
View attachment 566393

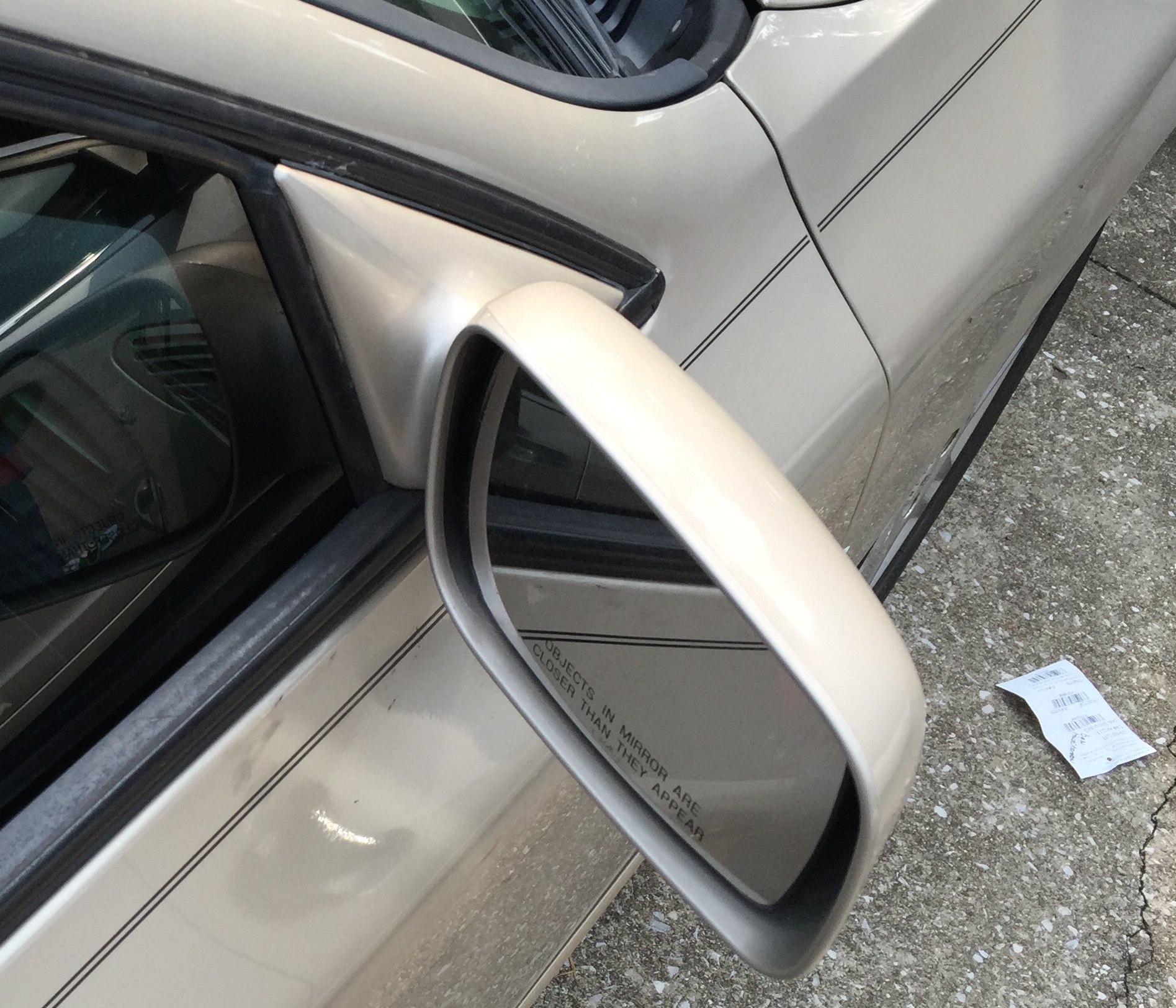

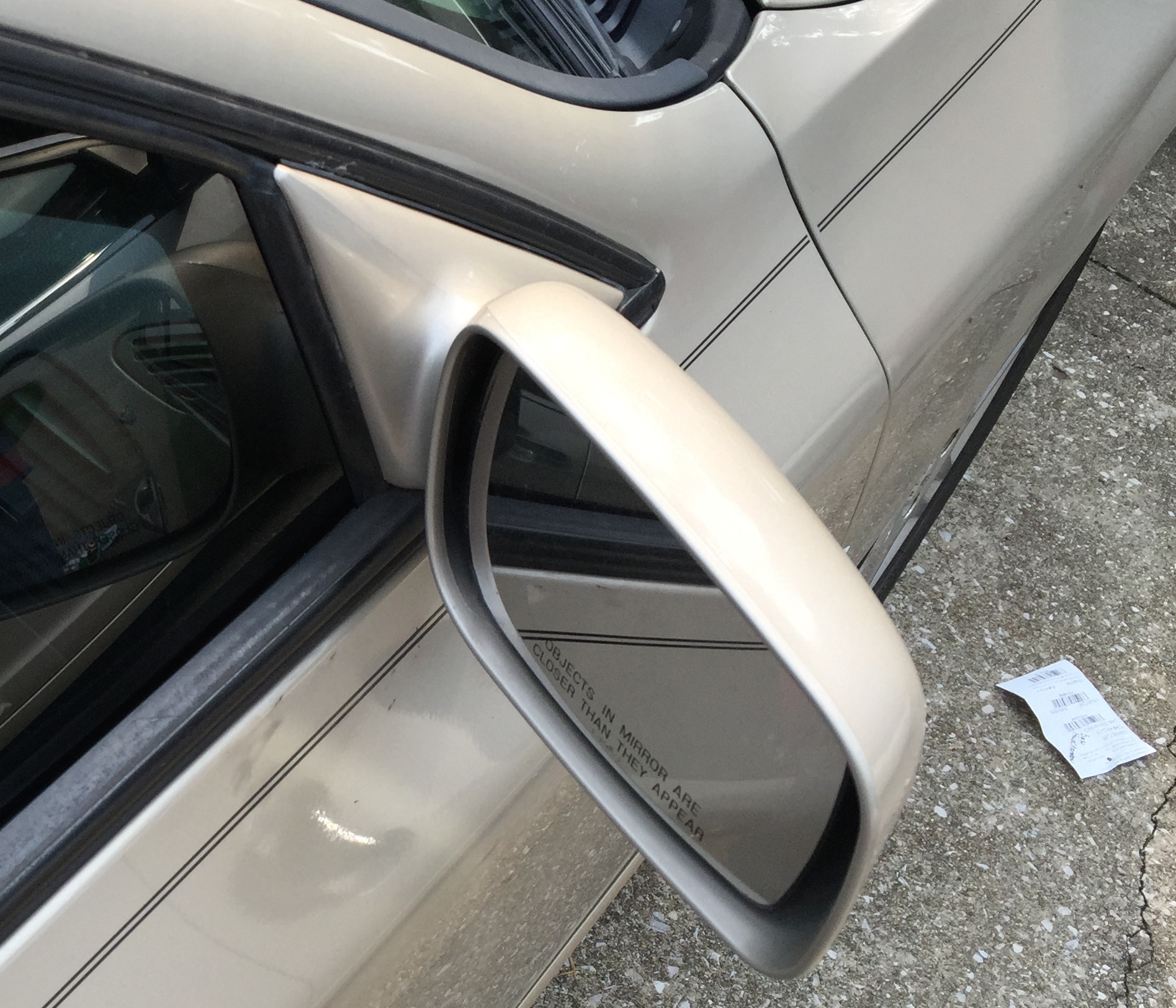

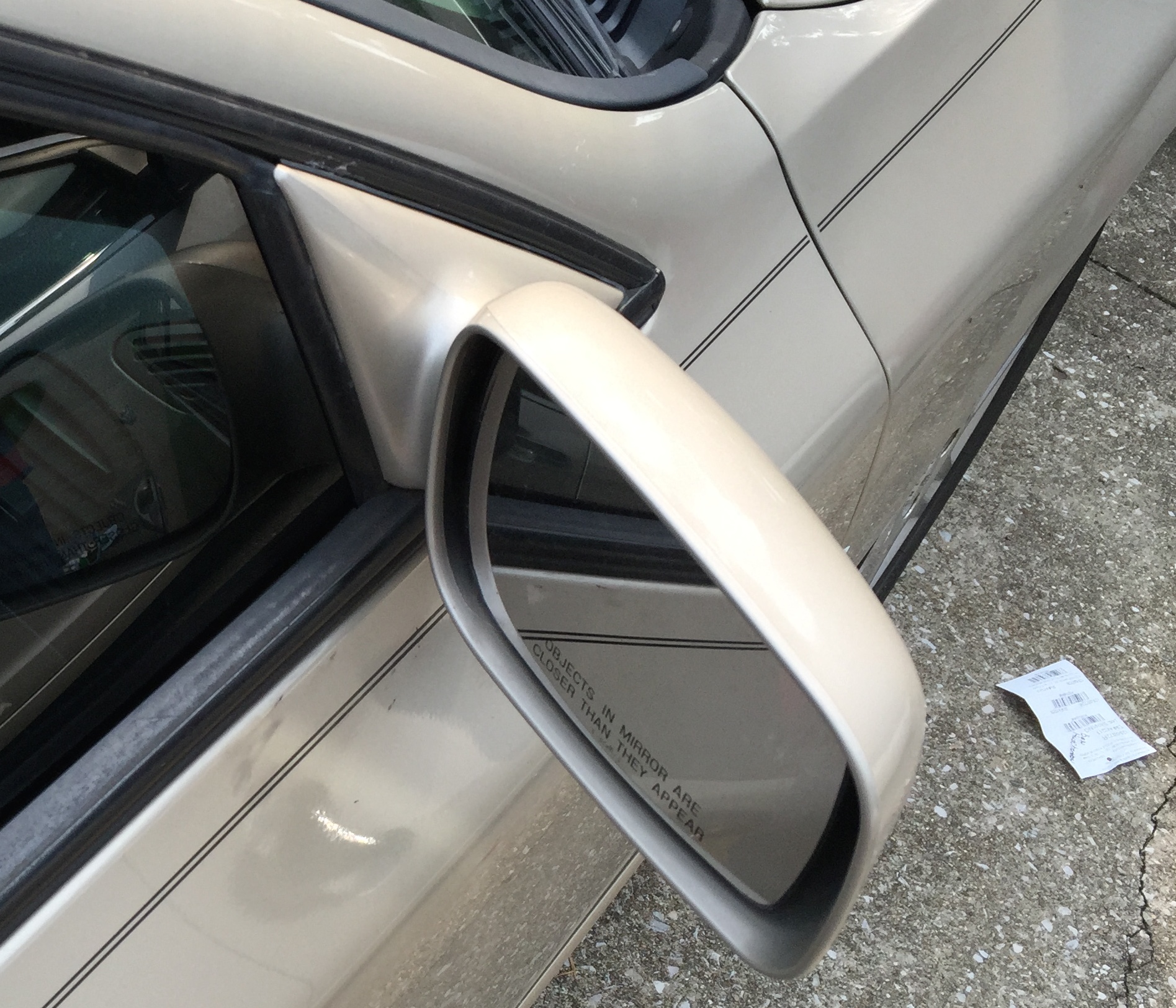

And, the new mirror in place
View attachment 566394

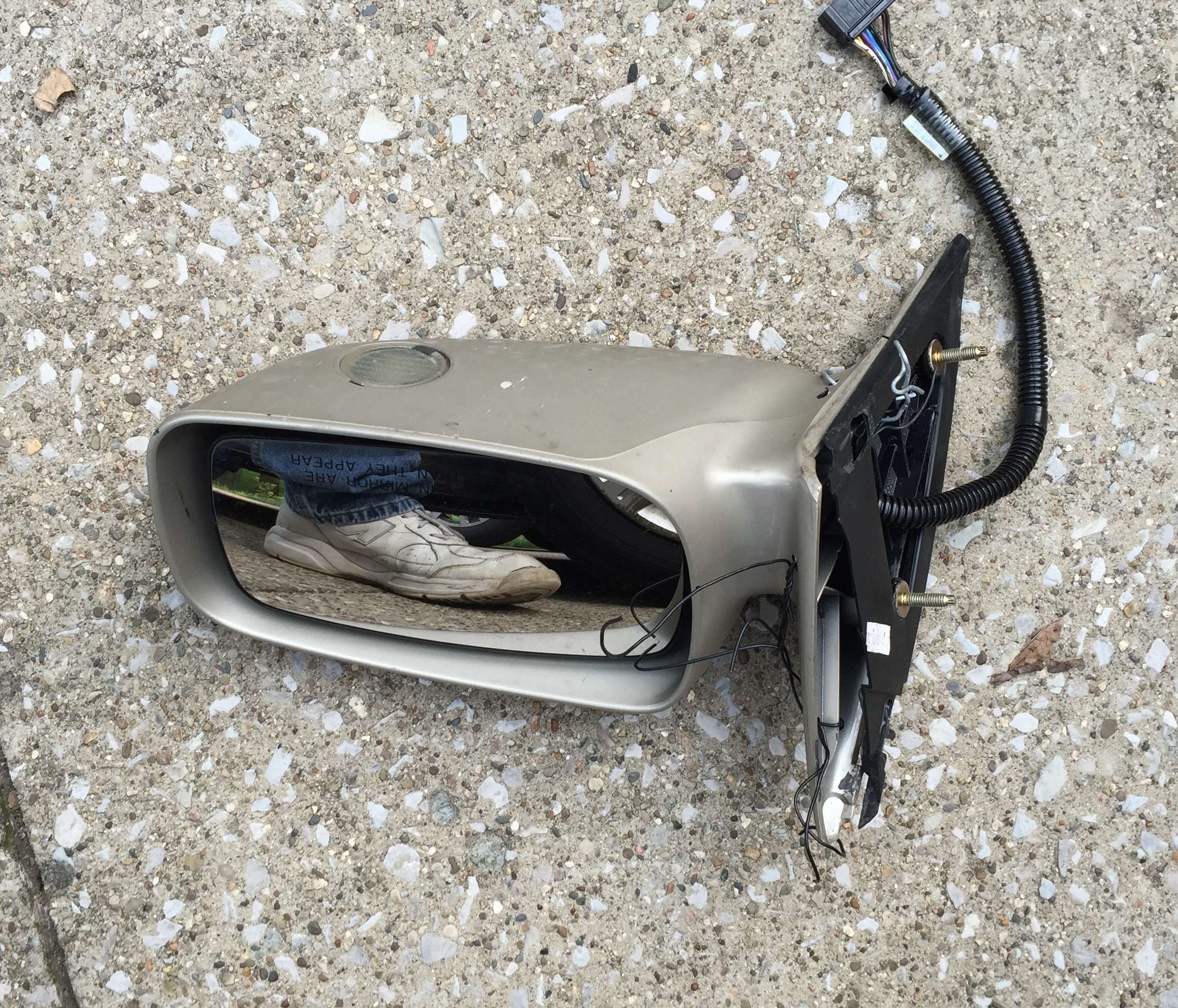

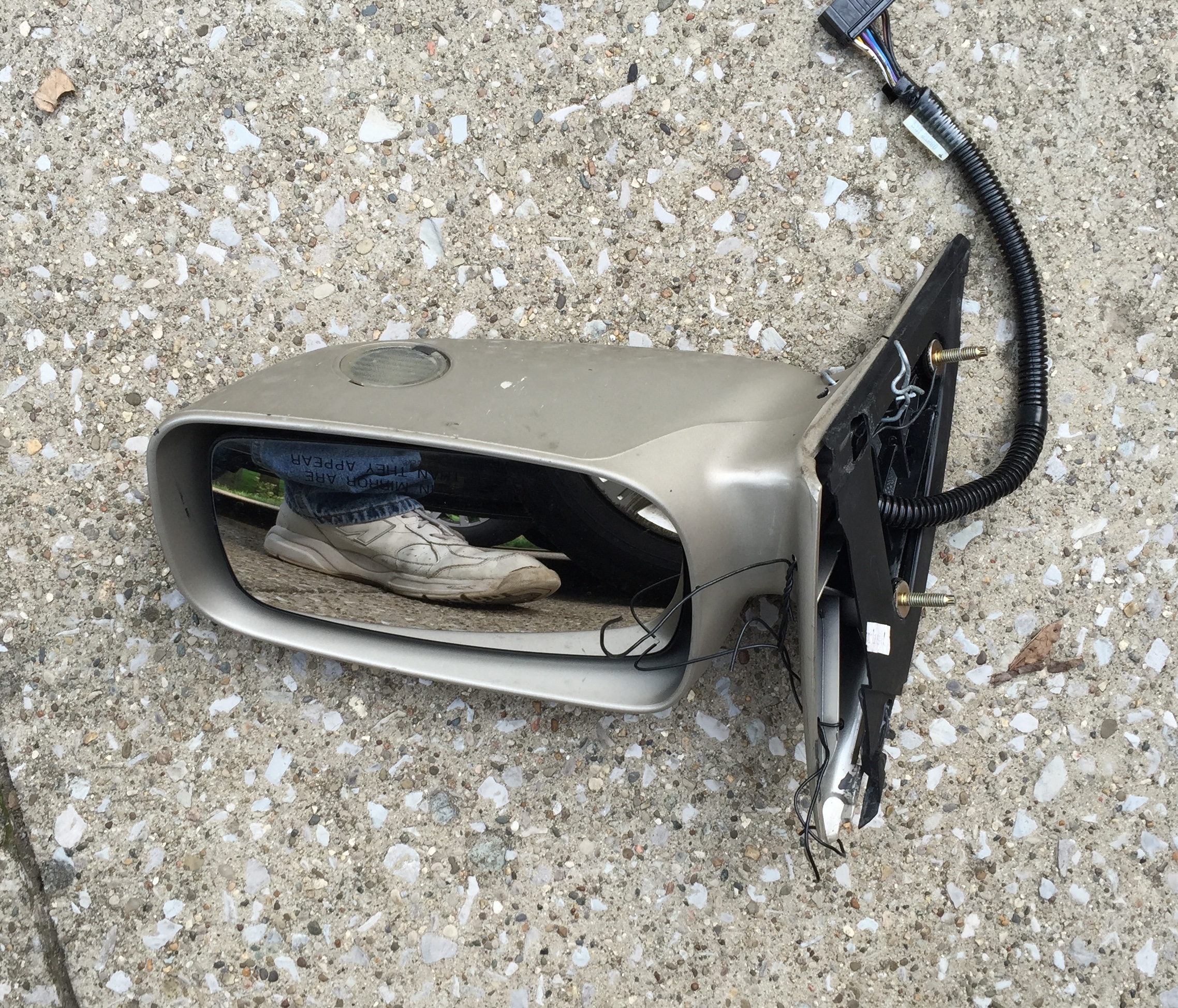

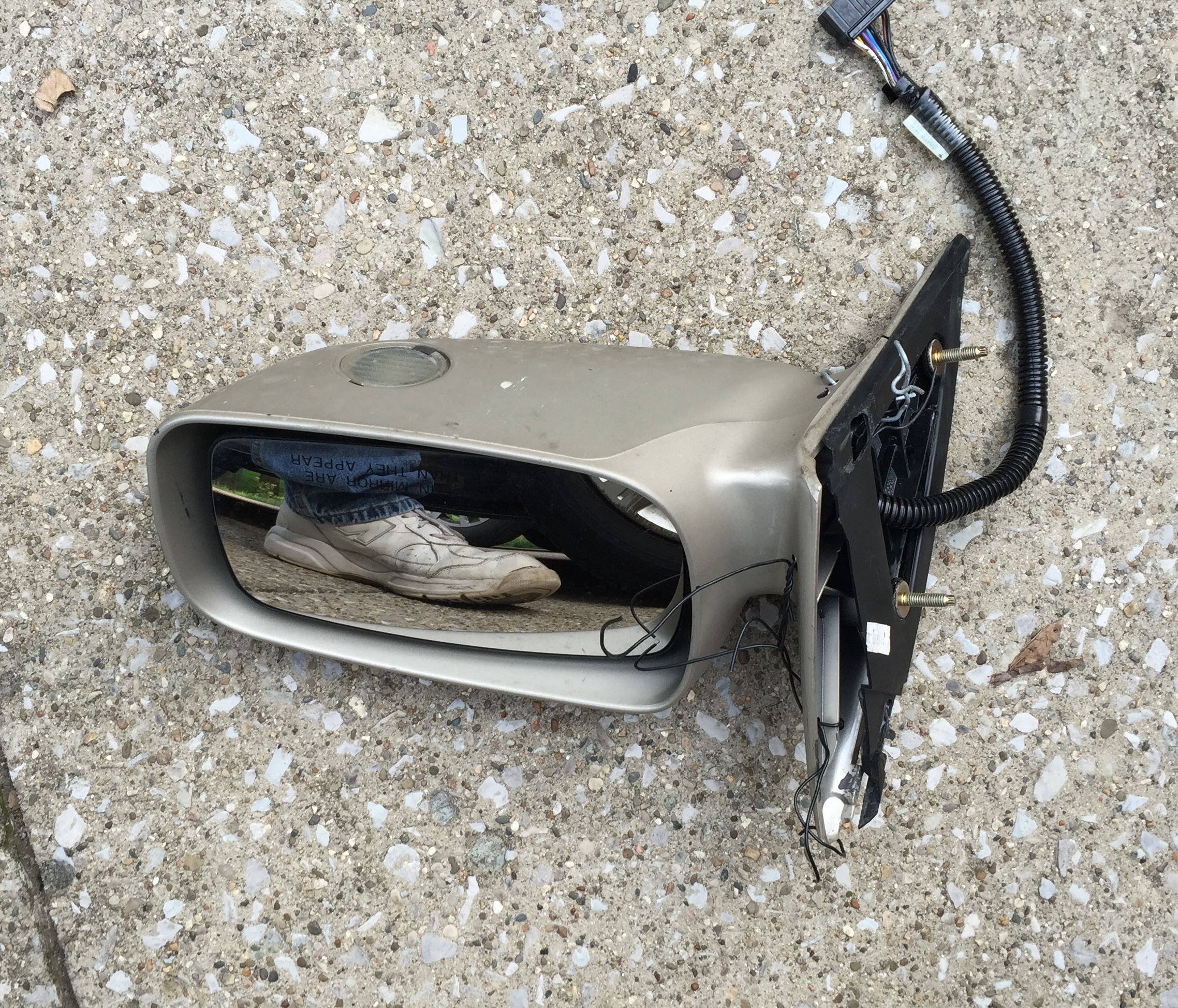

Finally, the last remnants of the old one
View attachment 566395
I'm glad to have this done-even though it was functional, the appearance was driving me nuts!
