27" iMac late 2015 i5 3.3 & AMD m395 benchmarks

Discussion in 'iMac' started by ninja2000, Oct 15, 2015.

  1. ninja2000 macrumors 6502

    Joined:
    Dec 16, 2010
    #1
    Hi guys,

    I know a lot of people are asking for this and as I seem to be one of the first with one I want to put a few benchmarks/info in this thread so that we can compare against the m390 & m395x as people get hold of them.
    I will be including temps, power consumption, noise as well as the benchmarks themselves. I will be running the benchmarks in bootcamp as it is easier to monitor the gfx card plus there are more 3d benchmarks available.
    If you have any requests, please fire away (as long as they are free) and I will do my best.

    First things first, just installed gpuz, what is odd is that there is no temperature. but the clocks are:
    gpu - 834 mem - 1365

  2. Max108 macrumors member

    Joined:
    Oct 3, 2013
    #2
  3. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #3
    just downloading 3dmark11 and heaven. Unfortunately I do not own GTA5 :(

  4. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
  5. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #5
    OK running heaven benchmark, with the screen at 30% brightness it is pulling 150w from the wall.
    temps rising very slowly and topping out at 88c with no noticeable increase in fan noise.
    What settings should i choose for the heaven benchmark?

  6. Max108 macrumors member

    Joined:
    Oct 3, 2013
    #6
    Hmmm... Fewer shaders is disappointing, like you say.

    For Heaven, please:

    1.) 1920x1080, Fullscreen, 8x Anti-Aliasing
    2.) Ultra Quality
    3.) Extreme Tessellation

    and

    1.) 4K, Fullscreen, 8x Anti-Aliasing
    2.) Ultra Quality
    3.) Extreme Tessellation

  7. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #7
    will do, just running 3dmark11 and will post results in next 5 minutes

  8. Max108 macrumors member

    Joined:
    Oct 3, 2013
  9. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #9
    Cheers, not that great with AMD cards as I am used to NVidia, so any help appreciated.

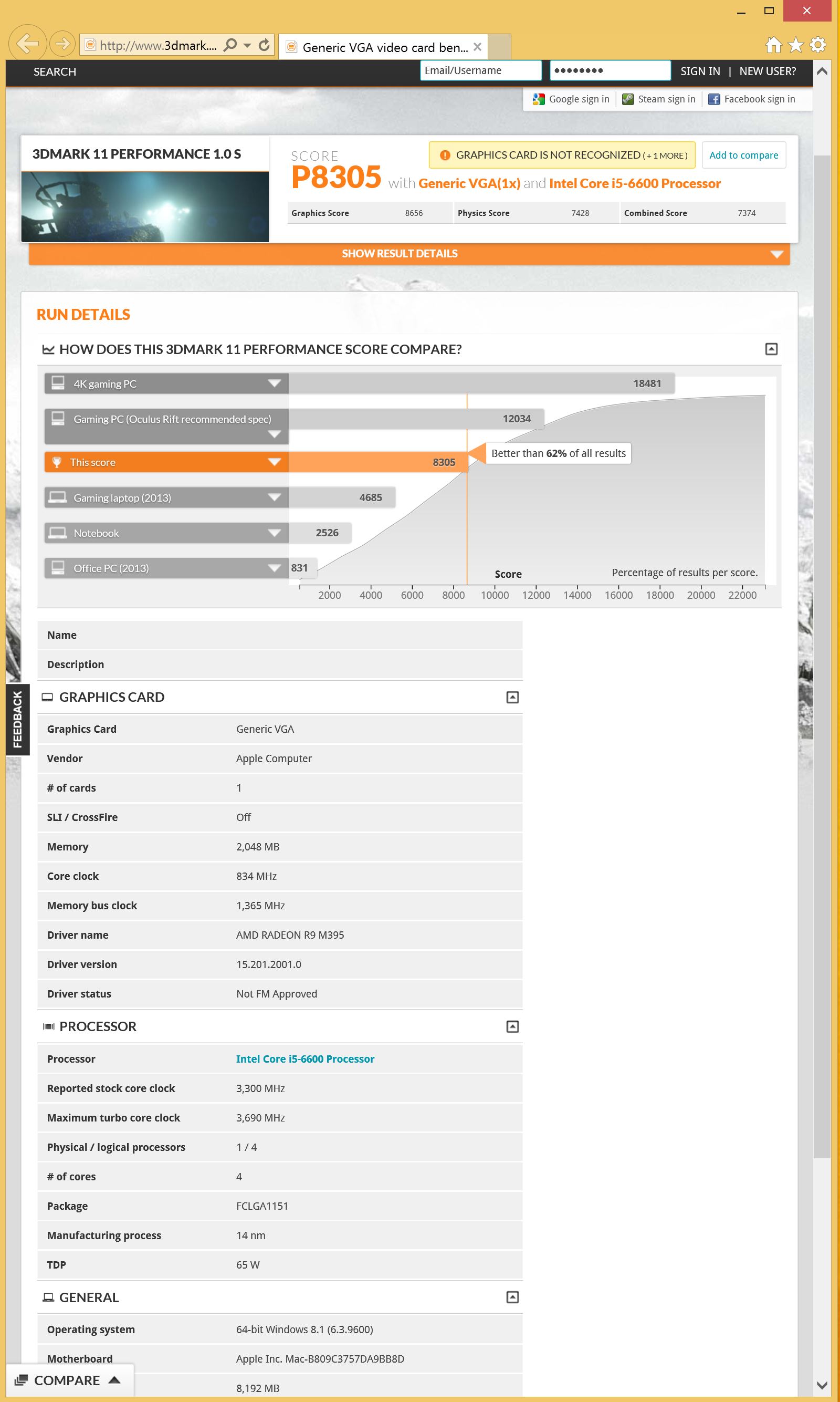

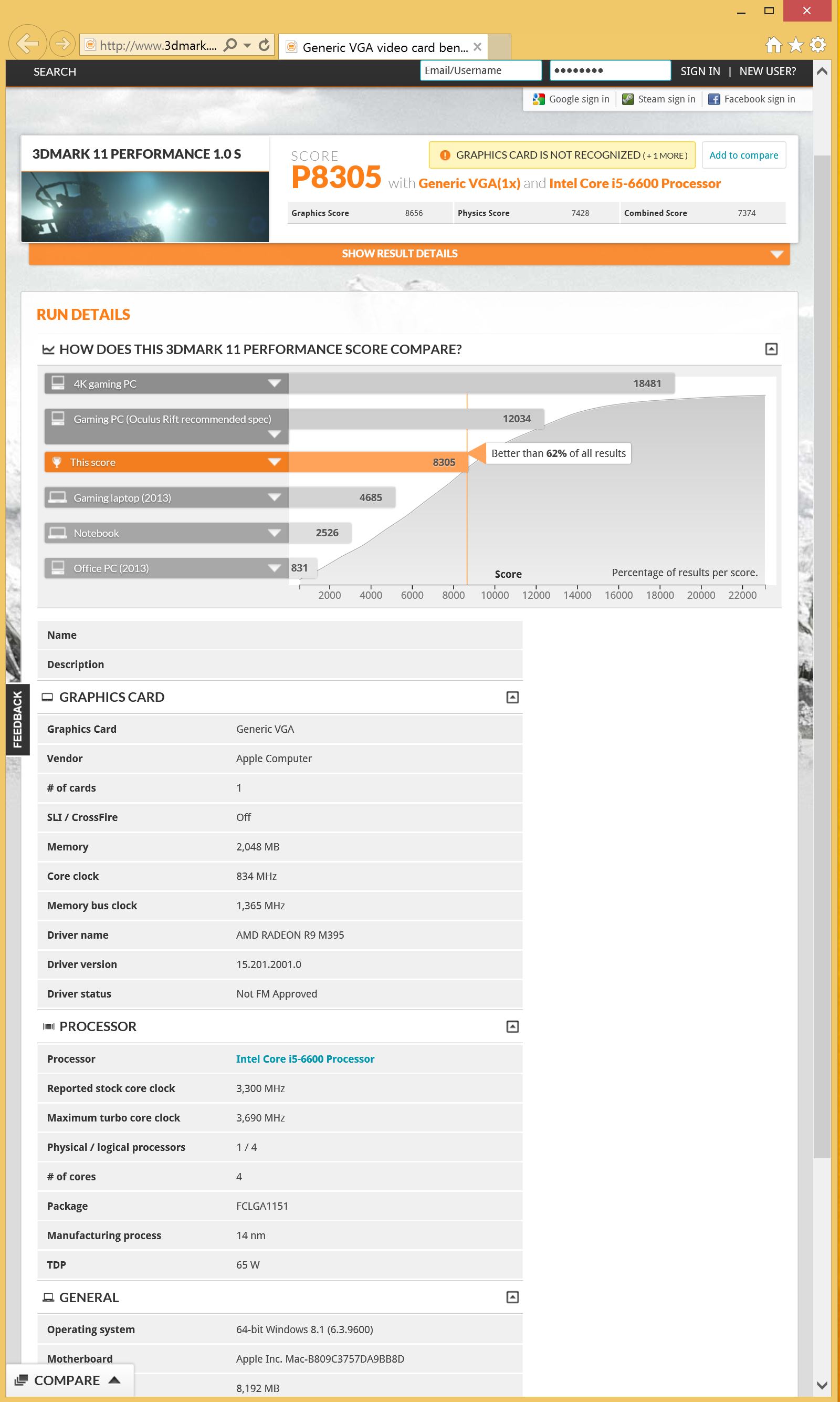

    3dmark11 default run scored: 8305 which is a bit lower than I was expecting. It was only pulling 140-150 from the wall and there was no fan noise so I am hoping there is plenty of overclocking headroom 3dmark11.JPG

  10. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
  11. Serban Suspended

    Joined:
    Jan 8, 2013
    #11
    can be differences in the result between same dGPU but with i5 and i7 versions?
    also i notice that is a difference of 3 fps between windowed and full screen

  12. Max108 macrumors member

    Joined:
    Oct 3, 2013
    #12

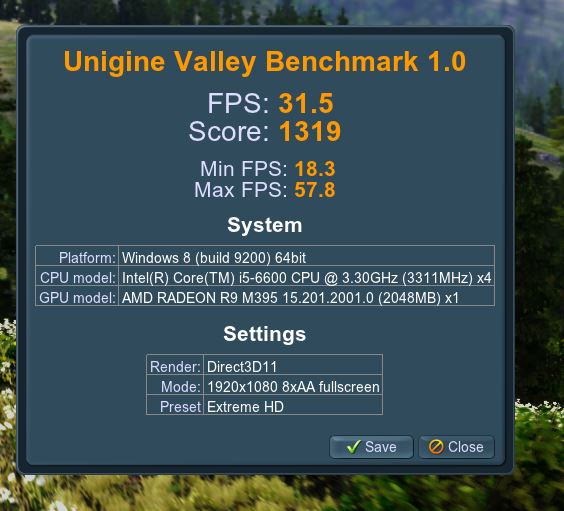

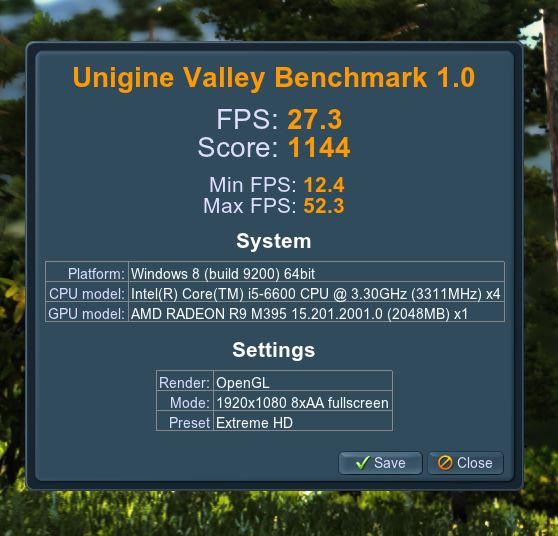

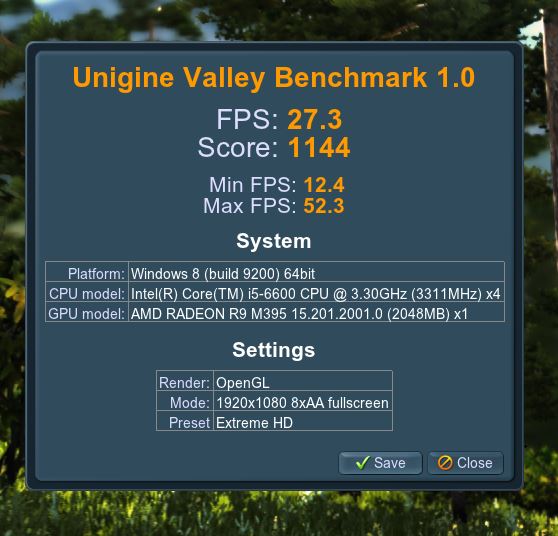

    Thank you. It would be interesting to have a direct comparison for TopGunn's Unigine benchmark of:

    Render: BOTH openGL and Direct3D11
    Mode: 1920x1080 8xAA fullscreen
    Preset: Extreme HD

  13. Lesser Evets macrumors 68040

    Lesser Evets

    Joined:
    Jan 7, 2006
    #13
    There is a GTA 5 for MAC?!? I want that.

  14. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #14
    Yep, will run that shortly. Then I will do a few steam game benchmarks and if I get time I will play with drivers and overclocking

  15. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
  16. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
  17. huffy15 macrumors regular

    Joined:
    Jan 6, 2009
    Location:
    Montreal, Canada
  18. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
  19. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #19
    What on earth is that supposed to mean?
    I would put its performance between a 965m and 970m

  20. Max108 macrumors member

    Joined:
    Oct 3, 2013
    #20
    Interesting, it seems to do a bit better from Windows than from OS X.

  21. ninja2000 thread starter macrumors 6502

    Joined:
    Dec 16, 2010
    #21
    Yeah, will see if I can give that a boost with drivers and overclocking later

    Now just downloading some games

  22. topgunn macrumors 65816

    topgunn

    Joined:
    Nov 5, 2004
    Location:
    Houston
    #22
    Your OpenGL score in Windows is comparable to my results in Mac OS with the difference likely due to driver maturity. Its a shame. The M395 is behaving like the M295X.

    What I wouldn't give for a 5K iMac with an nVidia 980m.

  23. qwerty2k macrumors regular

    Joined:
    Dec 27, 2007
    #23
    Thanks for the time and effort the benchmarks, can't wait for some game benchmarks :)

  24. Max108 macrumors member

    Joined:
    Oct 3, 2013
    #24
    Yes, like you and many others I'd too like to see a bit of form-factor sacrificed for better cooling etc. allowing for meatier GPUs.

  25. jerwin macrumors 65816

    Joined:
    Jun 13, 2015
