2D Dock in OS X 10.9 (Mavericks)
- Thread starter kolax
- Start date
- Sort by reaction score
I've been using the plug-in and script (which I made into an app) on three Macs running 10.9.1 and it works fine on all three...
I did make some modifications to the plug-in however:
Okay...
If you haven't lost complete faith in my scripting skills already please give this a try.
https://sourceforge.net/projects/cdock/files/latest/download
Updated the stuff in my original post too:
https://forums.macrumors.com/posts/18514056/
I've been using the plug-in and script (which I made into an app) on three Macs running 10.9.1 and it works fine on all three...
I did make some modifications to the plug-in however:
How'd you change the dock app/folder separator? I'd really like to either hide it or make it a line like yours.
Last edited:
I've been using the plug-in and script (which I made into an app) on three Macs running 10.9.1 and it works fine on all three...
I did make some modifications to the plug-in however:
I am trying to use the 2D Dock app/script on my MacBook Pro late 2013 running
OS 10.9.1 Mavericks. AppleScript editor tells me that the script is not functional:
#!/bin/bash
for i in {1..10}
do
osascript -e 'tell application "Dock" to inject SIMBL into Snow Leopard'
sleep 6
done
Result when running the script in AppleScript editor:
Syntax Error
Expected end of line, etc. but found parameter name.
I have no idea why AppleScript editor would accept the script on any other machine running 10.9.1!
What happens when you run it in Apple Script editor?
Last edited:
That's a bash script not an AppleScript. Just try using my installer again it should work now.
Last edited:
Just the "separatorstraight.png" image that's always been used. The plug-in code makes reference to it so I edited one from the side dock in Mavericks (flipped it vertical first) then messed with it until it looked right. It goes into the Dock resources folder. I think I changed the code for how it's drawn too. Mine looks like this:
Code:
CALayer *layer = [super layer];
layer.contents = [NSImage imageNamed:@"separatorstraight"];
layer.contentsGravity = kCAGravityResizeAspectFill;I also added a drop shadow since the white dock doesn't stand out as much on lighter backgrounds. You can add that with this code:
Code:
layer.masksToBounds = NO;
layer.cornerRadius = 0; // if you like rounded corners
layer.shadowOffset = CGSizeMake(0, 0);
layer.shadowRadius = 5;
layer.shadowOpacity = 0.75;in the (id) layer section - just before "return layer".
Code:

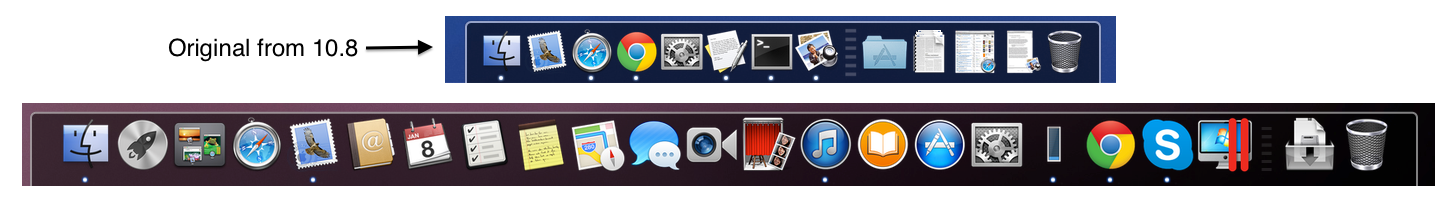

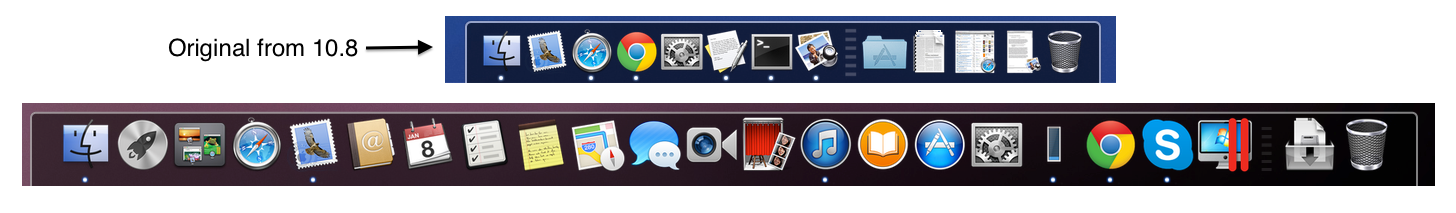

Yes. I noticed that too. I fixed it on my white dock. I guess it's like that because OS X draws the 3D dock in perspective, starting wider and tapering back, so it has to start wide so there's enough "floor" for the icons to be on when it gets to the back.
Anyway, I think this is what I did to fix that:
Code:
- (void)resizeWithOldSuperlayerSize:(CGSize)size
{
CALayer *layer = self.superlayer;
if (layer) {
NSInteger orientation;
if (object_getInstanceVariable(layer, "_orientation", (void **)&orientation)) {
// 0:bottom, 1:left, 2:right
CGRect rect = layer.bounds;
if (orientation == 0) {
rect.size.height *= 1.75;
rect.size.height += self.cornerRadius;
rect.size.width -= 18.00;
// rect.size.width += self.cornerRadius;
rect.origin.y -= self.cornerRadius;
rect.origin.x += 10;
} else {
rect.size.width += self.cornerRadius;
if (orientation == 1) {
rect.origin.x -= self.cornerRadius;
}
}
self.frame = rect;
}
}
}Note the rect.size.width and rect.origin.x lines. I can't remember if they were there or if I added them...
That will mess up the Trash positioning. So, I changed this so the origin was "2":
Code:
- (void)resizeWithOldSuperlayerSize:(CGSize)size
{
CGRect rect = self.superlayer.frame;
rect.origin.x = 2;
rect.origin.y *= -1;
CALayer *floorLayer = [[BlackDock sharedInstance] floorLayer];
rect.size.height = [floorLayer frame].size.height - floorLayer.cornerRadius;
self.frame = rect;
}(Apologies for posting this code if I'm not supposed to. I'll pull it if anyone objects.)
Last edited:
It's not my wallpaper or image you should just google search the image.
It's actually halo art or something, couldn't find it in high res without the bungie logo but it should be pretty easy to just crop this: http://i.kinja-img.com/gawker-media/image/upload/18hemrbazo8hujpg.jpg
Here's lower quality but pre-cropped: http://static.tumblr.com/nwtjjaw/AHAkxjq0e/background.jpg
First: I'm so damn sorry if I've misread anything and am about to ask a stupid question
Second: w0lf my god i LOVE YOU for letting me have a 2D dock again. But is there any way that i can make the dock fully transparent (as in instead of the gray box)?
Second: w0lf my god i LOVE YOU for letting me have a 2D dock again. But is there any way that i can make the dock fully transparent (as in instead of the gray box)?
Yes but you'd have to install Xcode, get the BlackDock source, change like 2 numbers and build it. Since I don't think most people would be able to do that I've added 4 different dock versions that you can select with the installer as well as included the spacing fixes posted by Nero Wolfe. However if you do go the Xcode route you can customize it however much you want, making it any color, using custom separators, adding shadows, adjusting size, etc...

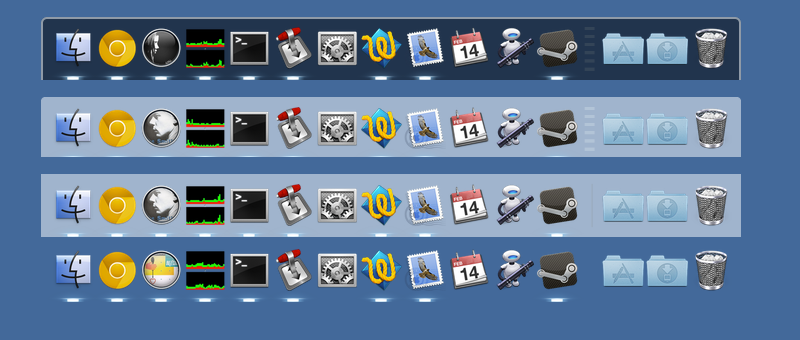

Here is the new installer which is now called cDock. I updated the readme and added screenshots of all 4 versions of the dock.
Download
It also doesn't require you to enter your password if you already have simbl installed now.
Attachments
Last edited:
Great job, I like it, but is it possible to add to the installer a dock that is much less transparent, and more opaque with a white-blue tint, that looks exactly like the one in OS X Tiger ? Would be much appreciated. Thanks.
I won't likely create any more dock styles than what exists now. However if anyone wants to make an alteration or new style I can include that if they upload the source used to build their version of the BlackDock bundle.
I do plan to post at least one further version of the installer that has a rainbow dock option (random color each boot) a fix for the uninstaller that closes the simbl uninstaller properly and updated credits to include cocoaDialog.
cDock isn't meant to be a catch all dock customizer. Plus I have no real cocoa experience and this app only exists because of the convenience of Platypus and cocoaDialog which let me create a few basic cocoa elements.
If you want to edit the indicator lights or other parts of the dock you can still do so manually. The indicator lights are located here:
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_medium.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_medium@2x.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_side_medium.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_side_medium@2x.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_side_small.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_side_small@2x.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_small.png
/System/Library/CoreServices/Dock.app/Contents/Resources/indicator_small@2x.png
**
If you want to experiment with perfecting the look of the 2D dock install Xcode and check out this BlackDock source (with added comments and the positioning fix).
Once you have Xcode installed just double click the BlackDock.xcodeproj and it will open the project
Next select BlackDock.m which is the file that you need to make alterations to. The comments I've made describe how to make some basic alterations.
Once you've made changes build the BlackDock.bundle by clicking the play symbol and copy paste the build to ~/Library/Application Support/SIMBL/Plugins . Finally open terminal.app and run these two commands:
osascript -e 'tell application "Dock" to quit'
osascript -e 'tell application "Dock" to inject SIMBL into Snow Leopard'
Last edited:
cDock - Download latest version
Changelog
Changelog
Code:
v1.2
installer -
Added: Rainbow dock (changes color each boot or dock restart)
uninstaller -
Fixed: SIMBL uninstaller not closing itself
Fixed: Loop not ending properly
Added: Check for SIMBL
Added: Option to only uninstall cDock/Blackdock
Added: log file
readme -
Updated: cocoaDialog credits
Updated: changes to uninstall process
Last edited:
Thank you very much for this, unfortunately in my case it is not working. The log says:
It installs SIMB successfully and restarts the dock but is the same 3D Dock.
Code:
Installing Square dock
rm: /Library/Application Support/SIMBL/Plugins/BlackDock.bundle: No such file or directory
Closing in 3 seconds...It installs SIMB successfully and restarts the dock but is the same 3D Dock.
Interesting that really doesn't look like anything went wrong although I feel like there should also be a line about launchctl failing to unload something.
Can you check that all these files are in place after running the installer:
In Finder in the "Go" menu select "Go to Folder..." and copy paste in the line.
/Library/Application Support/SIMBL/Plugins/BlackDock.bundle
~/Library/LaunchAgents/com.w0lf.BlackDock.plist
~/Library/Application Scripts/BlackDock/2d.sh
If all of those are there, my guess is it has to do with the launch agent not working for some reason.
cDock - Download latest version
Changelog
Changelog
Code:
v2.0
New: Merged installer and uninstaller into one app cDock
Fixed: Failing to launch if the path it was located in contained spaces
Fixed: Failing to install if account didnt have a LaunchAgents folder
Fixed: Custom docks are now per-user so different user accounts on the same machine can have different docks
Fixed: Not installing properly on non-admin accounts
Updated readme
Added update notes
Last edited:
Thanks!
I like Mavericks in general, but the light color of the 2D dock, which I keep on the left side of the screen, drives me crazy. Now with ver. 2 of your app I am very pleased to find the darkML-like dock!
Much appreciated!
BlackDock.bundle is missing and the log says, "launchctl remove error: No such process"
Okay. Yeah might be that your account can't write to /Library/.../ for some reason.
Try out v2.0 that I posted above. I think it should probably fix the issue for you as that was one of the issues I could replicate and specifically tested and fixed on a standard account.
cDock - Download
Let me know if it's still not working.
Last edited:
I Thank you I used some app called Deeper from the Onyx developer to restore the Dock and then re-open cDock at first it relaunched the same 3D dock but after 3 seconds the 2D dock just popped up.
/Library/Application Support/SIMBL/Plugins/ is always empty, I found BlackDock.bundle in ~/Library
Thank you again, any way to donate?
Last edited:
Give them about 10 years to give the marketing department working on inventing new fluorescent puke colors to use to create new icons.
