5870 Upgrade Card Unboxing Pics!

Discussion in 'Mac Pro' started by DualShock, Nov 13, 2010.

  1. DualShock, Nov 13, 2010
    Last edited: Nov 16, 2010

    DualShock macrumors 6502

    Joined:
    Jun 29, 2008
    #1
    Thanks to FedEx Home Delivery, which delivers on Saturdays, my 5870 has arrived!

    I posted a few unboxing pics to my MobileMe Flickr gallery. Installation pics to come, still have a few other things to do today so it may take a while.

    Of note, the label on the box says it requires 10.6.5, which partially explains the long delay for this card. (Apologies for the blurriness of the label pic, my camera has a poor macro. :()

    EDIT: Gallery moved to Flickr
    http://www.flickr.com/photos/psx1510/sets/72157625277406323/detail/

  2. brock2621 macrumors 6502a

    brock2621

    Joined:
    Jun 8, 2007
    Location:
    Kentucky
    #2
    Hurry up! haha I wanna SEE the actual card! Congrats btw, that's awesome.

  3. steffi macrumors 6502a

    Joined:
    Jun 7, 2003
    #3
    What did you upgrade from and why?


  4. DualShock, Nov 13, 2010
    Last edited: Nov 16, 2010

    DualShock thread starter macrumors 6502

    Joined:
    Jun 29, 2008
    #4
    Howdy folks,

    I am posting this from my 2008 Mac Pro, after just installing the 5870! :D :D

    I've just uploaded a few more pics of the unboxing and installation.

    EDIT: Gallery moved to Flickr:
    http://www.flickr.com/photos/psx1510/sets/72157625277406323/detail/

    Few points to note:

    1. The card won't fit straight into the case. Angle it about 45 degrees counterclockwise as you insert it so the back plate clears the back of the case.

    2. The head spreader on the back of the card sits right up against (what appears to be) the thermal pad on top of the RAM cage. Hopefully this doesn't cause a melting problem when the card is under stress.

    3. After the initial fan spin-up right when the power is turned on, the fan becomes DEAD SILENT. I was one of the lucky ones to get a 3870 Mac/PC Edition with a quiet fan, and the 5870 is just as quiet at idle.

    Haven't tried out anything to stress the card yet. Will be booting into Windows 7 x64 in a bit to install drivers, test out a few games, and post a GPU-Z screenshot.

  5. DualShock thread starter macrumors 6502

    Joined:
    Jun 29, 2008
    #5
    Windows 7 x64 + Catalyst 10.10 seems A-OK.

    I tried out a little Dirt 2. Everything maxed out @ 1920 x 1200. OMG DirectX 11 looks gorgeous! The fan hardly spun up while racing.

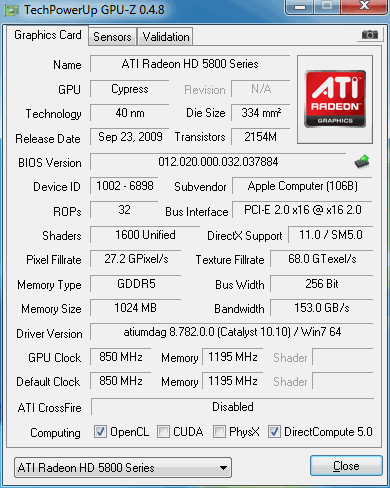

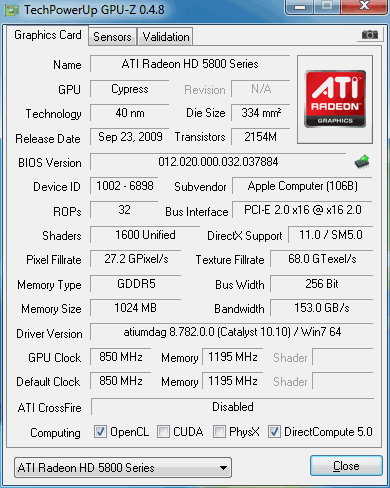

    GPU-Z screenshot attached.

    BTW forgot to mention, I'm using a 23" Cinema Display connected via DVI. Unfortunately I am unable to test out anything using MDP, nor anything related to HDMI or HDMI audio out.


    Attached Files:

  6. Cynicalone macrumors 68040

    Cynicalone

    Joined:
    Jul 9, 2008
    Location:
    Okie land
    #6
    Very nice.

    I kinda knew it had to be 10.6.5 we were waiting on.

    Well Monday I'll hopefully have mine in hand.

  7. DualShock thread starter macrumors 6502

    Joined:
    Jun 29, 2008
    #7
    I had a 3870 Mac & PC Edition card. I wanted a bit more horsepower for Mac and Windows related gaming.

  8. DualShock thread starter macrumors 6502

    Joined:
    Jun 29, 2008
    #8
    Oh and there also appears to be a CrossFire connector, for those of you adventurous enough to hack together some extra power connectors for a dual GPU setup.

  9. w00tini macrumors 6502a

    Joined:
    Feb 28, 2008
    #9
    oh sweet mother of mercy!!

    i've wanted to get my hands on an OEM of the PSU that apple uses in the MP so i could hack away at it to see which rails have the capacity (if any) to sustain a split like that.

  10. svale macrumors member

    Joined:
    Mar 11, 2009
  11. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #11
    Apple's PSU for the Mac Pro is ~1kW. More than enough for a CrossFire configuration.

  12. peskaa macrumors 68020

    peskaa

    Joined:
    Mar 13, 2008
    Location:
    London, UK
    #12
    Whilst the PSU has enough juice, it depends whether the individual rails that run to the GPU can support the draw of 2 cards.

  13. Atomic101 macrumors member

    Joined:
    Jul 19, 2010
    Location:
    Nottingham
    #13
  14. DualShock thread starter macrumors 6502

    Joined:
    Jun 29, 2008
    #14

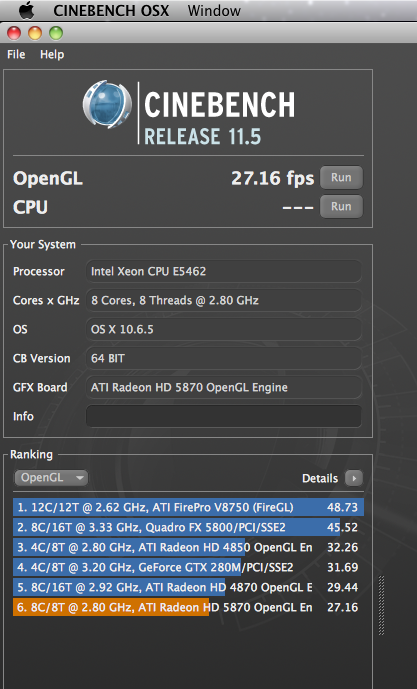

    Surprisingly poor relative to the 4870 score also shown. :(

    I wonder if this is similar to the score in a 2010 Mac Pro with a 5870?


    Attached Files:

  15. Vylen macrumors 65816

    Joined:
    Jun 3, 2010
    Location:
    Sydney, Australia
    #15
    Yea, pretty much... 30.44 here... 99.3% reference match.

  16. cutterman macrumors regular

    Joined:
    Apr 27, 2010
    #16
    I got 31.31 fps w/ 12C 2.93 and 5770. It would seem there is not much reason for 5770 users to upgrade, unless Apple can release better OpenGL drivers.

  17. Cindori macrumors 68040

    Cindori

    Joined:
    Jan 17, 2008
    Location:
    Sweden
    #17
    yay unboxing of a card released one year ago. only on the mac pro forums :rolleyes:

  18. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #18
    Ok, fair enough, let's see a HD6870....

  19. Matrixfan macrumors member

    Joined:
    Oct 10, 2008
    #19
    While I always enjoy unboxings do we have an Apple 5870 rom yet? I mean a real Apple 5870 rom dump, not just the EFI part from the iMac.

  20. scottsjack macrumors 68000

    Joined:
    Aug 25, 2010
    Location:
    Arizona
    #20
    I got 32.66 fps with a 3.2 quad and a 5870.

  21. Vylen macrumors 65816

    Joined:
    Jun 3, 2010
    Location:
    Sydney, Australia
    #21
    Why? It's not like it's anything interesting in particular. The 6900 series is what you should look at for something that surpasses the 5800 series.

  22. Cindori macrumors 68040

    Cindori

    Joined:
    Jan 17, 2008
    Location:
    Sweden
    #22
    yes since like 3 months back

  23. Mac Hammer Fan macrumors 6502

    Mac Hammer Fan

    Joined:
    Jul 13, 2004
    Location:
    Belgium
    #23
    Can someone with a MacPro 2008/2009 post the Xbench results of the Radeon 5870? How does the card perform in the finder versus the stock card? (snappier?)
    http://www.xbench.com/
    Anyway, the Cinebench results were disappointing.

    TIA

  24. Matrixfan macrumors member

    Joined:
    Oct 10, 2008
    #24
    Wow, somehow I missed that. Does this mean that I can flash a PC 5870 with Zeus?

  25. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #25
    The finder itself won't change with another graphics card since it doesn't require much graphics power. Exposé, however, will be much smoother than on a stock card (2600 for 2008 machines, respectively GT120 for 2009 machines), especially if you're running high res displays.

    I'd say that even if you don't play games or don't have any graphics related work, upgrading from one of the stock cards is definitely worth it. The 5770, however, would be more than enough for such tasks (I use the the 4870, amongst others, which is basically the same card as the 5770 and even with a total real estate of 6MP connected to it, OS X is absolutely smooth).
