Added inductive charging station to my car

Discussion in 'iPhone' started by John Megadeth, Oct 11, 2017.

  1. John Megadeth macrumors newbie

    Joined:
    Apr 26, 2014
    #1
    I had 45 minutes to kill this evening, so I modified a wireless charger and installed it in my car to create a hidden inductive charging station for my iPhone 8 Plus.

    My car’s a 2017 Ford Fusion, and it has a recessed area underneath the infotainment system (in the center console) which fits an iPhone 8 Plus perfectly. I disassembled the wireless charger (purchased from Amazon) and modified the housing to allow for ample coverage and installation. I removed several trim pieces from the center console and ran the USB power cable to an Aukey USB power outlet inside the console under the armrest.

    I’m pleased with the result, as I was initially going to use an add-a-fuse to power it, so no extra supplies or soldering needed.

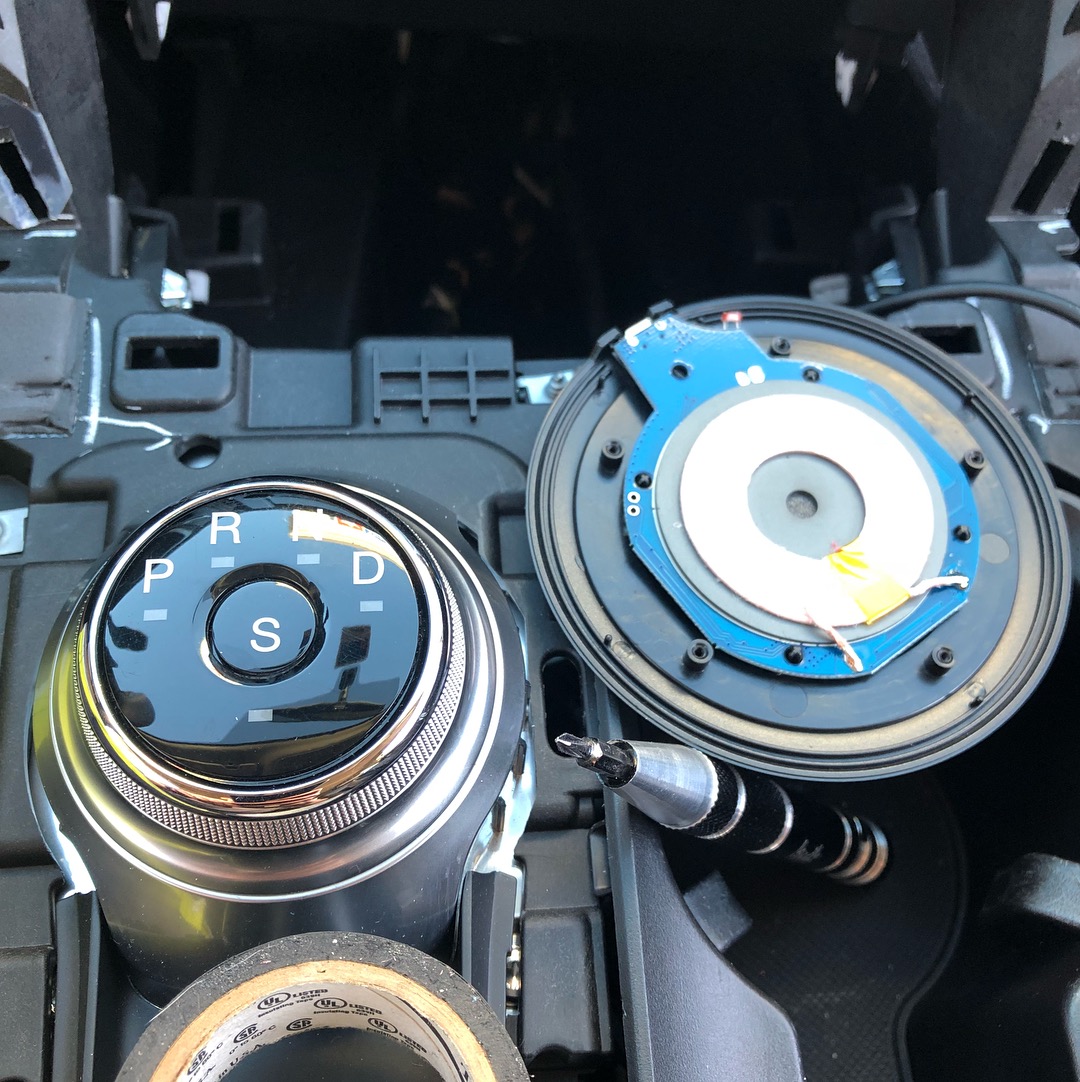

    Disassembled wireless charger

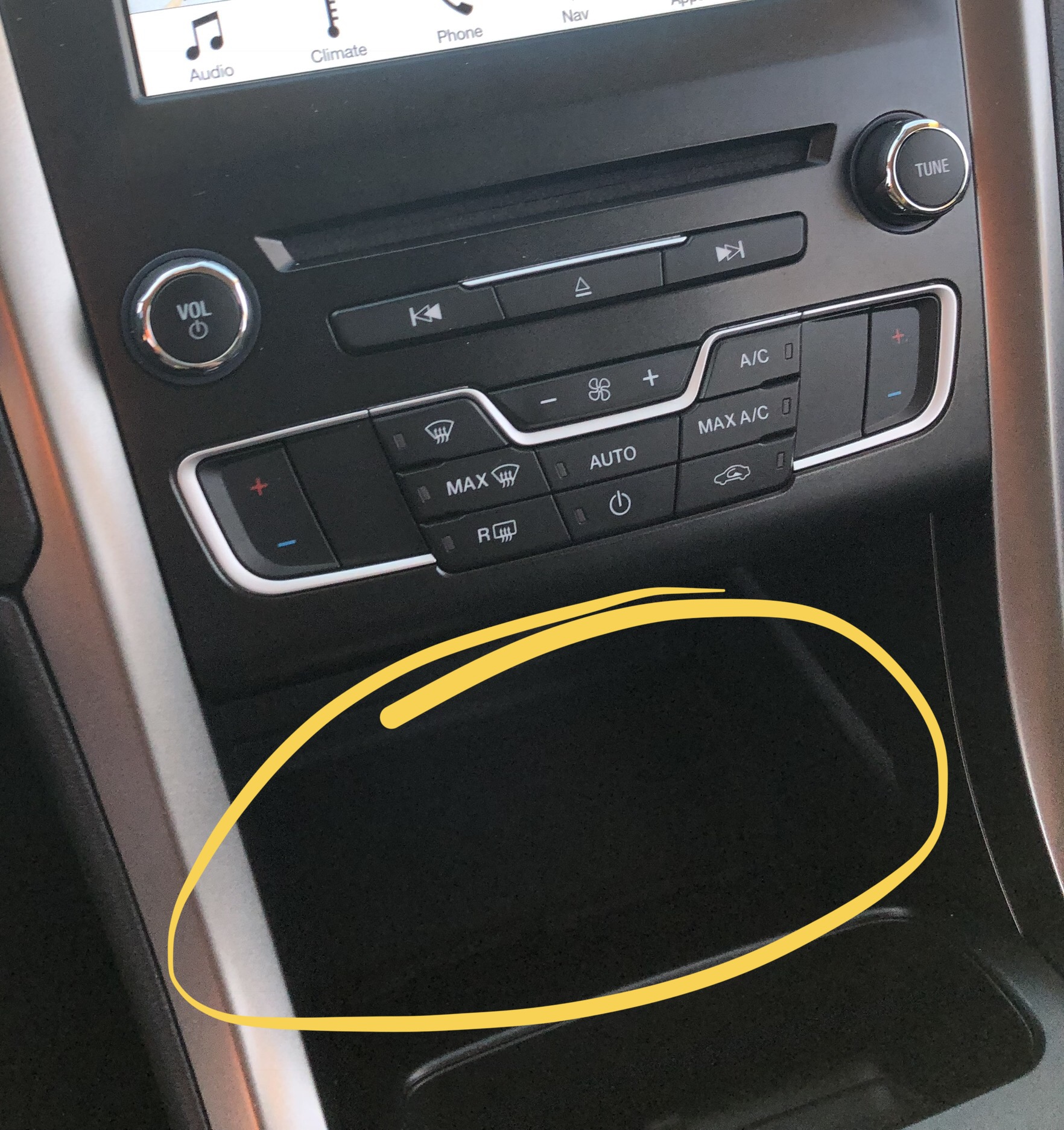

    Location of wireless charging station

    Success

  2. pcorrado, Oct 11, 2017
    Last edited: Oct 11, 2017

    pcorrado macrumors 6502

    Joined:
    May 21, 2008
    Location:
    Chicago, IL
  3. staggerlee41 macrumors regular

    staggerlee41

    Joined:
    Sep 25, 2017
    Location:
    Pittsburgh, PA
    #3
    That's very creative and just awesome! Are you taking orders?

  4. eoblaed macrumors 68000

    eoblaed

    Joined:
    Apr 21, 2010
  5. Applejuiced macrumors Westmere

    Applejuiced

    Joined:
    Apr 16, 2008
    Location:
    At the iPhone hacks section.
    #5
    Very nice.
    But you would need to drive around for 6 hours to fully charge it using wireless Qi :D
    12W USB plug will take about an hour.

  6. BrianBaughn macrumors 603

    BrianBaughn

    Joined:
    Feb 13, 2011
    Location:
    Baltimore, Maryland
    #6
    When they come out with a "mount" that does this...

  7. dsh3 macrumors 6502

    dsh3

    Joined:
    Apr 30, 2012
    Location:
    Denmark
    #7
    Easy DIY, good job! :)

    I was thinking about doing the exact same thing in my new 2017 Mazda 3, however the trim parts including their rubber covers are quite thick where I can place the , which I guess can be an issue with the Qi coils if they cannot reach the phone on top.

  8. dontwalkhand macrumors 601

    dontwalkhand

    Joined:
    Jul 5, 2007
    Location:
    Phoenix, AZ
    #8
    Any idea where I can put one in a Mercedes C280? I guess I can put one in the center armrest thing. But annoying there’s no place to lay your phone at all in this car!

  9. jallenclark macrumors regular

    Joined:
    Sep 23, 2008
    #9
  10. pbaker103 macrumors member

    Joined:
    Oct 27, 2017
    Location:
    Philly
    #11
    Cool, still deciding if i'll try adding wireless charging to my car or stick with charging through the lighting port for quicker charging on the go

  11. ideal.dreams macrumors 68020

    ideal.dreams

    Joined:
    Jul 19, 2010
    Location:
    OH
    #12
    Very clever! Cadillac has been putting wireless chargers in their newer vehicles for about a year or two now so hopefully other automakers will follow suit.

  12. Lakailb87 macrumors regular

    Joined:
    Jul 11, 2008
    Location:
    San Francisco
    #13
    Who is fully charging their phone in their car? Haha

    It's meant as a trickle charge

  13. Applejuiced macrumors Westmere

    Applejuiced

    Joined:
    Apr 16, 2008
    Location:
    At the iPhone hacks section.
    #14
    I use a 12W cigarette adapter plug to charge mine when in need.
    That trickle charge is way too slow.
