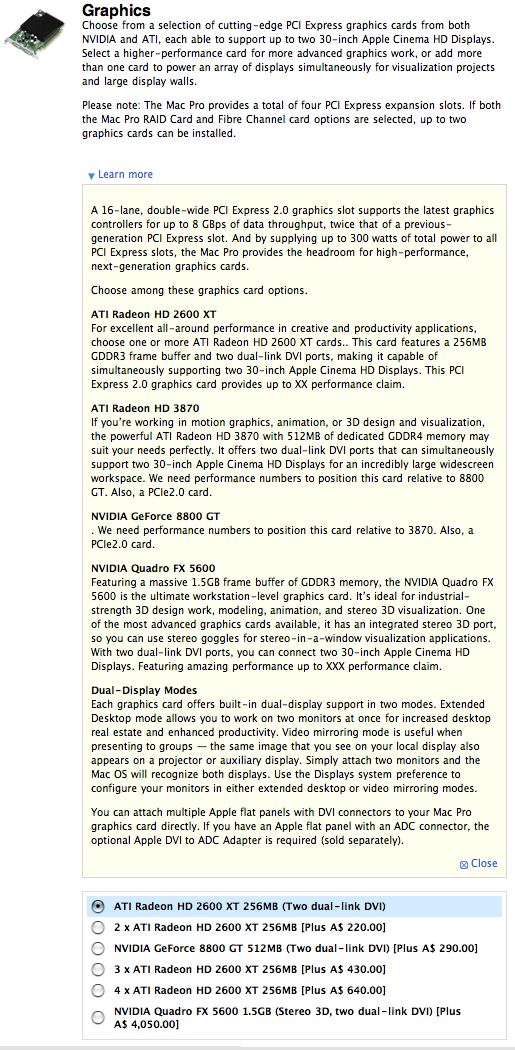

A 16-lane, double-wide PCI Express 2.0 graphics slot supports the latest graphics controllers for up to 8 GBps of data throughput, twice that of a previous-generation PCI Express slot. And by supplying up to 300 watts of total power to all PCI Express slots, the Mac Pro provides the headroom for high-performance, next-generation graphics cards.
Choose among these graphics card options.
ATI Radeon HD 2600 XT
For excellent all-around performance in creative and productivity applications, choose one or more ATI Radeon HD 2600 XT cards.. This card features a 256MB GDDR3 frame buffer and two dual-link DVI ports, making it capable of simultaneously supporting two 30-inch Apple Cinema HD Displays. This PCI Express 2.0 graphics card provides up to XX performance claim.
ATI Radeon HD 3870
If youre working in motion graphics, animation, or 3D design and visualization, the powerful ATI Radeon HD 3870 with 512MB of dedicated GDDR4 memory may suit your needs perfectly. It offers two dual-link DVI ports that can simultaneously support two 30-inch Apple Cinema HD Displays for an incredibly large widescreen workspace. We need performance numbers to position this card relative to 8800 GT. Also, a PCIe2.0 card.
NVIDIA GeForce 8800 GT
. We need performance numbers to position this card relative to 3870. Also, a PCIe2.0 card.
NVIDIA Quadro FX 5600
Featuring a massive 1.5GB frame buffer of GDDR3 memory, the NVIDIA Quadro FX 5600 is the ultimate workstation-level graphics card. Its ideal for industrial-strength 3D design work, modeling, animation, and stereo 3D visualization. One of the most advanced graphics cards available, it has an integrated stereo 3D port, so you can use stereo goggles for stereo-in-a-window visualization applications. With two dual-link DVI ports, you can connect two 30-inch Apple Cinema HD Displays. Featuring amazing performance up to XXX performance claim.
Dual-Display Modes
Each graphics card offers built-in dual-display support in two modes. Extended Desktop mode allows you to work on two monitors at once for increased desktop real estate and enhanced productivity. Video mirroring mode is useful when presenting to groups the same image that you see on your local display also appears on a projector or auxiliary display. Simply attach two monitors and the Mac OS will recognize both displays. Use the Displays system preference to configure your monitors in either extended desktop or video mirroring modes.
You can attach multiple Apple flat panels with DVI connectors to your Mac Pro graphics card directly. If you have an Apple flat panel with an ADC connector, the optional Apple DVI to ADC Adapter is required (sold separately
