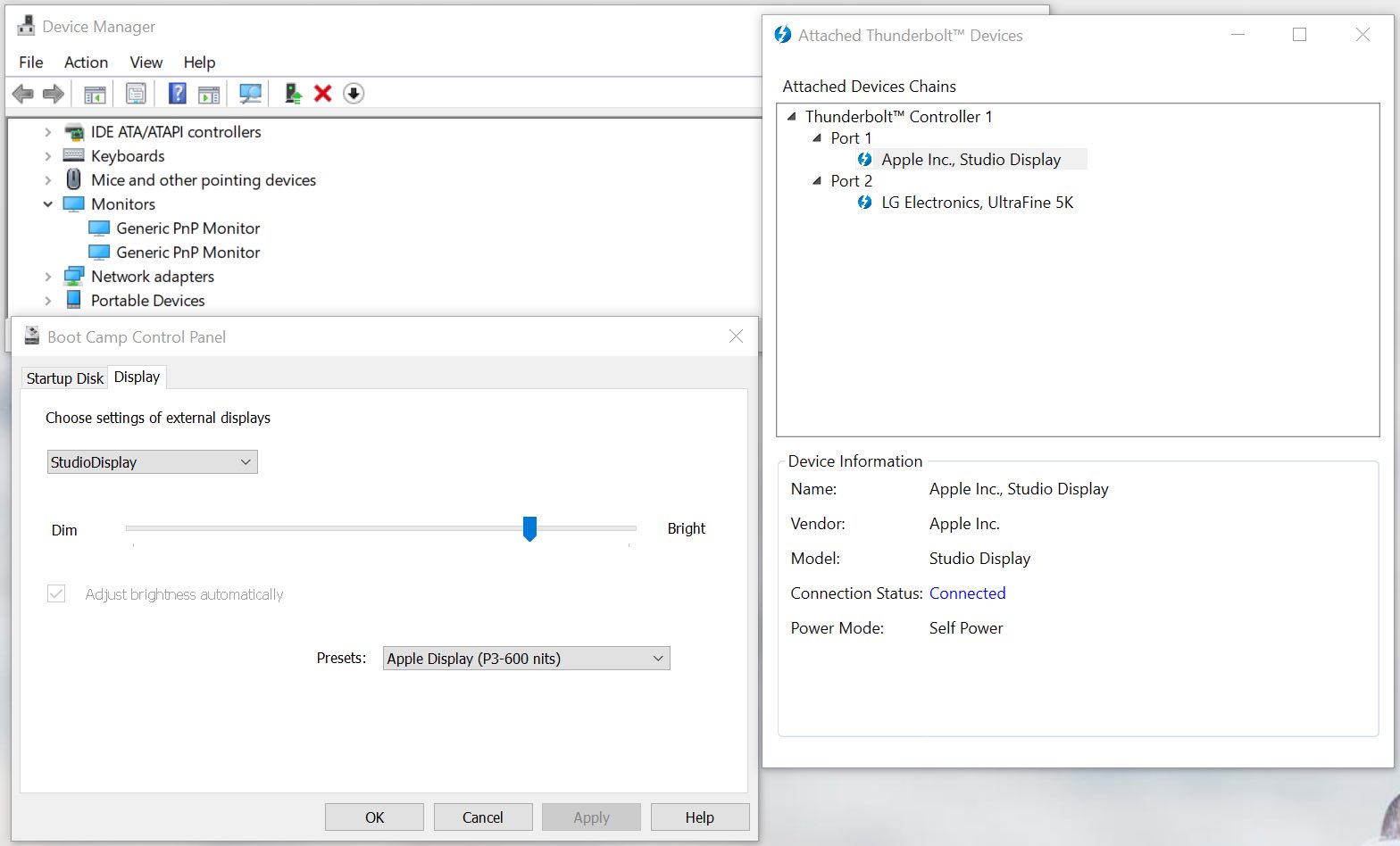

According to https://justin.searls.co/posts/connecting-a-gaming-pc-to-apple-studio-display/, there's a way to make brightness adjustment work via bootcamp control panel.
Last edited:
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Apple Studio Display Windows Compatibility
- Thread starter kreasu_
- Start date
- Sort by reaction score
I'm trying to use it on a work computer that doesn't run Mac OS, therefore not boot camp, thought about installing hackintosh to do it but the dimmer program works well enough
There are ways to install Boot Camp Windows drivers on non-Macs but I don't know exactly what they are.
https://github.com/timsutton/brigadier
I think you need Boot Camp Update 6.1.17 to get support for the Studio Display
https://forums.macrumors.com/threads/apple-updates-boot-camp-to-support-studio-display.2338740/
I installed that actually, but I can't open the control panel, it throws an error saying that it can't access the startup settings, which makes sense because I'm not running the opencore uefi

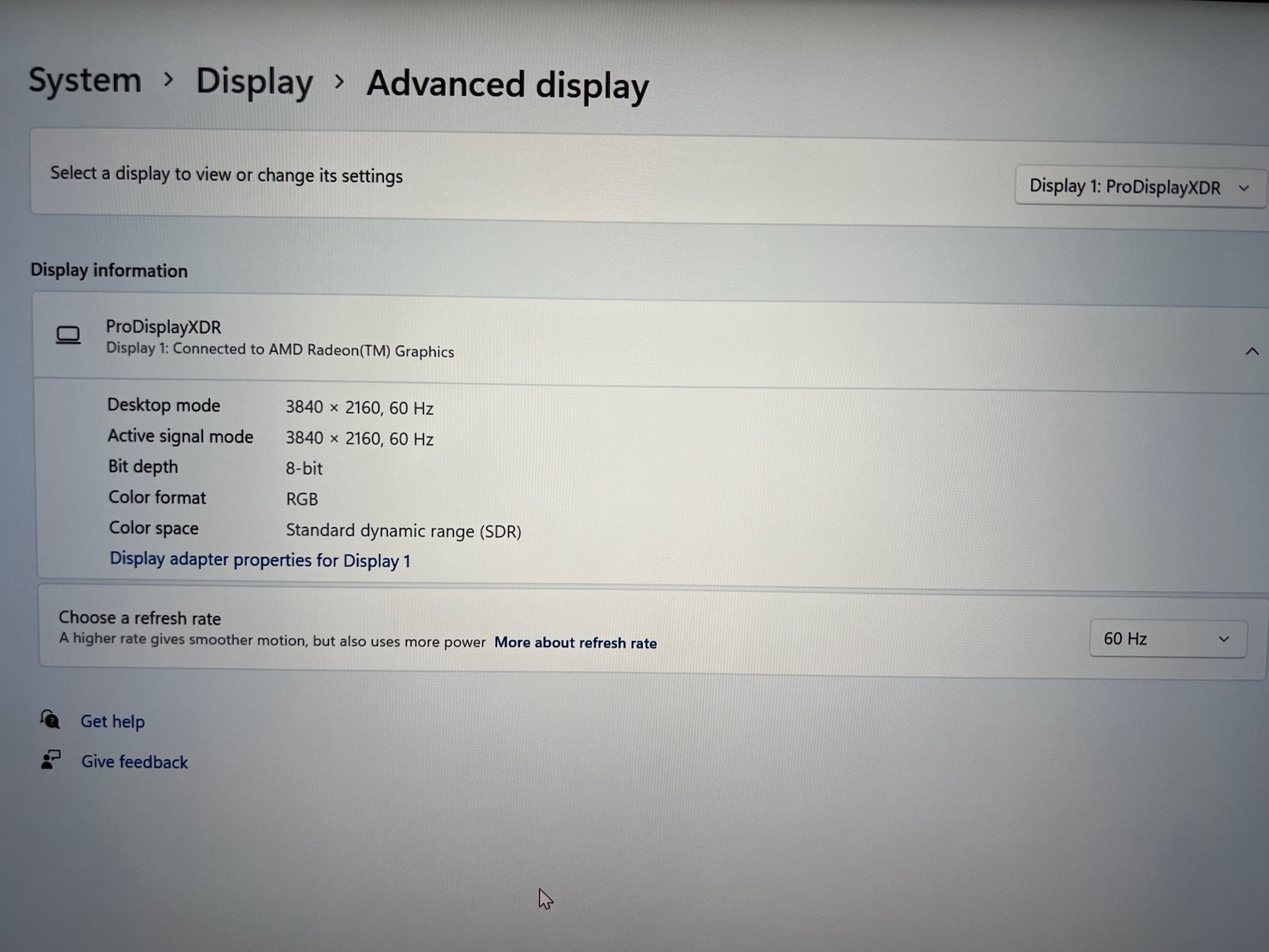

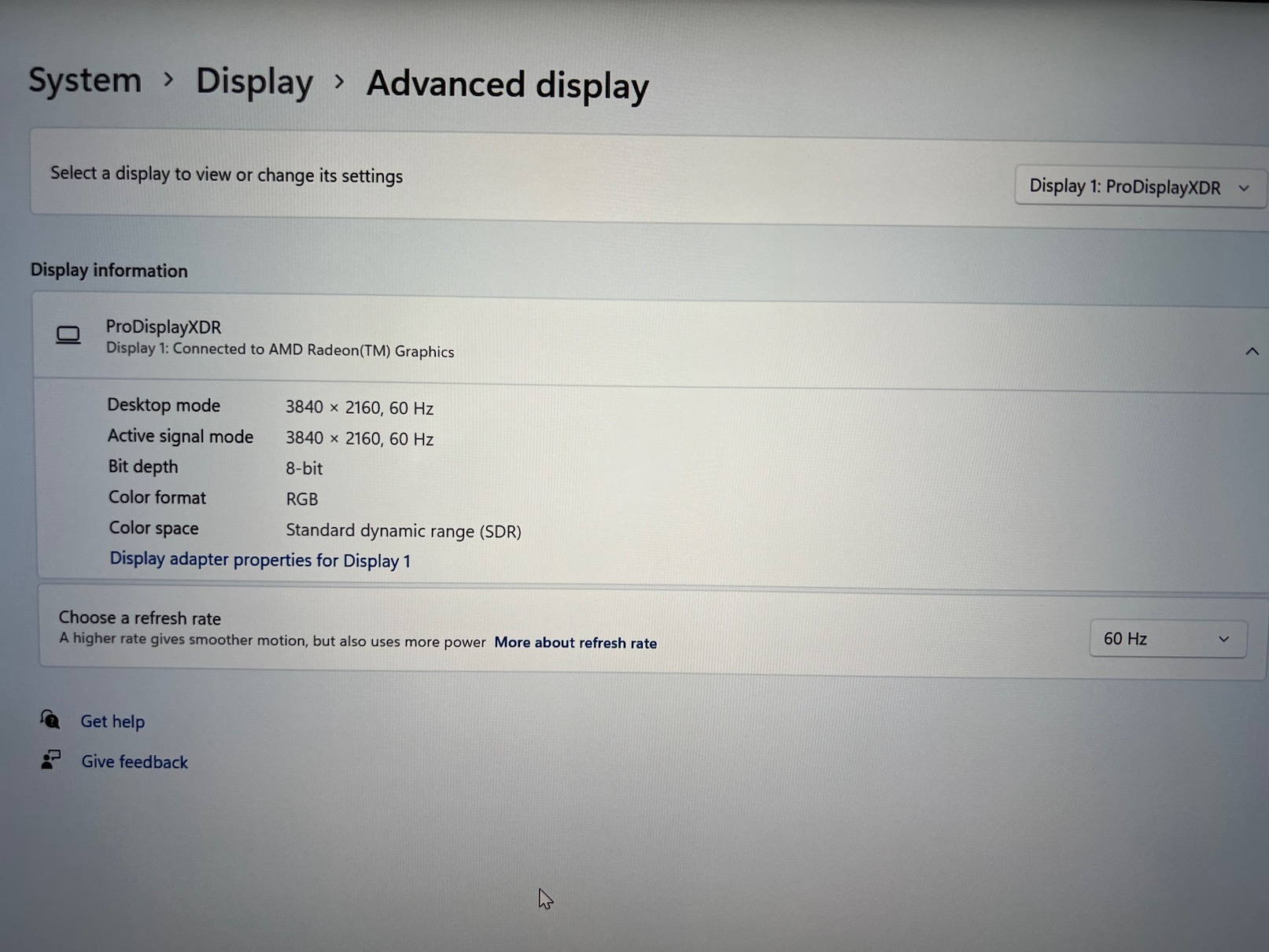

Just reporting back in here to confirm that my Windows machine with Ryzen 3 5300G APU in a ASRock X570 Phantom Gaming-ITX/TB3 motherboard and Club 3D HDMI to DisplayPort 1.2 4K60Hz M/F Active Adapter supports 4K on the Pro Display XDR
Last edited:
Does your TB3 output the full 5k or only 4k?
I was interested in making an ITX SFF build but I was wondering about this
I guess the TB3 outputs 4k only. I don't know if any other parts are compatible with full 5k, at least the signal is from HDMI on the motherboard, which "Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz" according to the motherboard introduction.
Yeah it's hard to say why I max out at 4K60. Looking further at the Club 3D cable specs, it only supports DisplayPort 1.2, which is 4K60. I'd need DSC (somehow) in order to get above that. I'm sure I could do that with a GPU, but I was hoping to keep this to an ITX build with iGPU/APU.
Amethyst1
macrumors G3
HDMI 2.0 can’t do more than that. It maxes out at 600 MHz pixel clock, can’t do timings wider than 4096 pixels (AFAIK) and doesn’t support DSC. You need HDMI 2.1 to smash all these barriers.
And you’d also need a HDMI 2.1 to DisplayPort 1.4 adapter…
Last edited:
DisplayPort 1.2 has a bandwidth limit (HBR2 x4) but not a resolution limit. It can do 5K60 with 6bpc for example but it depends on the GPU and drivers. It could do 8K if you had a display that supported 21Hz (depends on GPU and drivers).
HDMI 2.0 can do pixel clock 1200 MHz with 4:2:0 chroma sub sampling (good enough for 8K 30Hz). It can also do widths wider than 4K.
What doesn't exist yet is an HDMI to DisplayPort adapter that can do widths greater than 4K.
https://insights.club-3d.com/thread/hdmi-2-1-to-usb-c-displayport-1-4-alt-mode/
Amethyst1
macrumors G3
m2e
macrumors newbie
I haven't had any luck getting it to work with my Windows set up and was wondering if anyone else had luck with a similar set up or knows which part of this is incompatible?
Other notes:
- Sound is working fine out of my Studio Display
- Disconnecting the LG Ultrafine 5k doesn’t seem to help
- I’ve installed boot camp drivers using brigadier
- I’ve reinstalled Windows, but no luck
- I’ve tried a few different cables I have that work with the Ultrafine 5k
I'm not Windows expert so I can't figure out how to determine what could be causing the issue. Any help would be appreciated! Thanks!

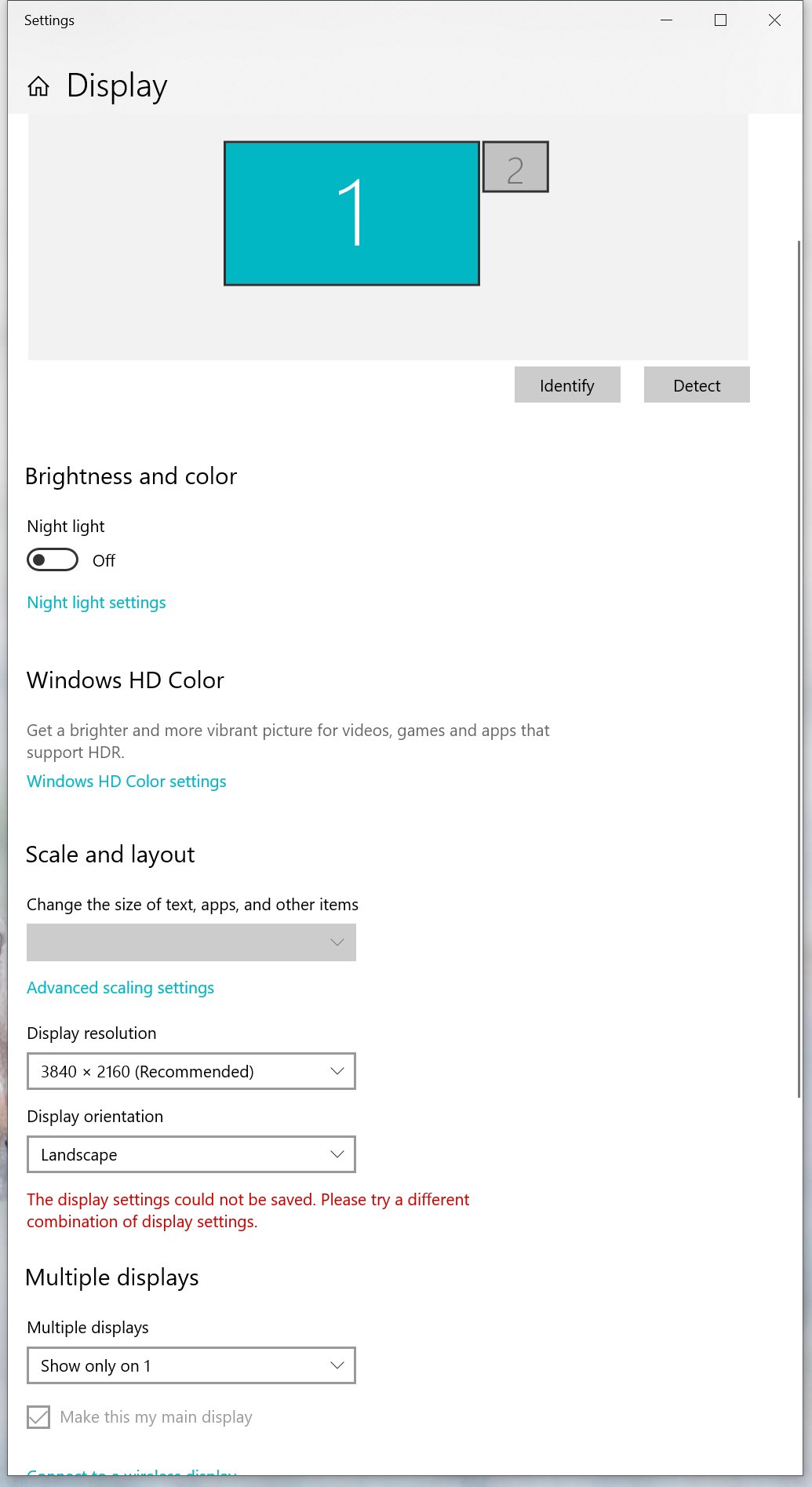

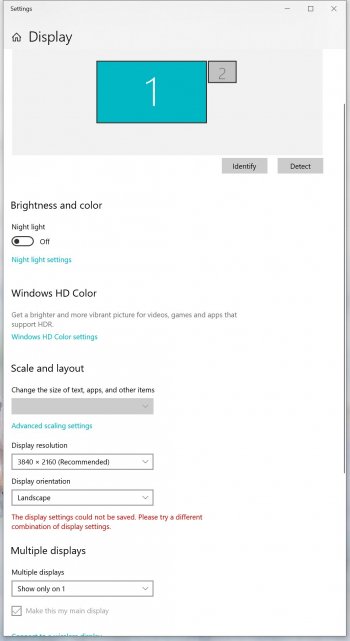

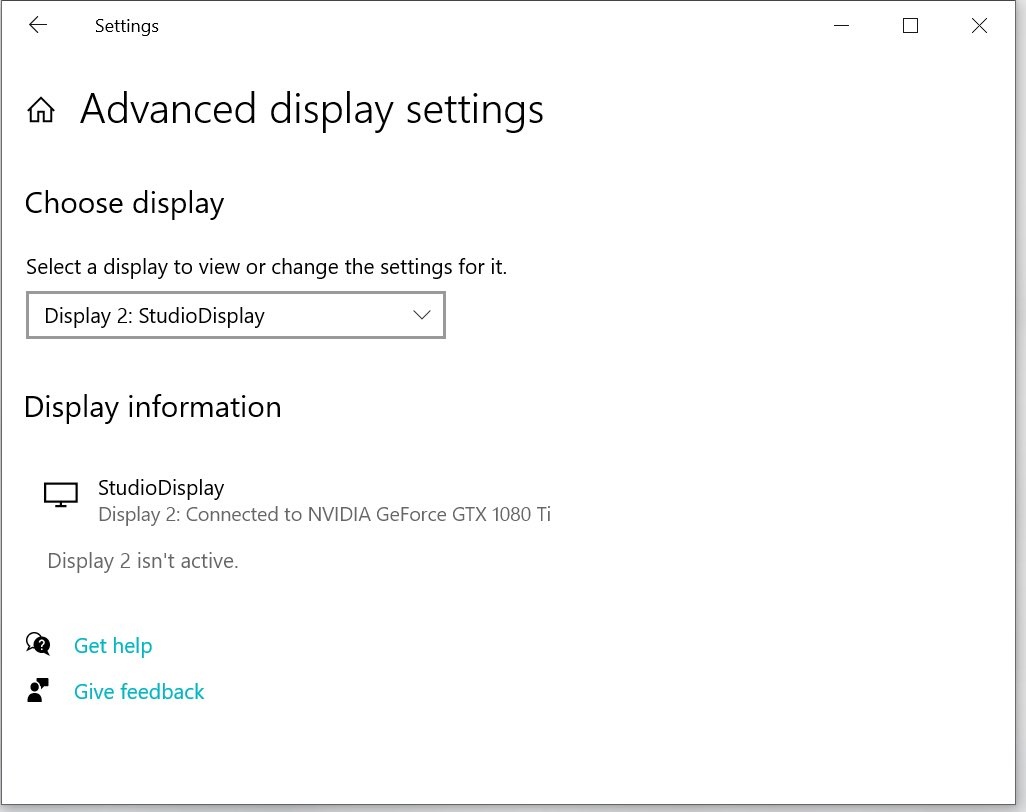

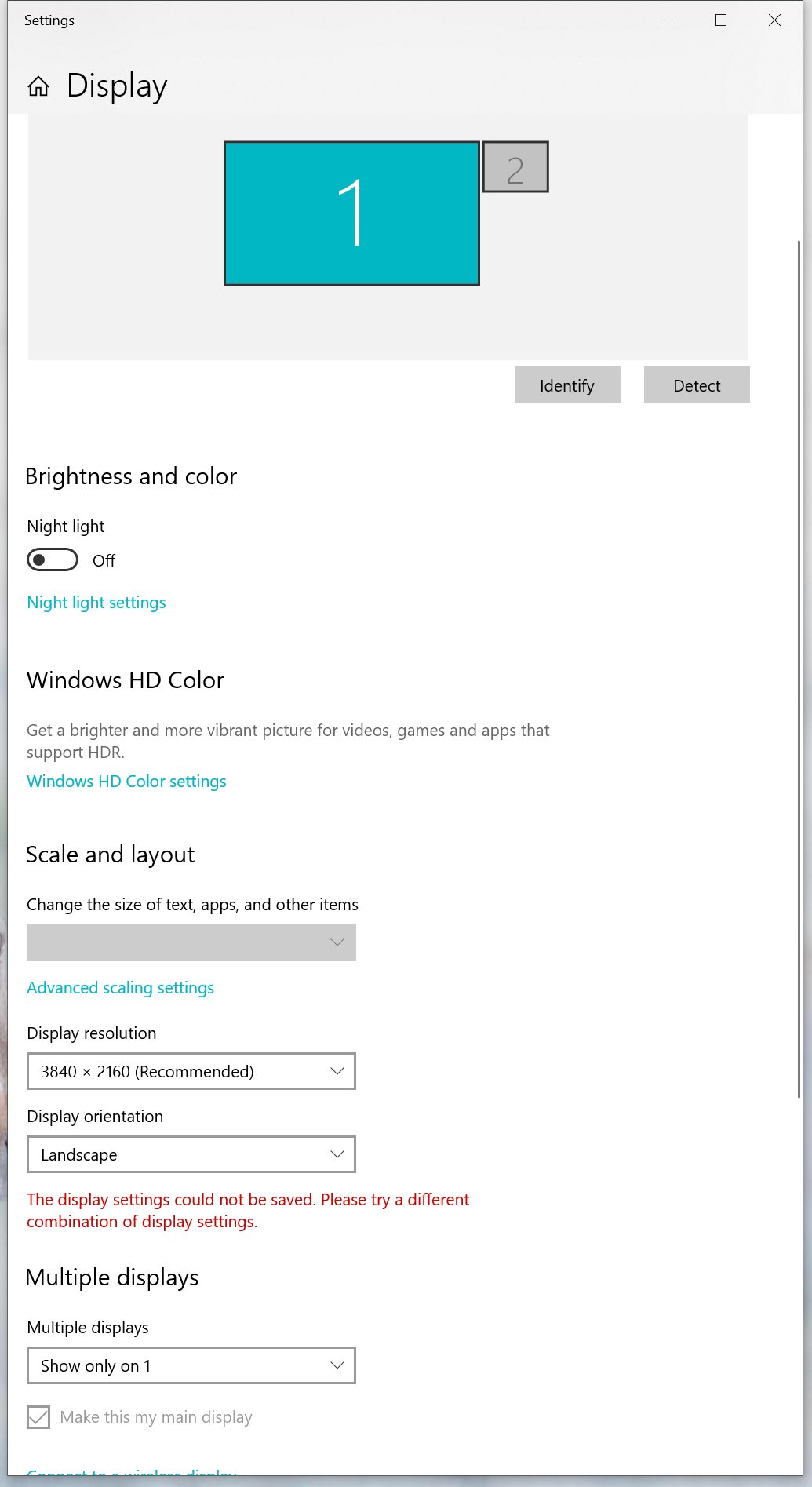

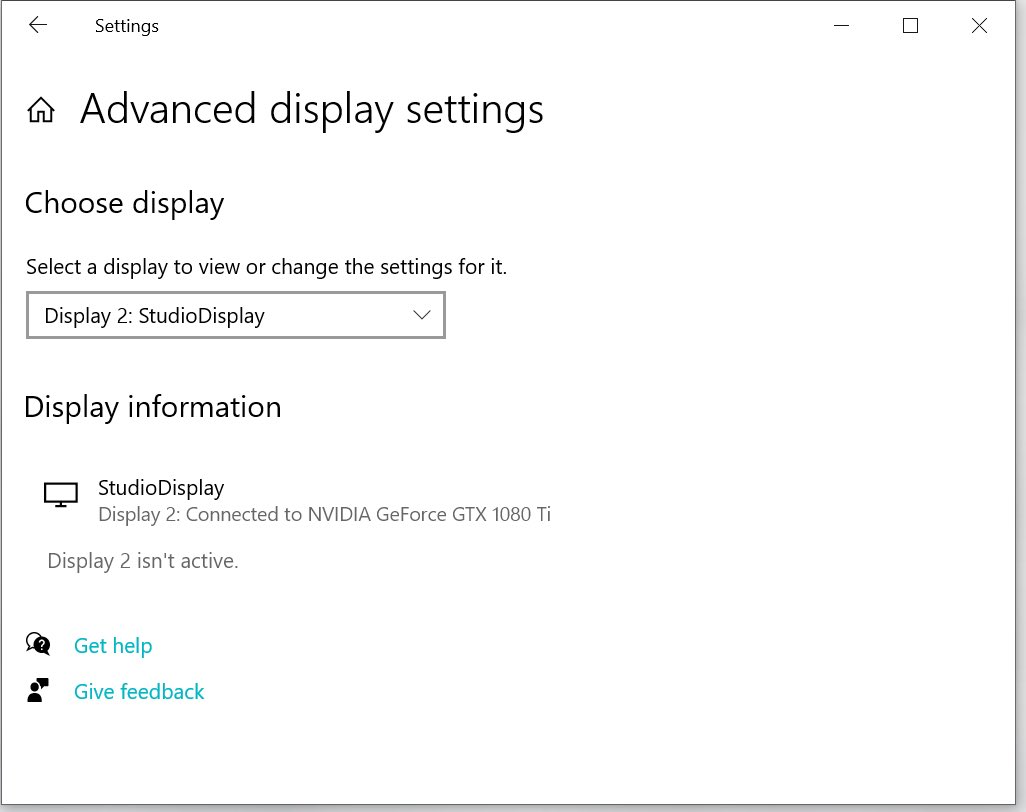

I have this PC working at full native resolution with my LG Ultrafine 5k, but no luck so far with the Studio Display. The new display works (super low res) while Windows is booting up but goes black before the log in screen turns up. Going to the display settings in Windows says "Display 2 isn't active" and changing any settings to extend desktop or show only on the studio display just end up with an error saying the settings couldn't be saved.
Other notes:
- Sound is working fine out of my Studio Display
- Disconnecting the LG Ultrafine 5k doesn’t seem to help
- I’ve installed boot camp drivers using brigadier
- I’ve reinstalled Windows, but no luck
- I’ve tried a few different cables I have that work with the Ultrafine 5k
I'm not Windows expert so I can't figure out how to determine what could be causing the issue. Any help would be appreciated! Thanks!
Attachments
m2e
macrumors newbie
Thanks for the tip @kreasu_. From what I can gather:

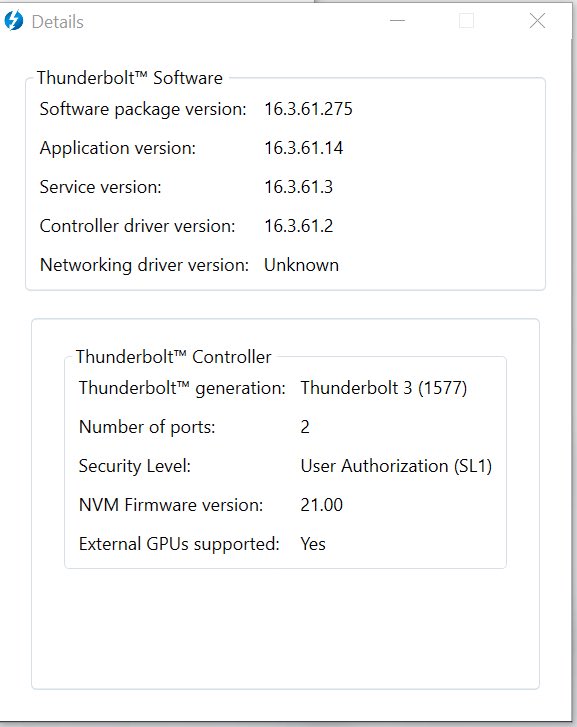

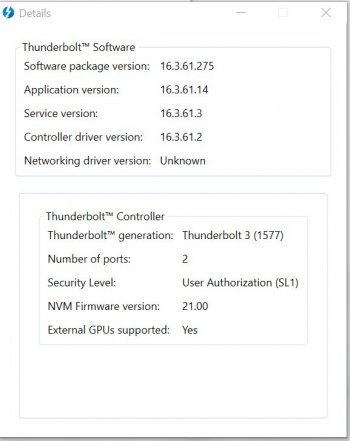

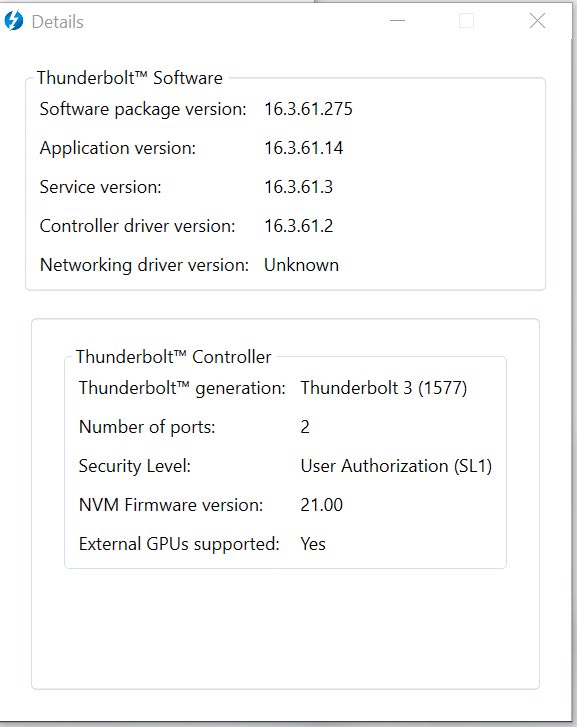

- The latest firmware available for my Gigabyte add in card is NVM 21 (so nothing to update) and apparently you can't just take a higher NVM version from a different manufacturer as that would brick the card
- Drivers on the other hand seem to be more generic from Intel and so you don't have to rely on what your manufacturer has made available. So I got the latest from Intel (1.41.1193.0) even though it was supposedly for their NUCs. But still no luck getting this display to work after updating.
- Apparently thunderbolt drivers used to have versions like 16.x or 17.x, but now they've reset things so 1.41 is actually newer than those higher numbers.
Not sure if there's a hole in my thinking somewhere in there...
The most confusing thing to me is the Studio Display didn't work even if the LG Ultrafine 5K was disconnected. A quick question, was the LG Ultrafine 5K disconnected completely, including power cable, usb-c cable?
Here's some information I've heard:
1. 1080TI supports DP 1.2, no DSC.
2. The Studio Display supports DP 1.2, with DSC.
3. The LG Ultrafine 5K supports DP 1.2, no DSC. (It needs two DP connections for 5K)
Anyway, I think one 1080TI can't drive two monitors with 5K, either because The LG Ultrafine 5K needs two DP connections, or because the bandwidth is not enough. But why does single Studio Display not work? I have no idea. Suppose it should be 4K.
Can you try
1. Shutdown the PC
2. Disconnect the LG Ultrafine 5K completely
3. Connect the Studio Display
4. Power on the PC
If still not work, maybe connect the USB-C cable to another USB-C port on the motherboard?
Here's some information I've heard:
1. 1080TI supports DP 1.2, no DSC.
2. The Studio Display supports DP 1.2, with DSC.
3. The LG Ultrafine 5K supports DP 1.2, no DSC. (It needs two DP connections for 5K)
Anyway, I think one 1080TI can't drive two monitors with 5K, either because The LG Ultrafine 5K needs two DP connections, or because the bandwidth is not enough. But why does single Studio Display not work? I have no idea. Suppose it should be 4K.
Can you try
1. Shutdown the PC
2. Disconnect the LG Ultrafine 5K completely
3. Connect the Studio Display
4. Power on the PC
If still not work, maybe connect the USB-C cable to another USB-C port on the motherboard?
Last edited:

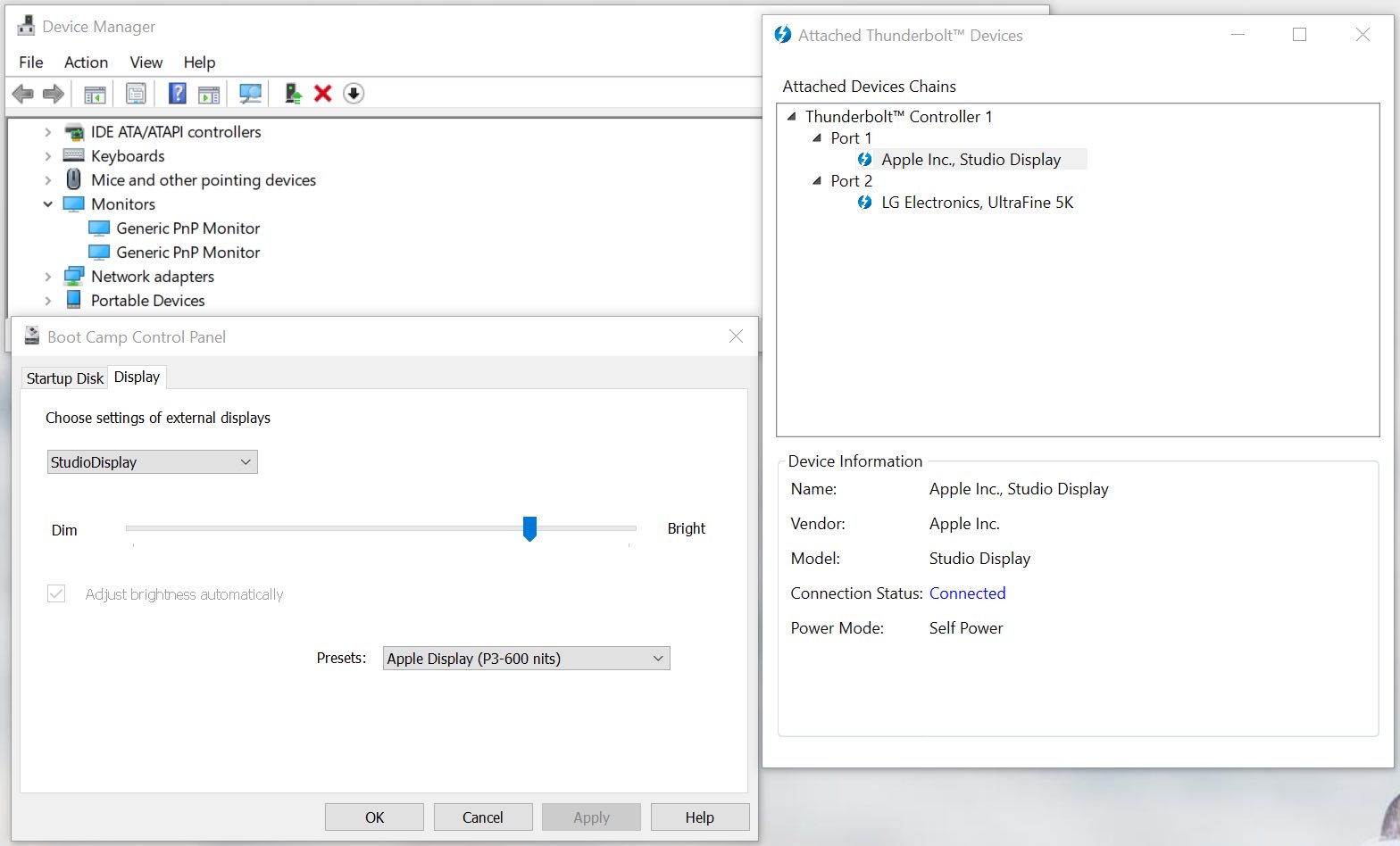

You can't connect any other display to the same Thunderbolt controller if the first display is an LG UltraFine 5K. Redo your tests without the LG UltraFine 5K connected.
