ATI fireGL X3 NOS on ebay

Discussion in 'PowerPC Macs' started by LightBulbFun, Jan 22, 2015.

  1. LightBulbFun macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #1

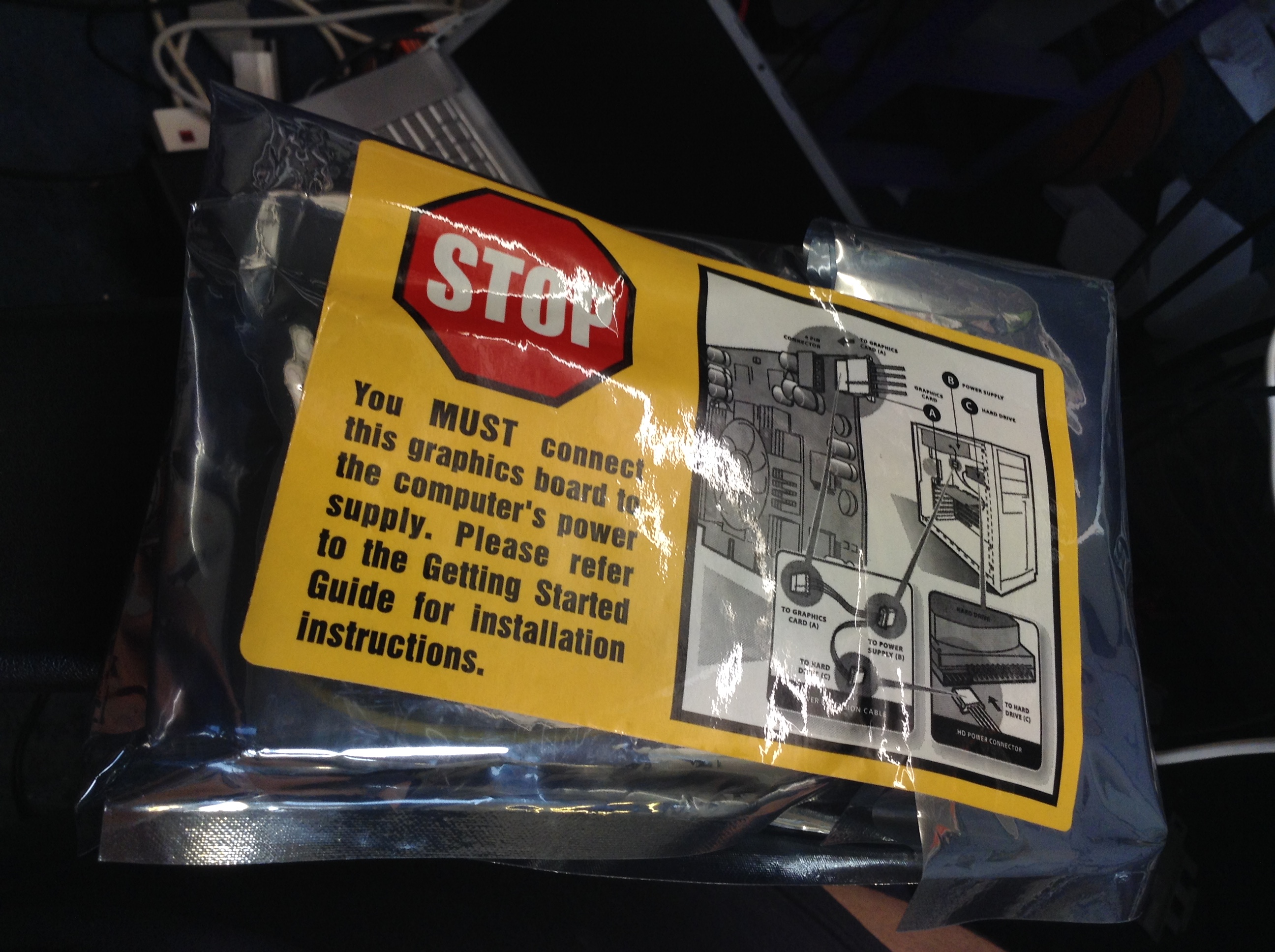

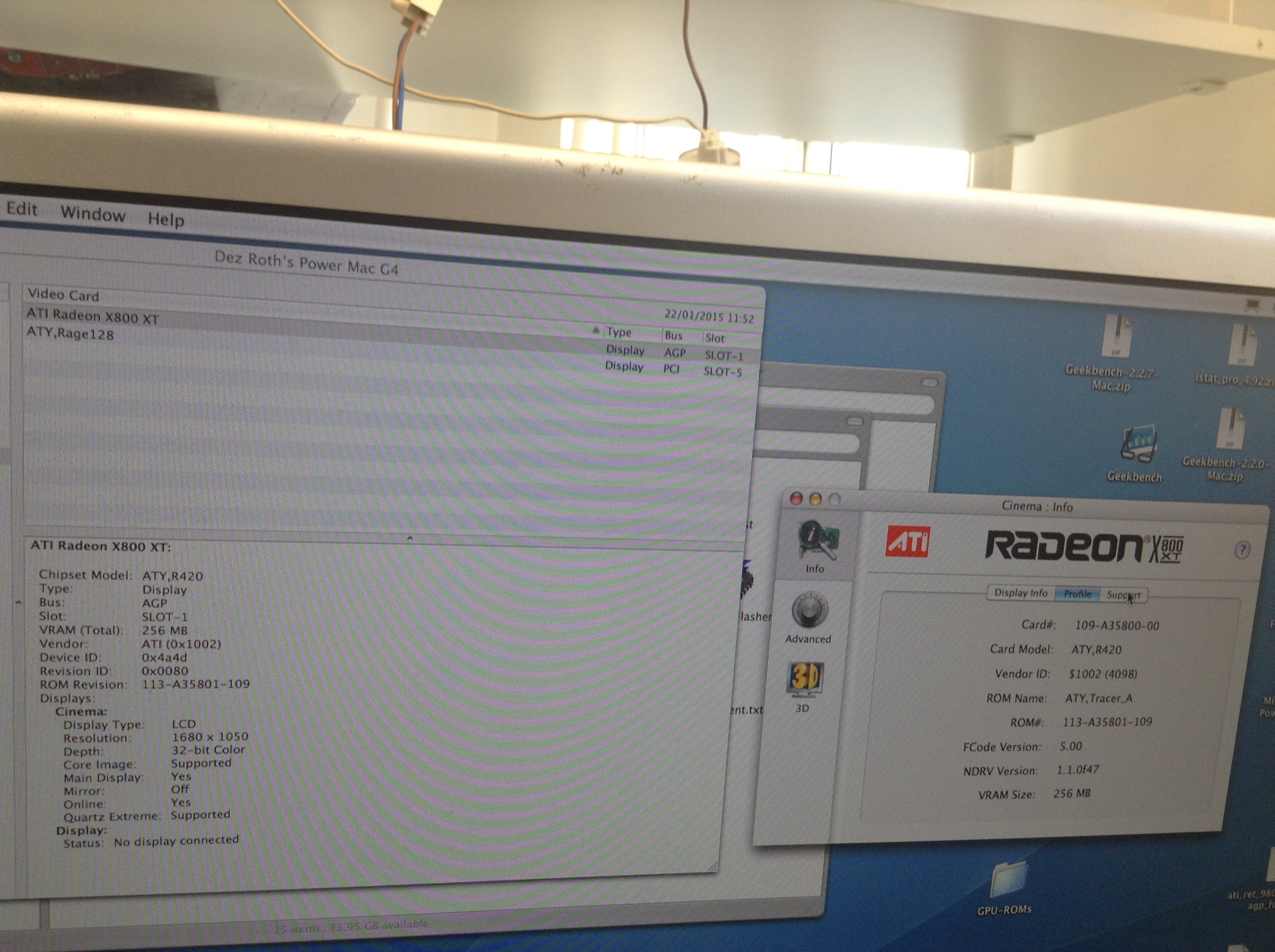

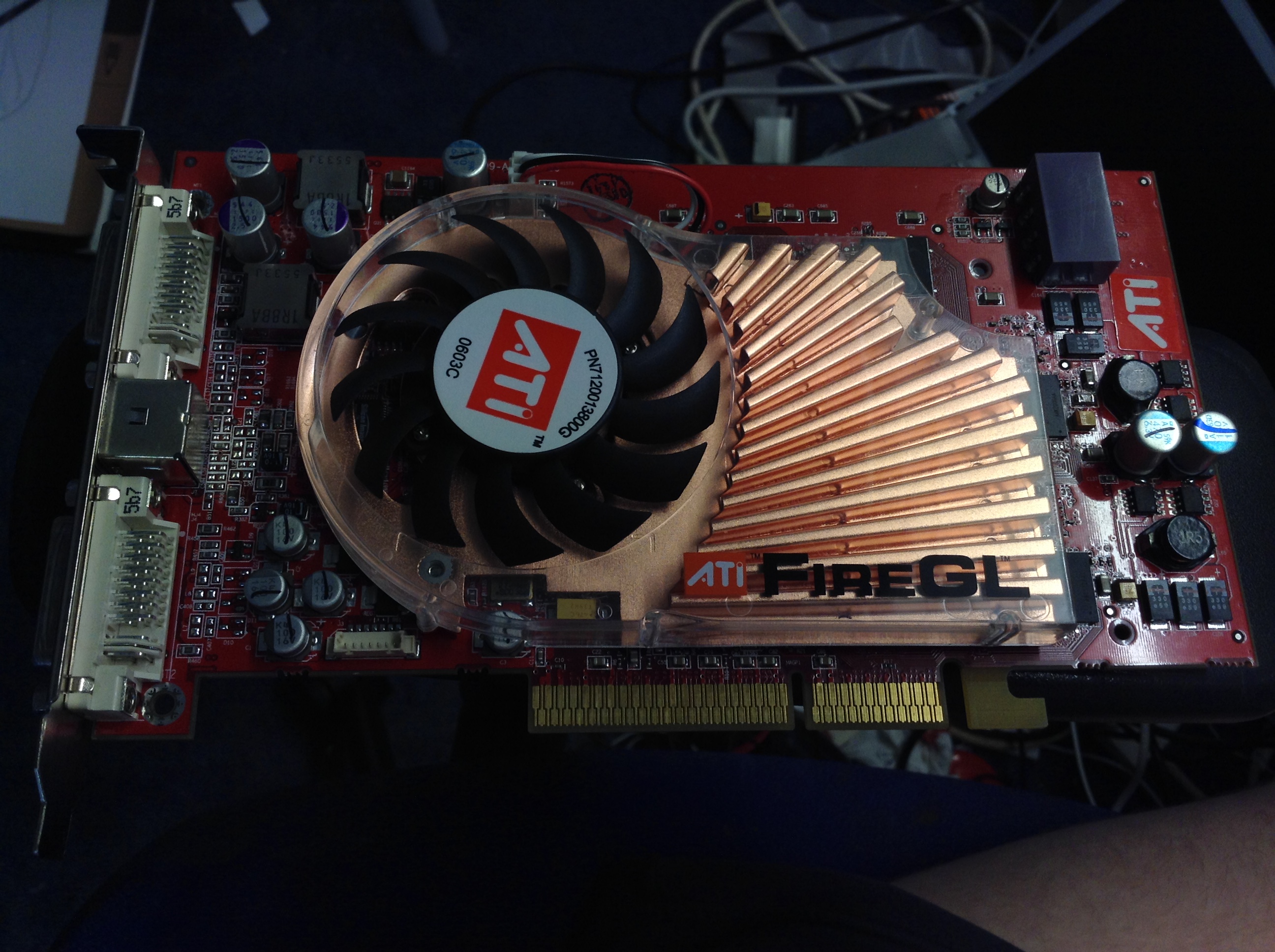

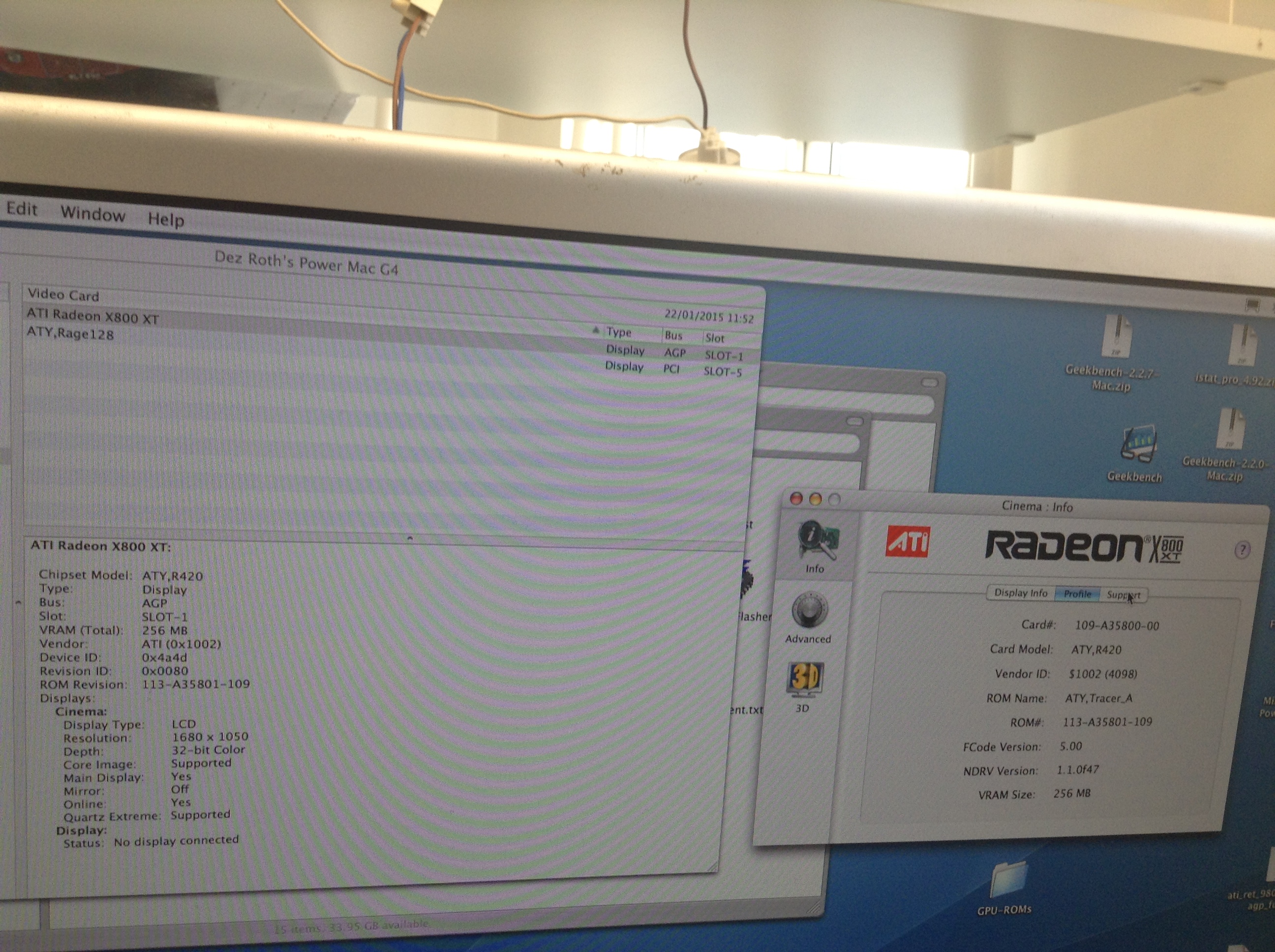

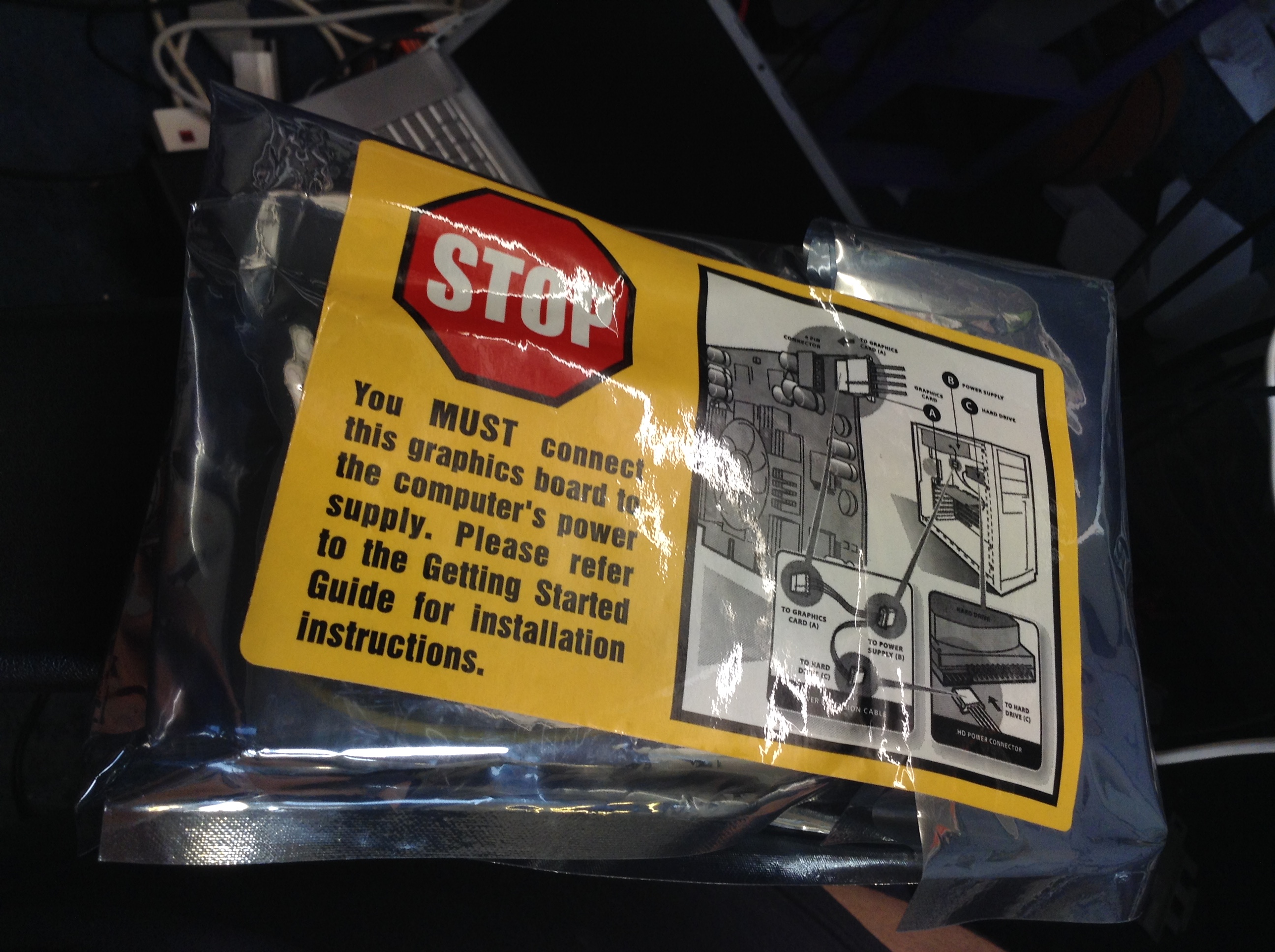

    while I was browsing eBay for graphics cards to flash for one of my G4s I came across this http://www.ebay.com/itm/ATI-FireGL-...061?pt=PCC_Video_TV_Cards&hash=item566ce680e5 and as some of you guys know the ATI fireGL X3 is flashble for use in PowerMacs so when I saw it for that cheap and i saw it was listed as new I decided i would perches one and well It arrived today and indeed it was new in its OEM antistatic bag and I taped pins 3 and 11 and it flashed and worked very well :D so since it worked I decided to share the Link here for any one looking for a Nice upgrade for there G4 or G5 PowerMacs and that don't mind flashing a graphics card (it was dead easy for me heh)

    (mod note this is not my ebay listing its just one i came across and decided to share)


    Attached Files:

  2. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #2
    Oh man I've been looking for one of these cards for ages - they barely ever turn up in the UK. Too bad the seller doesn't ship internationally - I don't suppose anyone feels like forwarding one if I pay you? ;)

  3. LightBulbFun thread starter macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #3
    Wow that was quick :D Yeah I faced the same problem But Luckly I was able to have it shipped to a friend in the US and then He shipped it to me in a small flat rate box :)

  4. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #4
    PM me. Note I can't do anything until Friday night my time.

    ----------

    OP, what are the advantages of this card over a Radeon 9800 Pro, other than an additional 128mb?

    I already have a 9800 Pro, but am looking for the Special Edition 9800 Pro which is the same, but with 256mb.

    Would this be a better card, or just a lateral move for me?

    I might consider flashing and taping pins if there is any benefit of this card over a 9800 Pro.

    Keep in mind that my max resolution is 1680x1050 on my 22" Cinema Display so any additional 'benefit' of higher resolutions is lost on me.

  5. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #5
    It has twice the number of pixel pipelines than the Radeon 9800 cards - so it is significantly faster for intensive graphics applications. The clock speeds are also quite a bit faster. It's the fastest ATi card you can put in a PowerMac.

  6. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #6
    Interesting!

    I get paid Friday. We'll see. My only problem would be getting it flashed. I have two PCs in pieces in the garage, none with AGP slots. However…there are a plethora of PCs at work…hmmm!

    BTW, I meant what I said. Send me a PM. :D

  7. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #7
    PM sent! I'd definitely recommend picking one of these cards up Erik, they can be flashed from OS X using the ATi Flash utility. Not to mention the dual DVI ports would help out your monitor dilemma!

  8. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #8
    Cool, this is sounding better and better!

    Just replied to your PM.

    My only issue then, if I can get one, is figuring out how to tape pins!

  9. weckart macrumors 68040

    Joined:
    Nov 7, 2004
    #9
    My only tip would be that a full sized boxcutter blade did a better job of making a neater trim in the tape than smaller sized craft knives.

  10. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #10
    Cool, thanks!

    ----------

    As you know…your card is now on the way! :D

  11. comda macrumors 6502a

    comda

    Joined:
    Mar 15, 2011
    #11
    Although ive had some experience with macs as ive done LOTS to keep my macbook 3,1 going and my PowerPC macs I just as many others am still learning as i go. But could someone PLEASE explain to me what they mean by the pins. Taping these pins. What does it do? I understand it has something to do with flashing the card but can someone explain please?

  12. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #12
    In the 4X AGP G4 PowerMacs, pins 3 and 11 of the AGP slot (along with a couple of others) were used to control various things on the ADC monitors. This deviated from the standard AGP pinout so if you try to use a unmodified PC card in a Mac, the system won't even start as the power supply thinks there is a short on a voltage rail.

    http://themacelite.wikidot.com/pins-3-and-11

  13. comda macrumors 6502a

    comda

    Joined:
    Mar 15, 2011
    #13
    So you literally put tape in the AGP slot or on the card?

  14. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #14
    On the card. The idea is that the tape prevents contact between the circuit inside the AGP slot and the lead on the card.

    I've never done it (but will be soon) myself, but that's the general idea.

  15. comda macrumors 6502a

    comda

    Joined:
    Mar 15, 2011
    #15
    Thank you for elaborating. So the tape goes on the contact for the slots and when you place the card it doesnt connect to the AGP slot allowing the PowerMacintosh to use it? If so thanks for clarifying. :apple:

  16. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #16
    Taping over the pins is the simplest way of doing the mod and the most easily-reversible; however it's not ideal as the bits of tape can fall off, get worn away etc. (especially problematic if the tape falls off in the AGP slot).

    I usually just cut the PCB traces with a scalpel, although on some ATi cards it is possible to desolder two resistors to break the connections. This is the neatest way as you can just solder a small blob back across the pads (or even just draw it on using conductive ink) to reverse the modification.

  17. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #17
    The tape that you put over the contact prevents an electrical connection between that contact and the corresponding contact inside the AGP slot.

    That allows the Mac to boot because the Mac no longer detects a short. It also effectively renders ADC useless, but if you're taping pins you either are using an alternate method to use an ADC display or you have a DVI or VGA display.

  18. comda macrumors 6502a

    comda

    Joined:
    Mar 15, 2011
    #18
    Alright. Haha As a 19 year old im quite good with a soldering iron. i prefer this way over the tape. Again really appreciate the clarification. Keep us posted how your upgrade goes!

    There is a Old G4 (i think digital Audio model) on our campus store i may ask what they plan on doing with it one day..

  19. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
  20. LightBulbFun thread starter macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #20
    Wow I did not expect this Post to be so Popular :p it Looks like I have help make a couple of members quite happy :D I have My ATI fireGL X3 in my MDD, It Runs minecraft quite well if any one is wondering. (I play on the PPC MacRumors server heh) the seller has like 43 of these cards Left so plenty to go around heh :)

  21. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #21
    Thanks for sharing the link with everyone - I've never seen these cards go so cheap. Funny thing is I'd been looking on eBay and elsewhere for one for about a week before giving up this morning, then not 2 hours later you post this!

    I take it you used the reduced Fire GL X3 ROM from the Mac Elite? Also, what's the noise of the card like - my current 9800XT has the fan stuck on 100% due to the custom ROM I have to use with it and the noise is almost unbearable! :rolleyes:

  22. LightBulbFun thread starter macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #22
    Your welcome and talk about coincidence :p . Yeah i used the macelite Rom I flashed it in my MDD if ur wondering. Regarding fan noise tbh even before the card is taken over by the OS and the fans at max i cant hear it that much over my MDDs fans LOL (i dont care much for fan noise) But yeah fan speed controll works i can hear the fan slow down as the OS takes hold of the GPU :)

  23. Gamer9430 macrumors 68020

    Gamer9430

    Joined:
    Apr 22, 2014
    Location:
    Central New Jersey, USA
    #23
    I wish I had a job so I could buy this... Soon hopefully :)

  24. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #24
    What do I need and how do I do it?

    harrymatic's video card comes today. It's out for delivery at the moment.

    harymatic has graciously allowed me to take ownership of his card and when my card arrives on Monday afternoon I will be shipping him my card.

    With that in mind, it means that this evening I will have this card ready to have the pins taped and be flashed.

    I do not have a viable PC to do any flashing and harrymatic mentioned that I could flash it in my Quicksilver. This is totally doable as I already have a PCI video card so I won't be doing it blind.

    What flash software do I need? Where do I get it? What ROM do I need? Where do I get it?

    Is there ANY danger at all that if I am not careful about downloading the correct things I can permanenly brick this card?

    Anything else I should know or be aware of?

    Thanks for any and all details!

  25. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #25
    First of all, download Graphiccelerator and the Fire GL X3 ROM.

    I'd recommend pulling out all of your graphics cards apart from the victim Fire GL X3 and your PCI card of choice (I suggest using that old Rage 128 if you still have it incase you accidentally flash the wrong card, the program does ask you which one to flash though).

    The Graphiccelerator readme file has full instructions for loading the ROM into the program. Don't forget to copy Graphiccelerator to your hard drive first, otherwise it doesn't work. There's no reason to worry about bricking the card as the ATi flash utility doesn't care what firmware is on the card, you can keep trying until you get it right.

    Good luck! :)
