Dolby Vision on (USA) Bravia TV with ATV 4K

Discussion in 'Apple TV and Home Theater' started by Michelasso, Jan 17, 2018.

  1. Michelasso macrumors 6502

    Michelasso

    Joined:
    Feb 20, 2012
    Location:
    Treviso, Italy
    #1
    I have read the American Bravia with X1 Extreme co-processor have got the Dolby Vision FW update. It is working with the Apple TV 4K? In the Sony forums there are people complaining that.. it is a mess. Did anyone manage to make it working?

  2. priitv8, Jan 17, 2018
    Last edited: Jan 17, 2018

    priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #2
    The DoVi feature has been removed from the release changelog.

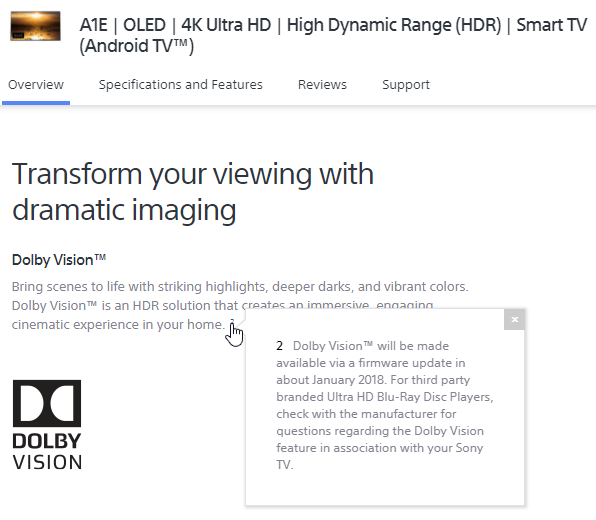

    And remark about possible compatibility issues with 3rd-party sources added to product pages of A1E and Z9D.
    Go figure.
    I think Sony should outsource their software development and deployment to someone capable.

    PS Would be interesting to know, if and how does current firmware update (version PKG6.2818.0075NAA) announce DoVi capability in Bravia's EDID.
    SwitchResX is one tool to pull that info from HDMI sink.
    Current version 4.7.0 is capable of HDR parameter interpretation in EDID.

    Without proper EDID data, aTV 4K would not know to offer the DoVi options in A/V resolutions menu. So this is the first prerequisite of them all.

  3. ronkuba macrumors regular

    Joined:
    Feb 26, 2011
    #3
    Unfortunately, it's only working with the TVs onboard apps. They even updated the firmware on the website and it doesn't even mention Dolby vision.

  4. priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #4
    Did they replace the firmware? I thought only the description was changed.

  5. ronkuba macrumors regular

    Joined:
    Feb 26, 2011
    #5
    It's a different firmware number but from what I can tell the only thing that changed was the release notes.

  6. priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #6
    It was also PKG6.2818 this morning, when DoVi was still listed as a feature. Not sure about the 0075NAA part any more.

  7. netnothing macrumors 68040

    netnothing

    Joined:
    Mar 13, 2007
    Location:
    NH
    #7
    I updated early yesterday morning. The release notes page said 0070NAA but the release my TV received was 0075NAA. Guessing they just removed the reference but the file is the same.

    Also, Forbes has a generic update on the issue:
    https://www.forbes.com/sites/johnar...y-rolls-out-and-leaves-sony-tv-owners-fuming/

  8. Michelasso thread starter macrumors 6502

    Michelasso

    Joined:
    Feb 20, 2012
    Location:
    Treviso, Italy
    #8
    Oh.. all right. Thanks guys. So it is even worse than I imagined. That Android TV on Bravia will never work at this point. It has issues everywhere. Even in a key selling point like DV, now. Unbelievable.

  9. priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #9
    Would you be able to pull the EDID data from your Bravia then? Just to see if and what evidences it may contain about new HDR mode.
    For reference, my HDR10/HLG-olny firmware currently lists this:
    Code:
    EDID report generated by SwitchResX Version 4.7.0a2 (x64) for display SONY TV  *00


    -----------------------------------------------------
    ------------------- RAW DATA ------------------------
    -----------------------------------------------------
          0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
    -----------------------------------------------------
    0  | 00 FF FF FF FF FF FF 00 4D D9 5B 04 01 01 01 01
    1  | 03 1B 01 03 80 90 51 78 0A 0D C9 A0 57 47 98 27
    2  | 12 48 4C 20 00 00 01 01 01 01 01 01 01 01 01 01
    3  | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
    4  | 45 00 9F 29 53 00 00 1E 01 1D 00 72 51 D0 1E 20
    5  | 6E 28 55 00 9F 29 53 00 00 1E 00 00 00 FC 00 53
    6  | 4F 4E 59 20 54 56 20 20 2A 30 30 0A 00 00 00 FD
    7  | 00 17 3E 0E 88 3C 00 0A 20 20 20 20 20 20 01 FE

    -----------------------------------------------------
          0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
    -----------------------------------------------------
    0  | 02 03 53 F2 53 5D 5E 5F 62 1F 10 14 05 13 04 20
    1  | 22 3C 3E 12 03 11 02 01 2C 0D 7F 07 15 07 50 3D
    2  | 07 BC 57 06 00 83 0F 00 00 78 03 0C 00 33 00 B8
    3  | 3C 2F D0 8A 01 02 03 04 01 40 07 F0 60 70 B0 B6
    4  | C0 D0 E2 00 CB E3 05 DF 01 E5 0E 61 60 65 66 E3
    5  | 06 0D 01 00 00 00 00 00 00 00 00 00 00 00 00 00
    6  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
    7  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5F

    -----------------------------------------------------
     < 00FFFFFF FFFFFF00 4DD95B04 01010101 031B0103 80905178 0A0DC9A0 57479827 12484C20 00000101 01010101 01010101 01010101 0101023A 80187138 2D40582C 45009F29 5300001E 011D0072 51D01E20 6E285500 9F295300 001E0000 00FC0053 4F4E5920 54562020 2A30300A 000000FD 00173E0E 883C000A 20202020 202001FE 020353F2 535D5E5F 621F1014 05130420 223C3E12 03110201 2C0D7F07 1507503D 07BC5706 00830F00 0078030C 003300B8 3C2FD08A 01020304 014007F0 6070B0B6 C0D0E200 CBE305DF 01E50E61 606566E3 060D0100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000005F >

    -----------------------------------------------------
     { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0xD9, 0x5B, 0x04, 0x01, 0x01, 0x01, 0x01, 0x03, 0x1B, 0x01, 0x03, 0x80, 0x90, 0x51, 0x78, 0x0A, 0x0D, 0xC9, 0xA0, 0x57, 0x47, 0x98, 0x27, 0x12, 0x48, 0x4C, 0x20, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x02, 0x3A, 0x80, 0x18, 0x71, 0x38, 0x2D, 0x40, 0x58, 0x2C, 0x45, 0x00, 0x9F, 0x29, 0x53, 0x00, 0x00, 0x1E, 0x01, 0x1D, 0x00, 0x72, 0x51, 0xD0, 0x1E, 0x20, 0x6E, 0x28, 0x55, 0x00, 0x9F, 0x29, 0x53, 0x00, 0x00, 0x1E, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x53, 0x4F, 0x4E, 0x59, 0x20, 0x54, 0x56, 0x20, 0x20, 0x2A, 0x30, 0x30, 0x0A, 0x00, 0x00, 0x00, 0xFD, 0x00, 0x17, 0x3E, 0x0E, 0x88, 0x3C, 0x00, 0x0A, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x01, 0xFE, 0x02, 0x03, 0x53, 0xF2, 0x53, 0x5D, 0x5E, 0x5F, 0x62, 0x1F, 0x10, 0x14, 0x05, 0x13, 0x04, 0x20, 0x22, 0x3C, 0x3E, 0x12, 0x03, 0x11, 0x02, 0x01, 0x2C, 0x0D, 0x7F, 0x07, 0x15, 0x07, 0x50, 0x3D, 0x07, 0xBC, 0x57, 0x06, 0x00, 0x83, 0x0F, 0x00, 0x00, 0x78, 0x03, 0x0C, 0x00, 0x33, 0x00, 0xB8, 0x3C, 0x2F, 0xD0, 0x8A, 0x01, 0x02, 0x03, 0x04, 0x01, 0x40, 0x07, 0xF0, 0x60, 0x70, 0xB0, 0xB6, 0xC0, 0xD0, 0xE2, 0x00, 0xCB, 0xE3, 0x05, 0xDF, 0x01, 0xE5, 0x0E, 0x61, 0x60, 0x65, 0x66, 0xE3, 0x06, 0x0D, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x5F    }

    -----------------------------------------------------
        Valid EDID block #0: checksum ok
        Valid EDID block #1: checksum ok

    -----------------------------------------------------
    ------------------- MAIN EDID BLOCK -----------------
    -----------------------------------------------------

        EDID Version........1.3
        Manufacturer........SNY (4DD9)
        Product ID..........1115 (045B)
        Serial Number.......01010101

        Manufactured........Week 3 of year 2017
        Max H Size..........144 cm
        Max V Size..........81 cm
        Gamma...............2.20

    Display Supported Features:
    ---------------------------


    Display type:
    -------------
        RGB 4:4:4 & YCrCb 4:4:4 Color Encoding Formats
        Display is non continuous frequency
        Default color space is not sRGB standard
        Preferred timing mode includes Native Pixel Format


    Input signal & sync:
    --------------------
    Digital Input
        Color Bit Depth is undefined
        Digital Interface is not defined


    Color info:
    -----------
    Red x = 0.625  Green x = 0.280  Blue x = 0.155  White x = 0.283
    Red y = 0.340  Green y = 0.595  Blue y = 0.070  White y = 0.298

    Established Timings:
    --------------------
        640 x 480 @ 60Hz

    Manufacturer Reserved Timings:
    ------------------------------

    Standard Timing Identification:
    -------------------------------

    Monitor Description blocks:
    ---------------------------
        Descriptor #0 - Timing definition:
        Mode = 1920 x 1080 @ 60.000Hz
            Pixel Clock............. 148.50 MHz        Non-Interlaced

                                   Horizontal        Vertical
            Active.................. 1920 pixels        1080 lines
            Front Porch.............   88 pixels          4 lines
            Sync Width..............   44 pixels          5 lines
            Back Porch..............  148 pixels         36 lines
            Blanking................  280 pixels         45 lines
            Total................... 2200 pixels        1125 lines
            Scan Rate...............  67.500 kHz        60.000 Hz

            Image Size.............. 1439 mm        809 mm
            Border..................    0 pixels          0 lines

                Sync: Digital separate with
                    * Positive vertical polarity
                    * Positive horizontal polarity

        Descriptor #1 - Timing definition:
        Mode = 1280 x 720 @ 60.000Hz
            Pixel Clock............. 74.25 MHz        Non-Interlaced

                                   Horizontal        Vertical
            Active.................. 1280 pixels        720 lines
            Front Porch.............  110 pixels          5 lines
            Sync Width..............   40 pixels          5 lines
            Back Porch..............  220 pixels         20 lines
            Blanking................  370 pixels         30 lines
            Total................... 1650 pixels        750 lines
            Scan Rate...............  45.000 kHz        60.000 Hz

            Image Size.............. 1439 mm        809 mm
            Border..................    0 pixels          0 lines

                Sync: Digital separate with
                    * Positive vertical polarity
                    * Positive horizontal polarity

        Descriptor #2 - Monitor name:
            SONY TV  *00

        Descriptor #3 - Monitor limits:
            Horizontal frequency range.......14-136 kHz
            Vertical frequency range.........23-62 Hz
            Maximum bandwidth range..........600 MHz
            GTF supported


    -----------------------------------------------------
    ------------ EXTENSION EDID BLOCK   1 ---------------
    -----------------------------------------------------

    CEA-EXT: CEA 861 Series Extension:
    ----------------------------------
        Revision:...........................3
        First DTD block at offset...........79
        Display Supports:
            Underscan on PC modes
            Basic audio
            YCbCr 4:4:4
            YCbCr 4:2:2

    Data Block Collection #1
        Video Type: standard CEA Timings
            1): (93) 3840 x 2160p @ 24Hz - 16:9
            2): (94) 3840 x 2160p @ 25Hz - 16:9
            3): (95) 3840 x 2160p @ 30Hz - 16:9
            4): (98) 4096 x 2160p @ 24Hz - 256:135
            5): (31) 1920 x 1080p @ 50Hz - 16:9 - '1080p50'
            6): (16) 1920 x 1080p @ 59.94/60Hz - 16:9 - '1080p'
            7): (20) 1920 x 1080i @ 50Hz - 16:9 - '1080i25'
            8): ( 5) 1920 x 1080i @ 59.94/60Hz - 16:9 - '1080i'
            9): (19) 1280 x 720p @ 50Hz - 16:9 - '720p50'
            10): ( 4) 1280 x 720p @ 59.94/60Hz - 16:9 - '720p'
            11): (32) 1920 x 1080p @ 23.98/24Hz - 16:9 - '1080p24'
            12): (34) 1920 x 1080p @ 29.97/30Hz - 16:9 - '1080p30'
            13): (60) 1280 x 720p @ 23.98/24Hz - 16:9 - '720p24'
            14): (62) 1280 x 720p @ 29.97/30Hz - 16:9 - '720p30'
            15): (18)  720 x 576p @ 50Hz - 16:9 - '576pH'
            16): ( 3)  720 x 480p @ 59.94/60Hz - 16:9 - '480pH'
            17): (17)  720 x 576p @ 50Hz - 4:3 - '576p'
            18): ( 2)  720 x 480p @ 59.94/60Hz - 4:3 - '480p'
            19): ( 1)  640 x 480p @ 59.94/60Hz - 4:3 - 'DMT0659'

    Data Block Collection #2
        Audio Type Block
            Supported format:    Linear Pulse Code Modulation (LPƒ), on 6 channels
            Supported freq:        32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
            Supported samples:    16 bit, 20 bit, 24 bit

            Supported format:    AC3, on 6 channels
            Supported freq:        32kHz, 44.1kHz, 48kHz
            Maximum bitrate:    640kHz

            Supported format:    DTS, on 6 channels
            Supported freq:        32kHz, 44.1kHz, 48kHz
            Maximum bitrate:    1504kHz

            Supported format:    DD+, on 8 channels
            Supported freq:        44.1kHz, 48kHz


    Data Block Collection #3
        Speaker allocation data block
            Rear Left / Rear Right
            Front Center
            LFE
            Front Left / Front Right
            Front Center High
            Top Center
            Front Left High / Front Right High

    Data Block Collection #4
        Vendor specific Identifier
        Found HDMI IEEE Registration Identifier
            CEC physical address........... 3.3.0.0
            Supports AI (ACP, ISRC)........ Yes
            Supports 48bpp color depth..... No
            Supports 36bpp color depth..... Yes
            Supports 30bpp color depth..... Yes
            Supports YCbCr 4:4:4........... Yes
            Supports dual-link DVI......... No
            Maximum TMDS clock............. 300 MHz
            HDMI video capabilities........ Yes
            Base EDID image size is in multiples of 1cm
            Supports 3D.................... Yes
            HDMI 1.4a specifics............ present
            3D formats supported on mandatory formats
            3D formats also supported:
                Frame packing
                Reserved - 10
            on following 2D VICs:
                3840 x 2160p @ 24Hz - 16:9
                3840 x 2160p @ 25Hz - 16:9
                3840 x 2160p @ 30Hz - 16:9
                720 x 576p @ 50Hz - 16:9 - '576pH'
            Additional 3D information:
                1920 x 1080i @ 50Hz - 16:9 - '1080i25' also supports Frame packing
                1920 x 1080i @ 59.94/60Hz - 16:9 - '1080i' also supports Frame packing

    Data Block Collection #5
        Extended Data Block:     Video Capability Data Block
            CE scan behaviour: Support both over- and underscan
            IT scan behaviour: Always Underscanned
            PT scan behaviour: No Data
            RGB quantization: Selectable (via AVI Q)
            YCbCr quantization: Selectable (via AVI Q)

    Data Block Collection #6
        Extended Data Block:     Colorimetry Data Block
            xvYCC601
            xvYCC709
            sYCC601
            AdobeYCC601
            AdobeRGB
            BT2020cYCC
            BT2020YCC
            BT2020RGB

    Data Block Collection #7
        Extended Data Block:     YCbCr 4:2:0 video data block
            0): (97) 3840 x 2160p @ 60Hz - 16:9
            1): (96) 3840 x 2160p @ 50Hz - 16:9
            2): (101) 4096 x 2160p @ 50Hz - 256:135
            3): (102) 4096 x 2160p @ 60Hz - 256:135

    Data Block Collection #8
        Extended Data Block:     HDR static metadata data block
            Electro optical transfer functions:
                Traditional gamma - SDR luminance range
                Traditional gamma - HDR luminance range
                SMPTE ST2084
                Hybrid Log-Gamma
        Supported static metadata descriptors:
            Static metadata type 1

    Detailed Timing Blocks - 2 are native
    HDR metadata is listed at the end - in Data Block Collection #8 of EXTENSION EDID BLOCK 1

  10. BODYBUILDERPAUL macrumors 6502a

    Joined:
    Feb 9, 2009
    #10
    When I constantly read about TVs having software problems or not this this right or whatever, it truly should make us all realise what a beautiful device the Apple TV 4K really is. Yes there will always be moaners that say, it doesn't play lossless or this or that, but they are disc users anyway and i'm sure that they'd find fault with something else because that's their style.
    The fact the ATV is worry free is wonderful. I'm also happy that I have a basic, but brilliant performing 40" Panasonic EX700 TV. It's something that I never find fault with.

  11. Michelasso, Jan 19, 2018
    Last edited: Jan 19, 2018

    Michelasso thread starter macrumors 6502

    Michelasso

    Joined:
    Feb 20, 2012
    Location:
    Treviso, Italy
    #11
    It is! I finally have a great media player. Which is Infuse. I basically bought the ATV 4K for it. I've tried all of them in my Bravia for Android TV and I became exhausted of dealing with an issue or another. Sony's Video would play just anything, but the subtitles support is minimal (English is my second language and I need written support with some of those crazy Anglo-American accents out there.. :D ).

    Oh, Amazon Prime Video finally play without stuttering the audio. I can deal with 2.0 audio on 1080p videos. Hopefully it will be fixed soon..

    Well.. One of the biggest complaint on Bravia is the broken API for the audio passthrough. It only plays DD/DD+ 5.1 and AAC 2.0. Although most audio formats work with Video (and only with it). So I find it a bit disgraceful that tvOS doesn't support it. Together with the Hi-Res audio.

    It's a 200€ box I do expect (pretend?) it to be implemented. But yet again, Infuse has the codecs for it, so spending another 50€ for a lifetime subscription the problem (at least for local media) is solved. Or manually installing Kodi every week. Of which I don't mind. The problem is Kodi in tvOS isn't perfect either. The Dynamic Range Matching isn't working (yet) for example.

    Then that YouTube app needs to be updated. It's from 2016. The AVC 4K videos are there in the servers.

  12. Dangerzone, Jan 22, 2018
    Last edited: Jan 22, 2018

    Dangerzone macrumors member

    Joined:
    Jan 26, 2011
    #12
    Sony responds to Dolby Vision controversy
    https://www.flatpanelshd.com/news.php?subaction=showfull&id=1516616887

    Not happy with what Sony did with the update, but I am hoping Apple with fix this with a firmware update for the Apple TV 4K.

    I sent a feedback to Apple:
    https://www.apple.com/feedback/appletv.html

  13. Mark Booth macrumors 68000

    Mark Booth

    Joined:
    Jan 16, 2008
    #13
    Dolby and Sony share responsibility for this mess (though, I blame Sony more because this information wasn't revealed to X1 Extreme Bravia buyers in advance). Dolby is apparently struggling to bring Dolby Vision to wider acceptance. And now HDR10+ is trying to steal Dolby's thunder and I suspect Dolby is concerned.

    Basically, Dolby is allowing a VARIETY of different decoding schemes for Dolby Vision. Decoding happening entirely in the TV, part in the TV and part in the HDMI device, and also entirely in the HDMI device. It's a royal mess.

    Vincent Teoh at HDTVTest posted this very up-to-date video this morning:



    I own the Sony XBR75X940E. I installed the Dolby Vision firmware update last week. I quickly discovered that six 4K Dolby Vision titles on my Apple TV 4K wouldn't play in HDR on my Sony 940E. I have other 4K Dolby Vision titles on the Apple TV 4K that still play in HDR on my Sony 940E. Why some do and some don't is beyond me. I can force those six titles to play in HDR10 by manually switching the 940E's HDR Mode to "HDR10" instead of "AUTO". But that causes SDR content to play back in HDR10, which looks horrible. Constantly switching back and forth between HDR10 and AUTO is far from an elegant solution.

    So, I'm anxious for Apple to update the Apple TV 4K to support this "low-latency profile" Dolby Vision scheme that Sony is using (with apparent full support from Dolby Labs). I've already used Apple Feedback (twice) to ask for a quick resolution to the issue. I have my fingers crossed that Apple issues an Apple TV 4K update quickly and crossed even tighter that the Apple TV 4K's hardware can properly support the extra decoding requirements that this Dolby Vision scheme obviously requires.

    I'm not upset with Apple about this but I am VERY unhappy with Sony. The 940E is the first Sony brand product I've purchased in over 20 years. It will be the last.

    Mark

  14. priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #14
    Why not with Dolby Labs, instead? How is the years-long deployment of buggy DoVi implementation (the elevated black levels issue) on LGs and Vizio-s any better, than releasing a firmware that is now "ahead" of the rest of the market?

    I agree on one thing - Sony could have avoided much of this useless talk on open now, simply by doing their communications better.
    The amount of various theories in the wild now, is just amazing.
    Most of them have no factual explanation, just emotions.

    For average consumer, things will not settle before one HDR standard emerges as winner on the market. I would not want to bet if that will be Dolby Vision. May well not be the case, simply because of licensing issues and sheer expense for content creators. Any open and free solution can be more accessible and affordable to the masses.

    Heck, you and me are already in the position to issue our home videos in HDR10 or HLG (the latter even comes directly out-of-the-camera from Sony a7R3!). Would not surprise me to see similar developments in other cameras, even iPhone.
    Try this with DoVi!

  15. Michelasso thread starter macrumors 6502

    Michelasso

    Joined:
    Feb 20, 2012
    Location:
    Treviso, Italy
    #15
    Whoever is to blame I seriously don't understand why the Bravia have enough CPU power to process the DV streams from Android apps and not from the HDMI.

    Regarding all the speculations that is what one gets when a company promises one thing and then, once delivered, they have to specify "as long as the HDMI devices support that particular Dolby Vision profile we have implemented no one has ever heard of before".

    This is what one gets allowing the marketing people talking out of their.. bottom (as usual) without consulting first with the engineers. Oh, I am still waiting for the long promised HDR on YouTube to be clear.

  16. Mark Booth macrumors 68000

    Mark Booth

    Joined:
    Jan 16, 2008
    #16
    My very first sentence in the message you partially quoted was: "Dolby and Sony share responsibility for this mess (though, I blame Sony more because this information wasn't revealed to X1 Extreme Bravia buyers in advance)."

    But Dolby Labs didn't sell me the TV that isn't compatible with with existing Dolby Vision external devices, Sony did.

    Mark
    --- Post Merged, Jan 24, 2018 ---
    Any Sony A1 Extreme Bravia TV set owner that still believes that Sony will eventually offer a different firmware update to fix the incompatibility with Apple TV 4K can stop holding their breath.

    https://www.forbes.com/sites/johnar...em-update-sony-and-oppo-respond/#4501965a498a

    Although there may be tweaks to the firmware for one reason or another, what we got now is what we'll continue to have. The Apple TV 4K (and other external Dolby Vision HDMI devices) will require a firmware update to be compatible with the mentioned Sony TVs. Period.

    Mark

  17. BuffaloTF macrumors 6502a

    Joined:
    Jun 10, 2008
    #17
    This seems similar to Dolby Digital and DTS decoding... a blu ray or DVD player can decode them and send it out as Linear PCM for all the channels... or it can send the actual DD and DTS data to the next unit in the chain to decode. If it's a TV and you turn off your speakers, it'll pass that through then thru an ARC or Optical... and if it's a receiver either directly after the player or after the TV, that can then decode the data and send out the channels.

    I like that idea... having the choice where in the line it gets decoded. However, I don't like the thought that my "receiver" (as it were) only accepts the decoded message.

  18. netnothing macrumors 68040

    netnothing

    Joined:
    Mar 13, 2007
    Location:
    NH
    #18
    FYI - someone on AVS forums posted a screenshot of their Z9D after they installed the just released 11.3 tvOS dev beta and DV is working on it!! Bring on the public beta!!!!

  19. BODYBUILDERPAUL macrumors 6502a

    Joined:
    Feb 9, 2009
    #19
    Why should Apple have to fix anything? Their ATV is performing well on both LG (& BANG&OLUFSEN badged C7) and Loewe TVs. Surely the Apple TV is perfect and it is SONY that need to do a proper job??? Don't forget Apple has invested 2Billion dollars in LG. Chances are, they really do not care about SONY, their TVs and their funny disc players.

  20. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #20
    I have a XBR-49X900E which is 4k and HDR. My AppleTV correctly displays 4k+HDR and is even in Chroma 4.2.2 vs the 4.2.0.

    The AppleTV correctly detects and outputs 4k@60Hz in HDR.

    However, I have to note, that the AppleTV connects first to a Bose Soundbar. The soundbar sends the signal (video only) to the TV to HDMI port 3 (ARC). I have Enhanced-HDMI enabled also.

    I have the latest software for the TV available as well.

    Just throwing i my $0.02

  21. priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #21
    That is how aTV 4K has been working since launch.
    The problem is specifically with Dolby Vision format of HDR (yes, there are several in use at the moment, before one clear market leader emerges).
    And more specifically, Sony decided to implement this via a feature of HDMI2.1 protocol, that no source has support for, yet.
    The source of my knowledge: http://www.avsforum.com/forum/166-l...ad-no-price-talk-please-434.html#post55563726

  22. Michelasso thread starter macrumors 6502

    Michelasso

    Joined:
    Feb 20, 2012
    Location:
    Treviso, Italy
    #22
    The 11.3 beta is out. So is DV working on (supported) Bravia, now?

  23. netnothing macrumors 68040

    netnothing

    Joined:
    Mar 13, 2007
    Location:
    NH
    #23
    Yes the ATV works and supports DV on Sony’s with the update.

  24. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #24
    What is the difference between both? New to this.

  25. priitv8 macrumors 68030

    Joined:
    Jan 13, 2011
    Location:
    Estonia
    #25

Share This Page
