I-Sore 2000GB(2TB) 8000MAH Ipods

Discussion in 'iPod' started by Jimbone, May 22, 2016.

  1. Jimbone macrumors newbie

    Jimbone

    Joined:
    May 21, 2016
    Location:
    Vancouver BC
    #1
    Hey there, this seemed like the best place to post some projects I have been working on that last year. Using older 80gb 5th gen ipods I added a 3.7v 8000mah battery with a few easy to find parts and a 2tb seagate external 2.5 inch harddrive.
    Going to post the build soon after I sit down and photograph the steps and post the stl files for anyone interesting in trying to make there own as well as I have a few completed and cases printed for sale.
    I can get 60 hours if I just let it run non stop and about 40 hours casual use. I only charge it once a week.
    It only seems to work with beyond winds msata patch installed for rockbox otherwise I get ata error-32 but original firmware installs ok.
    Much cheaper then the msata mod but with this bulky design gives you a chance to play around with a design and easy to replace everything.

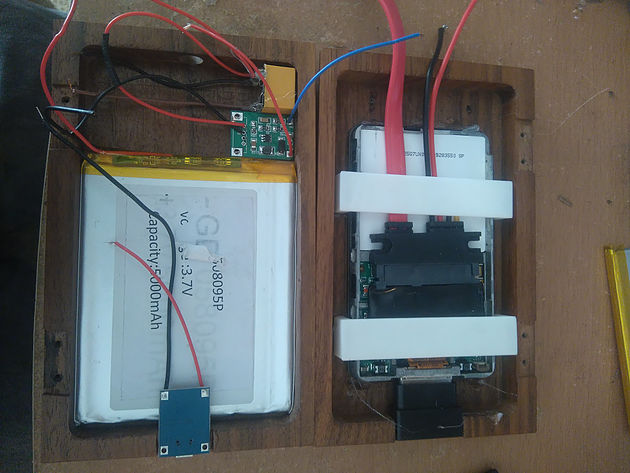

    Here is a steampunk style I have made for myself, with wood frame and 3D printed parts painted brass.
    Might ask why, I say why not haha well enjoy and hope to see other people's version of this soon.
    [​IMG]

    I've upgraded the battery since taking this picture. Just took 2 months for delivery of the 8000mah battery's.
    [​IMG]
    [​IMG]

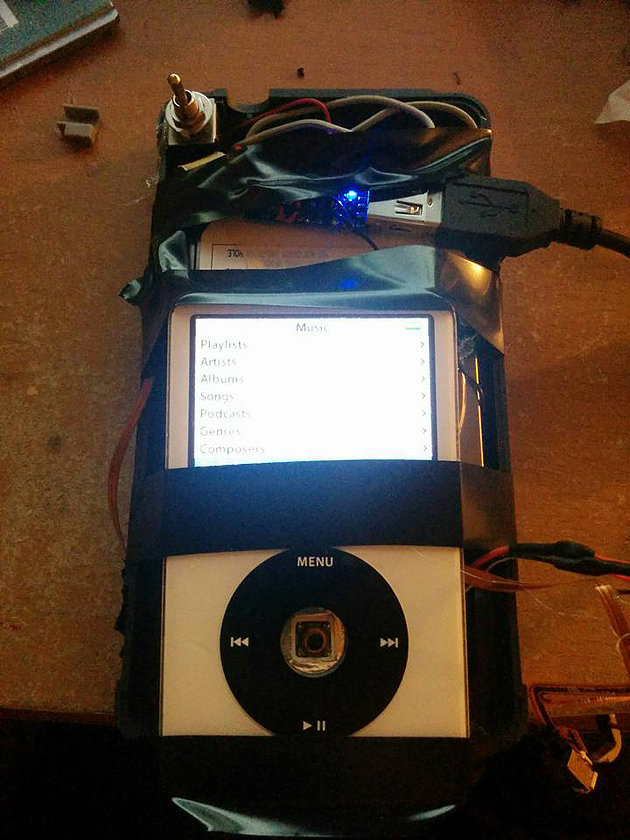

    First prototype. Ugly as sin but it worked.
    [​IMG]
    Second Version so I could keep it with me to see how it ran and battery performance.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

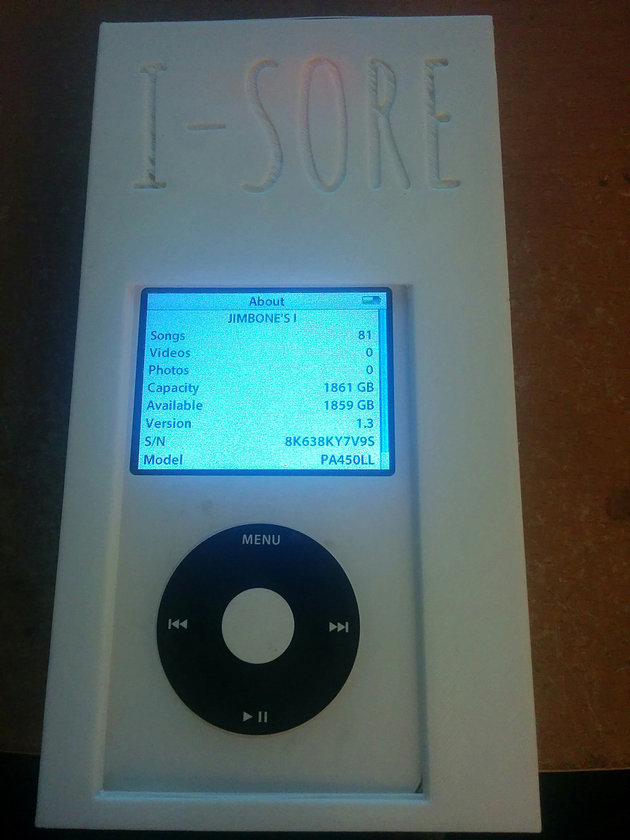

    This is the design I finished with that's as compact as I can get it with easy to find parts.
    I have 2 designs, one for the thin harddrive and the thicker 2tb if someone cant find the other but its just a thicker back so easy to upgrade.

    [​IMG]

  2. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
  3. MultiFinder17 macrumors 68000

    MultiFinder17

    Joined:
    Jan 8, 2008
    Location:
    Tampa, Florida
    #3
    Awesome! I love seeing how far these old iPods can be pushed, and this is definitely pushing them to the extreme! Very well done mate :)
