MacbookPro7.1 spilled water

Discussion in 'MacBook Pro' started by avglos, Oct 22, 2018.

  1. avglos macrumors newbie

    Joined:
    Oct 22, 2018
    #1
    Hello everyone.

    I spilled water in my macbook around two weeks ago and now the LCD screen looks like that does not iluminate. I have to check with a external screen if the problem is due to a screen fault or a logic board fault but I am waiting to receive the mini display port - hdmi.

    I would appreciate yout feedback about my problem: solutions, causes if the fault etc.

    I would like to say sorry if there is a thread about a similar problem. I did not find it. So please tell me about it too.

    Thank your for your time.

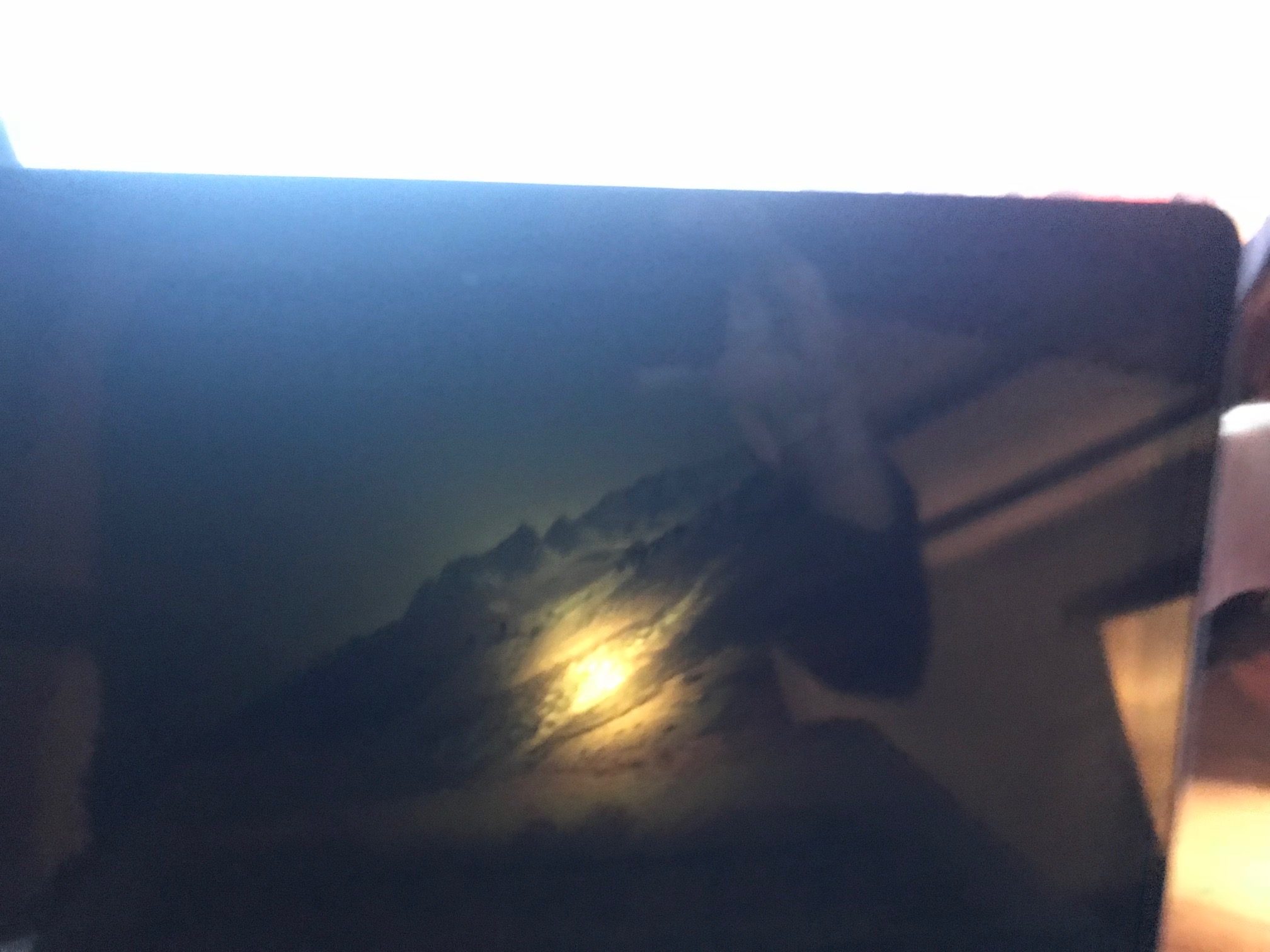

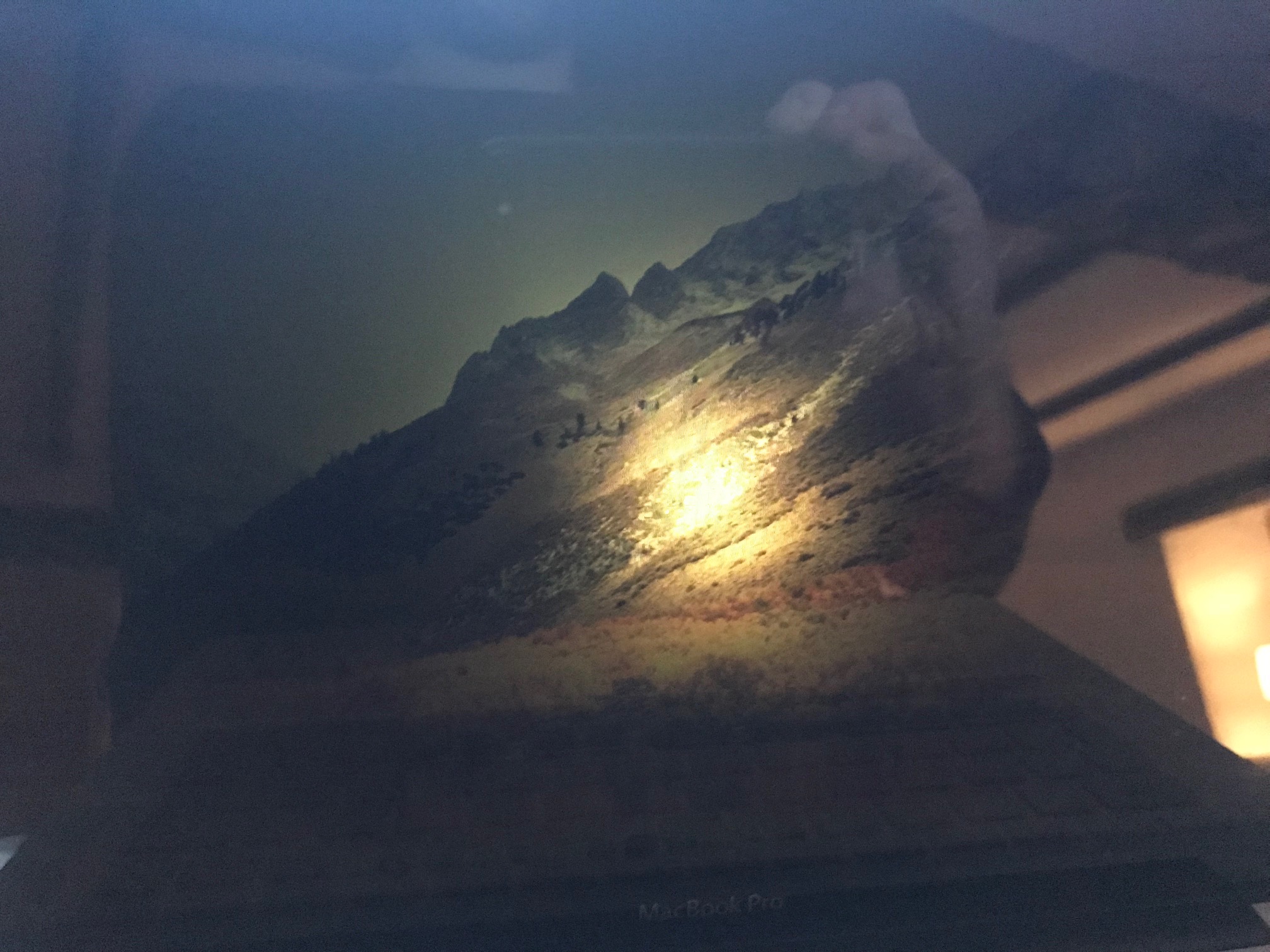

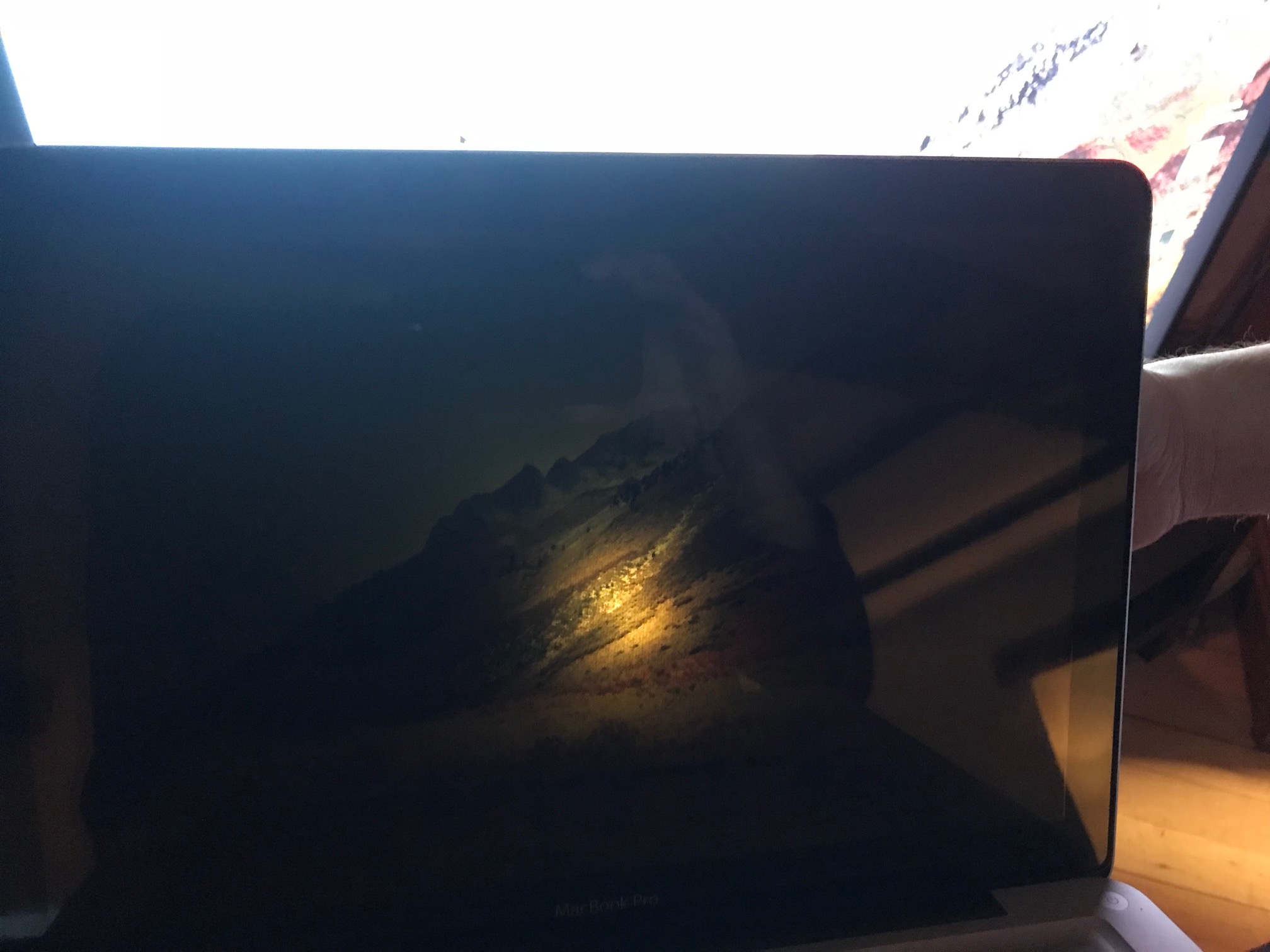

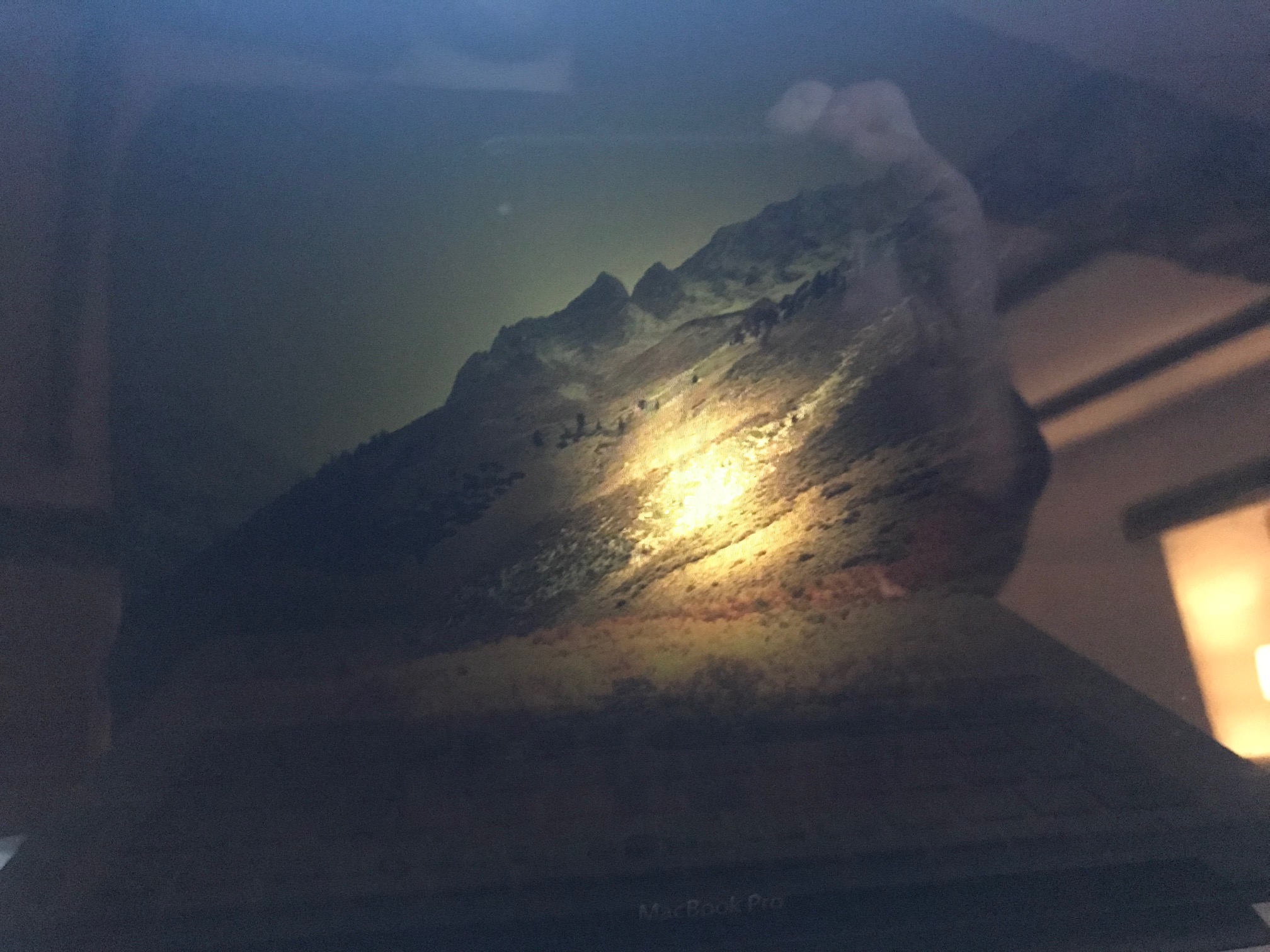

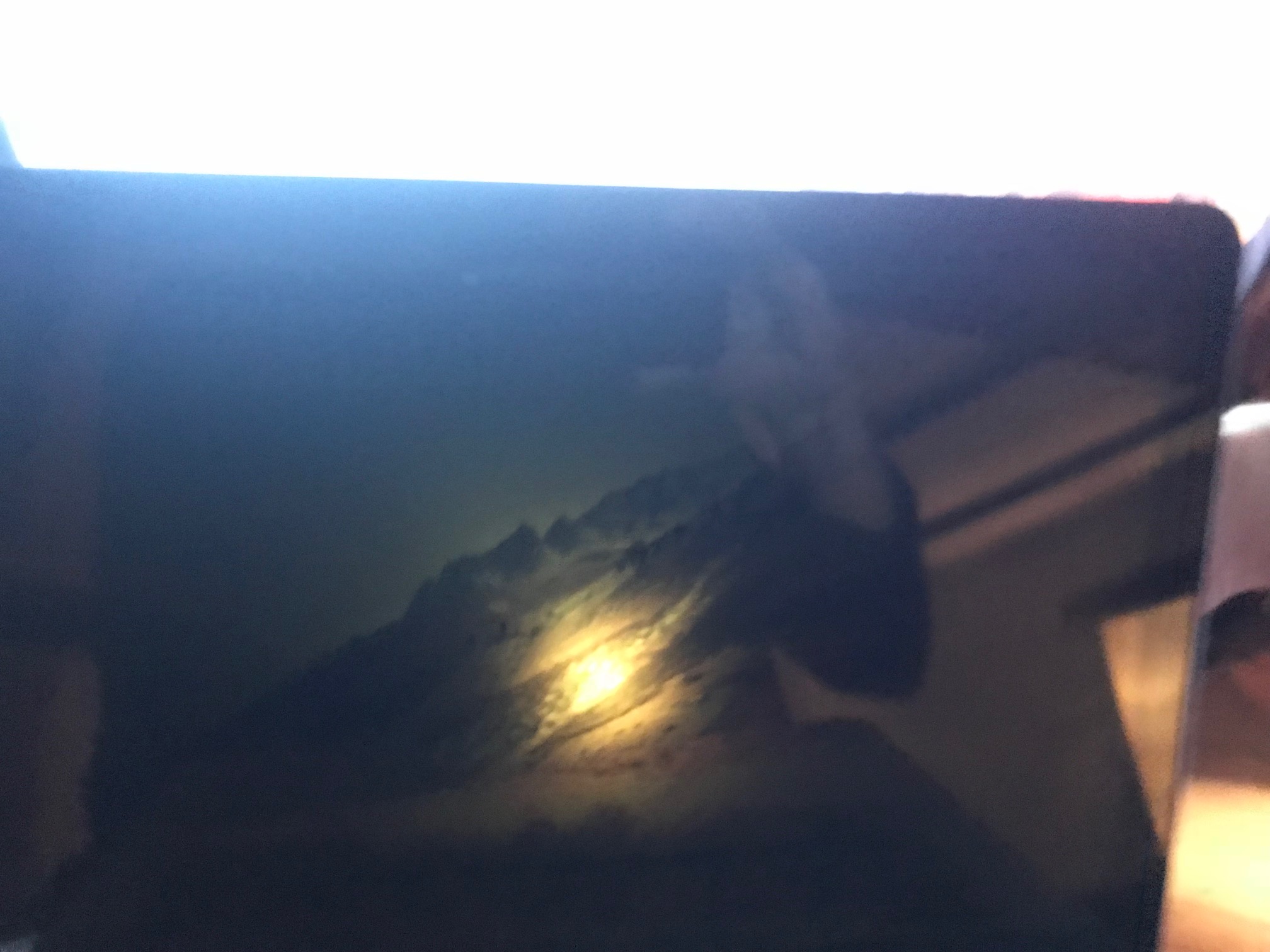

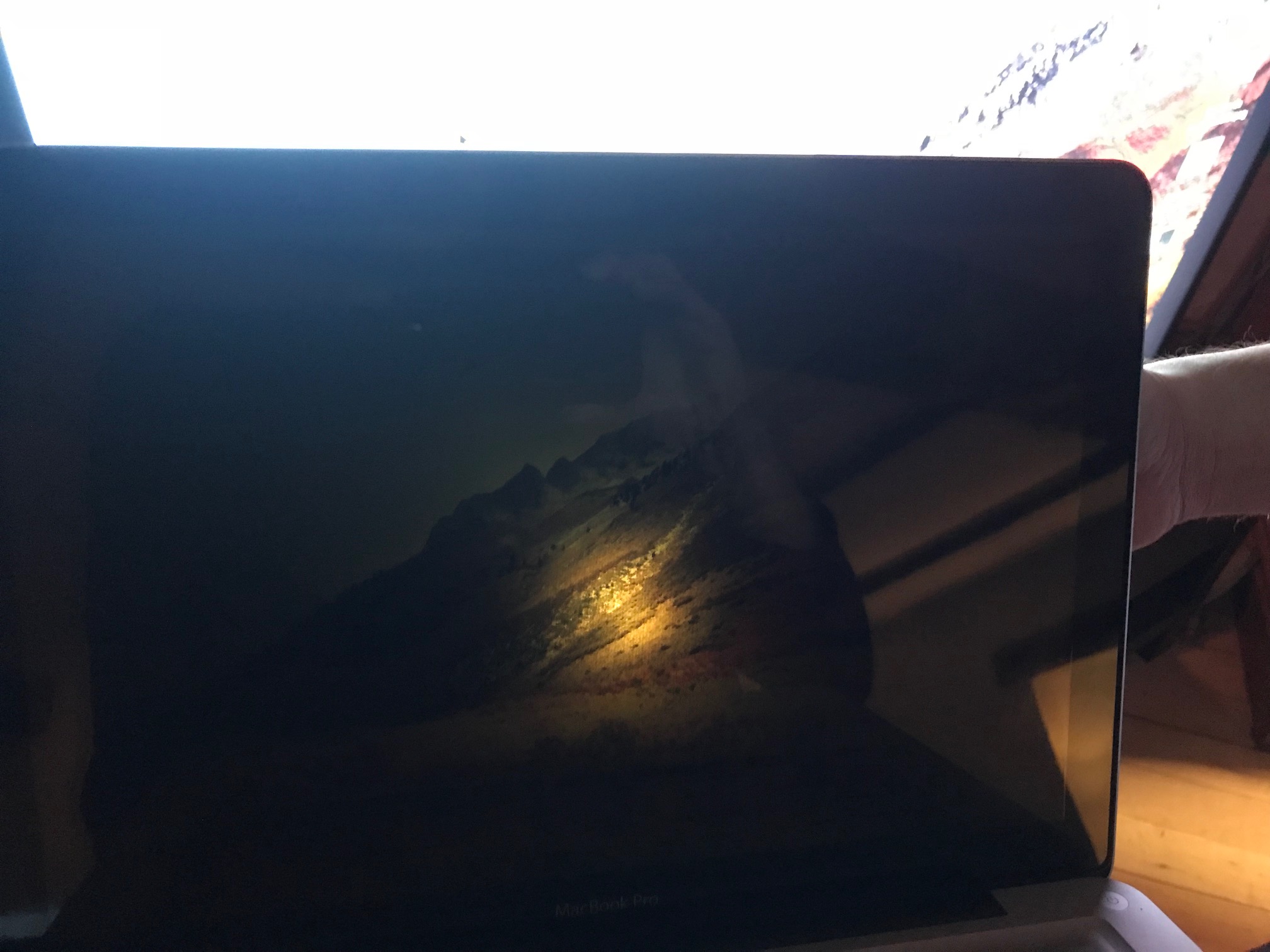

    PD: if I iluminate the back of the screen throught the apple log the screen iluminates

  2. Newtons Apple macrumors Core

    Newtons Apple

    Joined:
    Mar 12, 2014
    Location:
    Jacksonville, Florida
    #2
    Not much you can do except get it to the repair shop and diagnose the problem.

  3. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #3
    After spilling water on the Macbook, did you remove the bottom cover, disconnect the battery, disassemble the machine, and leave it to dry for a few days? If not, I recommend that you stop using the machine, disconnect the battery, and inspect all parts for signs of corrosion.

    Symptoms of liquid damage can take days or several weeks to appear. It not the liquid that always does the damage, it is the dried residue that is a problem.

  4. Newtons Apple macrumors Core

    Newtons Apple

    Joined:
    Mar 12, 2014
    Location:
    Jacksonville, Florida
    #4
    I would hazard to say it is way too late at this point.

  5. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #5
    It's not necessarily too late. Any remaining liquid or residue may be causing a temporary short somewhere.

  6. avglos thread starter macrumors newbie

    Joined:
    Oct 22, 2018
    #6

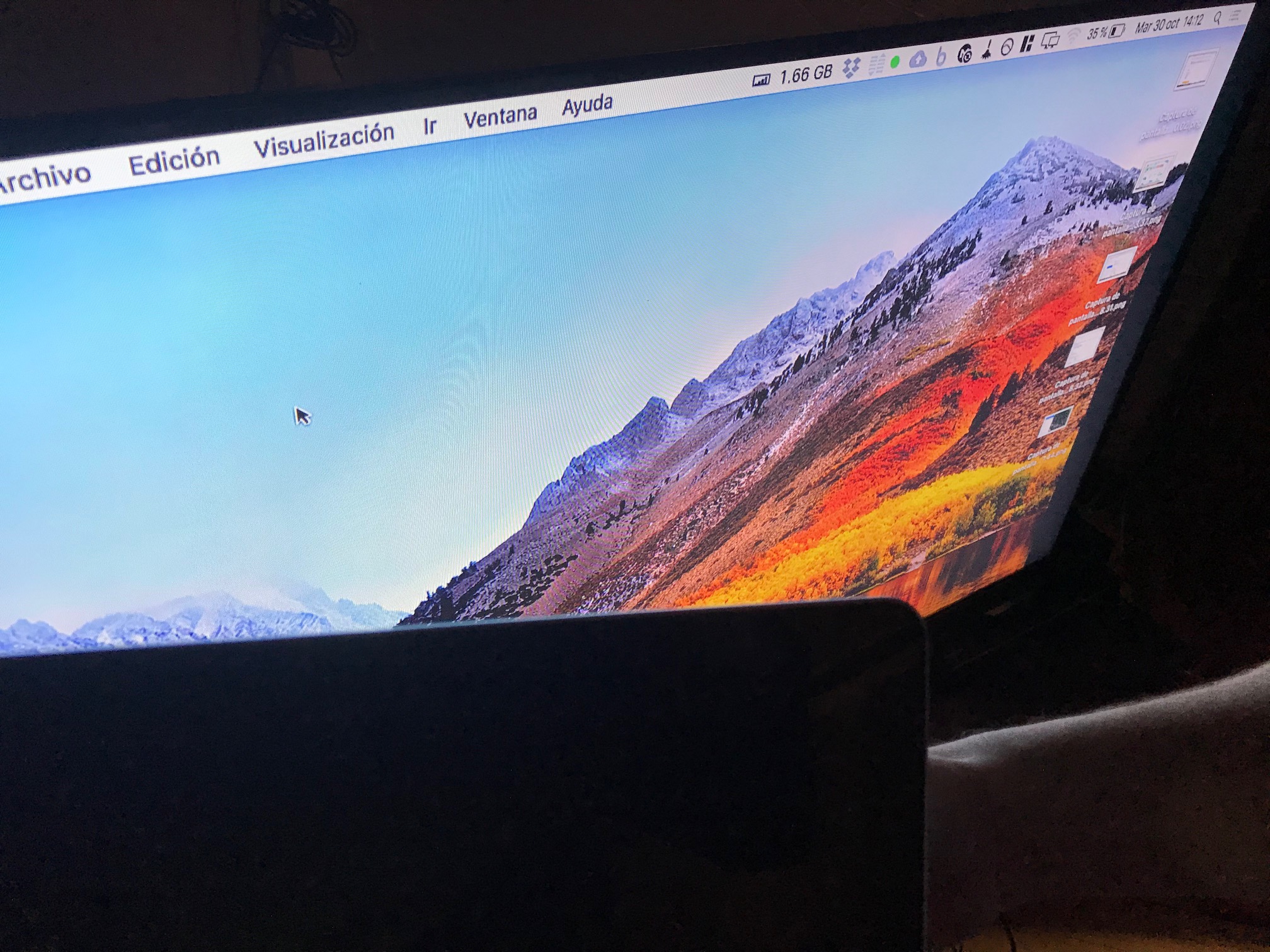

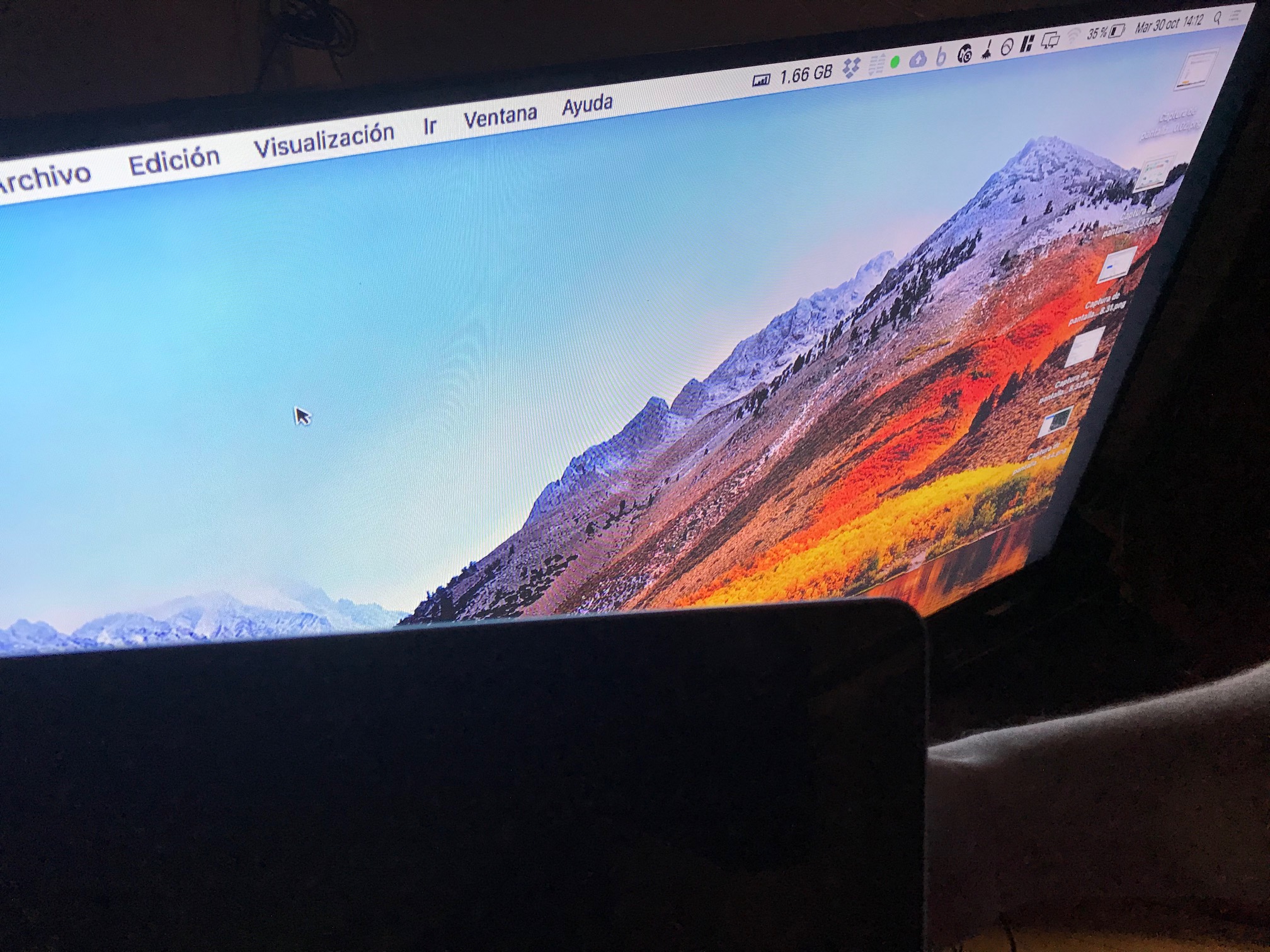

    Yesterday I got to connect the laptop in a external screen and this could display the image perfectly. I attach you a few pictures of it.

    Could the problem be in the screen instead of the logic board with this test? I have not my screwdrivers yet so I cannot check it.

    Thank you for your time and feedback!


    Attached Files:

  7. Newtons Apple macrumors Core

    Newtons Apple

    Joined:
    Mar 12, 2014
    Location:
    Jacksonville, Florida
    #7
    Could be but water went inside the computer and likely damaged the interface going to your laptop screen. I do not know enough to know for sure, it would take someone who could run diagnostics. It is a good sign that you laptop will still run an external monitor.

  8. maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #8
    Unlikely, a temporary short as you call it, has a high risk of damaging the logic board components which is why logic boards fail with water damage

    Even if its the screen that shorted out, the cost of a new screen is going to be as much (if not more) then a logic board.

  9. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #9
    I understand your point of view but it's possible there is a small amount of liquid on the board. I have purchased a few water-damaged Air and Pros. I have been able to revive 50% to 100% functionality with a thorough cleaning with isopropyl alcohol and distilled water.

  10. maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #10
    Given the OP's symptoms and the fact the issue occurred two weeks ago, I think the damage is not temporary.

  11. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #11
    I agree that it is probably not temporary and that the problem is probably due to a blown backlight fuse or problem with the LVDS connection. I'm an optimist which is why I suggested a good cleaning.

  12. jerryk macrumors 601

    Joined:
    Nov 3, 2011
    Location:
    SF Bay Area
    #12
    In my experience water spills result in long term failures. Water is corrosive and gets under surface mount components. It sits there quietly eating away until something shorts out weeks or months later.

  13. avglos, Nov 5, 2018
    Last edited: Nov 5, 2018

    avglos thread starter macrumors newbie

    Joined:
    Oct 22, 2018
    #13

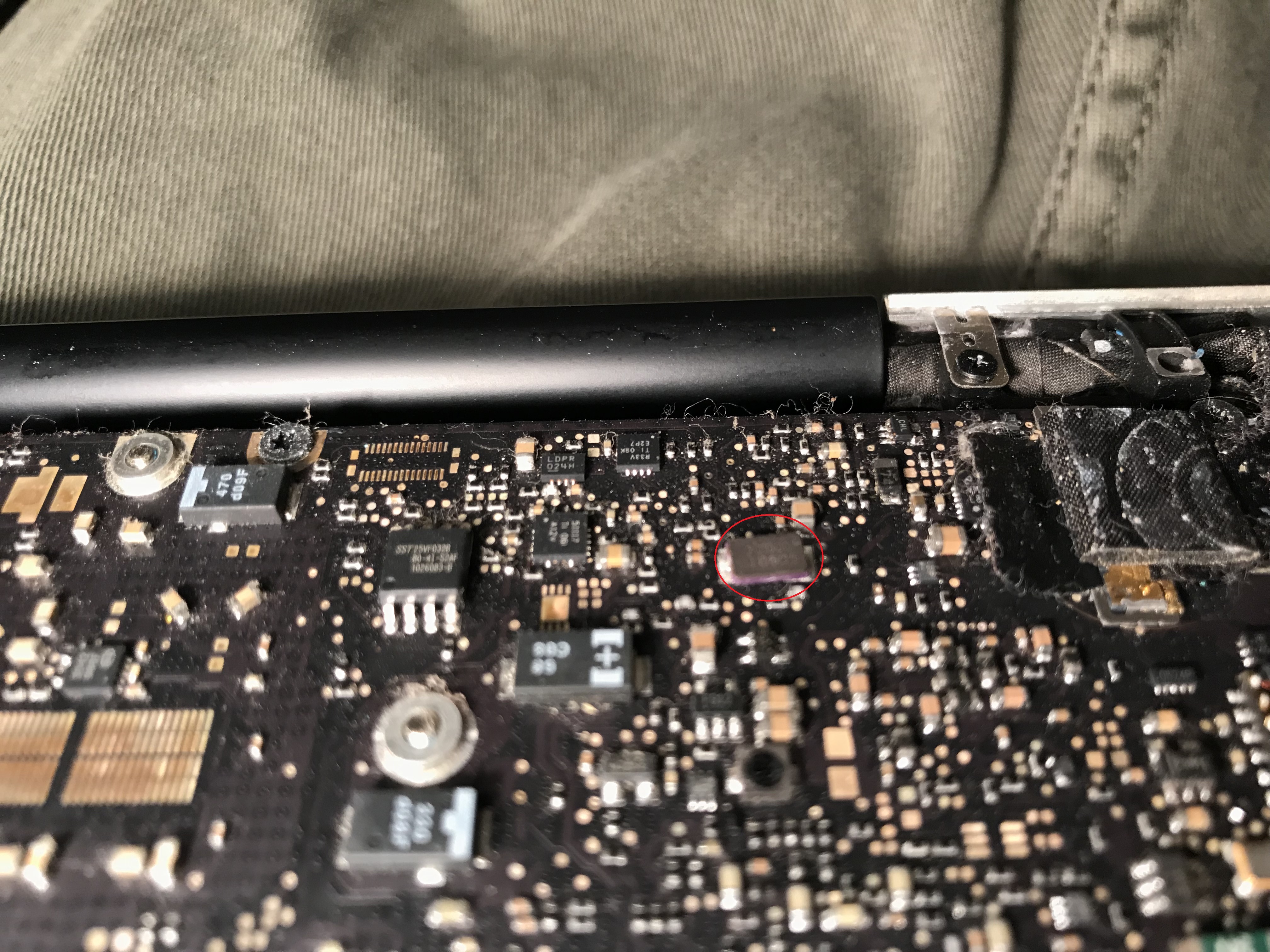

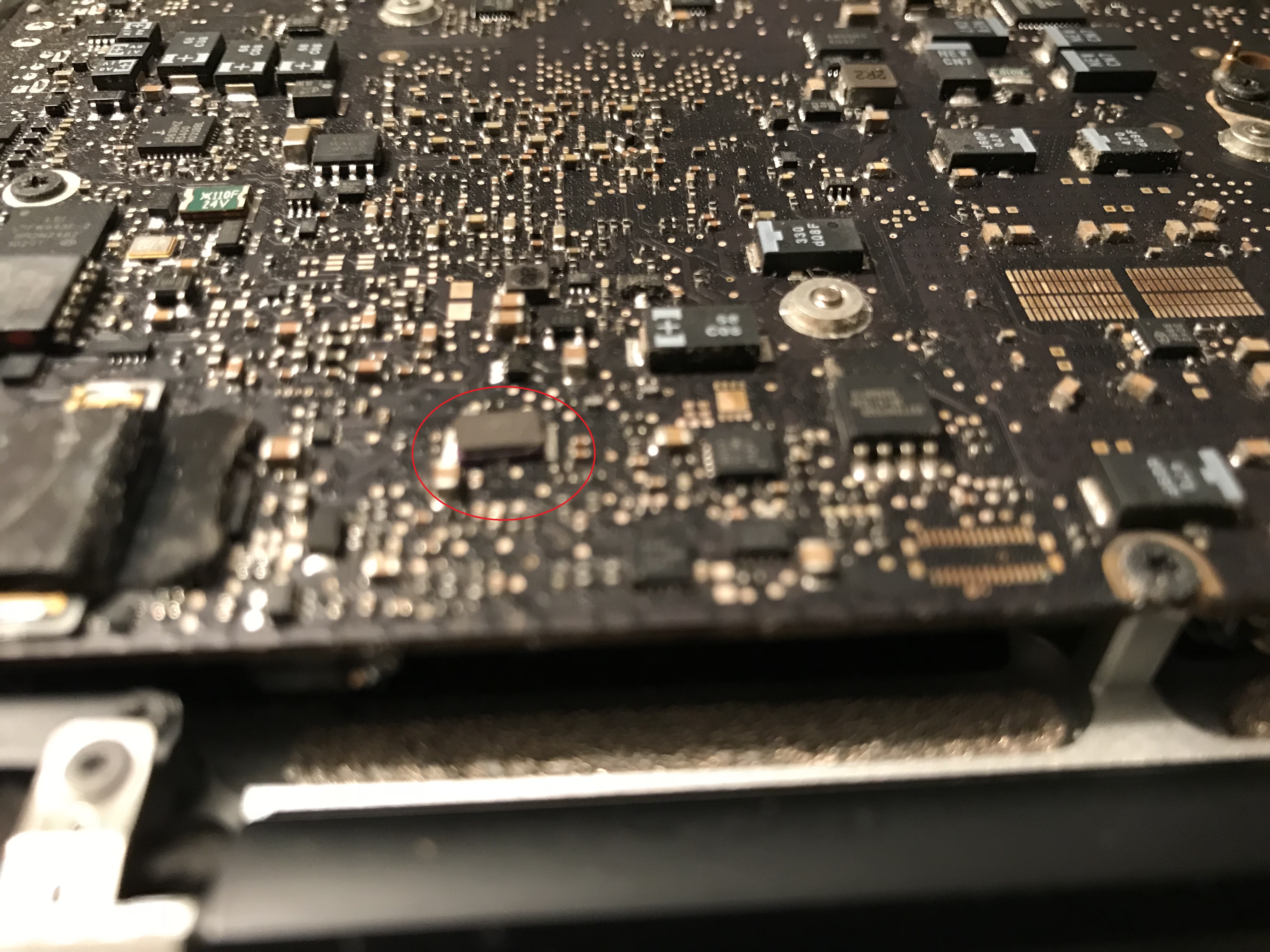

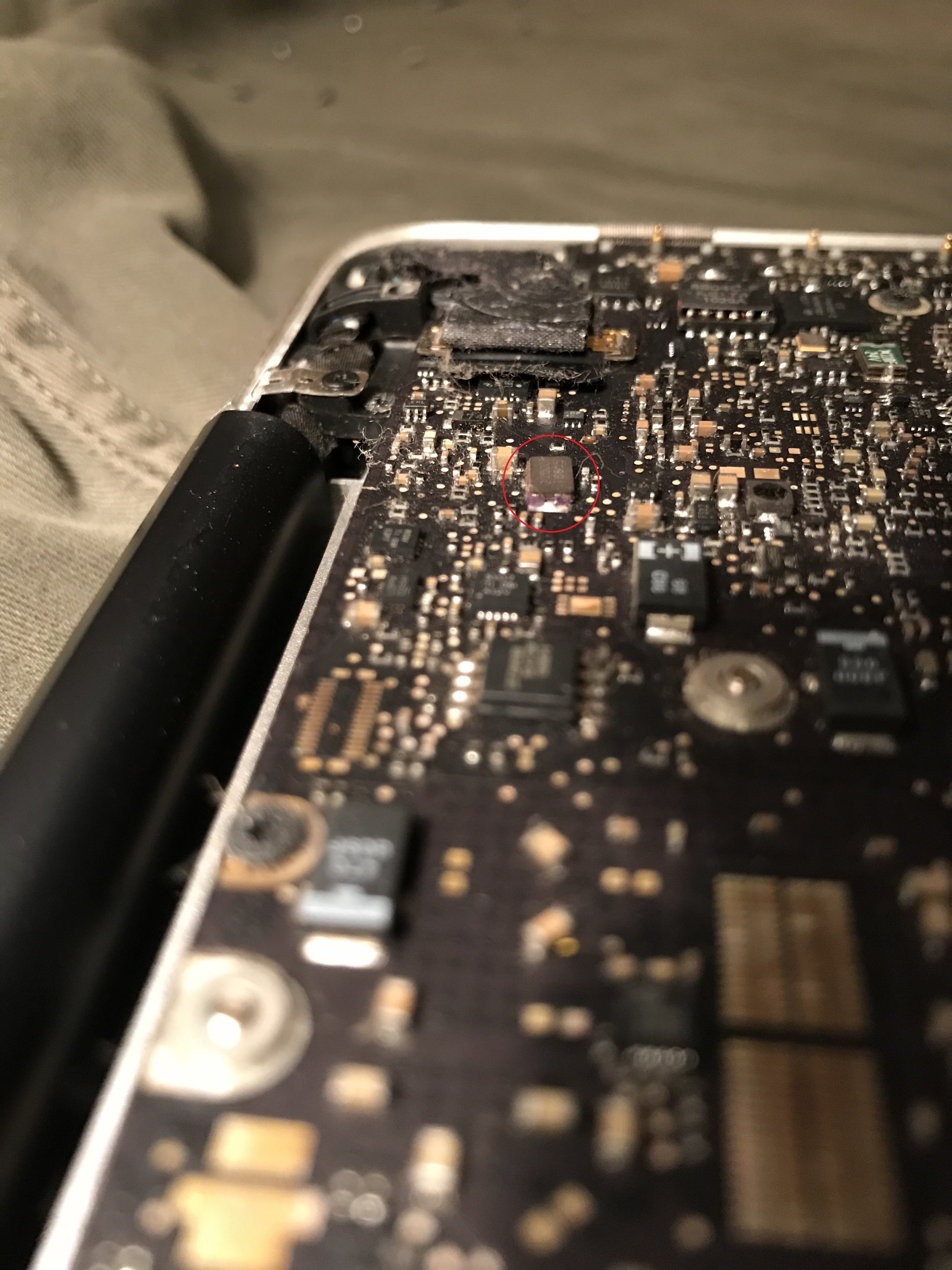

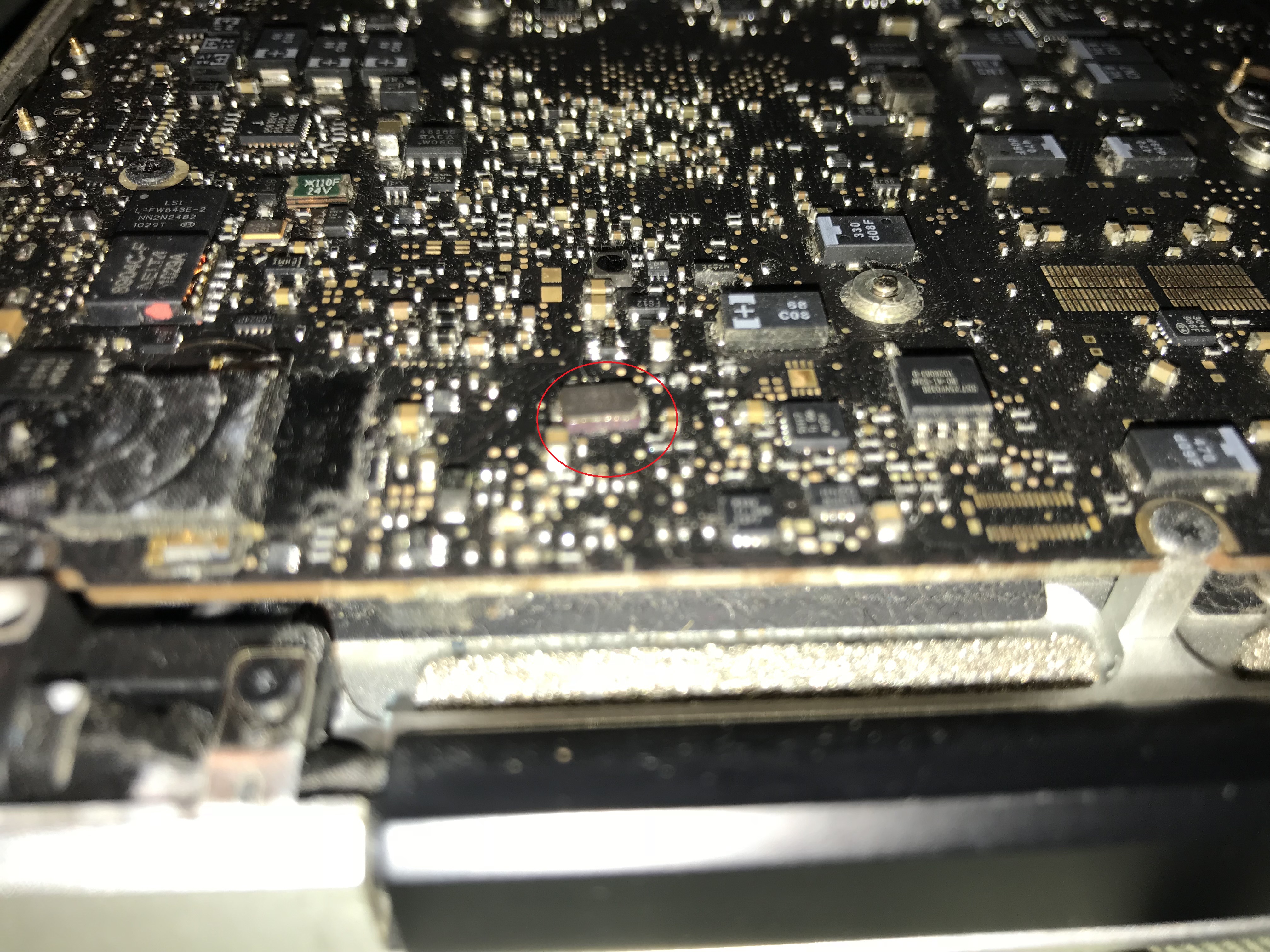

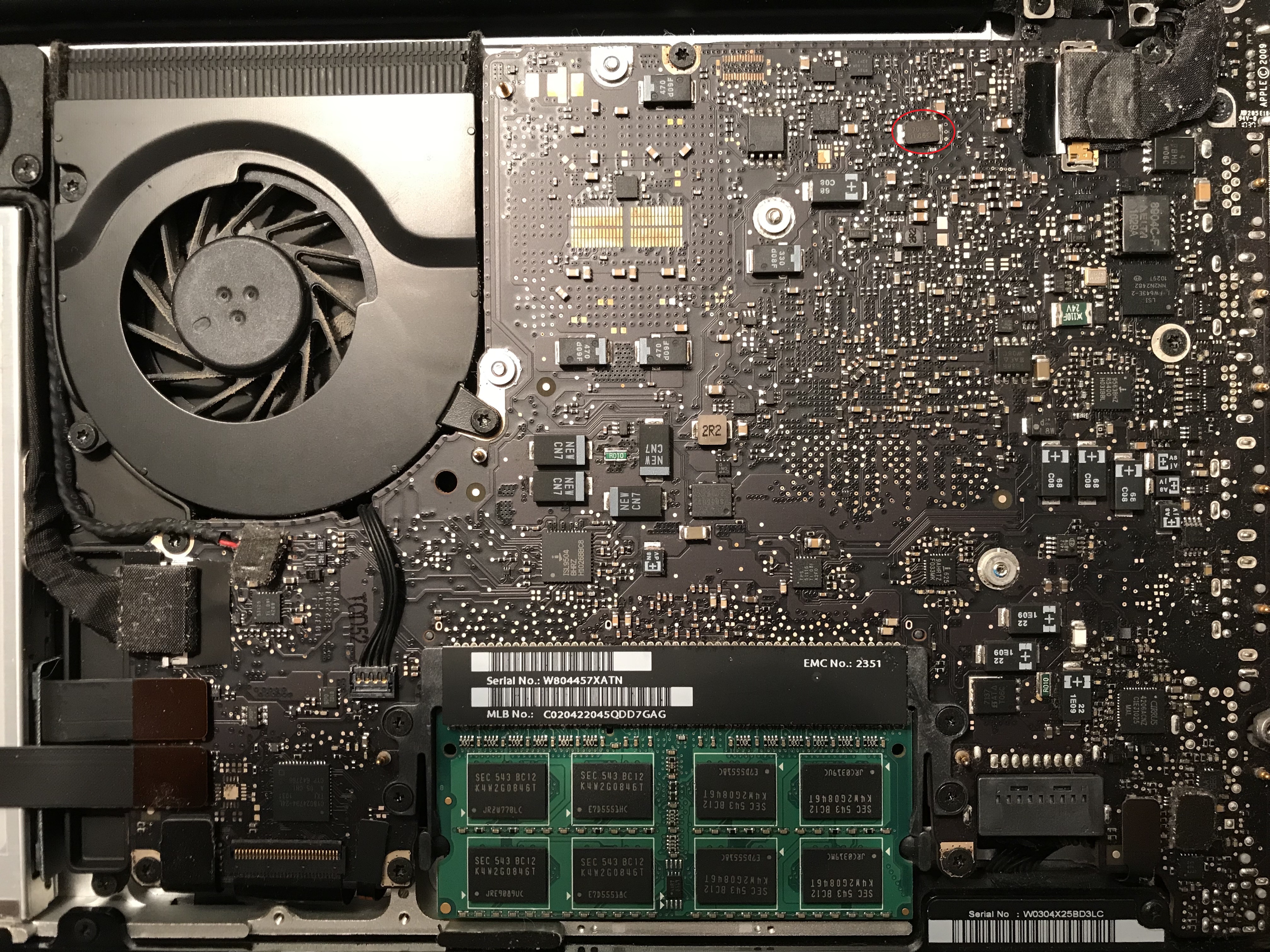

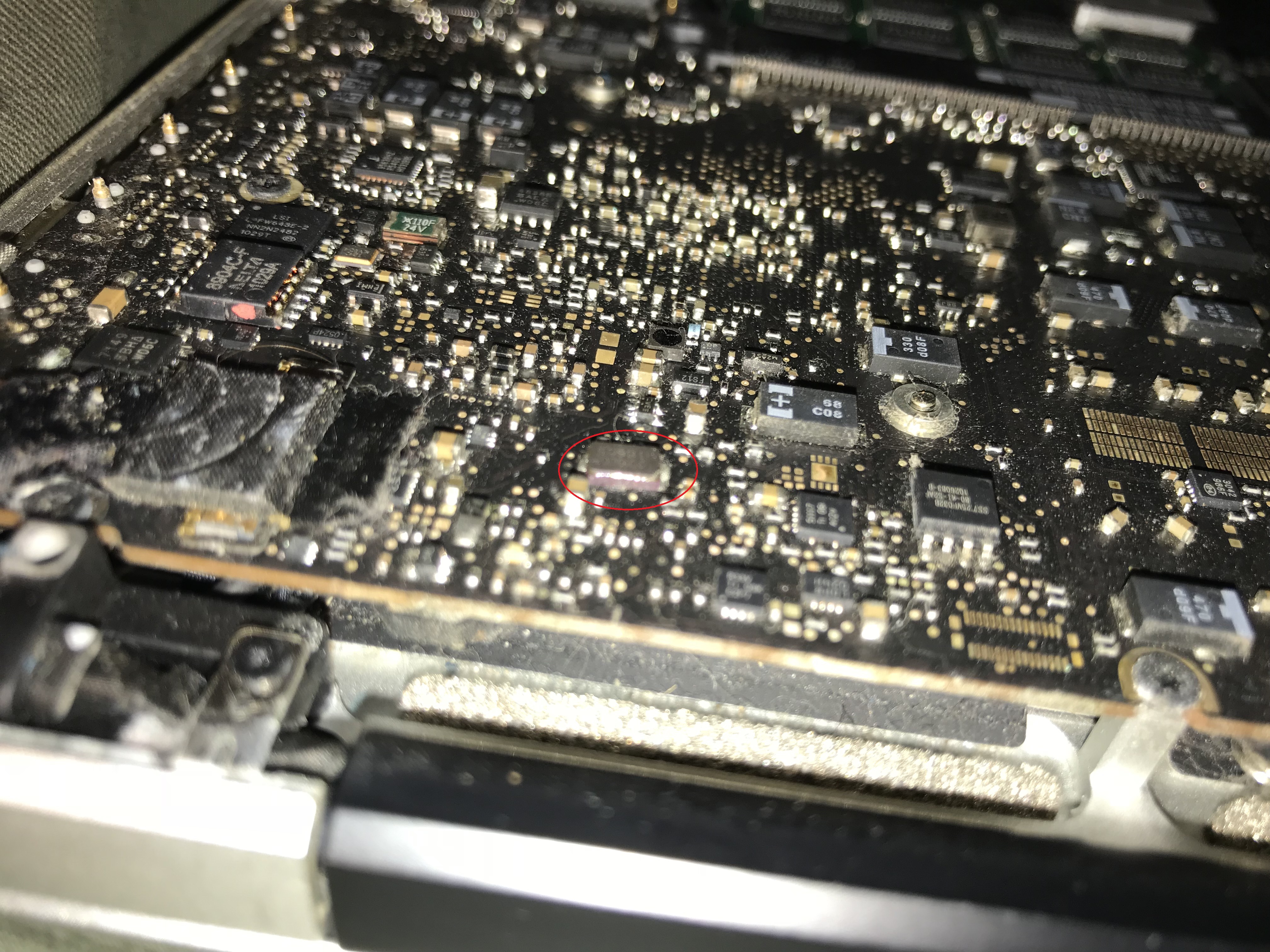

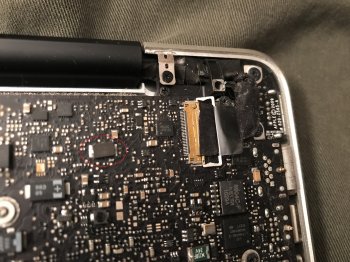

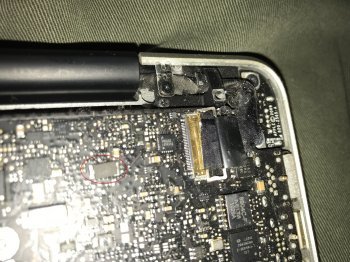

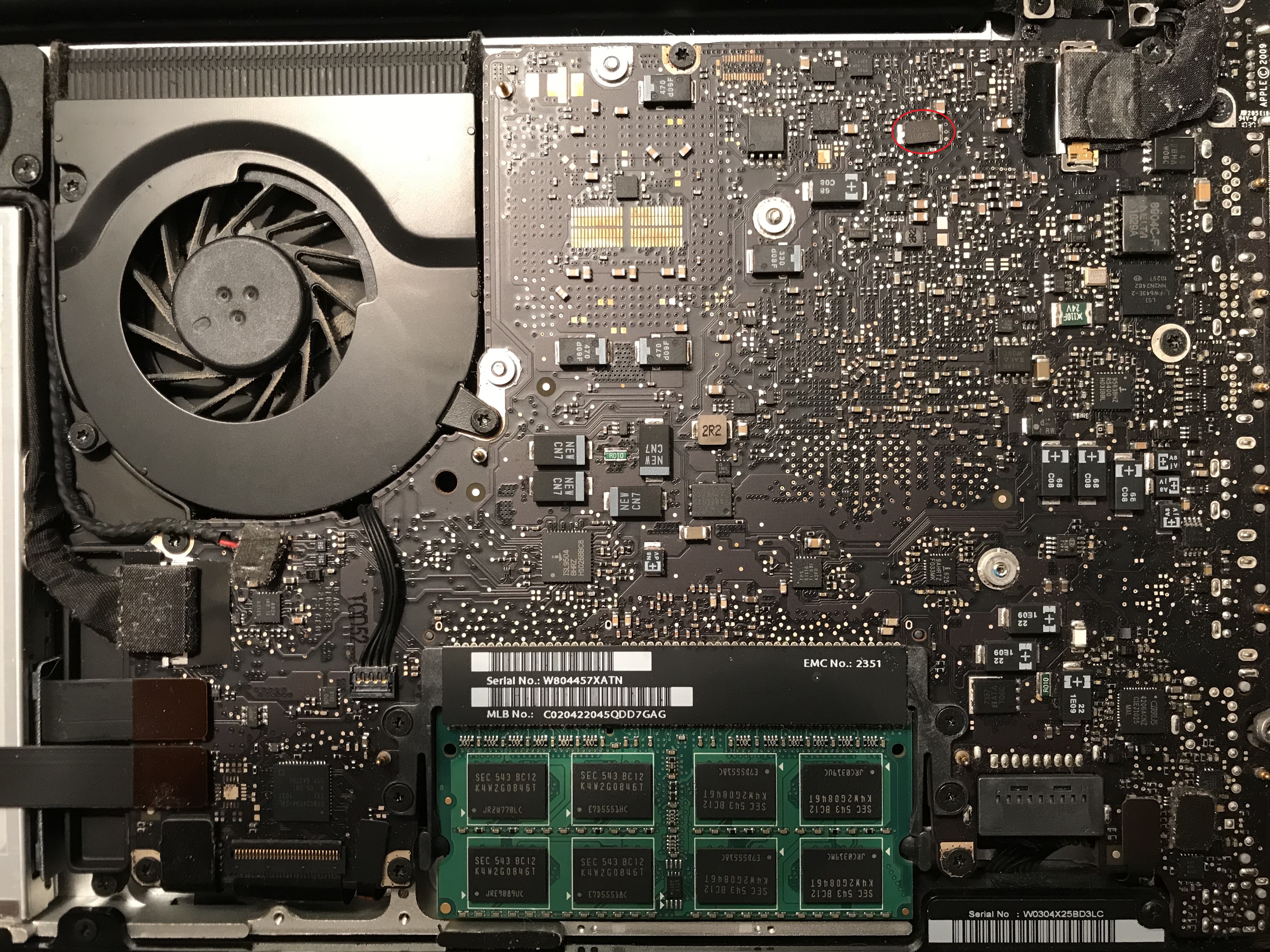

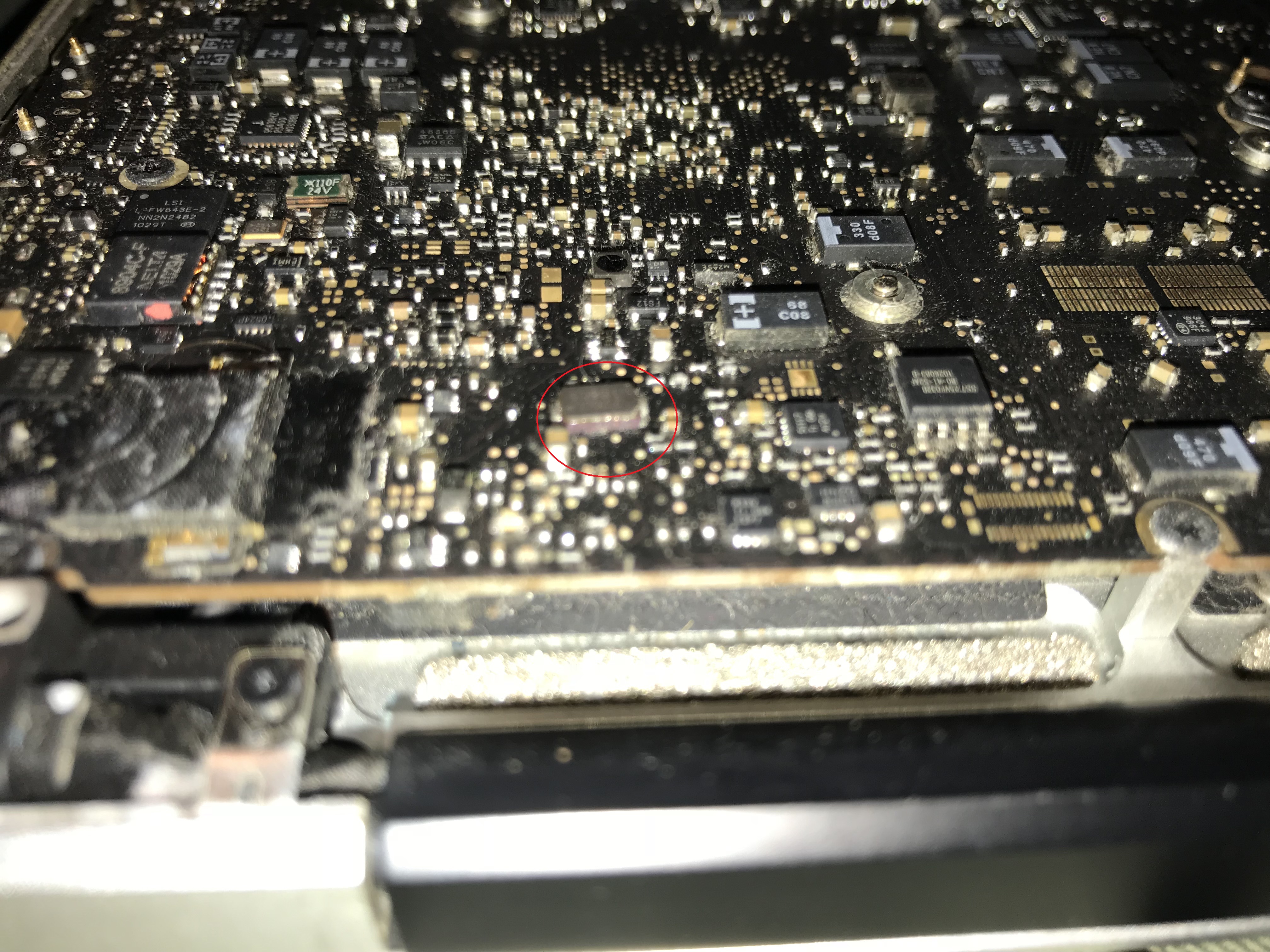

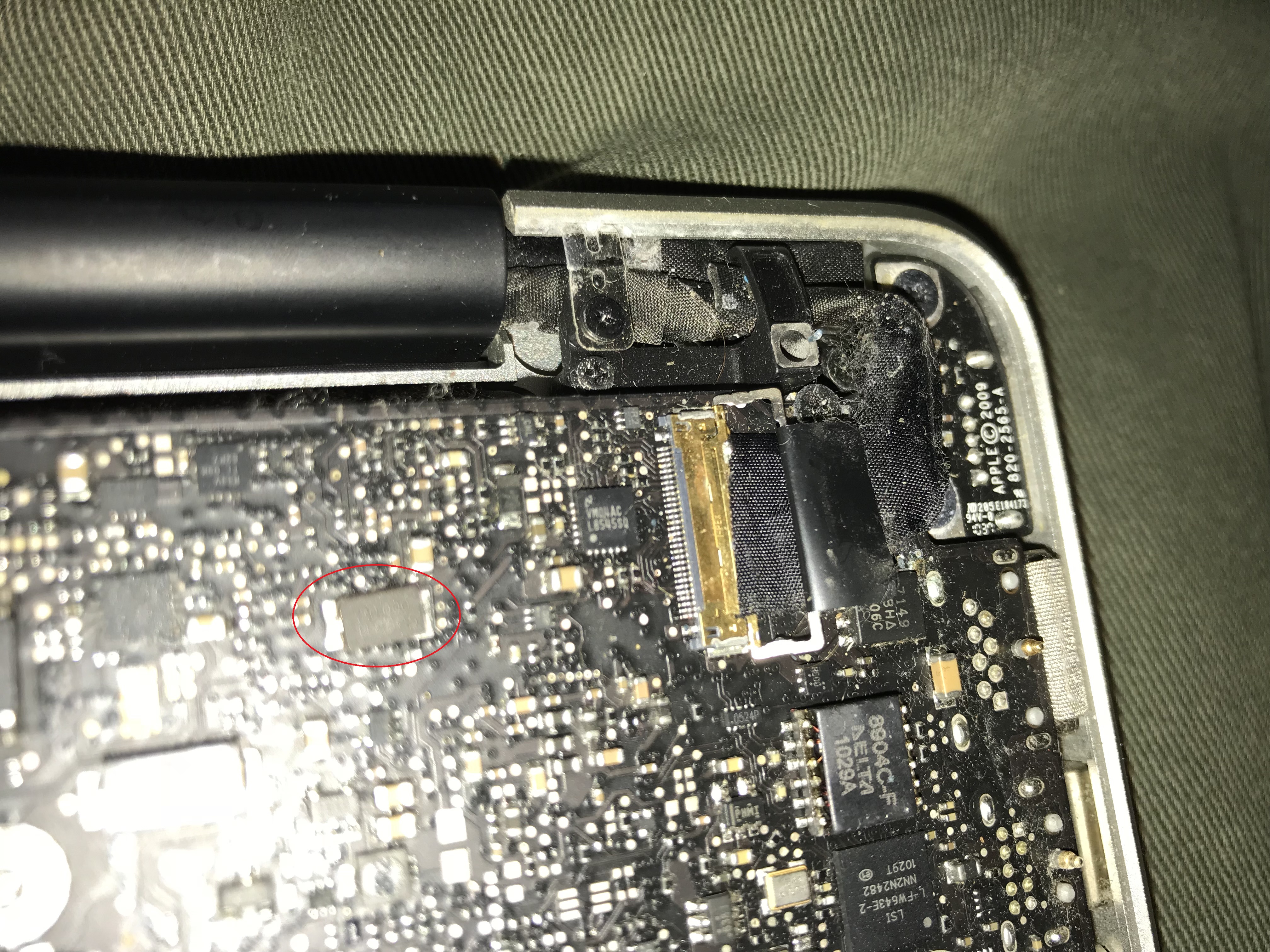

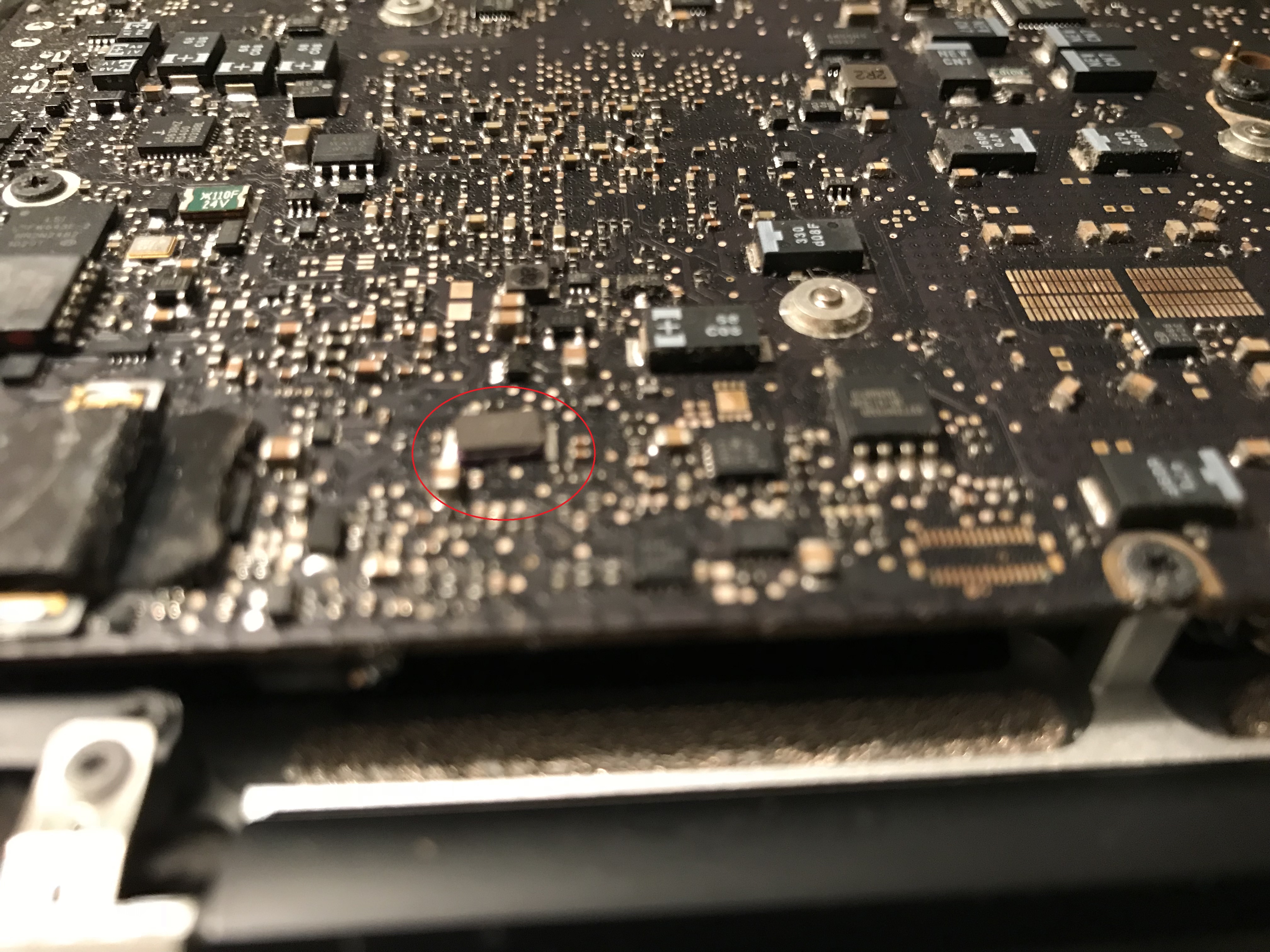

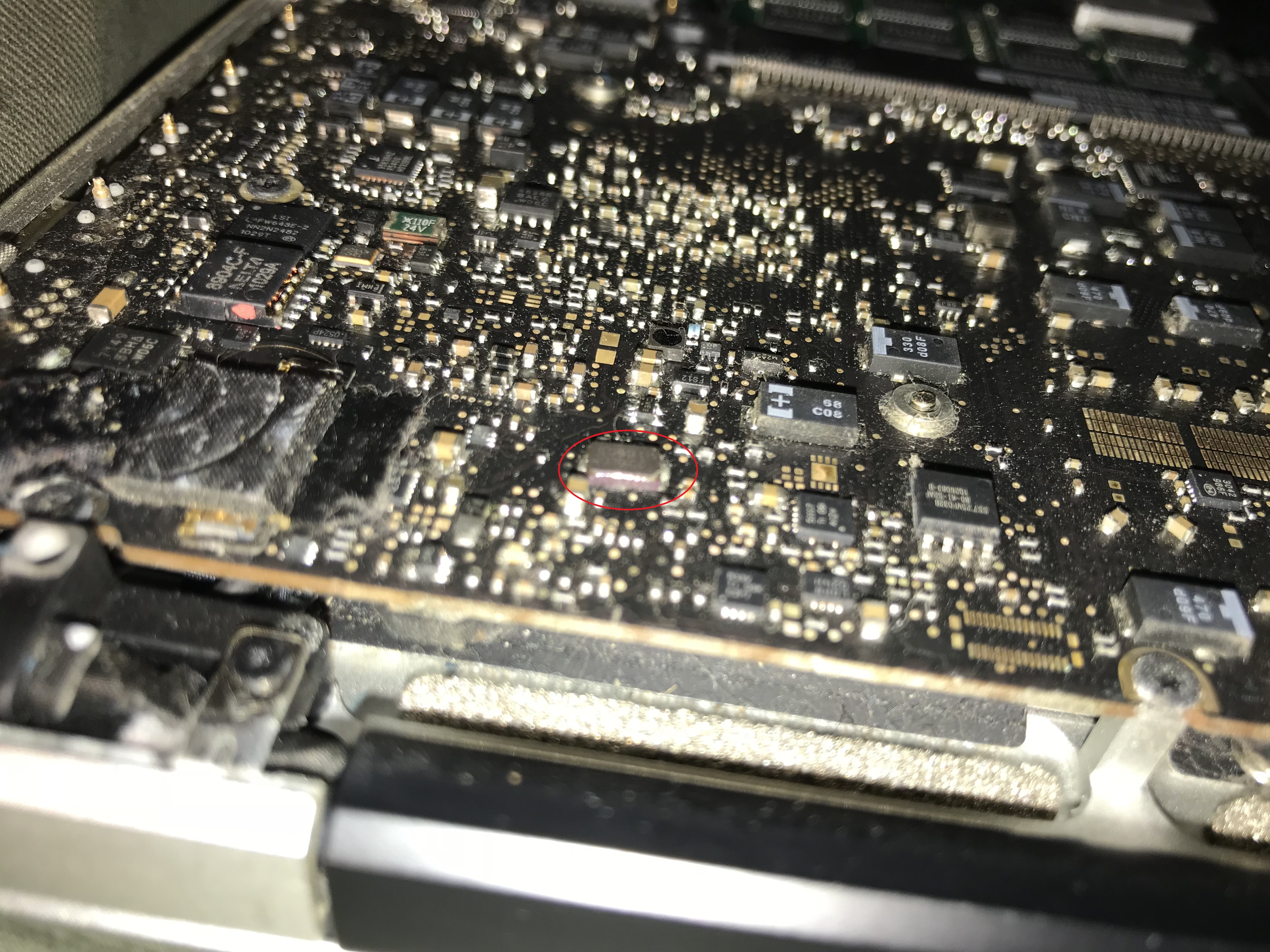

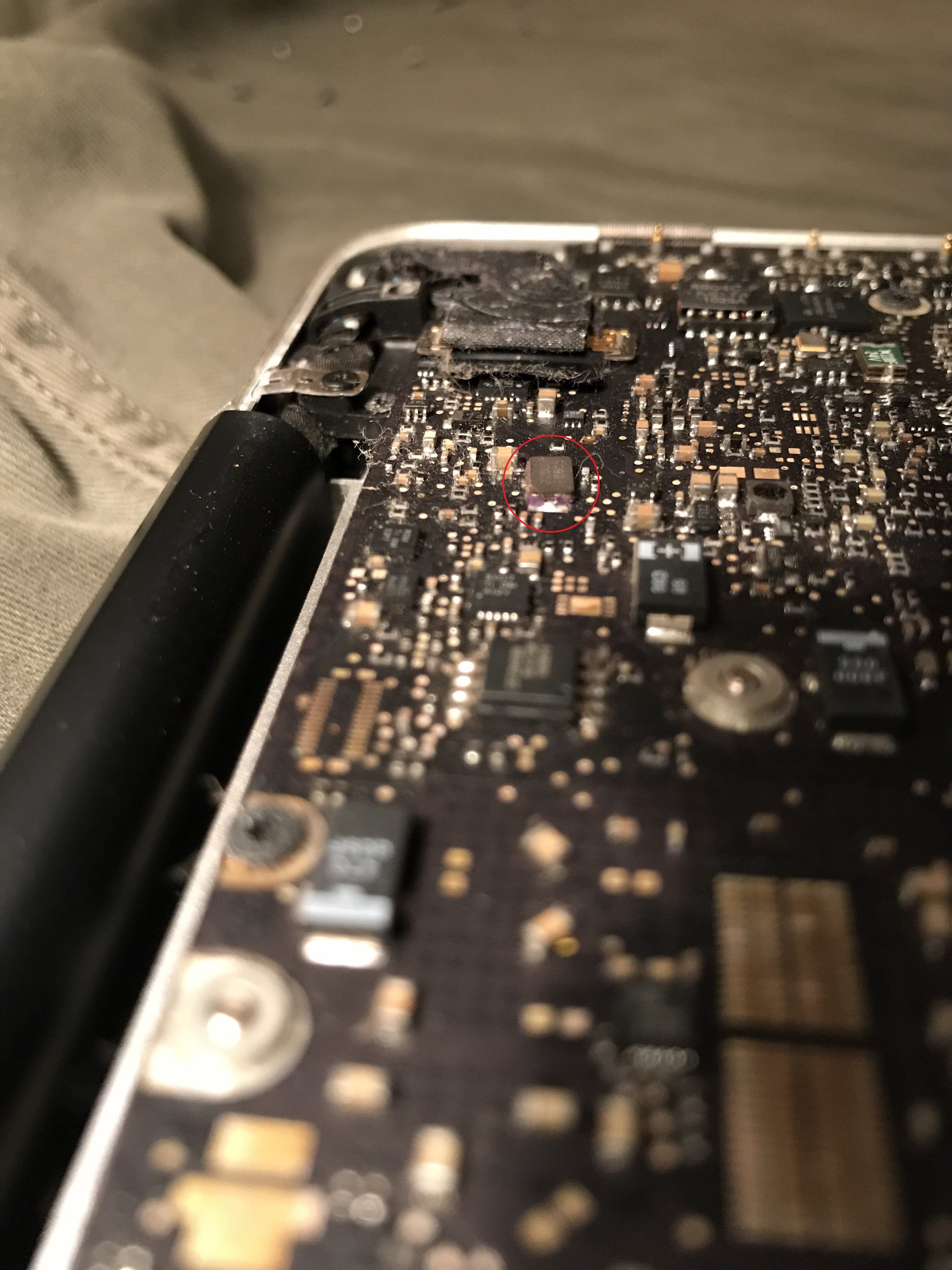

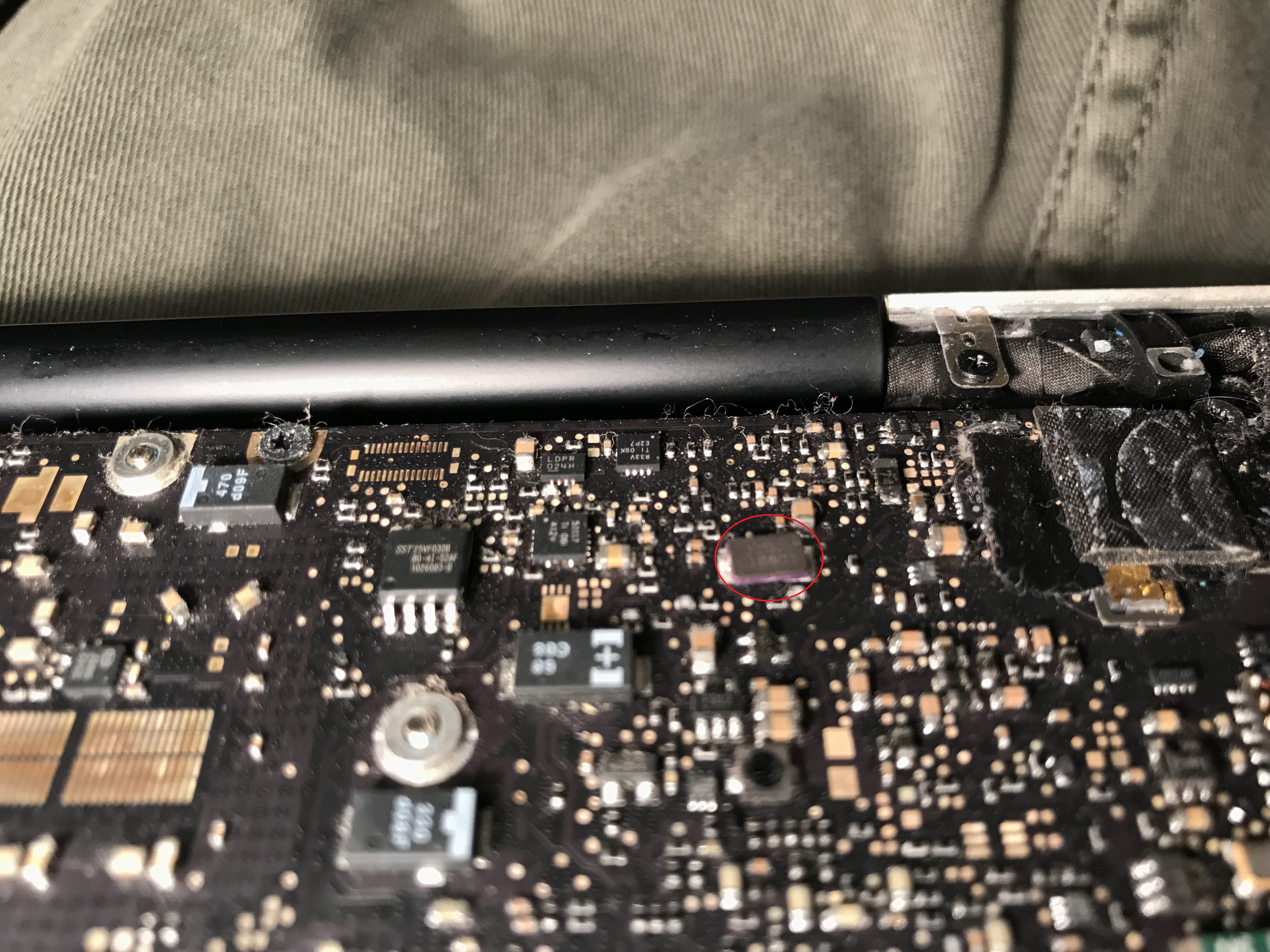

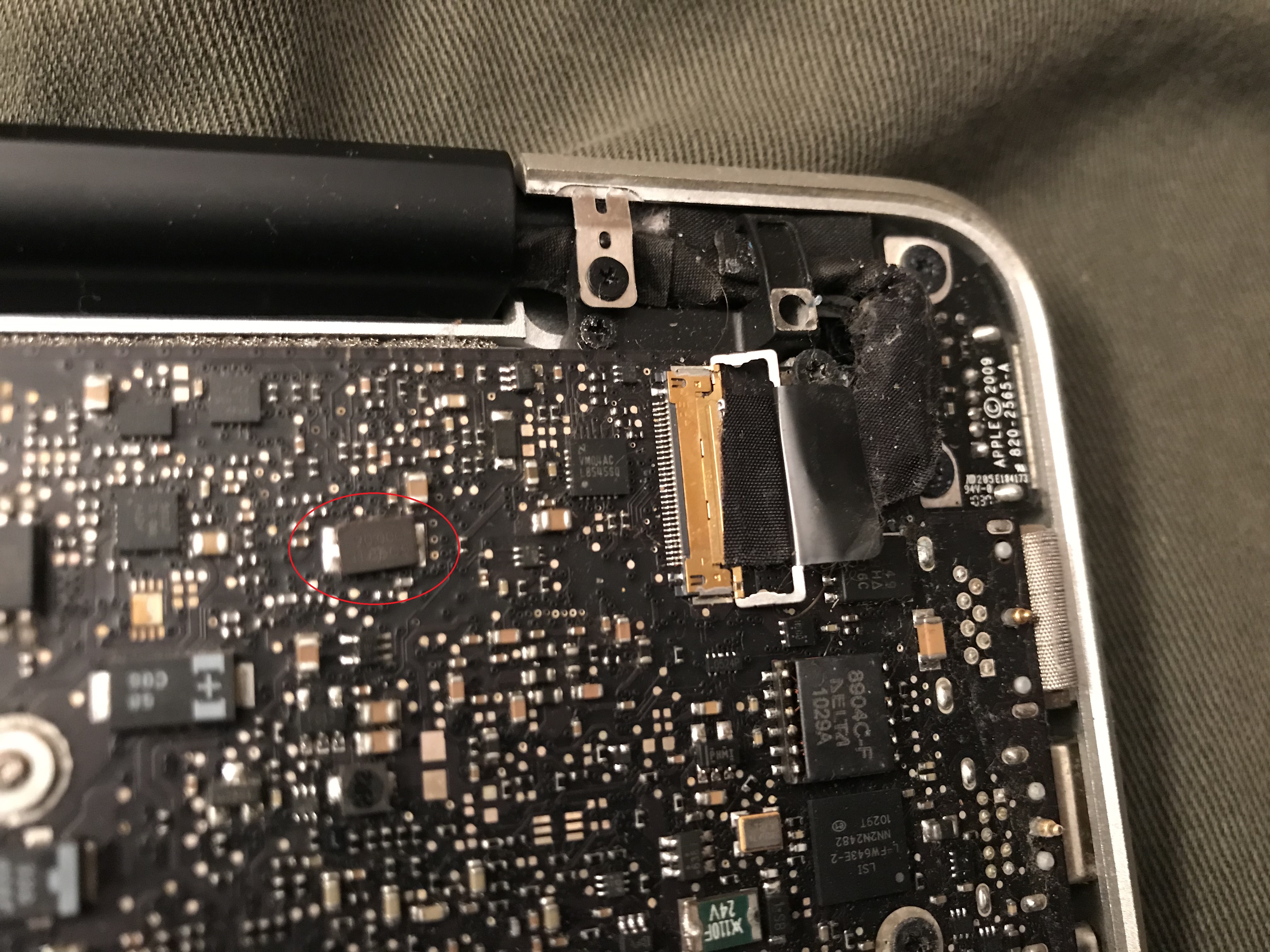

    I could open my macbook pro to check some kind of water damage. I attach a few pictures of the logic board and I do not know, but maybe there is a chipset with damage, in the pictures it is marked with a red circle. I would appreciate you that you could tell me which chipsets control my failure to check them better. I have tried to look for information about the logic board in internet but I did not find so much.

    Thank you for your time and your attention. You are helping me so much!


    Attached Files:

  14. Painter2002 macrumors 65816

    Painter2002

    Joined:
    May 9, 2017
    Location:
    Austin, TX
    #14
    Unfortunately it's going to be really hard to identify which chip(s) may be causing the issue, and even if you do find the one causing the issue, you are still likely going to have to replace the whole logic board if a chip is bad.

    My honest suggestion is to take it (or send it) in to Apple, and have them assess the damage, as that will be the best place to get a firm answer on whether or not the logic board is damaged and needs replacement. On here it is really difficult to tell from pictures alone whether or not the board is the cause of your issues.

  15. Merkava_4 macrumors 6502a

    Joined:
    Sep 4, 2010
    Location:
    California
    #15
    Water has never hurt anything electrical - just as long you remove the water before sending any electricity through the circuits. Spilt water on the machine two weeks ago, but I'm left wondering if there was any attempt to remove the water, or if the water is still in there. All a person needs to do - is remove either the top case or bottom cover (whichever provides the best access) - and then hook your garage vacuum up to its blower port.
