macOS 14 Sonoma on Unsupported Macs Thread

[hvds]

iMac 13,2 (late 2012):

Installed Sonoma 14.4 beta3 OTA over beta 2 version. Applied OCLP 1.4.0n from 2.13.24.
Everything functions correctly, including iPhotos.

MacBook Pro 5,2 17* C2D 3.02 MGz (Penryn), 1TB SSD :

Applied OCLP 1.4.0n while booted in Ventura, then booted into Sonoma Volume.

Sonoma 14.beta2, installed via USB thumb drive, boots to login screen, but is inaccessible since neither internal keyboard/trackpad nor wired keyboard/mouse are functional (the latter routed through external USB hub) . Can’t login to check functionality. Resetting SMC or NVRAM made no difference.

Booted back to Ventura volume and noted, that after installing OCLP 1.4.0n from 2.13.24, I could no longer login using internal keyboard. I had to use wired keyboard, routed via external USB hub, in order to login. Previously that was only necessary after installing Sonoma variants. I also reapplied patches, but process failed at “rebuilding cache” stage. I took screen shot of the section of OCLP install log, since copy/paste did not function. Patching process stopped due to problems with “missing” USB IO functions.

Reinstalled Ventura via thumb-drive to overwrite the patches, then removed contents of the EFI partition. Reinstalled OCLP to the drive and applied patches, but results were the same. Patching stopped at “rebuilding cache” stage. Resetting SMC or NVRAM made no difference.

Monterey volume remains unaffected by OCLP Version change and boots without issues.

Attached are a screen shout of OCLP output log and , for reference, a screen shot of disk utility mapping the SSD drive on the MacBook Pro.

Hope this may be of help.

Hello RogueB, thank you for your report. Very useful for me.
Regarding MBP 5,2 my results are similar. I first assumed the gradually dying charging circuitry of that machine might be the culprit.

I started with installing 14.4b2 over 14.3 from a USB installer to the internal disk. Using OCLP EFI 1.4.0n from 240213. USB-hub connected keyboard+mouse worked, though not immediately, this time it needed a few unplug/plugins of the hub's USB cable.

Then it proceeded to the login screen. As in your case, external keyboard/mouse were unresponsive. The optical mouse's red LED on the bottom side was off, though the hub's control LED was on. After playing with the USB connectors for quite a while, keyboard/mouse became responsive so I could log in and start the post-install patches. But I made a mistake by not plugging in the Ethernet cable and that failed. The SSD in the end had the undesired Data - Data - ... structure.
Further attempts on re-running the USB installer failed as keyboard/mouse were unresponsive also for the installer.

Now I took the internal MBP5,2 SSD out. Doing further attempts. Connected it to MBP11,1 to erase it and write again the EFI.



[Macdctr]

That's the main reason I am considering going to sonoma on my mid 2010 MacBook Pro. However if the keyboard and trackpad going to cause fits, Monterrey will suit just fine for several more years.

I have found that if you try upgrading to the 14.4 then you will run into these issues. At least I have. If you go to the Mr. Macintosh web site and download MacOS 14.3.1 then go to Dortania page on GitHub and download the latest OCLP 1.3.0 you should be okay.

Releases · dortania/OpenCore-Legacy-Patcher

Experience macOS just like before. Contribute to dortania/OpenCore-Legacy-Patcher development by creating an account on GitHub.

github.com

also go here to install the KDK specific to MacOS 14.3.1 before installing the OS.

Release Kernel Debug Kit 14.3.1 build 23D60 · dortania/KdkSupportPkg

KDK for macOS 14.3.1 (23D60)

github.com



[Macdctr]

Ever tried shift command 4 and space when making screenshots? Instead of cropping images later on.

No I haven't. Thanks for the tip!



[hvds]

Hello RogueB, thank you for your report. Very useful for me.
Regarding MBP 5,2 my results are similar. I first assumed the gradually dying charging circuitry of that machine might be the culprit.

I started with installing 14.4b2 over 14.3 from a USB installer to the internal disk. Using OCLP EFI 1.4.0n from 240213. USB-hub connected keyboard+mouse worked, though not immediately, this time it needed a few unplug/plugins of the hub's USB cable.

Then it proceeded to the login screen. As in your case, external keyboard/mouse were unresponsive. The optical mouse's red LED on the bottom side was off, though the hub's control LED was on. After playing with the USB connectors for quite a while, keyboard/mouse became responsive so I could log in and start the post-install patches. But I made a mistake by not plugging in the Ethernet cable and that failed. The SSD in the end had the undesired Data - Data - ... structure.
Further attempts on re-running the USB installer failed as keyboard/mouse were unresponsive also for the installer.

Now I took the internal MBP5,2 SSD out. Doing further attempts. Connected it to MBP11,1 to erase it and write again the EFI.

MBP5,2: coming closer to a working machine.
Without knowing if this might have (had) an effect, made an OCLP 140n from source, used it for EFI.
Starting the USB installer (which actually resides on the now reinstalled internal SSD) remained tricky. The LED for the optical sensor at the bottom of the mouse kept going off soon after installer started, and not back on. What helped in the end was plugging the USB hub out of the connector on the MBP and immediately plugging back into another of those three USB connectors. That triggered something to power the mouse again.
During the reboots when installing, the LED went on and off again, but during the last three reboots it went off only briefly then back on. So the mouse/keyboard were on for the login!

Just finished the root patches (with the OCLP from source). After reboot internal trackpad/keyboard work (and external as well). Writing now from Safari on that machine.
Next will be OTA installation of 14.4b3.

Thanks, developers!



[Oxygen-X1]

Can someone help me here?
Unfortunately, OCLP 1.4 did not solve the problem with WiFi on the iMac at the end of 2013,
not on Beta2 and not on Beta3.
.
I reinstalled OCLP 1.4 specifically for this and also checked the IOSkywalkFamily.kext to
see whether it was the new 1.1.0 and everything was there.

Otherwise, the nVidia graphics as well as Ethernet Lan and Bluetooth
were all successfully patched except for WLAN.



[PropClear]

Can someone help me here?
Unfortunately, OCLP 1.4 did not solve the problem with WiFi on the iMac at the end of 2013,
not on Beta2 and not on Beta3.
.
I reinstalled OCLP 1.4 specifically for this and also checked the IOSkywalkFamily.kext to
see whether it was the new 1.1.0 and everything was there.

Otherwise, the nVidia graphics as well as Ethernet Lan and Bluetooth
were all successfully patched except for WLAN.

Establish a cable connection to the Internet and then try out the root patches again, then the WiFi patch should also work. If necessary, connect to the network via a USB cable to your iPhone! (Stay away from macOs betas!)



[Ready-for-Apple]

Then, purchase this extremely cost effective utility; AlDente.
It will preserve and extend the life of your new battery.

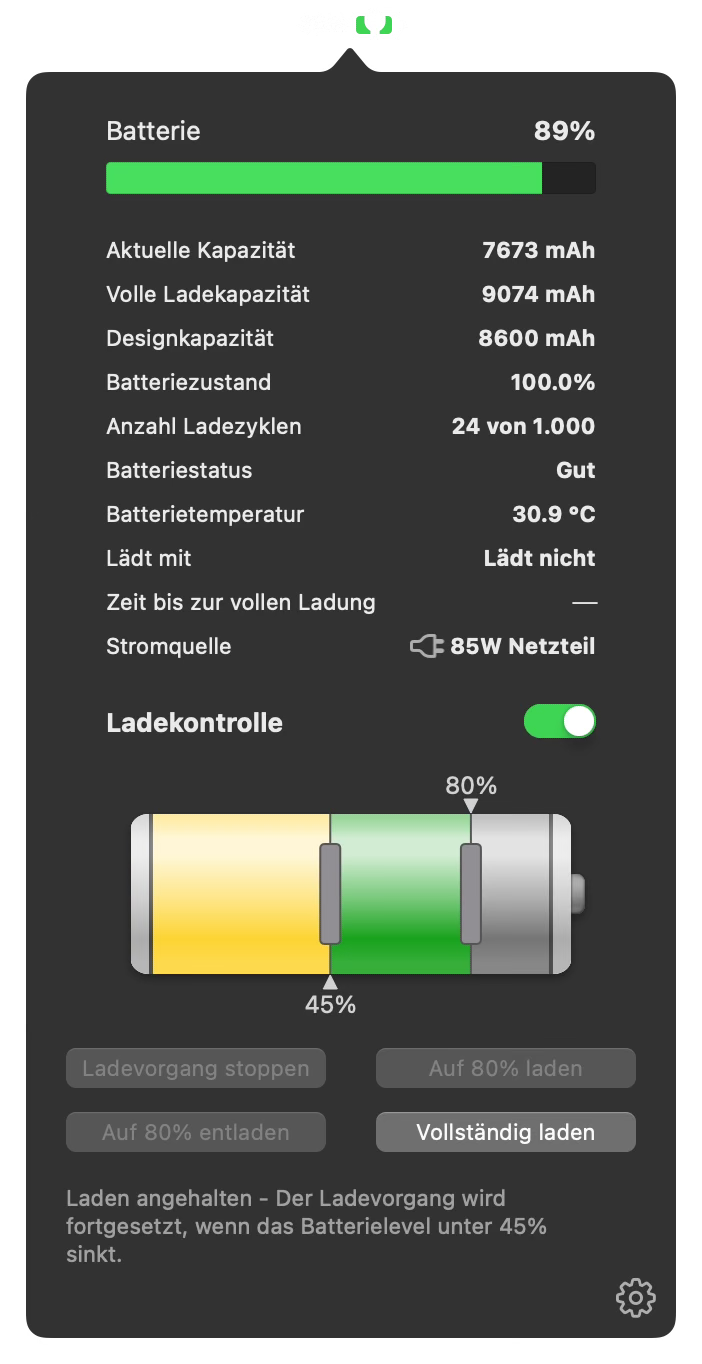

A wonderful and inexpensive alternative is Energiza (https://appgineers.de/energiza).
I've been using it myself since the beta because my original battery also was swollen and I don't want to have this problem with the new third-party battery.

There is a Discord dedicated to OCLP support.
It's the only way to give feedback.

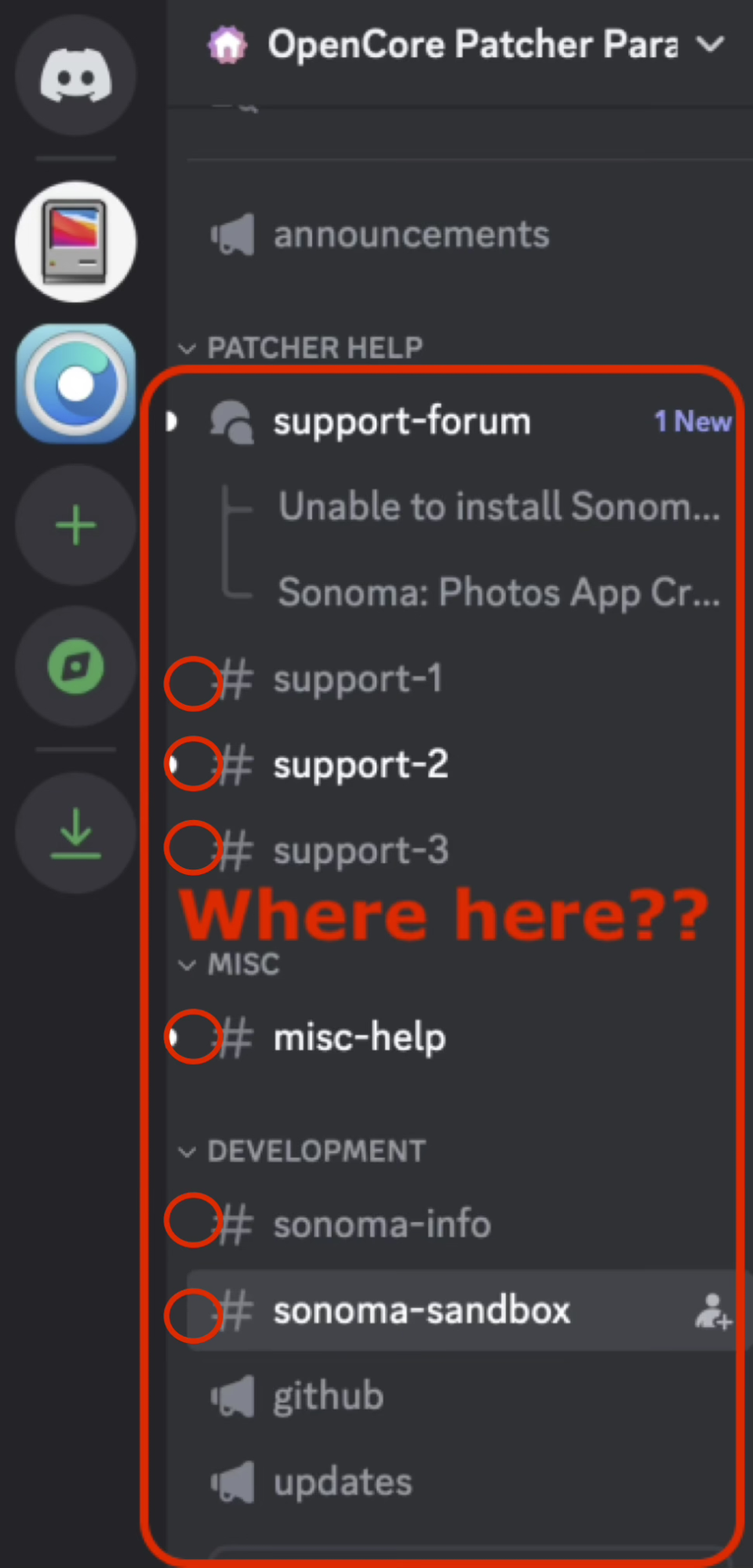

Yes, but WHERE EXACTLY? There are several sub-areas.



[Ready-for-Apple]

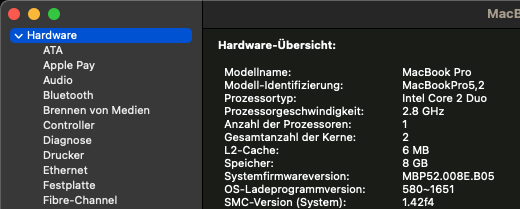

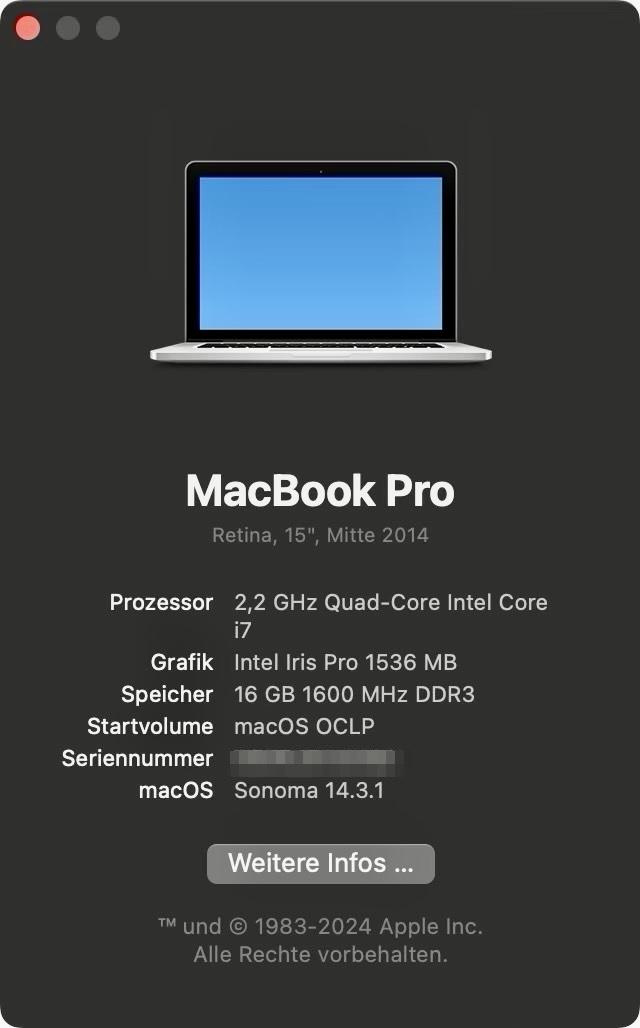

I often see screenshots of the system with macOS Sonoma here - where can I find this view (pic 1), because I only know the view as shown in pic 2...🤔

Picture 1


Picture 2



[Oxygen-X1]

Establish a cable connection to the Internet and then try out the root patches again, then the WiFi patch should also work. If necessary, connect to the network via a USB cable to your iPhone! (Stay away from macOs betas!)

I have tried everything you wrote several times without success.

WiFi cannot be activated at all, the switch is gray and cannot be changed.
This iMac late 2013 is only connected to the Ethernet LAN, but I
still wanted to try using WiFI and Airdrop.



[K two]

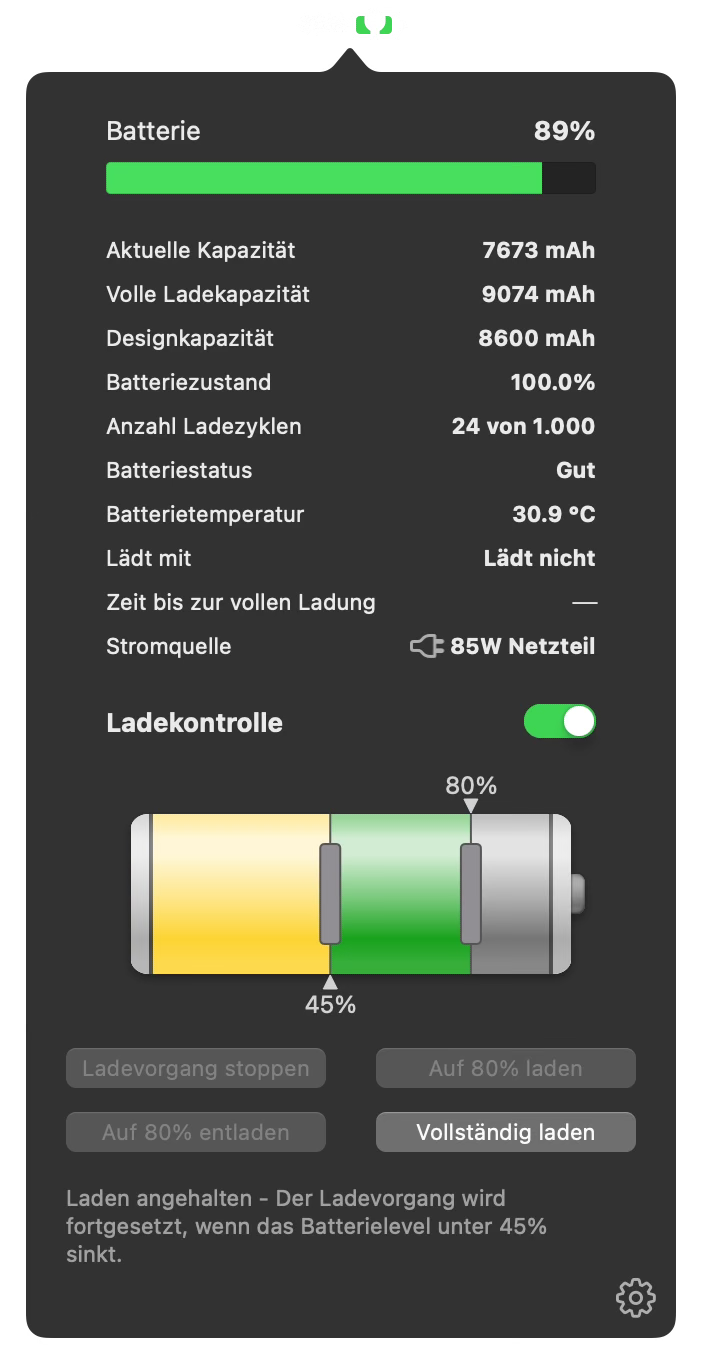

A wonderful and inexpensive alternative is Energiza (https://appgineers.de/energiza).
I've been using it myself since the beta because my original battery also was swollen and I don't want to have this problem with the new third-party battery.
View attachment 2349930

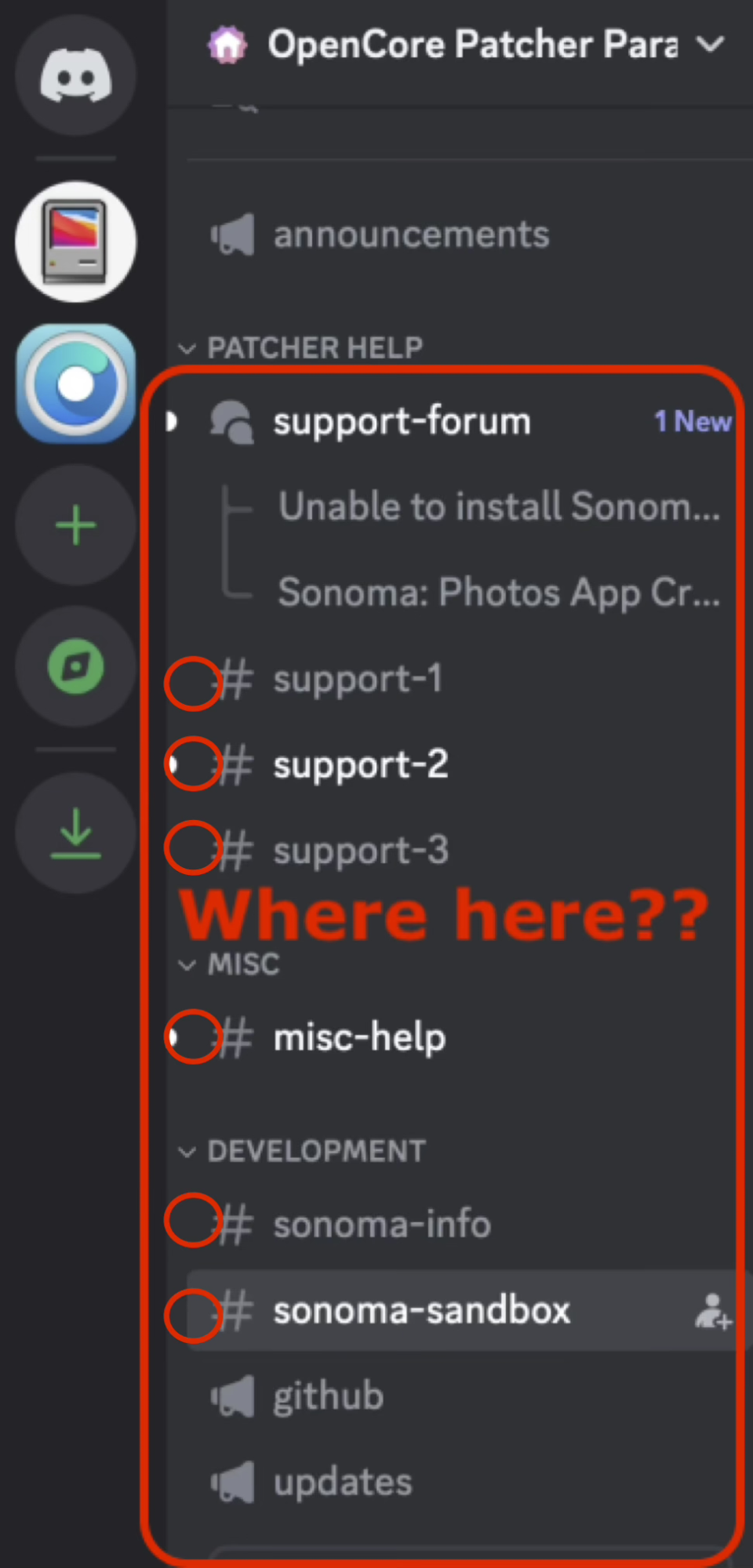

Yes, but WHERE EXACTLY? There are several sub-areas.

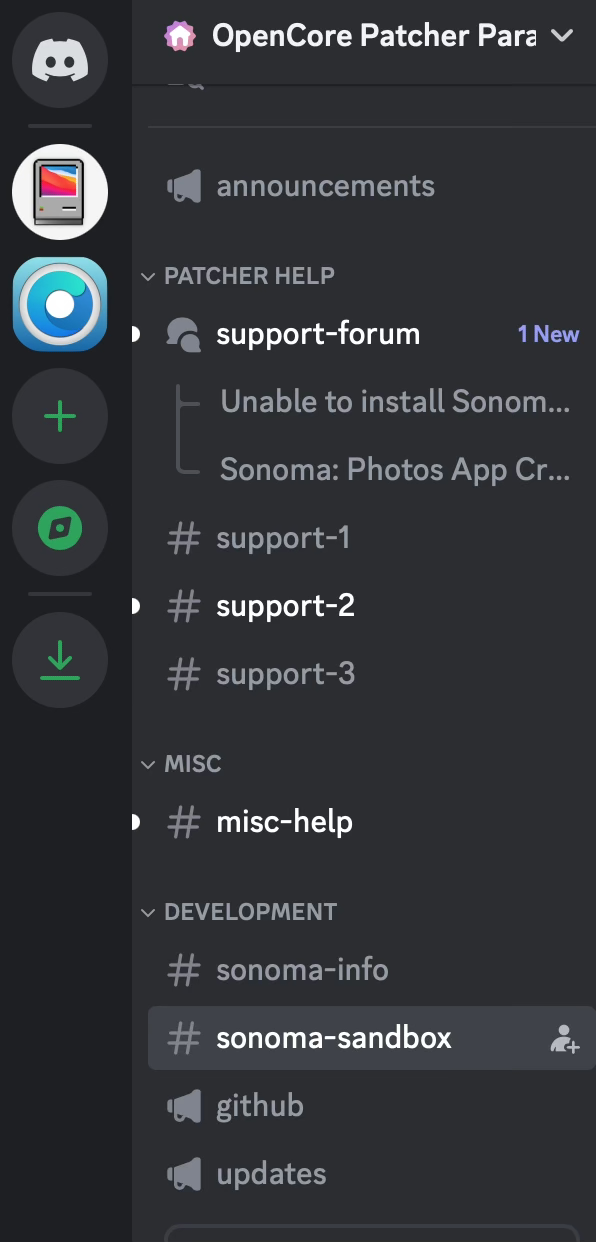

View attachment 2349929

The Paradise: https://discord.com/invite/rqdPgH8xSN



[Dilli]

I have down graded to macOS Monterey. This is the break even for my old Mac 2011 4Gb model. Could not sustain the laggy macOs Sonoma which I used for a long time since it was launched and have no regrets. Tks to the developers for the patch. 1.3.0 is good for Monterey too. ✌️



[K two]

I often see screenshots of the system with macOS Sonoma here - where can I find this view (pic 1), because I only know the view as shown in pic 2...🤔

Picture 1

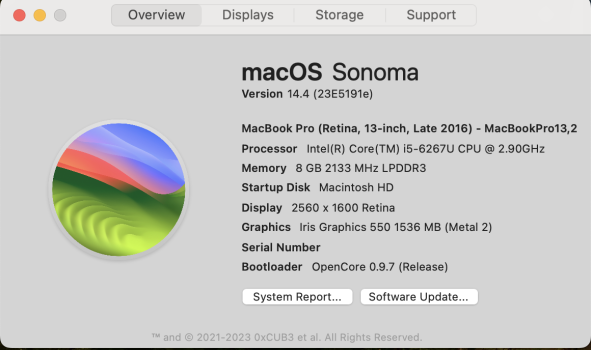

View attachment 2349946

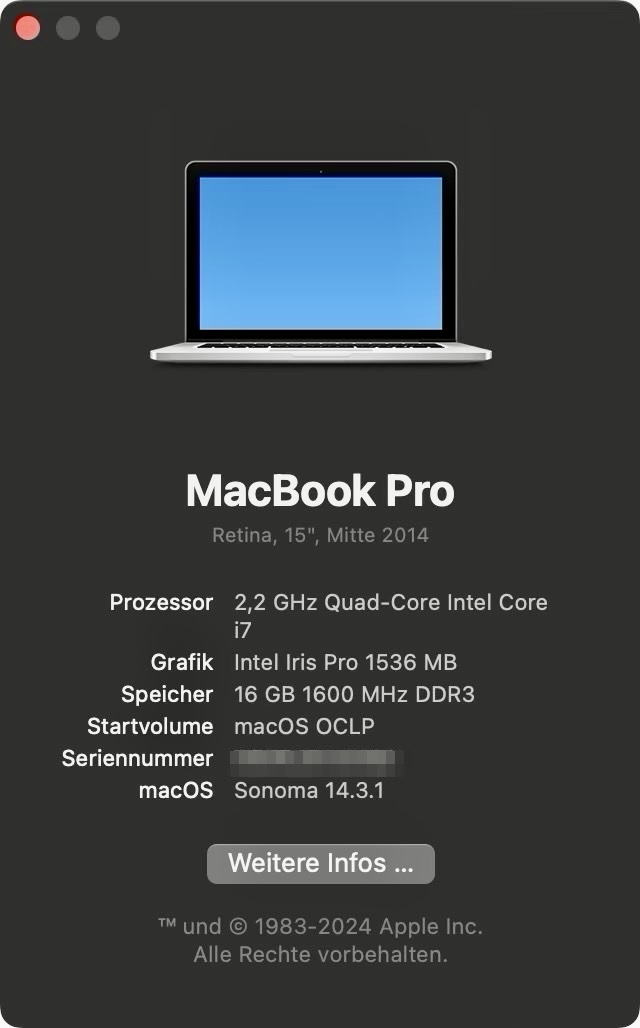

Picture 2

View attachment 2349945

Release 1.1.1 · 2009-Nissan-Cube/About-This-Hack

Fix button connections for the Hackintosh page

github.com



[eSaF-Eddie]

I often see screenshots of the system with macOS Sonoma here - where can I find this view (pic 1), because I only know the view as shown in

0xCUB3/About-This-HackGitHubhttps://github.com › About-This-Hack.
Enjoy!!



[Ready-for-Apple]

The Paradise: https://discord.com/invite/rqdPgH8xSN

No offense, but I asked where exactly (which subfolder/category) problems can be reported to the developers. You had sent me the link to the server. pls see pic again



[K two]

No offense, but I asked where exactly (which subfolder/category) problems can be reported to the developers. You had sent me the link to the server. pls see pic again

The Paradise is where concerns are posted, from the OCLP readme -

Support​

This project is offered on an AS-IS basis, we do not guarantee support for any issues that may arise. However, there is a community server with other passionate users and developers that can aid you:

• OpenCore Patcher Paradise Discord Server
  • Keep in mind that the Discord server is maintained by the community, so we ask everyone to be respectful.

Reading the docs is essential.



[hvds]

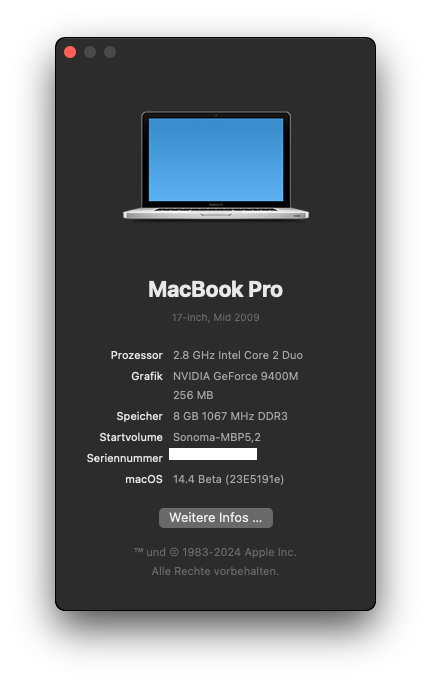

MBP5,2: coming closer to a working machine.
Without knowing if this might have (had) an effect, made an OCLP 140n from source, used it for EFI.
Starting the USB installer (which actually resides on the now reinstalled internal SSD) remained tricky. The LED for the optical sensor at the bottom of the mouse kept going off soon after installer started, and not back on. What helped in the end was plugging the USB hub out of the connector on the MBP and immediately plugging back into another of those three USB connectors. That triggered something to power the mouse again.
During the reboots when installing, the LED went on and off again, but during the last three reboots it went off only briefly then back on. So the mouse/keyboard were on for the login!

Just finished the root patches (with the OCLP from source). After reboot internal trackpad/keyboard work (and external as well). Writing now from Safari on that machine.
Next will be OTA installation of 14.4b3.

Thanks, developers!

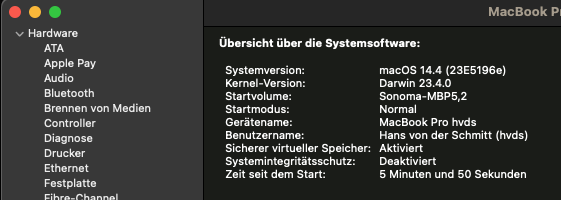

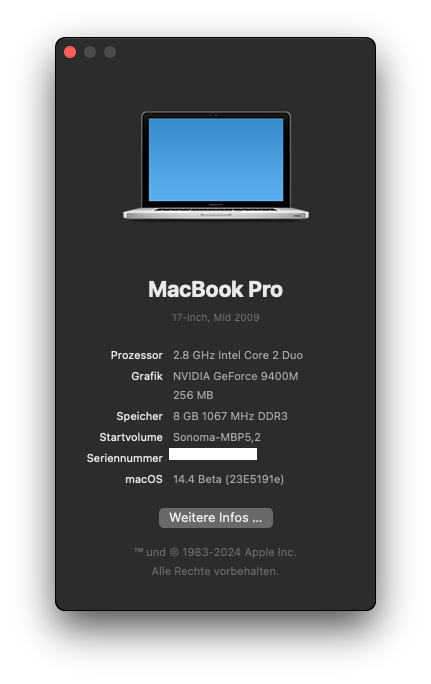

MBP5,2 upgraded OTA to 14.4b3 from b2. Using OCLP from source, latest.
Update proceeded well upto login screen (had to force reboot the Installer once).
Getting the USB-connected mouse/keyboard powered succeeded after many attempts. Nothing reproducible due to my lack of understanding.

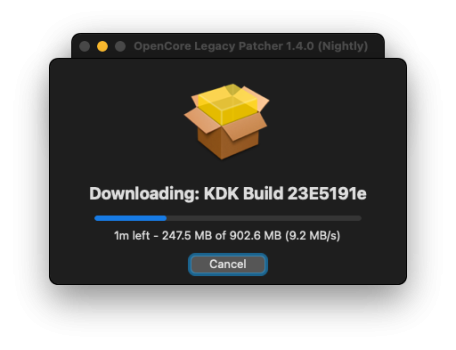

Then applied the root patches. The proper KDK for b3 was loaded.
Internal trackpad/keyboard and WIFI ok after that. Several crashes of login screen, and menu bar not showing. Was OK with b2. But some things working, like taking these screenshots and attaching them here in Safari.
Legacy USB1.1 support in the EFI, and non-metal support in the root patches are „double-beta“ (OCLP and macOS). The continuous progress being made on the wide spectrum of Apple-unsupported machines by OCLP team is amazing. Thank you!



[Ready-for-Apple]

The Paradise is where concerns are posted, from the OCLP readme -

Support​

This project is offered on an AS-IS basis, we do not guarantee support for any issues that may arise. However, there is a community server with other passionate users and developers that can aid you:

• OpenCore Patcher Paradise Discord Server
  • Keep in mind that the Discord server is maintained by the community, so we ask everyone to be respectful.

Reading the docs is essential.

I think we are talking at cross purposes or I don't understand your statement because I am not a native English speaker.
My point is not that I have general problems etc., but that I can give feedback on development, i.e. if something doesn't work.

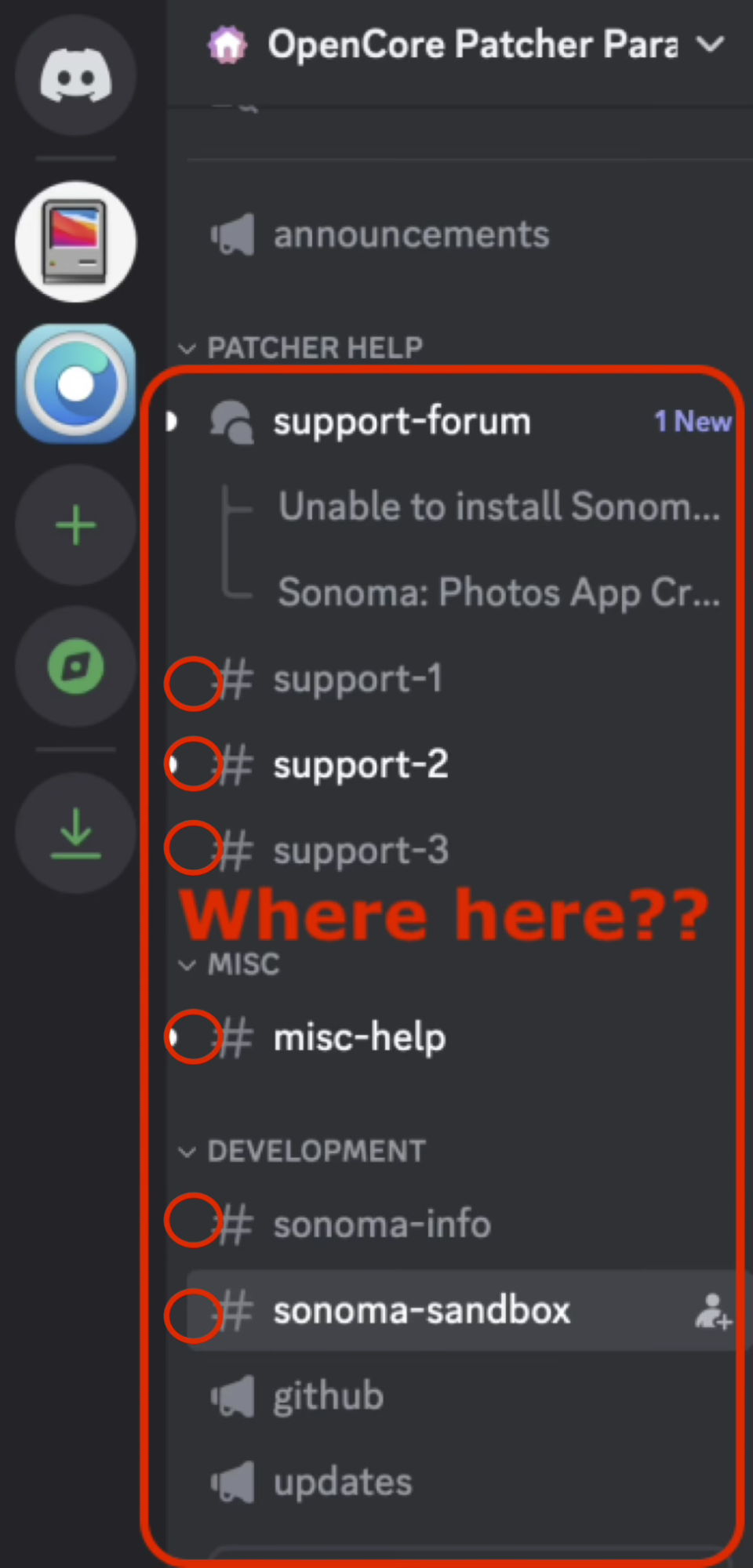

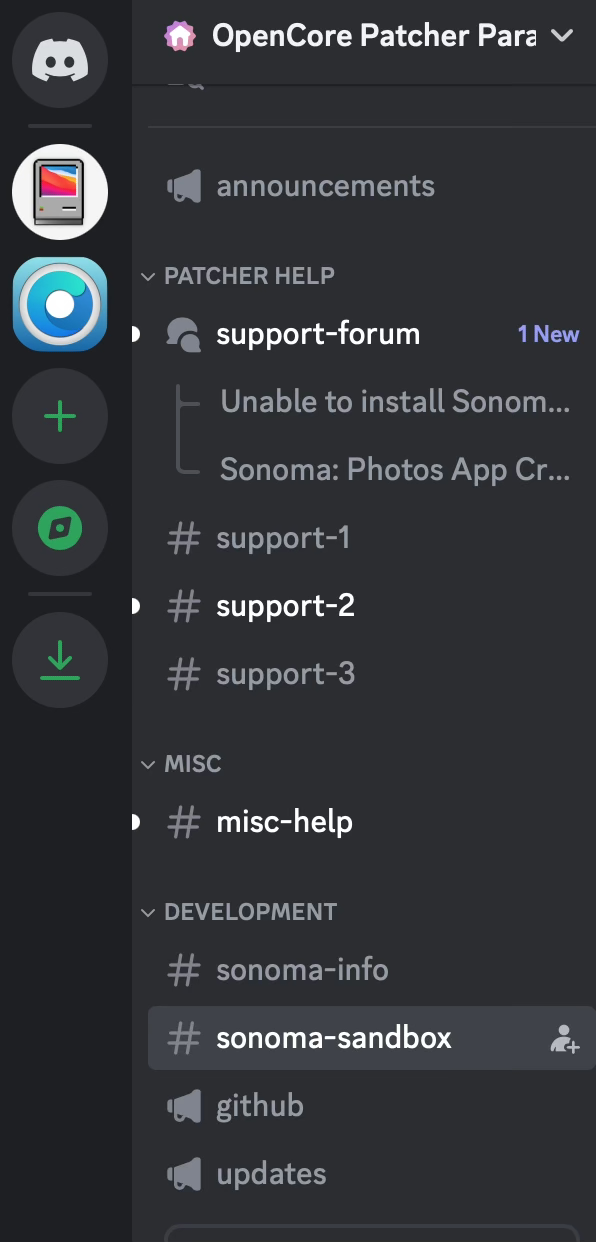

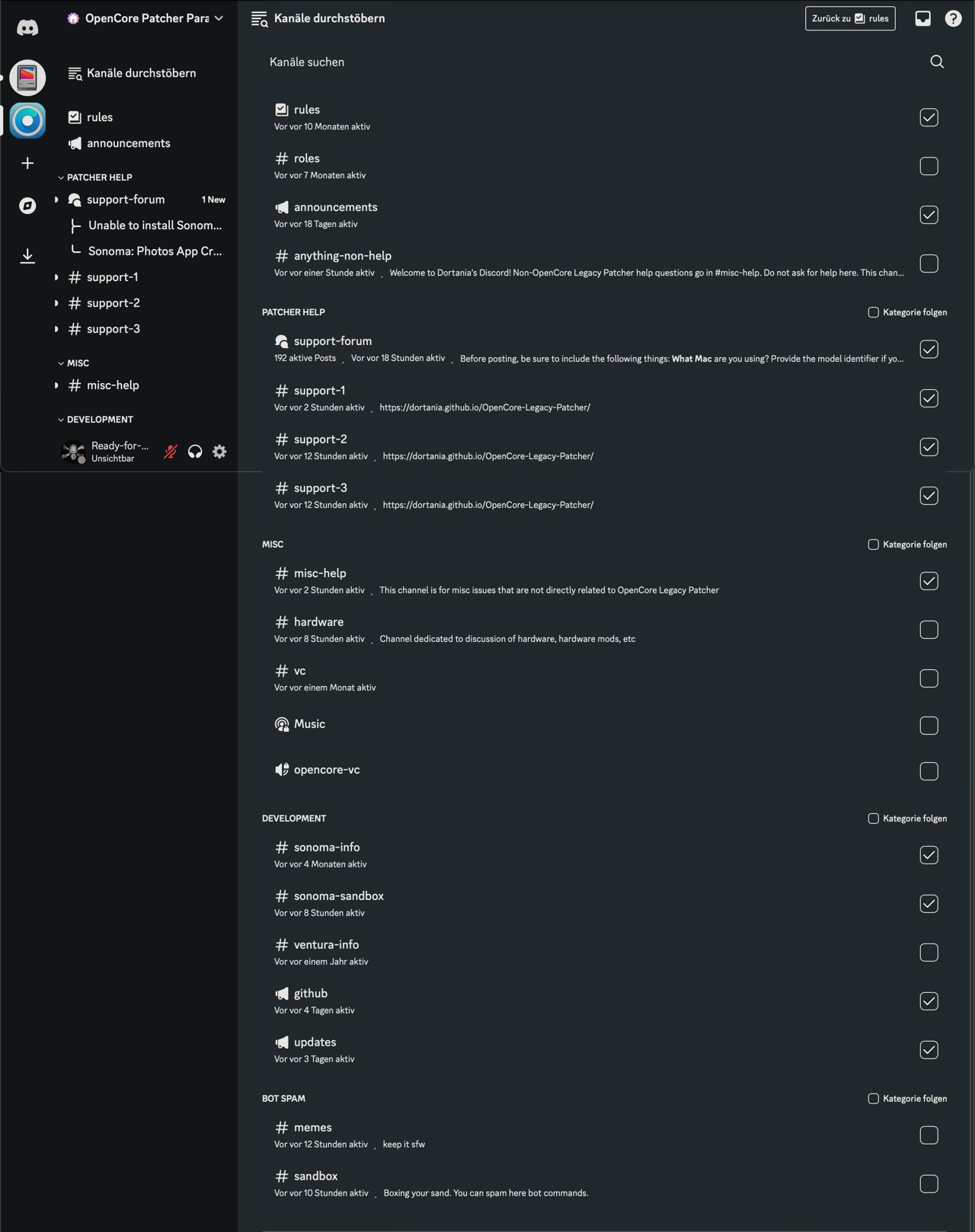

And as I said, there are different subcategories on the Discord server for OCLP and it's not clear - not only to me - when to post in which subcategory (please have a look at the picture in the attachment)❗️

For example, the fact that the Photos app always crashes on MacBooks with only one integrated graphics card when you click on Memories or want to edit photos taken in portrait mode is not mentioned anywhere in the OCLP issues on GitHub.



[K two]

I think we are talking at cross purposes or I don't understand your statement because I am not a native English speaker.
My point is not that I have general problems etc., but that I can give feedback on development, i.e. if something doesn't work.

And as I said, there are different subcategories on the Discord server for OCLP and it's not clear - not only to me - when to post in which subcategory (please have a look at the picture in the attachment)❗️

For example, the fact that the Photos app always crashes on MacBooks with only one integrated graphics card when you click on Memories or want to edit photos taken in portrait mode is not mentioned anywhere in the OCLP issues on GitHub.

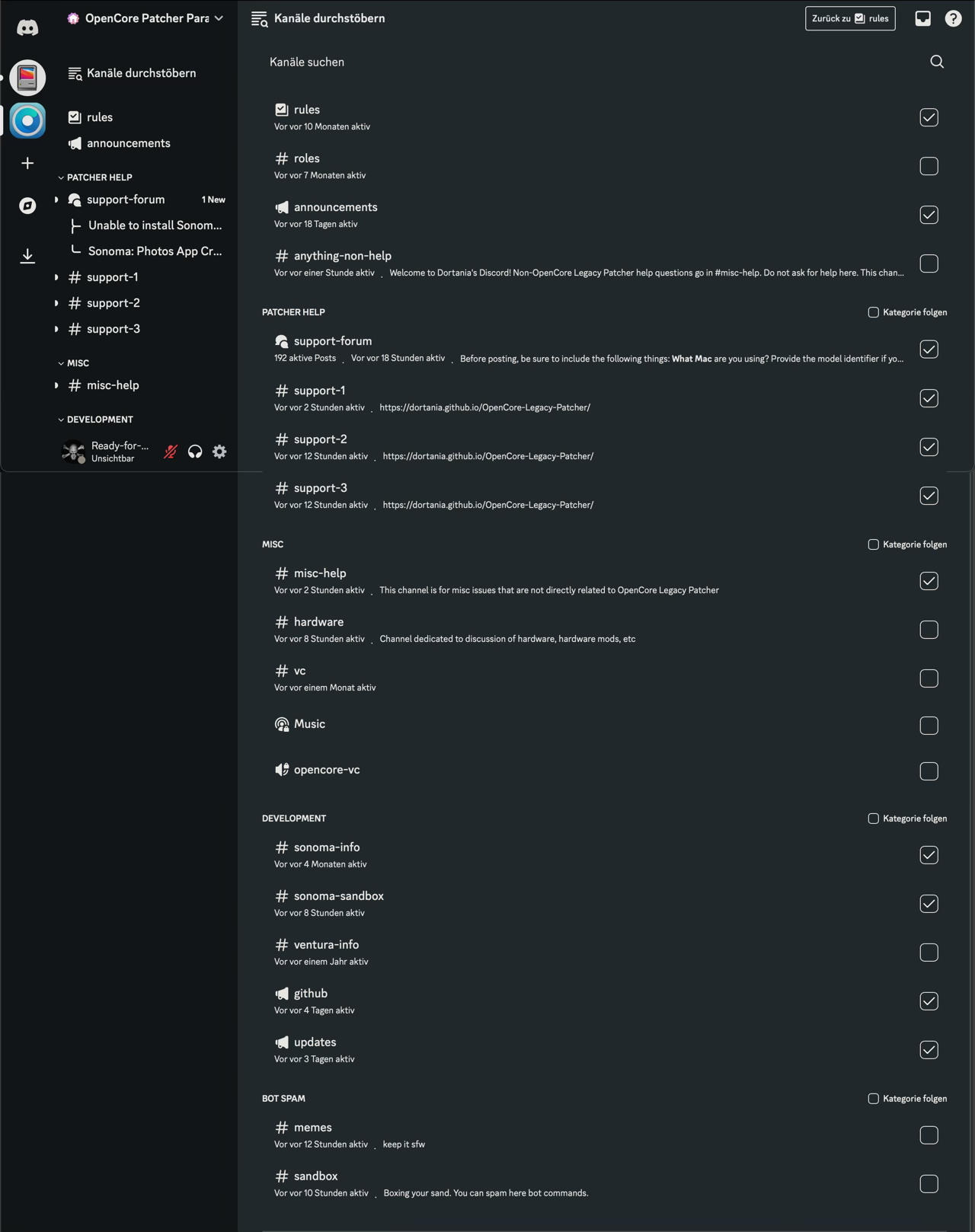

View attachment 2350054

Not there, only via the Paradise, as stated within the docs and on Discord. 🧐



[rehkram]

Discord is a scatter-shot unstructured mess. I check it out periodically, and, sure enough, it's even worse than the last time I looked. I don't hang around there, have better things to do than try to trick it into doing something it clearly wasn't designed to do, i.e. provide useful IT information for adults.



[K two]

Discord is a scatter-shot unstructured mess. I check it out periodically, and, sure enough, it's even worse than the last time I looked. I don't hang around there, have better things to do than try to trick it into doing something it clearly wasn't designed to do, i.e. provide useful IT information for adults.

Where else can a user get the attention of developers? Certainly not on a MR thread. The Paradise is intended to gather information, not dispense it. As noisy it may seem, the usefulness of the Paradise can only be measured by the quality of the effort supported.



[rehkram]

As noisy it may seem, the usefulness of the Paradise can only be measured by the quality of the effort supported.

I'd say Dortania's success with OCLP is not a lot to do with their presence on cringe-inducing Discord. Which, in a way, makes it even more impressive!



[chris1111]

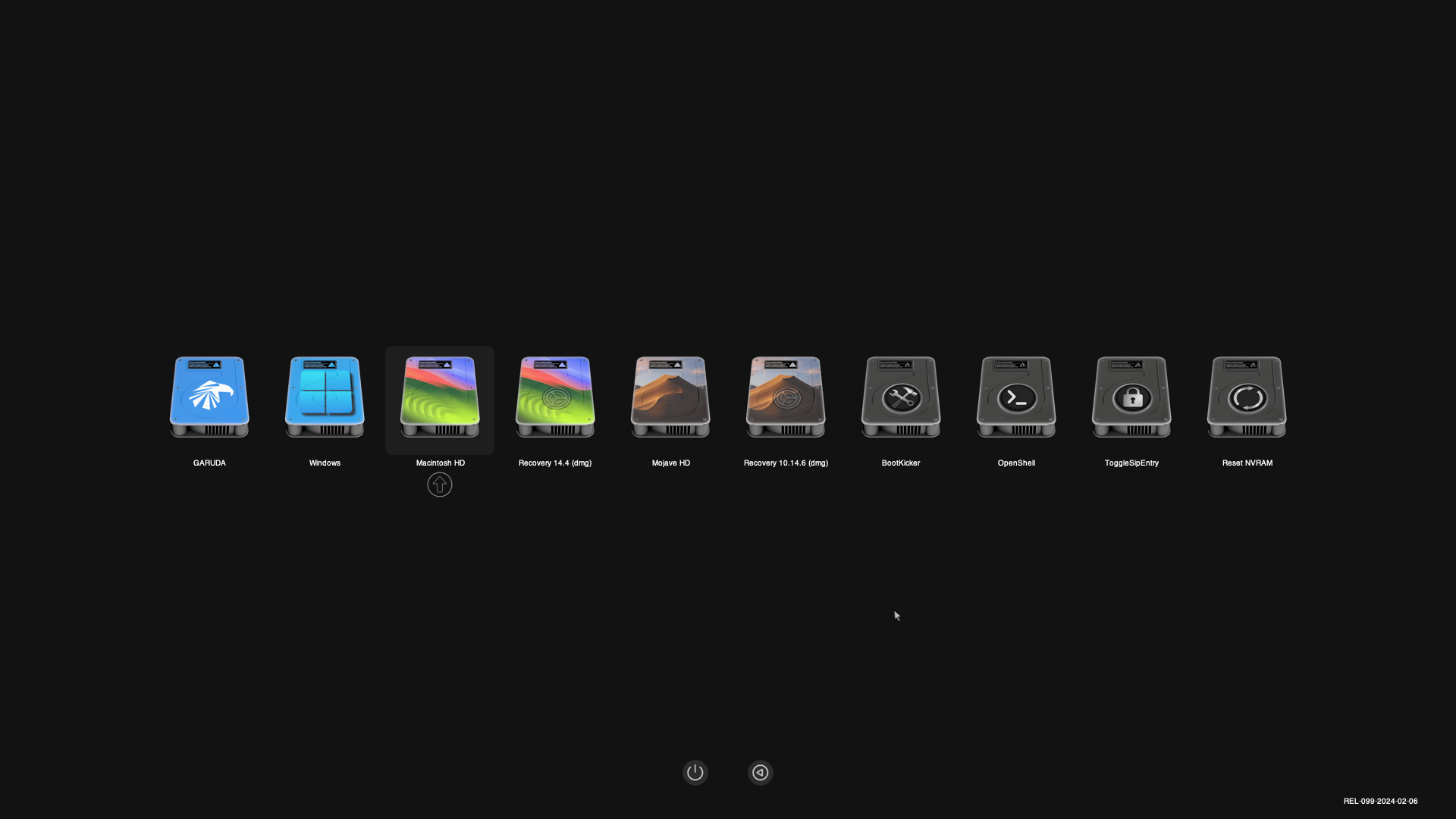

Theme Flavours-FadeDisk for Sonoma 14 available
65 Linux Distro included, 5 Windows 11 Icon disk changer
Background inside theme match all screen size
Enjoy!

Attaching here as ZIP

Theme
Config.plist Setup ⇩

- Misc -> Boot -> HideAuxiliary: false
- Misc -> Boot -> PickerVariant: chris1111\Flavours-FadeDisk
- Misc -> Boot -> PickerAtributes: 145
- Misc -> Boot -> Picker Mode: External
- Misc -> Boot -> Timeout -> : 5
- Misc -> Boot -> ShowPicker: true



[K two]

I'd say Dortania's success with OCLP is not a lot to do with their presence on cringe-inducing Discord. Which, in a way, makes it even more impressive!

Is your dlstain for Discord in general or for the Paradise specifically? And why would developers direct users there if it wasn't useful? 🤷‍♂️



[ChrisOSX]

That's the main reason I am considering going to sonoma on my mid 2010 MacBook Pro. However if the keyboard and trackpad going to cause fits, Monterrey will suit just fine for several more years.

As somebody with a mid 2010 MBP, 14.3.1 works well. I get Window server issues like before, but I'm thinking it still has something to do with my external monitor/sleep 🤷‍♂️ I only use a external mouse (Logitech M705), but the trackpad has never not worked for me.

I stopped messing with OS betas a while back. OCLP betas have been fine.



[Ready-for-Apple]

Not there, only via the Paradise, as stated within the docs and on Discord. 🧐

1. Link adress doesn't work

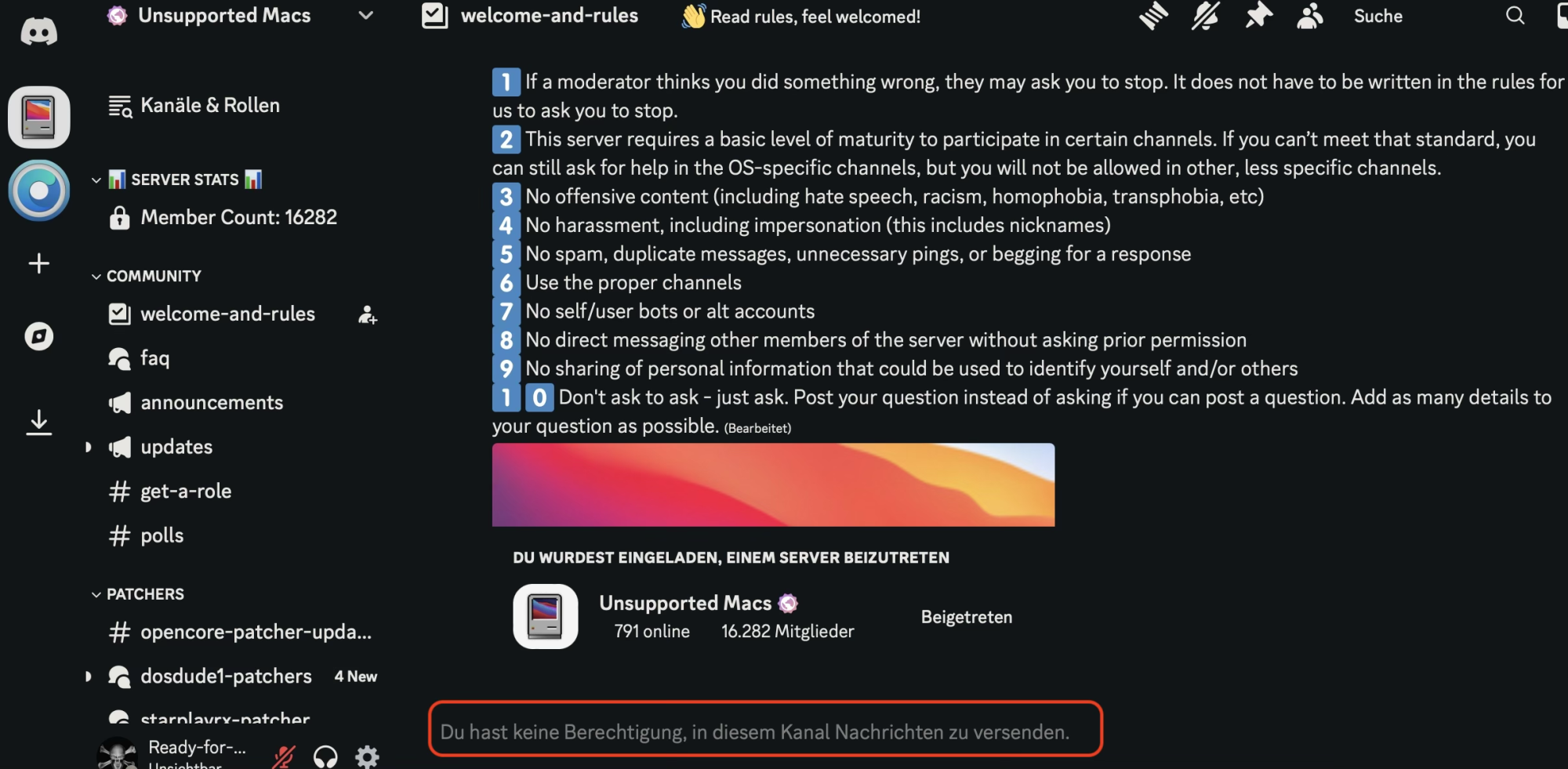

2. "You do not have permission to send messages in this channel."🤷‍♂️
3. Can't find a way to give feedback anywhere

Discord is really - sorry - ******!

It would be great if you could make a video showing the order in which you have to click to get there. 🤗
