Quick Teardowns Offer First Look Inside 14 and 16-Inch MacBook Pro Models

[MacRumors]

Apple's 14 and 16-inch MacBook Pro models are finally in the hands of customers, and one Reddit user has opened his up to give us a first look at the inside of the 10-core 14-inch machine.

14-inch MacBook Pro​

In addition to sharing some great photos of the internals, Reddit User the_Ex_Lurker shared some thoughts on the process of getting into the new MacBook Pro.

Opening up the new MacBook Pro "seems identical" to the 2016-2012 MacBook Pro models, with Apple using pentalobe screws and clips that need to be dealt with to get inside. The batteries are not glued down and are instead held in place with iPhone-style adhesive pull tabs to make battery replacements simpler.

14-inch MacBook Pro​

The keyboard deck is part of the unibody so it won't be any easier to replace than existing keyboards, and the I/O ports are modular and should be relatively easy to replace. There is a dual fan setup inside the 14-inch model like the 16-inch model, and the fans are slightly larger than the fans in the old 13-inch MacBook Pro but are smaller than the fans in the 15-inch 2016 model.

Leaker L0vetodream also shared some teardown images of the 16-inch MacBook Pro model on Twitter. He said the M1 Max chip is "really large," with the top down view showing off the dual fans and heat pipe. A translation of the original tweet is below with more detail.

16-inch MacBook Pro​

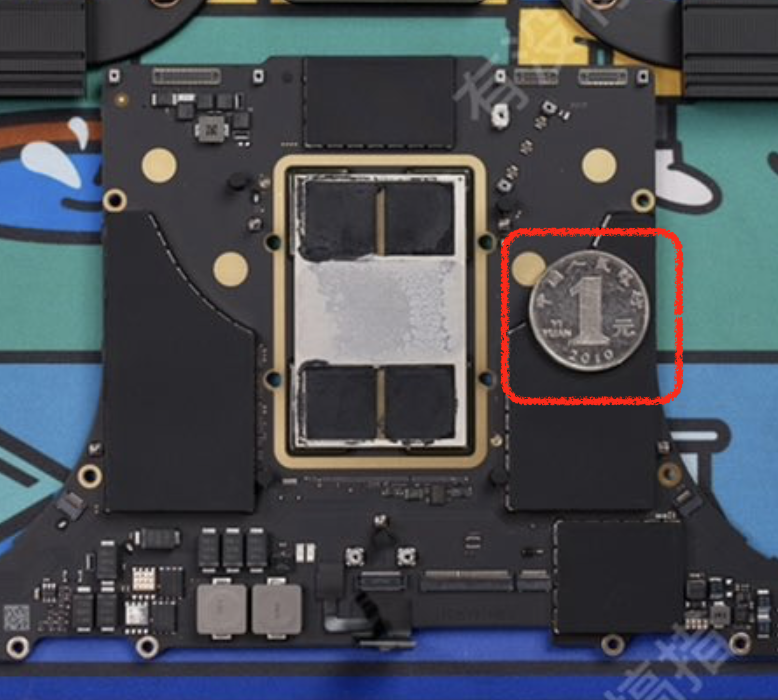

MacBook Pro 16-inch with M1 Max first disassembled. The area of the new M1 Max chip is really large (see the comparison of the size of a 1 yuan coin) RAM is divided into four particles stacked on the chip to dissipate heat is a dual fan + single heat pipe overall modularity The design of the internal design is regular and maintenance is relatively convenient. This one we have is the 1T top-equipped version (the highest configuration in the non-customized version).

Both the 14 and 16-inch models look similar inside with the dual-fan setups and a set of six batteries, along with redesigned speaker systems.

16-inch MacBook Pro logic board​

We should get a more in-depth teardown later this week from teardown site iFixit, which will give us additional information on the two machines.

Article Link: Quick Teardowns Offer First Look Inside 14 and 16-Inch MacBook Pro Models



[Black.Infinity]

Batteries look small. They really optimized these chips to last a long time.



[TheYayAreaLiving 🎗️]

Everyone should get these MacBook! I have nothing bad to say about the MacBook Air. It's a beast!



[ianKent]

Would’ve been cool if they invented a way to make CPU/GPU thermal paste completely unnecessary, but I think I see it in the photos. Maybe next time



[HobeSoundDarryl]

I see 2 eyes under eyebrows (unibrow or perhaps the bridge of granny glasses?), a nose and the makings of a mouth.

Descendent of "Number 5 is alive"?

What if it fires up when iFixit starts surgery and says "Do NOT touch me!"

Or maybe in a "more than meets the eye" move, it "transforms" into Apple Car/Truck/Plane when you are not looking?



[mcfrazieriv]

Cool to see the inspiration for the layout of the interior of this machine...



[maxsquared]

What's interesting is the it looks like there are 3 wifi antennas here, but reports from other threads mentioned the wifi is the same 2x2 AX as the one in M1 MacBooks.



[UltimateSyn]

Everyone should get these MacBook! I have nothing bad to say about the MacBook Air. It's a beast!

The MacBook Air is a beast?? ? go to bed!



[ghanwani]

Looks absolutely gorgeous! Would be even better if they offered an Hermès edition with a see through case back decorated with precious and semi precious stones and gold on the inside.



[jetjaguar]

Greatest computers ever created



[autrefois]

It looks a little like an updated version of Johnny 5 for Short Circuit.

14-inch MacBook Pro​



[MrGimper]

It looks a little like an updated version of Johnny 5 for Short Circuit.

Neeeeeeed innnnnnnnput!



[ellsworth]

Ooof. iFixIt won't be pleased but I really like their fixability rating system so I'll continue to wait and see what they come up with.

P.S. Where's the CHIP that powers the notch?



[Realityck]

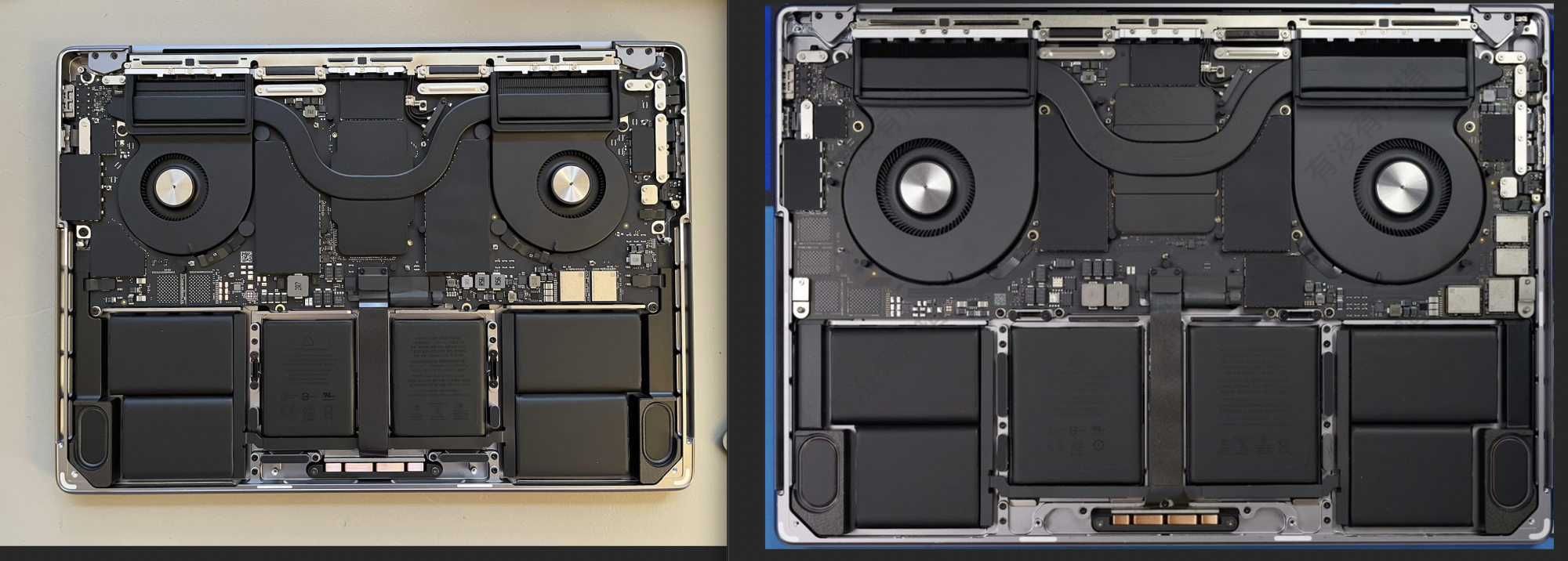

Slightly off on magnification as comparing the MBP speakers, but the 16" is a lot more solid chassis comparably. Look at the area around trackpad, and fans. Derived from those images in earlier posts. 14" on left, 16" on right. 16" chassis showing milling of aluminum, the 14" doesn't.
