Race to dump the 4870 ROM, Who's first?

Discussion in 'Mac Pro' started by MacVidCards, Mar 4, 2009.

  1. MacVidCards thread starter Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #26

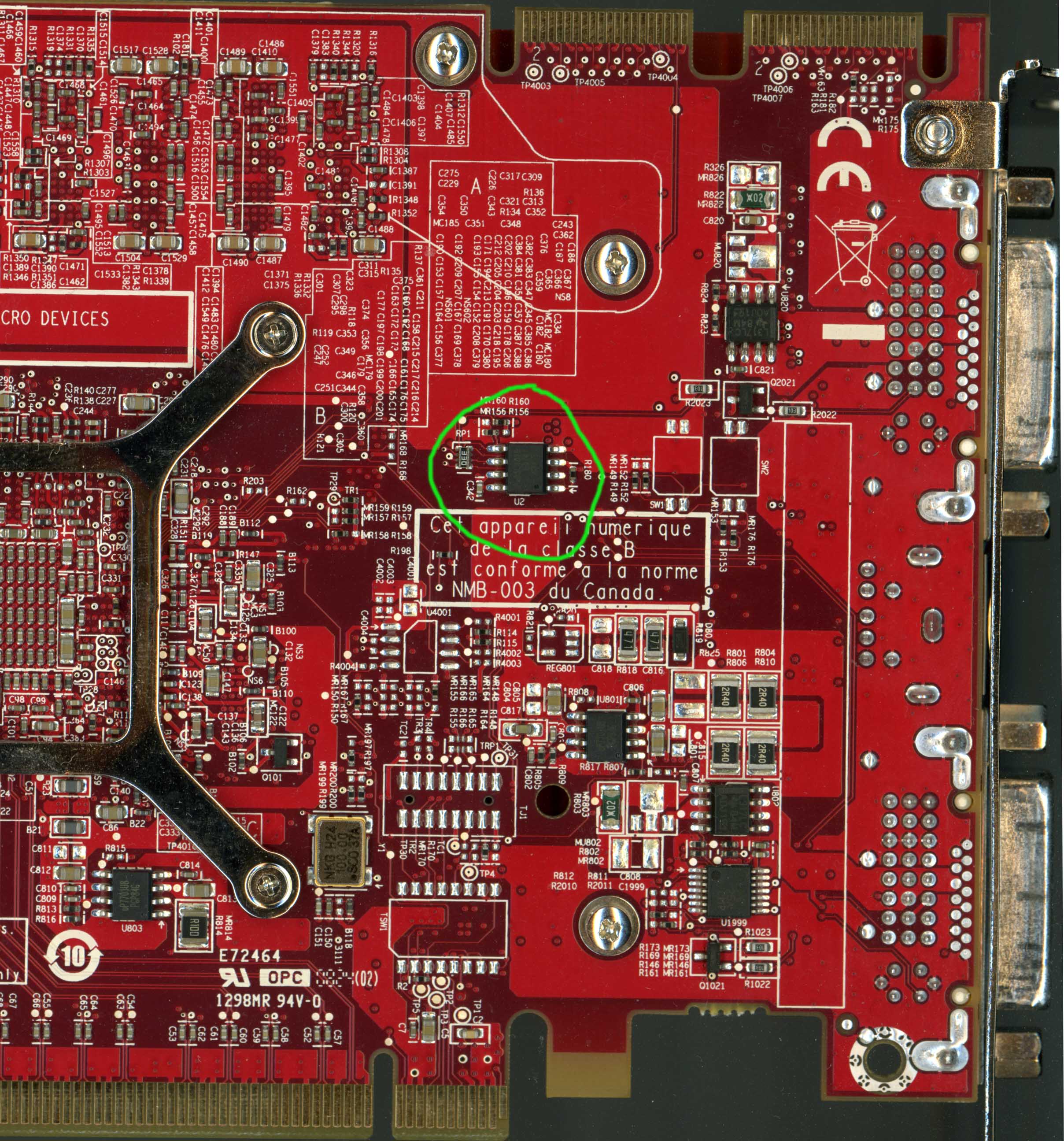

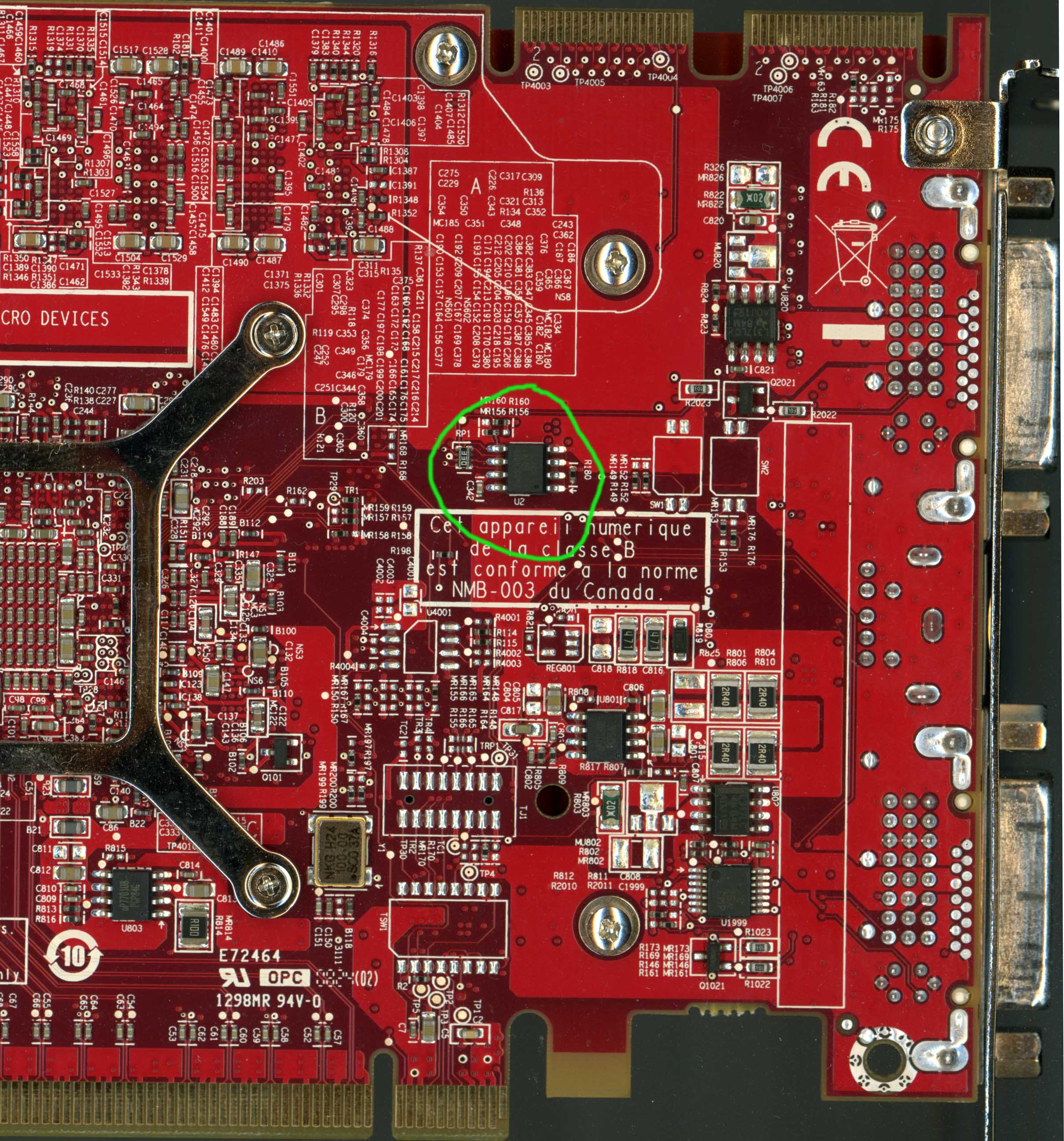

    Rom chip location on Saphire 4870

    The area circled in green on the wide shot is made more legible on the tight shot. Please note no disassembley of card or fan is needed to see this particular chip. So it is hopefully the same on Mac one. Would be great to get a scan of back of Mac card, in high enough res to read the text on board.

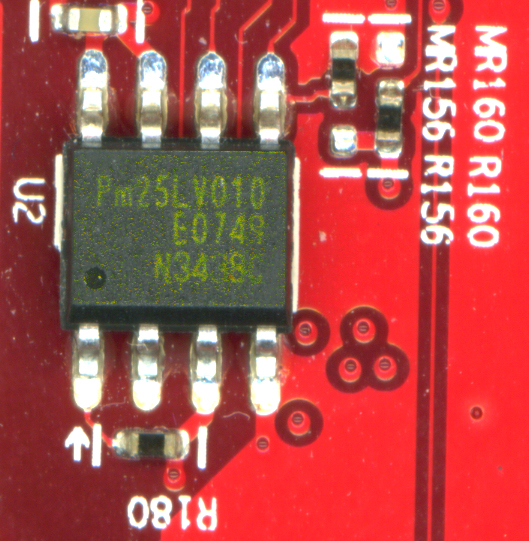

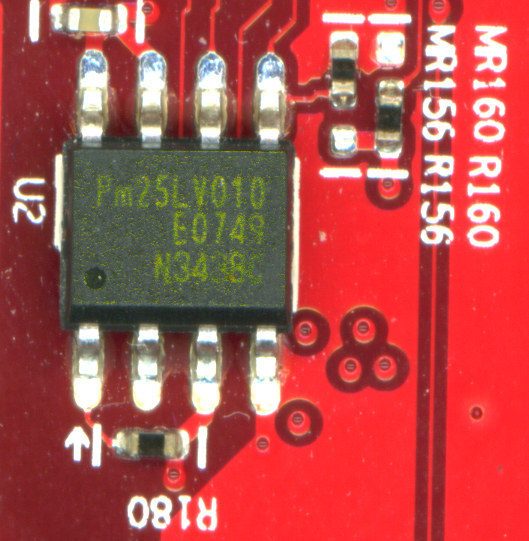

    This is a 128K ROM chip on a 4870 of the PC variety. Part number matches 128K item. (I have bumped it up in Photoshop to make it easily readable)

    Good news is I had a look at the PC 4870 ROM in Hexedit. There looks to be a standard ROM, a BUNCH of dead space, and then more code, followed by more dead space.

    Alltogether, the blank portion of ROM is between 20-30%. So, there may be space in there for EFI.


    Attached Files:

  2. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #27
    Oh that actually doesn't look so bad to desolder. If it had pins through the board it might've been a chore. Let's hope it fits within 128k and none of this is needed.

  3. icyderguru macrumors member

    Joined:
    Apr 20, 2008
    #28
    3870 Rom

    Hi,

    if someone got the 3870 Rom please upload it somewhere or send me an email supercard@gmx.at

    Already installed a larcher eeprom but the rom i got doesnt seem to work...

    Thanks

  4. MacVidCards thread starter Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #29
    I do believe that the original dumps of 3870 ROM were done viz GPU-Z in WIndows and thus did NOT contain the EFI Mac part.

    There were later dumps of the ROM from DOS which got the whole thing.

    You should dig through the threads on the 3870.

    But you have illustrated my point that as people get their Mac Pro '09s with 4870, they will likely need to use ATIFlash in DOS to dump the WHOLE Mac EFI ROM .

    Good luck with the 3870 !

    So...again...who is gonna be first to post a Mac 4870 ROM?

  5. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #30
    I hope we don't have to wait until the first upgrade kit 4870's like mine ship in april to get the ROM.

  6. macz1 macrumors 6502

    macz1

    Joined:
    Oct 28, 2007
    #31
    I don't think so. The first 2009 Mac pros ordered with a built-in HD 4870 should arrive this week...

  7. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #32
    I just hope those who have ordered them BTO have the will/interest to do the work to extract the rom. ;)

  8. MacVidCards thread starter Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
  9. Tallest Skil macrumors P6

    Tallest Skil

    Joined:
    Aug 13, 2006
    Location:
    1 Geostationary Tower Plaza
    #34
    Yes? Come on, it's a piece of plastic.

    WonderSausage just got his. PM him and bother him. :p:D

  10. dannymarr macrumors member

    Joined:
    Jun 23, 2008
    Location:
    Sydney, Australia
    #35
    Poor guy. He's going to get alot of PMs :D.

  11. MacVidCards thread starter Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #36
    How to Dump ROM

    This guy gave a great tutorial for creating a DOS CD.

    I did this and it works fine from a CD.

    http://forums.macrumors.com/showpost.php?p=5001145&postcount=109

    Then you will need ATI Flash to put on the root of some drive you use in bootcamp:

    http://www.techpowerup.com/downloads/1123/ATIFlash_3.60.html

    If the Mac 4870 is only card in, type "ATIFLASH -s 0 mac4870.rom"

    It should verify that a certain number of bytes have been saved.

    Reboot into OSX or Windows and retrieve the file.

    I think you will need to ZIP it to attach here.

    If you don't want to post, PM me.

  12. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #37
    What if your bootcamp drive has an NTFS file system? You're not going to be able to see it with DOS.

  13. grue macrumors 65816

    Joined:
    Nov 14, 2003
    Location:
    Somewhere.
    #38
    This is why I really, really like having a "Neutral Ground" FAT32 partition of about 15GB where I can put files that any OS can deal with.

  14. bozz2006 macrumors 68030

    bozz2006

    Joined:
    Aug 24, 2007
    Location:
    Minnesota
    #39
    Samesies!

  15. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #40
    Couldn't you stick atiflash on a bootable usb drive? Or can you only boot from discs?

  16. cured.not.dried macrumors member

    Joined:
    Nov 23, 2008
    #41
    i don't think the macpro will boot from a usb stick... i tried it with the 9800... it was a no go.



    now i'm a total noob at dos; do you just boot from a blank fat32 partition or do you hafta install xp on it? does formatting it with bootcamp install dos?

  17. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #42
    You have to burn the DOS files onto a CD instead of a floppy disk. Boot from the CD and voila you're running DOS. You'll need an FAT formatted partition to run atiflash and save the ROM.

  18. bozz2006 macrumors 68030

    bozz2006

    Joined:
    Aug 24, 2007
    Location:
    Minnesota
    #43
    barefeats reports that there have been successful instances of the 4870 running on the 1,1 mac pro. i hope so! Just shelled out a few bucks to upgrade the processors, now i guess i'll start saving for the 4870 if it does work with the mac pro classic.

  19. Ronchande macrumors member

    Joined:
    Jan 7, 2009
    #44
    Do you have a link? Would be fantastic news :).

  20. bozz2006 macrumors 68030

    bozz2006

    Joined:
    Aug 24, 2007
    Location:
    Minnesota
    #45
    It's on the front page of barefeats website

    "We've heard from a reliable source that it has successfully run on the first generation Mac Pro. We'll be giving that a test and report next week."

  21. tobyg macrumors 6502a

    Joined:
    Aug 31, 2004
    #46
    If that's true, I'll get to squeeze a bit more life out of my old 2.66 quad. That would be excellent news.

  22. MacVidCards thread starter Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #47
    Yay!!!

    I have been hopeful that 4870 "not working" was Apple's way of selling more '09's.

    But this just makes me REALLY hopeful that someone will find time in the near future to dump the 4870 ROM in DOS. I have a PC 4870 here waiting.....

    If there is someone in LA/Hollywood area with the 4870 and a machine...I would be happy to bring over the DOS CD and a FAT32 drive. Whole process takes under 3 minutes.

  23. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #48
    Any luck PM'ing the guys who already have their new mp's?

  24. MacVidCards thread starter Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #49
    I PM'd Wonder Snausage but no answer thus far.

    Who else has a 4870?

    Even if someone is unwilling to do a ROM dump, it would be great if someone would scan back of their card, or post pix of it OUT of machine.

  25. mackmack macrumors member

    Joined:
    Mar 3, 2009
    #50
    April 22nd can't come soon enough then. :p
