Turned on XDR by PS5, with 4K@60Hz!

zebomedia said:
Have you had any luck with this? I'm having the same issue
Click to expand...
I’m still running on my set up though I’ve recently added a KVM to make it even easier to switch inputs. The KVM is capped to 60hz and 4K but that’s fine with the XDR since it shares the hz limit.

As for the issues, the only thing I can add is that my HDMI settings are all enabled in the PS5 system settings.

Recscue said:
I’m still running on my set up though I’ve recently added a KVM to make it even easier to switch inputs. The KVM is capped to 60hz and 4K but that’s fine with the XDR since it shares the hz limit.

As for the issues, the only thing I can add is that my HDMI settings are all enabled in the PS5 system settings.
Click to expand...
Can you share which KVM? Thanks.

Wondering if it matters which port you use on the back of the XDR as well as whether the cable must NOT be a thunderbolt cable

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
secretone said:
Wondering if it matters which port you use on the back of the XDR as well as whether the cable must NOT be a thunderbolt cable?
Click to expand...
Only one port on the XDR can be used for DisplayPort+USB or Thunderbolt input. Some Thunderbolt cables can do non-Thunderbolt signals (non-active or short Thunderbolt 3 cables or Thunderbolt 4 cables or Apple's Thunderbolt 3 Pro cable).

I have my PS5 working with my XDR @4k using the following.

www.amazon.com

Monoprice Bidirectional USB Type-C to DisplayPort 1.4 Cable - 4K@60Hz, Easy Plug and Play, Nylon-Braided Jacket, 6 Feet, Black

No longer will you be limited by the direction of your cable! This Bidirectional USB-C to DisplayPort Cable allows you to connect your legacy DisplayPort devices to your newest USB-C enabled display or between a new USB-C enabled device to a DisplayPort display.
www.amazon.com
www.amazon.com

gofanco Prophecy HDMI 2.0 to DisplayPort 1.2 Converter (HDMI Source to DP Monitor) - 4K @60Hz 4:4:4 - HDCP 2.2/1.4 - Toslink and Stereo Audio Extractor, TAA Compliant (PRO-HD2DP)

www.amazon.com

This is all awesome stuff, but I would like to avoid swapping the cables on the XDR so much between my Mac and the PS5. I saw that using @Recscue had success with this extension

www.amazon.com

USB4 Extension Cable 2.62Ft, Thunderbolt 3 & 4 Extension Cable, USB C 4.0 Support PD 100W 20V5A, 40Gbps Transfer, 8K@60Hz, 6K/4K@60Hz Video for Dell/HP/Anker Dock, MacBook, iMac, Dell XPS, Intel NUC

USB4 Extension Cable 2.62Ft, Thunderbolt 3 & 4 Extension Cable, USB C 4.0 Support PD 100W 20V5A, 40Gbps Transfer, 8K@60Hz, 6K/4K@60Hz Video for Dell/HP/Anker Dock, MacBook, iMac, Dell XPS, Intel NUC
www.amazon.com

But I am curious if anyone has had any luck with this device? Switching between Mac and PS5?

www.amazon.com

CABLEDECONN USB-C Type-C 8K Updated Switch USB 3.1 C Gen 2 Cable for Video Bi-Direction 8K@30Hz 4K@120Hz Power Delivery 100w 10Gbps Data Transfer Splitter Converter ¡

1. Connect two sources to the port "USB-C 1" and port "USB-C 2" 2. Connect the display from the Supplied and Fixed USB-C Cable on the switch. 3. Power the switch with the supplied USB to DC cable 1.Connect the source from the supplied and Fixed USB-C cable on the switch. 2. Connect...
www.amazon.com

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
zebomedia said:
Have you had any luck with this? I'm having the same issue
Click to expand...
Are you able to go past it? I ordered the same combo as Recscue suggested though haven't received it yet. Just wanted to know how likely it is to face/go past this issue. Thanks in advance.

Last edited:
Hi all, recent purchaser of the Apple Studio Monitor and PS5 and trying to get these to play nice with each-other haha.

Was hoping to buy the below combo to get this working; however, both products are now unavailable (indefinitely it seems):

Has anyone found another converter that works similarly, or another solution altogether? Would be eternally grateful for any insight here!!

Thanks in advance!

Hjupter Cerrud said:
I'm currently looking for some options to do this as well.
Since the gofance converter is no longer available I wonder if something similar like this would work

https://www.amazon.com/SIIG-DisplayPort-1080p144Hz-Protection-CE-H26A11-S1/dp/B08PVWRJ8Q/ref=sr_1_28?crid=381UW2LH4AAV9&keywords=HDMI+2.0+to+DisplayPort+1.2+Converter+4k&qid=1672443186&s=electronics&sprefix=hdmi+2.0+to+displayport+1.2+converter+4k,electronics,120&sr=1-28&ufe=app_do:amzn1.fos.f5122f16-c3e8-4386-bf32-63e904010ad0
Click to expand...
Here's a list of their converters:
https://www.siig.com/av-products/converters/hdmi-to/displayport.html

This one is older and has dip switches to select and EDID, like the original gofanco:
https://www.siig.com/hdmi-2-0-to-displayport-1-2-converter-4kx2k-60hz.html

The one you linked has an EDID learning mode like the newer gofanco so maybe that will be useful, compared to the other HDMI to DisplayPort adapters.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: pbridge354
For those who got their PS5 to display on their Apple Studio Display, how's the resolution like? Have you noticed the display not being sharp due to 4k being displayed on a 5k display?

toniwonkanobi said:
Anyone have an update on this? :)
Click to expand...
I have an update (as of March 7, 2024) - I found a solution that works for both my Apple Pro Display XDR and my (previously sold by Apple) LG 5K monitor.

Background:

As noted in other posts, there are two (2) components needed to connect a PS5 to a Apple Pro Display XDR:

1) The CableCreation 8K Bi-Directional USB C to DisplayPort Cable (available from Amazon, which I purchased) and,

2) An HDMI to DisplayPort (DP) converter - either from SIIG or Gofanco.

I've been searching the Internet for either the SIIG or Gofanco HDMI to DP converters mentioned in
previous posts in this thread. No luck.

I did recently find something which looked like it might work - the Gofanco PRO-HDMI2DP and bought that to
try out.

Testing:

Note: The PRO-HDMI2DP has 2 dip switches that have to be set for the resolution and refresh rate you want (the included manual provides the setting choices/options).

Nintendo Switch
First, I changed the PRO-HDMI2DP switch settings to 1080p 60Hz and I connected my Nintendo Switch/docking unit to the PRO-HDMI2DP and connected my LG 5K monitor - after a few seconds the LG monitor showed the Switch main menu. I was able to play a couple of games on my LG monitor. I then connected my Switch and XDR and was able to do the same.

My setup was:

Switch dock HDMI Out to PRO-HDMI2DP HDMI In.
CableCreation 8K cable DisplayPort into PRO-HDMI2DP DisplayPort.
CableCreation 8K cable USB Type C into monitor (LG 5K or XDR) USB Type C.

PS5
Next, I changed the PRO-HDMI2DP switch settings to 4096x2160 60Hz and connected my PS5 & XDR to the PRO-HDMI2DP & CableCreation 8K cable and again, after a short delay (some seconds), the XDR had the PS5 menu showing. I was able to also play a couple of PS5 games on my XDR. I didn't test the LG 5K monitor with the PS5. I also did not spend any extended time playing on either monitor - I didn't see any glitches in my brief test (about 20 minutes).

BTW - for sound, I connected the PRO-HDMI2DP audio Out to my: Sonos Port - the Sonos Port is joined with my 2 Sonos Move speakers.

I am sufficiently happy with how this setup works and very glad to finally play my PS5 games on my XDR!

Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: thv
Chesapeaked said:
I have an update (as of March 7, 2024) - I found a solution that works for both my Apple Pro Display XDR and my (previously sold by Apple) LG 5K monitor.

Background:

As noted in other posts, there are two (2) components needed to connect a PS5 to a Apple Pro Display XDR:

1) The CableCreation 8K Bi-Directional USB C to DisplayPort Cable (available from Amazon, which I purchased) and,

2) An HDMI to DisplayPort (DP) converter - either from SIIG or Gofanco.

I've been searching the Internet for either the SIIG or Gofanco HDMI to DP converters mentioned in
previous posts in this thread. No luck.

I did recently find something which looked like it might work - the Gofanco PRO-HDMI2DP and bought that to
try out.

Testing:

Note: The PRO-HDMI2DP has 2 dip switches that have to be set for the resolution and refresh rate you want (the included manual provides the setting choices/options).

Nintendo Switch
First, I changed the PRO-HDMI2DP switch settings to 1080p 60Hz and I connected my Nintendo Switch/docking unit to the PRO-HDMI2DP and connected my LG 5K monitor - after a few seconds the LG monitor showed the Switch main menu. I was able to play a couple of games on my LG monitor. I then connected my Switch and XDR and was able to do the same.

My setup was:

Switch dock HDMI Out to PRO-HDMI2DP HDMI In.
CableCreation 8K cable DisplayPort into PRO-HDMI2DP DisplayPort.
CableCreation 8K cable USB Type C into monitor (LG 5K or XDR) USB Type C.

PS5
Next, I changed the PRO-HDMI2DP switch settings to 4096x2160 60Hz and connected my PS5 & XDR to the PRO-HDMI2DP & CableCreation 8K cable and again, after a short delay (some seconds), the XDR had the PS5 menu showing. I was able to also play a couple of PS5 games on my XDR. I didn't test the LG 5K monitor with the PS5. I also did not spend any extended time playing on either monitor - I didn't see any glitches in my brief test (about 20 minutes).

BTW - for sound, I connected the PRO-HDMI2DP audio Out to my: Sonos Port - the Sonos Port is joined with my 2 Sonos Move speakers.

I am sufficiently happy with how this setup works and very glad to finally play my PS5 games on my XDR!
Click to expand...
Wow! Glad that's all working out nicely. I'll definitely have to check in on this. I bought all the stuff, but haven't gotten them time to just plug it in and try it.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Chesapeaked said:
I have an update (as of March 7, 2024) - I found a solution that works for both my Apple Pro Display XDR and my (previously sold by Apple) LG 5K monitor.

Background:

As noted in other posts, there are two (2) components needed to connect a PS5 to a Apple Pro Display XDR:

1) The CableCreation 8K Bi-Directional USB C to DisplayPort Cable (available from Amazon, which I purchased) and,

2) An HDMI to DisplayPort (DP) converter - either from SIIG or Gofanco.

I've been searching the Internet for either the SIIG or Gofanco HDMI to DP converters mentioned in
previous posts in this thread. No luck.

I did recently find something which looked like it might work - the Gofanco PRO-HDMI2DP and bought that to
try out.

Testing:

Note: The PRO-HDMI2DP has 2 dip switches that have to be set for the resolution and refresh rate you want (the included manual provides the setting choices/options).

Nintendo Switch
First, I changed the PRO-HDMI2DP switch settings to 1080p 60Hz and I connected my Nintendo Switch/docking unit to the PRO-HDMI2DP and connected my LG 5K monitor - after a few seconds the LG monitor showed the Switch main menu. I was able to play a couple of games on my LG monitor. I then connected my Switch and XDR and was able to do the same.

My setup was:

Switch dock HDMI Out to PRO-HDMI2DP HDMI In.
CableCreation 8K cable DisplayPort into PRO-HDMI2DP DisplayPort.
CableCreation 8K cable USB Type C into monitor (LG 5K or XDR) USB Type C.

PS5
Next, I changed the PRO-HDMI2DP switch settings to 4096x2160 60Hz and connected my PS5 & XDR to the PRO-HDMI2DP & CableCreation 8K cable and again, after a short delay (some seconds), the XDR had the PS5 menu showing. I was able to also play a couple of PS5 games on my XDR. I didn't test the LG 5K monitor with the PS5. I also did not spend any extended time playing on either monitor - I didn't see any glitches in my brief test (about 20 minutes).

BTW - for sound, I connected the PRO-HDMI2DP audio Out to my: Sonos Port - the Sonos Port is joined with my 2 Sonos Move speakers.

I am sufficiently happy with how this setup works and very glad to finally play my PS5 games on my XDR!
Click to expand...

Do you know if this supports HDR?

Currently using an Elgato HD60 X to connect my PS5 to my Mac and play via OBS preview, works very well with hardly any latency (but probably not for FPS games)... but it doesn't support HDR (this is a Mac issue, not supporting HDR on USB capture devices). So might switch to this solution if it supports HDR 🤞

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
nickday said:
Do you know if this supports HDR?

Currently using an Elgato HD60 X to connect my PS5 to my Mac and play via OBS preview, works very well with hardly any latency (but probably not for FPS games)... but it doesn't support HDR (this is a Mac issue, not supporting HDR on USB capture devices). So might switch to this solution if it supports HDR 🤞
Click to expand...
@nickday It does not support HDR on the XDR. It is an HDMI 2.0 to DP 1.2 converter. I believe HDR requires DP 1.4.

Any update on this topic? I’d love to get 4K & HDR from my PS5 Pro to the XDR display, but it seems that would need a HDMI 2.1 to DP 1.4 converter.

Since all the HDMI -> Displayport 1.2 converter products posted here are "out of stock".

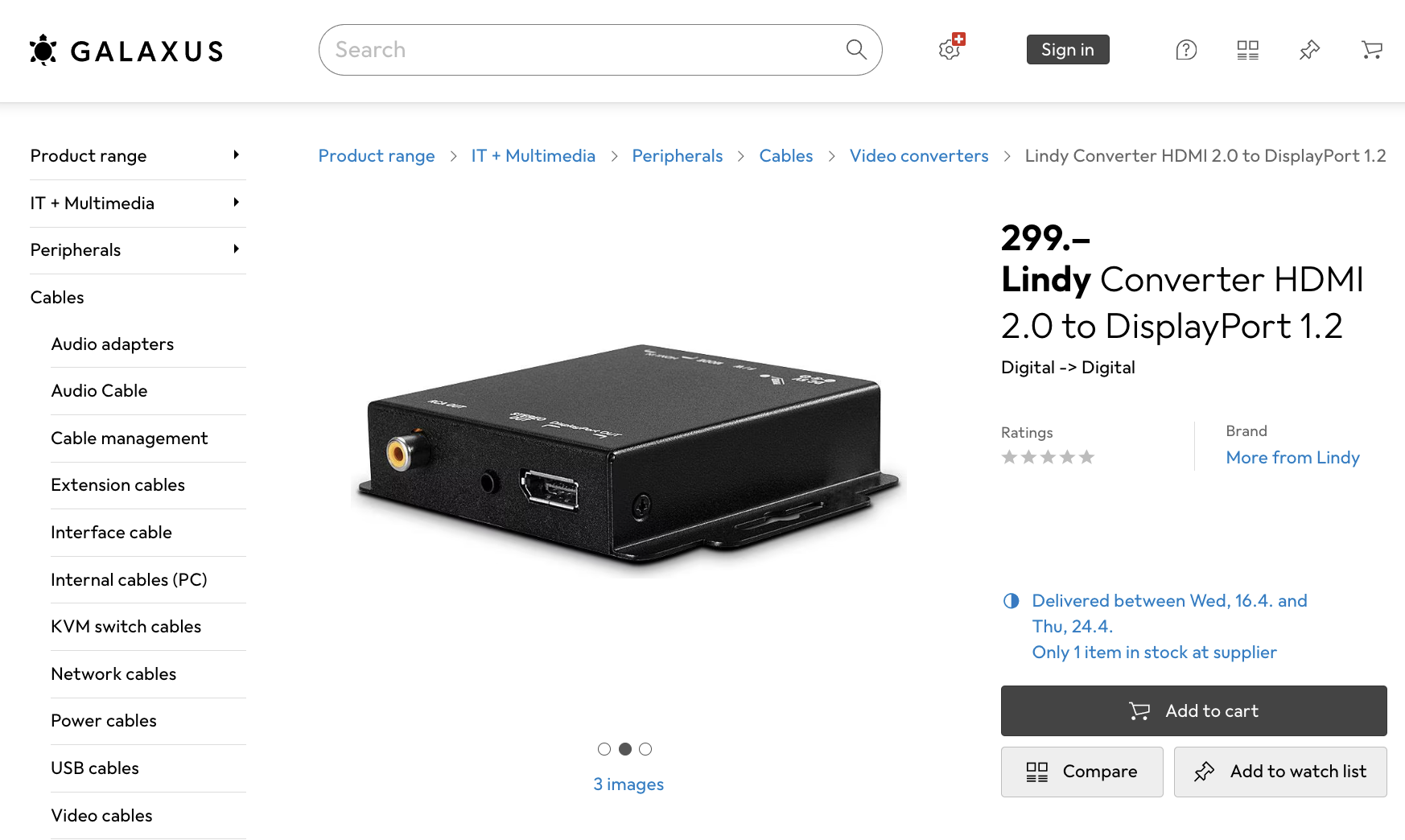

I found this one (works): https://www.galaxus.ch/en/s1/produc...-12-digital-digital-video-converters-11219794


c.oberschneider said:
Any update on this topic? I’d love to get 4K & HDR from my PS5 Pro to the XDR display, but it seems that would need a HDMI 2.1 to DP 1.4 converter.
Click to expand...

Mcrumors David said:
Since all the HDMI -> Displayport 1.2 converter products posted here are "out of stock".
I found this one (works): https://www.galaxus.ch/en/s1/produc...-12-digital-digital-video-converters-11219794

View attachment 2498654
Click to expand...

Is there one of these things that is DisplayPort 1.4 so we can have HDR?
