Turned on XDR by PS5, with 4K@60Hz!
- Thread starter henrymyf
- Start date
- Sort by reaction score
The ones listed here / the ones I found are 1.2 only.
Not recommended: 4k HDR is possible with this thing (! has a noticeable latency): https://www.elgato.com/us/en/p/game-capture-4k-x
Ouch, that's expensive! Can you confirm you're getting HDR content on the XDR display with this converter? I'm a bit skeptical to be honest.
I have the 4K X, HDR is not working. Latency is not an issue when using the Elgato with the app Console Link, which BTW also works great on the iPad! But as mentioned, HDR is not supported.
MacOS + Capture Card (any it seems) do NOT support HDR!
-> https://help.elgato.com/hc/en-us/ar...ns-and-Frame-Rates#01HRZ5JFPAWNJWNKT0DATZ122X
"HDR capture is not available for macOS, as macOS does not support the required video codec. HDR passthrough via HDMI is available. HDR video will be converted to SDR by 4K X before going to your Mac."
*Latency is 100% an issue when playing FPS (even Black Myth Wukong is hard-er to play because of the, yes small, latency)
Last edited:
Just seen there’s now a version of the Startech cable that does DP 1.4 - so this should support 4k and HDR right?
www.startech.com
1ft (30cm) HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, US
HDMI to DisplayPort Adapter, 8K 60Hz, Active Video Converter
www.startech.com
Looks promising!Just seen there’s now a version of the Startech cable that does DP 1.4 - so this should support 4k and HDR right?
1ft (30cm) HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, US
HDMI to DisplayPort Adapter, 8K 60Hz, Active Video Converter
Interesting. I think the CAC-1336 uses the LT6711GX-U2 and the Startech uses the LT6711GX-U3?Just seen there’s now a version of the Startech cable that does DP 1.4 - so this should support 4k and HDR right?
1ft (30cm) HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, US
HDMI to DisplayPort Adapter, 8K 60Hz, Active Video Converter
https://insights.club-3d.com/thread/hdmi-2-1-to-usb-c-displayport-1-4-alt-mode/
https://insights.club-3d.com/thread/cac-1336-operation/
https://www.reddit.com/user/hubsdocks/
I've ordered the Startech HDMI 2.1 to DP 1.4 cable & 2 bidirectional USB-C / DP 1.4 cables from Cable Matters and Startech. Will let you know if it works on Wednesday, but to be honest I don't have much hope. It's worth trying nevertheless!
Has anyone here tried this Delock HDMI-A male to USB Type-C female (DP Alt Mode) 8K adapter? https://www.delock.de/produkt/64212/merkmale.html?setLanguage=en
The data sheet doesn't specify which version of the Lontium LT6711GX is used though.
Edit: HDMI 2.1 confirmed by Delock support.
Placed an order and will report back.
The data sheet doesn't specify which version of the Lontium LT6711GX is used though.
Edit: HDMI 2.1 confirmed by Delock support.
Placed an order and will report back.
Last edited:
Just tried this one with a DP 1.4 - USB-C bidirectional cable, doesn't work, XDR display won't turn on.Just seen there’s now a version of the Startech cable that does DP 1.4 - so this should support 4k and HDR right?
1ft (30cm) HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, US
HDMI to DisplayPort Adapter, 8K 60Hz, Active Video Converter
What about a DP + USB 2.0 to USB-C cable?
https://forums.macrumors.com/threads/alternative-to-the-belkin-vr-cable.2378619/
I think I'll let someone else give that a try, I've ordered (and sent back) way too many cables and adapters lately 😁
Not working either...that's it, I give up, maybe someone else will find a working solution.

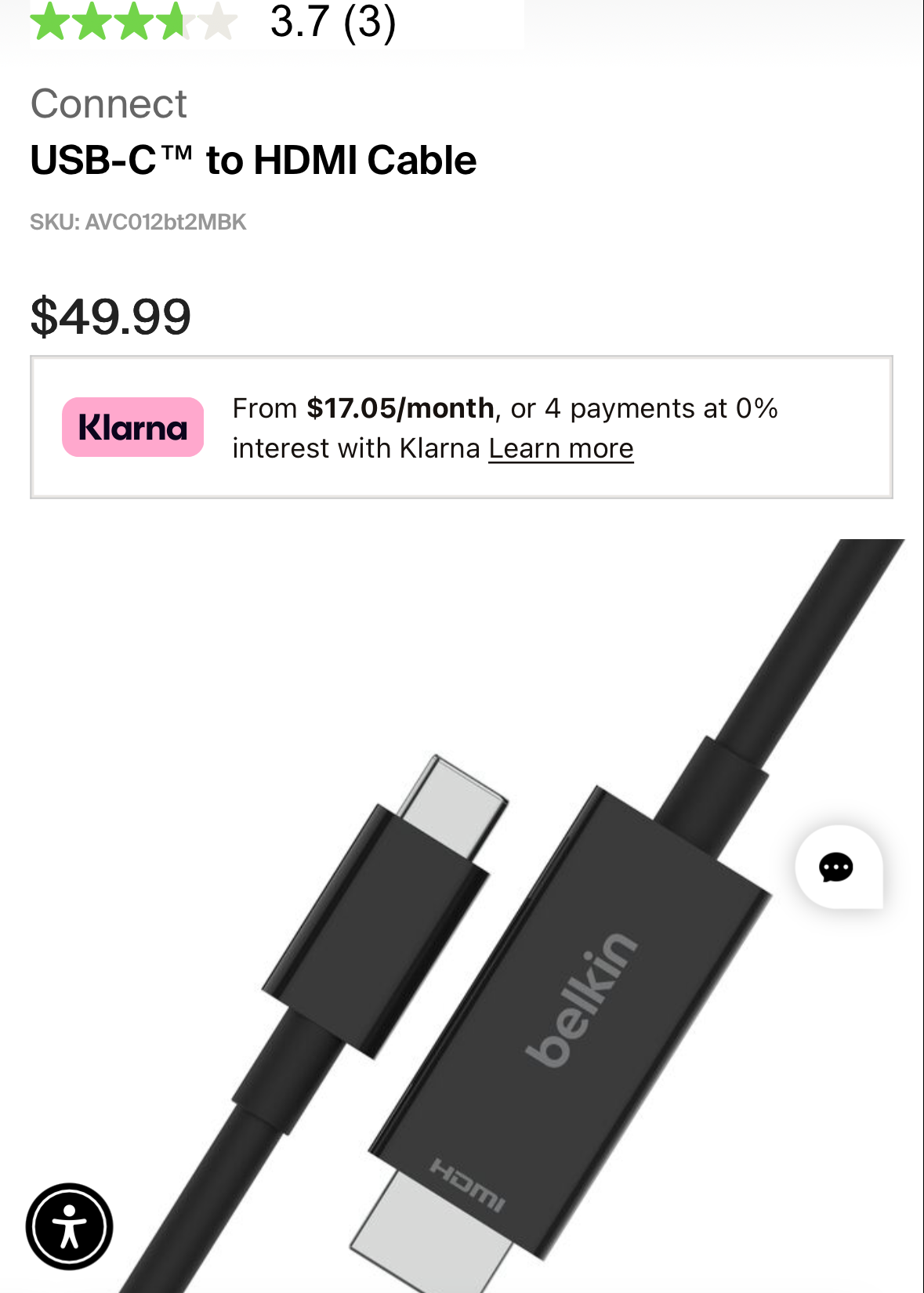

I'm giving it another shot and just ordered the Belkin Charge and Sync Cable that's supposed to work with the PS5 in combination with an HDMI/DP converter. Fingers crossed...
And it works! Only in 1080p though, the screen flickers when using 1440p. HDR looks fantastic!
One small step ..., small success on the road to victory🎥
To make sure, you have what exact config?
- Belkin charge and sync (as seen below)
- What else?
My setup:
PS 5 Pro - HDMI/DP adapter - Belkin VR cable (https://www.vopmart.com/belkin-char...X7w9QAFwvJXcHDin0UHTKH14rhpWs19HNCjTigOMn890t) - XDR
These are the two HDMI/DP adapters I tried:
The DeLock 64213 (https://www.delock.com/produkt/64213/merkmale.html?f=s) and the StarTech 148B (https://www.startech.com/en-at/display-video-adapters/148b-hdmi-dp-8k). The StarTech seems to use a newer version (U3) of the Lontium LT6711GX than the DeLock, though both work exactly the same with the XDR.
So the best you can get with this current dongle setup is 1080p, but with HDR?
Been a while since I checked in here. So the old Chinese adapter dongle things from Amazon that we were all using a few years back are no longer available, and because of that, no more 4K on the XDR?
