Building external GPU's on Mac (eGPU)

Discussion in 'Mac Accessories' started by Synchro3, Jun 20, 2015.

  1. gasklep macrumors newbie

    Joined:
    Mar 27, 2016
    Location:
    Netherlands
    #101
    Can some one please make something to get this done automatically? I am no programmer or script kiddy and after 4 hours of trying i'm giving up.....
    I just cant get through the authorization part to change the kext files. I am in native mode, I switched of the SIP, I have set authorization for myself in show info...
    I just want to get this stupid GTX960 working on my late I7 2014 Mac Mini......

  2. gasklep macrumors newbie

    Joined:
    Mar 27, 2016
    Location:
    Netherlands
  3. jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #105
    You’re welcome!

    I should mention: You’ll have to uninstall and reinstall that script after each OS X upgrade, minor and major. To uninstall, cd into where you have automate-eGPU.sh stored and enter:
    sudo ./automate-eGPU.sh -uninstall
    To install, cd into where you have automate-eGPU.sh stored and enter: sudo ./automate-eGPU.sh

    I discovered that my eGPU wasn’t working properly after the OS X 10.11.4 upgrade, and after that, I also found out that I needed a newer Nvidia driver for OS X 10.11.4. So, I uninstalled and reinstalled the script. Now my eGPU works even better than before. Instead of hovering around 84˚ C, my MacBook’s CPU hovers around 74˚ C, and that’s with the High graphics settings in StarCraft II: Legacy of the Void. I might be able to kick it up to Ultra, but I don’t want to stress out my MacBook’s CPU.

  4. gasklep macrumors newbie

    Joined:
    Mar 27, 2016
    Location:
    Netherlands
    #106
    Good to know!
    I used your script and I can confirm it is working! At first I had to find out that the script had to be in my personal folder to get it started but after that it worked. Sorry, im not a programmer ;)
    Thanks!

  5. jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #107
    By the way, I didn't write that script; it was written by Goalque.

  6. gasklep macrumors newbie

    Joined:
    Mar 27, 2016
    Location:
    Netherlands
    #108
    Ow... :)

    So now my GTX960 works on de Mac side of my 2014 mini but unfortunately on the windows 10 bootcamp side it is not working anymore since I re-installed Mac OS. I reinstalled the mini because older and upgraded OS's could give problems. So I formatted the complete HD and re installed El Capitan. After that I ran the script to check if the GTX960 would run on Mac OS and it did. After that I re installed win10 on bootcamp, just as I had before I formatted the HD. But now every time i want to start win10 with the Thunderbold connector from the Akitio connected windows crashes at startup, restarts, tries to repair itself but does not succeed. When I start win10 without the Akitio connected it starts like normal. When I connect the cable with win10 already running it does not recognize the GTX960 and it does not work.......
    i know this is not a windows forum but has anyone experienced the same?

    Mac Mini I7 16gig Intel Iris
    Akitio box with external power supply
    Asus GTX960

  7. v3nom macrumors member

    Joined:
    Jul 30, 2010
    #109
    - turn on Mac
    - press and hold Alt key
    - wait for boot chime and boot selection
    - wait for WiFi search to finish
    - turn on the eGPU
    - wait 2sec
    - boot windows

  8. gasklep macrumors newbie

    Joined:
    Mar 27, 2016
    Location:
    Netherlands
    #110
    Thanks for the tip but it is not working for me... When I do this I got a ACPI BIOS error after choosing the windows 10 partition.
    Its now the 3rd time I re-install windows 10 and every time it goes wrong.

    Maybe you guys need to know a bit of history of my Mini. About a month ago I installed win10 for the first time to be able to play some games. Because the GPU performance was a bit poor I bought the Akitio with a Asus GTX960. The installation was no problem and it was running great on win 10. After a while I wanted it to use on OSX also but that didn't work. While trying to get it running I had to change my display DVI plug a lot from the Akitio and the DVI - Thunderbolt adapter. I don't know what happened but at some point my Thunderbolt ports stopped working. I tried every reset method but the ports did not respond anymore. So I brought it to Apple and they repaired it by resetting the Nvram. I thought that was odd because I had done that a few times already. When I tried it at home with my DVI - thunderbolt adapter it still didn't work... But I found a HDMI - DVI cable and with that cable I got my display working without the adapter.
    At that point the windows 10 partition was already crashing when I plugged the Akitio in so I decided to completely re-install the Mini.
    The rest is history. The OSX installation works perfectly now with the Akitio and the GTX960 but Windows 10 is crashing all the time. Sometimes I get it starting with the Akitio plugged in but I never get to working with my display...
    At this moment I re-installed windows 3 times and tried 4 different drivers. 2 from Asus and 2 from Nvidia. (older and newer) In between I used the Guru uninstaller to clean the old drivers.

    Any idea? Can it be something they did at Apple? My DVI - thunderbolt adapter is still not working after all...

  9. bluecrash macrumors newbie

    bluecrash

    Joined:
    Apr 9, 2016
    #111

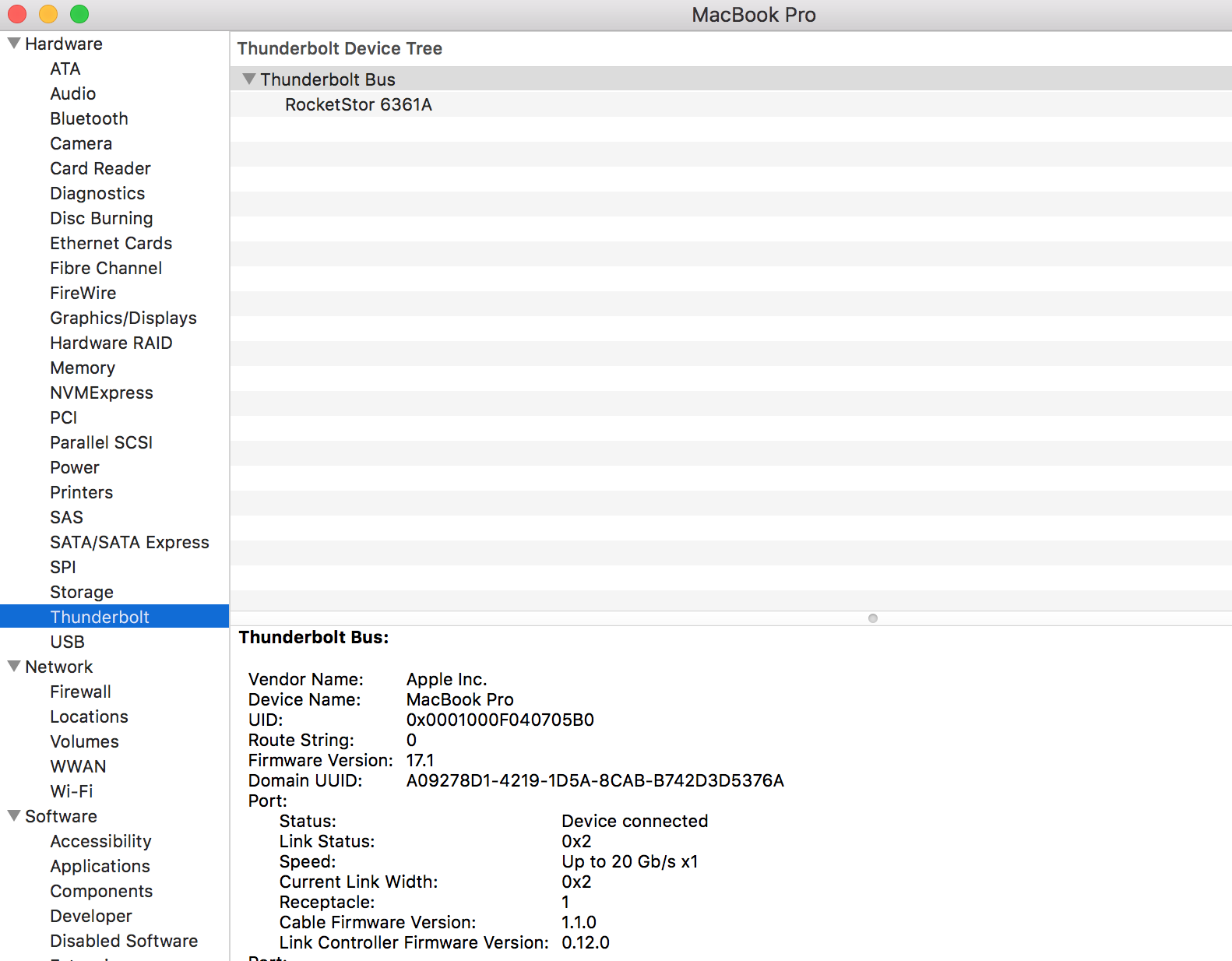

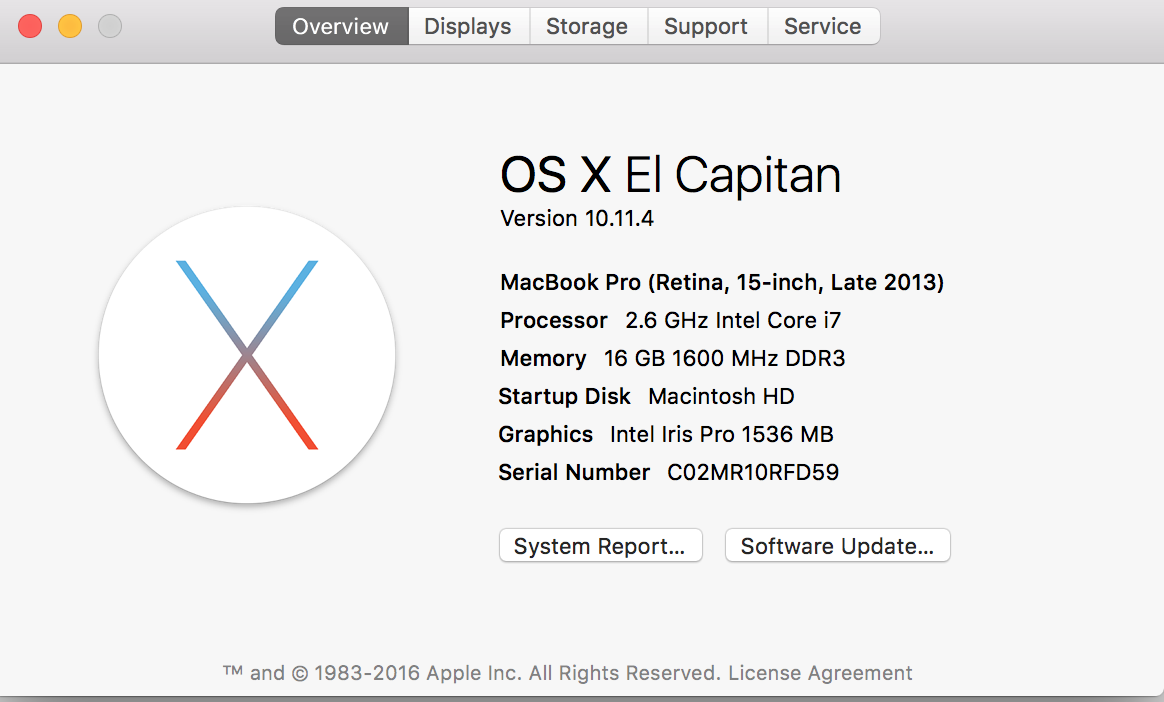

    I had my EGPU working prior to upgrading to the new OS.

    I ran the new Nvidia Webdriver and tried the new automate-eGPU.sh file from sudo but it no longer finds the card.

    Help?


    Attached Files:

  10. jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #112
    When you ran automate-eGPU.sh, did you let it download and install the Nvidia web drivers?

  11. jblagden, Apr 11, 2016
    Last edited: Apr 11, 2016

    jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #113
    QUOTE="jblagden, post: 22787453, member: 837945"] I had my EGPU working prior to upgrading to the new OS.

    Have you updated to the current version of the Nvidia web drivers via the Nvidia applet in System Preferences? [/QUOTE]

  12. bluecrash, Apr 11, 2016
    Last edited: Apr 11, 2016

    bluecrash macrumors newbie

    bluecrash

    Joined:
    Apr 9, 2016
    #114

    it no longer finds the card. but the web dirvers I installed manually from nvidia.
    --- Post Merged, Apr 11, 2016 ---
    [/QUOTE]


    yes

    got this working... I rolled back to my previous install - think I corrected power issue on the card as well.

    has anyone got a 980 working with El Capitan? Is there any advantage to upgrade?


    Attached Files:

  13. gasklep macrumors newbie

    Joined:
    Mar 27, 2016
    Location:
    Netherlands
    #115
    So, many tries later I switched back to win7 because I still could not get it working on win10.

    To my surprise I got the GTX960 working on win7 but when I start Project Cars the eGPU crashes after a few seconds. It even makes a scary sound when it drops dead...
    Any ideas to solve this??

  14. v3nom macrumors member

    Joined:
    Jul 30, 2010
    #117
    If you already consider a Sonnet III-D, why not get 4x AKiTiO Thunder2 and daisy chain them?

  15. TeaZy macrumors newbie

    Joined:
    May 6, 2010
    #118
    I'm not even sure if AKiTiO Thunder2 is available anymore in the UK?

    Any idea about the splitter?

  16. phillyboy82, May 3, 2016
    Last edited: May 3, 2016

    phillyboy82 macrumors regular

    phillyboy82

    Joined:
    Oct 27, 2015
    Location:
    Not from Philly
    #119
    I have a 2014 Mac Mini with an eGPU that I setup over the past week (modified Sonnet EE III-D w/ MSI GTX 970 4G Gaming). Using Windows 8.1 for boot camp right now. The only way I can get mine to work is to keep the thunderbolt cable unplugged until I get to the Windows login screen (or to your desktop). Then I plug the TB cable in and wait for the monitor/windows to recognize that I have a new card installed. I can then remove my HDMI conection and switch to the displayport connection that the eGPU outputs to.

    I have been able to play games and run the Unigine Heaven benchmark without issue. As a bonus my G-Sync display still recognizes that I have a NVIDIA card and enables G-Sync / ULMB as requested while in Windows. I wish I could enable ULMB in OS X, but it is what it is.

    I too was getting the ACPI_BIOS_ERROR during Windows startup; so far this is the only way I can get it to work in Windows. I am going to try Windows 10 again with this method to see if it works that way too, as I initially tried Windows 10 but had the same ACPI_BIOS_ERROR issue so I downgraded to 8.1.

  17. jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #120
    The splitter looks like a neat idea. Do you know how much it costs?

    That might be a good idea if I want to install a 1080p decoder card in my 1st generation Apple TV and keep the Wi-Fi card. The nice thing about the 1st generation Apple TV is its upgradeability: USB ports, mini PCIe slot and IDE. Admittedly, it can’t display 1080p video without a decoder card and it doesn’t have the streaming options that the newer models have. Though, it has Youtube (unlike the 2nd generation) and it can use local storage.

  18. Synchro3, May 26, 2016
    Last edited: Aug 31, 2016

    Synchro3 thread starter macrumors 68000

    Synchro3

    Joined:
    Jan 12, 2014
    #121

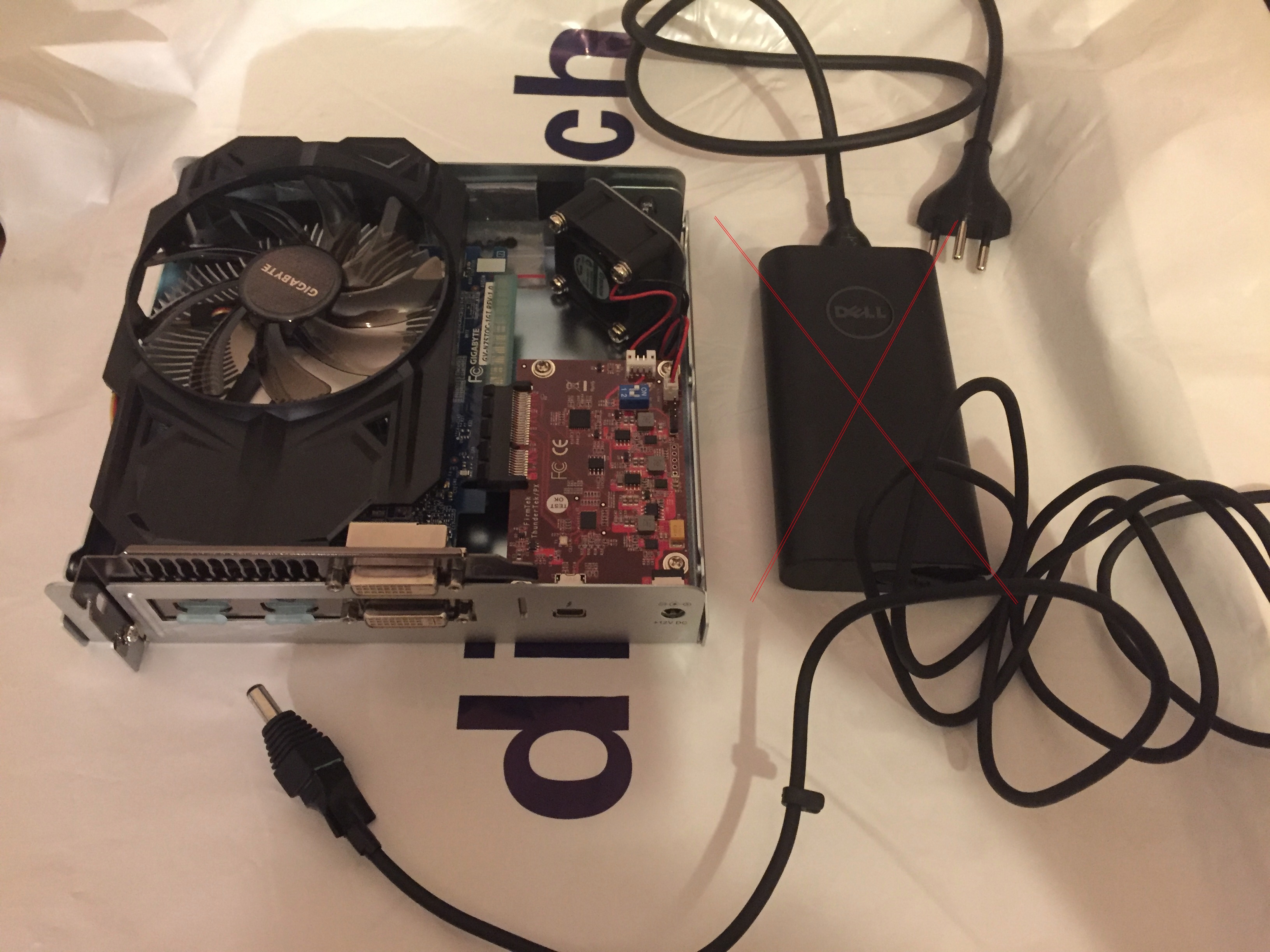

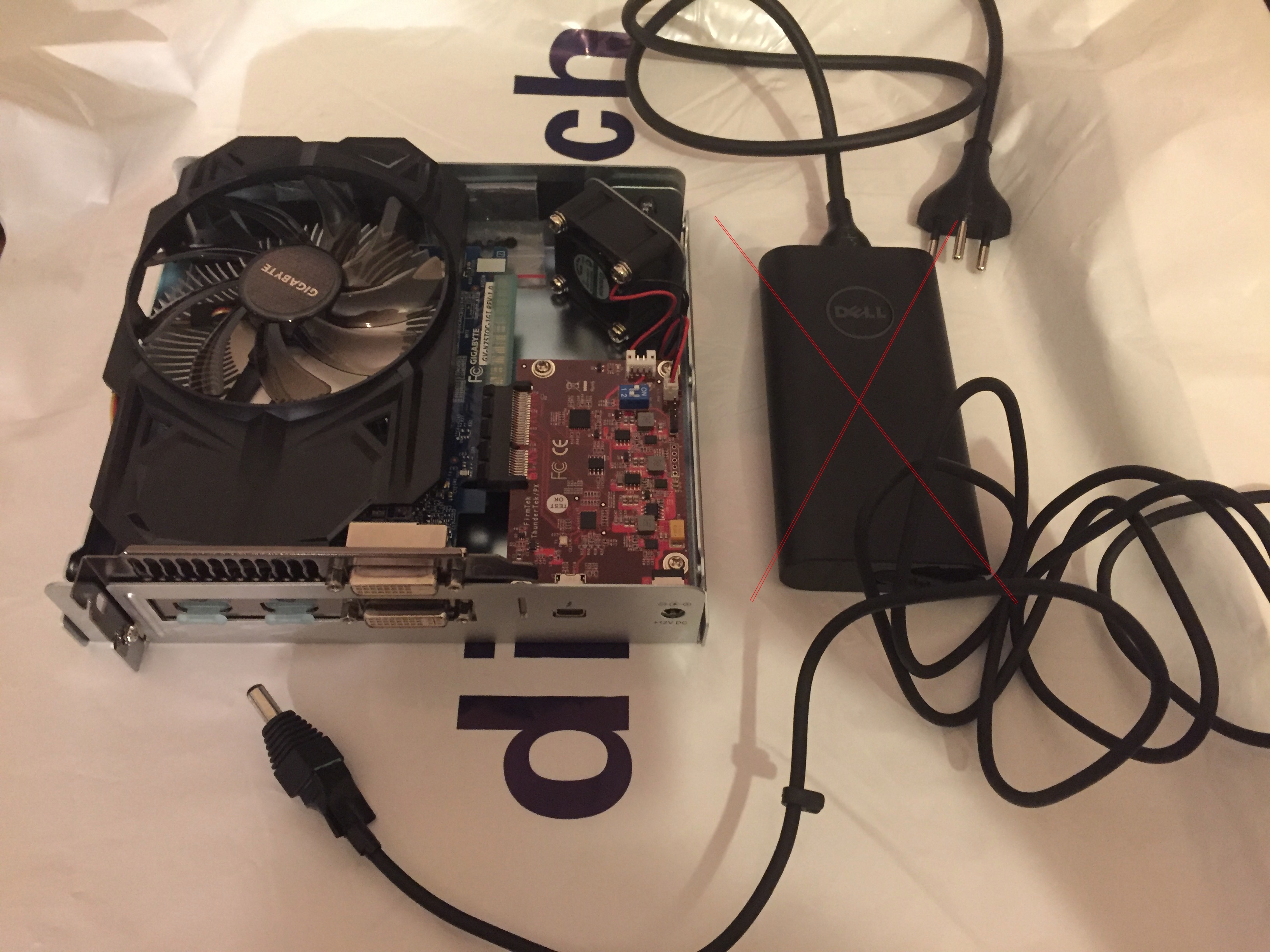

    Presenting a small and portable eGPU. GTX 750 Ti in a Thundertek/PX with a 90 Watt Dell laptop PSU.

    Update 2016.06.10: Ok, I fried the Thundertek/PX board and a GT 630 card, both broken. Definitively do not use the Thundertek/PX with a external Laptop PSU. Use instead the workaround with a powered riser cable as shown on the first page on this thread!


  19. jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #122
  20. Synchro3 thread starter macrumors 68000

    Synchro3

    Joined:
    Jan 12, 2014
    #123
    I bought the Thundertek/PX two years ago because I own only Thunderbolt 1 Macs. Until now (Macbook Pro 2012 and Mac Mini 2012).

  21. jblagden macrumors 65816

    jblagden

    Joined:
    Aug 16, 2013
    #124
    Thunderbolt 2 is backwards compatible with Thunderbolt 1. My 13" MacBook Pro is from 2011 and it works perfectly with the Akitio Thunder2.

  22. Synchro3, May 28, 2016
    Last edited: Nov 11, 2016

    Synchro3 thread starter macrumors 68000

    Synchro3

    Joined:
    Jan 12, 2014
    #125

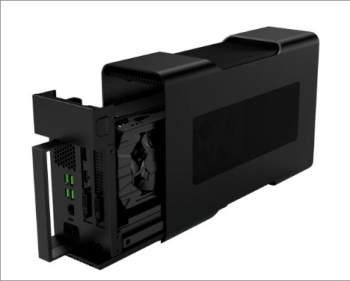

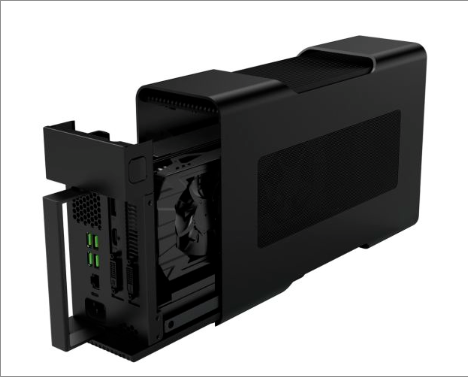

    I considered buying an Akitio, nice case. But I already have the Thundertek/PX. And as it appears, in the long term, I will skip Thunderbolt 2 and go directly to Thunderbolt 3 when it's time, e.g. Razer core if it's compatible with future Macs.

    Update 11.11.2016: The Razer Core does NOT work with the new Macbook Pro 2016! http://forum.netkas.org/index.php/topic,11654.0.html
