iBook G4 won't latch correctly

Discussion in 'PowerPC Macs' started by AL1630, Jun 16, 2017.

  1. AL1630 macrumors regular

    AL1630

    Joined:
    Apr 24, 2016
    Location:
    Idaho, USA
    #1

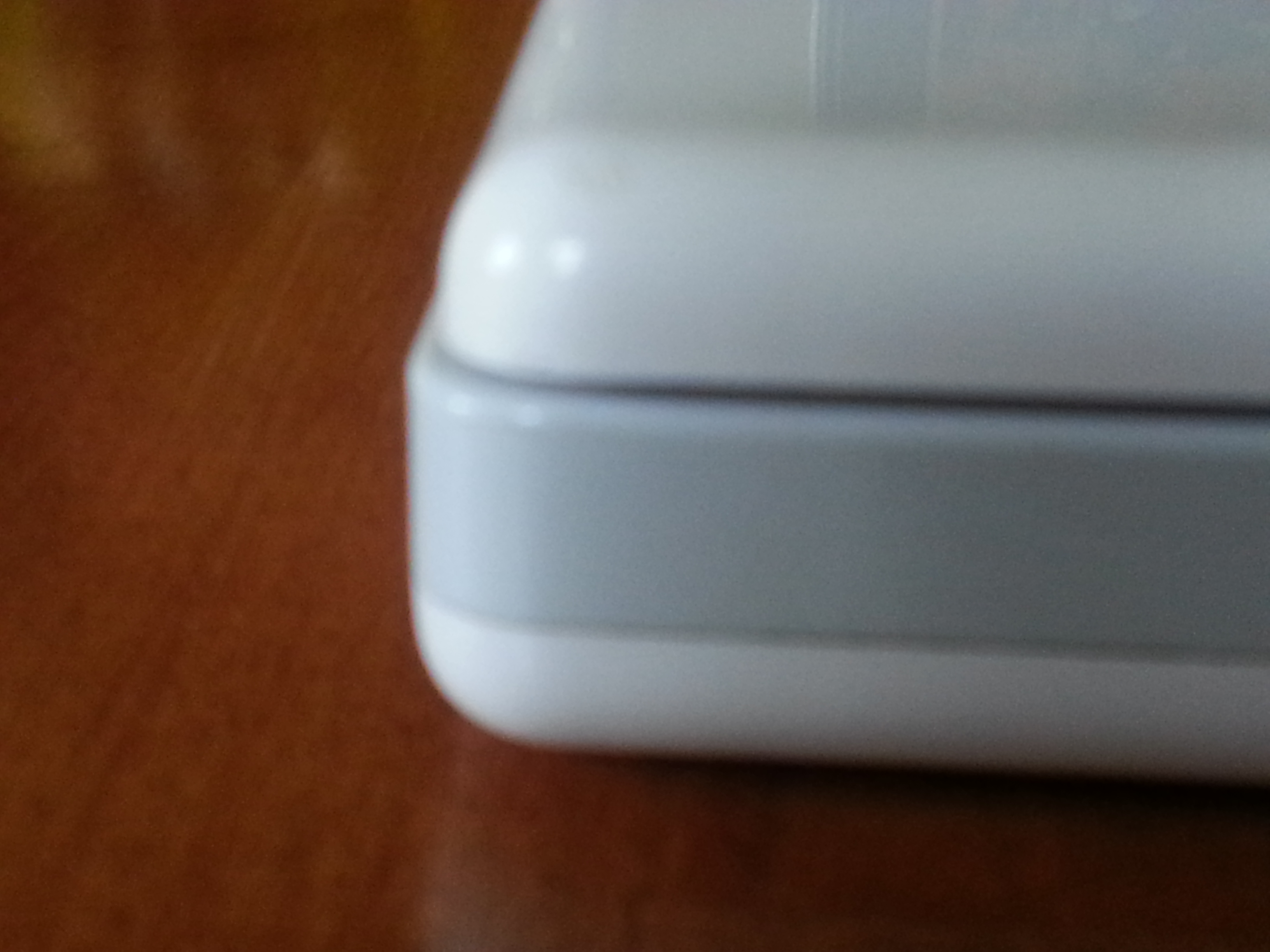

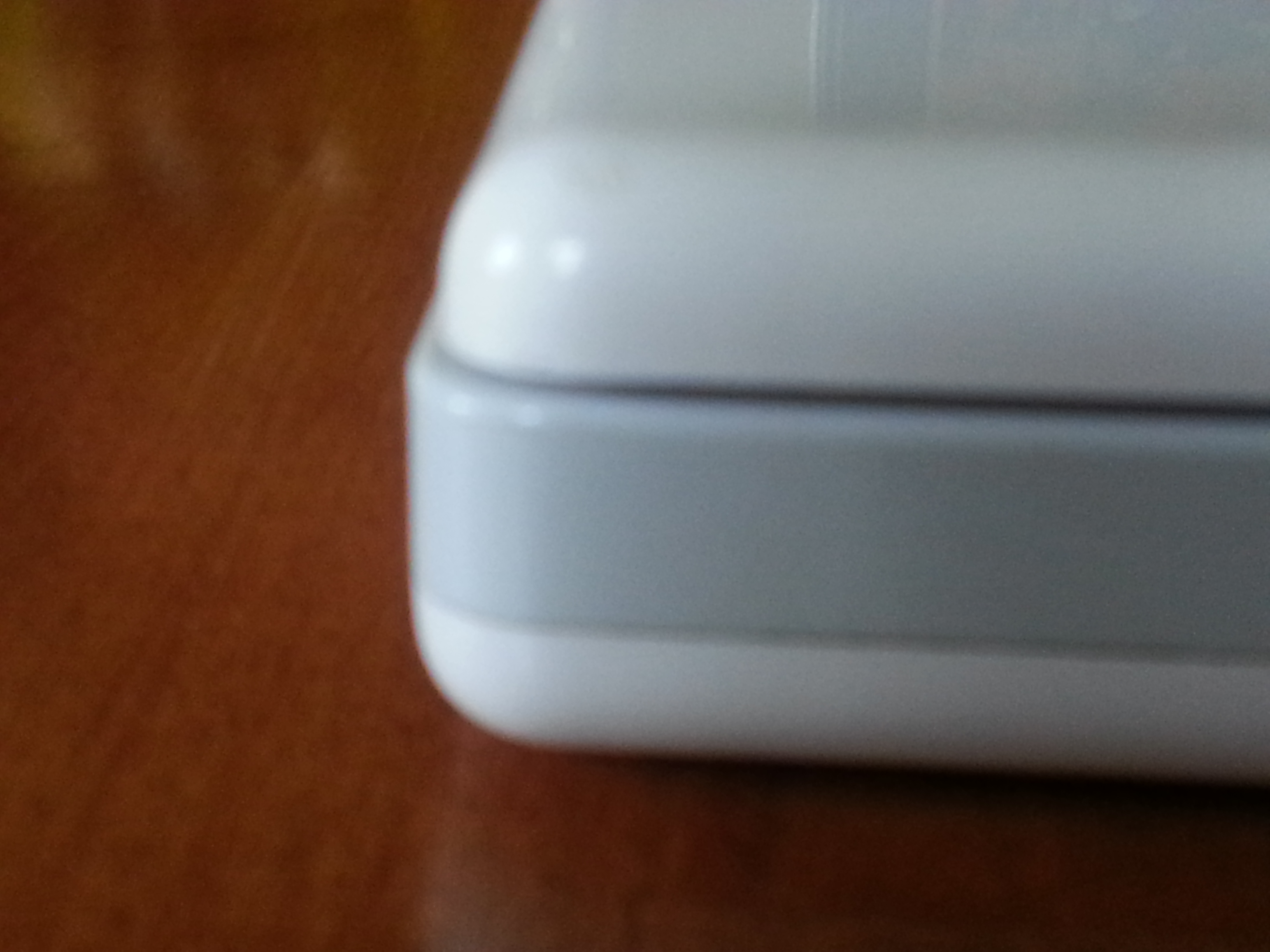

    When I close my iBook, most times it won't latch, and I have to push the display to the left for it to catch. The screen is very out of alignment with the body and I think that this is probably why it won't latch like it should. Short of replacing the hinges, are there any possible fixes for this?


    Attached Files:

  2. CooperBox macrumors 6502a

    CooperBox

    Joined:
    Nov 28, 2010
    Location:
    France - between Ricard & Absinthe
    #2
    i) Has it always been like this since you've had it, or has it recently received a shock, been dropped etc?
    ii) Any signs of micro cracks or distress on or around the screen hinges7
    iii) Holding the screen by both sides and rocking it (with elbows on the palmrest) is there any discernable movement?
    iv) With the screen open, take a magnet and place it onto the metal latch inside the slot at the top of the screen. Does it pull the latch out?
    It's also possible you have a displaced latch keeper in the centre of the palm rest. This happened on my G4 15" PowerBook, which after dismantling I was able to repair.

  3. AL1630 thread starter macrumors regular

    AL1630

    Joined:
    Apr 24, 2016
    Location:
    Idaho, USA
    #3
    -It's been like this since I got it, I haven't dropped it. Not sure about the previous owner though.
    -No cracks around the hinges as far as I can tell
    -There is considerable movement, especially on the right side.
    -A magnet will pull out the latch.
    -It seems like the hinge on the right side has something wrong with it, as the screen is slightly tilted to that side, and the screen 'pulls' to the right when it is closed.

  4. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #4
    My armchair quarterback opinion is to take it apart and see if the hinges are bent or otherwise damaged. Granted that's easy for me to say, but taking apart white iBooks is one of my least favorite Macintosh jobs to do...

  5. AL1630 thread starter macrumors regular

    AL1630

    Joined:
    Apr 24, 2016
    Location:
    Idaho, USA
    #5
    I looked at the ifixit guides, and it looks like a PITA, but could it cause any problems that could have been fixed by a hinge replacement?

  6. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
    #6
    Potentially, the Display or Inverter cable may be displaced as well, and can cause either to rip in the future.

  7. CooperBox, Jun 23, 2017
    Last edited: Jun 23, 2017

    CooperBox macrumors 6502a

    CooperBox

    Joined:
    Nov 28, 2010
    Location:
    France - between Ricard & Absinthe
    #7

    Considering the movement you've observed on right side of the screen, its possible that the screen attachment retaining screws have worked loose (Ref. iFixit step 41) and/or wear on the locating dowls, but more likely that there's some wear/distress between the clutch hinges and screen frame.
    This is not an iBook that I've ever had to dismantle, and you rightly say its looks a PITA. I've just been detailing the iFix repair guide, and the procedure for screen removal looks quite difficult, and futher screen disassembly - if required to access clutch hinges, adds to the complexity.
    I'd welcome the opportunity to assist in such a task, but such is the design and fragility of the locating tabs between the top and lower case, and also inverter/display cable displacement to get access to clutch hinges, that potential handling damage cannot be ruled out. Definitely not one of the more SAV user-friendly models.

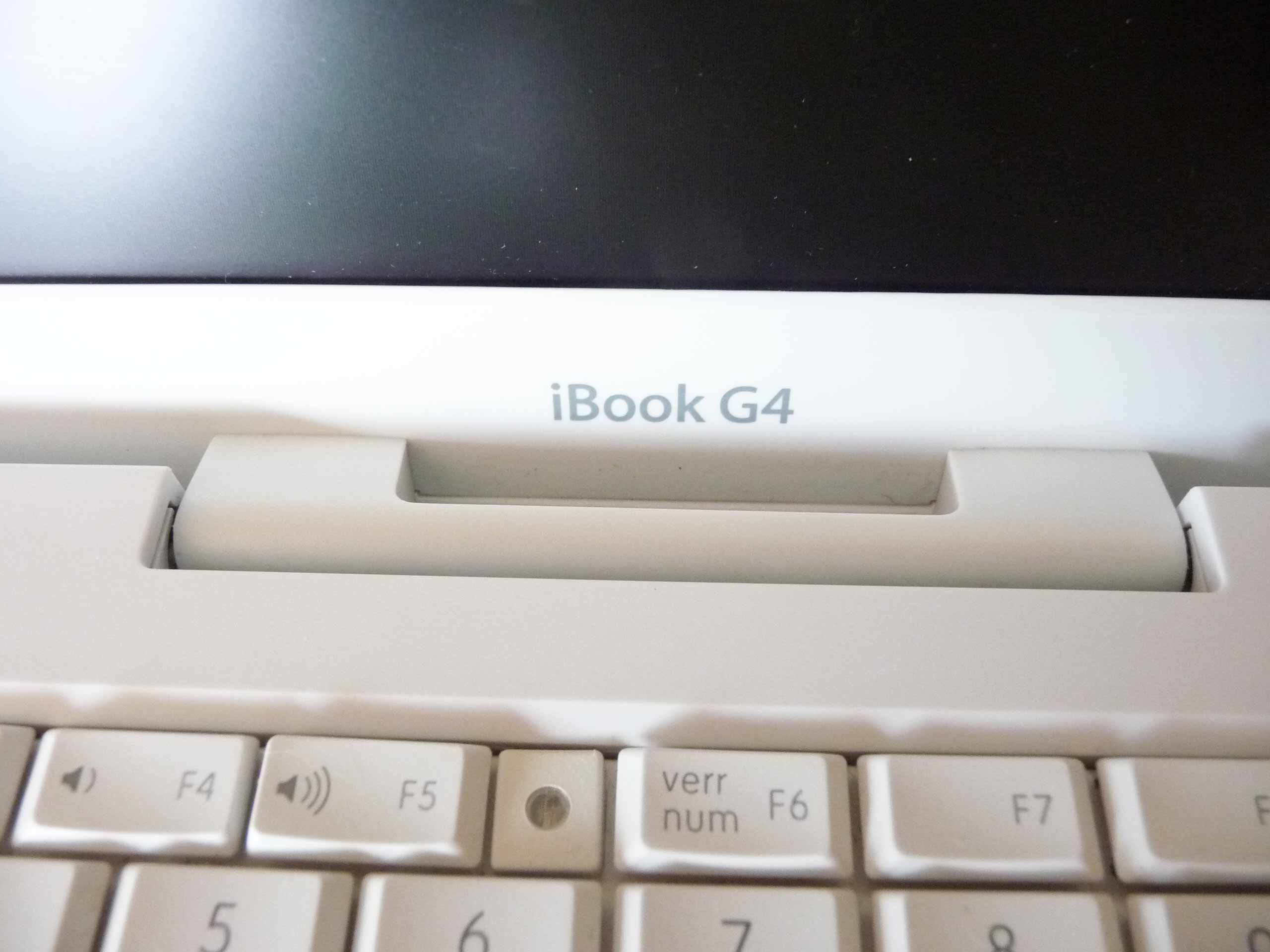

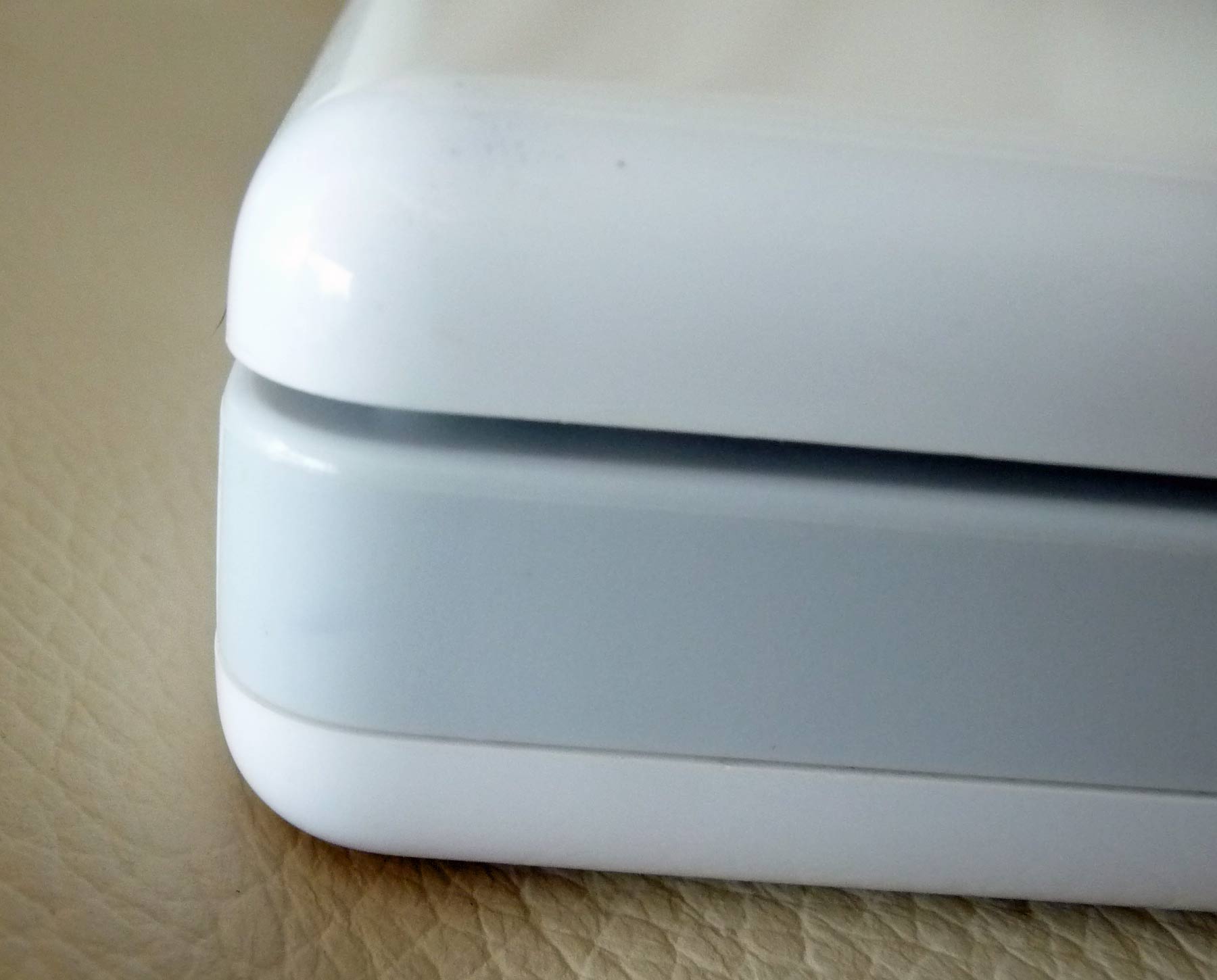

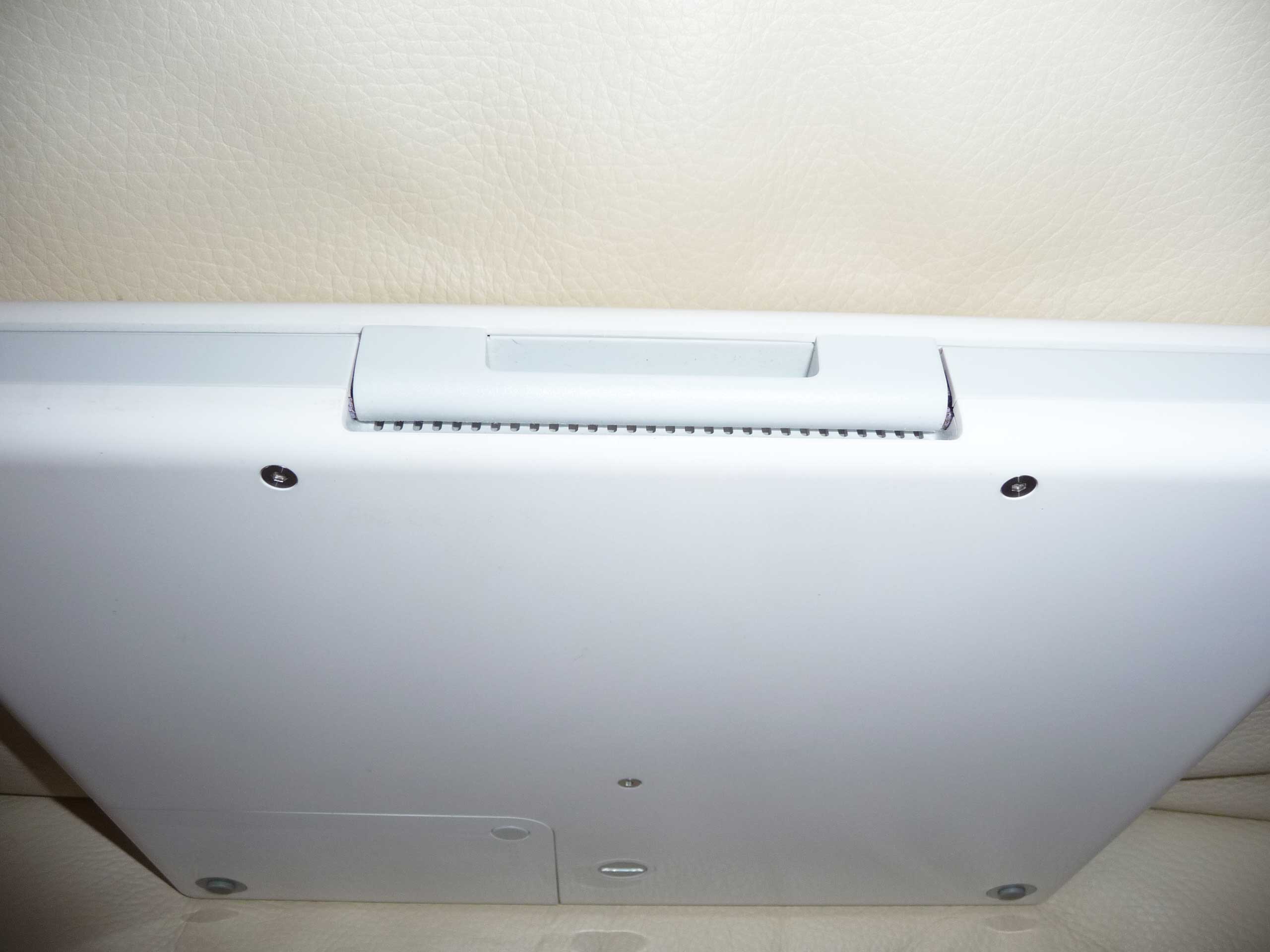

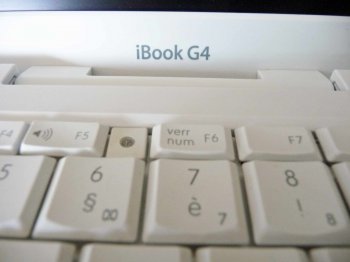

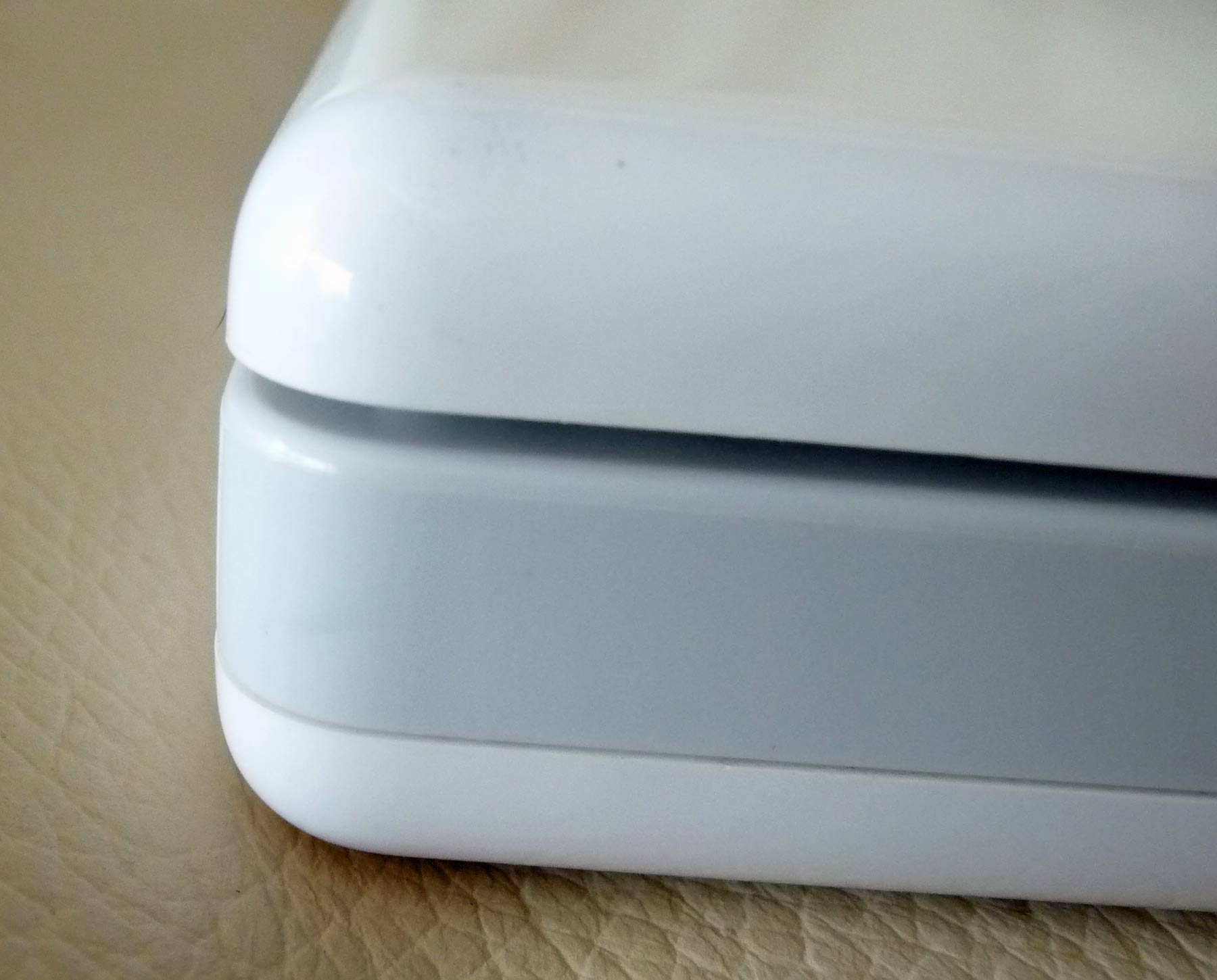

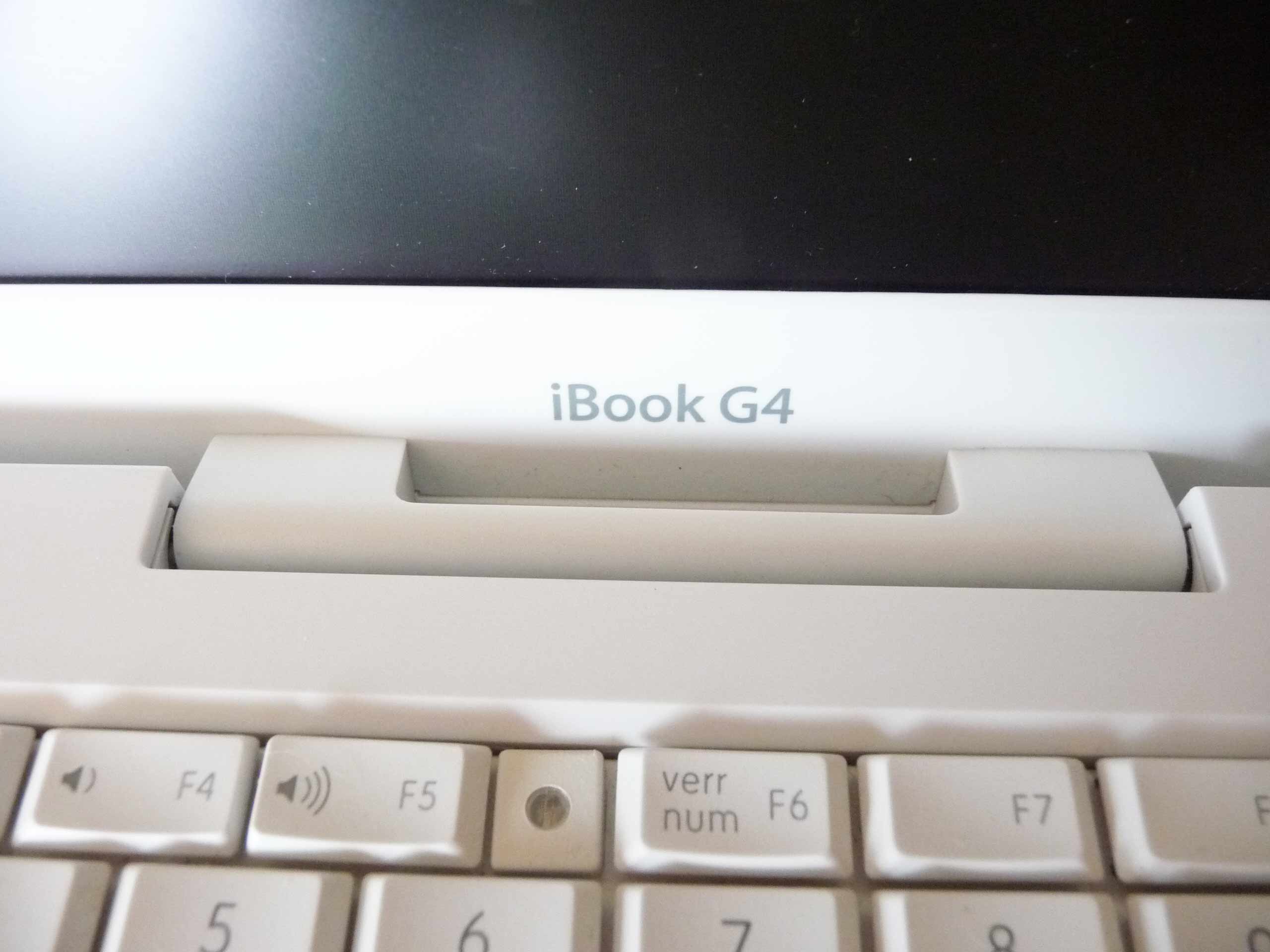

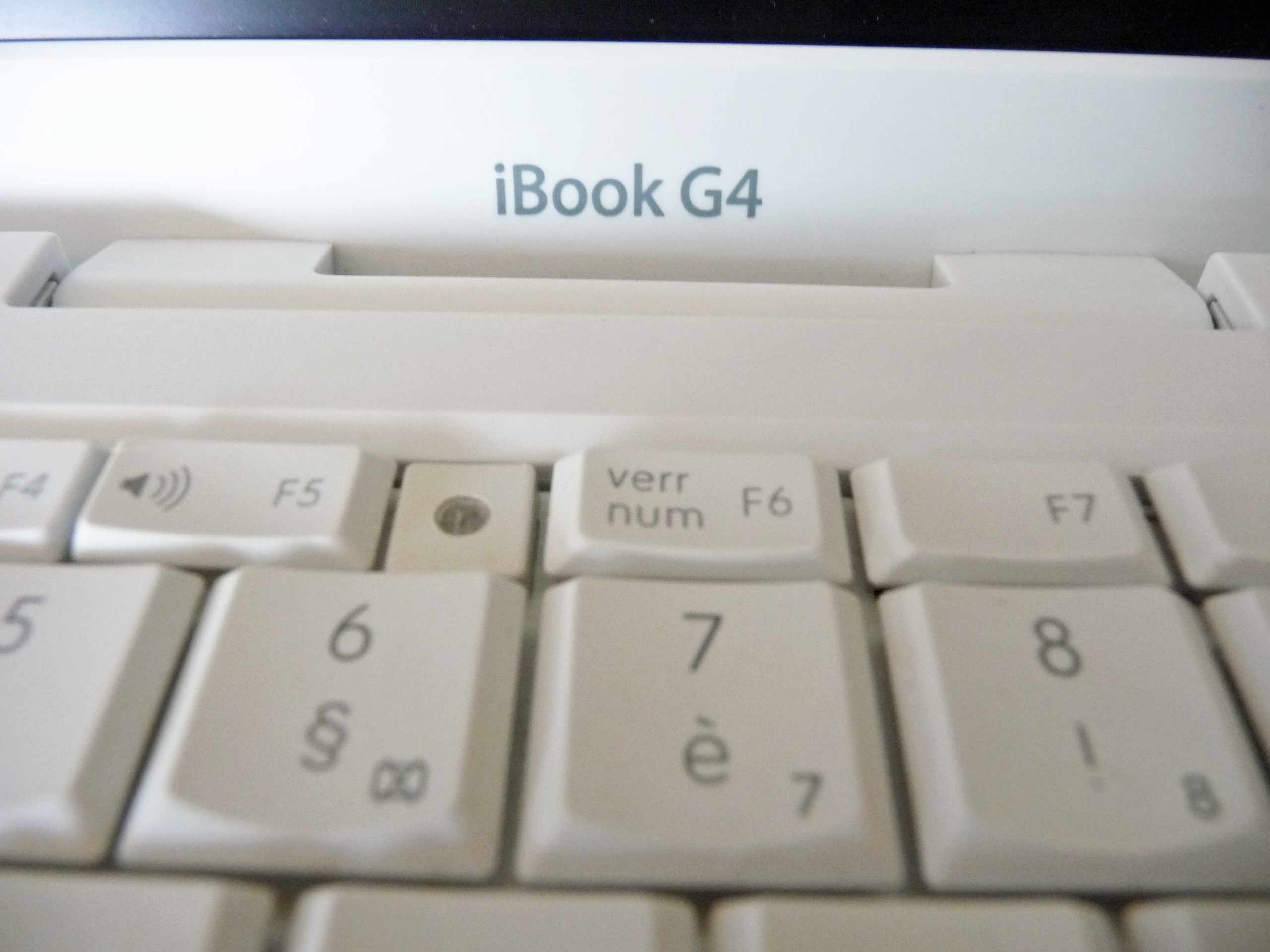

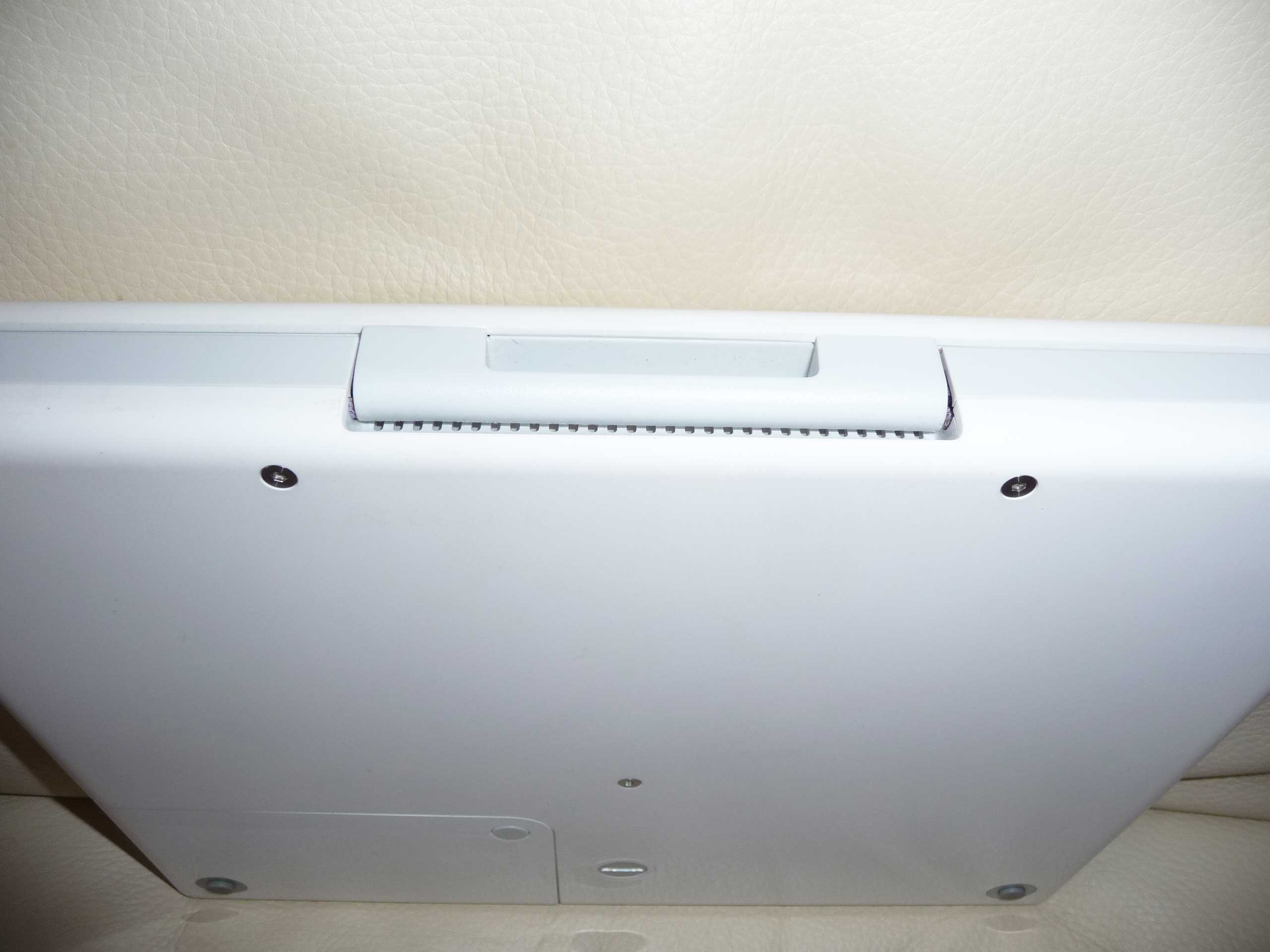

    Just for info, my iBook latches correctly and front edges are reasonably well aligned, with no discernable screen side movement, despite the fact that there's a difference in the gap between the right/left sides of hinge cover to top cover. Gap measured at 0.027" on left side, and 0.018" on right.

    iBookG4lid.jpg iBookG4hinge2.jpg
