iPhone 8/8 Plus/X SSD storage speed test 64/256GB

Discussion in 'iPhone' started by randomemail102, Sep 17, 2017.

  1. randomemail102, Sep 17, 2017
    Last edited: Nov 12, 2017

    randomemail102 macrumors newbie

    Joined:
    Sep 18, 2016
    #1
    Last year we found some great information that the 32GB models had awful write speeds. Let's do the same test again this year.

    Along with your results please post a screenshot, the phone (8, 8 Plus, X), and capacity.

    Apps that can test storage speed are:
    "Phone Doctor Plus" ($0.99) by Idea Mobile Tech inc.
    https://itunes.apple.com/us/app/phone-doctor-plus-system-tools/id1012291851?mt=8

    "PerformanceTest Mobile" (free) by PassMark Software Inc
    https://itunes.apple.com/us/app/performancetest-mobile/id494438360

    "DiskBench" ($0.99) by Udo Thiel
    https://itunes.apple.com/us/app/diskbench/id1166519285

    For comparison the iPhone 7 Plus 256GB results averaged 1173/603 read/write (MB/s).
    Source: https://forums.macrumors.com/threads/iphone-7-7-plus-ssd-storage-speed-test-32-128-256gb.1998044/

    iPhone 8 read/write (MB/s)
    64GB:
    1150/187.1, 1117.3/189

    256GB:

    iPhone 8 Plus read/write (MB/s)
    64GB:
    1229/227
    1160/178
    1138/247
    1114/175

    632/437

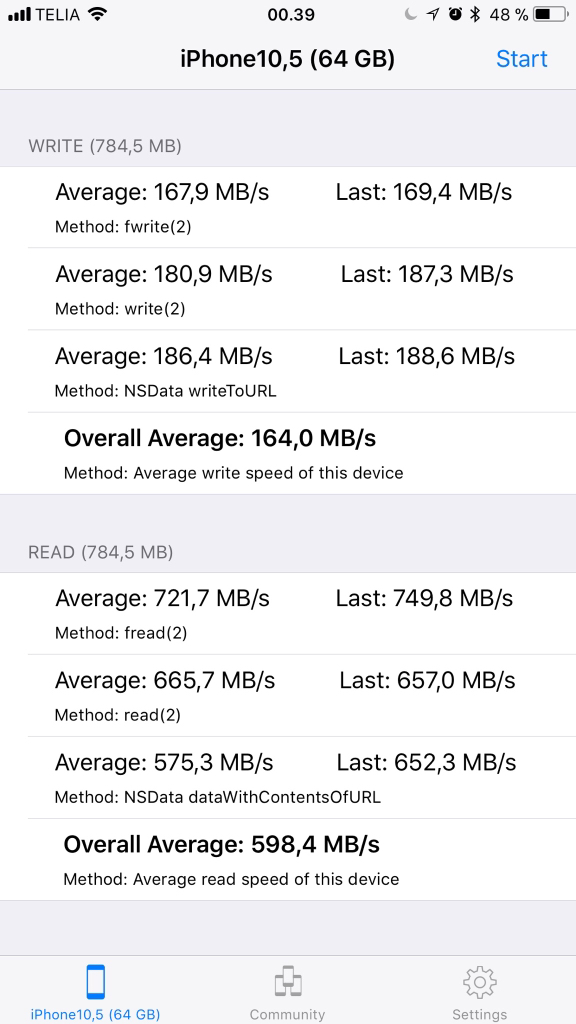

    598.4/164

    256GB:
    1250/350.9, 1200/318

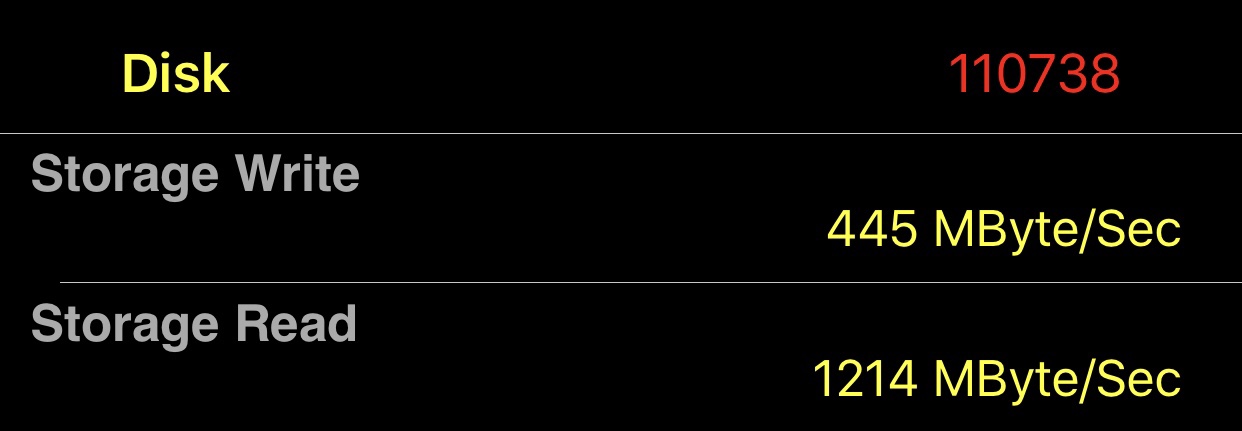

    1214/445

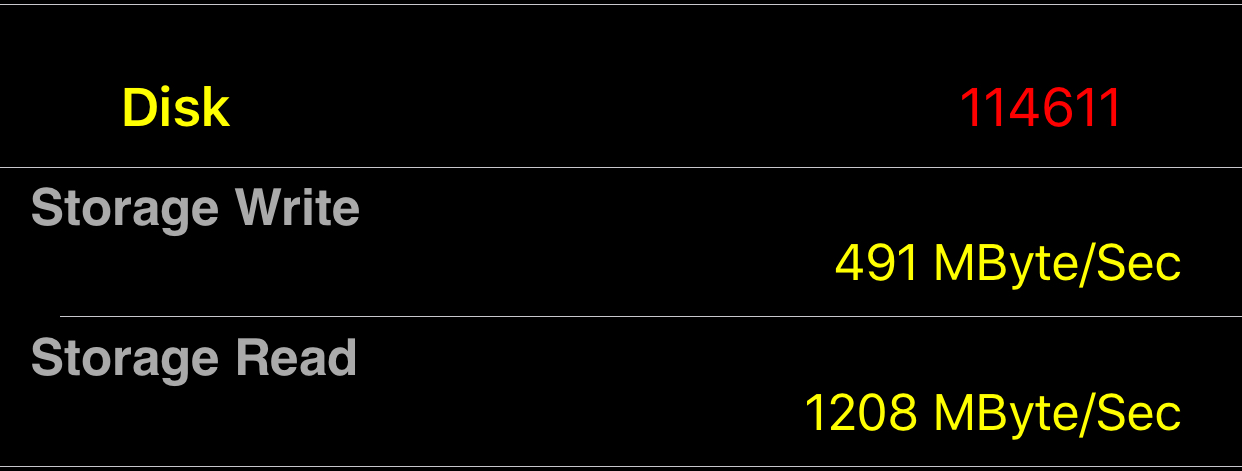

    1208/491

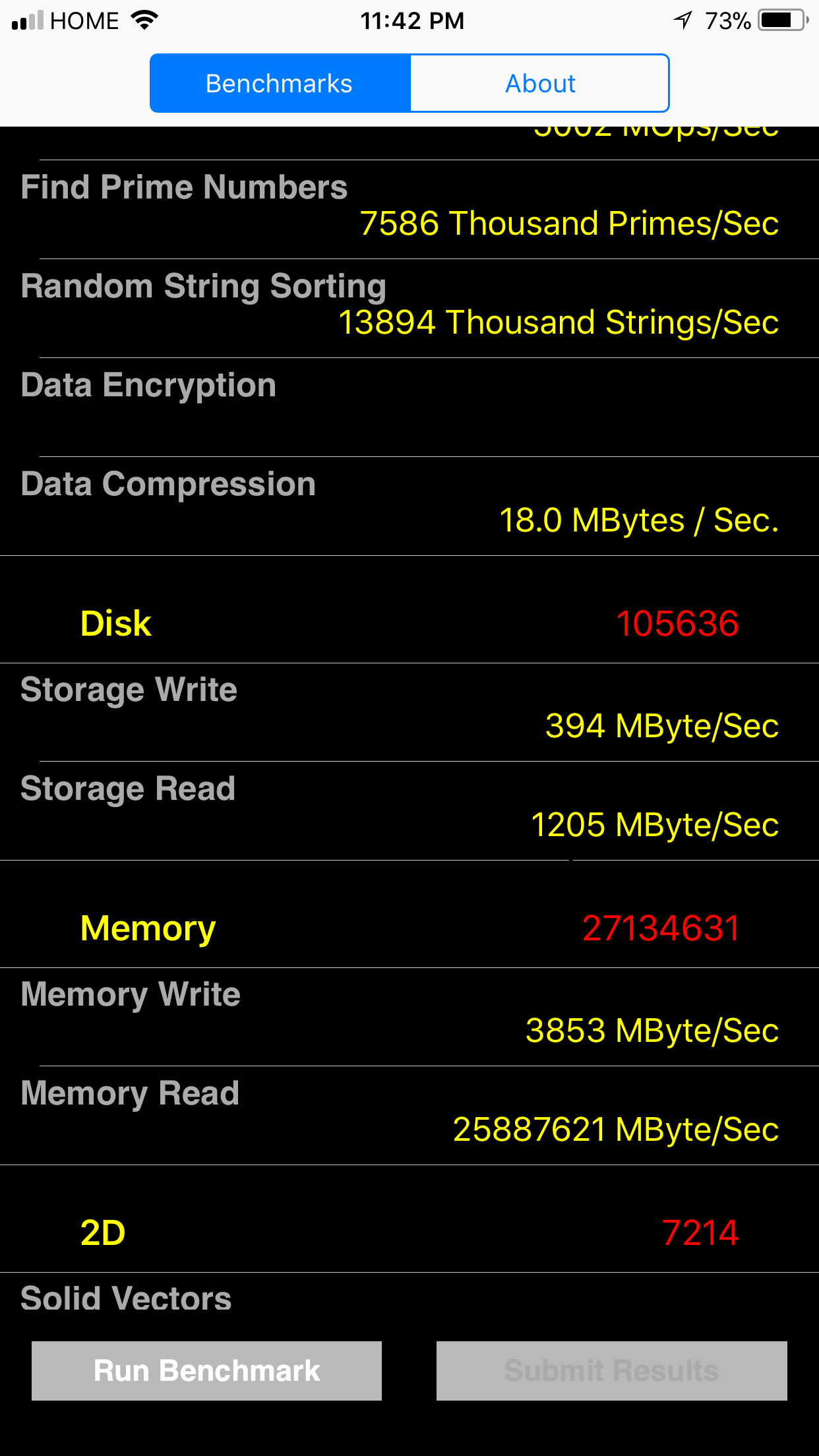

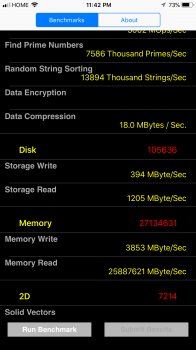

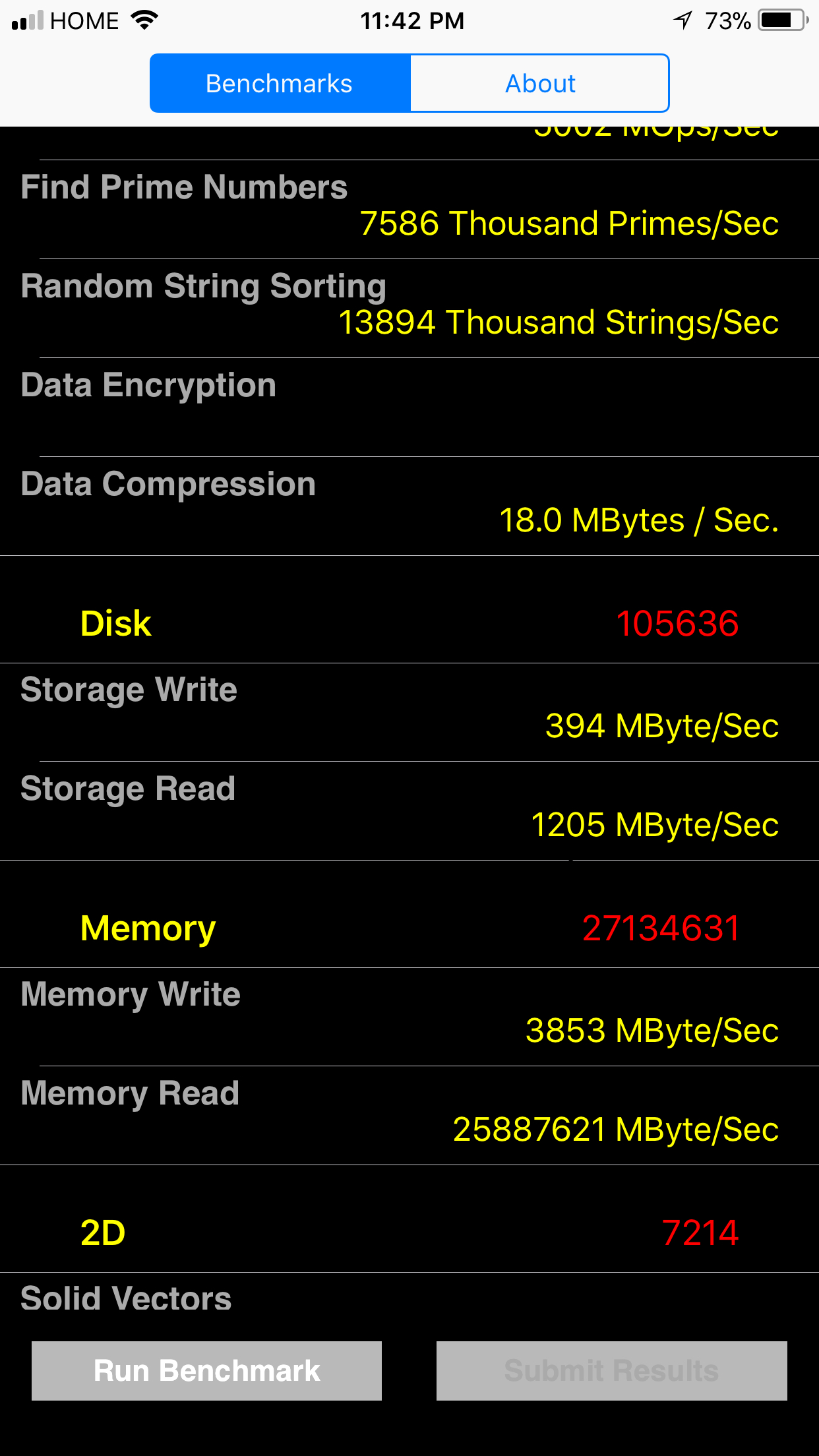

    1205/394

    1189/451
    1180/299


    iPhone X read/write (MB/s)
    64GB:
    1248/177
    1223/204

    256GB:
    1213/536

  2. randomemail102 thread starter macrumors newbie

    Joined:
    Sep 18, 2016
  3. TL24 macrumors 6502a

    TL24

    Joined:
    Oct 20, 2011
    #3
    If I get the 256gb 8+ I’ll be sure to post up my results again.

  4. shanshor macrumors regular

    Joined:
    Jan 4, 2008
  5. mrvirginia macrumors member

    Joined:
    Jul 9, 2009
  6. oplix macrumors 65816

    oplix

    Joined:
    Jun 29, 2008
    Location:
    New York, NY
    #6
    thank you, also looking to compare the storage improvements. (if there is any)

    please post the data from the iphone 7 in the OP so we can have a visible comparison.

  7. dc120 macrumors newbie

    Joined:
    Sep 23, 2017
    #7

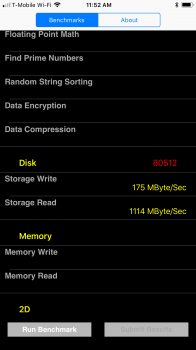

    iPhone 8 Plus 64GB - Write 175MByte/sec - Read 1114MByte/sec
    I've been looking for this data daily. Was tortured over the notion that the 256GB is faster. Must have the fastest option!.


    Attached Files:

  8. Creep89 macrumors 6502

    Joined:
    Mar 9, 2012
    #8

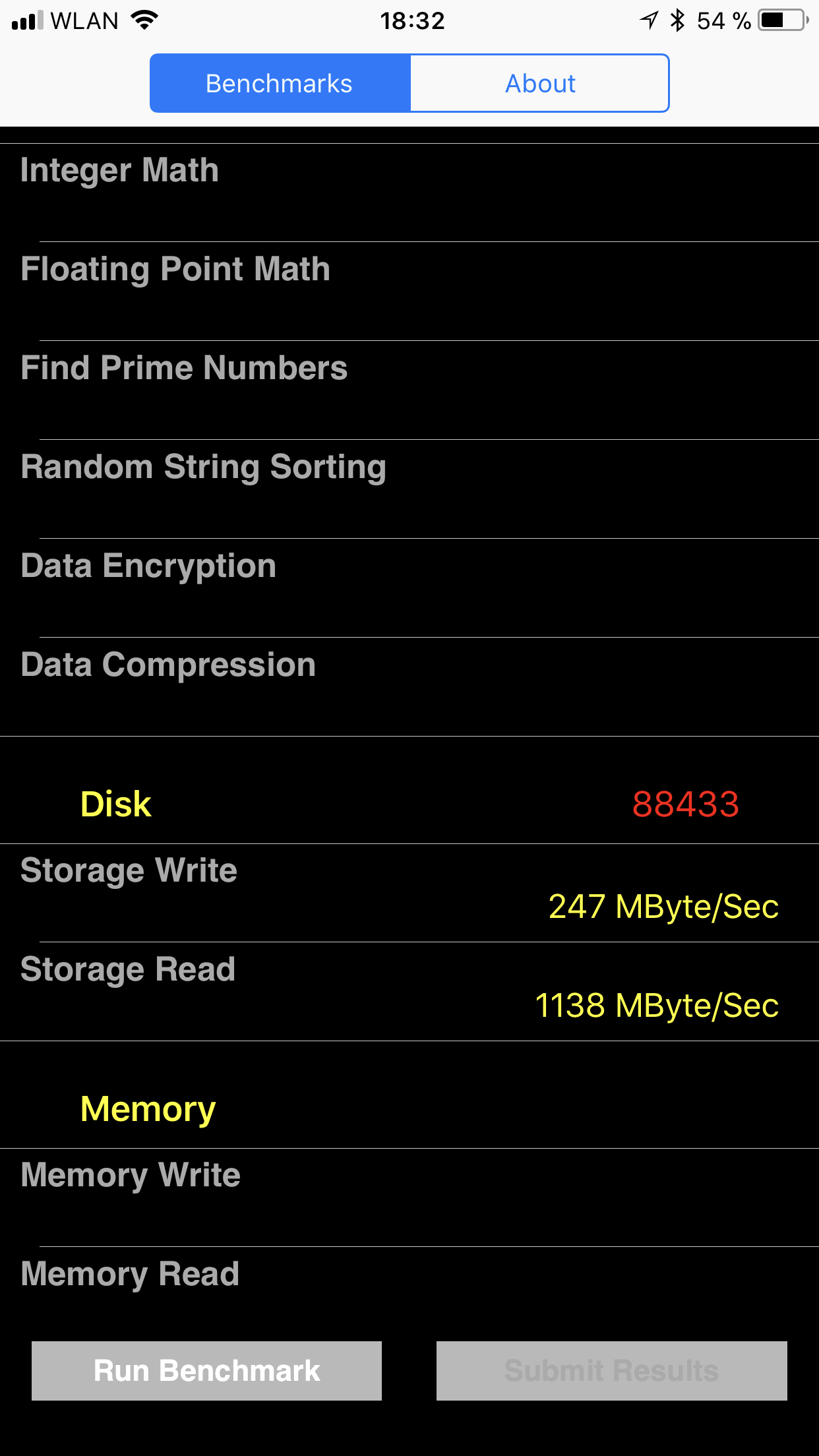

    According to "PerformanceTest Mobile" (free) by PassMark Software Inc

    8+ 64GB: 247MByte/s Write, 1138MByte/s Read


  9. Dulcimer macrumors 6502a

    Dulcimer

    Joined:
    Nov 20, 2012
    #9

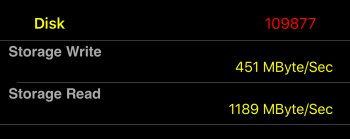

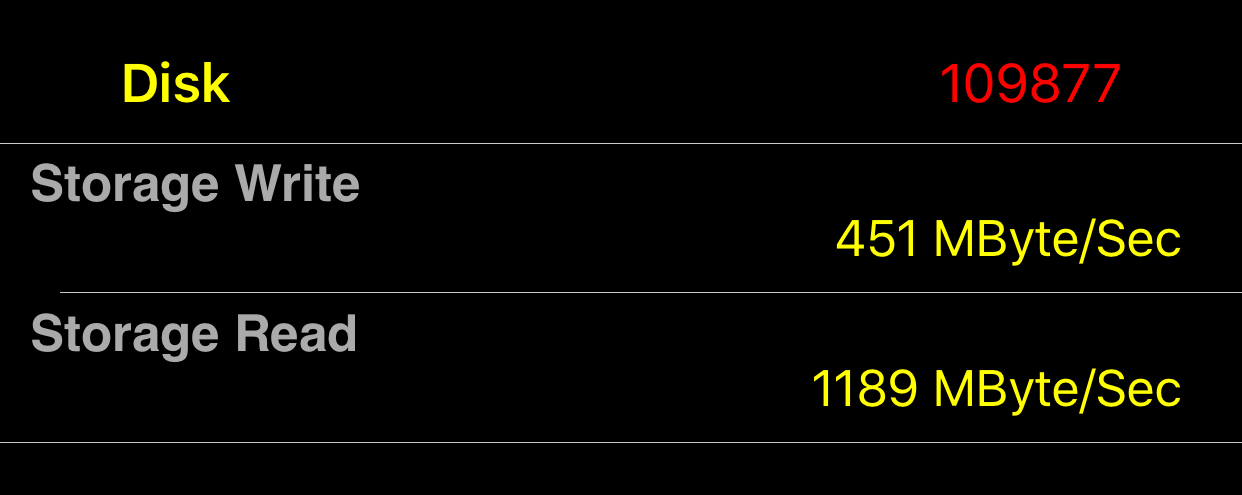

    Ran the PerformanceTest Mobile benchmark on my iPhone 8 Plus, 256 GB. Disk results were:

    Storage Write: 451 MB/s
    Storage Read: 1189 MB/s


    Attached Files:

  10. Strelok macrumors 6502a

    Strelok

    Joined:
    Jun 6, 2017
    Location:
    United States
    #10
    8 Plus 256GB. About 30Gb Space used.


    Attached Files:

  11. TL24 macrumors 6502a

    TL24

    Joined:
    Oct 20, 2011
  12. Xenomorph macrumors 65816

    Xenomorph

    Joined:
    Aug 6, 2008
    Location:
    St. Louis
    #12
    Ever since getting my (16GB) iPhone 3GS in 2009 and running into storage issues, I learned to not get the base model. Always go for the "next step up". So, my iPhone 4S was the 32GB model, my iPhone 5S was the 32GB model, and my iPhone 6S is the 64GB model.
    The iPhone 7 starting at 32GB shook things up, a bit. Suddenly, base model wasn't that bad. I would have still gone for the 128GB model, just in case.

    Things have changed more drastically with the iPhone 8. Not only is 64GB now the base model, but the "next step up" is now priced higher. You have to pay $850 to go to the next step up for the iPhone (compared to just $750 previous years).

    This has made the 64GB model that much more attractive. I ordered the iPhone 8 Plus (256 GB) when they went on sale. However, I just don't like the larger size. I figured I could drop down to the physically smaller iPhone 8, and even back down to 64 GB. BUT - at the same time I don't want to end up with an iPhone 8 that has slower "base model" 64 GB storage than my "upgraded" 64 GB iPhone 6S. So, I've been trying to find storage performance information, which lead me to this thread.

    ----------


    I decided to test both my iPhone 8 Plus (256 GB) and my iPhone 6S (64 GB).

    When testing with "PerformanceTest" from the App Store (free), its readings (write & read) sometimes varied greatly. It seems to write very little data for its tests, and it may not be the best for a good analysis.
    https://itunes.apple.com/us/app/performancetest-mobile/id494438360

    When testing with "Phone Doctor Plus" from the App Store (99¢), its readings were WAY off (it said it was writing at over 10GB/sec). I didn't even bother writing down its scores, since they were wildly inaccurate.

    I also tried "DiskBench" from the App Store (99¢). It seems to actually be designed specifically for running a storage benchmark, but its results always started low for me, but then seemed to increase on each run, up until around the 10th run (at which point they then began to look similar to what "PerformanceTest" was showing). I don't know if this is an issue with iOS 11.
    https://itunes.apple.com/us/app/diskbench/id1166519285

    Basically, to get the most consistent scores, you may want to run DiskBench at least TEN TIMES.

    I'm NOT a fan of these I/O testing apps. Since different apps produce very different results, I question the numbers that have already been posted here. I got my results after many, many benchmarks - after noticing that simply "running the app" wasn't enough to give a good idea of storage performance.

    ----------

    My testing:

    iPhone 8 Plus, 256 GB
    (SIM Free, Qualcomm modem, Space Gray, iOS 11.0 - "iPhone10,2")

    DiskBench (ran ten times):

    Write: 350.9 MB/sec
    Read: 1.25 GB/sec

    "PerformanceTest" (average of three consistent runs):

    Write: 318.0 MB/sec
    Read: 1.20 GB/sec

    For comparison, my older device:

    iPhone 6S, 64GB
    (AT&T, Samsung SOC, Space Gray, iOS 11.0 - "iPhone8,1")

    "DiskBench" (ran ten times):

    Write: 219.1 MB/sec
    Read: 656.9 MB/sec

    "PerformanceTest" (average of three consistent runs):

    Write: 198.6 MB/sec
    Read: 574.6 MB/sec

  13. Duncanator macrumors 6502

    Duncanator

    Joined:
    Jun 30, 2016
    #13
    I could see the 32GB option last year being a smidge slower but I highly doubt that there would be a statistically significant difference between the 64GB and 256GB this year. Personally, I went with the 64GB 8+ as it was the cheaper option and I think it is SUPER fast.

  14. Xenomorph macrumors 65816

    Xenomorph

    Joined:
    Aug 6, 2008
    Location:
    St. Louis
    #14
    Just got a different phone.

    iPhone 8, 64GB
    (SIM Free, Qualcomm Modem, Space Gray, iOS 11.0.1 - "iPhone10,1")

    "DiskBench" (ran ten times):

    Write: 187.1 MB/sec
    Read: 1150.0 MB/sec

    "PerformanceTest" (average of three consistent runs):

    Write: 189.0 MB/sec
    Read: 1117.3 MB/sec

    It looks like the 64GB model may have write speeds half that of the 256GB model.

  15. Duncanator macrumors 6502

    Duncanator

    Joined:
    Jun 30, 2016
    #15
    PerformanceTest of 64GB 8+:

    Write: 178 MB/sec
    Read: 1160 MB/sec

  16. Duncanator macrumors 6502

    Duncanator

    Joined:
    Jun 30, 2016
    #16
    My new 256GB 8+ using PerformanceTest:

    Write: 299 MB/sec
    Read: 1180 MB/sec

  17. Xenomorph macrumors 65816

    Xenomorph

    Joined:
    Aug 6, 2008
    Location:
    St. Louis
    #17
    My third (and probably final) iPhone 8 test.

    iPhone 8, 256GB
    (SIM Free, Qualcomm Modem, Space Gray, iOS 11.0.2 - "iPhone10,1")

    "DiskBench" (ran ten times):

    Write: 328.3 MB/sec
    Read: 1340.0 MB/sec

    "PerformanceTest" (average of three consistent runs):

    Write: 357.3 MB/sec
    Read: 1283.6 MB/sec

  18. oplix macrumors 65816

    oplix

    Joined:
    Jun 29, 2008
    Location:
    New York, NY
    #18
    the difference of write speed between the 64gb and 256gb models is highly irrelevant

  19. Magnusson macrumors newbie

    Magnusson

    Joined:
    May 22, 2016
  20. Xenomorph macrumors 65816

    Xenomorph

    Joined:
    Aug 6, 2008
    Location:
    St. Louis
    #21
    Wouldn't installing and updating apps be quicker if write speeds are quicker?

  21. volcomvenom macrumors 65816

    volcomvenom

    Joined:
    Jun 8, 2013
    Location:
    Where game of thrones is based off of.
  22. Zigourney macrumors regular

    Joined:
    Sep 27, 2017
    Location:
    United Kingdom
    #23
    At the sort of speeds we are seeing above, even for the slower capacities, this is way more than enough for the average size and type of applications you will ever use on an iphone. Unless you're doing some serious 4K edits with lots of effects/filters on your iphone, these speeds are plenty plenty. Besides if your a serious video editor you wouldn't be doing large scale edits on your phone anyway.

    You wont notice the speed difference in installing and updating an average sized app say less than 300MB in size at any of these speeds above because all of them are reading and writing at greater 200-300MB per second anyway.

    This is of course different in a desktop/laptop environment where you have "full fat" applications that are greater in size and provide more features and functionality, and speed does matter then especially when your doing 4K edits.

  23. pika2000 macrumors 68030

    Joined:
    Jun 22, 2007
    #24
    I wonder why the difference in speed. Does Apple actually use slower chips on the lower storage tier, or does the higher storage tier have some sort of “RAID-0” like setup/data channels? Seriously asking out of curiousity.

  24. Menel macrumors 603

    Menel

    Joined:
    Aug 4, 2011
    Location:
    ATL
    #25
    I'm not sure what your asking... in the OP, asside from a couple of outliers.. there is no difference from 64 to 256.
