The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
Post #17199.

Make sure that you already applied appropriate firmware updates to support APFS(if you had High Sierra installed on APFS previously, you should be good).

My High Sierra was installed on APFS volume as well. Maybe the reason of all this is FileVault? It was turned on before, but nothing like this happened on High Sierra

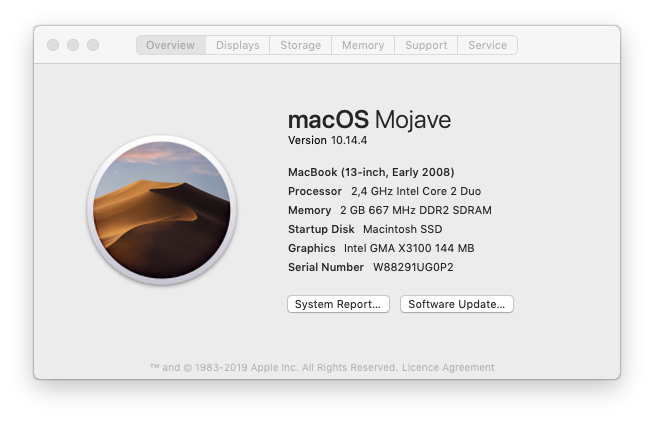

Hi ! I am currently writing from my Early 2008 Black MacBook (4,1). I am pretty surprised how usable it is even without full QE/CI !

I think i have to max out the ram and change thermal paste because the CPU is getting pretty hot ;)


Thanks guys for your amazing work !

  • Like
Reactions: Larsvonhier
Got a little problem booting the Patcher (macOS Mojave Patcher 1.3.3) on a bootscreen-less Kepler GPU on Mac Pro 3.1

Got no picture from the USB installer. The installed System (10.14.6.04 18G95) will give a picture when the driver is loaded. It is alive, capslock lit when pressed, shutdown keyboard shortcut switches machine

I have the same issue with my 3.1. I am using a first generation Titan, which is also Kepler. I had the same problem with a 680 as well. Reinstalled 10.14.4 and stayed there for the time being.

Hy,
what can i do because ,my
eyetv T2 lite TV USB Stick
isnt working probebly
on macmini 3.1 or macbook pro4.1
both mojave patcher
Thanks

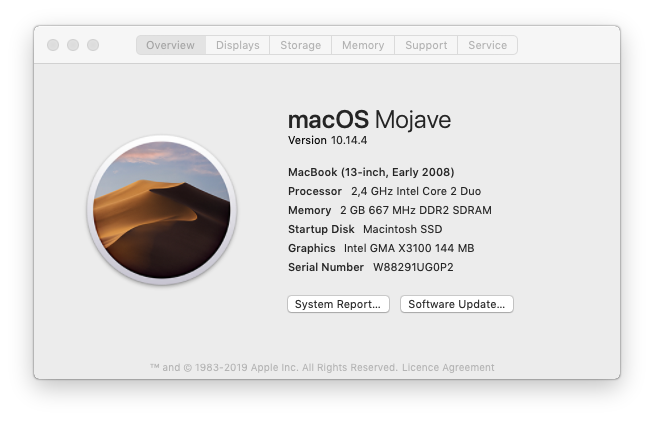

Hi ! I am currently writing from my Early 2008 Black MacBook (4,1). I am pretty surprised how usable it is even without full QE/CI !

I think i have to max out the ram and change thermal paste because the CPU is getting pretty hot ;)
View attachment 856405

Thanks guys for your amazing work !

Did you have to patch the ROM to use APFS? Mojave seems to have successfully installed on a partitioned HD from a different partition, and starts to load, but puts me in bootloop hell. Did you use the 0403979's tool? Thanks if you see this!

Last edited by a moderator:
Hi ! I am currently writing from my Early 2008 Black MacBook (4,1). I am pretty surprised how usable it is even without full QE/CI !

I think i have to max out the ram and change thermal paste because the CPU is getting pretty hot ;)
View attachment 856405

Thanks guys for your amazing work !

Yeah 2GB ram just doesn't cut it these days, I have 8GB and some of my progs use a lot.

  • Like
Reactions: K two
Did you have to patch the ROM to use APFS? Mojave seems to have successfully installed on a partitioned HD from a different partition, and starts to load, but puts me in bootloop hell. Did you use the @julian-fairfax tool? Thanks if you see this!

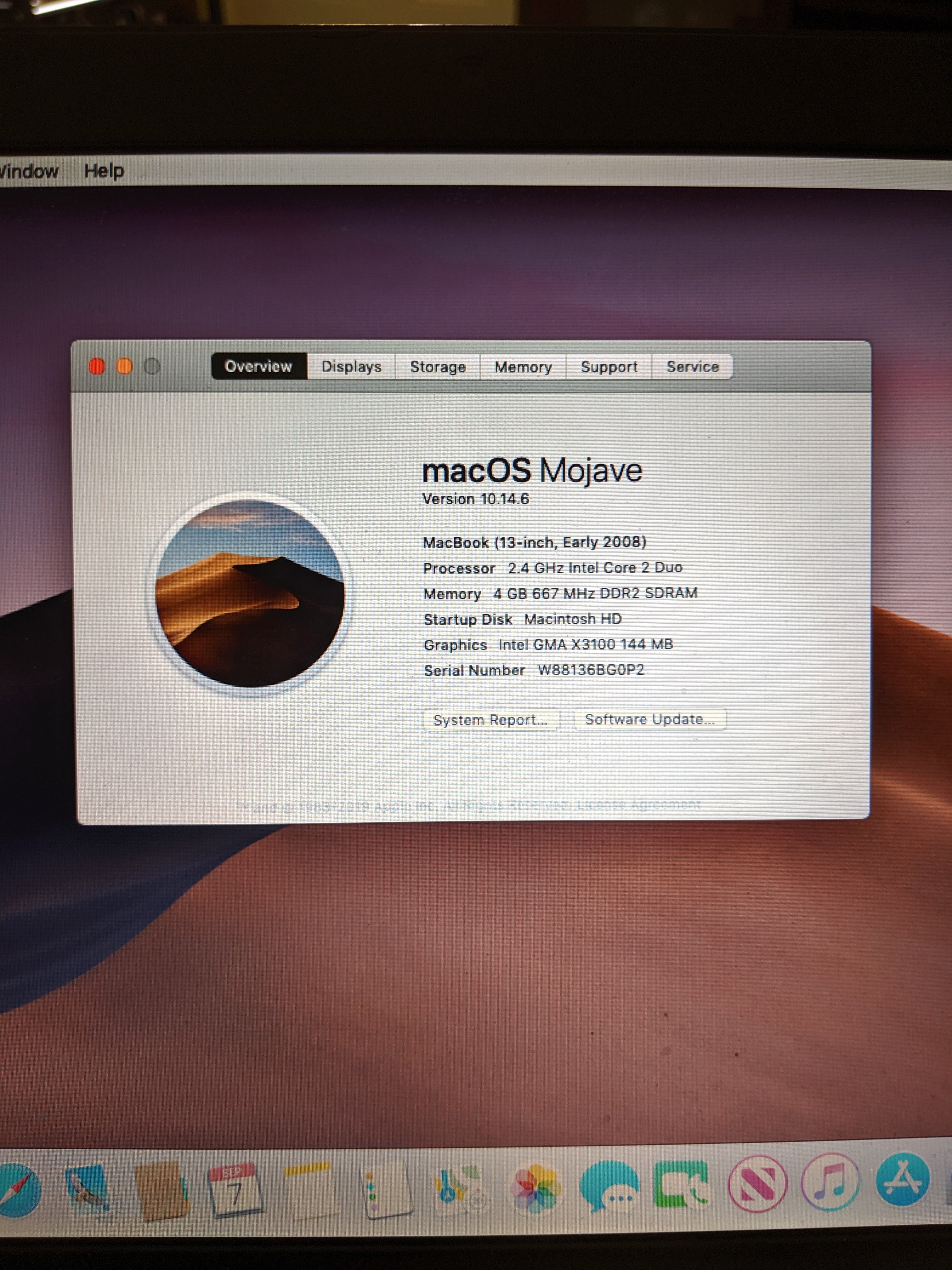

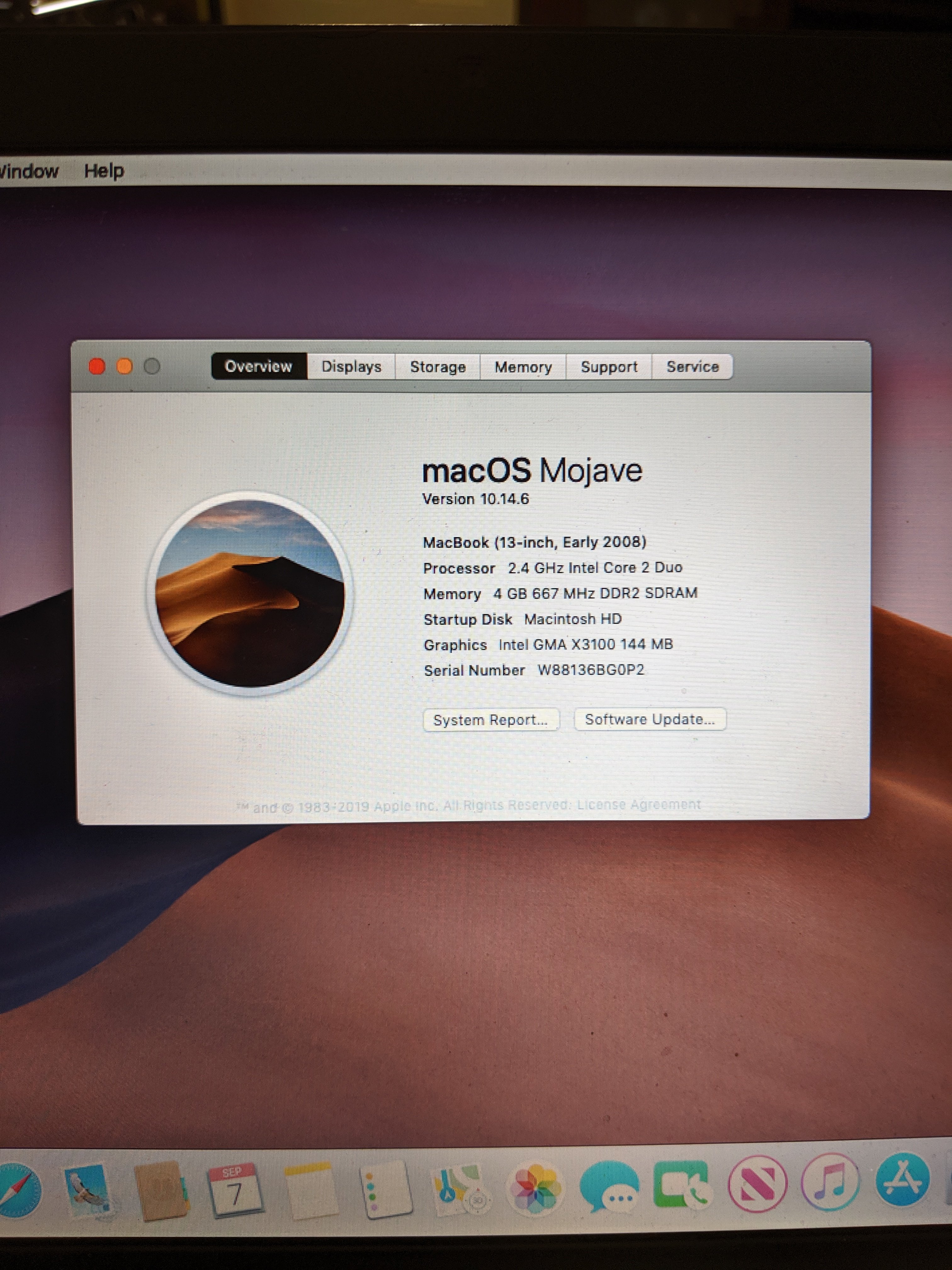

Answered my own question. Had to do the patch a couple of times to get functionality, but booted in great! Might reapply some thermal paste as well, but holy cow!


Attachments

  • IMG_20190907_084722.jpg
    2.4 MB · Views: 278
  • Like
Reactions: Yojx21
Hi ! I am currently writing from my Early 2008 Black MacBook (4,1). I am pretty surprised how usable it is even without full QE/CI !

I think i have to max out the ram and change thermal paste because the CPU is getting pretty hot ;)
View attachment 856405

Thanks guys for your amazing work !

The CPU is getting hot because it doesn't have proper graphics acceleration.

Ok MacPro 3.1 with Mojave 10.14.6 on board and all was well, then I installed the 10.14.6 Supplemental (the newest one) and all Audio Outputs missing from System Preferences> Sound> Output. Any ideas how to remedy this situation.

Thanks.

Ok MacPro 3.1 with Mojave 10.14.6 on board and all was well, then I installed the 10.14.6 Supplemental (the newest one) and all Audio Outputs missing from System Preferences> Sound> Output. Any ideas how to remedy this situation.

Thanks.
Same happened to me. Repatch audio fixed it.

  • Like
Reactions: K two
I have kernel panic and received this log.
It only happened once. I don't know if it's something I need to worry about. You who know more about this, can help me?

Anonymous UUID: 7B2D494B-2FA2-7EAD-3B84-35C1D0908331

Sun Sep 8 15:13:18 2019

*** Panic Report ***
mp_kdp_enter() timed-out on cpu 4, NMI-ing
mp_kdp_enter() NMI pending on cpus: 0 1 2 3 5 6 7
mp_kdp_enter() timed-out during locked wait after NMI;expected 8 acks but received 2 after 6134969 loops in 999999999 ticks
panic(cpu 4 caller 0xffffff80266dc51a): "Double fault at 0xffffff7fa83b666d, registers:\n" "CR0: 0x000000008001003b, CR2: 0xffffff81277e7fd8, CR3: 0x00000000291e3000, CR4: 0x00000000000626e0\n" "RAX: 0xffffff803b0d2840, RBX: 0xffffff803b0d2560, RCX: 0x0000000000000000, RDX: 0x0000000000000012\n" "RSP: 0xffffff81277e7fe0, RBP: 0xffffff81277e8070, RSI: 0x0000000000000002, RDI: 0xffffff803b0d2560\n" "R8: 0x0000000000000000, R9: 0x00000420eddbd1b8, R10: 0x0000000000000004, R11: 0x0000000000000000\n" "R12: 0x000000000000270f, R13: 0xffffff8038e63600, R14: 0x000000000010f1e3, R15: 0x0000000000000000\n" "RFL: 0x0000000000010082, RIP: 0xffffff7fa83b666d, CS: 0x0000000000000008, SS: 0x0000000000000010\n" "Error code: 0x0000000000000000\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4903.271.2/osfmk/i386/trap_native.c:168
Backtrace (CPU 4), Frame : Return Address
0xffffff8026353330 : 0xffffff80265ae6ed
0xffffff8026353380 : 0xffffff80266ea185
0xffffff80263533c0 : 0xffffff80266db8ba
0xffffff8026353430 : 0xffffff802655bb40
0xffffff8026353450 : 0xffffff80265ae107
0xffffff8026353570 : 0xffffff80265adf53
0xffffff80263535e0 : 0xffffff80266dc51a
0xffffff80263536d0 : 0xffffff802655c3bf
0xffffff81277e8070 : 0xffffff7fa83bbb9c
0xffffff81277e80c0 : 0xffffff7fa83b85b4
0xffffff81277e8120 : 0xffffff7fa83b7b2b
0xffffff81277e8170 : 0xffffff80266de0a0
0xffffff81277e81c0 : 0xffffff80265cd5ea
0xffffff81277e8230 : 0xffffff80265ccbd7
0xffffff81277e82b0 : 0xffffff80265cb25f
0xffffff81277e8300 : 0xffffff80265a9dc0
0xffffff81277e8320 : 0xffffff7fa88ec3d1
0xffffff81277e8370 : 0xffffff7fa88eb76b
0xffffff81277e83b0 : 0xffffff7fa88eeb05
0xffffff81277e83f0 : 0xffffff7fa7de0cb1
0xffffff81277e8430 : 0xffffff8026c5a908
0xffffff81277e84a0 : 0xffffff7fa88ee699
0xffffff81277e84e0 : 0xffffff8026c5a908
0xffffff81277e8550 : 0xffffff7fa933095f
0xffffff81277e8620 : 0xffffff7fa9335801
0xffffff81277e8660 : 0xffffff7fa9334296
0xffffff81277e8690 : 0xffffff7fa932ce54
0xffffff81277e86c0 : 0xffffff7fa932b6ff
0xffffff81277e86f0 : 0xffffff7fa932b088
0xffffff81277e8740 : 0xffffff7fa932ac7e
0xffffff81277e8780 : 0xffffff7fa932ab1c
0xffffff81277e87c0 : 0xffffff7fa932cc66
0xffffff81277e87e0 : 0xffffff7fa932b6a3
0xffffff81277e8810 : 0xffffff7fa932b2ee
0xffffff81277e8860 : 0xffffff7fa932ac7e
0xffffff81277e88a0 : 0xffffff7fa932ab1c
0xffffff81277e88e0 : 0xffffff7fa932cc2f
0xffffff81277e890



EOF

I have kernel panic and received this log.
It only happened once. I don't know if it's something I need to worry about. You who know more about this, can help me?

Anonymous UUID: 7B2D494B-2FA2-7EAD-3B84-35C1D0908331

Sun Sep 8 15:13:18 2019

*** Panic Report ***
mp_kdp_enter() timed-out on cpu 4, NMI-ing
mp_kdp_enter() NMI pending on cpus: 0 1 2 3 5 6 7
mp_kdp_enter() timed-out during locked wait after NMI;expected 8 acks but received 2 after 6134969 loops in 999999999 ticks
panic(cpu 4 caller 0xffffff80266dc51a): "Double fault at 0xffffff7fa83b666d, registers:\n" "CR0: 0x000000008001003b, CR2: 0xffffff81277e7fd8, CR3: 0x00000000291e3000, CR4: 0x00000000000626e0\n" "RAX: 0xffffff803b0d2840, RBX: 0xffffff803b0d2560, RCX: 0x0000000000000000, RDX: 0x0000000000000012\n" "RSP: 0xffffff81277e7fe0, RBP: 0xffffff81277e8070, RSI: 0x0000000000000002, RDI: 0xffffff803b0d2560\n" "R8: 0x0000000000000000, R9: 0x00000420eddbd1b8, R10: 0x0000000000000004, R11: 0x0000000000000000\n" "R12: 0x000000000000270f, R13: 0xffffff8038e63600, R14: 0x000000000010f1e3, R15: 0x0000000000000000\n" "RFL: 0x0000000000010082, RIP: 0xffffff7fa83b666d, CS: 0x0000000000000008, SS: 0x0000000000000010\n" "Error code: 0x0000000000000000\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4903.271.2/osfmk/i386/trap_native.c:168
Backtrace (CPU 4), Frame : Return Address
0xffffff8026353330 : 0xffffff80265ae6ed
0xffffff8026353380 : 0xffffff80266ea185
0xffffff80263533c0 : 0xffffff80266db8ba
0xffffff8026353430 : 0xffffff802655bb40
0xffffff8026353450 : 0xffffff80265ae107
0xffffff8026353570 : 0xffffff80265adf53
0xffffff80263535e0 : 0xffffff80266dc51a
0xffffff80263536d0 : 0xffffff802655c3bf
0xffffff81277e8070 : 0xffffff7fa83bbb9c
0xffffff81277e80c0 : 0xffffff7fa83b85b4
0xffffff81277e8120 : 0xffffff7fa83b7b2b
0xffffff81277e8170 : 0xffffff80266de0a0
0xffffff81277e81c0 : 0xffffff80265cd5ea
0xffffff81277e8230 : 0xffffff80265ccbd7
0xffffff81277e82b0 : 0xffffff80265cb25f
0xffffff81277e8300 : 0xffffff80265a9dc0
0xffffff81277e8320 : 0xffffff7fa88ec3d1
0xffffff81277e8370 : 0xffffff7fa88eb76b
0xffffff81277e83b0 : 0xffffff7fa88eeb05
0xffffff81277e83f0 : 0xffffff7fa7de0cb1
0xffffff81277e8430 : 0xffffff8026c5a908
0xffffff81277e84a0 : 0xffffff7fa88ee699
0xffffff81277e84e0 : 0xffffff8026c5a908
0xffffff81277e8550 : 0xffffff7fa933095f
0xffffff81277e8620 : 0xffffff7fa9335801
0xffffff81277e8660 : 0xffffff7fa9334296
0xffffff81277e8690 : 0xffffff7fa932ce54
0xffffff81277e86c0 : 0xffffff7fa932b6ff
0xffffff81277e86f0 : 0xffffff7fa932b088
0xffffff81277e8740 : 0xffffff7fa932ac7e
0xffffff81277e8780 : 0xffffff7fa932ab1c
0xffffff81277e87c0 : 0xffffff7fa932cc66
0xffffff81277e87e0 : 0xffffff7fa932b6a3
0xffffff81277e8810 : 0xffffff7fa932b2ee
0xffffff81277e8860 : 0xffffff7fa932ac7e
0xffffff81277e88a0 : 0xffffff7fa932ab1c
0xffffff81277e88e0 : 0xffffff7fa932cc2f
0xffffff81277e890



EOF

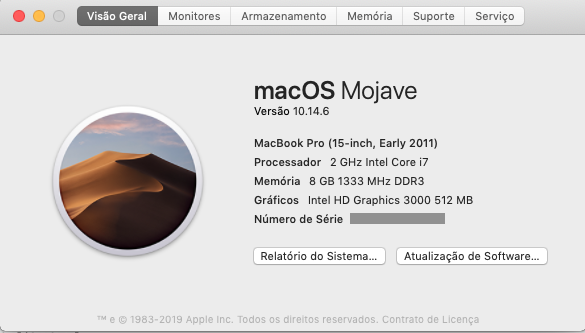

My config (image)

I was using Chrome during the kernel panic.
I was using Chrome during the kernel panic. I replaced the AppleMuxControl.kext Mojave by AppleMuxControl.kext Sierra for utilize the brightness control F1 F2 (work's perfectly!). Buuuut, the kernel panic can be associed?


Attachments

  • Captura de Tela 2019-09-08 às 15.56.00.png
    Captura de Tela 2019-09-08 às 15.56.00.png
    79.7 KB · Views: 207
My config (image)

I was using Chrome during the kernel panic.
I was using Chrome during the kernel panic. I replaced the AppleMuxControl.kext Mojave by AppleMuxControl.kext Sierra for utilize the brightness control F1 F2 (work's perfectly!). Buuuut, the kernel panic can be associed?

EOF

System Profile:
Network Service: Wi-Fi, AirPort, en1
Thunderbolt Bus: MacBook Pro, Apple Inc., 22.1
Boot Volume File System Type: apfs
Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1333 MHz, 0x0198, 0x393955353432382D3038332E4130304C4620
USB Device: USB 2.0 Bus
USB Device: FaceTime HD Camera (Built-in)
USB Device: Hub
USB Device: Wireless Receiver
USB Device: Apple Internal Keyboard / Trackpad
USB Device: BRCM2070 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: IR Receiver
Serial ATA Device: KINGSTON SA400S37480G, 480,1 GB
Serial ATA Device: MATSHITADVD-R UJ-898
Model: MacBookPro8,2, BootROM MBP81.0050.B00, 4 processors, Intel Core i7, 2 GHz, 8 GB, SMC 1.69f3
Graphics: kHW_IntelHD3000Item, Intel HD Graphics 3000, spdisplays_builtin
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xD6), Broadcom BCM43xx 1.0 (5.106.98.102.31)
Bluetooth: Version 6.0.14d3, 3 services, 27 devices, 1 incoming serial ports

Hi ! I am currently writing from my Early 2008 Black MacBook (4,1). I am pretty surprised how usable it is even without full QE/CI !

I think i have to max out the ram and change thermal paste because the CPU is getting pretty hot ;)
View attachment 856405

Thanks guys for your amazing work !

I have been able to lower CPU / GPU temps on my MBP5,1 and MBP6,2 by doing the following:
  • System Preferences > Spotlight > Search Results: Uncheck all options
  • System Preferences > Spotlight > Privacy: Add all Volumes
  • System Preferences > Accessibility > Display: Check "Reduce motion"
  • System Preferences > Accessibility > Display: Check "Reduce transparency"

I have been able to lower CPU / GPU temps on my MBP5,1 and MBP6,2 by doing the following:
  • System Preferences > Spotlight > Search Results: Uncheck all options
  • System Preferences > Spotlight > Privacy: Add all Volumes
  • System Preferences > Accessibility > Display: Check "Reduce motion"
  • System Preferences > Accessibility > Display: Check "Reduce transparency"
Lose Spotlight is not "cool". Jejejeje

I was using 10.14.3 HFS+ on MacPro3,1 when I noticed my Spotlight wasn't working (affects searching in Outlook), and some websites had problems with the older Safari version, and I wasn't getting updates, so I decided to upgrade to 10.14.6 and APFS. A clean install worked, but I got problems after attempting Migration Assistant from my 10.4.3 partition (hang at the end of the startup progress bar). I solved it by removing some migrated extensions, launch daemons, and launch agents (but I don't know which of them, if any, caused the problem).

Before that, I found that the startup.nsh script (used to load the apfs.efi driver) in the EFI partition does not work when you have more than 16 file systems. The script incorrectly assumes file systems are numbered 0-9 and A-Z when in fact the file systems are numbered using hexadecimal. Here's my updated script (supports up to 64 file systems):
Code:
echo -off

set StartupDelay 1
set -v efishellmode 1.1.2
set macOSBootFile "System\Library\CoreServices\boot.efi"
set targetUUID "10D5CE8C-43FE-43F2-8089-DAEDF6485644"

FOR %i in 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
    IF EXIST fs%i:\EFI\macOSMojavePatcher\apfs.efi THEN
        load fs%i:\EFI\macOSMojavePatcher\apfs.efi
        connect -r
        map -u
    ENDIF
ENDFOR

FOR %i in 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
    IF EXIST "fs%i:\%targetUUID%\%macOSBootFile%" THEN
        echo "Starting macOS..."
        fs%i:\%targetUUID%\%macOSBootFile%
        exit
    ENDIF
ENDFOR

FOR %i in 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
    IF EXIST "fs%i:\%macOSBootFile%" THEN
        echo "Starting macOS..."
        fs%i:\%macOSBootFile%
        exit
    ENDIF
ENDFOR
echo "Boot file not found, exiting..."
I save the text using Windows line endings (CRLF) - I'm not sure if that matters - the behavior might be different than the existing file which was created with UNIX line endings (LF). I believe CRLF is more correct, because text files generated in the EFI shell have CRLF. For example "map -v > map_v.txt"

The next thing I want to do is move the BOOTX64.efi (ShellX64.efi), apfs.efi, and nsstartup.sh to a separate partition so that the Startup Manager (hold option at startup) shows "Mojave" instead of "EFI Boot". You can use the bless command to add a ".disk_label" (and ".disk_label_2x" for newer retina Macs) to a partition. The Startup Manager doesn't show the label for the standard EFI boot location - hence the need to move to a different partition. The bless command can set the efi boot program of a HFS+ partition (doesn't need to be in an EFI folder). Any partition can have a custom icon (a .VolumeIcon.icns file that is created when you paste into the Finder Info window of a volume) that will appear in the Startup Manager and in the Finder.

  • Like
Reactions: K two
I was using 10.14.3 HFS+ on MacPro3,1 when I noticed my Spotlight wasn't working (affects searching in Outlook), and some websites had problems with the older Safari version, and I wasn't getting updates, so I decided to upgrade to 10.14.6 and APFS. A clean install worked, but I got problems after attempting Migration Assistant from my 10.4.3 partition (hang at the end of the startup progress bar). I solved it by removing some migrated extensions, launch daemons, and launch agents (but I don't know which of them, if any, caused the problem).

Before that, I found that the startup.nsh script (used to load the apfs.efi driver) in the EFI partition does not work when you have more than 16 file systems. The script incorrectly assumes file systems are numbered 0-9 and A-Z when in fact the file systems are numbered using hexadecimal. Here's my updated script (supports up to 64 file systems):
Code:
echo -off

set StartupDelay 1
set -v efishellmode 1.1.2
set macOSBootFile "System\Library\CoreServices\boot.efi"
set targetUUID "10D5CE8C-43FE-43F2-8089-DAEDF6485644"

FOR %i in 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
    IF EXIST fs%i:\EFI\macOSMojavePatcher\apfs.efi THEN
        load fs%i:\EFI\macOSMojavePatcher\apfs.efi
        connect -r
        map -u
    ENDIF
ENDFOR

FOR %i in 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
    IF EXIST "fs%i:\%targetUUID%\%macOSBootFile%" THEN
        echo "Starting macOS..."
        fs%i:\%targetUUID%\%macOSBootFile%
        exit
    ENDIF
ENDFOR

FOR %i in 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
    IF EXIST "fs%i:\%macOSBootFile%" THEN
        echo "Starting macOS..."
        fs%i:\%macOSBootFile%
        exit
    ENDIF
ENDFOR
echo "Boot file not found, exiting..."
I save the text using Windows line endings (CRLF) - I'm not sure if that matters - the behavior might be different than the existing file which was created with UNIX line endings (LF). I believe CRLF is more correct, because text files generated in the EFI shell have CRLF. For example "map -v > map_v.txt"

The next thing I want to do is move the BOOTX64.efi (ShellX64.efi), apfs.efi, and nsstartup.sh to a separate partition so that the Startup Manager (hold option at startup) shows "Mojave" instead of "EFI Boot". You can use the bless command to add a ".disk_label" (and ".disk_label_2x" for newer retina Macs) to a partition. The Startup Manager doesn't show the label for the standard EFI boot location - hence the need to move to a different partition. The bless command can set the efi boot program of a HFS+ partition (doesn't need to be in an EFI folder). Any partition can have a custom icon (a .VolumeIcon.icns file that is created when you paste into the Finder Info window of a volume) that will appear in the Startup Manager and in the Finder.
I have found using the APFS ROM update a good solution for the cMP3.1.

  • Like
Reactions: roronl
I was using 10.14.3 HFS+ on MacPro3,1 when I noticed my Spotlight wasn't working (affects searching in Outlook), and some websites had problems with the older Safari version, and I wasn't getting updates, so I decided to upgrade to 10.14.6 and APFS.
Another reason to upgrade to 10.14.6 is to get the new multiple refresh rates for scaled resolutions feature.
2018-13-MacBook-pro-2018-radeon-vii32gbps-macos-10-14-5-pbeta2-win-10-1809-ningauble77

I have found using the APFS ROM update a good solution for the cMP3.1.
I'm afraid to blow up my rom. Maybe one day I'll do it. I'd also like to add an XHCI driver.

  • Like
Reactions: K two
Yes run the post install patches, remember to select your model of mac from the drop down click patch then reboot
give a while and cross your fingers. If that doesn't work then erase the disk install Mojave again, do the post install patches etc and reboot.


Hello, Does anyone know how to wipe the whole thing and go back to High sierra?

A bit OT, but very helpful side-information:
Now with Parallels Desktop 15 users cannot choose to use DX10, DX11 or nothing anymore for Windows (7,8,10).
Parallels relies on Metal API when running on Mojave or Catalina.
On our old machines that will not work in most cases... (eGPUs will do!).

Here´s the trick to go back to OpenGL for DirectX (extracted this hint during a support case phone call to Parallels):

Set a boot flag in the settings of the virtual machine at "boot sequence", then pop up the "extended settings" and
enter
video.metal=0

Bildschirmfoto 2019-09-13 um 14.17.27.jpg


Then, voilá, another round of update successfully possible on unsupported machines!

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
