macOS 10.15 Catalina on Unsupported Macs

[PixelmonGalaxy]

Did you download a full Catalina installer and patch InstallESD/OSInstall in the traditional way (to get to your point)?

How does one patch something the traditional way? I haven't been able to find anything on the internet about this



[donluca]

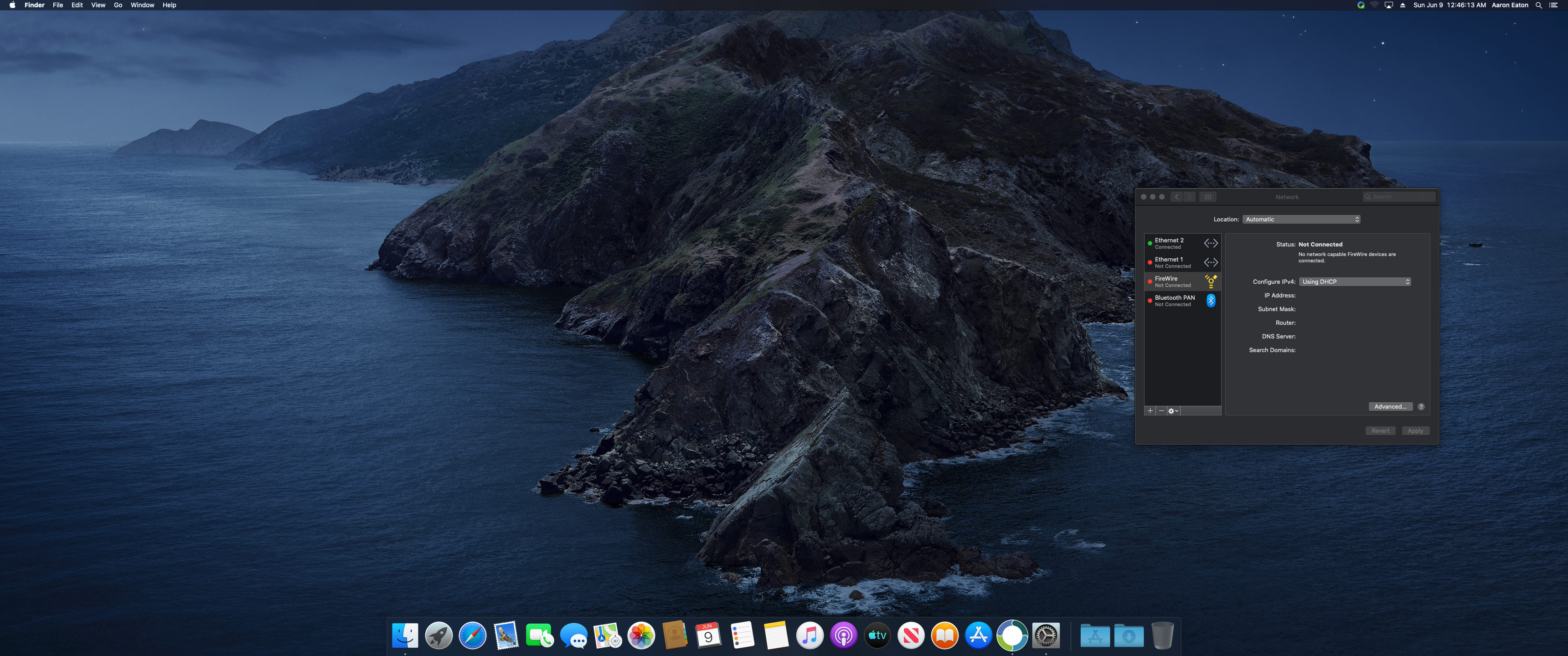

Catalina seems to be running fine on my 4,1 flashed to 5,1. The only thing I've noticed not working is the WiFi. It isn't showing in the network preferences. I never got around to upgrading the WiFi and Bluetooth card since I don't use them often. Bluetooth seems to work fine.

View attachment 842047

That's great! I was thinking about upgrading the card, but since I use only bluetooth on my cMP 4,1->5,1 I think I'll just keep using the one I have.

On the cloning side of things,

I installed pv using homebrew and used it's size attribute to get an ETA.

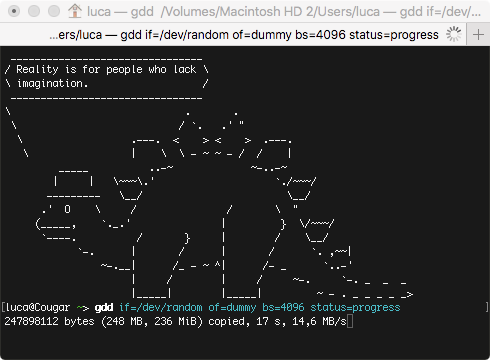

dd has a similar function, which has been added quite a while ago and it's the

status=progress

option.

So you'd just have to do something like

dd if=/dev/xxx of=/dev/xxx bs=4096 status=progress

EDIT: actually, it looks like the dd included in High Sierra is *very* old. Not the end of the world, just install coreutils from brew and you're good to go.

brew install coreutils

gdd if=/dev/xxx of=/dev/xxx bs=4096 status=progress

notice the "g" at the beginning to specify the GNU version.



[PixelmonGalaxy]

My guess is that booting from clover bootloader and making the installer believe my Early 2011 13" MBP is a Mid 2012 13" MBP would only do bad for me, can someone confirm?



[jackluke]

My guess is that booting from clover bootloader and making the installer believe my Early 2011 13" MBP is a Mid 2012 13" MBP would only do bad for me, can someone confirm?

NO, you will risk two times to brick your MacbookPro:

1) Using Clover bootloader on a real Mac is very dangerous it will patch on-the-fly the EFI EEPROM SMC injecting something
2) Assuming you will able to spoof your Mac as a supported Catalina machine, then it will do a EFI firmare update totally incompatible with your Mac

In both cases the risk to brick your machine is very high!



[PixelmonGalaxy]

NO, you will risk two times to brick your MacbookPro:

1) Using Clover bootloader on a real Mac is very dangerous it will patch on-the-fly the EFI SMC
2) Assuming you will able to spoof your Mac as a supported Catalina machine it will do a EFI firmare update

In both cases the risk to brick your machine is very high!

Ok Thank you for the information, I just really want to try out Catalina but don't know where to start, I see alot of people saying they got it working on their devices, but with no information on how patch these files for yourself



[ASentientBot]

Ok Thank you for the information, I just really want to try out Catalina but don't know where to start, I see alot of people saying they got it working on their devices, but with no information on how patch these files for yourself

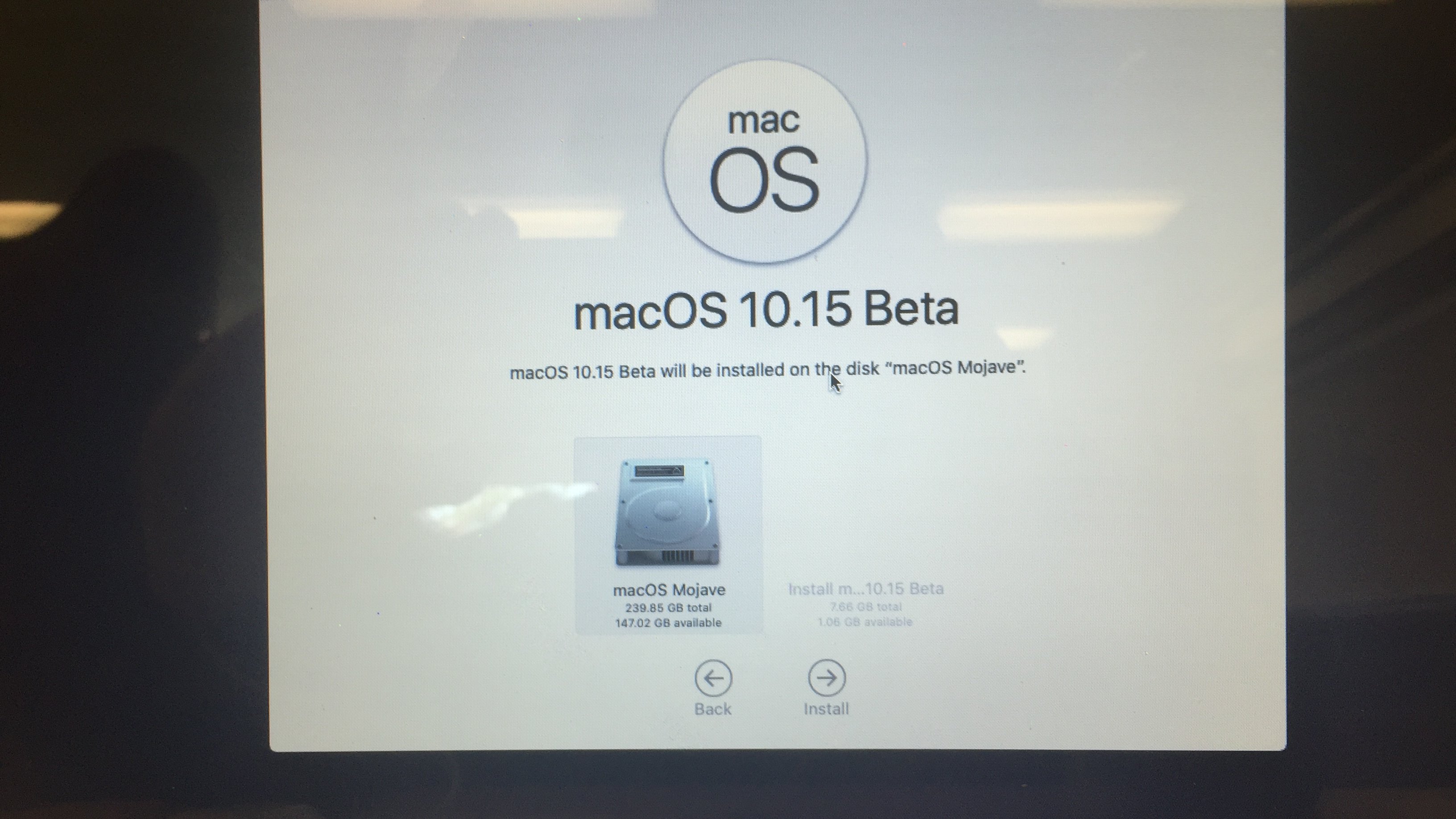

I posted here about how I got it installed on a 2010 MacBook without access to a supported Mac. Some others have had success with a VM. The simplest method is probably to clone from a supported computer, but I haven't tried that.



[jackluke]

I posted here about how I got it installed on a 2010 MacBook without access to a supported Mac. Some others have had success with a VM. The simplest method is probably to clone from a supported computer, but I haven't tried that.

Agreed, I was just typing an alternative very similar way:

- Download the "Install macOS 10.15 beta.app" (6,5 gb)

- Show its packages Contents/SharedSupport/

- Take the BaseSystem.dmg apart and restore it on an empty (at least 10 gb) USB drive or disk partition

- Copy from Contents/SharedSupport/ these files in the root of your "Restored BaseSystem.dmg" USB drive:
AppleDiagnostics.chunklist, AppleDiagnostics.dmg, BaseSystem.chunklist and BaseSystem.dmg

(You need also another BaseSystem.dmg copied inside the USB "restored Basesystem.dmg" otherwise will fail during installation)

- Now from Contents/SharedSupport/ open/mount the InstallESD.dmg and copy (from Finder) the Packages (overwriting the Packages.alias) folder into your USB (restored BaseSystem) /System/Installation/
(this will take a while)

- Go to /System/Installation/Packages/ and you should or patching the Distribution inside or "downgrade" the OSInstall.mpkg, as @ASentientBot rightly suggested an HighSierra one is good since you have a MBP 2011 that is HighSierra natively supported

Meanwhile on your MacBookPro you have to set from a Terminal Shell nvram boot-args="-no_compat_check"

Reboot and boot targeting this USB Drive, format as or use as target install disk one with APFS and it should install.



[pkouame]

Ok Thank you for the information, I just really want to try out Catalina but don't know where to start, I see alot of people saying they got it working on their devices, but with no information on how patch these files for yourself

Ditto. Those are Hackintosh tools, be careful.

Automated patchers and installers are on the way. Many of us created Catalina boot USB sticks with supported machines, then manually patched our sticks to make them boot on our unsupported machines. Sorry but the steps are a little daunting if you haven't done this type of thing before OR aren't comfortable with the Mac Terminal. I would recommend waiting a bit until nicely packaged images are available with instructions OR a custom patcher is released. You can also retrace our steps since page 1, if you are so inclined, it's all buried in there. Sorry, things may become easier soon...

EDIT: didn't realize @jacluke and @ASentientBot responded. They describe alternate valid workflows. Good luck.



[PixelmonGalaxy]

Ditto. Those are Hackintosh tools, be careful.

Automated patchers and installers are on the way. Many of us created Catalina boot USB sticks with supported machines, then manually patched our sticks to make them boot on our unsupported machines. Sorry but the steps are a little daunting if you haven't done this type of thing before OR aren't comfortable with the Mac Terminal. I would recommend waiting a bit until nicely packaged images are available with instructions OR a custom patcher is released. You can also retrace our steps since page 1, if you are so inclined, it's all buried in there. Sorry, things may become easier soon...

EDIT: didn't realize @jacluke and @ASentientBot responded. They describe alternate valid workflows. Good luck.

I haven't really delved into it before but I wish to learn



[Starplayr]

If you watch the super hard core session videos at WWDC , like on metal and debugging techniques, you’ll see that the top notch engineers still demonstrate with ObjC (cause it’s so Low level like C) So no I do t think ObjC is going anywhere soon. Thank God.

Many Swift frameworks use C for low level stuff and raw speed. Perfect web server does this for SSL and HTTP and one other lib. It is the fastest Swift web server, and it’s also faster than Node.js

You can also run Obj-C and Swift in the same app, except for SwiftUI.

My swift framework that I made to stream HLS data can probably work wirh and Obj-C client. Just haven’t tried it.

Two schools of thought.

Audio frameworks in real time are better with C. Swift alone is not fast enough to do a real time audio tap, but Swift with a Framework that uses C is.

Many ways to skin a Cat(ilina).
[doublepost=1560202694][/doublepost]If anyone wants to do a knowledge share between Swift and Obj-C, I’m all for it.
[doublepost=1560203028][/doublepost]

I already converted my Mojave terminal to Oh My ZSH 🙂

Back up your data.



[Appleak]

NoGiveUp even without acc. Wanna try it on my imac 11.2 pls! -Tell me if i can soldering a metal-ready GPU which one to be fit?
Best Luck @dosdude & All Teammates 🙂



[TimothyR734]

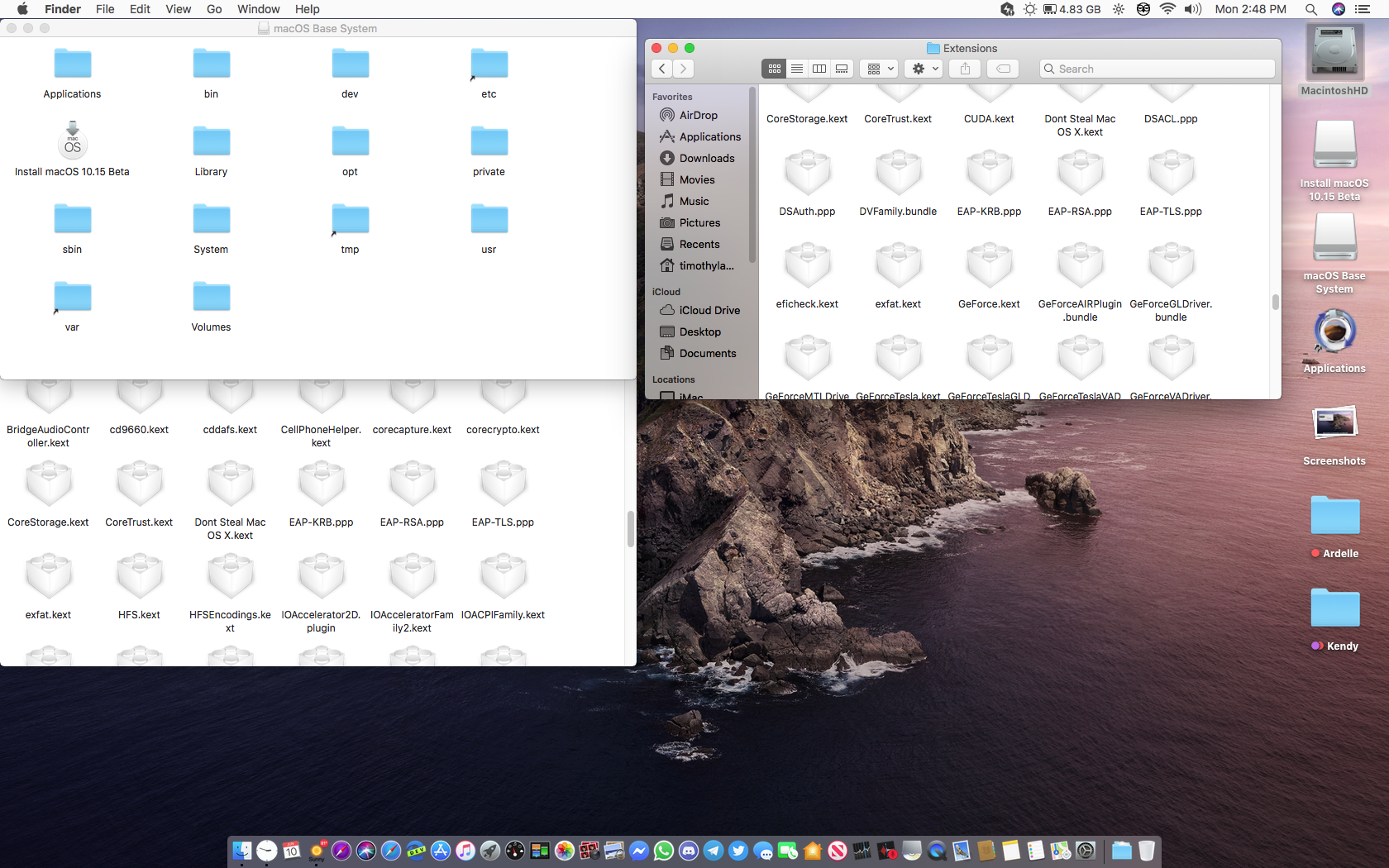

Just for some info I opened the 10.15 dev beta base system from the installer app and took a look in the s/l/e folder and all the geforce extensions are missing form Catalina



[jowaju]

Figured out a reproduce-able method for creating an image of Catalina dual mode APFS containers to make it easier to move installations quickly. If this guide isn't clear enough let me know and I'll clean it up :

Used Clonezilla Live newest version – filename was clonezilla-live-20190420-disco-amd64.iso. Copied to bootable USB with Etcher / Rufus (make sure it’s GPT partitioned).


1. Clonezilla Live 1024*768, press Enter

2. Start CloneZilla, press Enter

3. Device-image, press Enter

4. Local_dev, press Enter

5. Insert USB to save image to (must be HFS or Xfat, cannot be APFS) wait 5 seconds, press enter

6. If your USB shows on the list, press Ctrl + C to go to the next step

7. Choose your USB drive and partition to save the image to and then press Enter

8. If your drive is HFS, you will get a warning, press Y to continue

9. Choose the folder on the drive to save the image to and press Enter

10. Arrow down to saveparts, then press Enter

11. Choose a new name for the image file or press enter to keep the defaults

12. Choose the source partition (your APFS container that is currently working)

13. Press Enter to choose default priority mode for cloning

14. Press Enter to choose Default Advanced Parameters

15. Arrow down to –Z0 for No Compression and press Enter

16. Add 10 zeros to make sure the file is not split during cloning, then press Enter

17. Press Enter to Skip Source File System Checking

18. Arrow down once to Skip checking the saved image then press Enter

19. Press Enter to not encrypt the image

20. Press Enter to choose shutdown options after cloning

21. You will get a warning about Volume size limit and list of the exact command to run, press Enter

22. Confirm the image information and press Y to continue

23. The Cloning Process will begin, this step took exactly 5 minutes on my machine

24. After cloning a summary will be displayed, press Enter

25. Arrow down to reboot, press Enter

26. Hold the Left Alt key down while rebooting and choose a working Catalina boot device

27. Once booted, find the image file folder you specified in Clonezilla

28. Sort by File Size, the biggest file in the folder should end with img.uncomp.aa

29. Rename the file by removing the uncomp.aa and changing it to .img

30. Now double clicking on the .img file will open it as a usable image in Disk Utility

31. You can now restore to any size drive natively using Disk Utility, all the way down to the size of the used space in the 2 APFS containers that show up, mine was ~ 14.7GB so it fits perfectly on a 16GB USB drive.

32. If you run through the process once more after restoring to a smaller drive you will have a permanent copy shrunk to ~14.7GB

33. When you use Disk Utility to restore the APFS container, it will put both images back correctly and re-enumerate the UUID correctly

34. Confirmed clone ability to External USB drives (multiple) as well as to Internal SSD / Hard drive on any Mac that will boot the Catalina Recovery drive.


Caveats – I had to disable SIP to make all this work, everything worked fine and a reset the PRAM to remove the Verbose boot which turned SIP back on and I had TONS of issues. Turning it back off fixed them instantly.


Also the only Disk Utility that seems to handle Catalina APFS containers is the Catalina version itself. High Sierra did NOT work. I have not tried Mojave yet but plan to test it ASAP.



[jbiser361]

Just for some info I opened the 10.15 dev beta base system from the installer app and took a look in the s/l/e folder and all the geforce extensions are missing form Catalina

if you add those what does that produce?

that looks exciting to me tbh for acceleration



[TimothyR734]

if you add those what does that produce?

that looks exciting to me tbh for acceleration

I really don't know as I don't have Catalina up and running but I do know Apple and Nvidia are at odds with each other so maybe that's why they are not included or maybe they do install during the setup process
[doublepost=1560207993][/doublepost]The other thing I noticed is openGL and openCL are in the base system but not openAL which is a cross platform audio package API



[Starplayr]

NO, you will risk two times to brick your MacbookPro:

1) Using Clover bootloader on a real Mac is very dangerous it will patch on-the-fly the EFI EEPROM SMC injecting something
2) Assuming you will able to spoof your Mac as a supported Catalina machine, then it will do a EFI firmare update totally incompatible with your Mac

In both cases the risk to brick your machine is very high!

I have done this a Mac Pro and it is not recommended. If you pick the wrong reference computer, it can stop your computer from booting and you have to go in and change the startup volume or remove the EFI partition.

And there isn't an EFI partition or volume on APFS Containers. I am sure there is still EFI, it's just not a partition anymore. So you're adding something in front of something instead letting the system use Preboot volume directly that's on APFS.

third, if you need power management kexts for your Motherboard, well, how is it gonna know to load them if the system thinks it's a Mac mini instead of a Mac Pro? Hope that helps.

It's a roll of the dice and I decided to quit doing it as it won't be standard practice on a Mac.

These tricks are ok on VMs and on Hacktintoshes because they natively lack the open firmware needed to boot macOS.

When a patch tool is out, this will be much easier.

I am working on a signed OSInstall file that may help with booting. My object is to return true on any of its error checks. Package it up. compare my packaged file with the original and then hex edit the areas on the signed file to see if it runs and then a native installer would might work without jump through hoops. Others might have gotten this to work already, but I haven't yet on my MP3,1. but by returning true no matter what right away should prevent the OSInstall file from hiccuping. And I'll be using an OSInstall file for that install. Shooting for a 1:1.
[doublepost=1560208795][/doublepost]APFS has an interesting feature that allows clones of a volume or directory that don't require extra space and it only takes up more space when bits are changed. I am not sure if that works across containers, I doubt it, but you should be able to do this:

clone an APFS Volume within the same container instantly. Make backups, modifications, create snapshots, do versioning while taking up nearly the same amount of space. It allows shared bytes that are common.

Here is a brief technote from Apple about it:
https://developer.apple.com/documentation/foundation/file_system/about_apple_file_system

I'll be playing around with it once I get my Mojave install back on a usable drive.



[Aletancredo]

All research, testing, and releases of tools and patches relating to macOS 10.15 Catalina on Unsupported Macs should be posted here.


Machine Support
As it currently seems, all machines with at least SSE4.1 support (C2D penryn and upwards) seem to be able to at least boot Catalina. This covers all of the machines that were able to run Mojave, even the officially unsupported systems.

Video Card Support
For the time being, only metal capable cards are fully supported with graphics acceleration. Unfortunately, metal capable cards are most likely the only cards that will ever achieve acceleration on this version of macOS. This excludes i.e. Nvidia 8800GT, 320M, 9600M/GT, Intel HD3000. Catalina can be booted and used without acceleration and without OpenGL/CL support.

However, we will still try.

Installation
At the moment, a supported system is required to install to primarily. Unsupported systems can then use a cloned drive/volume that is derived and patched in a basic way.
Inexperienced users should clearly wait for some patcher tool from @dosdude1 or an alternative tool from @0403979 to be released sometime soon!


Catalina Builds and Installer Versions

2019/06/04 10.15.0 beta 1, build 19A471t, installer 15.0.11


Moderator Note:
Please do not ask for, or provide help getting developers profile information to access unauthorised beta software on MacRumors. If you are not a developer, sign up to the Apple Beta Software Program to get the official public beta releases.


As requested, this post is now a wiki post. Feel free to edit it yourself.

Hello Is there any patcher to install 10.15.0? Thanks



[Starplayr]

APFS Cloning update / shared data:

I was able to do a quick test in Swift, and I am able to clone volumes instantly between two volumes on the same container. And it does the same with directories on the same volume. No matter how big they are, they are created instantly.

Now for creating volumes, that has to be done separately. But once a volume is created, you can go through its directories recursively:

like /Volume/Home - Data/Devices
to /Volume/Home - Data/Devices

and so on.

so do use the cloning feature, looping over directories will be needed or copy the original to a temp dir and move it once the volume is created.

Next test, clone data between two containers on the same disk and see if the data is shared or if it's independent.

The cloning aspect is interesting on the container, because you could clone the system or data volume, make changes to the main one and if you mess up, you can clone the origin back in an instant.

This could save a lot of time in testing.

Anyone who wants to do their own Swift code and follow along here my starting code:

//  Created by Starplayr on 6/10/19.
//  Copyright © 2019 Todd Bruss. All rights reserved.

import Foundation

let source = "/Volumes/MyHome - Data/Device" //source
let destination = "/Volumes/MyHome2 - Data/Device" //destination
let fileManager = FileManager() //shared instance is declared once

do {
    try fileManager.copyItem(atPath: source, toPath: destination) //new Syntax
} catch {
    print(error)
}

There is not much to it other than putting some brains behind it. The beauty of this technique is if you clone from HFS+ to APFS directories, it will copy automatically. You won't get the benefits of cloning with shared data but it will just work.

I am gonna do some manual clones with some kext patches and see how it fairs and how well I can revert back from a clone. The ability to do snapshots of a file system is pretty neat. We are talking Nanoseconds of time.
[doublepost=1560213461][/doublepost]@ pkouame: did you post which Kexts you used for your MP3,1? Looking to save a little time. I'll see what the patch tool has if it has anything I can spot.



[ASentientBot]

I am working on a signed OSInstall file that may help with booting. My object is to return true on any of its error checks. Package it up. compare my packaged file with the original and then hex edit the areas on the signed file to see if it runs and then a native installer would might work without jump through hoops. Others might have gotten this to work already, but I haven't yet on my MP3,1. but by returning true no matter what right away should prevent the OSInstall file from hiccuping. And I'll be using an OSInstall file for that install. Shooting for a 1:1.

This makes no sense... if you make any edit to a signed file, the signature is instantly broken.



[Starplayr]

This makes no sense... if you make any edit to a signed file, the signature is instantly broken.

Then how are users editing the Distribution file and getting that to work?
If it one bit is edited on the .mpkg via a hex editor without decompressing it and recompressing it breaks?

I was thinking the signing would be elsewhere in the file and I didn't think it looked at the bits in the Distribution file. I'll try one character first and see what happens.



[ASentientBot]

Then how are users editing the Distribution file and getting that to work?
If it one bit is edited on the .mpkg via a hex editor it breaks?

When you expand and edit the Distribution file, the signature is removed.

Hex-editing a compressed package would be impractical anyways, and would immediately invalidate the checksum/signature -- that is the point of the signature!



[Starplayr]

When you expand and edit the Distribution file, the signature is removed.

Hex-editing a compressed package would be impractical anyways, and would immediately invalidate the checksum/signature -- that is the point of the signature!

Right but was I am attempting is edit the file. recompress it a mpkg.

compare the two packages.. one part were the signature is it should be obvious. and should the 1 bit I changed.

Guess I will find out. It's a small test anyways.

I really don't understand how others on the MP5,1 are editing the file and getting that work without signing.

How can the signing be turned off or ignored like in the patched installers?

well, I have some other ideas around the APFS cloning, so I may be able to get the installer to run unsigned and create the Data drive separately.



[PixelmonGalaxy]

Agreed, I was just typing an alternative very similar way:

- Download the "Install macOS 10.15 beta.app" (6,5 gb)

- Show its packages Contents/SharedSupport/

- Take the BaseSystem.dmg apart and restore it on an empty (at least 10 gb) USB drive or disk partition

- Copy from Contents/SharedSupport/ these files in the root of your "Restored BaseSystem.dmg" USB drive:
AppleDiagnostics.chunklist, AppleDiagnostics.dmg, BaseSystem.chunklist and BaseSystem.dmg

(You need also another BaseSystem.dmg copied inside the USB "restored Basesystem.dmg" otherwise will fail during installation)

- Now from Contents/SharedSupport/ open/mount the InstallESD.dmg and copy (from Finder) the Packages (overwriting the Packages.alias) folder into your USB (restored BaseSystem) /System/Installation/
(this will take a while)

- Go to /System/Installation/Packages/ and you should or patching the Distribution inside or "downgrade" the OSInstall.mpkg, as @ASentientBot rightly suggested an HighSierra one is good since you have a MBP 2011 that is HighSierra natively supported

Meanwhile on your MacBookPro you have to set from a Terminal Shell nvram boot-args="-no_compat_check"

Reboot and boot targeting this USB Drive, format as or use as target install disk one with APFS and it should install.

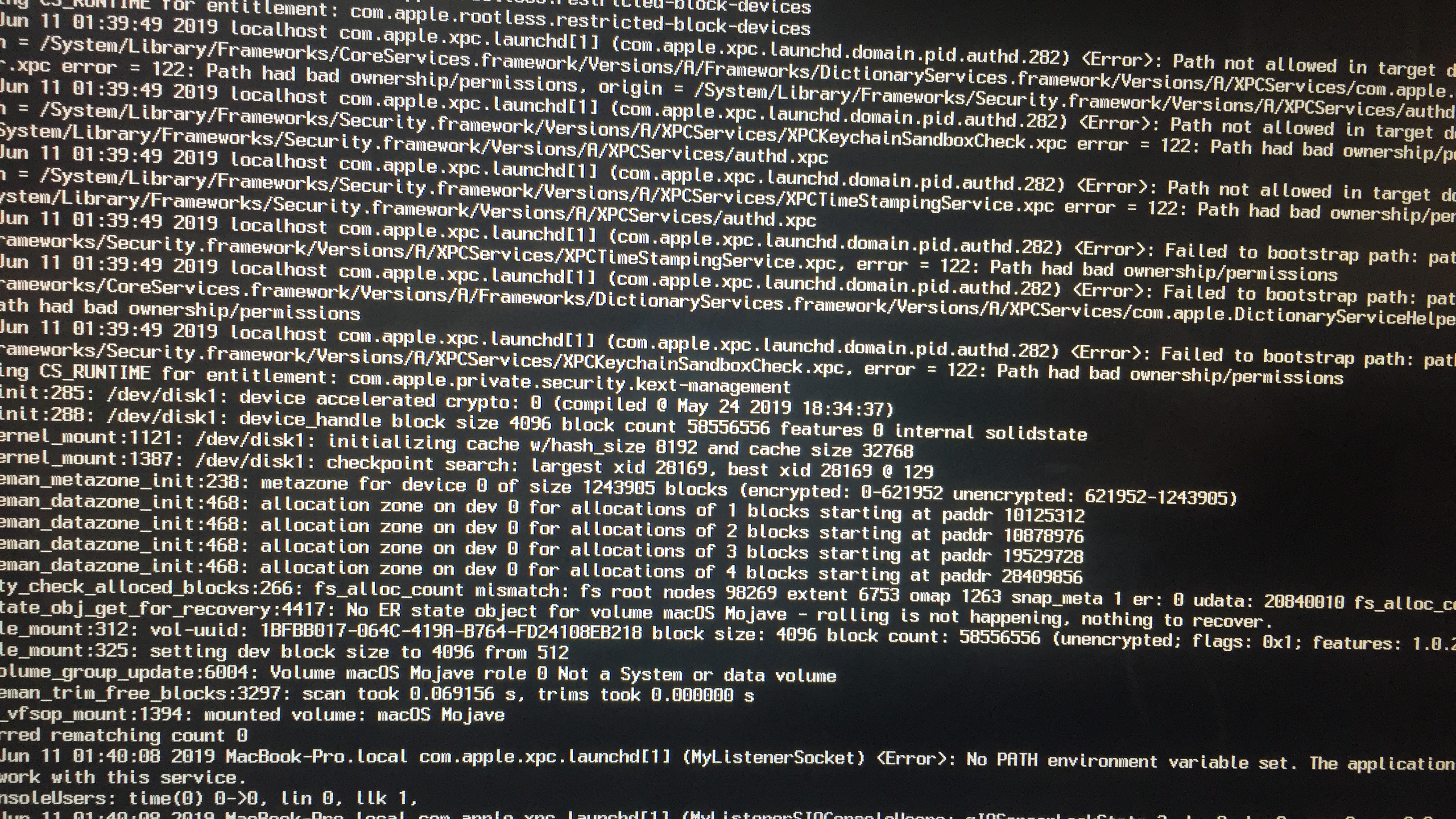

I think I followed everything correctly, but I'm guessing I probably did not, can I added verbose boot argument to see if i could figure out the issue and I am not completely sure what this means. Or what step I missed.



[TimothyR734]

hold command V for verbose mode when you power on



[Starplayr]

When you expand and edit the Distribution file, the signature is removed.

Hex-editing a compressed package would be impractical anyways, and would immediately invalidate the checksum/signature -- that is the point of the signature!

Thanks for clarification. Oh well support Mac install and 'dd' it is for now. 🙂 And some experimental snapshot cloning of APFS directories for patching.
