macOS 10.15 Catalina on Unsupported Macs

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
joevt said:
Maybe we need to see the results of those commands to suggest next steps. Have you tried booting from a different macOS?
Click to expand...
Thank you for looking into it.
I booted from an external USB with Dosdude1's Patcher on it, from there I ran Disk First Aid.

Terminal renders the following results for the undetectable folders via the ls -l@OG command:
for the folder "Resource" (2 examples from the list of files contained in the folder)
-rw------- 1 r staff - 1270 29 Jul 16:30 00CB66CD54A5634CD7FE9848D513DFE362F831AC
-rw------- 1 r staff - 140213 31 Jul 09:02 2BB4BF535C719F59EF228E74418363346DBEB4E0-blob

for the folders "Blobs" and "355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C" there is no output.

Is there anything you can suggest? Since these folders were subfolders of "com.apple.safari"... deleting Safari and re-installing it?

Thanks in advance for your help, that is very kind of you, joevt

roysterdoyster said:
Thank you for looking into it.
I booted from an external USB with Dosdude1's Patcher on it, from there I ran Disk First Aid.

Terminal renders the following results for the undetectable folders via the ls -l@OG command:
for the folder "Resource" (2 examples from the list of files contained in the folder)
-rw------- 1 r staff - 1270 29 Jul 16:30 00CB66CD54A5634CD7FE9848D513DFE362F831AC
-rw------- 1 r staff - 140213 31 Jul 09:02 2BB4BF535C719F59EF228E74418363346DBEB4E0-blob

for the folders "Blobs" and "355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C" there is no output.

Is there anything you can suggest? Since these folders were subfolders of "com.apple.safari"... deleting Safari and re-installing it?

Thanks in advance for your help, that is very kind of you, joevt
Click to expand...
I don't think this is related to Catalina on unsupported Macs, so we should move this to a new thread. Post the URL of the new thread here.
Also, when you paste text from Terminal.app, it would be helpful to include all the output and enclose it in [code] [/code] tags to preserve formatting.

For directories, include the -d flag to get info for the directory instead of the directory's files.
ls -l@OG -d thedirectory

See if you can change the owner from to yourself (unless you are "r"?)
sudo chown joevt:staff thefileordirectory

Show the error when you try to
sudo rm thefile

  • Like
Reactions: roysterdoyster, cronopio.verde and K two

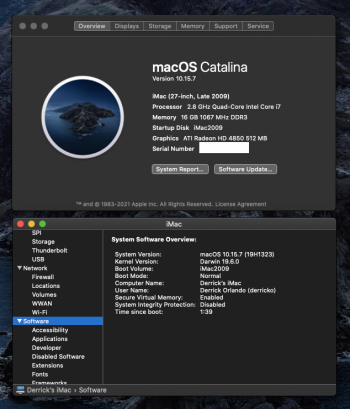

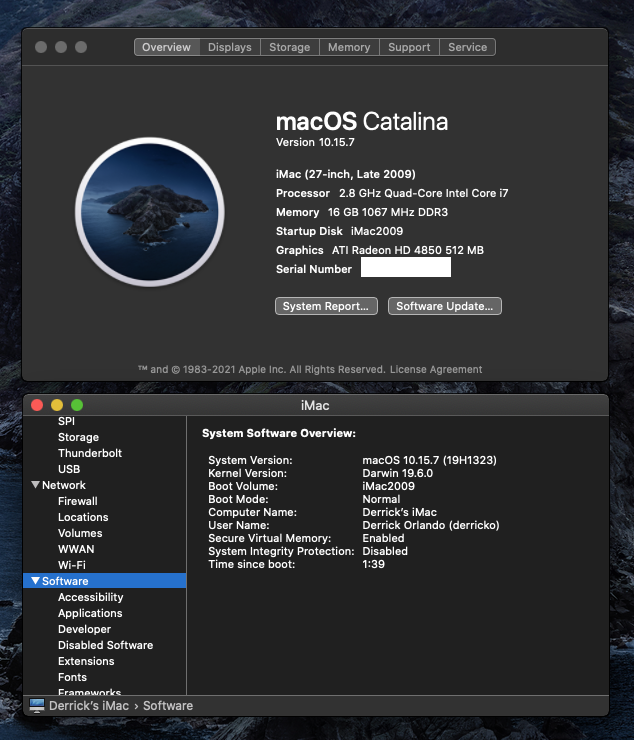

Another successful CatalinaOTAAswufix update to macOS Catalina 10.15.7 (19H1323) on my Late 2009 iMac 27 i7 16GB RAM 1TB SSD Samsung 860.

It did take several tries to get CatalinaOTAAswufix to patch the update. On a hunch, I tried running Silent Knight 115 and found that a couple of things were out-of-date and as soon as those were updated, CatalinaOTAswufix finally worked! I'm not completely sure Silent Knight fixed the issue, but I'll take it for now, as I have 19H1323 up and running!


Attachments

  • Screen Shot 2021-08-08 at 5.45.16 PM.png
    Screen Shot 2021-08-08 at 5.45.16 PM.png
    290.8 KB · Views: 217
  • Like
Reactions: windrider42, K two and 0134168

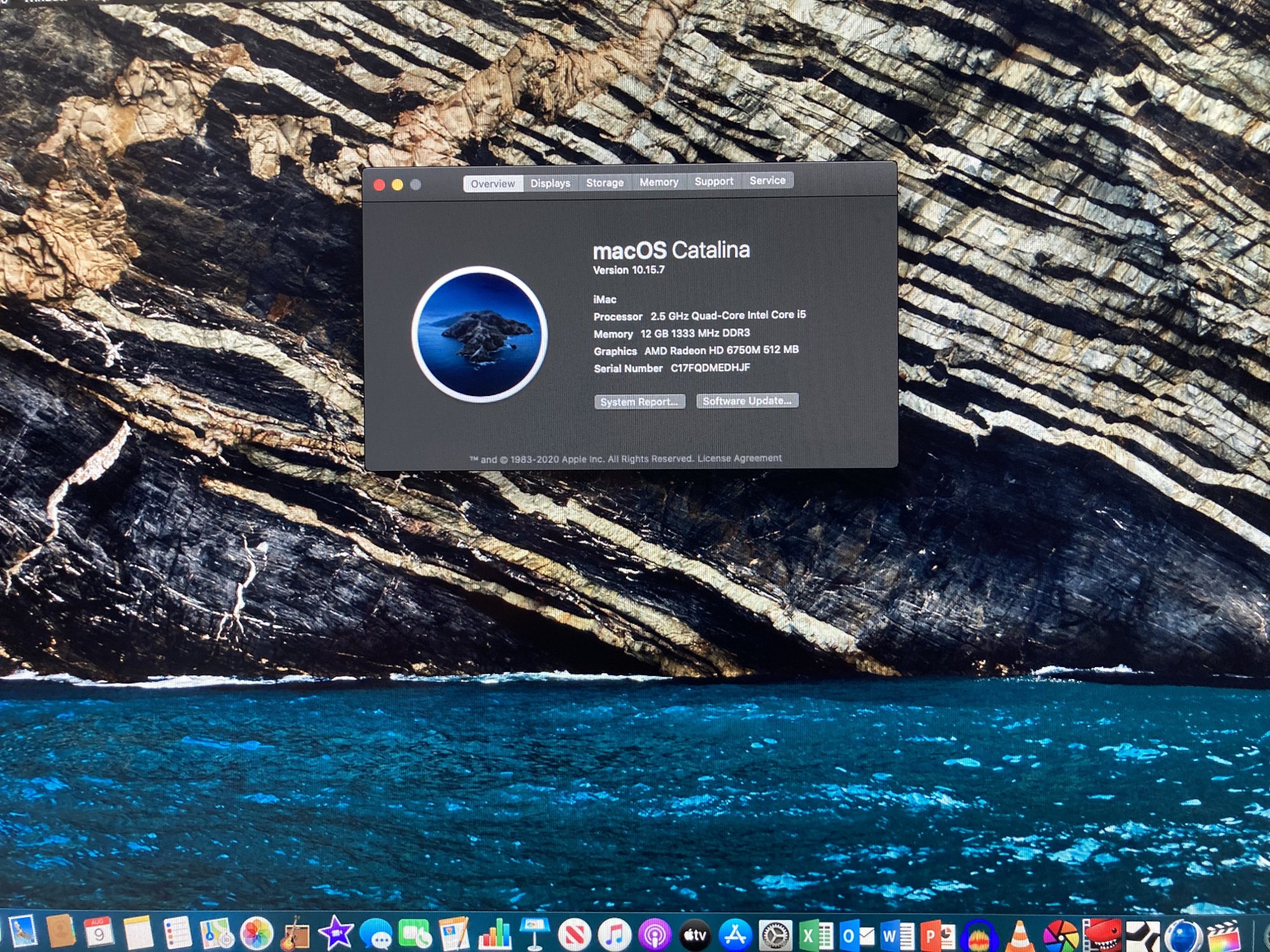

I noticed on the nightly build of OCLP a new option to allow the Terascale 2 (aka HD 5xxx and 6xxx series) patches to be applied to Mojave / Catalina. It hosed my first installation because it got halfway through with an error parsing the script and I stupidly rebooted without fixing the error. One of the paths in the script had an extra - in the parameter, once I fixed that the patches applied successfully and BOOM! Catalina runs SO much better on this 2011 iMac than Big Sur. Virtually ALL of the graphics glitches in Big Sur are gone now with Catalina, no stupid transparency issues, no light menu bar issues, no issues with Final Cut Pro and iMOvie and GarageBand, etc etc. Amazing work guys, as always! We appreciate all the time and effort you put into these old machines to keep them running. I bet this single Terascale 2 patch will bring back a few hundred thousand machines from the graveyard. As we all know the 2011's can be really tricked out with 32GB ram, SSD drives, thunderbolt, basically all the goodies except USB3.


Attachments

  • Photo Aug 09, 9 40 36 AM.jpg
    Photo Aug 09, 9 40 36 AM.jpg
    831 KB · Views: 226
  • Like
Reactions: K two and Ausdauersportler
jowaju said:
I noticed on the nightly build of OCLP a new option to allow the Terascale 2 (aka HD 5xxx and 6xxx series) patches to be applied to Mojave / Catalina. It hosed my first installation because it got halfway through with an error parsing the script and I stupidly rebooted without fixing the error. One of the paths in the script had an extra - in the parameter, once I fixed that the patches applied successfully and BOOM! Catalina runs SO much better on this 2011 iMac than Big Sur. Virtually ALL of the graphics glitches in Big Sur are gone now with Catalina, no stupid transparency issues, no light menu bar issues, no issues with Final Cut Pro and iMOvie and GarageBand, etc etc. Amazing work guys, as always! We appreciate all the time and effort you put into these old machines to keep them running. I bet this single Terascale 2 patch will bring back a few hundred thousand machines from the graveyard. As we all know the 2011's can be really tricked out with 32GB ram, SSD drives, thunderbolt, basically all the goodies except USB3.
Click to expand...
Error in script??

joevt said:
I don't think this is related to Catalina on unsupported Macs, so we should move this to a new thread. Post the URL of the new thread here.
Also, when you paste text from Terminal.app, it would be helpful to include all the output and enclose it in [code] [/code] tags to preserve formatting.

For directories, include the -d flag to get info for the directory instead of the directory's files.
ls -l@OG -d thedirectory

See if you can change the owner from to yourself (unless you are "r"?)
sudo chown joevt:staff thefileordirectory

Show the error when you try to
sudo rm thefile
Click to expand...
Thank you very much for further looking into the problem.

Here is the output of the above commands. "r" that's me.
the folder "Blobs" and "355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C" appear empty, "Resource" contains 88 visible files of the named e.g. "00CB66CD54A5634CD7FE9848D513DFE362F831AC"

via Terminal:
[/icode]r@rs-MacBook-Pro ~ % ls -l@OG -d /Users/r/Desktop/Resource


drwxrwxrwx 105 r staff - 3360 31 Jul 10:34 /Users/r/Desktop/Resource


r@rs-MacBook-Pro ~ % ls -l@OG -d /Users/r/Desktop/Blobs


drwxrwxrwx 3 r staff - 96 31 Jul 10:34 /Users/r/Desktop/Blobs


r@rs-MacBook-Pro ~ % ls -l@OG -d /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C


drwxrwxrwx 3 r staff - 96 31 Jul 13:20 /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C


r@rs-MacBook-Pro ~ % sudo chown r:staff /Users/r/Desktop/Resource


Password:


r@rs-MacBook-Pro ~ % sudo chown r:staff /Users/r/Desktop/Blobs


r@rs-MacBook-Pro ~ % sudo chown r:staff /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C


r@rs-MacBook-Pro ~ % sudo rm /Users/r/Desktop/Resource


rm: /Users/r/Desktop/Resource: is a directory


r@rs-MacBook-Pro ~ % sudo rm /Users/r/Desktop/Blobs


rm: /Users/r/Desktop/Blobs: is a directory


r@rs-MacBook-Pro ~ % sudo rm /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C


rm: /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C: is a directory


r@rs-MacBook-Pro ~ % sudo rm -d /Users/r/Desktop/Resource


rm: /Users/r/Desktop/Resource: Directory not empty


r@rs-MacBook-Pro ~ % sudo rm -d /Users/r/Desktop/Blobs


rm: /Users/r/Desktop/Blobs: Directory not empty


r@rs-MacBook-Pro ~ % sudo rm -d /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C


rm: /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C: Directory not empty[/icode]

K two said:
Error in script??
Click to expand...
Yes there was an extra - in one of the directories inside the script, which causes it to fail while patching. I figured it would already be fixed but I tried again last night with a new nightly build and still the same error. It's in Payloads\Apple\Extensions\Graphics-Acceleration\ the script is looking for Intel-Gen6-SandyBridge but the actual folder is named Intel-Gen6-Sandy-Bridge. I just removed the extra dash after it downloads and extracts the payload but before it begins patching, works fine after that.

  • Like
Reactions: K two and 0134168
roysterdoyster said:
Thank you very much for further looking into the problem.

Here is the output of the above commands. "r" that's me.
the folder "Blobs" and "355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C" appear empty, "Resource" contains 88 visible files of the named e.g. "00CB66CD54A5634CD7FE9848D513DFE362F831AC"

via Terminal:
Code:
r@rs-MacBook-Pro ~ % ls -l@OG -d /Users/r/Desktop/Resource
drwxrwxrwx  105 r  staff  - 3360 31 Jul 10:34 /Users/r/Desktop/Resource
r@rs-MacBook-Pro ~ % ls -l@OG -d /Users/r/Desktop/Blobs
drwxrwxrwx  3 r  staff  - 96 31 Jul 10:34 /Users/r/Desktop/Blobs
r@rs-MacBook-Pro ~ % ls -l@OG -d /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C
drwxrwxrwx  3 r  staff  - 96 31 Jul 13:20 /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C
r@rs-MacBook-Pro ~ % sudo chown r:staff /Users/r/Desktop/Resource
r@rs-MacBook-Pro ~ % sudo chown r:staff /Users/r/Desktop/Blobs
r@rs-MacBook-Pro ~ % sudo chown r:staff /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C
r@rs-MacBook-Pro ~ % sudo rm /Users/r/Desktop/Resource
rm: /Users/r/Desktop/Resource: is a directory
r@rs-MacBook-Pro ~ % sudo rm /Users/r/Desktop/Blobs
rm: /Users/r/Desktop/Blobs: is a directory
r@rs-MacBook-Pro ~ % sudo rm /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C
rm: /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C: is a directory
r@rs-MacBook-Pro ~ % sudo rm -d /Users/r/Desktop/Resource
rm: /Users/r/Desktop/Resource: Directory not empty
r@rs-MacBook-Pro ~ % sudo rm -d /Users/r/Desktop/Blobs
rm: /Users/r/Desktop/Blobs: Directory not empty
r@rs-MacBook-Pro ~ % sudo rm -d /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C
rm: /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C: Directory not empty
Click to expand...
When you make a post, you can preview the post before posting it to make sure it's formatted properly. You can edit a post after posting it if you see a mistake.

To remove all files of a directory use the -R option. Make sure there's nothing in the folder you want to keep.
Code:
sudo rm -R /Users/r/Desktop/Resource
sudo rm -R /Users/r/Desktop/Blobs
sudo rm -R /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C

-R can also be used with chown and chmod
Code:
sudo chown -R r:staff /Users/r/Desktop/Resource
sudo chown -R r:staff /Users/r/Desktop/Blobs
sudo chown -R r:staff /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C

  • Like
Reactions: roysterdoyster
joevt said:
When you make a post, you can preview the post before posting it to make sure it's formatted properly. You can edit a post after posting it if you see a mistake.

To remove all files of a directory use the -R option. Make sure there's nothing in the folder you want to keep.
Code:
sudo rm -R /Users/r/Desktop/Resource
sudo rm -R /Users/r/Desktop/Blobs
sudo rm -R /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C

-R can also be used with chown and chmod
Code:
sudo chown -R r:staff /Users/r/Desktop/Resource
sudo chown -R r:staff /Users/r/Desktop/Blobs
sudo chown -R r:staff /Users/r/Desktop/355839D21ECE8AF844CEB0EF263A62EDAC6D3D6C
Click to expand...
Thank you joevt, for your outstanding help. I highly appreciate that. I value your information very much, it enables be to learn.

Still the files won't delete, dammit. Terminal doesn't even bother to give a result. Just no output.

Thanks again, joevt.

Running into a weird situation: Using OCLP 0.2.4 on a MacPro5,1, running Catalina 19H1217 (selected model is Macpro5,1) trying to install SecUpd2021-004Catalina (standalone) updater... no go, It says: "This software is not supported on your system." This Update also doesn't show in software update prefs. Any Ideas ? TIA

zoeloe said:
Running into a weird situation: Using OCLP 0.2.4 on a MacPro5,1, running Catalina 19H1217 (selected model is Macpro5,1) trying to install SecUpd2021-004Catalina (standalone) updater... no go, It says: "This software is not supported on your system." This Update also doesn't show in software update prefs. Any Ideas ? TIA
Click to expand...
You'll need at least moderate SMBIOS spoofing (that's an advanced option in the OCLP terminal application) in order to be able to boot macOS versions older than Big Sur on an unsupported system.

internetzel said:
You'll need at least moderate SMBIOS spoofing (that's an advanced option in the OCLP terminal application) in order to be able to boot macOS versions older than Big Sur on an unsupported system.
Click to expand...
Ok, thanks for your suggestion.
Booting is not the problem, all is OK.
I checkmarked the Use Moderate SMBIOS patching (first used to OCLP GUI and afterwards the CLI) and selected the pseudo Model Dortiana1,1.... but no sigar here..... The SecUpd2021-004Catalina standalone updater still says: "This software is not supported on your system."
Any idea what the "Model" choice has to be for this to succeed ? TIA.
Is a EFI partition boot select needed in order to make the OCLP SMBIOS changes effective ?

Last edited:
zoeloe said:
Ok, thanks for your suggestion, I checkmarked the Use Moderate SMBIOS patching and selected the pseudo Model Dortiana1,1.... but no sigar here..... The SecUpd2021-004Catalina standalone updater still says: "This software is not supported on your system."
Any idea what the "Model" choice has to be for this to succeed ? TIA.
Click to expand...
Is this a Mac you are running with OLCP? Then the answer is obvious. Let the app decide depending on the hardware.

Ausdauersportler said:
Is this a Mac you are running with OLCP? Then the answer is obvious. Let the app decide depending on the hardware.
Click to expand...
Thank you.
Yep,.. Cheese grater 4,1 flashed to 5,1 for a 6 core xeon with a nvidia GTX680 (works fine). Used OCLP 0.2.4 The app suggest "MacPro5,1",... but that doesn't make the SecUpd2021-004Catalina standalone updater work..

zoeloe said:
Thank you.
Yep,.. Cheese grater 4,1 flashed to 5,1 for a 6 core xeon with a nvidia GTX680 (works fine). Used OCLP 0.2.4 The app suggest "MacPro5,1",... but that doesn't make the SecUpd2021-004Catalina standalone updater work..
Click to expand...
We are going round in circles.

You should generate a new EFI with OCLP with moderate spoofing, write it to your EFI partition, reboot the Mac into Catalina and check if apple softwareupdate works.

Check the OCLP online docs to get a better idea how this all works out.

If you want to edit the config yourself visit this thread. We all use OC to get the software update process working again.

Ausdauersportler said:
We are going round in circles.

You should generate a new EFI with OCLP with moderate spoofing, write it to your EFI partition, reboot the Mac into Catalina and check if apple softwareupdate works.

Check the OCLP online docs to get a better idea how this all works out.

If you want to edit the config yourself visit this thread. We all use OC to get the software update process working again.
Click to expand...
Round in circles... not really IMHO... I did generate a new EFI with moderate spoofing settings and rebooted into Catalina.... The "dortiana1,1" pseudo model doesn't allow this Security update to proceed. I'll read the thread you suggested and report later. Thank you.

zoeloe said:
Round in circles... not really IMHO... I did generate a new EFI with moderate spoofing settings and rebooted into Catalina.... The "dortiana1,1" pseudo model doesn't allow this Security update to proceed. I'll read the thread you suggested and report later. Thank you.
Click to expand...
Have just updated my Mac Pro 4.1->5.1 with OC from "Software Update". No problems at all.

Hello guys, I got Macbook 8,2 with HighSierra and failed AMD gpu. I installed Catalina with Dosdude patch, and it wasn't seem to be a problem, even after dGPU disabler I was able to control brightness and got the sleep mode. For some scientific reasons I've reset the SMC and PRAM. Now it hangs on gray screen.
I tried to put the "sudo nvram fa4ce28d...etc" into single user mode but it says "port is not ready for callouts" and nothing changes.
Also for some reason it launches not the intel gou but amd, bc I got horizontal stripes on my screen.
Could someone get it clear to me how to fix it ???

upd.
got it fixed via unplugging the fans from the bottom of my mac and letting the gpu heat itself then I booted up into catalina and applied @dosdude1 dGPU disabler again. Now, everything works fine, except Dark Mode auto switch
@dosdude1, may be there any fix to not let the PRAM and SMC reset lose dGPU patch on Catalina? Thanks for replying in advance
upd 2.
Am I the only one who doesn't have the Apple News app and no Hey Siri?

Last edited:
  • Like
Reactions: K two
How can I enable SIP on a patched Catalina Mac ?

I have an app (Script Debugger) which needs permission to send AppleEvents but, I suspect it cannot be provided with that permission because SIP is disabled (by the "SIP Disabler Patch"). I have tried to enable SIP in Recovery Mode but got an error "csrutil: failed to modify system integrity configuration. This tool needs to be executed from the Recovery OS" which was very odd as I definitely did boot into Recovery.

So, is there another way to enable SIP on a patched Catalina Mac ? I'm currently running 10.15.7 build 19H1323 on a late 2009 27" i5 iMac.

Thanks.

GarryB said:
How can I enable SIP on a patched Catalina Mac ?

I have an app (Script Debugger) which needs permission to send AppleEvents but, I suspect it cannot be provided with that permission because SIP is disabled (by the "SIP Disabler Patch"). I have tried to enable SIP in Recovery Mode but got an error "csrutil: failed to modify system integrity configuration. This tool needs to be executed from the Recovery OS" which was very odd as I definitely did boot into Recovery.

So, is there another way to enable SIP on a patched Catalina Mac ? I'm currently running 10.15.7 build 19H1323 on a late 2009 27" i5 iMac.

Thanks.
Click to expand...
if it is patched with @dosdude1 , it´s because you have selected in the "Disable SIP" in the list of patches. No matter what you do at terminal in Recovery Mode, SIP it will always be disabled when finished booting. You have to unistall that particular patch, if that is posible.

  • Like
Reactions: K two
Quoting directly from the scriptures according to Dortania - "Note 2: Currently OpenCore Legacy Patcher officially supports patching to run macOS 11, Big Sur installs. For older OSes, OpenCore may function however support is currently not provided from Dortania.

For macOS Mojave and Catalina support, we recommend the use of dosdude1's patchers" 🧐

Last edited:
  • Like
Reactions: TimmuJapan
GarryB said:
How can I enable SIP on a patched Catalina Mac ?

I have an app (Script Debugger) which needs permission to send AppleEvents but, I suspect it cannot be provided with that permission because SIP is disabled (by the "SIP Disabler Patch"). I have tried to enable SIP in Recovery Mode but got an error "csrutil: failed to modify system integrity configuration. This tool needs to be executed from the Recovery OS" which was very odd as I definitely did boot into Recovery.

So, is there another way to enable SIP on a patched Catalina Mac ? I'm currently running 10.15.7 build 19H1323 on a late 2009 27" i5 iMac.

Thanks.
Click to expand...
nope

Painkiller113 said:
Hello guys, I got Macbook 8,2 with HighSierra and failed AMD gpu. I installed Catalina with Dosdude patch, and it wasn't seem to be a problem, even after dGPU disabler I was able to control brightness and got the sleep mode. For some scientific reasons I've reset the SMC and PRAM. Now it hangs on gray screen.
I tried to put the "sudo nvram fa4ce28d...etc" into single user mode but it says "port is not ready for callouts" and nothing changes.
Also for some reason it launches not the intel gou but amd, bc I got horizontal stripes on my screen.
Could someone get it clear to me how to fix it ???

upd.
got it fixed via unplugging the fans from the bottom of my mac and letting the gpu heat itself then I booted up into catalina and applied @dosdude1 dGPU disabler again. Now, everything works fine, except Dark Mode auto switch
@dosdude1, may be there any fix to not let the PRAM and SMC reset lose dGPU patch on Catalina? Thanks for replying in advance
upd 2.
Am I the only one who doesn't have the Apple News app and no Hey Siri?
Click to expand...
Check your Patch Updater in the /Applications/Utilities ƒ 👀

  • Like
Reactions: Painkiller113
******* said:
if it is patched with @dosdude1 , it´s because you have selected in the "Disable SIP" in the list of patches. No matter what you do at terminal in Recovery Mode, SIP it will always be disabled when finished booting. You have to unistall that particular patch, if that is posible.
Click to expand...
Yes. Don't know yet how to uninstall the patch. One way would be to reinstall macOS then apply patches but omitting the SIP patch. That doesn't appeal: lot of time and work + lack of SIP patch might make using the iMac, even for a short time, very difficult.

Noticed the little corner glitches on windows in dark mode:
My mac is 8,2 macbook pro late 2011 with failed amd gpu. Is there any fix for these corners?

  • Like
Reactions: K two
You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
Back
