MP All Models PCIe SSDs - NVMe & AHCI

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.

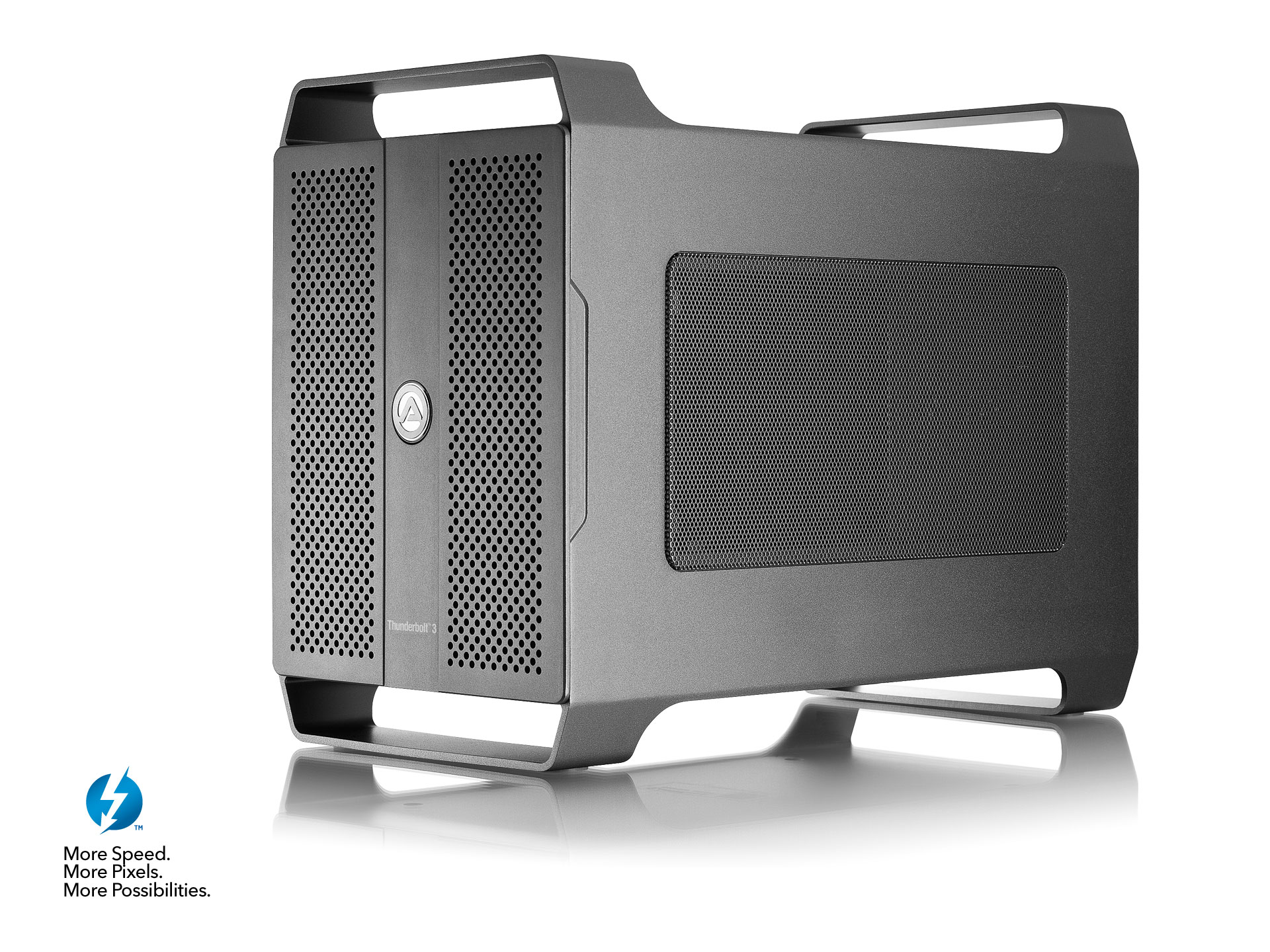

When I eventually upgrade to a new Mac, I plan on bringing forward the Highpoint SSD7101a in a Thunderbolt 3 enclosure. Hopefully the mac pro aesthetics will help to make up for the drop in performance from PCIe 2.0 x16 to thunderbolt 3.


  • Like
Reactions: Reindeer_Games
BelgianBoy said:
I'm planning to install an EVO970 in this on my CMP 5.1 with bootrom 140.00
Aqua Computer kryoM.2 evo PCIe 3.0 x4 Adapter für M.2 NGFF PCIe SSD, M-Key mit Passivkühler
The PCIcard is cheap but looks good. It's a first step: my 2 x16 lanes are occupied with 2 GPU's, so no place for the time being for bigger card.
Any comments?
Click to expand...
It will work nicely.

I used a SM951-AHCI installed into a Angelbird Wings PX1 for more than six months into Slot-3. It will be limited to 1500MB/s, but you already now this.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: TheStork
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: handheldgames
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Last edited:
  • Like
Reactions: bsbeamer
tsialex said:
Don't matter what slot you install, a non-switched card will always be limited by PCIe 2.0 4 lanes = ~1500MB/s.

You should go to the first post and read it, it's already answered there.
Click to expand...



Hi Tsailex

I'm contacting you because you seem to know what you're doing. (a shortage of these types these days)

(I really don't have the to read tech boards these days)

I purchased the highpoint ssd7101a and the samsung 970 evo in a 2 gig capacity.

I wish to perform a FRESH INSTALL of Sierra into the samsung 970. (not High Sierra or Mojave because I have too many apps which will not function)

Unfortunately I just haven't the time to read reams of info on this and some of the stuff I have seen seems overly complicated involving installing multiple third party software applications and many many step backing up ROMs and "injecting" code.



I have a mac pro from mid 2010 which has been upgraded to a 12 core 3.46ghz machine. It is currently on Sierra 10.12.6
Mac Pro

Model Identifier: MacPro5,1

Processor Name: 6-Core Intel Xeon

Processor Speed: 3.46 GHz

Number of Processors: 2

Total Number of Cores: 12

L2 Cache (per Core): 256 KB

L3 Cache (per Processor): 12 MB

Memory: 64 GB

Processor Interconnect Speed: 6.4 GT/s

Boot ROM Version: MP51.007F.B03

SMC Version (system): 1.39f11

SMC Version (processor tray): 1.39f11

Serial Number (system): H00511KHGWR

Serial Number (processor tray): J5045011LBH8B

Hardware UUID: 43FD3FC3-A2A3-554D-8FA5-53B8F39FA1E4


I have an Nvidia Tiitan XP installed and working.

Last edited:
Hi. There seems to be some conflicting reports, but I was wondering if I purchase a Samsung 970 Pro 1TB NVME with Lycom DT-120 adapter, will I be able to install the operating system from this SSD and be able to boot from it, without any issues when running the latest version of Mojave? Or are there still bugs or things that are required to make it compatible? I will be running a 2012 Mac Pro. Thanks.

Sorry Tsialex, I think I may have got it confused with another model that is not supported and my knowledge on this area isn’t great.

So just so I can be sure before purchasing, I would not have to do anything to the 970 Pro SSD other than install it along with the Lycom adapter, in order for it work in Mojave and be able to boot from it on a Mac Pro 2012?

gory said:
Sorry Tsialex, I think I may have got it confused with another model that is not supported and my knowledge on this area isn’t great.

So just so I can be sure before purchasing, I would not have to do anything to the 970 Pro SSD other than install it along with the Lycom adapter, in order for it work in Mojave and be able to boot from it on a Mac Pro 2012?
Click to expand...

Did you already upgraded your Mac Pro to BootROM 140.0.0.0.0? If not, you will need to, it's the first firmware to support NVMe native boot. You can read about it into the first posts of these two threads:
  1. MP5,1: What you have to do to upgrade to Mojave
  2. MP5,1: BootROM thread | 141.0.0.0.0
Btw, buy a PCIe M.2 adaptor that have a good heatsink, 970 Pro generates lots of heat and you will definitively need a adapter with a heatsink.

Last edited by a moderator:
Thanks Tsialex. No I haven’t yet upgraded the BootROM, I wasn’t aware that was required, but thank you for mentioning. So just so I am understanding correctly, the NVME native boot support does not come automatically with the upgrade to latest Mojave? This will need to be done separately first in High Sierra, before upgrading to Mojave?

Thanks for the tip on the adaptor with a good heatsink. So I’m thinking the Angelbird PX1 PCIe 3.0 x4 adapter for PCIe M.2 might be a better option than the Lycom DT-120 adaptor?

tsialex said:
Did you already upgraded your Mac Pro to BootROM 140.0.0.0.0? If not, you will need to, it's the first firmware to support NVMe native boot. You can read about it into the first posts of these two threads:
  1. MP5,1: What you have to do to upgrade to Mojave
  2. MP5,1: BootROM thread | 141.0.0.0.0
Btw, buy a PCIe M.2 adaptor that have a good heatsink, 970 Pro generates lots of heat and you will definitively need a adapter with a heatsink.
Click to expand...


If I want to do a FRESH install onto the 970 in a highpoint in my mac pro 2010 (which was hardware upgraded to a 12 core.) The existing boot rom is MP51.007F.B03.

will the 141 boot rom update work with what I am attempting to do and which is the easiest way to perform that boot rom upgrade?

Thank

gory said:
Thanks Tsialex. No I haven’t yet upgraded the BootROM, I wasn’t aware that was required, but thank you for mentioning. So just so I am understanding correctly, the NVME native boot support does not come automatically with the upgrade to latest Mojave? This will need to be done separately first in High Sierra, before upgrading to Mojave?
Click to expand...
Check your BootROM, SystemInformation / Hardware Overview/ BootROM version, if you upgraded before 10.14.1 you have 138.0.0.0.0. Only 140.0.0.0.0 supports NVMe boot.

Thanks for the tip on the adaptor with a good heatsink. So I’m thinking the Angelbird PX1 PCIe 3.0 x4 adapter for PCIe M.2 might be a better option than the Lycom DT-120 adaptor?
Click to expand...
Yes, no doubt. Aqua Computer kryo2 Evo is a good one too.

  • Like
Reactions: gory
