macOS 10.14 Mojave on Unsupported Macs Thread

Status
The first post in this thread is a WikiPost, and can be edited by anyone with the appropriate permissions.

DaniloGeekDude

macrumors 6502
Jun 17, 2018
310
414
10.14.4 Beta 4 (Developer) installed on my Unsupported MBAir4,2.

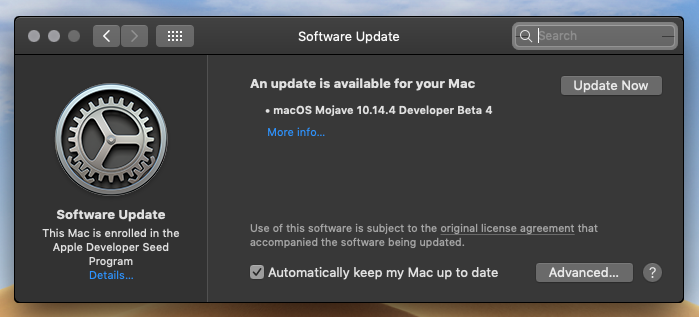

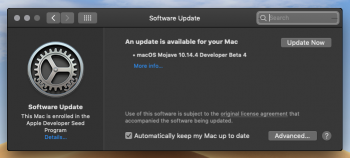

Screen Shot 2019-03-04 at 2.11.30 PM.png

I was able to successfully install the latest Mojave developer beta doing the following:

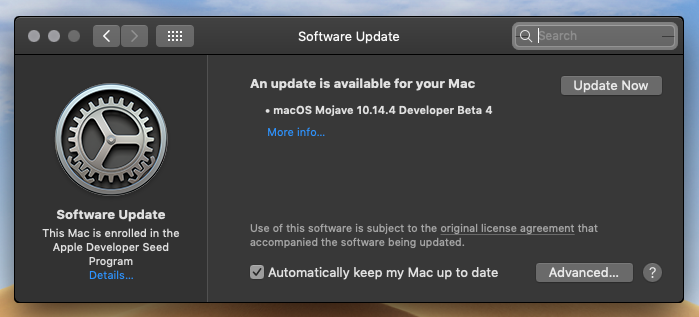

  • OTA --- System Preferences | Software Update.
  • Ran @dosdude1's Mojave Patcher 1.2.3's macOS Post Install.
  • Rebuilt cache prior to rebooting.
  • Rename my GLDriver file (in my device it is AppleIntelHD3000GraphicsGLDriver) from bundle extension to backup extension.
  • The previous step was necessary for me to successfully boot.

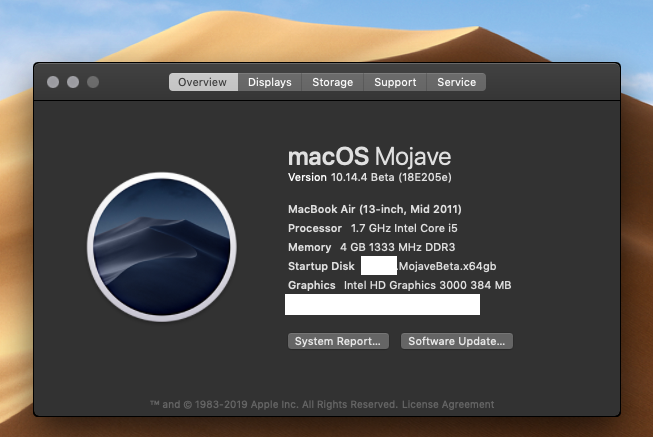

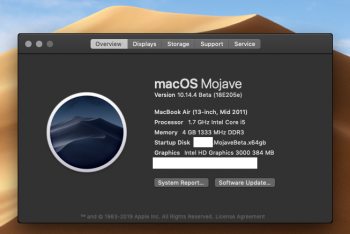

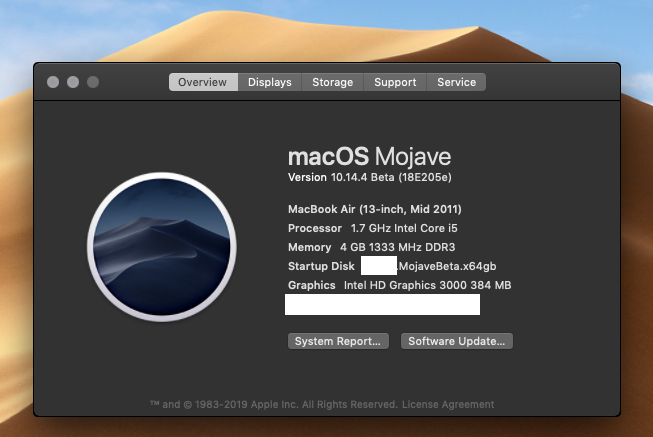

Screen Shot 2019-03-04 at 3.12.55 PM.png

I believe I still do not get graphics acceleration. Hoping that this anomaly will be resolved by the time GM is released (Fixed by Apple or @dosdude1's excellent patcher app).

Fingers' crossed.

Last edited:

ASentientBot

macrumors 6502a
Jun 27, 2018
776
2,966
SkyLight.framework
10.14.4 Beta 4 (Developer) installed on my Unsupported MBAir4,2.

View attachment 824639

I was able to successfully install the latest Mojave developer beta doing the following:
  • OTA --- System Preferences | Software Update.
  • Ran @dosdude1's Mojave Patcher 1.2.3's macOS Post Install.
  • Rebuilt cache prior to rebooting.
  • Rename my GLDriver file (in my device it is AppleIntelHD3000GraphicsGLDriver) from bundle extension to backup extension.
  • The previous step was necessary for me to successfully boot.
View attachment 824640

I believe I still do not get graphics acceleration. Hoping that this anomaly will be resolved by the time GM is released (Fixed by Apple or @dosdude1's excellent patcher app).

Fingers' crossed.
Damn. I can't see this fixing itself at this point. Looks like it might be time for some more investigation...


dosdude1

macrumors 68020
Original poster
Feb 16, 2012
2,447
6,230
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

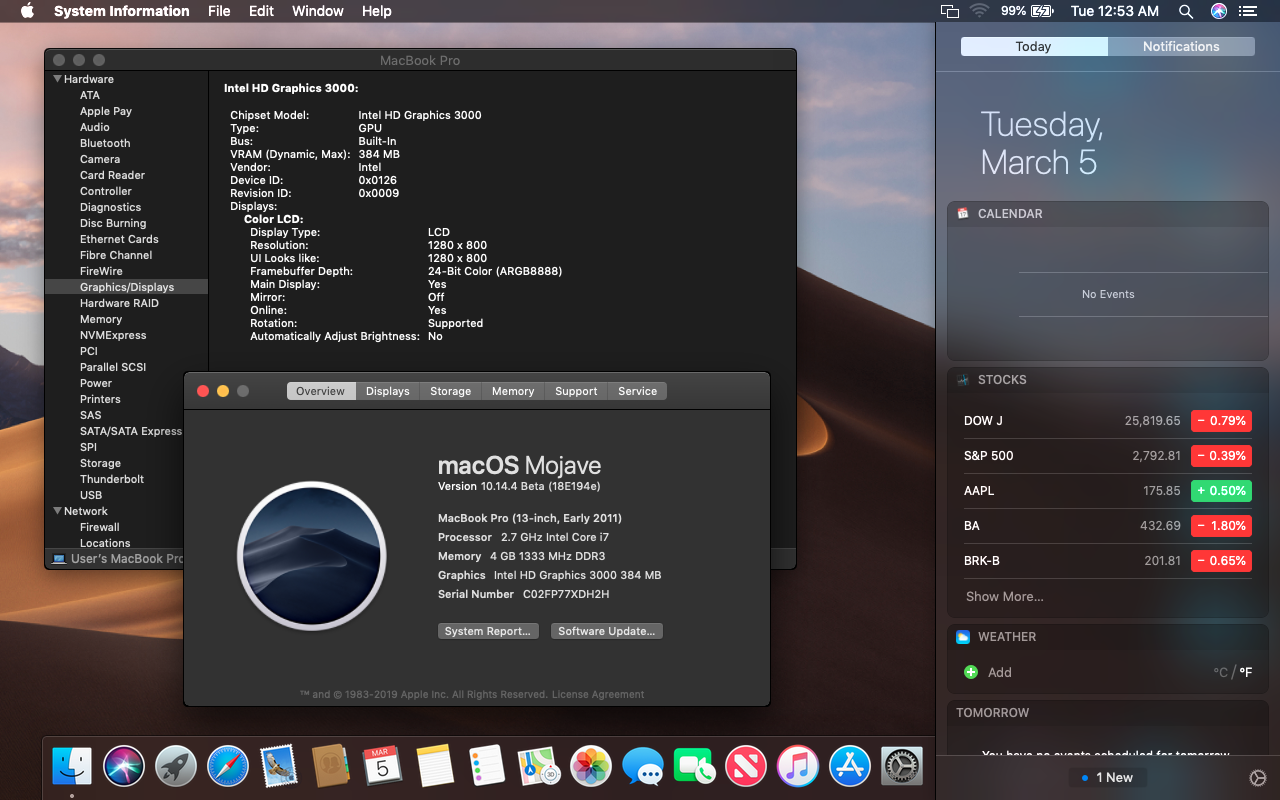

Screen Shot 2019-03-05 at 12.53.14 AM.png


FarmerBob

macrumors regular
Aug 15, 2004
186
52
Well while you all were discovering the cure for Cancer . . .

I was trying the latest version of the install and can't get past this . . .

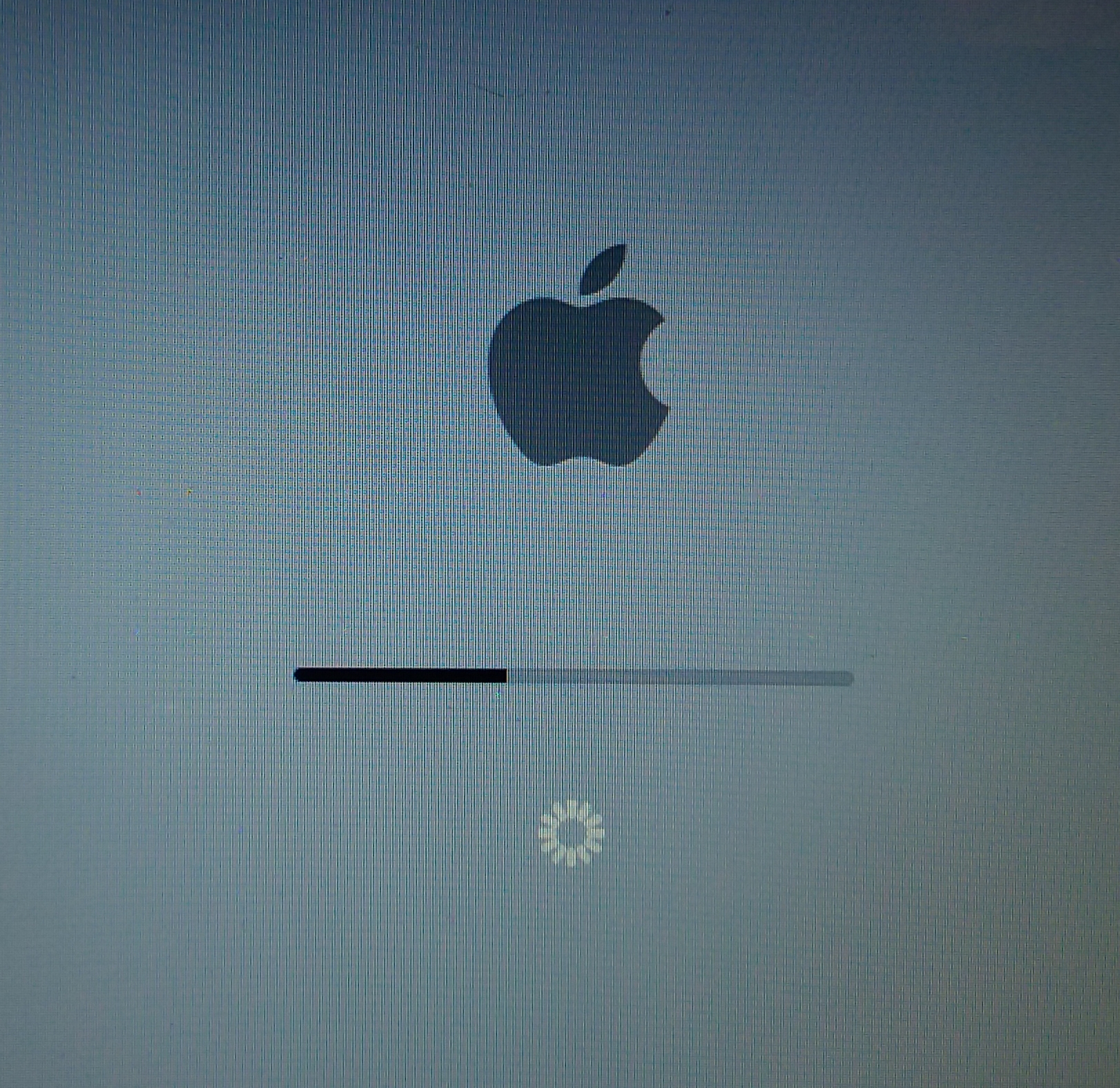

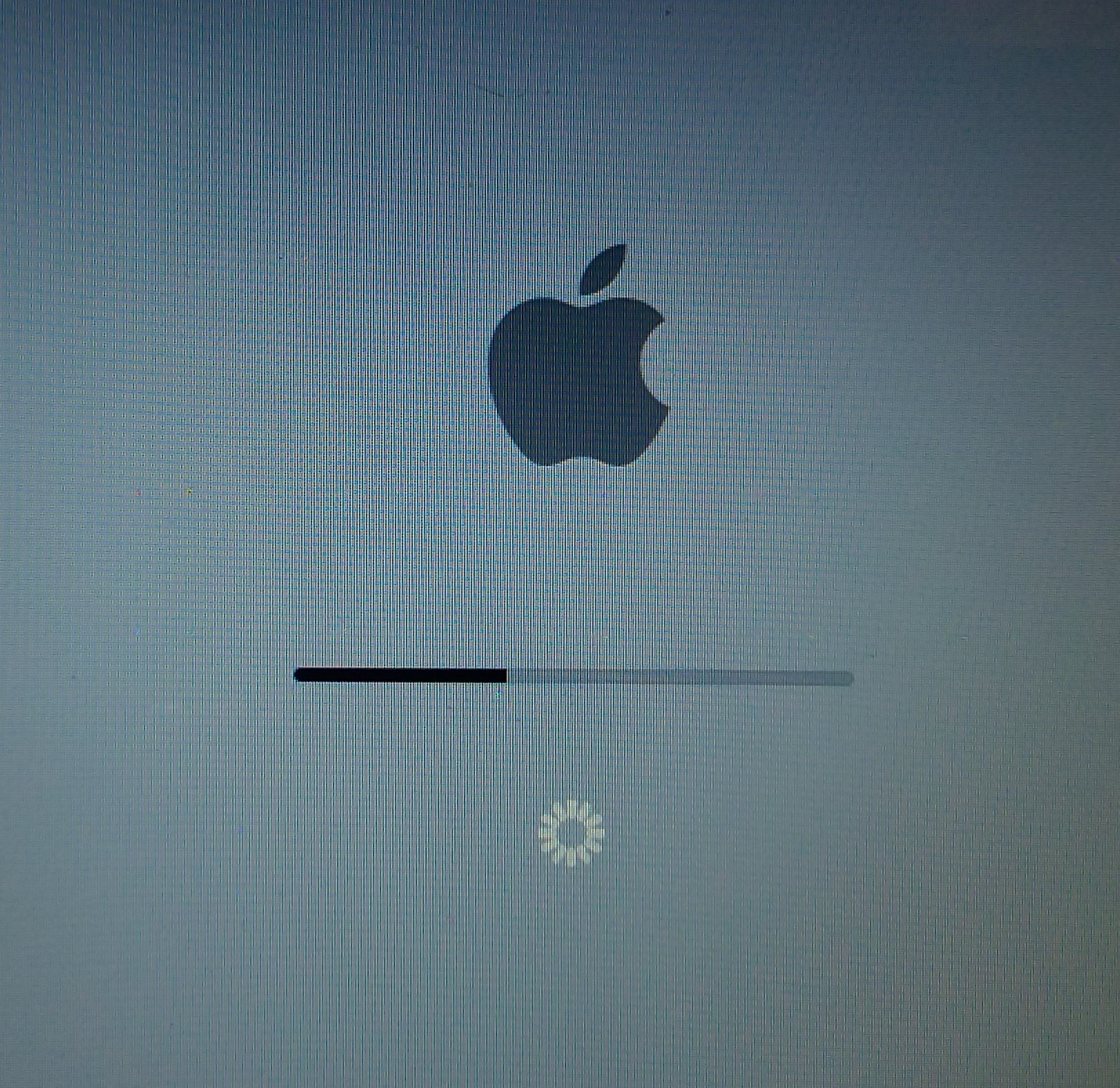

The White Whirlygig is actually light white. But each time it circles it stays and builds with each rotation until it's bright white and the whole thing hangs. MBP 7,1.

I know in our genes we have the need to mess with this stuff, but I'm just gonna wait for the GM's. It was fun when fixes were easy. Oh god, I'm getting old . . .

You all are great!! dosdude1, you are a god among gods. TTFN!!


dosdude1

macrumors 68020
Original poster
Feb 16, 2012
2,447
6,230
Well while you all were discovering the cure for Cancer . . .

I was trying the latest version of the install and can't get past this . . .

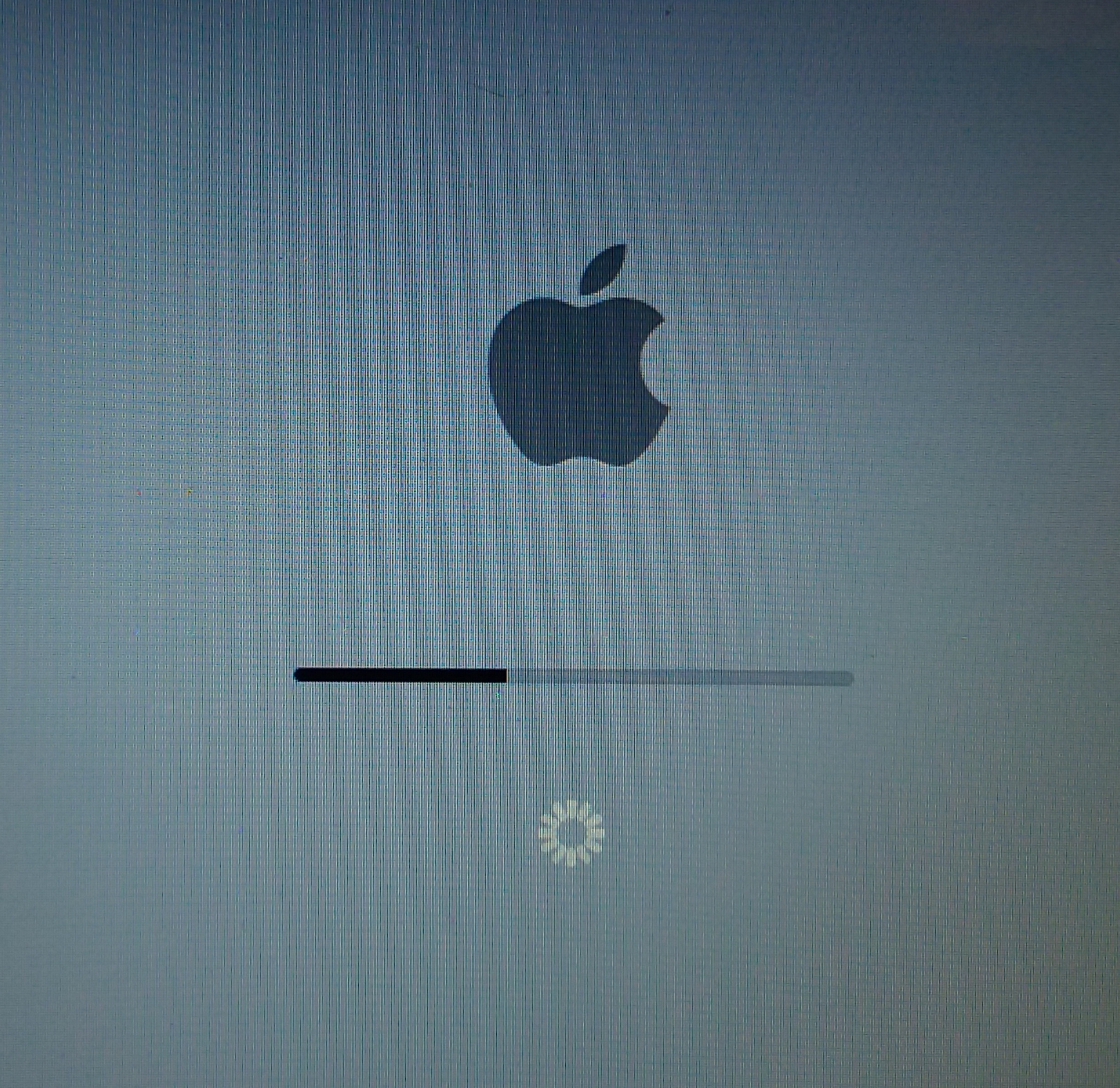

The White Whirlygig is actually light white. But each time it circles it stays and builds with each rotation until it's bright white and the whole thing hangs. MBP 7,1.

I know in our genes we have the need to mess with this stuff, but I'm just gonna wait for the GM's. It was fun when fixes were easy. Oh god, I'm getting old . . .

You all are great!! dosdude1, you are a god among gods. TTFN!!
That's because of the graphics acceleration issues... Apply the patch I posted above, and that will fix your issue (you can boot Safe Mode to do so).


FarmerBob

macrumors regular
Aug 15, 2004
186
52
That's because of the graphics acceleration issues... Apply the patch I posted above, and that will fix your issue (you can boot Safe Mode to do so).
Thank You!! I'll play tomorrow after I get my new Gigabit Fiber installed.

Right now I have to do a tribute for a fallen Firefighter that my group is having an event for.

Thanks.


DaniloGeekDude

macrumors 6502
Jun 17, 2018
310
414
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

View attachment 824764
Sweet. I'm going to try this later on my MBAir4,2 with an Intel HD Graphics 3000.

Thanks again @dosdude1.


16v

macrumors regular
Jul 13, 2018
234
145
Do i need this patch on a mid 2009 15" and a 2011 13"? Both with mojave .3 (official release)?

And how to check if i have full gfx acceleration?


Scryer

macrumors newbie
Mar 5, 2019
1
0
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

View attachment 824764
Hello. Does it mean that now we may install mojave on imac 2011 with radeon gpu, and have full acseleration support? Tnx


jackluke

macrumors 68030
Jun 15, 2018
2,735
6,051

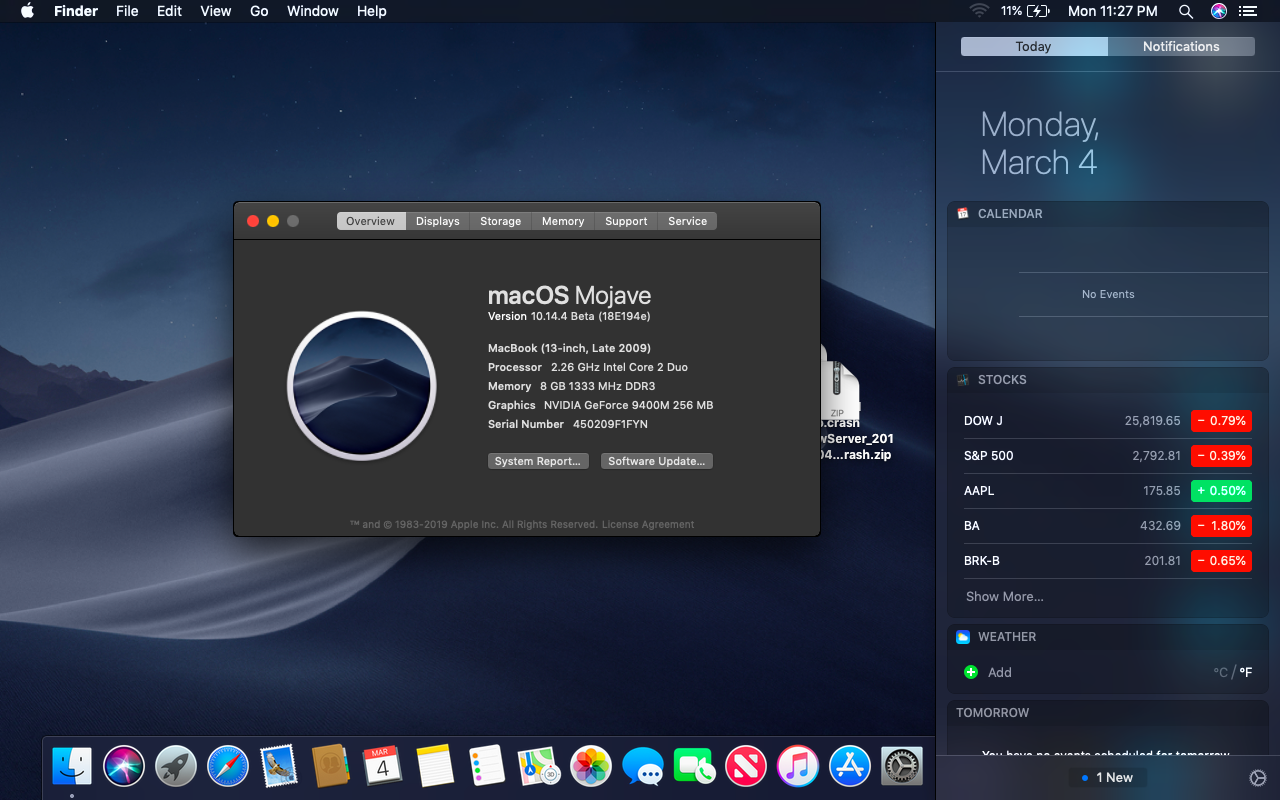

FULL acceleration with 10.14.4 on non-Metal GPUs ACHIEVED! More info coming soon, once I finalize all the necessary modifications.

View attachment 824761
This is a great news, because I expect that the same method will be valid also for the future 10.15 on fall 2019.
[doublepost=1551774075][/doublepost]
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

View attachment 824764
Once again, great insight about those legacy frameworks.


UbiMac

macrumors newbie
Mar 5, 2019
3
1
Hello together,

I'm using a MacBookPro 5.3 (15 inch, Mid 2009, OS X El Capitan, SSD, 8 GB RAM) and tried to install OS X Mojave with the Patcher.

The creation of a USB Stick worked well but after booting from the USB Stick a "NO" Symbol was shown every time I tried to boot.

Can someone please help my to tell my the problem?

Thank you and greatings from Germany


avz

macrumors 65816
Oct 7, 2018
1,019
1,214
This is a great news, because I expect that the same method will be valid also for the future 10.15 on fall 2019.
[doublepost=1551774075][/doublepost]

Once again, great insight about those legacy frameworks.
It would be great to have MacBook5,1 marching on into the future with the 10.15!
[doublepost=1551781515][/doublepost]
Hello together,

I'm using a MacBookPro 5.3 (15 inch, Mid 2009, OS X El Capitan, SSD, 8 GB RAM) and tried to install OS X Mojave with the Patcher.

The creation of a USB Stick worked well but after booting from the USB Stick a "NO" Symbol was shown every time I tried to boot.

Can someone please help my to tell my the problem?

Thank you and greatings from Germany
Have you tried a different USB stick?

  • Like
Reactions: jackluke

bbfc

macrumors 68040
Oct 22, 2011
3,170
695
Newcastle, England.
That's because of the graphics acceleration issues... Apply the patch I posted above, and that will fix your issue (you can boot Safe Mode to do so).
Installed 10.14.4. Reapplied the patches but can’t boot in to normal or safe mode to install the graphics acceleration patch. I just get the the prohibitory sign (for safe mode) or an endless spinning cog (for normal mode) all the time. Any ideas? How can I install the patch?

Last edited:
  • Like
Reactions: lipnorth

indigotheory

macrumors regular
May 1, 2009
152
36
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

View attachment 824764

Dosdude1 what do you mean by "cd into the extracted directory using Terminal"

I've had a go and I get this message, I haven't much experience with using the terminal app

Last edited:

jhowarth

macrumors 6502a
Jan 13, 2017
980
1,233
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

View attachment 824764
What was the nature of the fix? Did the patching needed to be extended for the existing backported libraries or were additional libraries required to be added to the existing backported ones?


telepati

macrumors 6502
Jan 20, 2009
357
220
@dosdude1 could you please explain what is wrong this patch "Backlight Control Patch" Last night I tried to re-install one by one all the patches for test and when I tried to re-install this patch machine never boot and starts looping. Why this happening?

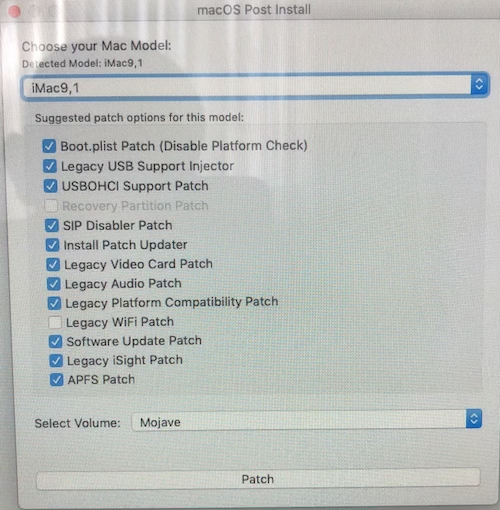

Also, I realize something there is no Backlight Control Patch on the Post Installation stage for iMac 9,1;



Also, USBOHCI Support Patch looks like patching on the Post Installation Stage but when we are boot the system it doesnt show on the Patch Updater and your new Verify Pacth Integrity doesnt find it.

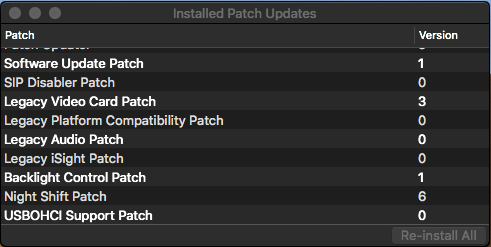

Screen Shot 2019-03-05 at 16.25.31.png

Last edited:

ASentientBot

macrumors 6502a
Jun 27, 2018
776
2,966
SkyLight.framework
Amazing work @dosdude1 !!!

Please explain your modifications to GPUSupport.framework and OpenGL.framework. Are these simply copied from an earlier release? Or have you patched them in some way? I don't want to just brainlessly install something that I don't understand, no matter how awesome it is.

  • Like
Reactions: jackluke

hfogel

macrumors newbie
Mar 5, 2019
10
1
Philadelphia
Alright, got everything figured out! To get acceleration working under 10.14.4 with a non-Metal GPU, just download this archive, extract it, cd into the extracted directory using Terminal, and then run ./install.sh. Please ensure you have the Legacy Video Card Patch installed properly (you can re-apply it with the post-install patch, or re-install it using Patch Updater after running the script just to be sure). After rebooting, you should now have full graphics acceleration!

View attachment 824764

Hi Collin, I'm using a Mac Pro 3,1. It was running El Capitan, but I'm a heavy Adobe user, so needed to update for the latest batch of Creative Cloud updates to install. It has an Nvida Fermi Quadro 4000 for Mac video card installed, and 16 GB of RAM. Booting off a SSD in an OWC PCI card. Followed directions to the letter, but, now I have a system that will only boot a short way, then I get an error message, that the system has encountered an error. If you hit a key, it will start to load, about 1/4-inch on the bar, then shut down with a black screen. It wouldn't allow me to boot into the recovery volume, so I rebooted to my USB drive, selected the Patch the Recovery option, and it now allows me to boot into it. I've also used the option for Legacy Video Card in the Post Install Tool.

But it still won't boot past that 1/4 inch into the progress bar. There doesn't seem to be any FAQ or explanation of what the legacy patch tool options do, or when to use them. So, any help would be great. I'm wondering if the issue is the OWC Accelsior S card (https://eshop.macsales.com/item/OWC/SSDACL6G.S/)? I'm assuming that since the system will boot off the USB drive, that things like the video card, RAM, etc. all are working fine, so whatever is happening, happens almost immediately. I've been unplugging external drives, etc., to rule that out.

I read the note about the archive, but not quite sure how to install, but will give it a whirl. Love a short video tutorial.
