Any updates needed for Mac Pro 2010 with the 10.15.3 betas (especially beta 3)? Apple has suggested some critical problems are resolved in 10.15.3 betas and would like for me to test these, but I'm a little bit hesitant given that I'm not sure if any patches will be needed @dosdude1...
- - Post merged: - -

Are you saying that 15.3 is already available to the public?
10.15.3 is up to beta 3 right now. It's not "publicly" available yet - per se.


jackluke

macrumors 68020
Jun 15, 2018
2,248
4,352
Any updates needed for Mac Pro 2010 with the 10.15.3 betas (especially beta 3)? Apple has suggested some critical problems are resolved in 10.15.3 betas and would like for me to test these, but I'm a little bit hesitant given that I'm not sure if any patches will be needed @dosdude1...
- - Post merged: - -



10.15.3 is up to beta 3 right now. It's not "publicly" available yet - per se.
For that machine if you have a Metal GPU, after the beta update you need only "-no_compat_check" in nvram, that is already settled also in the script (catalinaswufix3) I wrote for Catalina OTA update, it's based on Pinarek OTA method (with ASentientBot tip for whitelisting), swupatch from dosdude1 and Czo's SUVMMFaker .

My script it's totally harmless and safe, no unwanted firmware updates are issued, if you want to try here is:

Also as I wrote earlier, the OTA update has the advantage that will auto-fix the stock CMD+R Catalina APFS Recovery.


jackluke

macrumors 68020
Jun 15, 2018
2,248
4,352
I don't know if it's supposed to work. For one thing, Catalina is not supported on 2009 iMac.

The latest Target Display Mode info is at:

It seems any Mac running Catalina (or any other macOS version that has /System/Library/Extensions/AppleThunderboltEDMService.kext/Contents/PlugIns/AppleThunderboltEDMSource.kext) should be able to send Thunderbolt Target Display Mode packets to an iMac supporting Thunderbolt Target Display Mode input (/System/Library/Extensions/AppleThunderboltEDMService.kext/Contents/PlugIns/AppleThunderboltEDMSink.kext).

There are older versions of the Target Display Mode document on the wayback machine at:
Mar 17, 2016: https://web.archive.org/web/20160729123933/https://support.apple.com/en-us/HT204592
Jan 11, 2017: https://web.archive.org/web/20170210021730/https://support.apple.com/en-us/HT204592
Mar 10, 2017: https://web.archive.org/web/20190921164326/https://support.apple.com/en-us/HT204592
Dec 17, 2019: https://web.archive.org/web/20200102172421/https://support.apple.com/en-us/HT204592

According to the documents, the iMacs supporting Thunderbolt Target Display Mode are the 2011 to 2014 iMacs (non Retina).

For the 2009 and 2010 iMac, Thunderbolt is not used at all for Target Display Mode. Any computer with a DisplayPort output can connect to a 2009 and 2010 iMac. Since Thunderbolt is not used, and the input signal is DisplayPort, then I'm guessing there is some super simple mux switch to change the iMac display's input from the iMac's GPU to the iMac's DisplayPort connector.

Only the Thunderbolt Target Display Mode iMacs from 2012 to 2014 support Catalina so it makes sense that Apple might remove the DisplayPort Target Display Mode feature.

But first, read the documents to see if you missed anything. One note says:
  • If you're currently logged in on the iMac you want to use as a display, try logging out to return to the login window. Then press Command-F2 again.
I don't have any of those iMacs so I've never seen Target Display Mode in action. It seems to me that any Mac should be able to do Thunderbolt Target Display Mode if it's just a software thing (DMA the pixels to a buffer and transfer the buffer to the screen). Basically, Thunderbolt Target Display Mode is just a bunch of Thunderbolt packets, like Thunderbolt Target Disk Mode (macOS only), and Thunderbolt IP (macOS, Windows, Linux). If there's some extra hardware required to move those Thunderbolt packets to the display, then only the Thunderbolt Target Display Mode iMacs will work.

The solution is to find out how High Sierra makes the DisplayPort switch (when you press Command-F2).

Command-Fn-F2 does something on my Mac mini 2018 running Catalina when I'm using the log stream command. There's a BRIGHTNESSINCREASE_DOWN event (F2 is the Brightness Increase button). There's also a "could not find smc-dppt service. Do not attempt EDM switch." message (both from the loginwindow process). EDM probably means external display mode or something like that (like in one of the Thunderbolt plugins I listed above). There's also a bunch of messages where the Intel graphics driver is reading DisplayPort (DPCD) registers and reads the display EDID.
Target Display Mode is an exclusive feature of those iMac series you indicated that requires an important GPU feature the video input (as the Capture cards).

AFAIK only ATI/AMD cards were capable to transport an input Display port video signal (while a video output signal is common to all the GPUs), so through for example a converter mini-dp to hdmi you could use the iMac display for external hdmi devices (as a tv receiver) , I guess it's very hard to patch this since Mojave, infact some users kept a small HighSierra volume (20 gb are suffice) to use TDM on their iMacs.

Last edited:

applCore

macrumors regular
May 3, 2011
151
61
Before use this script, you need to apply first the Sierra's swupatch (attached) from dosdude1 and Czo .

So apply first the swupatch script, then start to download a little part of OTA from Catalina Software Update, and during the downloading apply the catalinaswufix3 (hold CTRL key before open to allow unidentified developer) , then restart to install, after re-apply the post-install patches for your machine.
So on 10.15.2 on a Mac Pro 2010 that's already been installed via @dosdude1's method, running 'swupatch' seems to fail:

sudo bash /Volumes/downloads/swupatch.sh
Downloading "SUVMMFaker.dylib"...
###################################################################################################################### 100.0%
Backing up "com.apple.softwareupdated.plist"...
This file already exists in the backup location. Overwrite? (y/n): y
Continuing backup...
override rw-r--r-- root/wheel restricted for /System/Library/LaunchDaemons/com.apple.softwareupdated.plist? y
rm: /System/Library/LaunchDaemons/com.apple.softwareupdated.plist: Read-only file system
Downloading "com.apple.softwareupdated.plist"...
Warning: Failed to create the file
Warning: /System/Library/LaunchDaemons/com.apple.softwareupdated.plist:
Warning: Read-only file system
###################################################################################################################### 100.0%curl: (23) Failed writing body (0 != 2075)

Restarting softwareupdated...
Would you like to refresh available updates now? (y/n): y
Software Update Tool

Finding available software
No new software available.
\nOperation complete.\n


Apparently due to the Catalina read-only root... but what's one to do with this failure, skip it and then run yours?


jackluke

macrumors 68020
Jun 15, 2018
2,248
4,352
So on 10.15.2 on a Mac Pro 2010 that's already been installed via @dosdude1's method, running 'swupatch' seems to fail:

sudo bash /Volumes/downloads/swupatch.sh
Downloading "SUVMMFaker.dylib"...
###################################################################################################################### 100.0%
Backing up "com.apple.softwareupdated.plist"...
This file already exists in the backup location. Overwrite? (y/n): y
Continuing backup...
override rw-r--r-- root/wheel restricted for /System/Library/LaunchDaemons/com.apple.softwareupdated.plist? y
rm: /System/Library/LaunchDaemons/com.apple.softwareupdated.plist: Read-only file system
Downloading "com.apple.softwareupdated.plist"...
Warning: Failed to create the file
Warning: /System/Library/LaunchDaemons/com.apple.softwareupdated.plist:
Warning: Read-only file system
###################################################################################################################### 100.0%curl: (23) Failed writing body (0 != 2075)

Restarting softwareupdated...
Would you like to refresh available updates now? (y/n): y
Software Update Tool

Finding available software
No new software available.
\nOperation complete.\n


Apparently due to the Catalina read-only root... but what's one to do with this failure, skip it and then run yours?
Don't skip, the swupatch is required before running my script, for readonly system folders open a Catalina terminal window and copy/paste this:
sudo mount -uw / ; killall Finder

Then retry the swupatch, once you find Software Updates available, click update now button and after a minute run the catalinaswufix3.

  • Like
Reactions: TimothyR734

followthebits

macrumors newbie
Jan 26, 2020
2
2
Colorado Springs, Colorado
Upgraded my MacBook 7,1 (Mid2010) to Catalina - no issues - runs fine. (Upgrade to 500 Gig SSDD earlier)
I do have one question which I am fairly certain I already know the answer to and at the risk of sounding ridiculous to the MacRumor regulars..........

To Install Catalina I had to turn SIP off. I am assuming that I can't turn SIP back on and that I don't want to turn it back on (I tried but csrutil is not on the Recovery Disk and then I tried executing it off a USB and it crashed csrutil - it came from High Sierra).
So no SIP on a unsupported old MAC if you are running Catalina.
thanks
Followthebits

  • Like
Reactions: TimothyR734

avz

macrumors 6502a
Oct 7, 2018
812
1,020
Upgraded my MacBook 7,1 (Mid2010) to Catalina - no issues - runs fine. (Upgrade to 500 Gig SSDD earlier)
I do have one question which I am fairly certain I already know the answer to and at the risk of sounding ridiculous to the MacRumor regulars..........

To Install Catalina I had to turn SIP off. I am assuming that I can't turn SIP back on and that I don't want to turn it back on (I tried but csrutil is not on the Recovery Disk and then I tried executing it off a USB and it crashed csrutil - it came from High Sierra).
So no SIP on a unsupported old MAC if you are running Catalina.
thanks
Followthebits
They say that 80% of the world population don't think at all so there is nothing ridiculous about your question.

In order to run Catalina on the unsupported Mac, you have to "compromise the integrity" of your system. That is why SIP must be off.


tempaznx

macrumors newbie
Jul 7, 2019
6
8
I'm trying to install Catalina on a clean partition next to my Mojave install.i created the USB boot drive and attempt to boot into the Catalina installer. However it just gets stuck loading on the apple screen for what seems like hours.

Any tips?

Macbookpro 8,1


joevt

macrumors 6502a
Jun 21, 2012
824
409
Target Display Mode is an exclusive feature of those iMac series you indicated that requires an important GPU feature the video input (as the Capture cards).

AFAIK only ATI/AMD cards were capable to transport an input Display port video signal (while a video output signal is common to all the GPUs), so through for example a converter mini-dp to hdmi you could use the iMac display for external hdmi devices (as a tv receiver) , I guess it's very hard to patch this since Mojave, infact some users kept a small HighSierra volume (20 gb are suffice) to use TDM on their iMacs.
Citation needed. Why would a GPU need video input? What GPUs have a DisplayPort input?

In the case of DisplayPort Target Display Mode, only a switch would be required to take DisplayPort input of the Display from the GPU to the Mini DisplayPort input.

In the case of Thunderbolt Target Display Mode, video is not being sent. Consider: if DisplayPort were being sent over Thunderbolt as normal Thunderbolt DisplayPort packets, then Macs would not need an AppleThunderboltEDMSource.kext driver and any PC with a Thunderbolt port could use the iMac as a display.

Since there is a AppleThunderboltEDMSource.kext, then it means the Thunderbolt is not transmitting DisplayPort, it is sending Thunderbolt Target Display Mode data. This might use some CPU resources - it may be interesting to compare benchmarks between using a normal Display and a Thunderbolt Target Display Mode display.

Only software would be required on the iMac side to get the Thunderbolt Target Display Mode packets to the GPU's frame buffer. Only iMacs allow this though but that could just be a limitation in the AppleThunderboltEDMSink.kext driver.

  • Like
Reactions: TimothyR734

BigSteel

macrumors newbie
Dec 13, 2019
5
5
I've tried to go through this thread as best I can, but I haven't found an answer.

Running a 2011 MBP with the Intel 3000 GPU, Catalina 10.15.1 via DosDude's patch.
Final Cut version 10.4.8. Under Render/Share GPU it just says 'error,' and I get no video in the preview window. Audio is OK.
I assume this is because the iGPU doesn't support Metal.
Can this be fixed or worked around? I've seen the posts for increasing the amount of vRAM, but that's not going to trick FCPX into thinking the iGPU suddenly has Metal support.

Thanks!


ASentientBot

macrumors 6502a
Jun 27, 2018
689
2,335
SkyLight.framework
I've tried to go through this thread as best I can, but I haven't found an answer.

Running a 2011 MBP with the Intel 3000 GPU, Catalina 10.15.1 via DosDude's patch.
Final Cut version 10.4.8. Under Render/Share GPU it just says 'error,' and I get no video in the preview window. Audio is OK.
I assume this is because the iGPU doesn't support Metal.
Can this be fixed or worked around? I've seen the posts for increasing the amount of vRAM, but that's not going to trick FCPX into thinking the iGPU suddenly has Metal support.

Thanks!
Use Final Cut Pro 10.4.6 or earlier. There's no way to run any Metal functionality on non-Metal GPUs.


jackluke

macrumors 68020
Jun 15, 2018
2,248
4,352
Citation needed. Why would a GPU need video input? What GPUs have a DisplayPort input?

In the case of DisplayPort Target Display Mode, only a switch would be required to take DisplayPort input of the Display from the GPU to the Mini DisplayPort input.

In the case of Thunderbolt Target Display Mode, video is not being sent. Consider: if DisplayPort were being sent over Thunderbolt as normal Thunderbolt DisplayPort packets, then Macs would not need an AppleThunderboltEDMSource.kext driver and any PC with a Thunderbolt port could use the iMac as a display.

Since there is a AppleThunderboltEDMSource.kext, then it means the Thunderbolt is not transmitting DisplayPort, it is sending Thunderbolt Target Display Mode data. This might use some CPU resources - it may be interesting to compare benchmarks between using a normal Display and a Thunderbolt Target Display Mode display.

Only software would be required on the iMac side to get the Thunderbolt Target Display Mode packets to the GPU's frame buffer. Only iMacs allow this though but that could just be a limitation in the AppleThunderboltEDMSink.kext driver.
And the pre-thunderbolt iMac? I mean those with Ati 4670 or ATI 4850, which "thunderboltEDM kext" or osx software service used? They had only the Display port input.

AFAIK the thunderbolt port is not an automatic video output but it should be converted through a thunderbolt adapter to minidp or to hdmi, so IMHO for TDM is required also an hardware GPU feature that captures "via software" an external video input device plugged to the iMac display.

If you check a recent thunderbolt iMac, only those with AMD video cards were capable to use the TDM feature, because ATI produced in past GPU with video input/output hardware or software chip embedded for video capture.

I don't think that TDM with thunderbolt worked through only software data packets, but it required also an extra hardware capability for input signal processing, that only ATI/AMD made for iMacs.

Last edited:
  • Like
Reactions: TimothyR734

NeonBlack

macrumors newbie
Sep 26, 2018
16
22
AFAIK only ATI/AMD cards were capable to transport an input Display port video signal (while a video output signal is common to all the GPUs), so through for example a converter mini-dp to hdmi you could use the iMac display for external hdmi devices (as a tv receiver) , I guess it's very hard to patch this since Mojave, infact some users kept a small HighSierra volume (20 gb are suffice) to use TDM on their iMacs.
I have a late 2009 27" iMac, equipped with a ATI Radeon HD 4850 GPU.

I can confirm that TDM works only on High Sierra and it is broken on Mojave and Catalina.
That's why I'm keeping a small High Sierra partition for that, as you explained.

Obviously, it is not the perfect solution and a patch for Catalina would be more than welcome.


jackluke

macrumors 68020
Jun 15, 2018
2,248
4,352
I have a late 2009 27" iMac, equipped with a ATI Radeon HD 4850 GPU.

I can confirm that TDM works only on High Sierra and it is broken on Mojave and Catalina.
That's why I'm keeping a small High Sierra partition for that, as you explained.

Obviously, it is not the perfect solution and a patch for Catalina would be more than welcome.
I guess a TDM video patch is more possible on Mojave 10.14.3 than later macOS releases, since too many tricky core frameworks are involved.
But for someone who want to attempt a patch needs to have those iMac series to test, so keeping an HighSierra is a good solution, acting also as Recovery drive due to its useful R/W support on APFS.

  • Like
Reactions: TimothyR734

karesake

macrumors member
Oct 24, 2016
45
27
Freiburg, Germany
If this is a Mac Pro, then you must install the Legacy Video Card Patch manually using the post-install tool, as it is not installed by default. Upgrading to a Metal-compatible video card, however, is a MUCH better option on a Mac Pro.

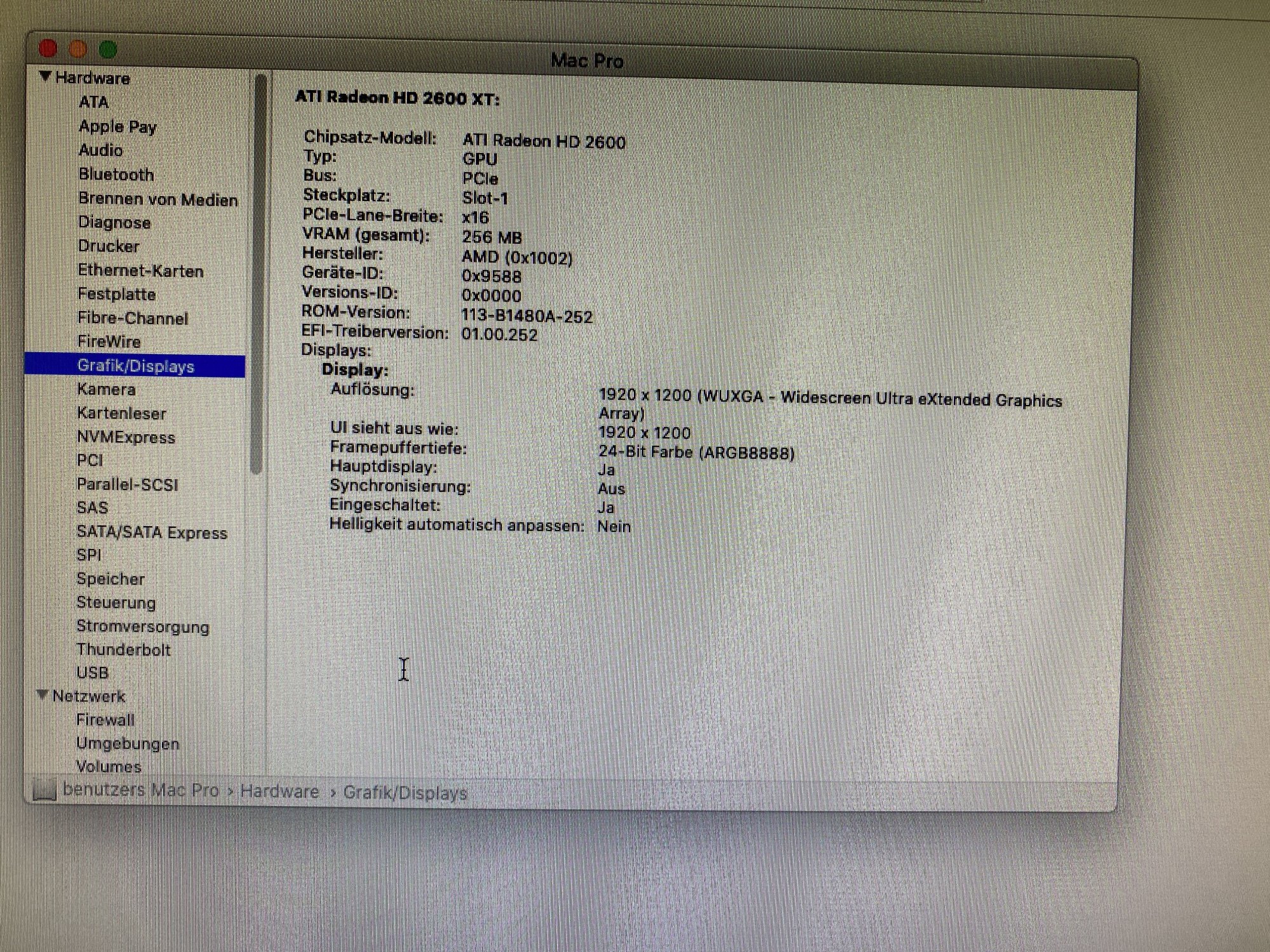

thanks for your answer. I have already installed the patches. No luck. :(

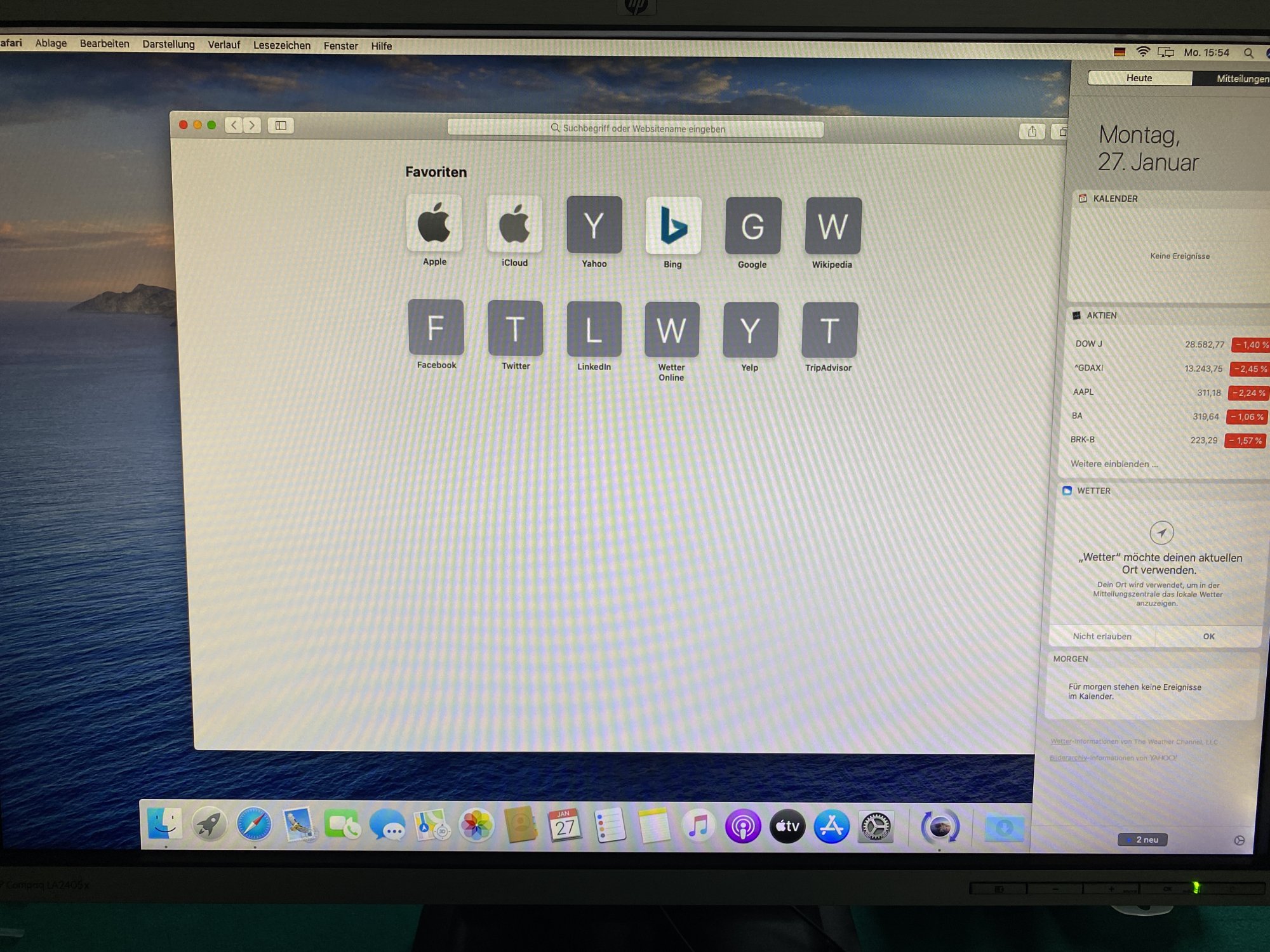

Edit: okay! Forget it 😂 Its working.

  • Like
Reactions: TimothyR734

reneroeten

macrumors newbie
Oct 31, 2019
9
14
hello everyone,

I need some help, I have a MacBook Pro mid 2009 (5.3) Catalina is working fine (10.15.1)
but here comes the problem: when the Mac is in sleep every day it wil reboot because of a problem.
I guess it's the card reader the cause this problem, does anyone know if there is a fix for this or how to disable the card reader because I never use it

thanks in advanced

Rene



panic(cpu 1 caller 0xffffff80130279d7): "com_apple_driver_AppleUSBCardReaderInterfaceNub::setPowerState(0xffffff8034877200 : 0xffffff7f95b62f86, 2 -> 1) timed out after 30683 ms"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.41.3/iokit/Kernel/IOServicePM.cpp:5302


Backtrace (CPU 1), Frame : Return Address


0xffffff8114ba3b40 : 0xffffff8012939a3b


0xffffff8114ba3b90 : 0xffffff8012a70fe5


0xffffff8114ba3bd0 : 0xffffff8012a62a5e


0xffffff8114ba3c20 : 0xffffff80128e0a40


0xffffff8114ba3c40 : 0xffffff8012939127


0xffffff8114ba3d40 : 0xffffff801293950b


0xffffff8114ba3d90 : 0xffffff80130d17f9


0xffffff8114ba3e00 : 0xffffff80130279d7


0xffffff8114ba3e50 : 0xffffff8013027599


0xffffff8114ba3e60 : 0xffffff801303e94e


0xffffff8114ba3ea0 : 0xffffff8013026348


0xffffff8114ba3ec0 : 0xffffff801297b625


0xffffff8114ba3f40 : 0xffffff801297b151


0xffffff8114ba3fa0 : 0xffffff80128e013e


jackluke

macrumors 68020
Jun 15, 2018
2,248
4,352
hello everyone,

I need some help, I have a MacBook Pro mid 2009 (5.3) Catalina is working fine (10.15.1)
but here comes the problem: when the Mac is in sleep every day it wil reboot because of a problem.
I guess it's the card reader the cause this problem, does anyone know if there is a fix for this or how to disable the card reader because I never use it

thanks in advanced

Rene



panic(cpu 1 caller 0xffffff80130279d7): "com_apple_driver_AppleUSBCardReaderInterfaceNub::setPowerState(0xffffff8034877200 : 0xffffff7f95b62f86, 2 -> 1) timed out after 30683 ms"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.41.3/iokit/Kernel/IOServicePM.cpp:5302


Backtrace (CPU 1), Frame : Return Address


0xffffff8114ba3b40 : 0xffffff8012939a3b


0xffffff8114ba3b90 : 0xffffff8012a70fe5


0xffffff8114ba3bd0 : 0xffffff8012a62a5e


0xffffff8114ba3c20 : 0xffffff80128e0a40


0xffffff8114ba3c40 : 0xffffff8012939127


0xffffff8114ba3d40 : 0xffffff801293950b


0xffffff8114ba3d90 : 0xffffff80130d17f9


0xffffff8114ba3e00 : 0xffffff80130279d7


0xffffff8114ba3e50 : 0xffffff8013027599


0xffffff8114ba3e60 : 0xffffff801303e94e


0xffffff8114ba3ea0 : 0xffffff8013026348


0xffffff8114ba3ec0 : 0xffffff801297b625


0xffffff8114ba3f40 : 0xffffff801297b151


0xffffff8114ba3fa0 : 0xffffff80128e013e
To disable it, try this opening a Catalina Terminal window copy/paste (in one line):
Code:
sudo kextunload /System/Library/Extensions/AppleStorageDrivers.kext/Contents/Plugins/AppleUSBCardReader.kext

Status
The first post in this thread is a WikiPost, and can be edited by anyone with the appropriate permissions.
