MP51.0084.B00 Rom Dump Request

Discussion in 'Mac Pro' started by HaypurTiryading, May 20, 2018.

  1. LightBulbFun macrumors 65816

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #451

    just an FYI theres already a MR Forums EULA in place that says the only person who can do the whole "you will always refer to him as" and "Mighty" stuff is @Intell Something to do with Cheese and hats IIRC :D

  2. DearthnVader macrumors 6502

    DearthnVader

    Joined:
    Dec 17, 2015
    Location:
    Red Springs, NC
    #452
    Anyway, back on topic, I can't seem to insert anything into the Apple boot rom's, I'm sure I'm just being dense, but I could use a little help.

    I open the bottom with UEFI tool, and search for 'DXE' but insert is always greyed out. Could someone offer a little better explanation than @gilles_polysoft did in post 13.

    I'm not sure what I'm doing wrong, I also tried with DXEInject, but whatever I try to inject, I just end up with a bit for bit copy of the boot rom I'm trying to modify.

    Tho I have to say, I'm limited to hacking Apple boot roms that came with OS updates. the LOCKED.fd files, so maybe that is an issue?

    Also, does anyone know if any Mac ever shipped with an ICH9 chipset?

    I was thinking the iMac8,1 may have, but a peek I got at the IOReg online didn't offer any clues.

  3. LightBulbFun macrumors 65816

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #453
    no Mac shipped with the ICH9 chipset

    however its funny you mention the iMac8,1

    I really want to try and flash an iMac8,1 BootROM to an iMac7,1 :) (however I dont own an iMac7,1)

    internally the iMac7,1 and 8,1 are almost the same, they have the same i965+ICH8 chipset,

    it would give better penryn support at a minimum.

    and maybe even 1066Mhz FSB support? the iMac7,1 schematics mention 1066Mhz FSB support, which makes me wonder if the iMac7,1 works with 1066Mhz FSB CPUs...

  4. DearthnVader macrumors 6502

    DearthnVader

    Joined:
    Dec 17, 2015
    Location:
    Red Springs, NC
    #454
    Thanks for the clarification, I'd really like to get one of the Apple EFI firmwares working in Qemu, but there is a limited number of machines and chipsets to choose from. Looks like something I'll have to add to my ever growing todo list is building a machine that emulates a chipset Apple used in an Intel Mac.

    I got outbid by $3 on a MP3,1 the other day, and I just hate it that others are able to hack firmwares and I can't play along:mad:

    Besides, it's much easier to be able to hack and debug in a virtual machine, with no risk of bricking it.

    I did find that Apple's EFI firmwares have a Serial Terminal DXE, and it will link and load in Qemu, but I can't really find any info on the net about how Apple's firmware engineers may have used it to do low level debugging of EFI firmwares.

  5. LightBulbFun macrumors 65816

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #455
    I know very well what its like to lack the hardware to do certain things with, sometimes you have to improvise a bit :)

    you own a MacBook3,1 right? that is an EFI64 machine :)

    get a Mini PCIe to full size PCIe adapter, remove the airport card and install the adapter and bam your MacBook3,1 now has a PCIe slot you can do stuff with :)

  6. DearthnVader, Jun 13, 2018
    Last edited: Jun 13, 2018

    DearthnVader macrumors 6502

    DearthnVader

    Joined:
    Dec 17, 2015
    Location:
    Red Springs, NC
    #456
    Sadly my MacBook3,1 stoped powering on, it's done it to me a few times, but leaving it unpowered for a few days always seemed to bring it back, just not this time.

    I upgraded the ram, and it just quit powering up at all, pulling the ram and reinstalling the OEM ram, resetting the SMC, just no luck, it just does nothing when I press the power button.
    --- Post Merged, Jun 13, 2018 ---

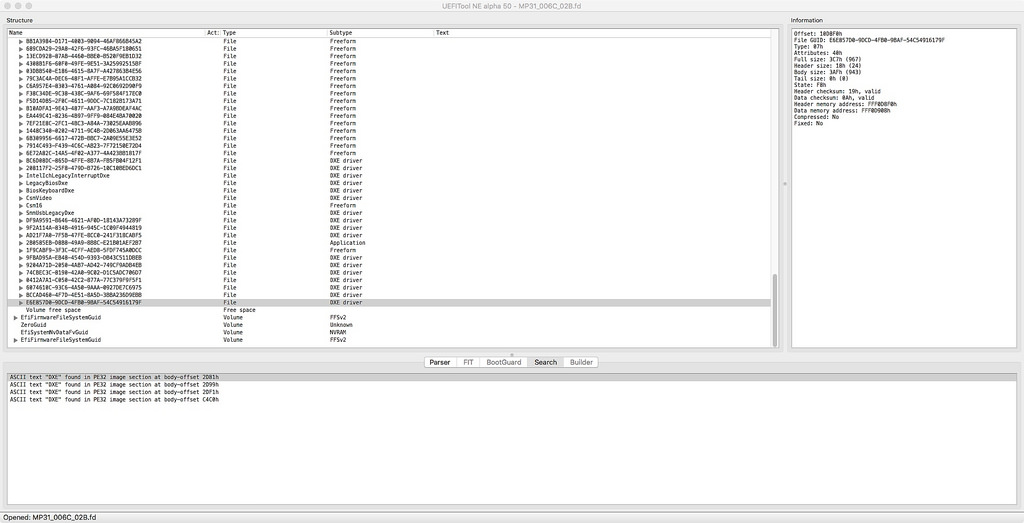

    @LightBulbFun Any insight as to what I'm doing wrong not being able to inject into the boot rom?

    What version of EFI tool has been successful, and where maybe I should click after I search for the DXE?

    [​IMG]

  7. Pressure macrumors 68040

    Pressure

    Joined:
    May 30, 2006
    Location:
    Denmark
    #457
    I actually have an 24" iMac7,1 collecting dust, I need to swap the harddrive.

  8. Macschrauber macrumors regular

    Joined:
    Dec 27, 2015
    #458
    thanks for pointing to flashrom. Works way better than ch341prog

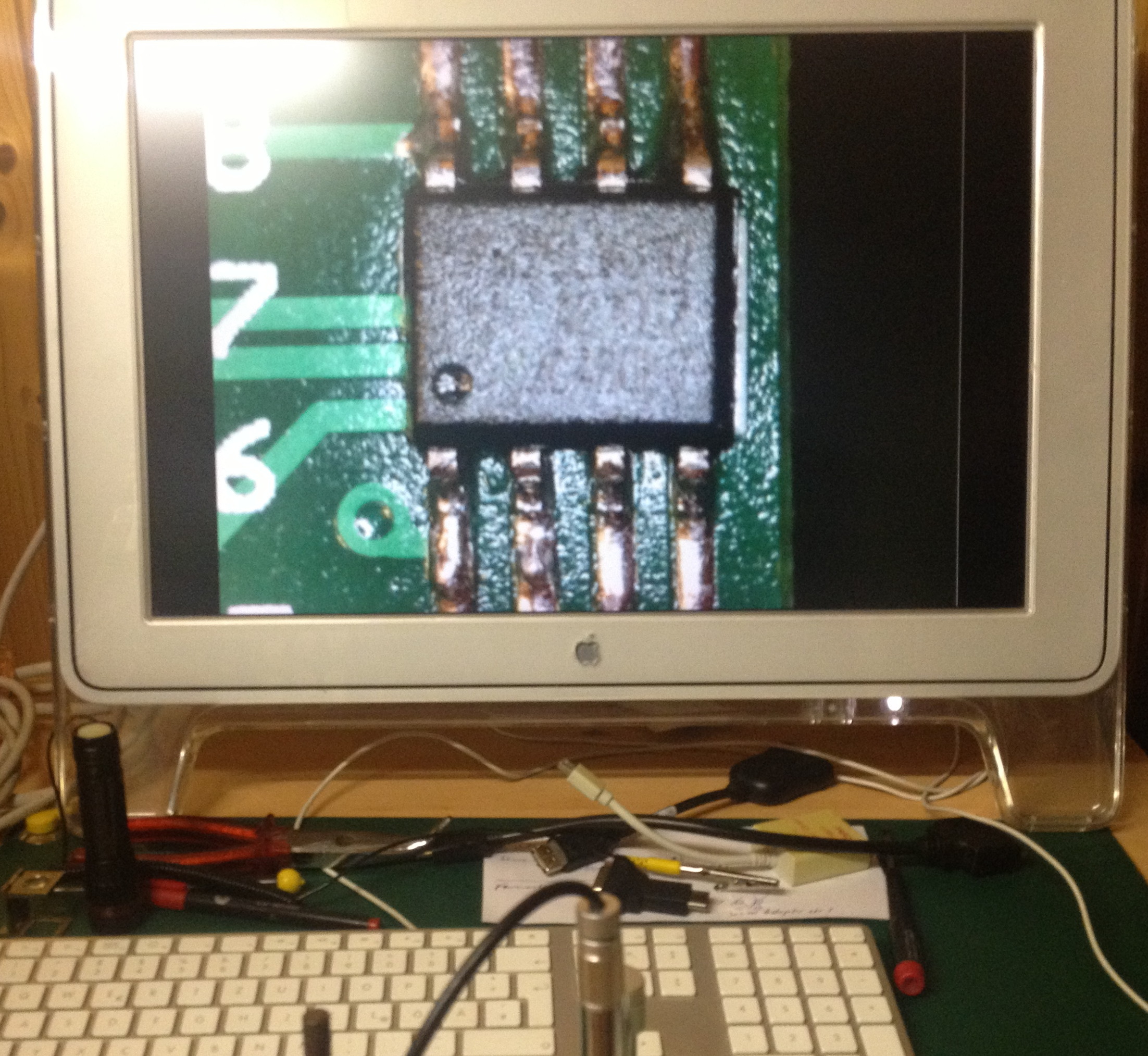

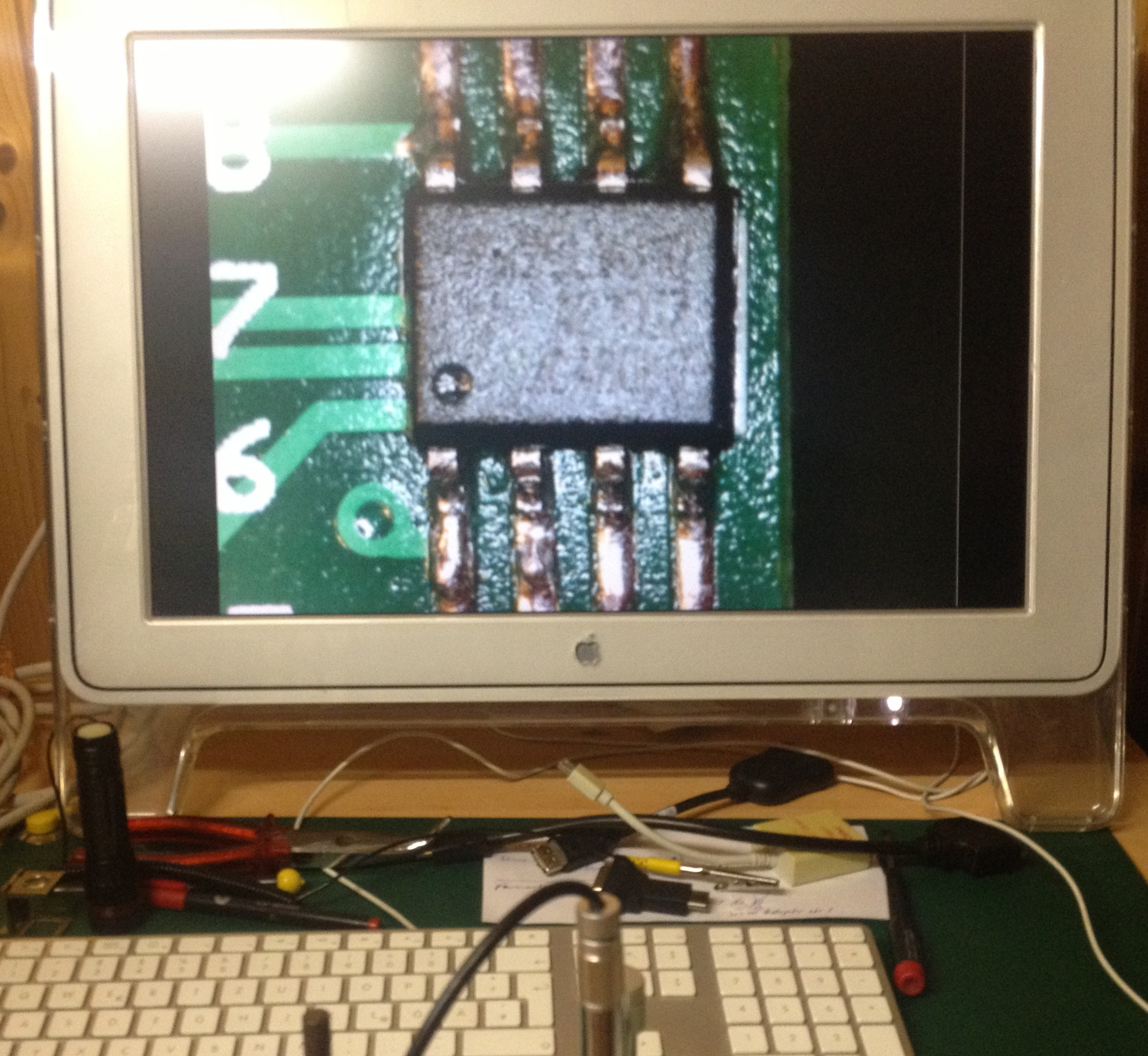

    for sip roms I use just a regular soldering iron and of course loads of flux. Clean it after soldering with isoprop.

    As my eyes are lame I use a cheap USB Microscope on mac with quicktime player as monitoring app - and very strong reading glasses.

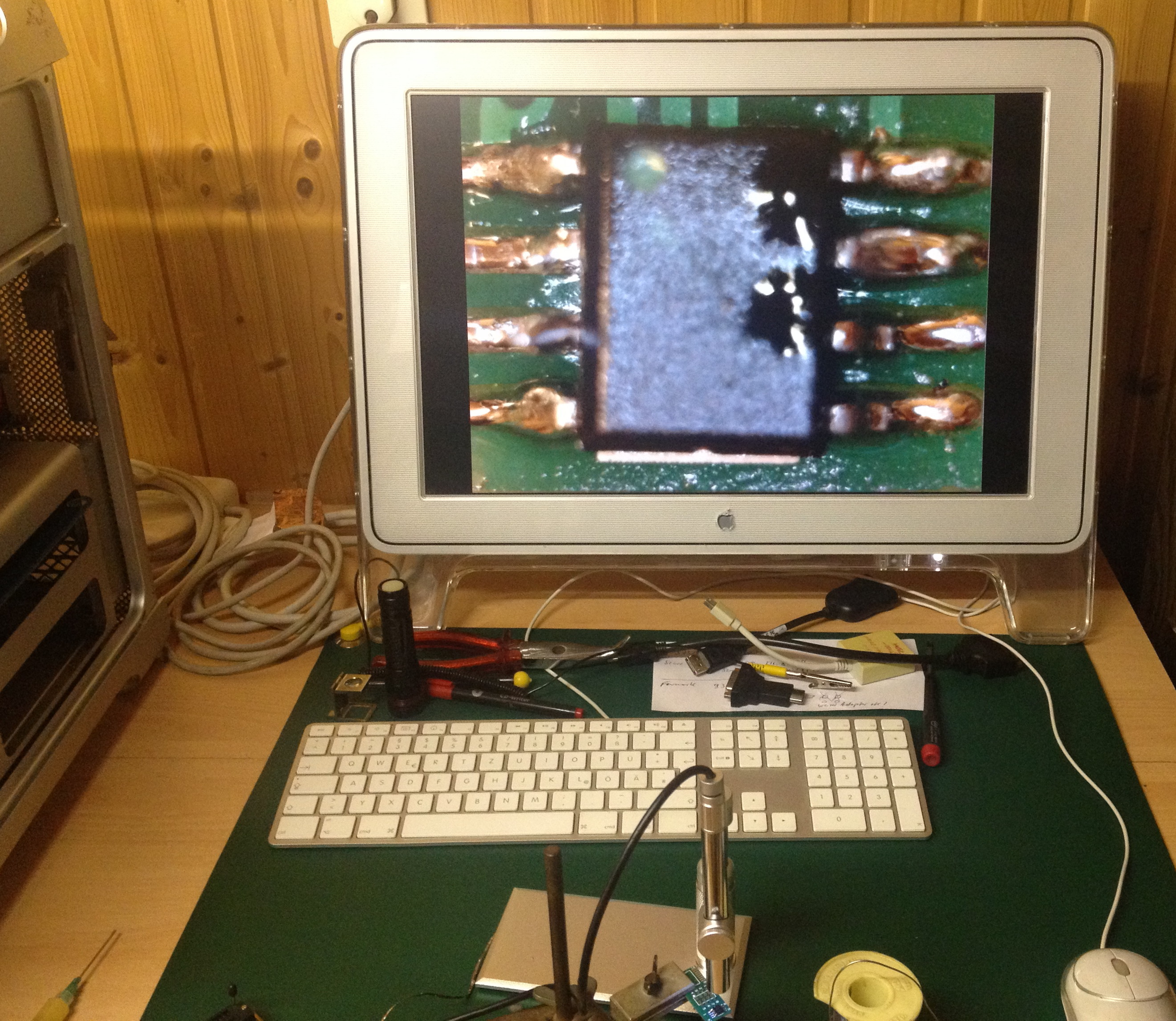

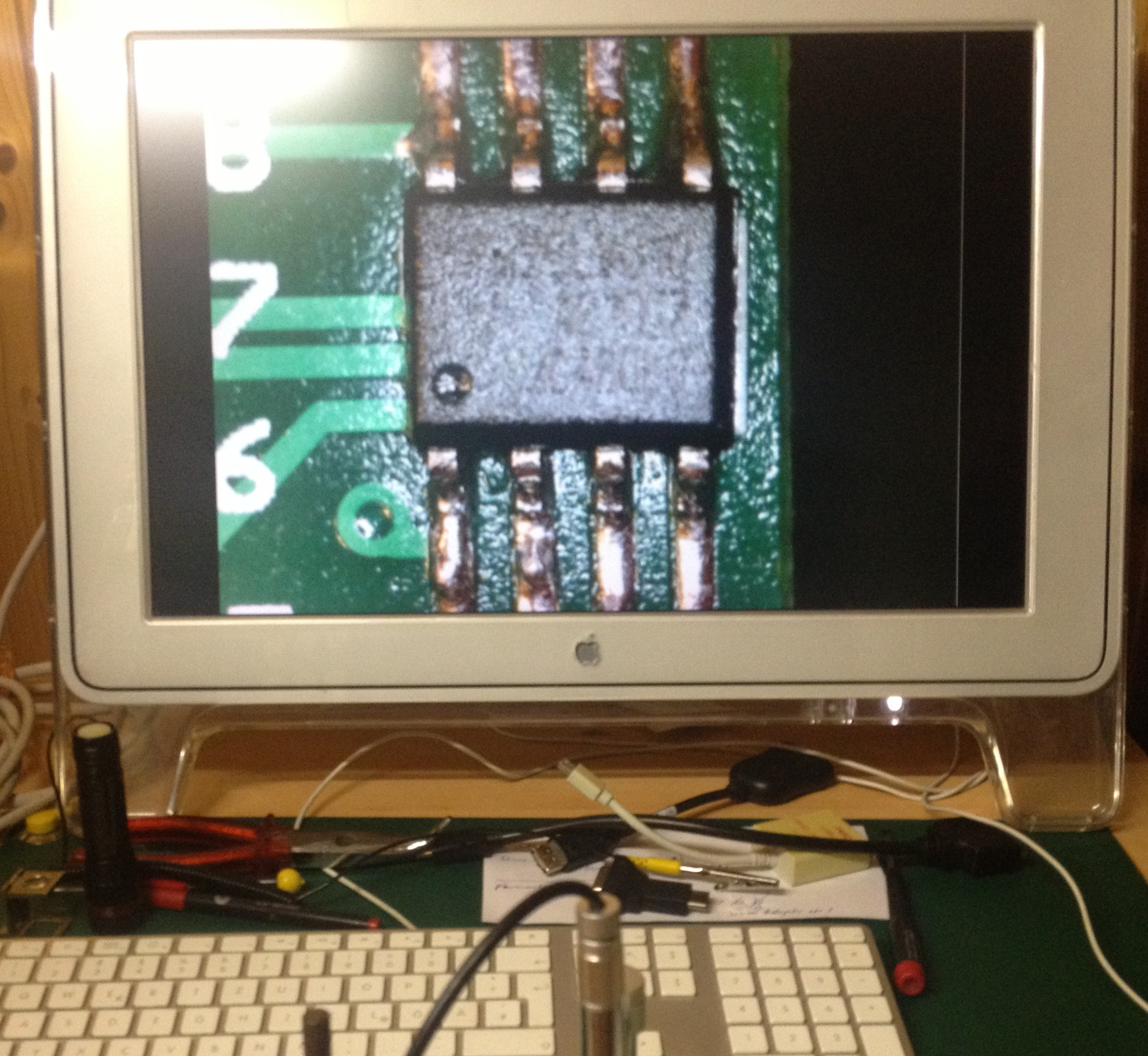

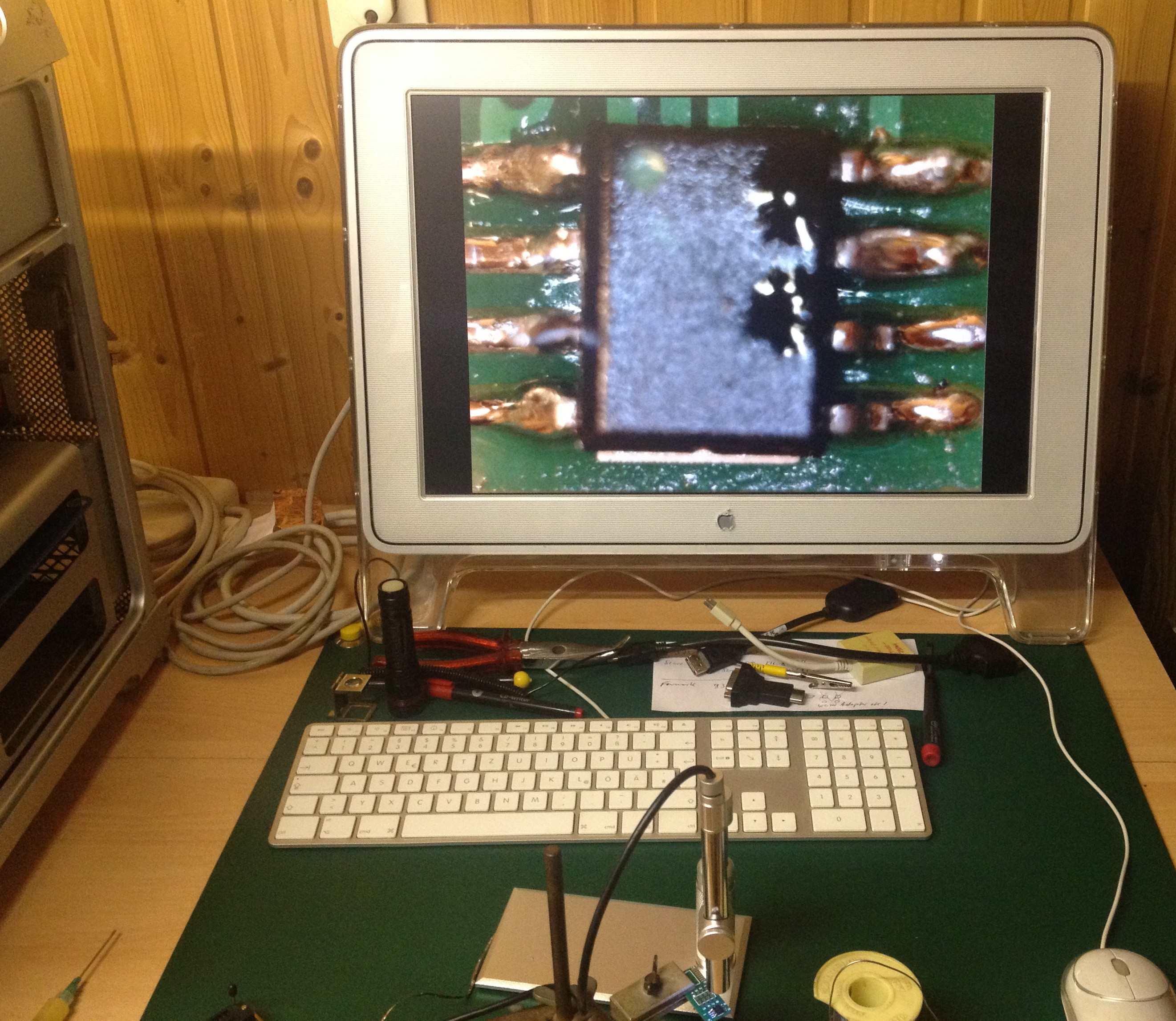

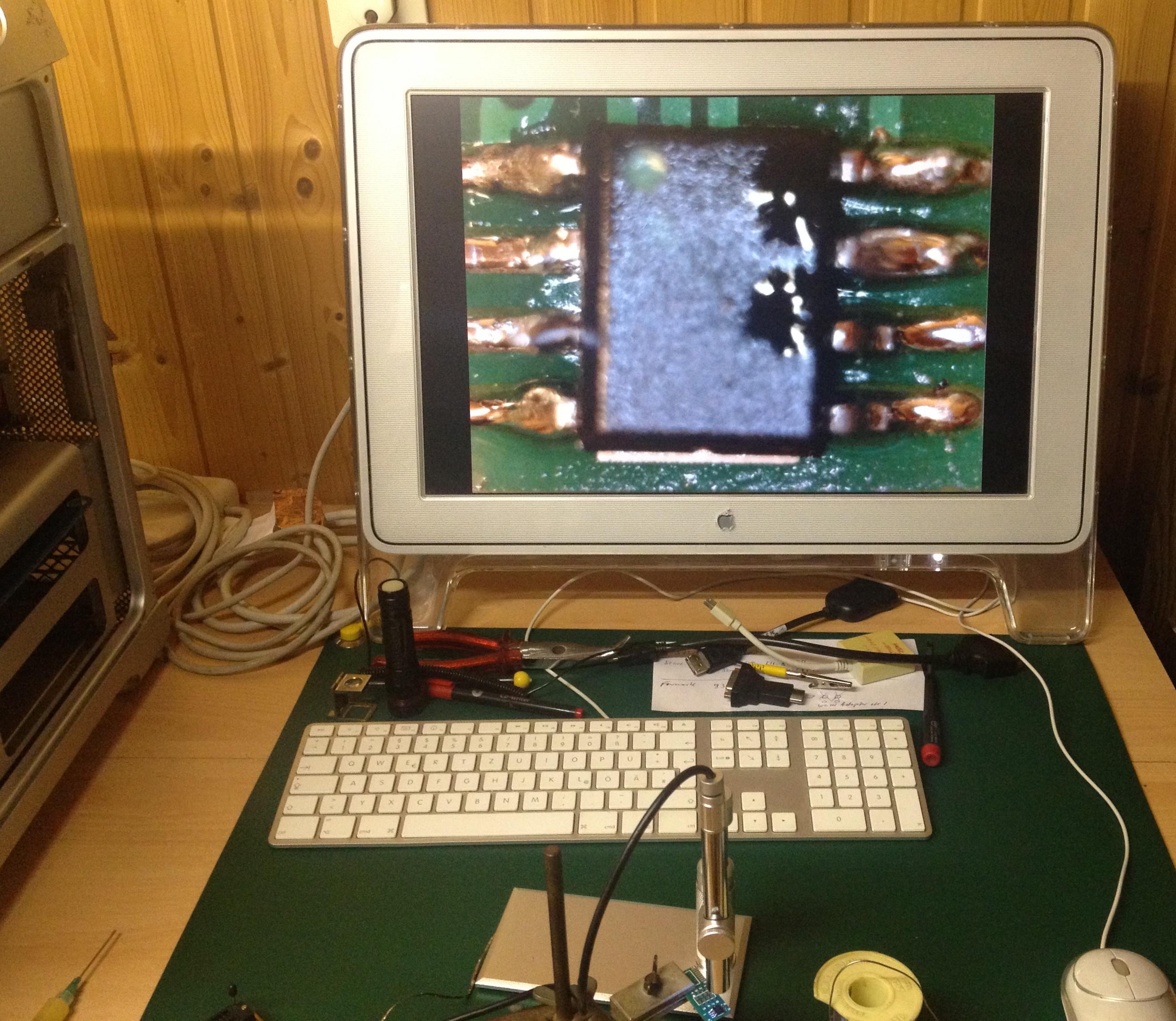

    Pix ahead, first is with flux, second cleaned (not the same chip)

    If you can't get it sorted you may bring it to a service guy. Good cell phone repair shops can solder a rom chip with ease.

    IMG_9411 copy.JPG IMG_9412 copy.JPG

  9. Pavo macrumors newbie

    Pavo

    Joined:
    Aug 8, 2017
    #459
    Thanks for showing me pics, so.... you don't think I have over heated the board or the chip with removing and installing the rom using heat gun method? Think it could be possible I just don't have enough solder on the chip connecting the board and that's why I am having power issues?

  10. dosdude1 macrumors 65816

    dosdude1

    Joined:
    Feb 16, 2012
    #460
    You can also use my GUI tool (based on flashrom) to flash and dump your system ROM from OS X.

  11. dosdude1 macrumors 65816

    dosdude1

    Joined:
    Feb 16, 2012
    #461

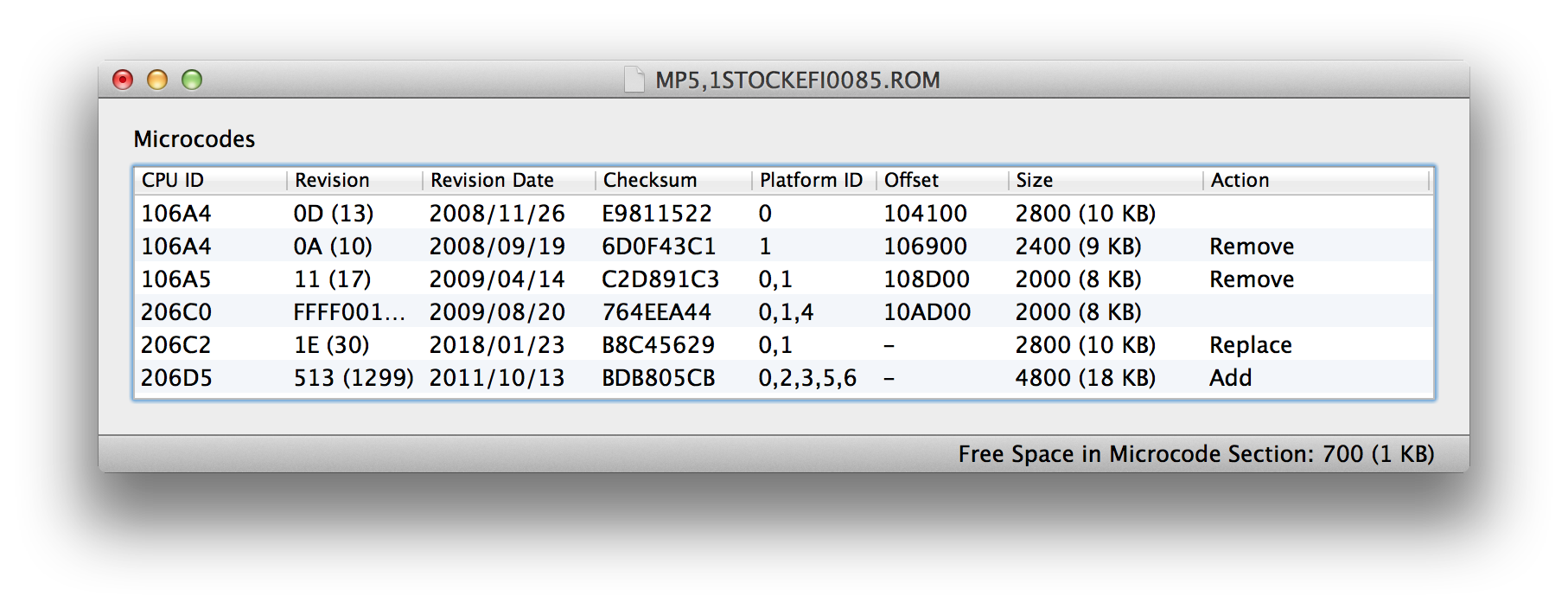

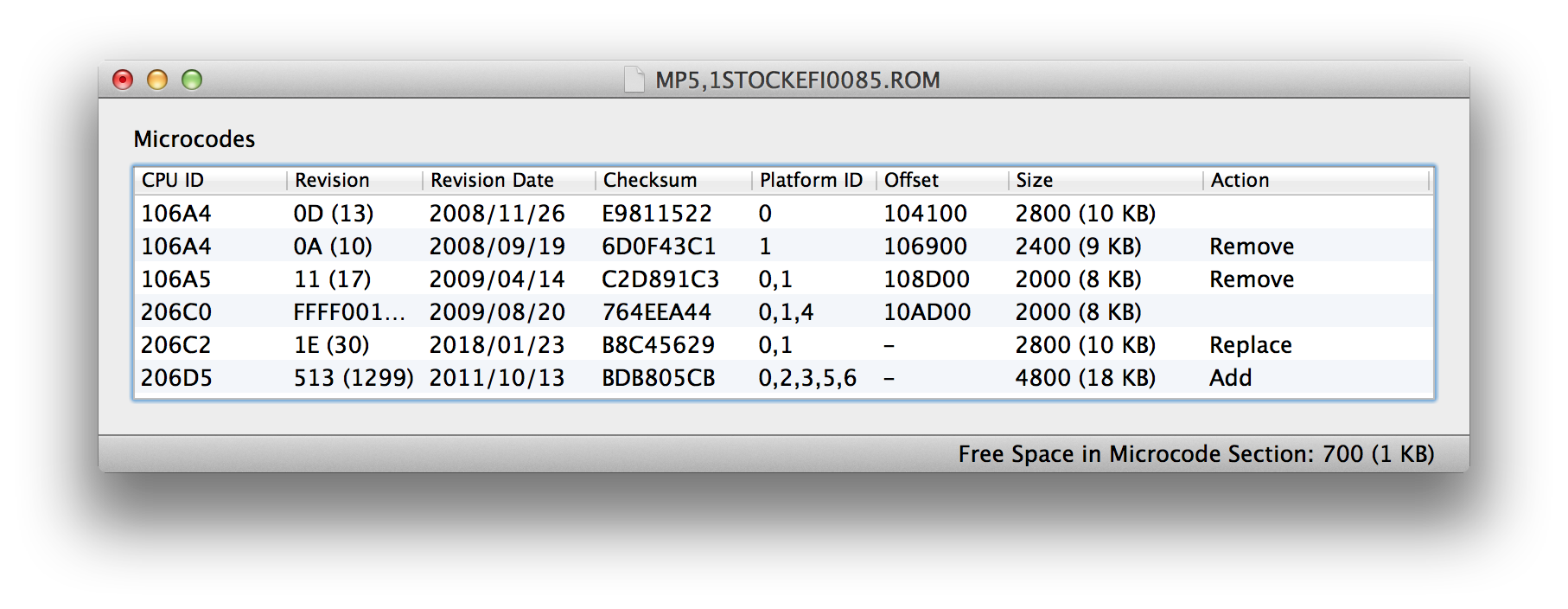

    For those interested in editing the microcode of their Mac Pro's system ROM, I have just finished writing a fully interactive GUI-based utility that can add/extract/replace microcodes in your system ROM dump! This is how it works:

    - Open the program, and select a dumped ROM.
    - From here, you can simply right-click in the table to perform actions, or use the Menu Bar items.
    - To extract a microcode from your ROM, simply right-click on the microcode you wish to extract, and select "Extract Microcode". Save it to a file.
    - To add a new microcode, simply right-click anywhere in the table, and select "Add Microcode". If the microcode for the same CPUID and platform ID in the microcode you're trying to add already exists in the ROM, it will replace it with the selected file. If not, it will add it.
    - Microcode files can also be dragged and dropped onto the table to add them.
    - Once the modifications you desire have been made, simply save the file, or do "Save as" to save it as a different file, keeping your original unmodified.

    Download the application here. Source code is available on my GitHub. Microcode files can be obtained here.

    Enjoy!

    Screen Shot 2018-06-13 at 11.35.58 PM.png

  12. bookemdano macrumors 6502

    Joined:
    Jul 29, 2011
    #462
    Amazing as usual, dosdude1. Thank you so much for everything you do for your fellow Mac users.

  13. handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    #463
    THANKS!!! Once I’m outta the hospital, I’ll write up a detailed doc. It’s the least I can do to help. By chance, did you use obj-c?

  14. dosdude1 macrumors 65816

    dosdude1

    Joined:
    Feb 16, 2012
    #464
    Yes, it's written with a combination of Objective-C and C.

  15. h9826790 macrumors G3

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #465
    Thanks for providing this tool. It's very handy!

    For others info. This tool will allow you to choose a specific CPU model's microcode to inject.

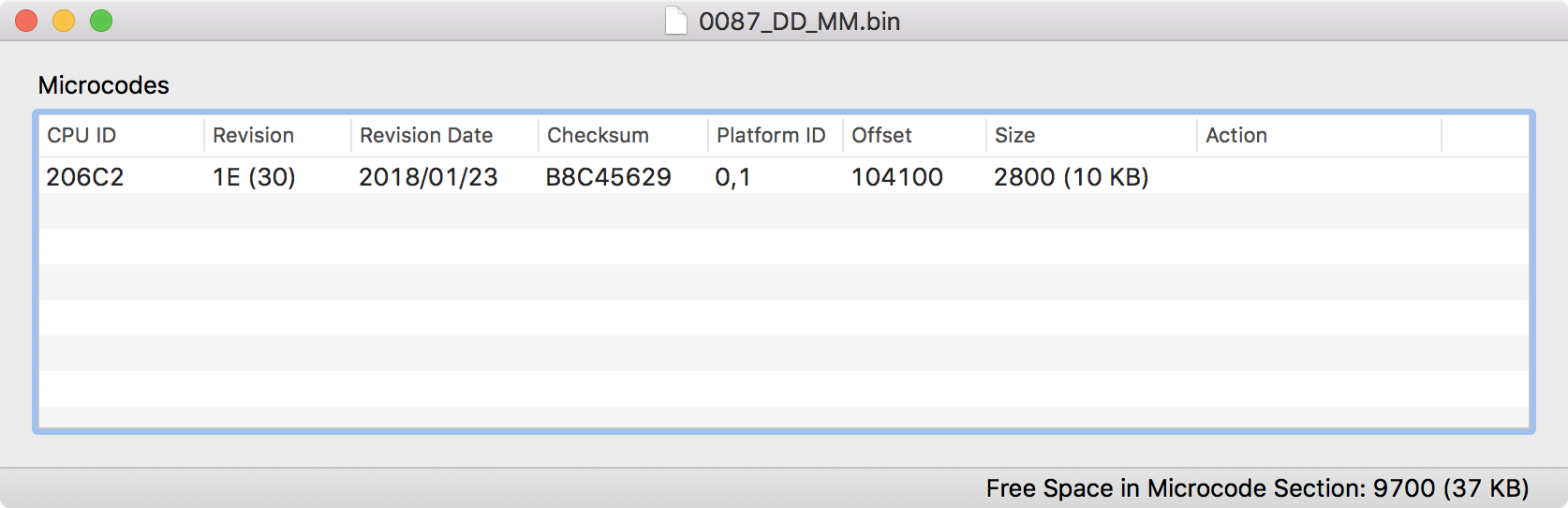

    e.g. The 0087.B00 BootROM has no microcode at all. And after I inject the microcode for Westmere, it will looks like this.
    Screen Shot 2018-06-14 at 17.13.14.png

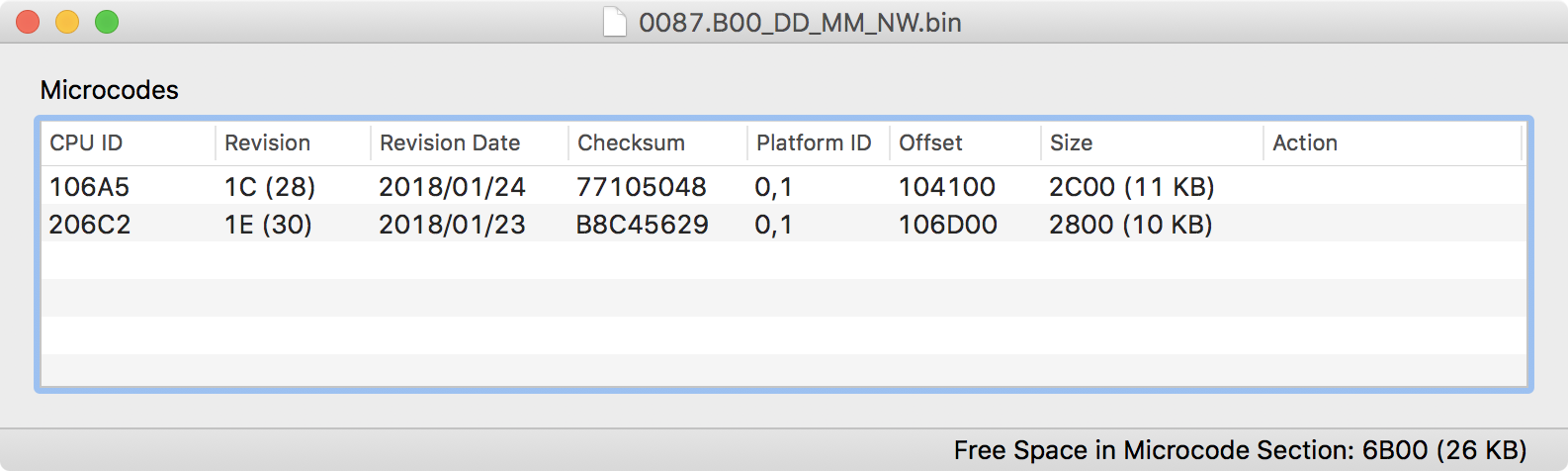

    If I add both Nehalem and Westmere microcode. It will looks like this.
    Screen Shot 2018-06-14 at 17.20.54.png

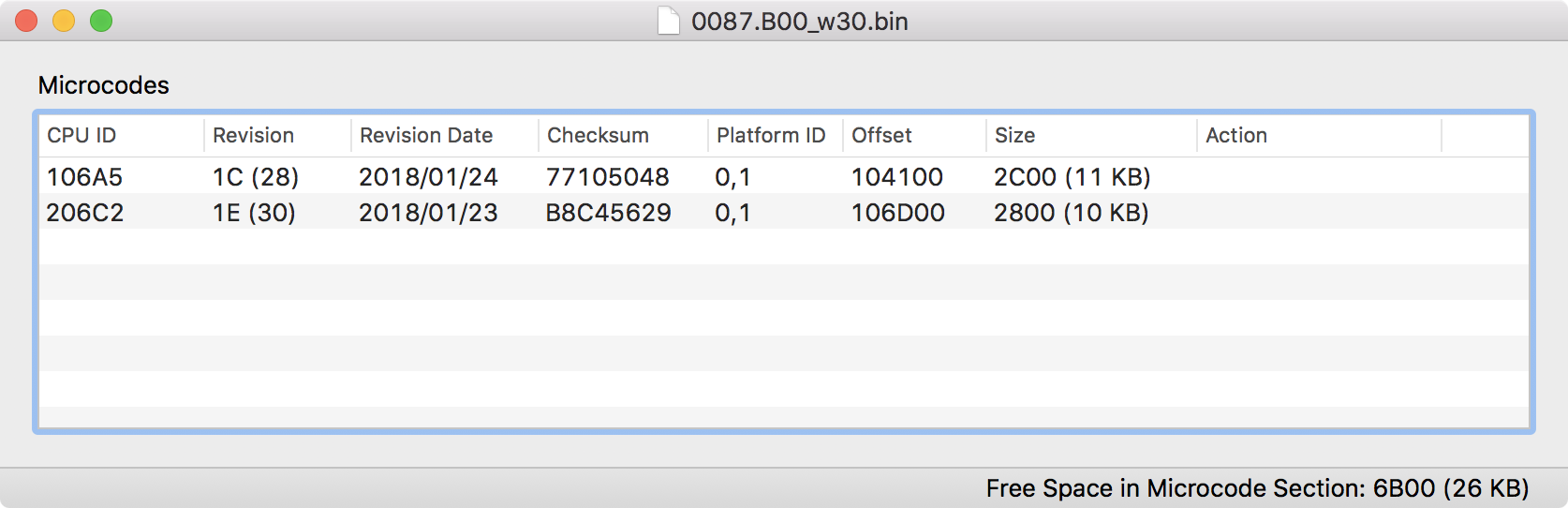

    And it looks identical to the microcode mod provided by LightBulbFun with the copy and paste method.
    Screen Shot 2018-06-14 at 17.13.16.png

    Two different way, give out the exact same result. So, it should be safe to use either method.

  16. DearthnVader macrumors 6502

    DearthnVader

    Joined:
    Dec 17, 2015
    Location:
    Red Springs, NC
    #466
  17. Pavo macrumors newbie

    Pavo

    Joined:
    Aug 8, 2017
    #467
    Does your tool also support SPI programmers?

  18. kennyman macrumors regular

    Joined:
    May 4, 2011
    Location:
    US
    #468
    Has anyone been successful to boot NVMe SSDs with the new bootrom MP_0087 from the full 10.13.5 installation package besides Gilles? Sorry after reading his #325 post, I did not see any confirmation.

    I am also a little confuse on which NVMe DXE driver to use, extract from MBP, nMP 2013 or iMacPro. Seems like erer use the latest one but I am not sure. Could you please point me to the right direction? Thanks

  19. Macschrauber macrumors regular

    Joined:
    Dec 27, 2015
    #469
    I use it not for the Mac firmware. But very interesting Flashrom can handle the Mac firmware. Would you mind telling what parameter Flashrom needs to touch the Mac firmware ?
    --- Post Merged, Jun 14, 2018 ---
    Only you can inspect your work. You can use a ohm meter to check the connections for o/c or shortcuts.

    Or give it a pro...

  20. erer macrumors member

    Joined:
    Jun 1, 2018
    #470
    m
    mp 6,1 has drivers for xhci and fl1100 search bootrom for those fırst.

  21. DearthnVader macrumors 6502

    DearthnVader

    Joined:
    Dec 17, 2015
    Location:
    Red Springs, NC
    #471
    It's really better to test these drivers in an EFI Shell before inserting them into your boot rom, if you download the rEFInd cd it has a shell you can enter.

    You'll need to put the drivers on a Fat32 partition, the EFI partition of one of your GUID formatted drives should be good. If you search around the inter webs you can find info on how to mount your EFI partition, then just copy the drivers you want to test to it.

    Burn the rEFInd cd and boot from it, open the shell and find the EFI partition you saved the drivers to. it's sort of a mix of dos and unix commands, and its not always intuitive.

    Code:
    fs0:
    That will give you the file system of the first mapped drive.

    Code:
    fs1:
    This gives the second mapped file system.

    Code:
    ls
    List files and directories of the current mapped file system.

    Once you find the correct file system, the one you saved the EFI drivers to, then you need to load them.

    Code:
    load XHCI.efi
    Code:
    load FL1100.efi
    Once you load the drivers, you'll need to connect them.

    Code:
    reconnect -r
    Now check if your driver are linked and loaded to a device.

    Code:
    drivers
    That will give you a list of all the loaded drivers with the path on the left, then - - - -, or - - - 1 or - -0 1 1, basically if you see a number after the driver path instead of all dashes, then your drivers have linked and loaded to a device, and they should only load for you XHCI PCI card and link to it.

    Then I suppose you want to test if the card is working correct, and can take part in the boot process, so you'l want to connect a USB drive to it, preferably before you load the drivers and reconnect them. Then, I think, you need to map the file system of you USB drive into the system. For this reason it's best to have a Fat32 formatted USB drive.

    Tho, your Mac has an HFS+ driver and a APFS driver, and they should be loaded and those partitions should get mapped at boot time, we're just using Fat32 because it's the least complicated and best supported filesystem for EFI/UEFI firmwares.

    Code:
    map fs
    That command may not be correct, I'll have to check.

    Then:

    Code:
    map -r
    See of you can see the file system of you USB drive connected to the XHCI PCI card.

  22. Macschrauber macrumors regular

    Joined:
    Dec 27, 2015
    #472
    I know the efi shell, for example to update smc firmware on 1.1 / 2.1 - but great to have an overview and teach (me) old dog new tricks :)

  23. handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    #473
    Great info.

    Can this be scripted or automated into a menu based app?

    Could it be used this to configure the speed of pcie slots?

  24. thomasthegps, Jun 15, 2018
    Last edited: Jun 15, 2018

    thomasthegps macrumors member

    Joined:
    Sep 23, 2015
    Location:
    France
    #474
    On the netkas forum someone had posted a way to force PCIE 2.0 by entering an efi shell and typing a few commands. I tried it and it did not work for me. In the post the guy used refit wheras I used refind because refit is no longer supported. Maybe someone can try and tell me if it works for them http://forum.netkas.org/index.php?topic=13541.0

  25. HaypurTiryading thread starter macrumors newbie

    HaypurTiryading

    Joined:
    May 20, 2018
    Location:
    Turkey
    #475
    Why did everbody edit their posts? Am I missed something in 4 days?
