CarPlay CarPlay adapter to convert to wireless CarPlay?

[THX723]

Can you send the link to the newer unit? The one I just bought was supposed to be "new for 2021" but who knows. I'm open to a newer unit, especially if it works better. The one I just received was after my green UI v2 bricked during an upgrade. Thanks!

I can't yet confirm 3.0 works any better than the previous revision, only that it uses 802.11ac/80Mhz BW. Time will tell.

Carlinkit 3.0 Wireless CarPlay Adapter USB for Factory Wired CarPlay Cars (Model Year: 2015 to 2025), Wireless CarPlay Dongle Convert Wired to Wireless CarPlay

Features: 1. Low power consumption design ensures stable operation of the product in different environments 2.Linux microkernel makes software operation more efficient and stable 3. Support OTA upgrade, online feedback and quick problem solving 4. Faster startup connection speed, better automatic...

www.amazon.com



[MrMister111]

check if any wifi comes up (might have a diff name than usual) and if you can connect to it, you might be able to open the web interface and do a rollback.


My podofo seems to be in delivery, so fast!... let's see how this goes once delivered...

No WiFi on 192.168.50.2 that I definitely connected to before. That’s either in car or in a wall plug.

I’ve tried loads of FW using USB method, but all it does is solid red LED



[samabbott]

I can't yet confirm 3.0 works any better than the previous revision, only that it uses 802.11ac/80Mhz BW. Time will tell.

Carlinkit 3.0 Wireless CarPlay Adapter USB for Factory Wired CarPlay Cars (Model Year: 2015 to 2025), Wireless CarPlay Dongle Convert Wired to Wireless CarPlay

Features: 1. Low power consumption design ensures stable operation of the product in different environments 2.Linux microkernel makes software operation more efficient and stable 3. Support OTA upgrade, online feedback and quick problem solving 4. Faster startup connection speed, better automatic...

www.amazon.com

Thank you!



[Kurt871]

I can't yet confirm 3.0 works any better than the previous revision, only that it uses 802.11ac/80Mhz BW. Time will tell.

Carlinkit 3.0 Wireless CarPlay Adapter USB for Factory Wired CarPlay Cars (Model Year: 2015 to 2025), Wireless CarPlay Dongle Convert Wired to Wireless CarPlay

Features: 1. Low power consumption design ensures stable operation of the product in different environments 2.Linux microkernel makes software operation more efficient and stable 3. Support OTA upgrade, online feedback and quick problem solving 4. Faster startup connection speed, better automatic...

www.amazon.com

I wonder what the difference is between the different "styles" they offer for that listing. Like what could possibly be different between a 2019-2020 car vs. a 2021?



[phantom25]

View attachment 1825272

ah, that's the same UI I have on my second type C dongle that I ordered April of this year.

thanks!



[Arnau]

192.168.50.2 that I definitely connected to before. That’s either in car or in a wall plug.

I’ve tried loads of FW using USB method, b

When I bricked my V1 (that I finally fixed doing a rollback), it was broadcasting a wifi with the default name so my phone wasn't connecting to it.



[MrMister111]

When I bricked my V1 (that I finally fixed doing a rollback), it was broadcasting a wifi with the default name so my phone wasn't connecting to it.

So you connected to that WiFi on 192.168.59.2 and then used the rollback within the settings page?

Was that connected to car, or to a wall plug? If it matters not sure.

Did it have a solid red LED on?
Thanks



[Gjwilly]

View attachment 1825272

The red UI is simply software/firmware.
Any CarLinkit 2.0 with a detachable USB cable could have that interface.
You might even be able to install that UI on the 1.0 with the attached USB cable.

The 3.0 is a hardware change and you can’t tell by looking at the device or the UI.
Unless you have the very new CarLinkit mini which probably all have 3.0 hardware.

I wouldn’t trust any black box that claimed to be 3.0 hardware unless it was sold directly by CarLinkit.



[alexdiaz]

I have version 2.0 Green UI device.
I've currently got installed @VLud's custom firmware version Autokit(Red UI) 2021.03.06.
How can I install the latest Autokit 2021.08.24.1817 version?
I've tried putting the U2W_AUTOKIT_Update_2021.08.24.1817.img renamed to either U2W_Update.img or U2W_AUTOKIT_Update.img to a USB but the update doesn't start, nothing happens.
I've also tried to flash U2W_Update_2021.07.05.2308.img non-Autokit but that also doesn't do anything.
Updating via OTA doesn't work as the next update is the small OTA fix.

What can I do?



[THX723]

The red UI is simply software/firmware.
Any CarLinkit 2.0 with a detachable USB cable could have that interface.
You might even be able to install that UI on the 1.0 with the attached USB cable.

The 3.0 is a hardware change and you can’t tell by looking at the device or the UI.
Unless you have the very new CarLinkit mini which probably all have 3.0 hardware.
View attachment 1825292

I wouldn’t trust any black box that claimed to be 3.0 hardware unless it was sold directly by CarLinkit.

That's not entirely correct. What you have shown above is known as the 3.0 Mini.

The original model (non-Mini) also comes in 3.0 revision. One of the differences we have now confirmed (vs. 1.0/2.0) is the different WiFi/BT chipset.

While I can't personally guarantee it, the link I provided early looks like the official Carlinkit Amazon Store.



[Arnau]

1 hour trip with music plus gps on the podofo.

No lookups, no stuttering everything fine!!!! Also it does not get as hot as the carlinkit v1.

Tried casting, podofo casts a wifi but didn't know its password. i updated the firmware and now the wifi pass is on the load screen (88888888). Tried casting my phone and it works, a bit of video artifacts on youtube but could be cause my old iphone 8.


Overall pretty satisfied, for 36€ its a steal. Hope it works as good for a long time 😬



[Gjwilly]

That's not entirely correct. What you have shown above is known as the 3.0 Mini.

I know. And you can tell that I know because I called it the CarLinkit mini.
I didn't say only the mini has the 3.0 hardware.
I said you can't tell which black boxes have the 3.0 hardware by looking at them and those claiming that the red interface is the identifier are wrong.
There are a ton of black boxes with the red UI on AliExpress claiming to be 3.0 and I wouldn't trust any of them.



[Arnau]

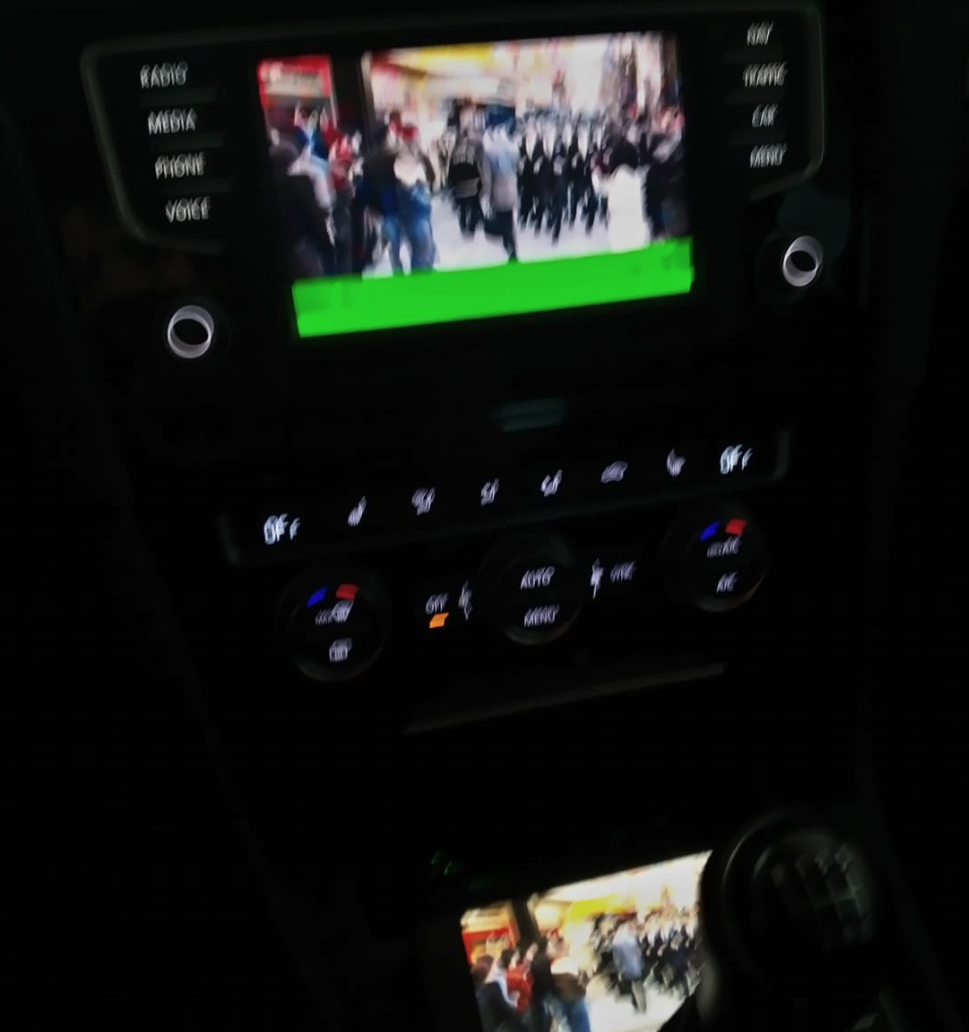

Casting screen before update:

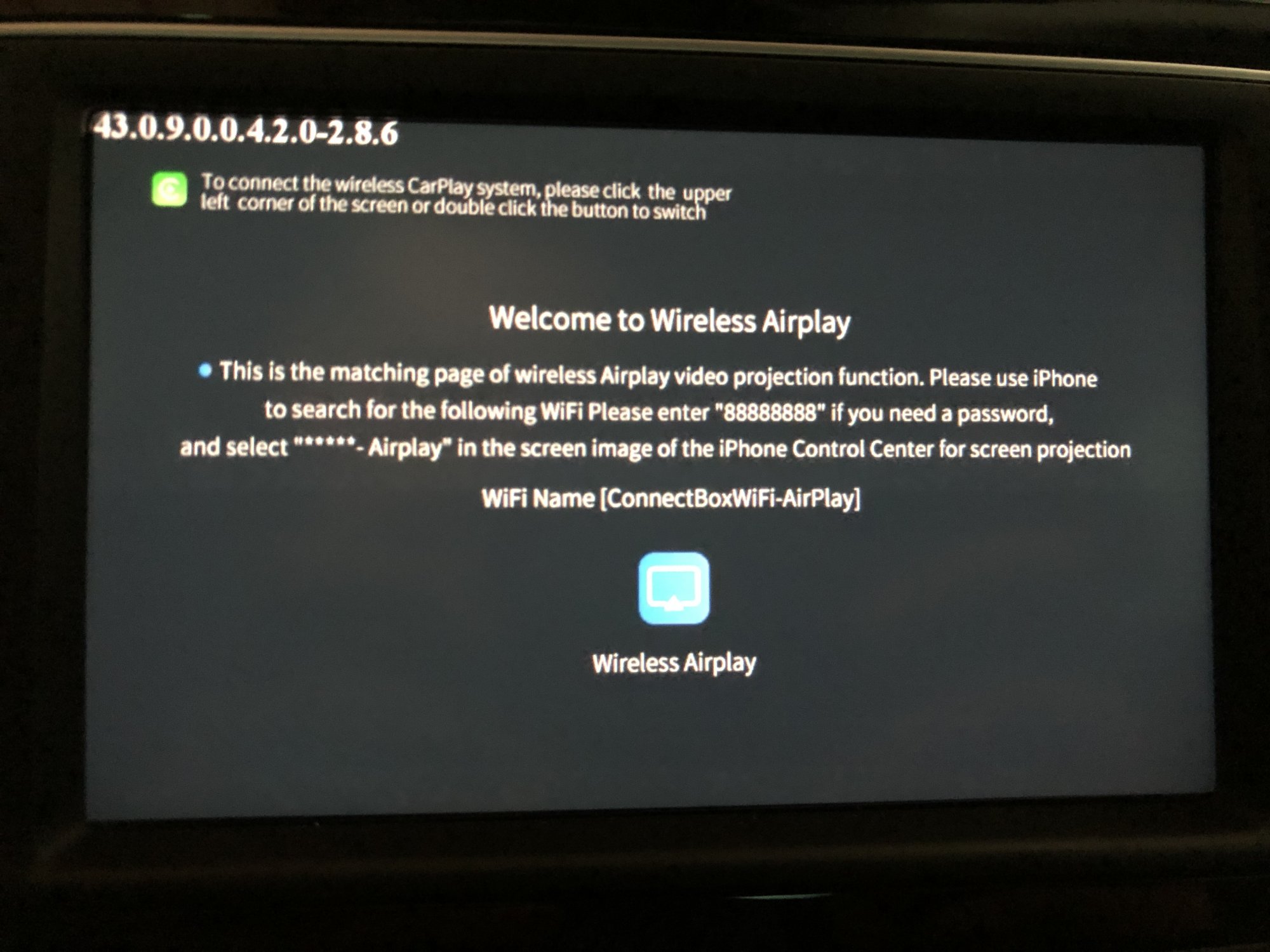

After updating:

Tested with the Ipad and it's also broken, so it seems casting is not working yet with current firmware. Excuse me for the blurry picture, but had to use another phone to take it and it's so bad 🤣

Not something that I needed but could be cool/useful. Let's hope the OTA error after upgrade it's just because there's no newer versions available 😅

Will keep testing it but as I said on the previous post, the first impressions are pretty good!



[VLud]

I have version 2.0 Green UI device.
I've currently got installed @VLud's custom firmware version Autokit(Red UI) 2021.03.06.
How can I install the latest Autokit 2021.08.24.1817 version?
I've tried putting the U2W_AUTOKIT_Update_2021.08.24.1817.img renamed to either U2W_Update.img or U2W_AUTOKIT_Update.img to a USB but the update doesn't start, nothing happens.
I've also tried to flash U2W_Update_2021.07.05.2308.img non-Autokit but that also doesn't do anything.
Updating via OTA doesn't work as the next update is the small OTA fix.

What can I do?

To upgrade to >= 2021.03.06 from CFW, two solutions:

• Put U2W_Update_2020.11.10.2138_ROLLBACK.img on a USB Key and rename it to U2W_AUTOKIT_Update.img if Red UI or U2W_Update.img if Blue UI, then upgrade back to official 2021.03.06. Only then you can upgrade using U2W_Update_2021.07.05.2308.img renamed to U2W_Update.img
• Put this script (ARMimg_maker & U2W.sh) on a USB Key and U2W_Update_2021.07.05.2308.img and rename it to U2W_AUTOKIT_Update.img if Red UI or U2W_Update.img if Blue UI.



[Mavro]

@VLud do we have the ability to repackage/encrypt the firmware? I'd like to update my UI (red interface) -- Still running 2021.03.06. I don't see any of your custom firmwares past the 2021.04.26_BASED.



[MrMister111]

For info….

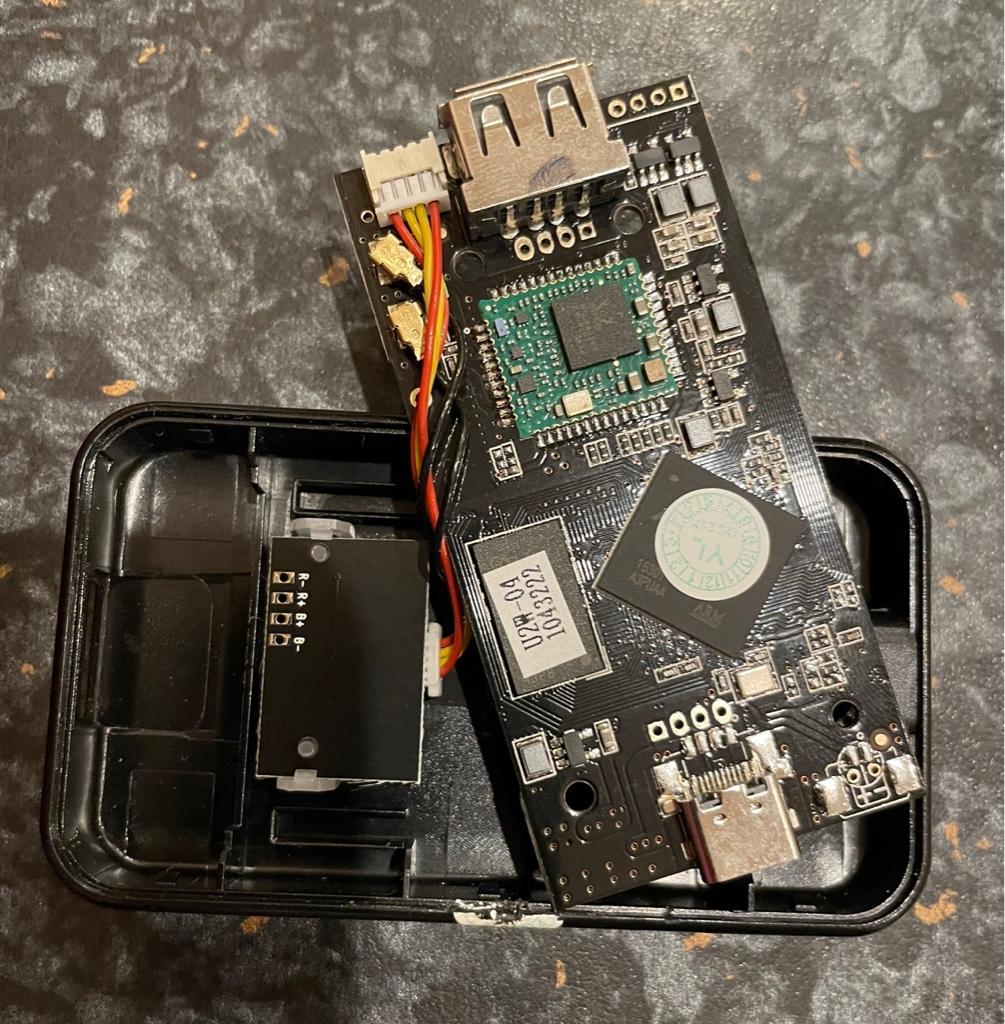

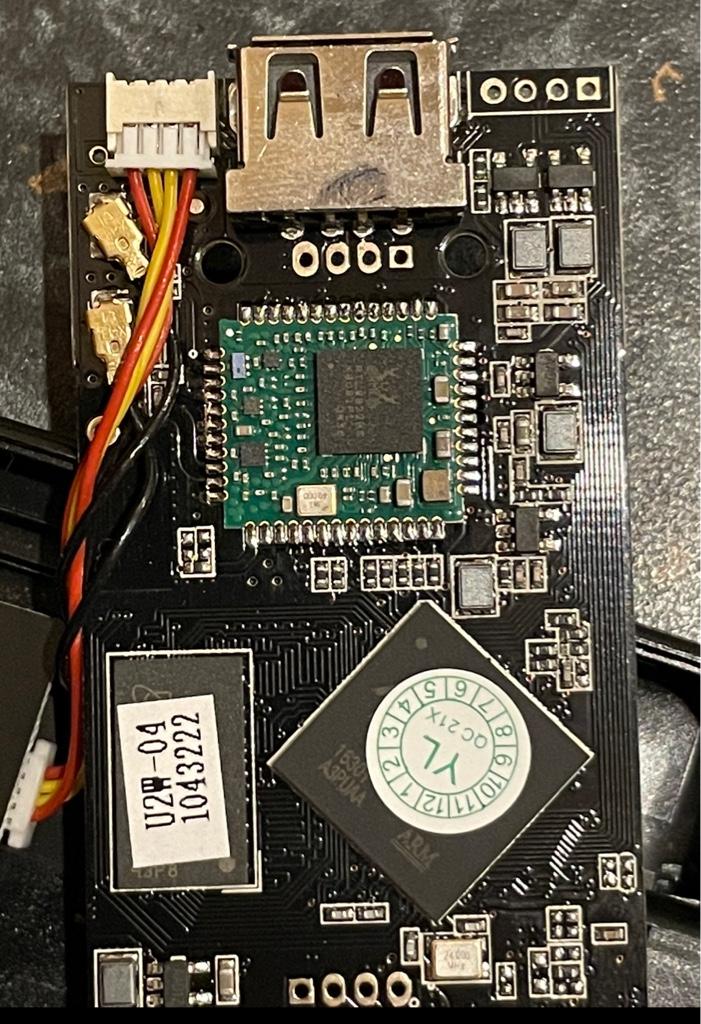

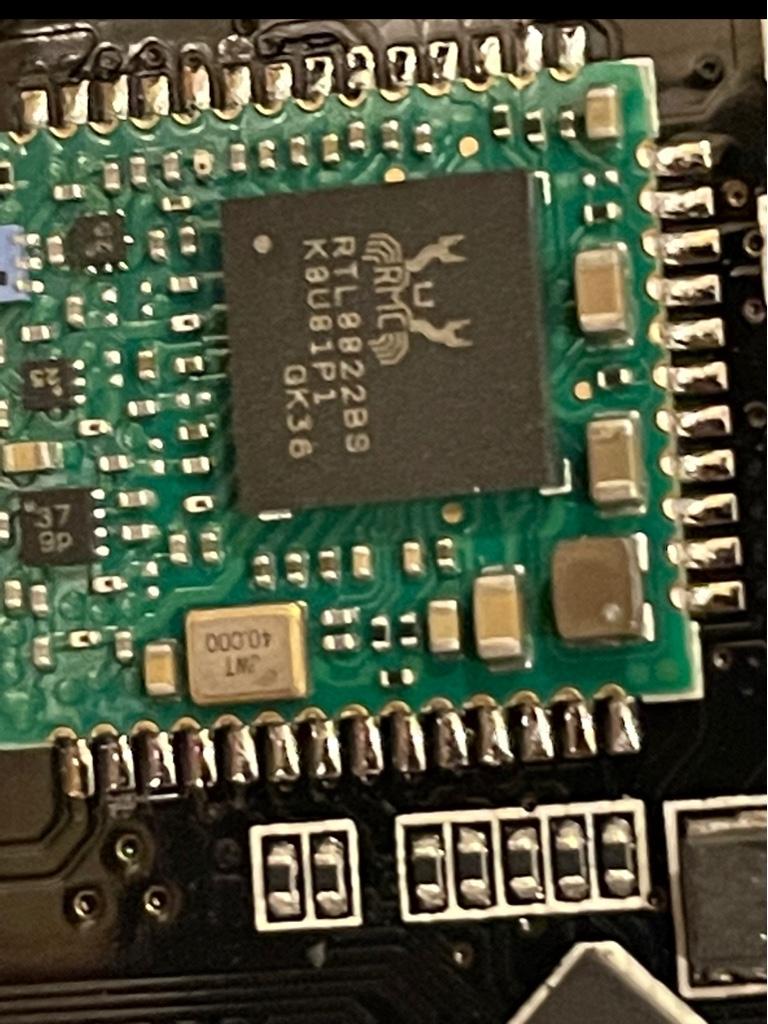

Here’s my dead (solid red LED, no WiFi, nothing comes up on car screen) cheapo Amazon internals, looks like a v2 CarLinkIt with a USB-C.



[VLud]

@VLud do we have the ability to repackage/encrypt the firmware? I'd like to update my UI (red interface) -- Still running 2021.03.06. I don't see any of your custom firmwares past the 2021.04.26_BASED.

https://github.com/ludwig-v/wireles.../tree/master/Custom_Firmware/2021.08.24_BASED



[Mavro]

Might have just bricked mine Carlinkit v2 (Red UI) -- was running @VLud custom firmware. Placed script ((ARMimg_maker & U2W.sh)) and firmware (https://github.com/ludwig-v/wireles.../tree/master/Custom_Firmware/2021.08.24_BASED) -- was showing updating... red and green light alternating -- then no led. unit seems dead... thoughts? I have a backup device but want to make sure I don't jack that one up too...

Refresh my memory -- to upgrade from CFW 2021.03.06 to CFW 2021.08.24 what do you do? I think using the rollback script was a no-no... DOH!



[Arnau]

Found the manufacturer of the podofo unit, it seems to be rebranded cheerdriving https://www.cheerdriving.com/prod_view.aspx?TypeId=80&Id=220&FId=t3:80:3
on their website, they show the micro sd port as a firmware update port, probably for recovery in case of failure.

They have a few instructional videos on youtube https://www.youtube.com/playlist?list=PLTq6yB_xekfdhmzyIMcGZkPuf8aQ7_EXn

For anyone with issues with their car, I'd sugest contactim them directly.



[VLud]

Might have just bricked mine Carlinkit v2 (Red UI) -- was running @VLud custom firmware. Placed script ((ARMimg_maker & U2W.sh)) and firmware (https://github.com/ludwig-v/wireles.../tree/master/Custom_Firmware/2021.08.24_BASED) -- was showing updating... red and green light alternating -- then no led. unit seems dead... thoughts? I have a backup device but want to make sure I don't jack that one up too...

Refresh my memory -- to upgrade from CFW 2021.03.06 to CFW 2021.08.24 what do you do? I think using the rollback script was a no-no... DOH!

The script only replace the binary responsible for .img decryption (new encryption > old one), you can't brick your unit doing this.

I updated directly from CFW 2021.02.02 to CFW 2021.08.24 on my end, without any issue:

The real update is done by a proprietary binary made by Carlinkit (binary that can rewrite flash with raw data, raw data that can brick your unit)



[Garkan]

Found the manufacturer of the podofo unit, it seems to be rebranded cheerdriving https://www.cheerdriving.com/prod_view.aspx?TypeId=80&Id=220&FId=t3:80:3
on their website, they show the micro sd port as a firmware update port, probably for recovery in case of failure.

They have a few instructional videos on youtube https://www.youtube.com/playlist?list=PLTq6yB_xekfdhmzyIMcGZkPuf8aQ7_EXn

For anyone with issues with their car, I'd sugest contactim them directly.

I dont think that they are the manufacturer because of their price, much higher then podofo. I think its the other way around or both are a rebrand of a chinesse manufacturer.



[simps100]

Found the manufacturer of the podofo unit, it seems to be rebranded cheerdriving https://www.cheerdriving.com/prod_view.aspx?TypeId=80&Id=220&FId=t3:80:3
on their website, they show the micro sd port as a firmware update port, probably for recovery in case of failure.

They have a few instructional videos on youtube https://www.youtube.com/playlist?list=PLTq6yB_xekfdhmzyIMcGZkPuf8aQ7_EXn

For anyone with issues with their car, I'd sugest contactim them directly.

Good find.

I still cant switch to cast mode on my unit followed the youtube video too.

Although my car is not even technically supported by them (Ford Sync 3) other than that it all seems to work fairly well.



[Arnau]

I just contacted them to ask about the update issue after installing 0.0.5, they say it is normal as it's a server side issue. Once they fix it will work as expected. 0.0.5 is currently the newest version available.



[alexdiaz]

Might have just bricked mine Carlinkit v2 (Red UI) -- was running @VLud custom firmware. Placed script ((ARMimg_maker & U2W.sh)) and firmware (https://github.com/ludwig-v/wireles.../tree/master/Custom_Firmware/2021.08.24_BASED) -- was showing updating... red and green light alternating -- then no led. unit seems dead... thoughts? I have a backup device but want to make sure I don't jack that one up too...

Refresh my memory -- to upgrade from CFW 2021.03.06 to CFW 2021.08.24 what do you do? I think using the rollback script was a no-no... DOH!

I did just that and it worked for me, I'm on 08.24 directly from 03.06.



[Mavro]

The script only replace the binary responsible for .img decryption (new encryption > old one), you can't brick your unit doing this.

I updated directly from CFW 2021.02.02 to CFW 2021.08.24 on my end, without any issue:

The real update is done by a proprietary binary made by Carlinkit (binary that can rewrite flash with raw data, raw data that can brick your unit)

Just tried on my other dev unit -- SUCCESS -- got it to update.

I must have done something wonky on the other unit... NO LED or any wifi -- anyway to recover it or throw it in the bin?

I ordered a "v3" todo some testing... so it's not the end of the world that I lost one...
