Resolved Force 2011 MacBook Pro 8,2 with failed AMD GPU to ALWAYS use Intel integrated GPU (EFI variable fix)

Discussion in 'MacBook Pro' started by AppleMacFinder, Mar 18, 2017.

  1. xanderx007 macrumors regular

    xanderx007

    Joined:
    Nov 7, 2017
    #1401
    This was addressed in the Grub solution discussion. High Sierra has that brightness issue regardless if you're using the EFI or GRUB fix (if I am not mistaken). The best thing for you to do is downgrade to Sierra, since there's nothing really new with High Sierra anyway.
    --- Post Merged, Jan 17, 2018 ---
    Try this first: Boot into Single User Recovery Mode (Cmd-S-R) or Single User Mode (Cmd-S) and fix the disk via command line.

    http://www.everythingmacintosh.com/tech-notes/repair-your-hard-disk-in-single-user-mode/

    This should repair/rebuild the hard disk if the only problem is the OS. If the repair fails, then consider reinstalling the OS. If you can't reinstall the OS, it's probably the hard drive.

  2. clement.wahl macrumors newbie

    Joined:
    Jan 18, 2018
    #1402
    Hey Guys,

    First of all, i intend to thank you all for the time you spent fixing this graphic card issue. I started to try to fix my macbook pro late 2011 17 inches this morning.

    First of all: trying to do this: 2.2) Edit EFI vars: looks like efivarfs filesystem is mounted by default! So you can already cd /sys/firmware/efi/efivars and ls to explore this directory and see if there is a "gpu-power-prefs-..." variable (where ... is UUID of this variable).
    I get: cd:cd:6: string not in pwd: /sys/firmware/efi/efivars

    I decide to ignore it

    In a second time i do: *) rm gpu-power-prefs-…
    i get: cannot remove because no such file directory
    My guess is I have not the gnu power prefs file so i get to step 2.3) Create a new gpu-power-prefs-… file (Original credit mentioned above, https://github.com/0xbb/gpu-switch/blob/master/gpu-switch, Credits to AppleMacFinder):

    I get: operation not permitted so i do the step:

    To remove “gpu-power-prefs-..." variable it is necessary first of all to unmount efivars:

    *) umount /sys/firmware/efi/efivars/

    then mount efivars in read/write mode:

    *) mount –t efivarfs rw /sys/firmware/efi/efivars/

    *) chattr -i /sys/firmware/efi/efivars/gpu-power-prefs-[press TAB to autocomplete]

    *) rm /sys/firmware/efi/efivars/gpu-power-prefs-[press TAB to autocomplete]

    then i was able to do

    2.3) Create a new gpu-power-prefs-… file (Original credit
    mentioned above, https://github.com/0xbb/gpu-switch/blob/master/gpu-switch, Credits to AppleMacFinder):

    *) printf "\x07\x00\x00\x00\x01\x00\x00\x00" > /sys/firmware/efi/efivars/gpu-power-prefs-fa4ce28d-b62f-4c99-9cc3-6815686e30f9


    2.4) Add immutability to the gpu-power-prefs-… file (Credits to AppleMacFinder):

    This chattr command is supposed to lock a file to make it accessible only by "superuser" - and so that, while booting, your EFI will have no chance to screw up your gpu-power-prefs-... variable under any circumstances


    *) chattr +i "/sys/firmware/efi/efivars/gpu-power-prefs-fa4ce28d-b62f-4c99-9cc3-6815686e30f9"

    and then:

    2.5) Unmount efivars and reboot (Credits to AppleMacFinder):

    Could not unmount efivars if you are inside this directory, so change to the root directory

    *) cd /

    *) umount /sys/firmware/efi/efivars/

    Guarantees that your EFI variables are flushed to efivarfs filesystem, please unmount it safely before rebooting)

    *) reboot

    All my code lines i did step by step was in the root:

    root@archiso / #

    I don't know if its ok

    I so Reboot into recovery mode and do this: I need to precise that i have a SSD drive one partition



    *) Start Terminal
    ok

    *) Boot into recovery mode (Command + r)
    ok

    *) Start Terminal
    ok

    *) diskutil cs list (find UUID for drive)
    i get: no CoreStorage logical volume found

    *) diskutil coreStorage unlockVolume UUID
    i get: UUID is not a CoreStorage Logical Volume UUID

    *) cd /Volumes/Macintosh\ HD
    I get: no such file or directory

    *) mkdir AMD_Kexts
    i get: Read-Only file system

    *) mv System/Library/Extensions/AMD*.* AMD_Kexts/
    I get: No such file or directory

    *) reboot
    I can reboot and get my old macbook pro 2011 late back. Youpiiiii. I use it couple minutes and tried to restart it and I got my screen scratched ....

    I a very welcoming ideas to fix it? I think it is the last step i do wrong but i don't know how to fix it.

    Again thank you very much for your help.
    Great day to all of you

    Clément.Wahl


  3. spinko macrumors regular

    Joined:
    Sep 16, 2003
    Location:
    N hemisphere
    #1403
    Hi,
    Is anyone else having problems with the Macbook not waking from sleep after the EFI vars patch ? My MbP refuses to activate itself after sleep. Is there a work around ?
    thank's

    (running High Sierra)

  4. xanderx007 macrumors regular

    xanderx007

    Joined:
    Nov 7, 2017
    #1404
    Again, issues with High Sierra (screen brightness, sleep and shutdown problems) are discussed with the GRUB solution thread. High Sierra is problematic, with no clear advantage over earlier OS. You don't really need it, so it's suggested you downgrade to Sierra at most.

  5. halfmoonjaw macrumors newbie

    Joined:
    Jan 18, 2018
    Location:
    MT, Malta-EU
    #1405
    --- Post Merged, Jan 18, 2018 ---
    Thank you AppleMacFinder and totoe84 for bringing this solution via Arch Linux to us orphaned MBP 2011 owners. It's a relief to manage to tweak the firmware to bypass the defunct AMD GPU.

    Following this procedure brought back some stability(abt 60%) to my work environment as due to my being a regular user of the Adobe CC suite of applications, which call up the accelerated graphics procssing engine, when I load LR Classic or PS, AE, or PPro, the MBP first freezes then crashes needing a recovery process. To solve some of the crashes, in the preferences tab of each of these CC apps, i have had to disable the use of accelerated graphcis engine but somehow the About pop-up still showed that the AMD is active when a CC app is running. Does anyone have a software based nuclear option to kill the machine calls from the CC apps to a dead chip?

    I use the Adobe CC daily and have done so for 6 uniniterrupted years on my 17 Inch, i7-2.2 GHz, Anti-Glare, early 2011 MBP which way back then cost me over $3k.

    I think that it is a real shame that Apple have declared this series as obsolote (no service, parts or support) even if paradoxically it is termed by Apple as compatible with macOS High Sierra. The least we should expect is a revival of the logic board replcement program for another 3 years, when the issue is just the GPU.

    This one-sided product lifecyle policy does not bode well for Apple users like me who are considering a tech refresh.

    #orphanedbyApple

  6. MenloMan macrumors newbie

    Joined:
    Jan 20, 2018
    #1406
    Hi there, this may be a silly question, but how do I know it’s the AMD GPU that is the problem and not the Intel one? Is it always the AMD that’s the problem?

    I have a Late 2011 17” MBP (two of them actually), and they are not booting properly. Most often, boot hangs at the Apple logo with the progress bar at about 25-33%. Sometimes I get a horizontal stipe about a quarter inch wide above the Apple logo. One time, I got a black screen with white pinstripes.

    I had a feeling it was the GPU (I had a similar problem years ago with my 2008 17” MBP), but thought it was odd that this would happen to two computers a day apart.

    I took them to the Apple Store, and they said both have bad GPU’s (said both failed the “vst” test) and that I have to replace the logic board at about $600 per computer. [Oddly, the person next to me at the Genius Bar also brought in his 17” MBP with the same problem.]

    If the logic board needs to be changed, doesn’t that indicate that the integrated Intel GPU is the problem not the discreet AMD? Or is logic board replacement the recourse for a bad AMD GPU as well.

    Do you think the instructions in the original post here will help me? Can I “undo” the changes if they cause problems?

    Thanks you!

  7. Djfremen macrumors newbie

    Joined:
    Apr 3, 2013
    #1407
    Yes. It's always the soldered connection and poor thermal design of the AMD chip - similar situation with the 2008 nVidia chip.

    Since Apple's standard warranty procedure is to replace boards (main components) and not troubleshoot integrated chips, to fix the AMD GPU, the board is entirely replaced. Interestingly, even if you did pay the 600, the replacement is a ticking time-bomb and the issue would repeat at a future date. The replacement still contains the defect.

    Yes. However, I had some issues creating the archlinux USB and removing the efivars preference (I needed to remount a few times)

    Yep. I went a step further and removed the resistor to completely disable the nVidia chip. Google "r8911 removal" to use in conjunction.

    Keep in mind, if you're running High Sierra (10.13), you'll break hibernate / sleep and display brightness adjustment. No work around as of yet... Stay tuned though, checking with the hackintosh community for a deviceID fix.

  8. xanderx007, Jan 21, 2018
    Last edited: Jan 21, 2018

    xanderx007 macrumors regular

    xanderx007

    Joined:
    Nov 7, 2017
    #1408
    It's often always the dGPU that has problems, as proven by majority of those experiencing the same symptoms as your MBP. The Intel iGPU is rather efficient and reliable. If the iGPU is faulty, your MBP won't probably start up, since the OS search of the iGPU primarily during boot up.

    You wouldn't know until you try, won't you? I mean, what else is there for you to worry about. If you've read through the responses, a lot of people have applied the fix successfully.

    As far as undoing the process, a simple SMC reset undoes everything you've done. The EFI fix, in my case, is unstable, after doing it a few times. The Grub fix is more reliable and stable.

  9. AppleMacFinder thread starter macrumors 6502a

    AppleMacFinder

    Joined:
    Dec 7, 2009
    #1409
    I am not familiar with OS X source code, do not know how its easy/difficult to make such changes, perhaps it should be about 1 hour to do it carefully and correctly, then maybe a couple of hours to test it at various macs. But apple hopes you buy a new mac when your old dies, and its not economically efficient for them to add such a preference pane ;)

  10. dapmaz macrumors newbie

    Joined:
    Jan 21, 2018
    #1410
    --- Post Merged, Jan 21, 2018 ---
    MY COMPUTER WAS READY FOR THE BIN!! YOU SAVED IT!! THANKS SOOOO MUCH FOR SHARING THIS!

  11. MenloMan macrumors newbie

    Joined:
    Jan 20, 2018
    #1411
    Thank you all for your replies. Of note, my computer doesn’t boot up.

    The GRUB fix can be reversed easily as well?

    Does it have High Sierra sleep problems too? [edit: looks like the answer to my last question is yes on sleep issues for GRUB as well]

  12. xanderx007 macrumors regular

    xanderx007

    Joined:
    Nov 7, 2017
    #1412
    Both EFI and GRUB solutions have issues with High Sierra, but frankly, there's really nothing significan't different between HS and Sierra. In fact, since I don't really need it, my MBP is still on El Capitan. I didn't bother upgrading since all the apps I need still works.

    Simply removing the GRUB entry should reverse the process, but, I'm wondering why would you want to?

  13. druwin macrumors newbie

    Joined:
    Jan 22, 2018
    #1413

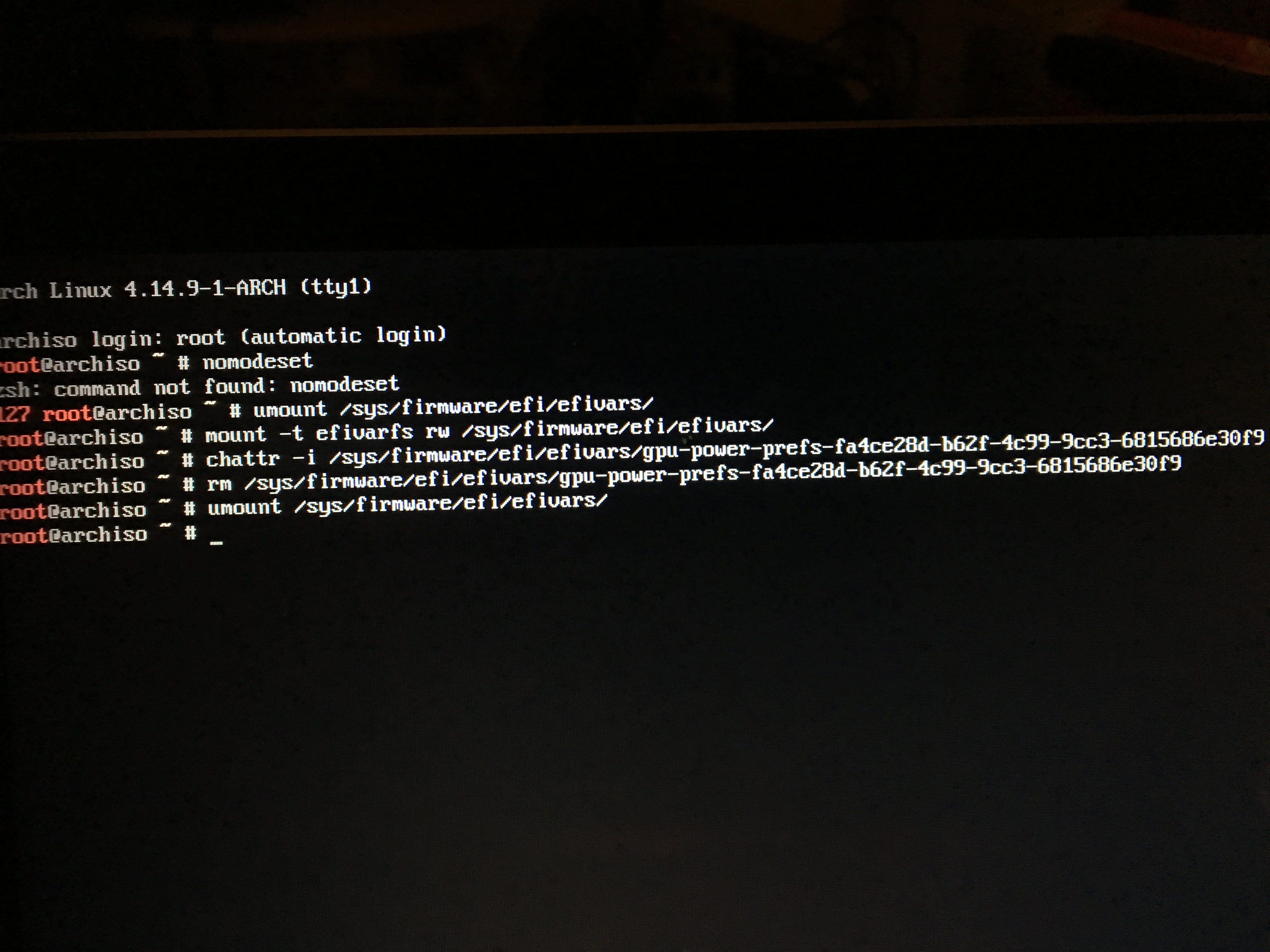

    [​IMG]

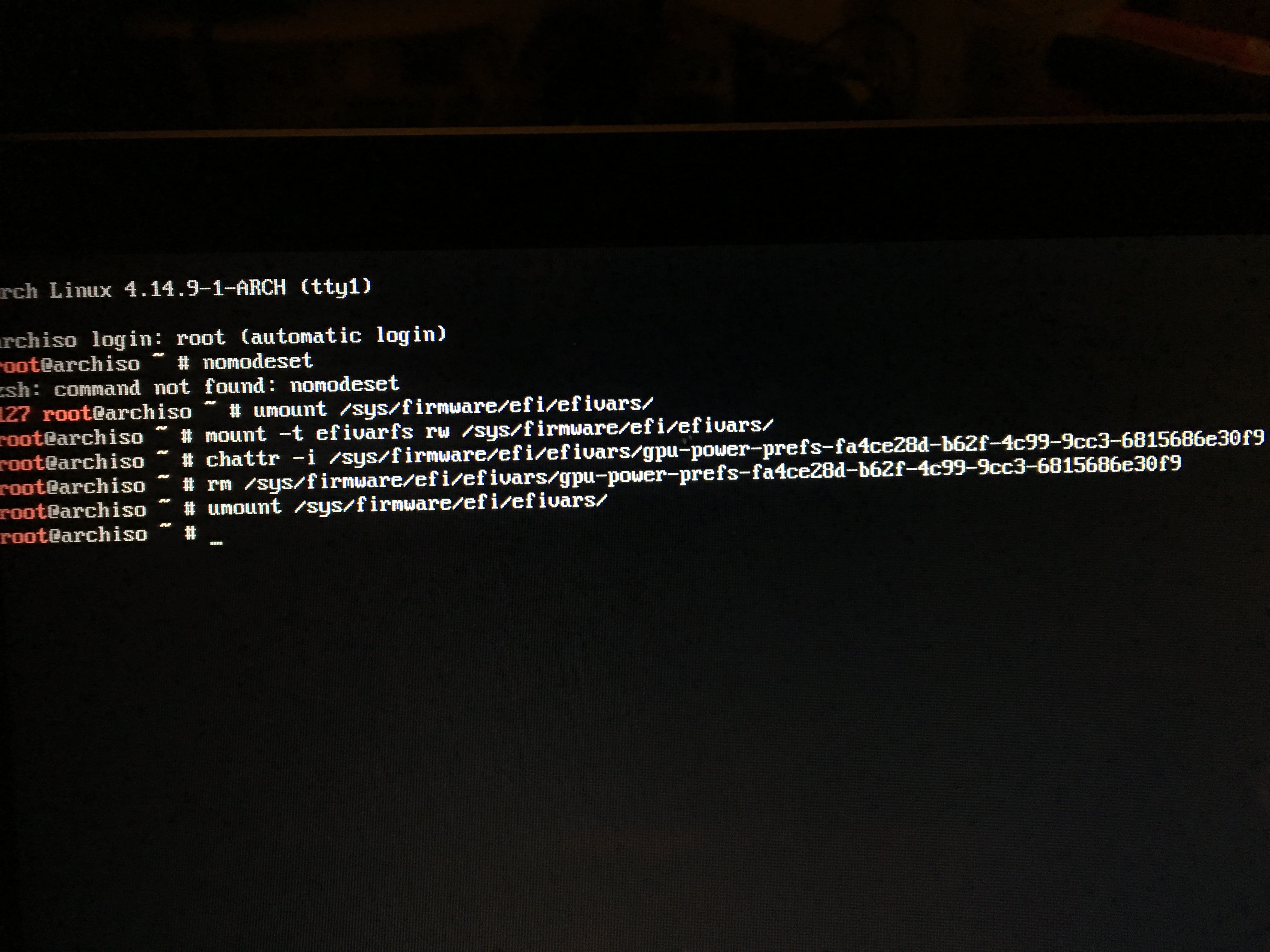

    [​IMG]
    HELP!

    I’ve got two MBP on that is not even booting anymore and on that is going out.
    2011 and even a 2010 doing the same thing.

    I was lucky to get the 2011 under apples recall or whatever they called it and got maybe a year out of the logic board replacement and now I’m in the same place as everyone in this board.

    The confusing part of the solution is there is three different concepts with the final one being a Linux code solution.

    Thing is for the layman who has no coding it’s very Greek! No offense as it seems helpful to most but not as simple for me.

    If someone can please look at my screen shot and help me with what I might be doing wrong? FYI I’m using. USB thumb drive so I’m not certain why I would use CD/ ?? I tried that as well but did not seem to do anything.
    I did reboot from Linux and checked and nothing happened GFX still offers Discreet!

    I did do the pref ls and see I did seem to have that preference already in one computer.

    If someone can really speak very simple to me and actually copy and or paste and or write a very simple code steps so that I might actually record a video on how this is actually done so that everyone else can have a better visual of how it’s done.

    FYI

    With the current Linux ISO it seems to go directly into coding interface so the steps to press e or c and the nocodeset seem confusing as well.

    Please could use some help here and again if I can get some walk thru advice based on my current screenshot I will for sure do a video of fixing this MBP!


    Attached Files:

  14. dpostelnicu macrumors newbie

    Joined:
    Jan 22, 2018
    #1414

  15. druwin macrumors newbie

    Joined:
    Jan 22, 2018
  16. hillsy80 macrumors newbie

    hillsy80

    Joined:
    Jan 23, 2018
    Location:
    London
    #1416
    @AppleMacFinder
    I've just completed the fix on my 17" MBP 2011 and it has saved my machine! Thank you so much for sharing this - it's the second time my GPU has gone and this time Apple wouldn't replace the logic board as the replacement programme is over.
    One question I did have - I'm running High Sierra and there is a new update available. If I update it will I need to run the fix again or is it a permanent change to the hardware?
    Yours gratefully,
    Pete

  17. salmanhudaya macrumors newbie

    salmanhudaya

    Joined:
    Jan 24, 2018
    #1417
    OMG !! It's working !! Thank you very much !!

    MacBook Pro 8,3


  18. hdn.hrt macrumors newbie

    Joined:
    Jan 23, 2018
    #1418
    Hi there ! Had the same problem with the kexts. I don't know if it's a safe way to do it, but i executed the same commands within macos, because I was able to boot and quickly activate Gfxcardstatus. It did the trick, but I had to do the whole Archlinux process again afterwards.

  19. hdn.hrt macrumors newbie

    Joined:
    Jan 23, 2018
    #1419
    Hi everyone, it's my second message on this forum, I first wanted to thank all the people involved in this thread. Thanks to AppleMacFinder's magic trick, my 2011 MacBook Pro is working again.
    I do still have a question, though. I followed AppleMacFinder's solution, but experience since then the overheating issue, raised by nsgr. MikeyN's guide states that the only necessary kext to move is AMDRadeonX3000, but i did move all the AMD kexts like the original post recommended. Like I said in my previous post, I moved them while logged in my session, which apparently messed with the permissions (I already had problems moving the kext in Safe User Mode). I tried to move back the AMD kexts but faced a system error. In the Terminal, I get this message when I want to perform "kextload" :

    /System/Library/Extensions_off/AMDRadeonX3000.kext failed to load - (libkern/kext) not privileged; check the system/kernel logs for errors or try kextutil(8).

    Does anyone, by chance, know how I could solve this problem and lower the temperature of my machine ?
    Thanks again for all your help.
    Cheers,
    Hadrien

  20. MrAverigeUser macrumors 6502a

    MrAverigeUser

    Joined:
    May 20, 2015
    Location:
    europe
    #1420
    download and install MacFanControl (I use this, but there might be other apps as well)

    Then adjust both the PECI CPU core which is the hottest and PECI GPU to:

    minimum temp. about 49°C and a max of about 60°C

    normally, the fans will start very soon to go up in rpm and so PREVENT higher temp. they will sooner go up to higher rpm but as a result of prophylactic settings also definitely prevent higher temps and very soon fall back to nearly normal temperatures and rpm...
    I did this about a year ago and I am very pleased by this method.It works for each 15" MBP 2009, MBP 2011 and also MBP 2012
    BTW: the idle rpm is about 2000 rpm, but even 3000 rpm is absolutely silent!

  21. nsgr, Jan 25, 2018
    Last edited: Jan 25, 2018

    nsgr macrumors 6502

    Joined:
    May 22, 2017
    #1421
    "MikeyN's guide states that the only necessary kext to move is AMDRadeonX3000, but i did move all the AMD kexts like the original post recommended."

    MikeyN did not write that by "accident". This procedure is highly necessary to lower the temperature of Macbook Pro.

    These AMD kexts need to be loaded during boot so that the temperature of the Macbook Pro decreases properly.

    Inside /System/Library/Extensions:

    AMDLegacySupport.kext
    AMDSupport.kext
    AMDLegacyFramebuffer.kext
    AMDFramebuffer.kext
    AMD6000Controller.kext

    Inside /System/Library/Extensions_off (Loaded manually or by LoginHook):
    AMDRadeonX3000.kext

    kextload require sudo command first (loaded manually in Terminal). Read The Guide MikeN.
    Code:
    sudo kextload /System/Library/Extensions-off/AMDRadeonX3000.kext

    "Like I said in my previous post, I moved them while logged in my session"
    Why? -----> Follow The Guide MikeN. (boot Single User Mode -> Command + S)

    The Guide MikeN - #875

    When you boot into Single User Mode you are logged in as the root user (system administrator).
    Then when you move the AMDRadeonX3000.kext, permissions are maintained properly.

    Restore permissions - example AMDRadeonX3000.kext

    owner: root
    group: wheel

    Code:
    sudo chmod -R 755 /System/Library/Extensions_off/AMDRadeonX3000.kext
    sudo chown -R root:wheel /System/Library/Extensions_off/AMDRadeonX3000.kext


  22. TheQL, Jan 26, 2018
    Last edited: Jan 26, 2018

    TheQL macrumors newbie

    Joined:
    Jun 16, 2009
    Location:
    Germany
    #1422
    I was successful in the past by booting into single user mode and removing the kext and setting the nvram parameter
    Code:
    nvram fa4ce28d-b62f-4c99-9cc3-6815686e30f9:gpu-power-prefs=%01%00%00%00"
    Now during the latest additional update to 10.13.2 all got messy. The Mac hung during the update and all my following efforts went awry. "cmd s + r" did work and I disabled csrutil. But then in single user mode "cmd s" mode it couldn't mount / and I was stuck in some mounted dmg, so mostly rescue mode again, no real FS access. Not sure if that was caused by the updated being half complete. I didn't dare to try to boot single user mode right now, because it's currently running.

    Anyway, I tried to set the nvram parameter nevertheless, but it never showed with "nvram -p". I could of course not remove the kext again, as / was not available. I got lucky then and on reboot it just booted, using the discrete graphics. Which was pretty nice, because automatic brightness control now works again, but the machine crashes if you open Photoshop, for example. Probably because it tries to use OpenCL or something. Yet it survived a reboot and is still running on the AMD graphics.

    Now I am afraid of the 10.13.3 update. csrutil is still disabled. Not sure if I should remove the kext while the system is running, which it is or if that would even work. Try to set nvram again while booted, which should work, it shouldn't be required to be in single user mode for that. If anybody could hint how to proceed in the current situation, I'd be grateful!

  23. xanderx007 macrumors regular

    xanderx007

    Joined:
    Nov 7, 2017
    #1423

    If you've read the other, most recent comments here (around 5 pages or so ago), and the GRUB solution thread, you would have seen comments regarding High Sierra. It's not friendly to both EFI and GRUB fixes, for one, there's the screen brightness issue. I've also mentioned that if you're already in Sierra, or still in El Capitan (as I am) there's really no need to upgrade to HS since it offers no clear benefit and advantage.

    Also, HS might be coded a little bit differently that the usual fixes no longer work, as shown with the GFXcardStatus issues.

    If you can, downgrade to Sierra. You don't need HS, especially with an old MBP.

  24. hprueba macrumors newbie

    Joined:
    Jan 26, 2018
    #1424
    Thanks for the solution. I've tried to make all and I think I didn't make something...
    The first time I've tried to make all from:
    === 100% WORKING SOLUTION
    part... I didn't have the gpu-power... so I've created the new one.. but I don't have chattr not chflags... So I couldn't run the chattr... After all I've tried to reboot and didn't reboot. I powered down and up again... The mac starts... Installed the gfxstatus and tried to change and in any of the options the mac hangs... (reboots just fine.. but hangs on discrete or integrated). I've install some updates from the app store.. and then tried to run the same process... from
    === 100% WORKING SOLUTION
    ... now I have the gpu-power, but couldn't deleted... first I've tried to umount and mount.. but after that I couldn't... I didn't have chattr so I couldn't run that...

    what's going on? what am I doing wrong?
    I have a MacBook Pro 15' 2011... and download the archlinux archlinux-2018.01.01-x86_64.iso

    Thanks!

  25. nsgr, Jan 26, 2018
    Last edited: Apr 12, 2018

    nsgr macrumors 6502

    Joined:
    May 22, 2017
    #1425
    These procedures are mandatory:
    Code:
    nvram fa4ce28d-b62f-4c99-9cc3-6815686e30f9:gpu-power-prefs=%01%00%00%00
    nvram boot-args="-v"

    The HighSierra update happens in two stages. And with the Meltdown and Spectre problem (Intel processor), the updates should be frequent.

    Update: High Sierra update 10.13.4 has 5 restarts to complete the update.



    1) First Stage MikeyN method (move kext - Single User Mode):

    1 - New AMDRadeonX3000.kext put back in /System/Library/Extensions .

    2 - Macbook Pro reboot, rebuild kext cache, then freeze with new AMDRadeonX3000.kext .

    3 - Power off MacBook Pro -> press power button.

    4 - Enter Recovery Mode Single User -> disable SIP (El Capitan, Sierra and HighSierra).

    Press Command + R + S keys at boot.

    Verify SIP status (Enable or Disable) - Enable = lock /System/Library/Extensions -> move kext =
    Operation not permitted.
    Code:
    csrutil status

    System Integrity Protection status: enabled.


    Disable SIP:
    Code:
    csrutil disable


    5 - Restart Macbook:
    Code:
    reboot


    6 - Enter Single User Mode:

    Press Command + S key at boot.


    7 - Verify SIP status (disable)
    Code:
    csrutil status

    System Integrity Protection status: disable.


    8 - My example -> old AMDRadeonX3000.kext in /System/Library/Extensions-off/ .

    9 - Rename old AMDRadeonX3000.kext to AMDRadeonX3000.kext.old-1 (There can not be two directories with the same name inside folder /System/Library/Extensions-off. The AMDRadeonX3000.kext is a directory.

    You will have these kexts names within the /System/Library/Extensions-off directory at every repeat of this procedure with new updates.

    AMDRadeonX3000.kext.old-0 (from first clean system installation)
    AMDRadeonX3000.kext.old-1 (from first update)
    AMDRadeonX3000.kext.old-2 (from second update)
    AMDRadeonX3000.kext (from third update)

    AMDRadeonX3000.kext is the latest kext made by the latest update.

    Use ls command to list files (kexts) inside /System/Library/Extensions-off/ directory:
    Code:
    ls -l /System/Library/Extensions-off/
    total 0
    drwxr-xr-x@ 3 root  wheel  96 Mar 16 02:07 AMDRadeonX3000.kext
    drwxr-xr-x@ 3 root  wheel  96 Dec 20 23:33 AMDRadeonX3000.kext.old-0


    10 - Rename the last AMDRadeonX3000.kext inside /System/Library/Extensions-off/:
    Code:
    mv -v /System/Library/Extensions-off/AMDRadeonX3000.kext /System/Library/Extensions-off/AMDRadeonX3000.kext.old-1


    11 - Move the new AMDRadeonX3000.kext (new update) inside /System/Library/Extensions to /System/Library/Extesions-off/ .
    Code:
    mv -v /System/Library/Extensions/AMDRadeonX3000.kext /System/Library/Extensions-off/AMDRadeonX3000.kext


    12 - Let the system update its kextcache:
    Code:
    touch /System/Library/Extensions/


    13 - Wait for the kextcache process to finish (2 minutes) - then reboot:
    Code:
    reboot


    Second Stage:

    1 - After reboot -> second stage of the update will be executed.

    2 - Login screen -> enter user password -> open Terminal and load the new AMDRadeonX3000.kext -> decrease system temperature.
    Code:
    sudo kextload /System/Library/Extensions-off/AMDRadeonX3000.kext

    .
    .
    .
    Complete update.


    Enable SIP again:

    1 - Restart Macbook Pro -> Finder -> Applications -> Utilities -> Terminal
    Code:
    sudo shutdown -r now


    2 - Enter Recovery Mode Single User -> Enable SIP (El Capitan, Sierra and HighSierra).

    Press Command + R + S keys at boot.
    Code:
    csrutil status

    System Integrity Protection status: disable.


    Enable SIP:
    Code:
    csrutil enable


    5 - Restart Macbook and boot normal:
    Code:
    reboot


    6 - Login screen -> enter user password -> open Terminal and load the new AMDRadeonX3000.kext -> decrease system temperature.
    Code:
    sudo kextload /System/Library/Extensions-off/AMDRadeonX3000.kext

    Manually load AMDRadeonX3000.kext or use LoginHook:
    Follow The Guide MikeN to deacrese AMD GPU and System temperature - Page 35 #875

    - - - - - - - - - - - - - - - - - - - - - - - - - - -

    1) First Stage FGuarani method (move kext - Recovery Mode Graphical):

    1 - New AMDRadeonX3000.kext put back in /System/Library/Extensions .

    2 - Macbook Pro reboot, rebuild kext cache, then freeze with new AMDRadeonX3000.kext .

    3 - Power off MacBook Pro -> press power button.

    4 - Enter Recovery Mode Graphical (Command + R) -> Disk Utility -> mount MacOS partition -> /Volumes/MacOS -> Open Terminal in Utilities menu.

    5 - My example -> partition MacOS system label is MacOS -> old AMDRadeonX3000.kext in
    /System/Library/Extensions-off/ .

    6 - Rename old AMDRadeonX3000.kext to AMDRadeonX3000.kext.old-1 (There can not be two directories with the same name inside folder /System/Library/Extensions-off. The AMDRadeonX3000.kext is a directory.

    You will have these kexts names within the /System/Library/Extensions-off directory at every repeat of this procedure with new updates.

    AMDRadeonX3000.kext.old-0 (from first clean system installation)
    AMDRadeonX3000.kext.old-1 (from first update)
    AMDRadeonX3000.kext.old-2 (from second update)
    AMDRadeonX3000.kext (from third update)

    AMDRadeonX3000.kext is the latest kext made by the latest update.

    Code:
    mv -v /Volume/MacOS/System/Library/Extensions-off/AMDRadeonX3000.kext /Volume/MacOS/System/Library/Extensions-off/AMDRadeonX3000.kext.old-1


    7 - Move the new AMDRadeonX3000.kext to /System/Library/Extesions-off/
    Code:
    mv -v /Volume/MacOS/System/Library/Extensions/AMDRadeonX3000.kext /Volume/MacOS/System/Library/Extensions-off/AMDRadeonX3000.kext


    8 - Exit Terminal in Recovery Mode Graphical.

    9 - Open Disk Utility in Recovery Mode Graphical -> unmount MacOS system partition -> close Disk Utility.

    10 - Reboot the system.

    Second Stage:

    1 - After reboot -> second stage of the update will be executed.

    2 - Login screen -> enter user password -> open Terminal and load the new AMDRadeonX3000.kext -> decrease system temperature.
    Code:
    sudo kextload /System/Library/Extensions-off/AMDRadeonX3000.kext


    Enable SIP again:

    1 - Restart Macbook Pro -> Finder -> Applications -> Utilities -> Terminal
    Code:
    sudo shutdown -r now


    2 - Enter Recovery Mode Single User -> Enable SIP (El Capitan, Sierra and HighSierra).

    Press Command + R + S keys at boot.
    Code:
    csrutil status

    System Integrity Protection status: disable.


    Enable SIP:
    Code:
    csrutil enable


    5 - Restart Macbook and boot normal:
    Code:
    reboot


    6 - Login screen -> enter user password -> open Terminal and load the new AMDRadeonX3000.kext -> decrease system temperature.
    Code:
    sudo kextload /System/Library/Extensions-off/AMDRadeonX3000.kext

    Manually load AMDRadeonX3000.kext or use LoginHook:
    Follow The Guide MikeN to deacrese AMD GPU and System temperature - Page 35 #875


    Update 1:

    High Sierra update 10.13.4 has 5 restarts to complete the update.


    Update 2 - Shutdown or Restart Macbook Pro - avoid black screen freeze:

    1 - Finder -> Applications -> Utilities -> Terminal -> shutdown command to restart ou halt/power off Macbook Pro:

    Restart Macbook Pro:
    Code:
    sudo shutdown -r now


    Halt / Power off Macbook Pro:
    Code:
    sudo shutdown -h now


    2 - Alternative Restart or Power Off Macbook Pro without freeze black screen (my tests with Sierra and High Sierra):

    Apple button (left up corner screen) -> Logout -> back to login screen -> click on Restart button or Shutdown button.

    I use this method when I update from the Apple Store or by downloading a .DMG file from the Apple website.

    When you start an update, the installation program asks if you want to restart automatically after installation phase 1. Choose "NO".

    After the initial installation phase 1, the Restart window will appear -> Do not touch this window -> Apple Logo -> Logout -> back to login screen -> click Restart button and wait 1 minute -> a window will appear saying that has a pending installation -> choose to continue the installation instead of Restart -> start installation phase 2.


Share This Page
