Upgrading 2013-2015 Macbook Pro SSD to M.2 NVMe

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
lucaros said:
Hi all, my setup Mbp retina '13 2015 using sintech black short adapter within intel 760p 1tb on mojave.
BootROM is up to date.
Apparently no kernel panics but apple diagnosis (power on + D) shows PPN001 error.
Using apple ssd the error does not show.
Resetting Pram and SMC had no effects.
Any idea for how to solve?
Thanks
Click to expand...

I wrote this problem in Dec 13, 2018, with no response.

https://forums.macrumors.com/thread...sd-to-m-2-nvme.2034976/page-108#post-26905290

I think that all MacBook Pro 13 retina would show this result, and I did not found this error with MacBook Air 13.
Even now, it has not resolved yet.

There is 2 way to do Apple Diagnostics, 1 is "D" at start-up, 2 is "opt+D" at start-up ( usually using network).
The version of Diagnostics is not same, for example "D" :1.0.35r2, "opt+D": 1.1.35r2.
I never found error PPN001 in "opt+D" diagnostics. It may feel Apple bugs.

  • Like
Reactions: lucaros
jackqueenking said:
I ran a diagnostics test and I am getting VDH002 which seems to be a problem with the storage device even though i have no problems. Maybe this is because I have a 3rd party ssd?
Click to expand...
I ran the diagnostic routine by holding down the D key on a 2017 Air with a 256 GB HP ex900 and the short, black Sintech adapter and it came back with ADP000 which means no issues found.

Edit 1: ran diagnostics for the 2017 Air by holding down the option+ D key and also received ADP000 which indicates no issues found.

Edit 2: ran both versions of the diagnostics on an early 2015 13" Air with a 256 GB Intel 660p and short, green Sintech adapter and received ADP000 too.

Last edited:
  • Like
Reactions: lucaros
Audit13 said:
I ran the diagnostic routine by holding down the D key on a 2017 Air with a 256 GB HP ex900 and the short, black Sintech adapter and it came back with ADP000 which means no issues found.

Edit 1: ran diagnostics for the 2017 Air by holding down the option+ D key and also received ADP000 which indicates no issues found.

Edit 2: ran both versions of the diagnostics on an early 2015 13" Air with a 256 GB Intel 660p and short, green Sintech adapter and received ADP000 too.
Click to expand...
You seem to have the best luck out of all of us 😛

Edit: It is probably because the 2015+ models have full support for NVME

Last edited:
wawon said:
I wrote this problem in Dec 13, 2018, with no response.

https://forums.macrumors.com/thread...sd-to-m-2-nvme.2034976/page-108#post-26905290

I think that all MacBook Pro 13 retina would show this result, and I did not found this error with MacBook Air 13.
Even now, it has not resolved yet.

There is 2 way to do Apple Diagnostics, 1 is "D" at start-up, 2 is "opt+D" at start-up ( usually using network).
The version of Diagnostics is not same, for example "D" :1.0.35r2, "opt+D": 1.1.35r2.
I never found error PPN001 in "opt+D" diagnostics. It may feel Apple bugs.
Click to expand...

Apple recommends using diagnostic tool "D" for 2013+ models, that's why I am afraid that error would not be a bug.
https://support.apple.com/en-us/HT202731
I wonder if @gilles_polysoft have faced this error during his tests

SpeedyTheSnail said:
My adaptor came in today, however I have the 25Q064A 14E40 chip rather than the one this guy had who wrote some of the original instructions:
https://forums.macrumors.com/thread...sd-to-m-2-nvme.2034976/page-162#post-27299768

All attempts to read my chip have failed. My next steps are to get a 3.3v battery and attach it to the 3.3V and GND port on the reader. If that doesn't work, then I'm going to switch to a JTAG adapter rather than try to read the chip directly with a clip-on attachment.

Every time I try reading mine in flash rom it says:


The chip that I selected in flash rom was the N25Q064..3E [Note the 2 "."'s]. That apparently has the same PINOUT as the chip that I have on my Mid-2014 MBP.

When I pulled out my ThinkPad, I used 2 different programs (one Chinese, one Russian) to read the chip and both programs returned nothing but FF FF FF for the ROM. The Russian program did provide the write reader and chip, the Chinese program did not.

I might follow this guide with my Raspberry Pi just to make life easy [who also used the N25Q064..3D chip with flash rom]:
https://blog.wzhang.me/2017/10/29/removing-mac-firmware-password-without-going-to-apple.html

I'll do that only if this reader doesn't work.

Edit:

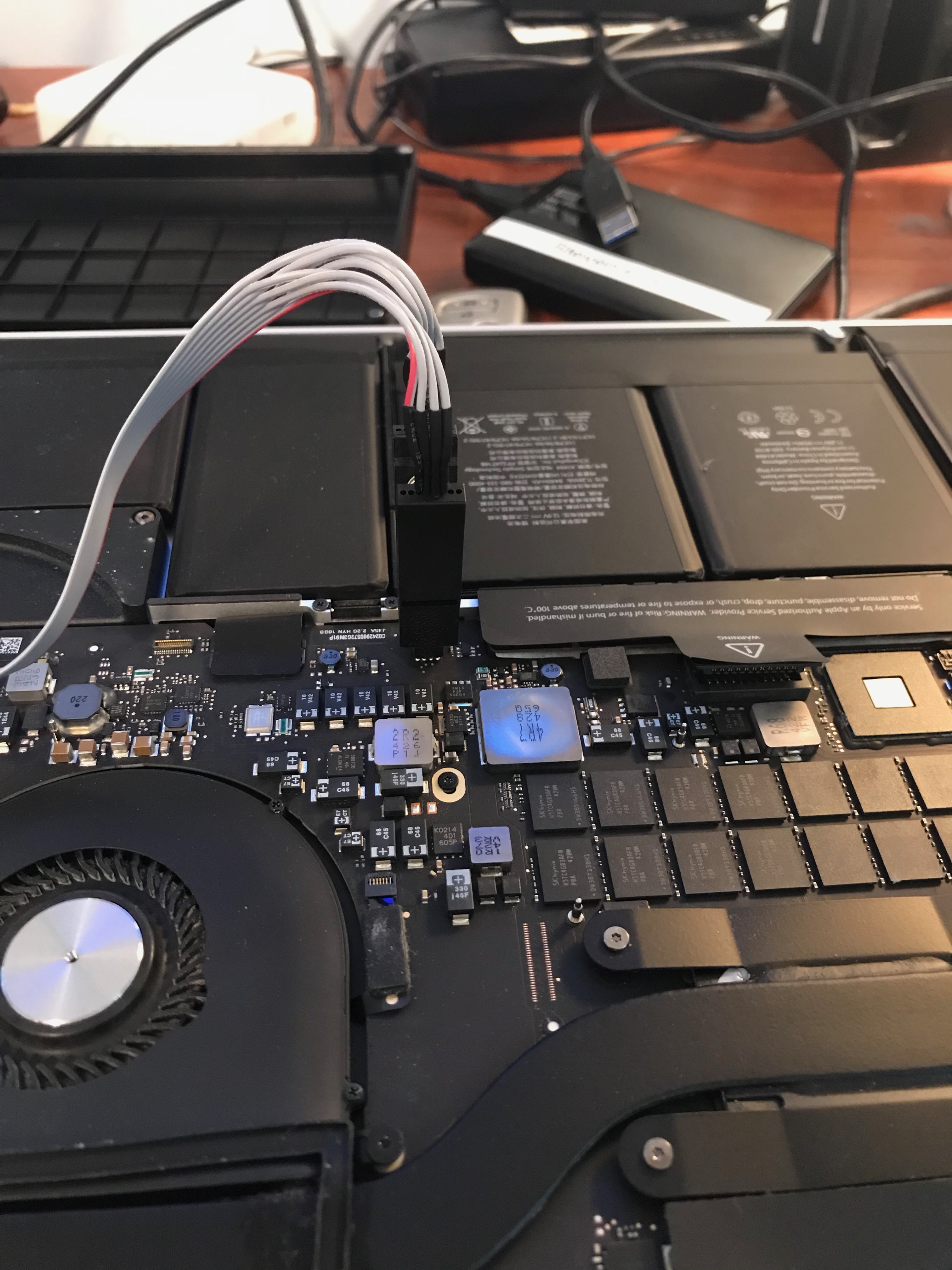

I realized you only ordered the adaptor, do you have the programmer?View attachment 836483View attachment 836484View attachment 836485View attachment 836486View attachment 836483View attachment 836484 View attachment 836485 View attachment 836486
Click to expand...
Probably you have a 2014 15' mbp?
Cant find a chip on board to connect clip on 13'

I would ask to macbook pro owners an help cecking if they get or not the PPN001 error launching apple diagnostic (power on +d).
It takes 1 minute or so.
Thanks

liberace said:
Probably you have a 2014 15' mbp?
Cant find a chip on board to connect clip on 13'
Click to expand...
Yep, I wish I bought the JTAG connector but I think if I can't get the chip to read this week I'm going to just buy the Matt Card, since it's only slightly more expensive than the adapter and it requires no modification of the firmware.

SpeedyTheSnail said:
Yep, I wish I bought the JTAG connector but I think if I can't get the chip to read this week I'm going to just buy the Matt Card, since it's only slightly more expensive than the adapter and it requires no modification of the firmware.
Click to expand...
as i have read matt card have to be prepared by somebody (seller?!) from before and sended with proper data, by default its blank, right?

liberace said:
as i have read matt card have to be prepared by somebody (seller?!) from before and sended with proper data, by default its blank, right?
Click to expand...
Yep, on the website you specify the version you need.

Even with the ordering of the Matt Card, a mod is [probably] needed, but it is less risky to flash the Matt Card than it is to flash the real BIOS chip.

Don't know if it is related with the PPN001 error but i've noticed that using the intel 760p launching pmset -g in sleep 1 appear "sleep prevented by addressbooksourcesync".
Troubleshotting is to remove google accounts and using icloud sync for contacts.
Well using stock ssd it works, using nvme ssd in my case intel 760p it appear again and again.
So I belive that if sleep doesn't work properly could result a SMC issue than an error releted to power management.
@wawon launching pmset -g tru terminal do you get sleep prevented by addressbooksourcesync?

lucaros said:
Don't know if it is related with the PPN001 error but i've noticed that using the intel 760p launching pmset -g in sleep 1 appear "sleep prevented by addressbooksourcesync".
Troubleshotting is to remove google accounts and using icloud sync for contacts.
Well using stock ssd it works, using nvme ssd in my case intel 760p it appear again and again.
So I belive that if sleep doesn't work properly could result a SMC issue than an error releted to power management.
@wawon launching pmset -g tru terminal do you get sleep prevented by addressbooksourcesync?
Click to expand...
I also have a 760p I will check tonight. I remember seeing something that is preventing sleep.

Edit: I checked the pmset -g output and i do not have this prevention. I've also got iCloud contacts in sync and a google account only syncing mail.

Last edited:
  • Like
Reactions: lucaros
10.14.5. update: MBP 2014 updated, no boot rom update.
had some minor problems installing, had to manually start the mac again during installation.

I've got a feeling that my MacBook Pro early 2015 is overheating.

I was trying to use the Adata XPG SX8200 with long sintech adapter on my Macbook Pro early 2014 without success. The computer was getting extremely hot mostly because running iCloud sync in the background. Also when I put it in my laptop bag and took it out an hour later it would be extremely hot as the fans were running. I think because of that one time the battery got swollen and now last only half of the time. I was also annoyed that I have to reset the computer every time I closed the lid and opened it again.

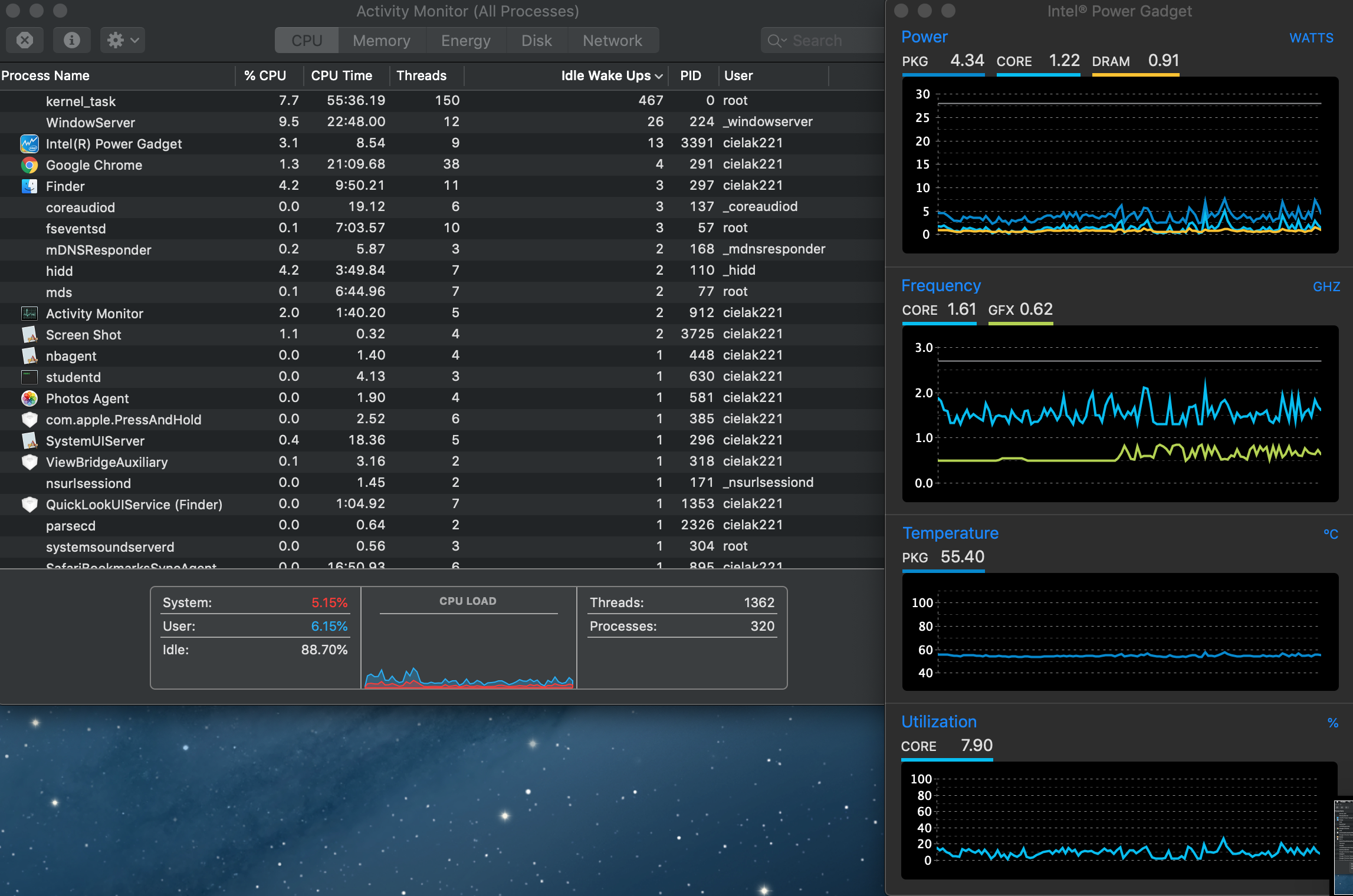

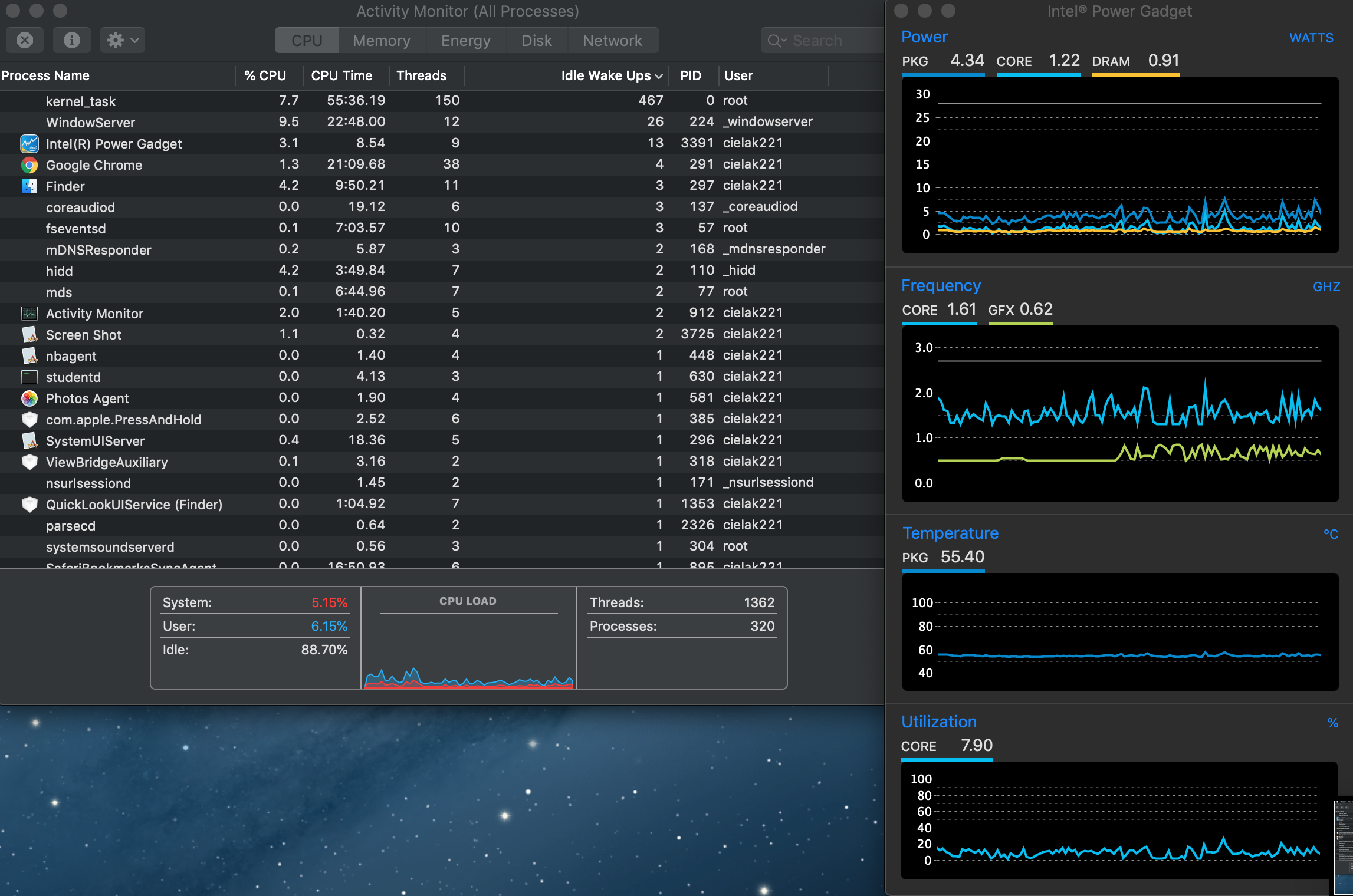

So I got the 2015 and switched the drive with long sintech adapter and the issue still persists. I installed the fresh Mojave. Restored my time machine. Brought it to work today, bettery drained to 84% and computer was hot. When running iCloud sync the temperatures were around 97C. When I forced quit "bird" and "cloudd" the temps went down 60C... which is still hot. I attached the screenshot with temp and processes running currently. Do you guys happen to have any advice beside buying original apple ssd or switching to windows?
Current Bootoot ROM Version: 182.0.0.0.0

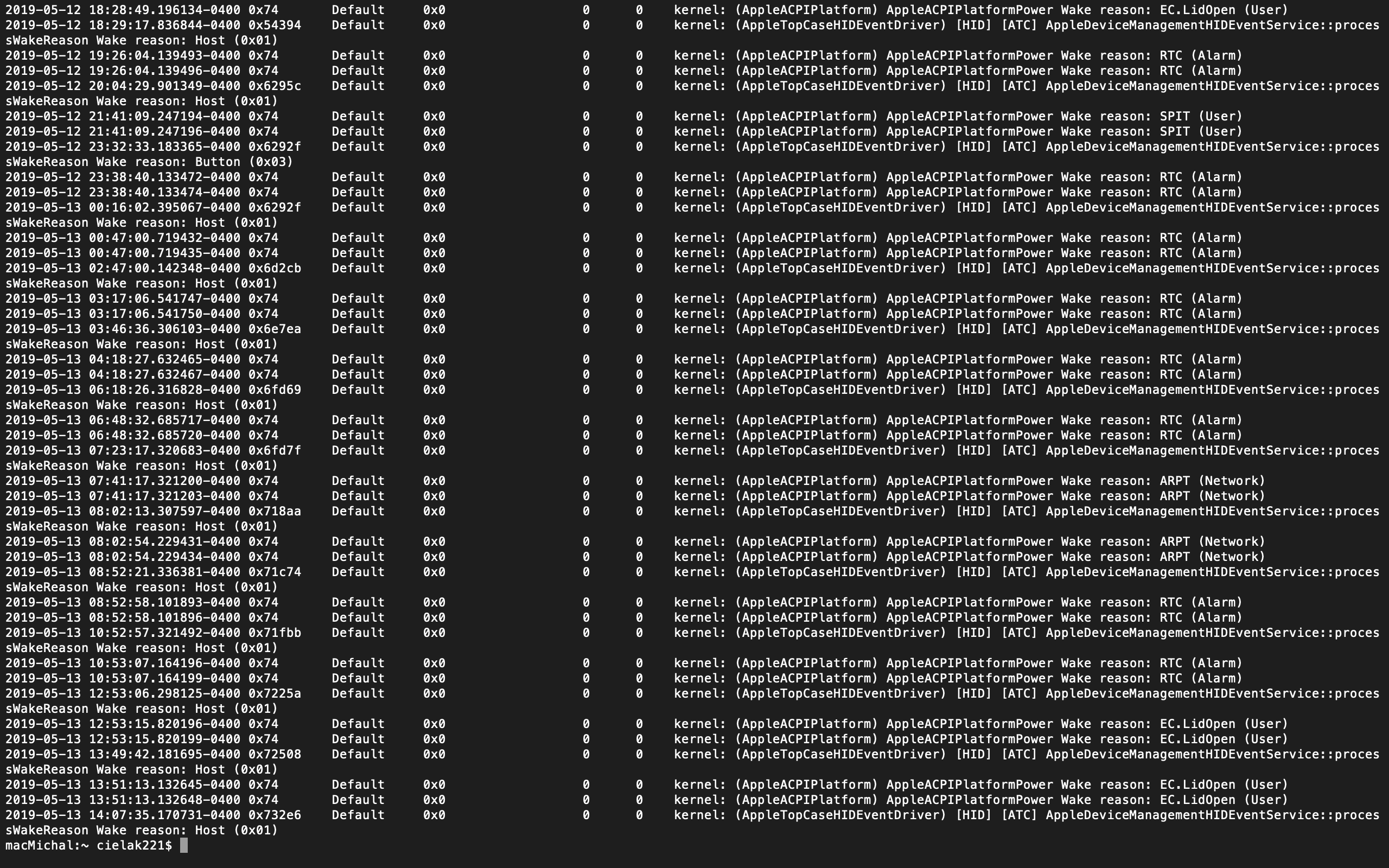

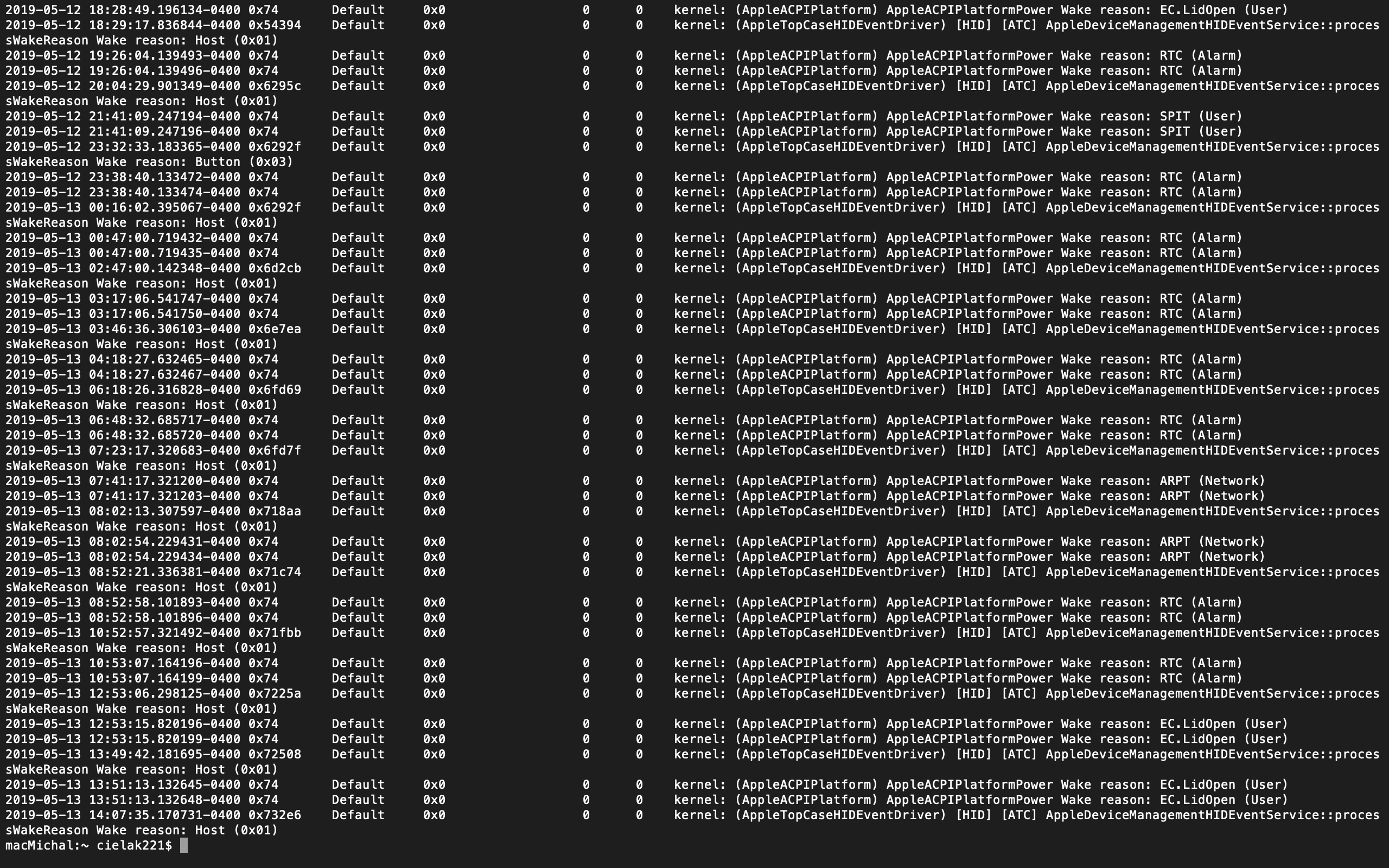

I've also attached the wake up log.

I've also ordered short sintech adapter. It should arrive tomorrow and I will do further temperature testing however I'm loosing patience and might switch to ... Matebook pro. 😕


Attachments

  • temp_processes.png
    1.2 MB · Views: 275
  • wake_up.png
    753.6 KB · Views: 251
Last edited:
cielak221 said:
I've got a feeling that my MacBook Pro early 2015 is overheating.

I was trying to use the Adata XPG SX8200 with long sintech adapter on my Macbook Pro early 2014 without success. The computer was getting extremely hot mostly because running iCloud sync in the background. Also when I put it in my laptop bag and took it out an hour later it would be extremely hot as the fans were running. I think because of that one time the battery got swollen and now last only half of the time. I was also annoyed that I have to reset the computer every time I closed the lid and opened it again.
So I got the 2015 and switched the drive with long sintech adapter and the issue still persists. I installed the fresh Mojave. Restored my time machine. Brought it to work today, bettery drained to 84% and computer was hot. When running iCloud sync the temperatures were around 97C. When I forced quit "bird" and "cloudd" the temps went down 60C... which is still hot. I attached the screenshot with temp and processes running currently. Do you guys happen to have any advice beside buying original apple ssd or switching to windows?
Current Bootoot ROM Version: 182.0.0.0.0
Click to expand...
i get exactly the same with sx8200pro, just i am different weight category user
my CPU starts to be a lot hotter, SSD no more 45 C
thats why i sell it and now target Kingston a1000 with pci-e 3.0x2

Last edited:
cielak221 said:
I've got a feeling that my MacBook Pro early 2015 is overheating.

I was trying to use the Adata XPG SX8200 with long sintech adapter on my Macbook Pro early 2014 without success. The computer was getting extremely hot mostly because running iCloud sync in the background. Also when I put it in my laptop bag and took it out an hour later it would be extremely hot as the fans were running. I think because of that one time the battery got swollen and now last only half of the time. I was also annoyed that I have to reset the computer every time I closed the lid and opened it again.
So I got the 2015 and switched the drive with long sintech adapter and the issue still persists. I installed the fresh Mojave. Restored my time machine. Brought it to work today, bettery drained to 84% and computer was hot. When running iCloud sync the temperatures were around 97C. When I forced quit "bird" and "cloudd" the temps went down 60C... which is still hot. I attached the screenshot with temp and processes running currently. Do you guys happen to have any advice beside buying original apple ssd or switching to windows?
Current Bootoot ROM Version: 182.0.0.0.0

I've also ordered short sintech adapter. It should arrive tomorrow and I will do further temperature testing however I'm loosing patience and might switch to ... Matebook pro. 😕
Click to expand...
Try SMC e PRAM reset
You could also try diagnostic (holding D +power on) to ceck errors

OMFG, I realized that I was off by one pin on the cable from the clamp to the reader.

The chip is 8 pin, the cable connector is 10 pin. I shifted it over one pin and now I'm golden.

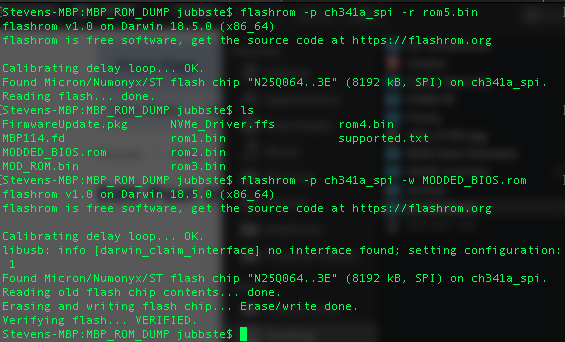

Mac boots up just fine, unfortunately I don't have a new drive yet. I wasn't going to waste my money until I was certain I could flash the BIOS without messing anything up.

Since it boots I'm going to safely assume I did everything right, if anything fails at least I have 4 copies of the original ROM dump.


Attachments

  • Screen Shot 2019-05-13 at 7.38.56 PM.png
    Screen Shot 2019-05-13 at 7.38.56 PM.png
    94 KB · Views: 238
Last edited:
  • Like
Reactions: The_Moves
Late 2013 Pro 13" stock SSD bootrom updated from 151 to 153 with 10.14.5.

Mid-2014 Air 13" stock SSD bootrom updated from 112 to 115 with 10.14.5.

Early 2015 Air 13" Intel 660p bootrom updated from 184 to 186 with 10.14.5.

2017 Air HP ex900 bootrom updated from 184 to 186 with 10.14.5.

I encountered no problems when updating all four MacBooks from 10.14.4 to 10.14.5.

  • Like
Reactions: owbp
