MP51.0084.B00 Rom Dump Request

Discussion in 'Mac Pro' started by HaypurTiryading, May 20, 2018.

  1. MisterAndrew macrumors 65816

    MisterAndrew

    Joined:
    Sep 15, 2015
    Location:
    Portland, Oregon
    #226
    I know you’re having problems booting 10.13.5, but what about 10.13.4? (With new firmware.)
    --- Post Merged, Jun 2, 2018 ---
    I know that. But that’s for 10.13, not 10.14.

  2. erer macrumors member

    Joined:
    Jun 1, 2018
    #227
    ıs there a dıfference between appstore update and full install ? ın EFI payload ı dıd not see new bootrom for mac pro 5.1.

  3. flowrider macrumors 603

    flowrider

    Joined:
    Nov 23, 2012
    #228
    ^^^^You will not see the FW update without downloading the full 10.13.5 installer from the AppStore. Then, if you are up to date on 10.13.5, you only need to run the FW update only.

    Lou

  4. erer macrumors member

    Joined:
    Jun 1, 2018
    #229
    No I have downloaded full from app store and looked inside with pasifist and I dont see new bootrom for mac pro 5.1

    Maybe, is it possible to make full installation but not update bootrom to 87 ? than we can continue enjoying NVME boot a while until some one figure this out.

    So my question was if we update from appstore only than this new bootrom is showing up ?
    --- Post Merged, Jun 2, 2018 ---
    but there are something in EFIpayload about NVME, someone may look ?

  5. handheldgames, Jun 2, 2018
    Last edited: Jun 2, 2018

    handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #230
    FWIW. 10.13.6 beta installed from a combo update boots with a modified 0085 firmware over AHCI m.2 Pcie ssd on a 5,1.

    I haven’t picked up a NVMe drive just yet as Ive been focused on the use of a raid 0 ramdisk while waiting for faster 4K performance.

  6. zozomester macrumors regular

    zozomester

    Joined:
    Apr 26, 2017
    Location:
    Hungary
  7. h9826790, Jun 2, 2018
    Last edited: Jun 2, 2018

    h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #232

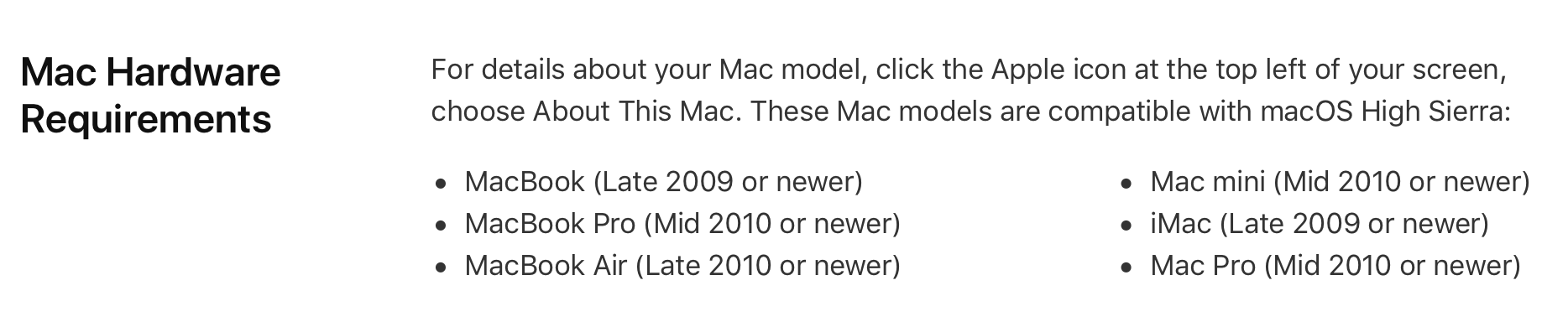

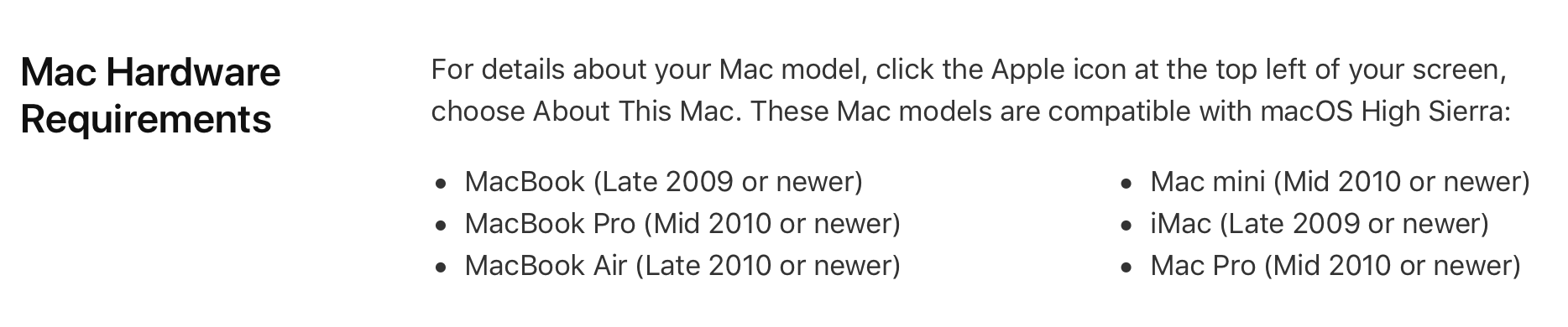

    10.14's support list already announced?
    --- Post Merged, Jun 2, 2018 ---

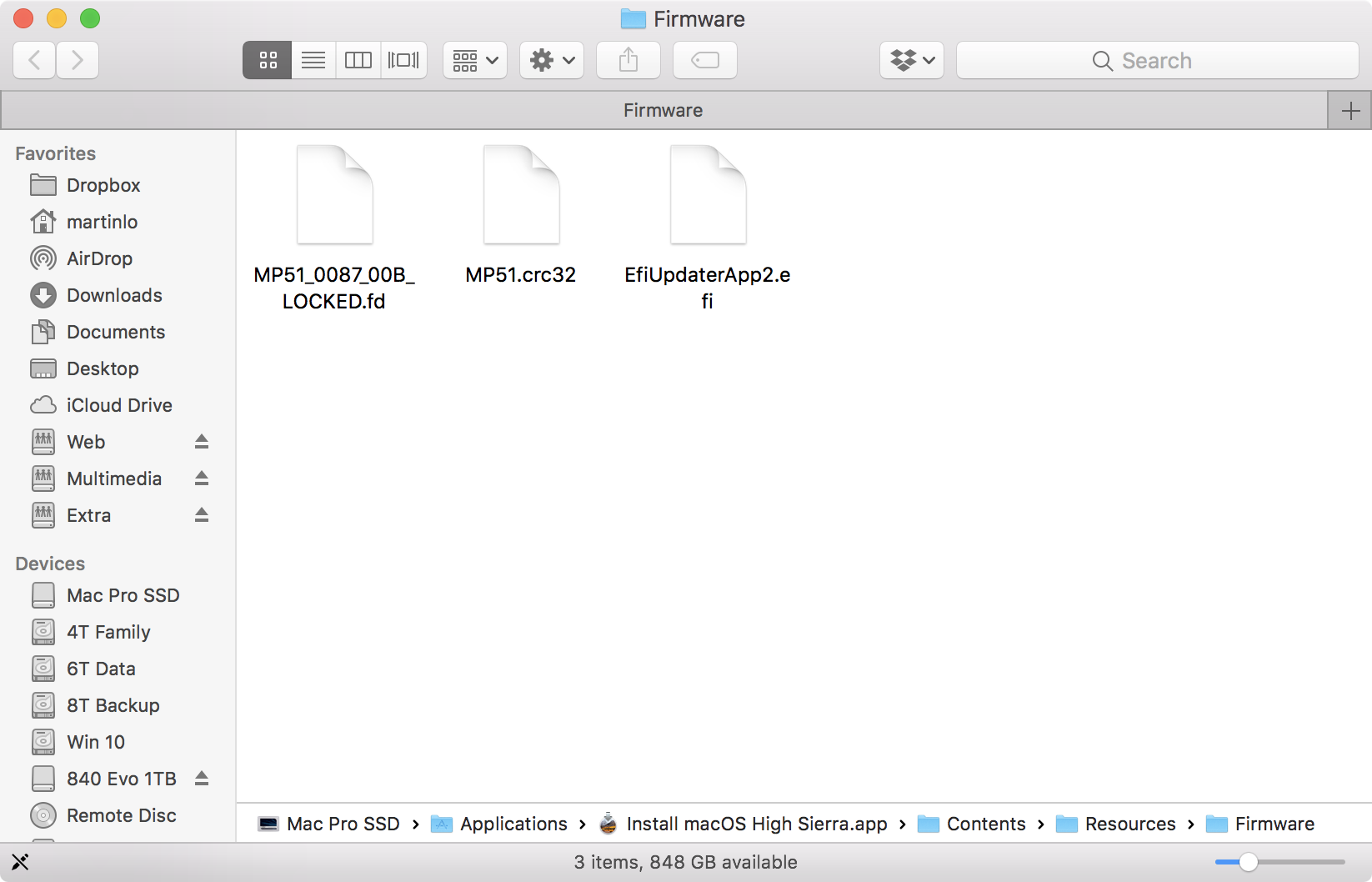

    The new boot rom is included in the full OS installer.
    firmware update.png
    --- Post Merged, Jun 2, 2018 ---
    If the ROMTool can't do that, then may be the hardware force flash is required.

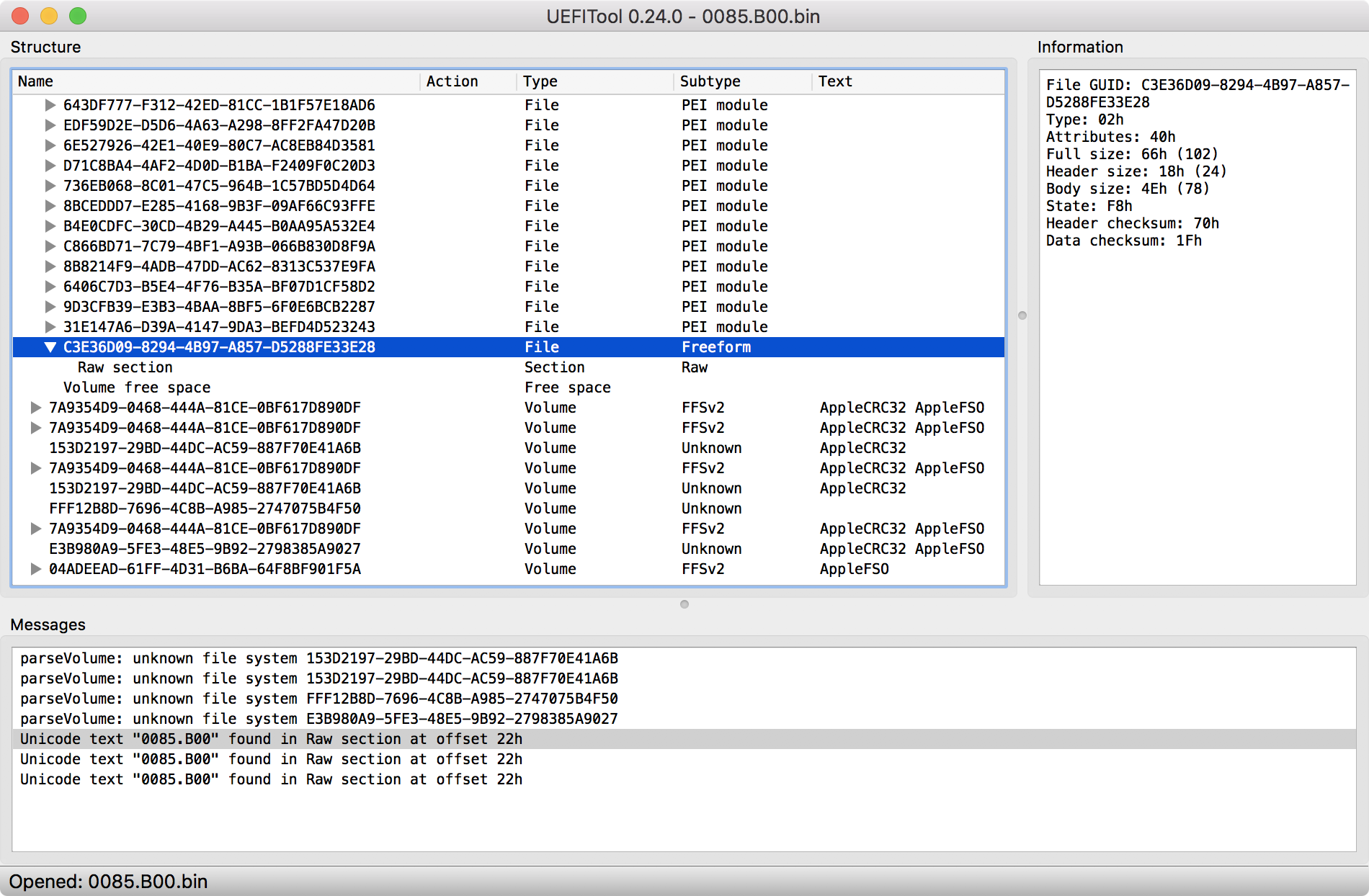

    However, I am thinking is it possible to make the 0085.B00 as 0087.B01 via UEFI tool. So that the software method can take this "newer" ROM.
    Screen Shot 2018-06-03 at 03.32.52.png

  8. handheldgames, Jun 2, 2018
    Last edited: Jun 2, 2018

    handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #233
    1) desolder, flash and resolder.

    2) plug a replacement flashed with 0085 into the diagnostic port. Doing so disables the onboard flash, allowing the plugged in version to work.

    3) mod 0085 to appear as 0087 and flash.

  9. MIKX macrumors 6502a

    MIKX

    Joined:
    Dec 16, 2004
    Location:
    Japan
    #234
    WOW !

    Where exactly is the diagnostic socket on a 4,1 cMP ?

  10. handheldgames, Jun 2, 2018
    Last edited: Jun 2, 2018

    handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #235
    4) replacement 4,1/5,1 motherboards can be found on EBay at times for $150 or less.
    --- Post Merged, Jun 2, 2018 ---

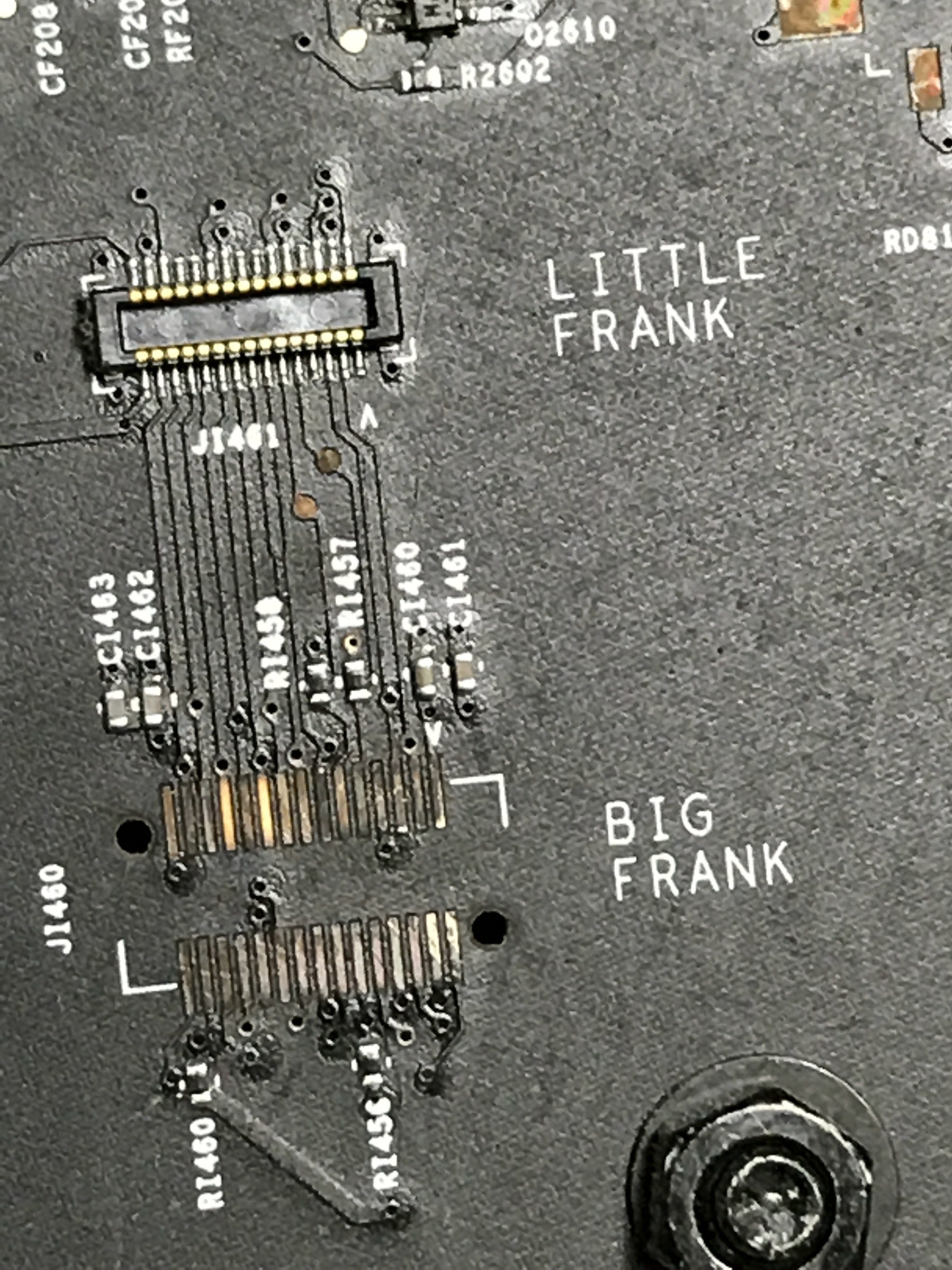

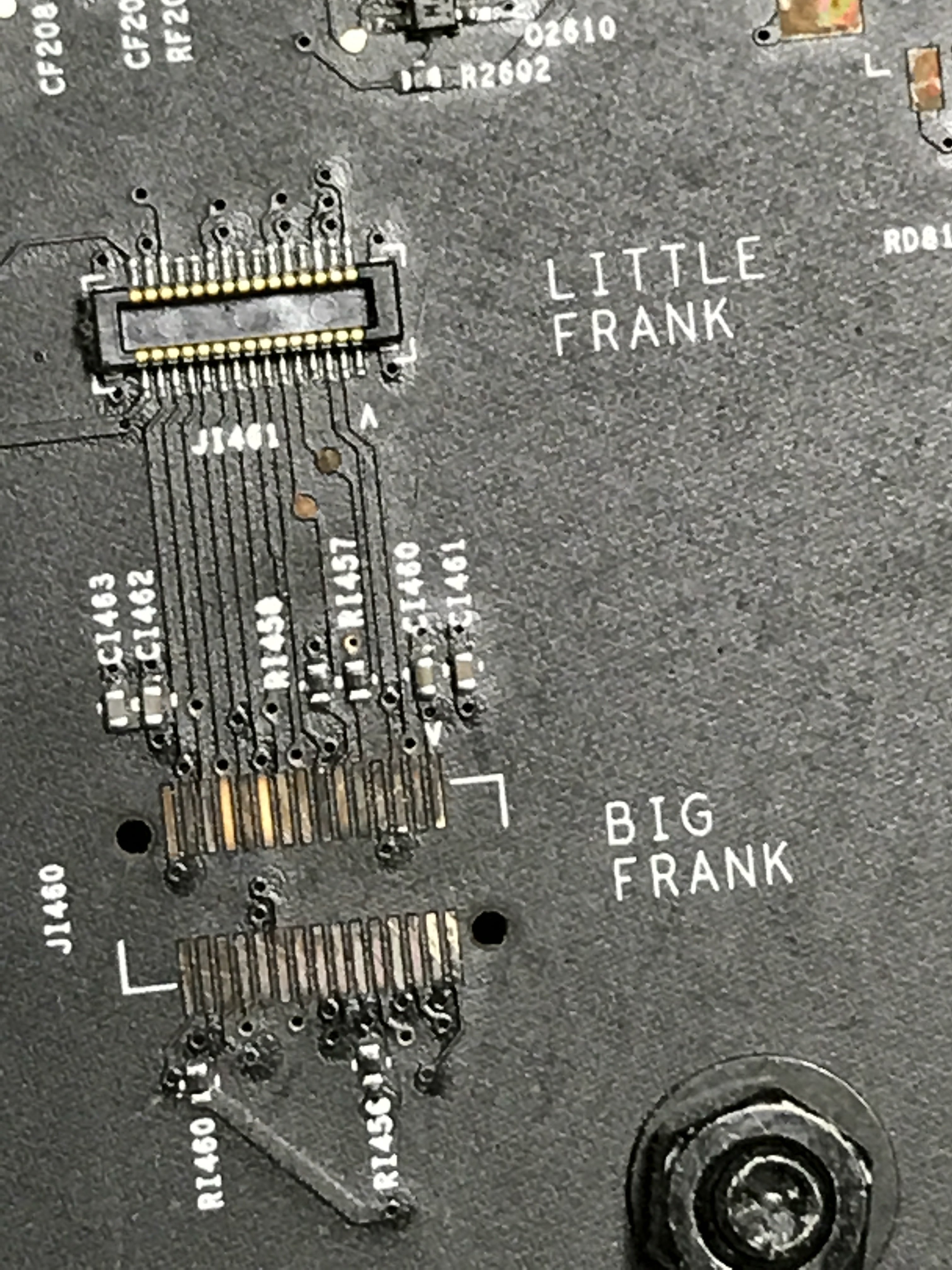

    By the pcie slots. Towards the front of the Mac. its labeled little frank.


  11. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #236
    For info. In the last 2 weeks, I saw two 4,1 logic board on eBay sold at $75 and $78.

  12. zozomester macrumors regular

    zozomester

    Joined:
    Apr 26, 2017
    Location:
    Hungary
  13. erer macrumors member

    Joined:
    Jun 1, 2018
    #238
    what does it mean

  14. crjackson2134 macrumors 68040

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #239
    Please explain what you are trying to communicate here.

    It looks as if you are indicating you managed to revert to earlier firmware. Can you elaborate a little more please?

  15. zozomester macrumors regular

    zozomester

    Joined:
    Apr 26, 2017
    Location:
    Hungary
    #240

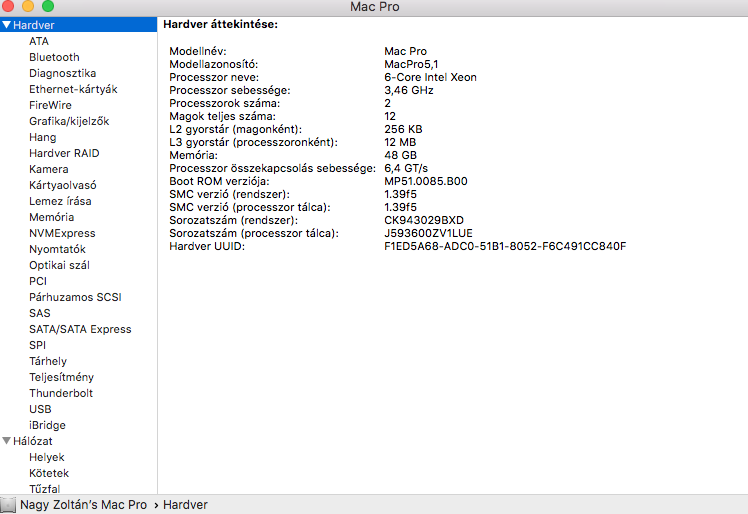

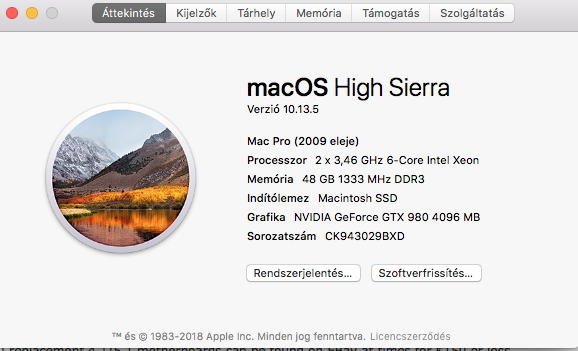

    Yes, i rename MP51_0085_00B.fd to MP51_0087_01B.fd file, and i open 10.13.4 HS installer, and wrote to update the firmware.
    Restart-Power and flash firmware....

  16. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #241
    It's good to know that this trick really work, and actually simpler than I expect. Thanks for the testing and confirmation.

  17. erer macrumors member

    Joined:
    Jun 1, 2018
    #242
    Sorry to ask a detailed question. But can you explain more, my bootrom stıll MP51_0085_00B and I dıd not yet update to 13.5.
    So I wıll update and ı will find the new bootrom than what ?

    Please gıve more detaıl

  18. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #243
    What do you want?

    If you only want the most up to date firmware, run the 10.13.5 full installer, then you will get it.

    If you want to boot from NVMe natively, you should stay at 0085.B00, but not update to any newer version.

  19. erer macrumors member

    Joined:
    Jun 1, 2018
    #244
    I want update to 13.5 and ıf possıble to 10.4 but keep the abılıty to have modified bootrom for NVME and other future possıbılıtıes.

  20. zozomester macrumors regular

    zozomester

    Joined:
    Apr 26, 2017
    Location:
    Hungary
    #245
    No, Do not download the HS installer. Just update.
    you do not want to replace the firmware with updating.

  21. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #246
    Then just let Appstore update your current OS, no need to do anything.

  22. erer macrumors member

    Joined:
    Jun 1, 2018
    #247
    My problem is I was thinking a fresh install to NVME disk 250GB which is smaller than my hard disk so easy cloning I can not do.
    And a day in the future I may need to do a fresh install anyway. So I was trying to understand how did zozomester came back from a newer firmware ?

    I think it was not possible with romtool, than he changed the firmware inside installer <rename the fırmware this still I could not understand sorry for my lack of understanding and exprience

  23. handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #248
    Sounds like you need a 512gb ssd. Running a Mac Pro on a 128gb ssd takes a lot of work and more than one disk for a usable system.

    A 256 Gb ssd fills up fast to a point that effects performance. If your existing system won’t fit on a 256 it’s an indication of what you need.

    The Mac app Grand Perspective is free and can help you trim unnecessary files from your macOS boot disk. It’s my go to tool to get rid of bloat.

  24. bro_ok macrumors newbie

    Joined:
    Feb 21, 2018
  25. handheldgames macrumors 65816

    handheldgames

    Joined:
    Apr 4, 2009
    Location:
    Pacific NW, USA
    #250
    AFAIK... no.

    If anyone has an insight on this, please share.
